Taukealugs Silicone 90° Elbow Coupler 2.5" (63mm) 4-Ply, 102mm Legs with 2 T-Bolt Clamps

Taukealugs 90 Degree Elbow Coupler is a heavy-duty 4-ply silicone hose (2.5"/63mm ID) designed to join turbo, intercooler, or intake piping with reliable heat and pressure resistance.

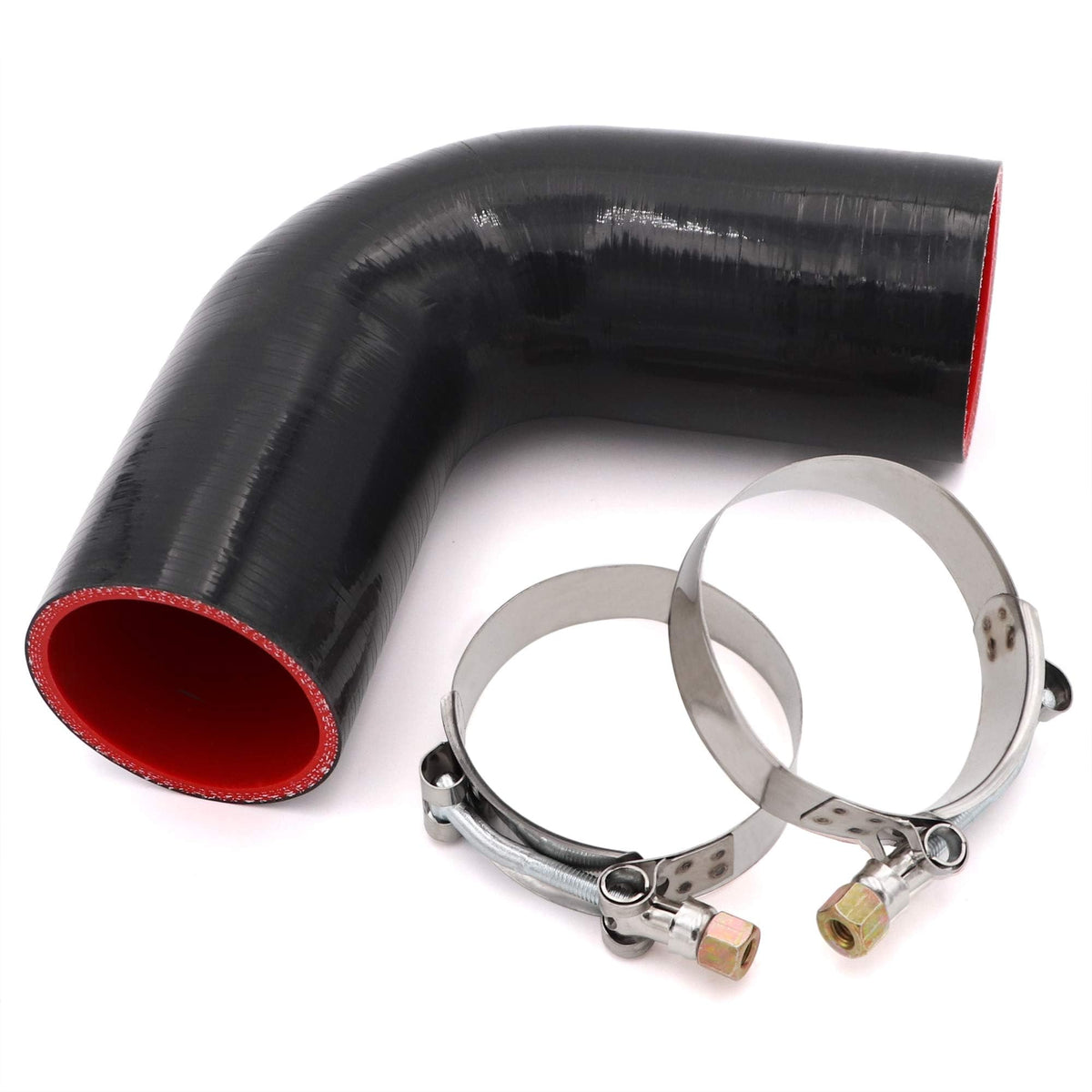

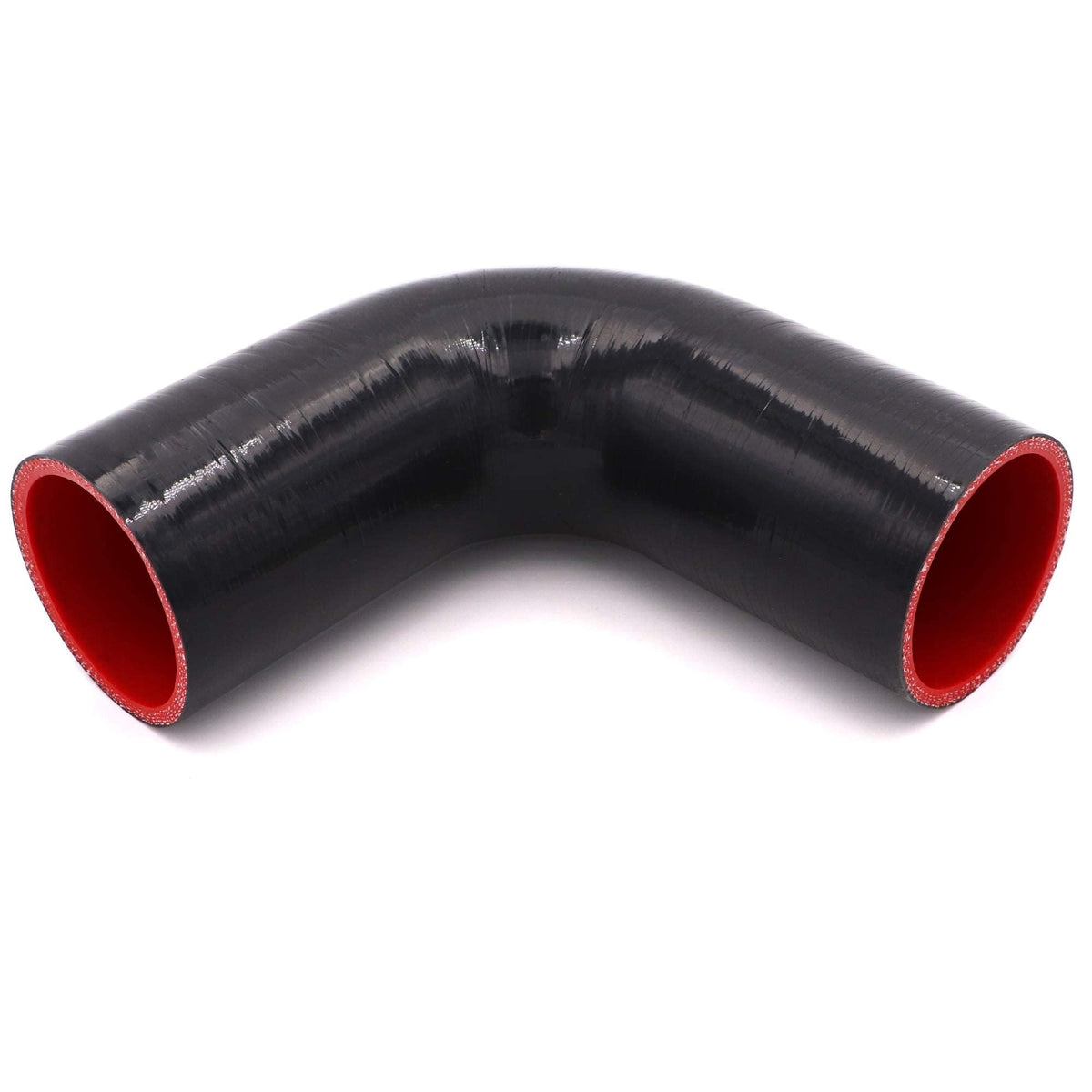

This 90° silicone elbow couples two runs of piping where space, airflow direction, and temperature resilience matter. Built from four reinforcing plies and supplied with two T-bolt clamps, the coupler balances flexibility with structural strength for boosted engines, aftermarket intercooler plumbing, or custom intake builds. Its compact 102 mm leg length and 5 mm wall thickness make it useful where tight bends are required without sacrificing pressure performance.

How does this elbow handle heat and pressure in forced-induction systems?

The 4-ply silicone construction resists high under-bonnet temperatures and holds pressure during boost events. Rated for continuous service from -60°C to 230°C and a bursting pressure around 2 MPa, it stands up to the thermal and mechanical stresses common in turbocharged setups.

• Temperature range: -60°C to 230°C (−140°F to 428°F)
• Bursting pressure: approximately 2 MPa for secure boost containment

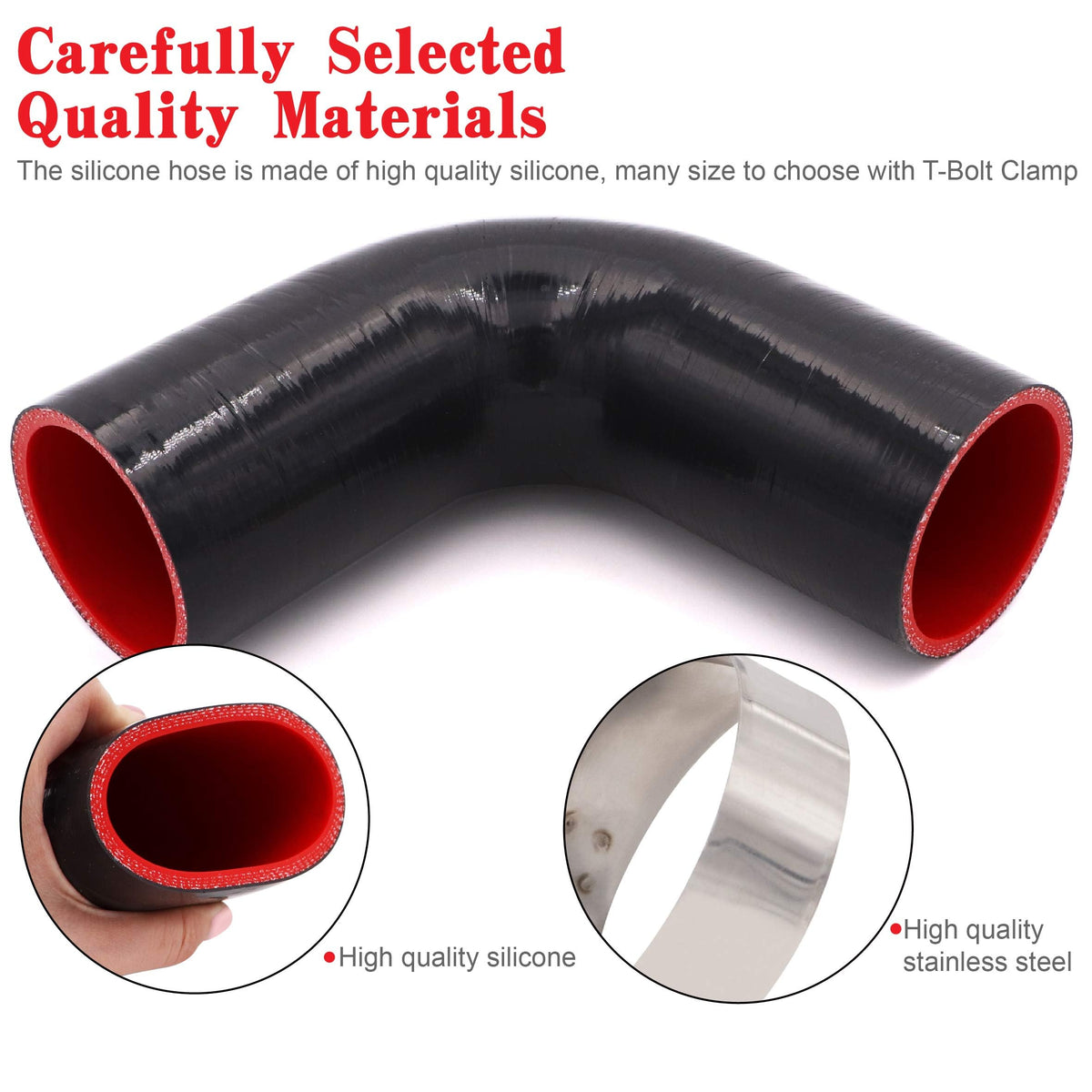

• Four reinforcement plies improve fatigue and pressure endurance
• 5 mm wall thickness reduces collapse or ballooning under boost

Will this fit my 2.5-inch turbo, intercooler, or intake piping?

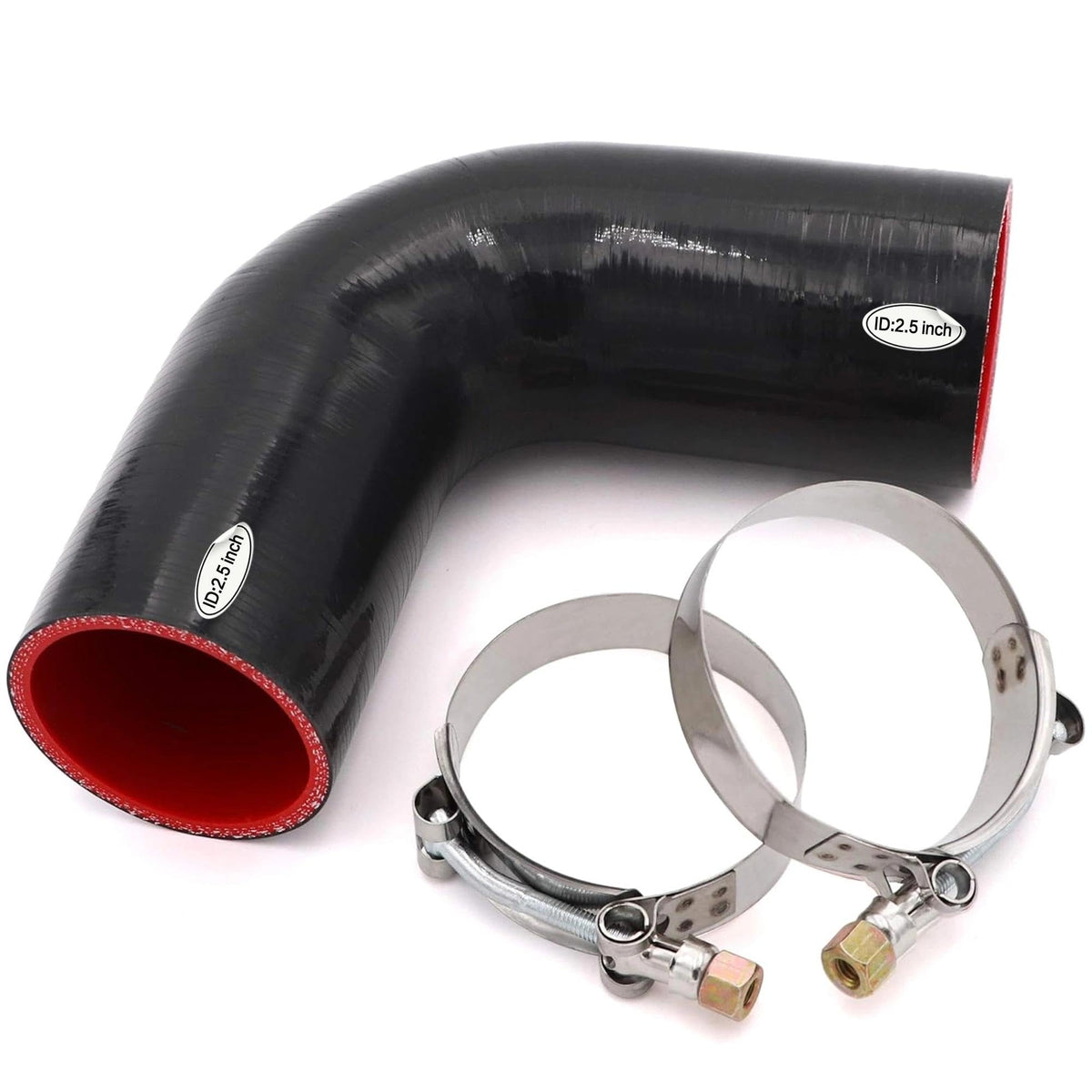

The inner diameter measures 2.5 inches (63 mm), a common size for many aftermarket turbo and intercooler systems. With a 102 mm leg length on the 90° bend, it pairs well with short-run connections and can be trimmed or used with adapter couplers when minor adjustments are needed.

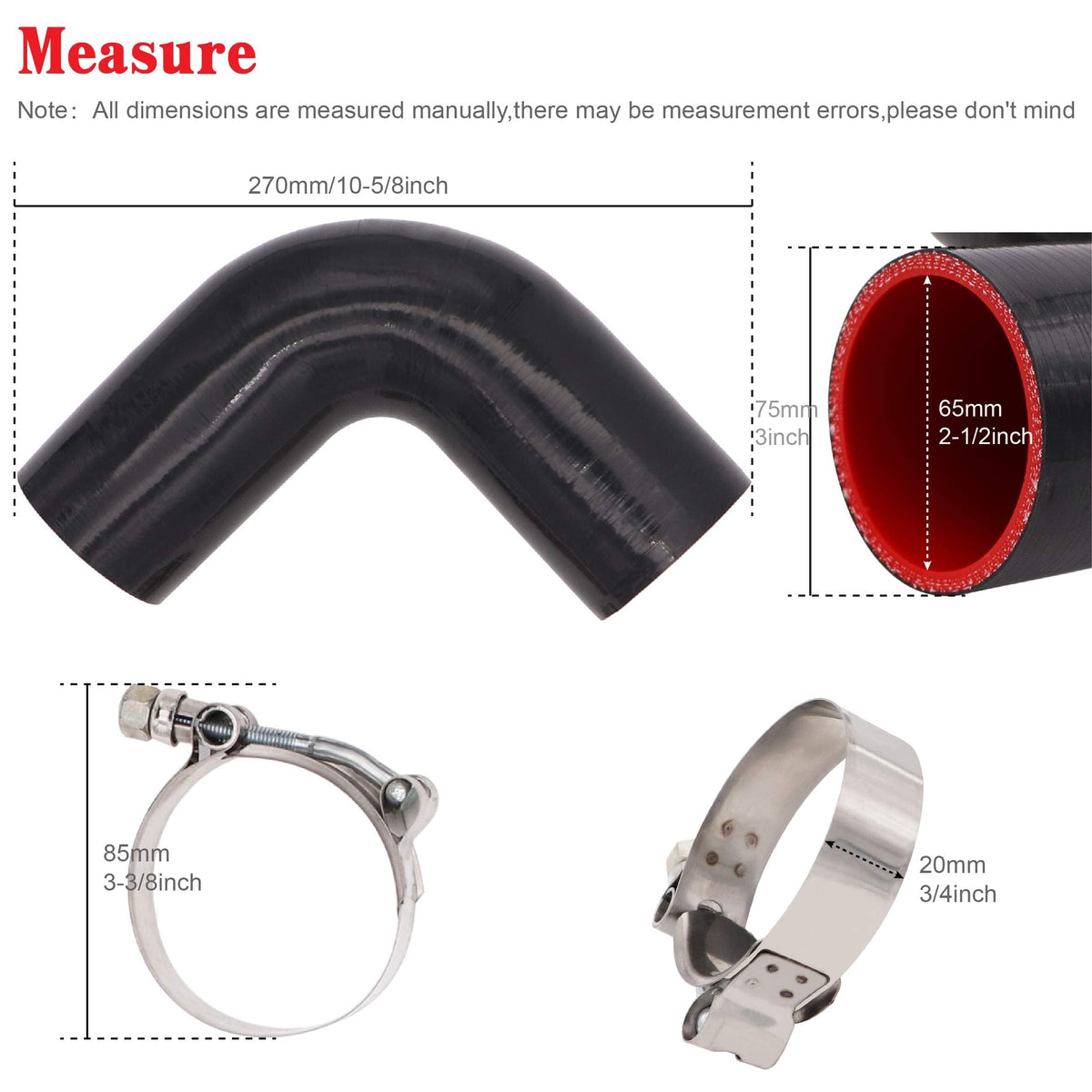

• Inner diameter: 2.5" (63 mm) to match standard piping
• Leg length: 102 mm on the elbow to accommodate tight installations
• Universal design suits turbo, intercooler, and intake applications
• Includes two T-bolt clamps for a secure, leak-resistant seal

How does the included hardware ensure a secure connection?

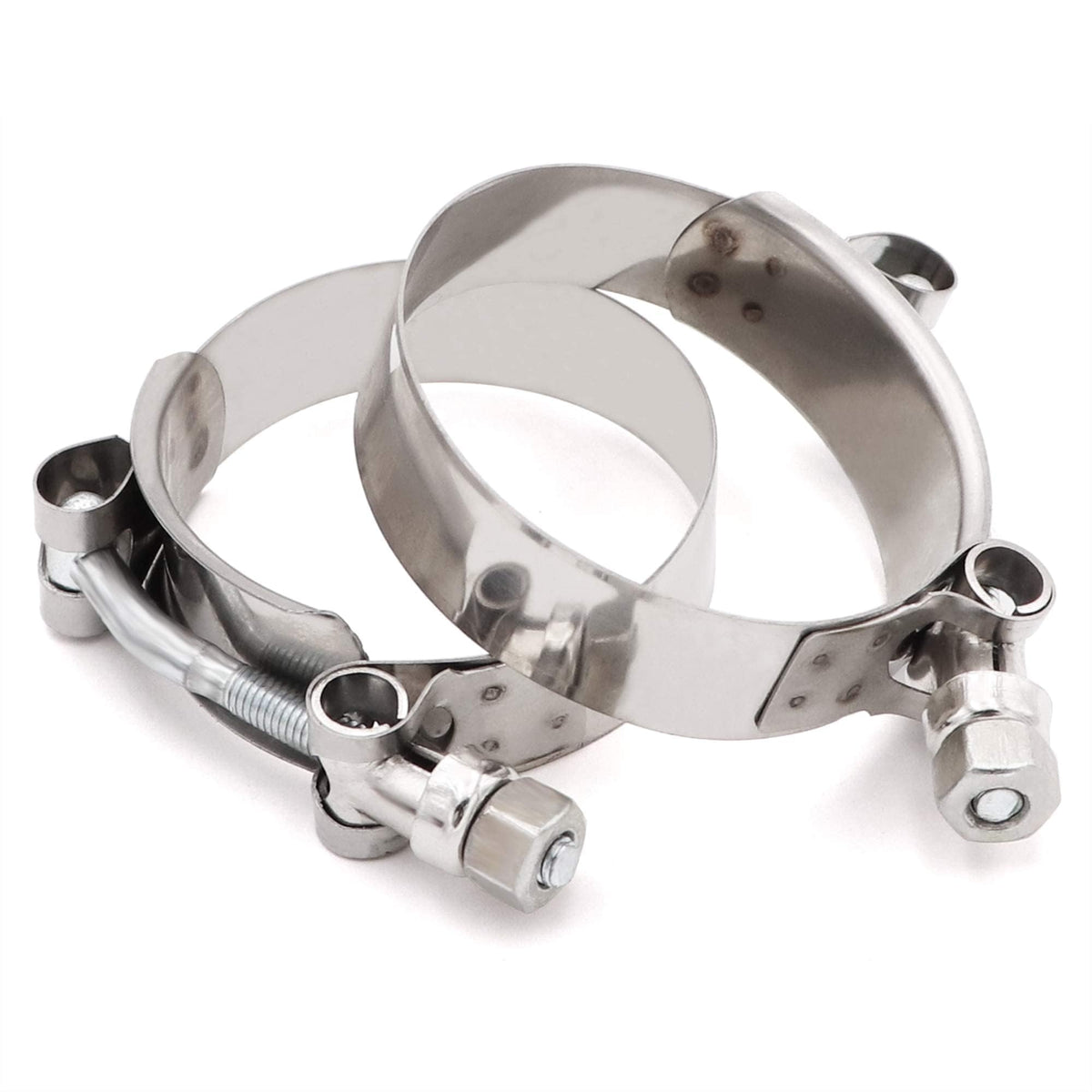

Two stamped T-bolt clamps are supplied to clamp the silicone firmly to metal piping and adapters. T-bolt clamps distribute clamping force uniformly around the circumference, reducing the chance of uneven compression or leaks at high boost pressures.

• Two heavy-duty T-bolt clamps included for both ends
• Wide-band design prevents silicone pinching and improves seal
• Stainless or plated finish resists corrosion from road exposure
• Torque to specification for consistent, leak-free joints

Can this elbow be used in custom or modified vehicle builds?

Yes — the flexible yet reinforced construction makes it suitable for custom piping runs, retrofit intercoolers, and adapted intake layouts. It can be trimmed or paired with pipe adapters, and its robust temperature/pressure ratings make it practical for performance and daily-driven projects alike.

• Trimable length for custom installations
• Works with common pipe materials: aluminum, stainless, and mild steel
• Good for both performance and replacement applications
• 4-ply reinforcement keeps shape under load and heat cycles

Who is this for: installers, tuners, and DIY enthusiasts who need a compact, durable 90° connection for 2.5-inch turbo, intercooler, or intake systems. If you require a heat-resistant elbow that holds boost and simplifies tight routing, the Taukealugs 4-ply silicone elbow with T-bolt clamps provides a practical, high-performance solution for aftermarket and custom plumbing projects.
