TCHENPART Valve Spring Compressor for GM LS Engines, Spark-Plug-Hole Tool + Air Hold Hose (4.8–6.2L)

The TCHENPART Upgrade 67605 is a valve spring compressor and cylinder air-hold hose kit built to remove and compress valve springs on Chevrolet and GM LS-series V8 engines while the heads remain installed.

If you work on LS1, LS2, LS3, LS6 or other small-block GM engines, this tool combines a threaded spark-plug-hole compressor with an air valve-holding hose so you can pressurize a combustion chamber, keep the valve seated, and change springs or seals without pulling the head. It’s made to speed up service, reduce parts removal, and let you diagnose leaking valves during compression tests.

Which engines and vehicles is this tool compatible with?

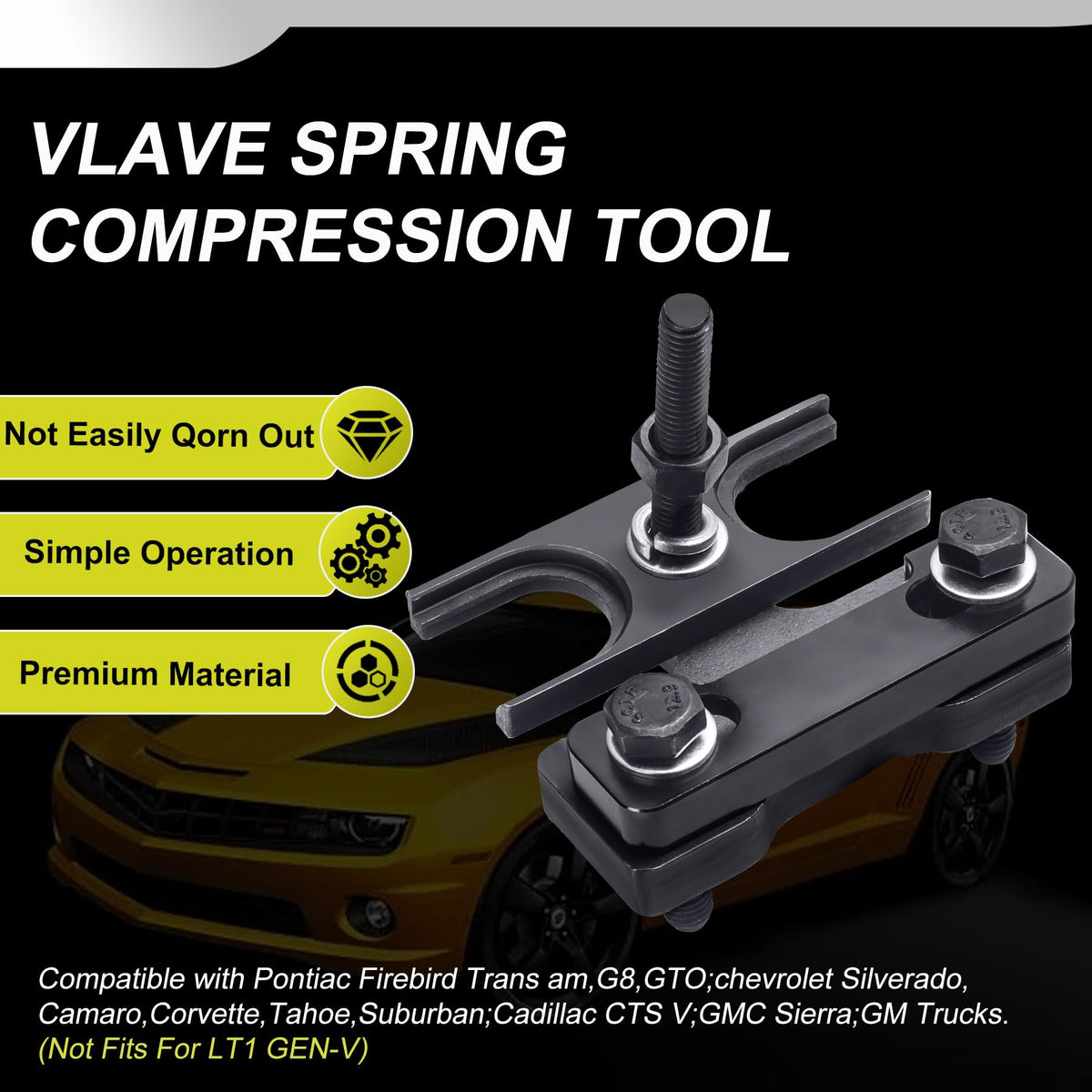

This compressor is designed for GM small-block LS family engines: 4.8L, 5.3L, 5.7L, 6.0L and 6.2L, including LS1, LS2, LS3, LS6 and LSX variations. It fits into the spark plug hole and works with many Chevrolet, GMC and Pontiac models, but it does not fit LT1 Gen V engines.

• Compatible: Chevy Silverado, Camaro, Corvette, Tahoe, Suburban, GMC Sierra
• Compatible: Pontiac Firebird, Trans Am, G8, GTO; Cadillac CTS-V
• Not compatible: LT1 GEN-V engines—verify engine family before purchase

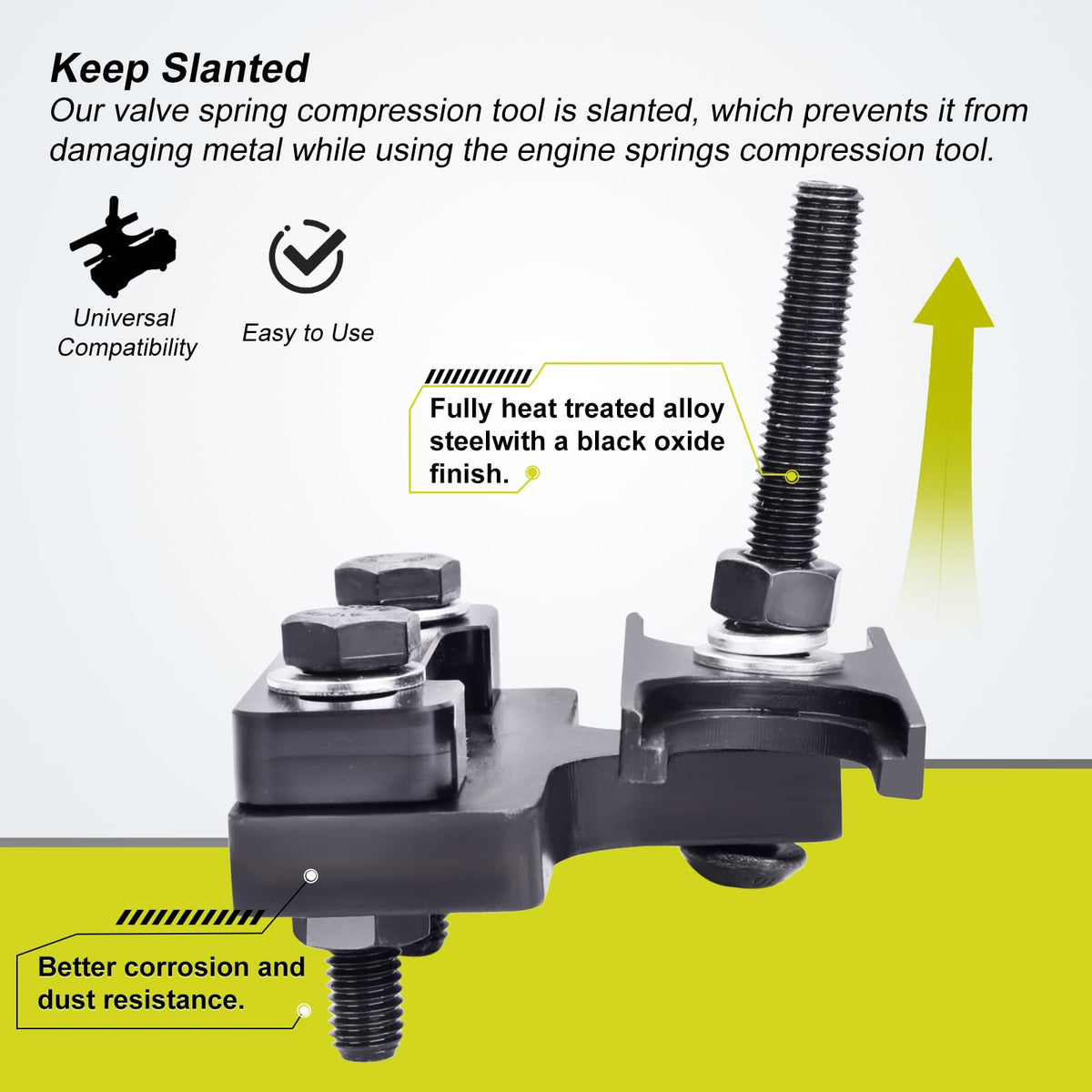

• Threaded design fits standard LS spark plug ports for direct access

How does the air valve holding hose help during valve service?

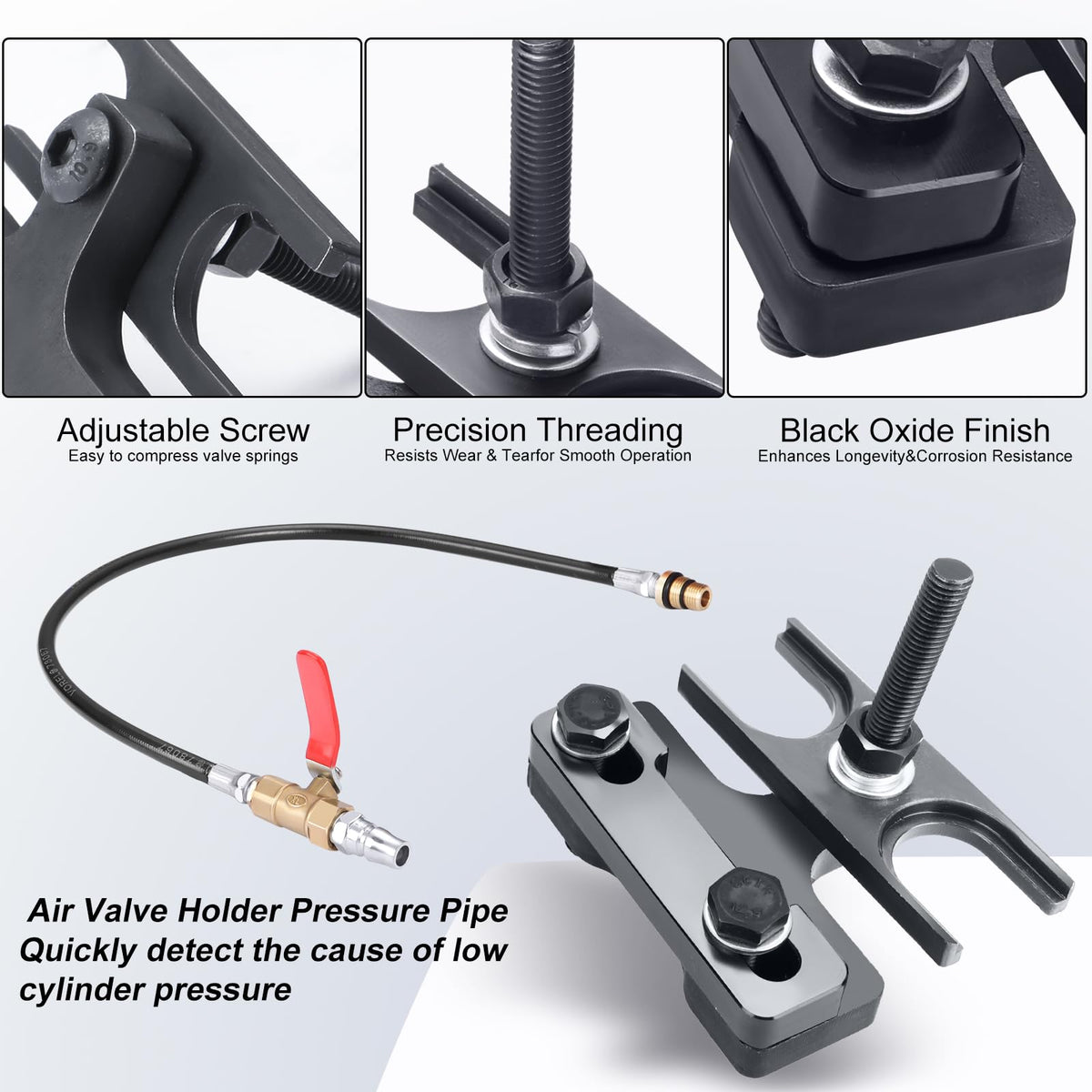

The included air valve-holding hose lets you pressurize the cylinder so the intake or exhaust valve stays seated while you compress and remove the spring. That pressure prevents the valve from dropping into the bore and gives you a safer, more controlled procedure than relying on magnets or manual helpers.

• Use compressed air through the spark plug hole to hold the valve closed
• Enables valve spring removal while heads remain on the engine for faster service
• Helpful for diagnosing leaks by listening for escaping air during pressurization
• Reduces risk of valve loss into the cylinder when done properly

What’s the correct way to use this valve spring compressor safely?

Set the cylinder at top dead center (TDC) for the piston on the compression stroke, thread the tool into the spark plug hole, and apply steady compressed air to hold the valve seated. Compress the spring with the tool, change the retainer or seal, and release slowly while maintaining air pressure to avoid valve drops. Always wear eye protection and follow standard shop safety practices.

• Place piston at TDC on the compression stroke before pressurizing
• Thread tool into spark plug hole and attach a regulated compressed air source
• Keep cylinder pressurized while removing and installing springs or seals

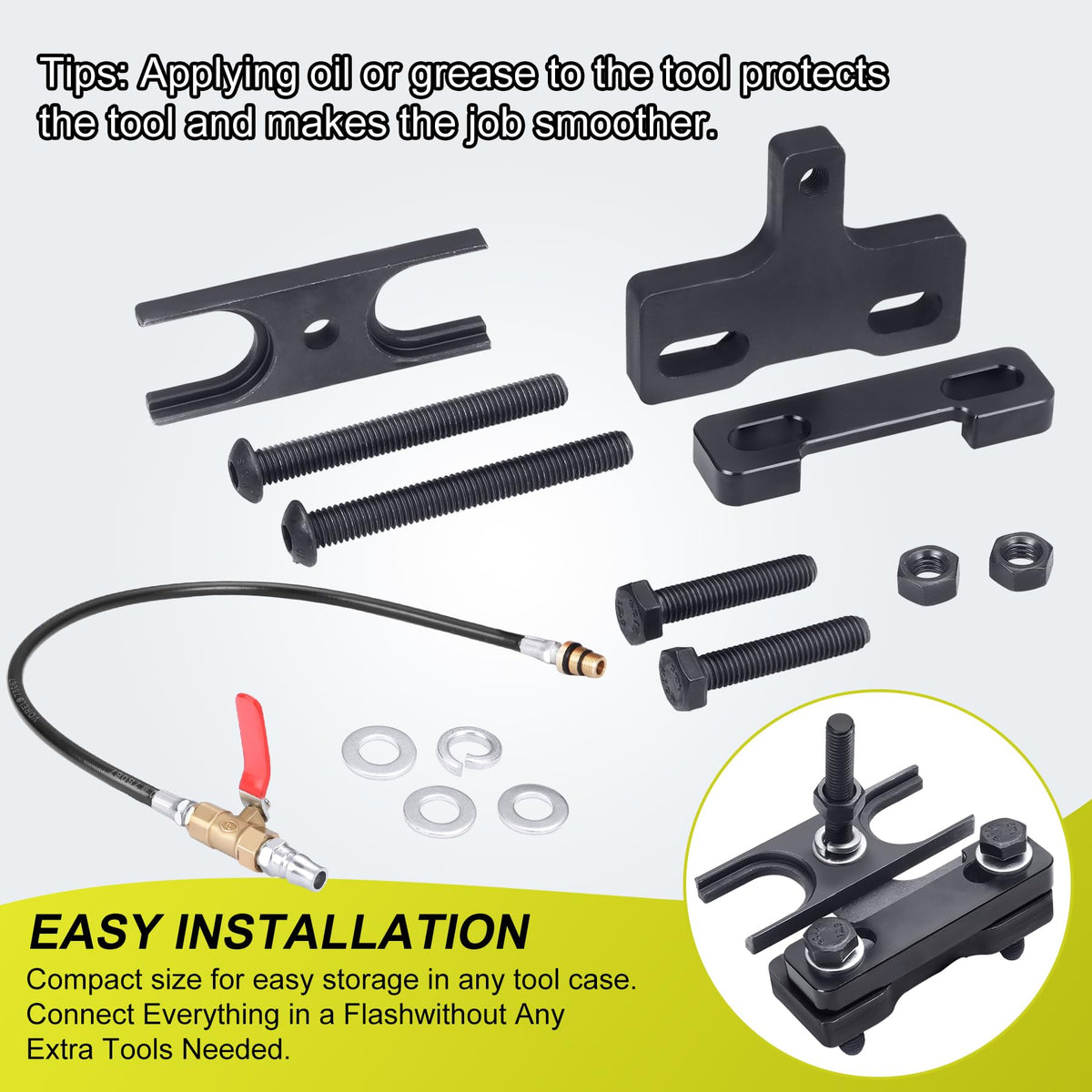

• Use oil or grease on tool threads for smoother operation and tool protection

What parts and support come with the tool, and what should I expect?

The kit includes the threaded compressor and an air hose/adapter designed for spark plug ports. It’s built to compress and remove valve springs quickly without head removal and also helps locate compression leaks. TCHENPART provides technical support and a replacement or refund policy if you’re not satisfied.

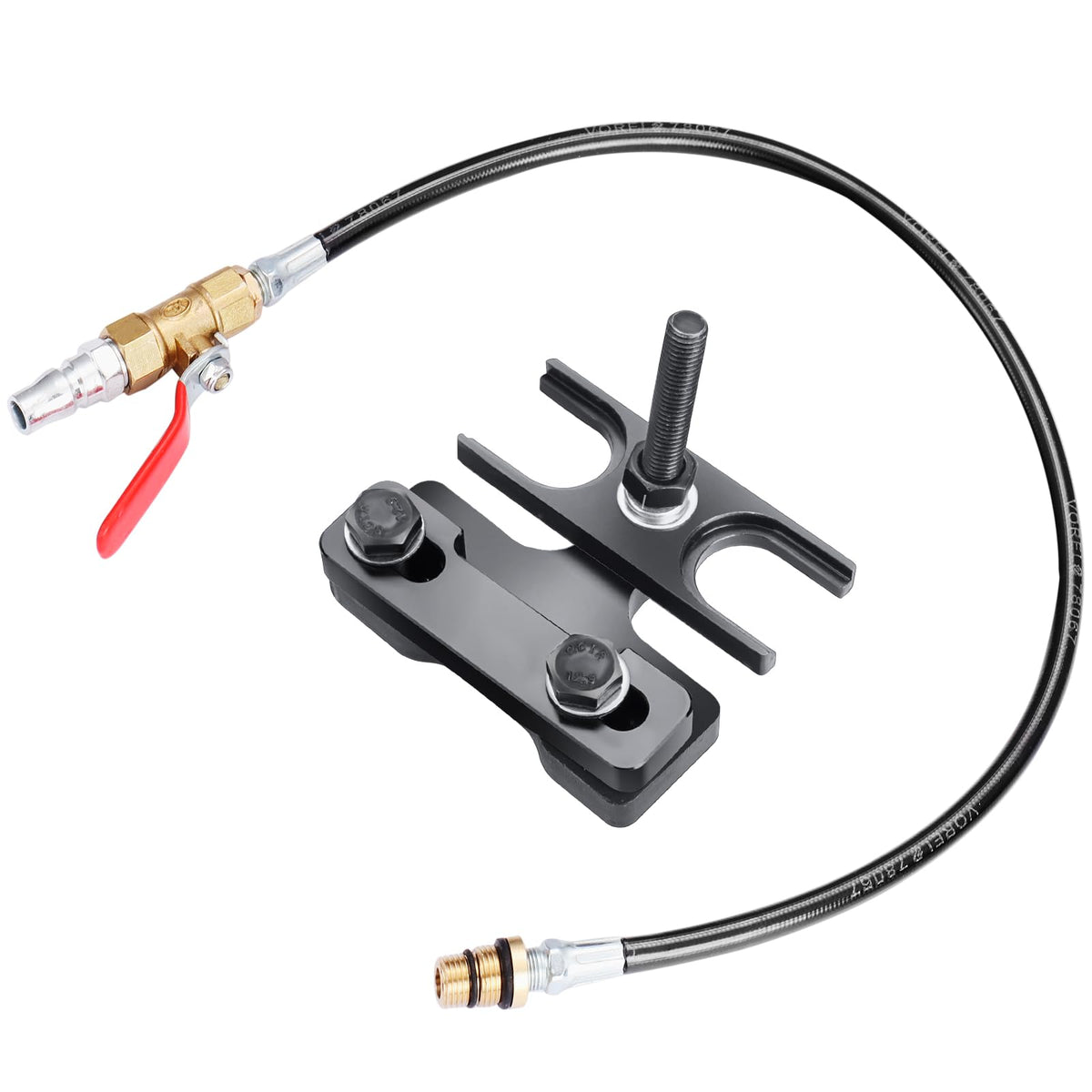

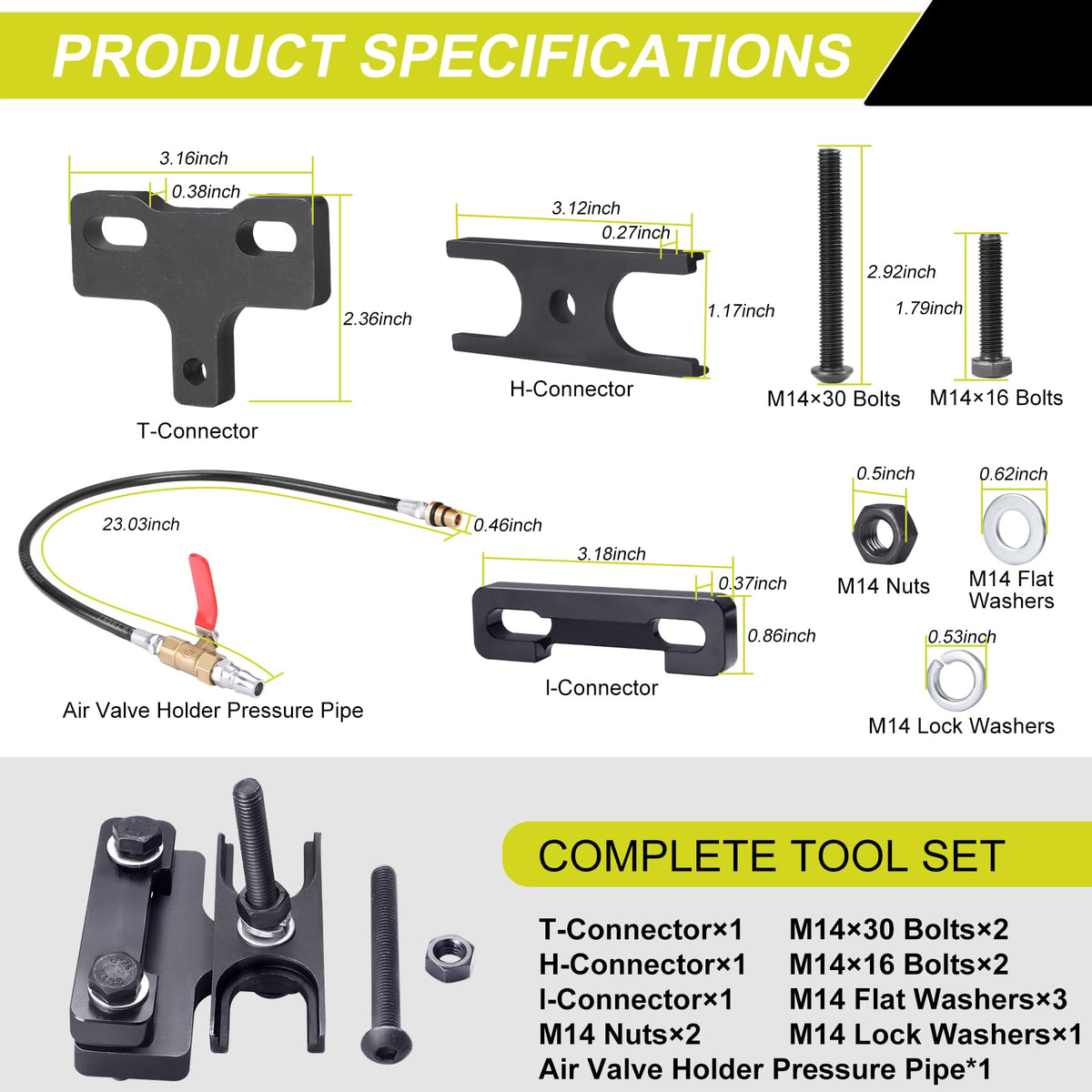

• Kit: threaded compressor and air valve-holding hose with adapters
• Pays off in shop time saved by avoiding cylinder head removal
• Useful for both spring changes and valve stem seal replacement jobs
• Customer support and unconditional replacement/refund from TCHENPART

Who is this for: Professional mechanics, experienced DIYers and performance enthusiasts who service GM LS-series V8 engines and want a faster, safer way to change valve springs or stem seals without removing cylinder heads. If you routinely work on Chevy, GMC or Pontiac LS-family vehicles and need a purpose-built compressor plus an air-hold solution, this kit is aimed at saving time and reducing complication in valve service tasks.
