telfair TV Cable Corrector Kit for Edelbrock & Carter Carburetors — Pivot Plate & Hardware for 700R4/4L60/AOD Fitment

A precision TV cable corrector plate and hardware kit designed to restore correct pivot geometry for Edelbrock- and Carter-style carburetors, ensuring accurate transmission line rise and shift timing.

When retrofitting or repairing a throttle-vacuum (TV) cable linkage on Edelbrock or Carter carburetors, pivot geometry is critical to achieve correct transmission pressures and shift points. The telfair TV Cable Corrector Kit repositions the TV cable pivot so the cable travel matches OE specifications for a range of automatic transmissions, eliminating guesswork and high-cost adapters.

How does this kit fix TV cable travel on modified carburetors?

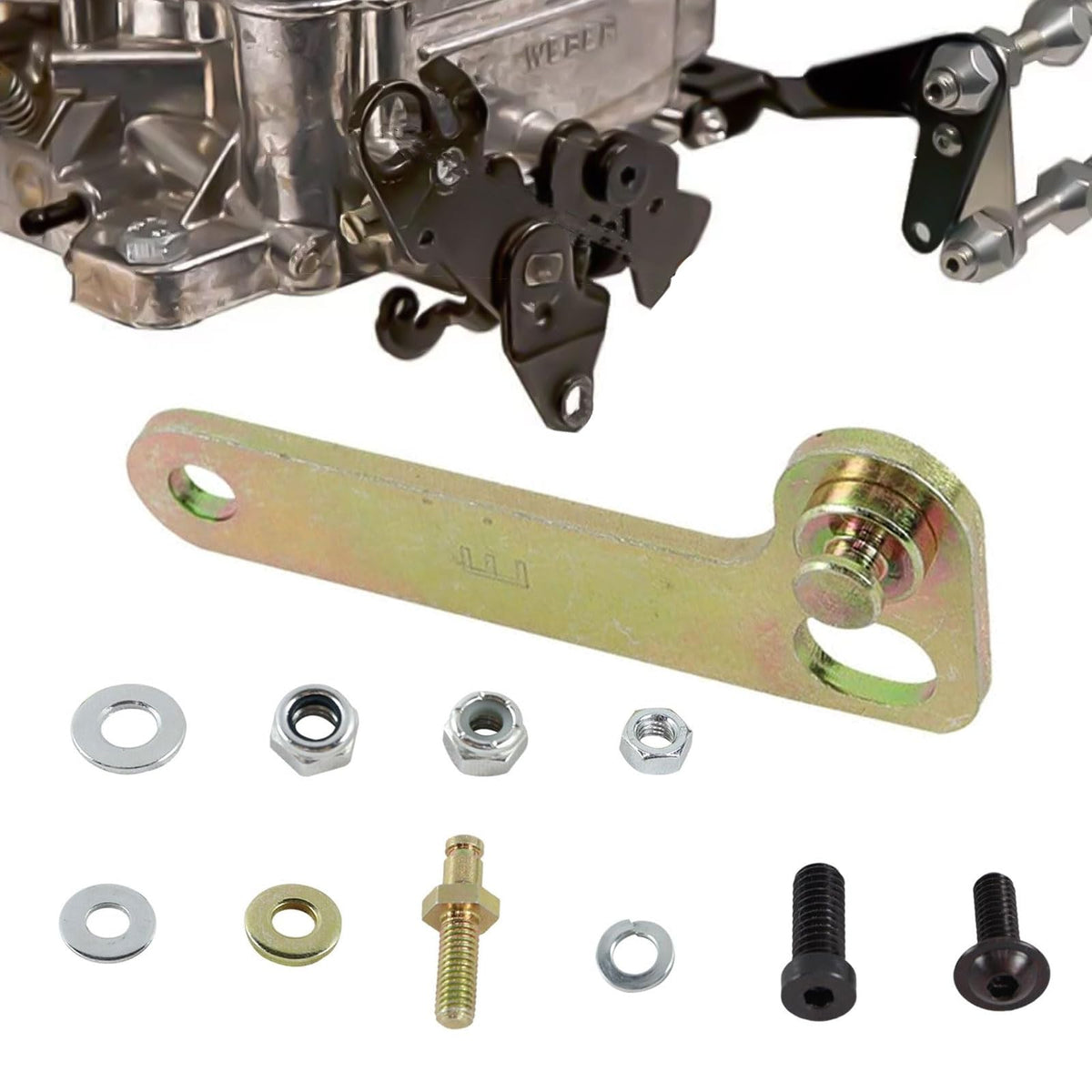

The kit re-establishes the proper pivot location for the TV cable where Edelbrock-style linkage otherwise places it out of spec. By repositioning the cable end and stabilizing the mounting point, the kit allows precise adjustment of TV cable travel without modifying the transmission or carburetor body.

• Includes a stamped corrector plate to set the pivot geometry accurately
• Supplies throttle cable stud, lock washer, bolts, nuts and washers for secure installation
• Reduces the need for custom brackets or expensive adapter systems

Which transmissions and carburetors are compatible with this kit?

This kit is intended for Edelbrock and Carter carburetors only and is compatible with several non-electronic GM and Ford transmissions. It works out of the box for many GM 700R4/4L60 and Ford AOD-equipped vehicles, and can be adapted for older GM TH200/TH200C/200-4R applications.

• Compatible: GM TH200, TH200C, 200-4R (including 700R4/4L60) and Ford AOD
• Not compatible: electronic 4L60E transmissions
• Not for use with non-Edelbrock/Carter linkage styles

What components are in the kit and what do they do?

The kit bundles the hardware needed to relocate and secure the TV cable pivot point, so you don’t need additional parts for a correct installation. Every piece contributes to a stable, repeatable geometry that preserves intended transmission behavior once the TV cable is adjusted.

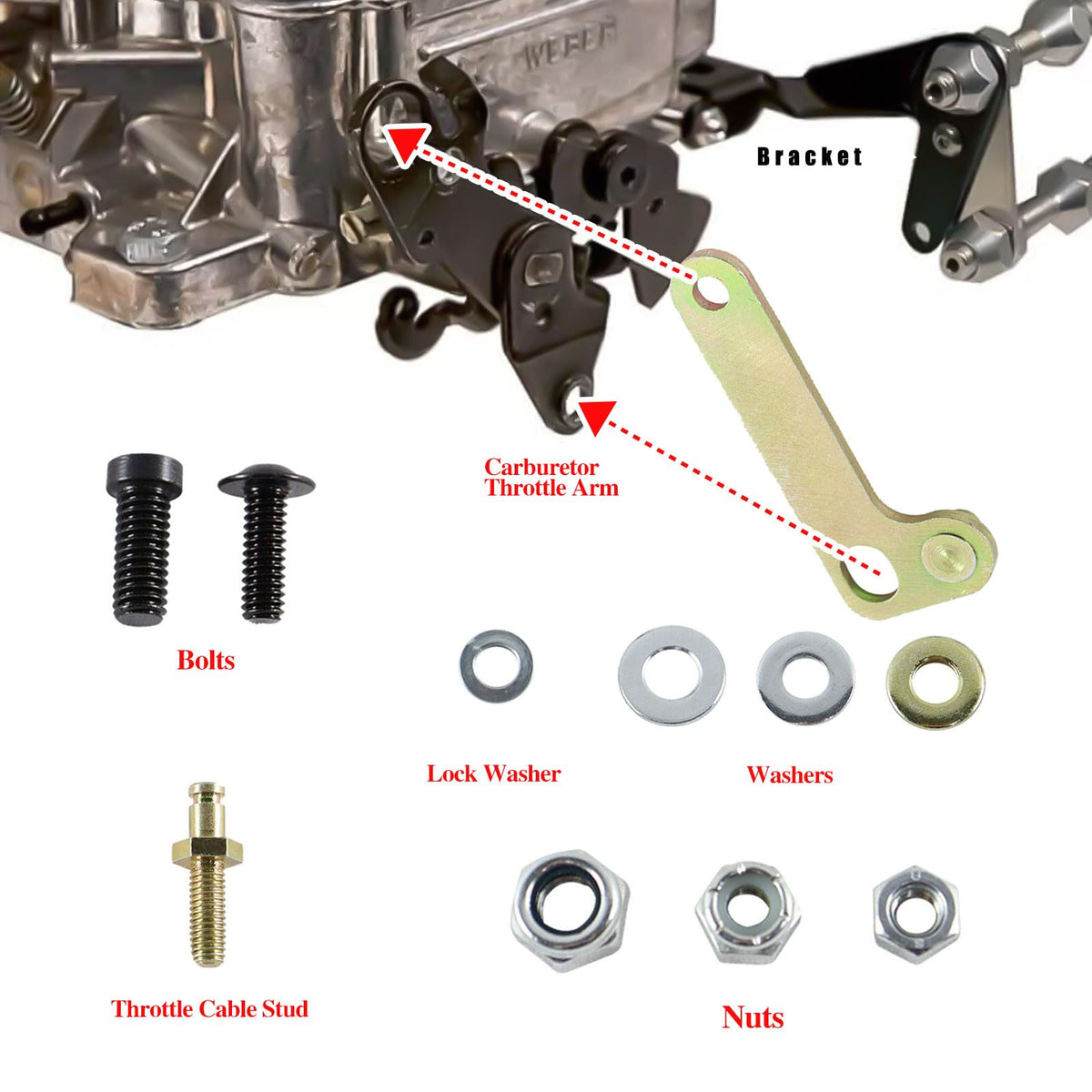

• TV corrector plate — positions pivot to OE-style geometry

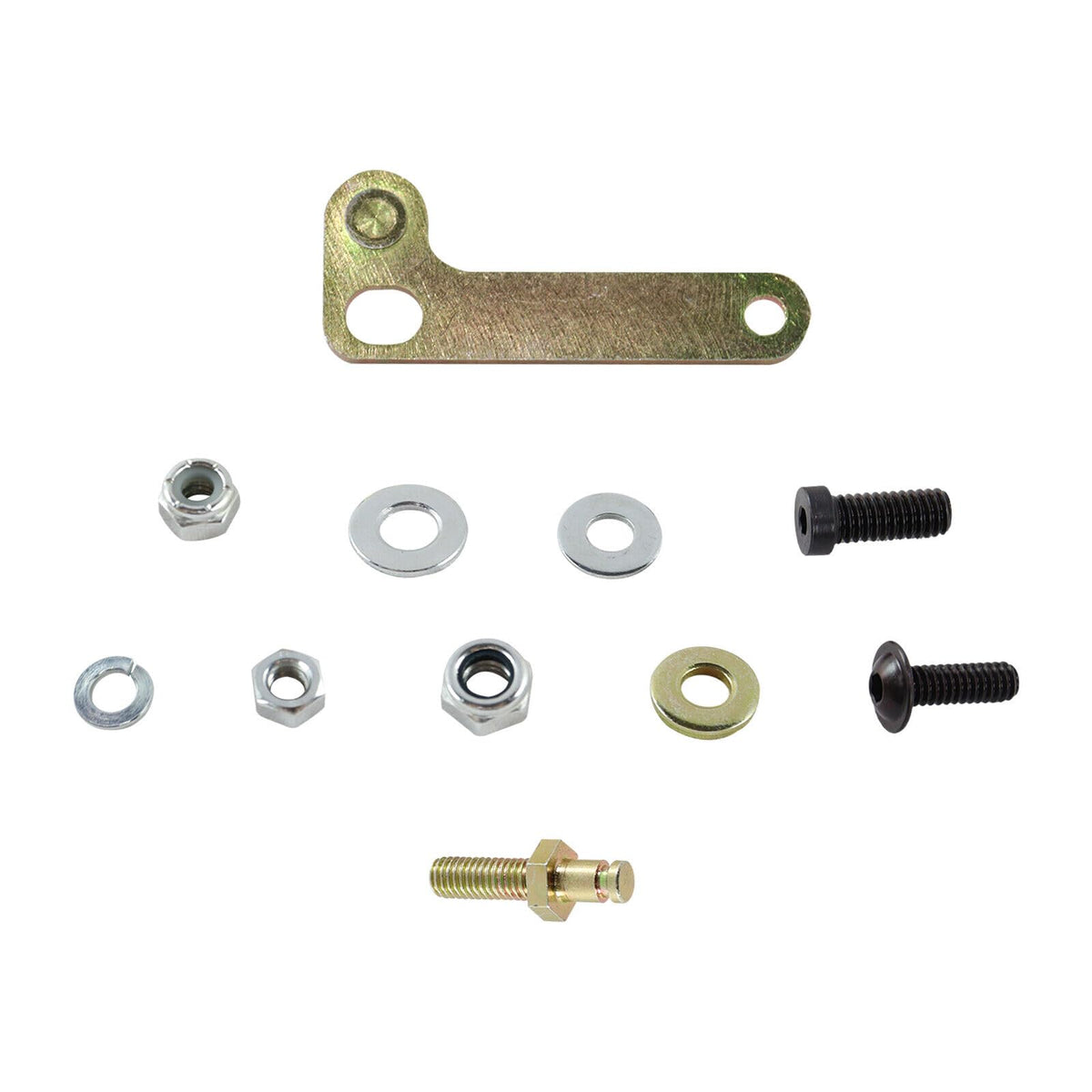

• Throttle cable stud and lock washer — anchors the cable end reliably

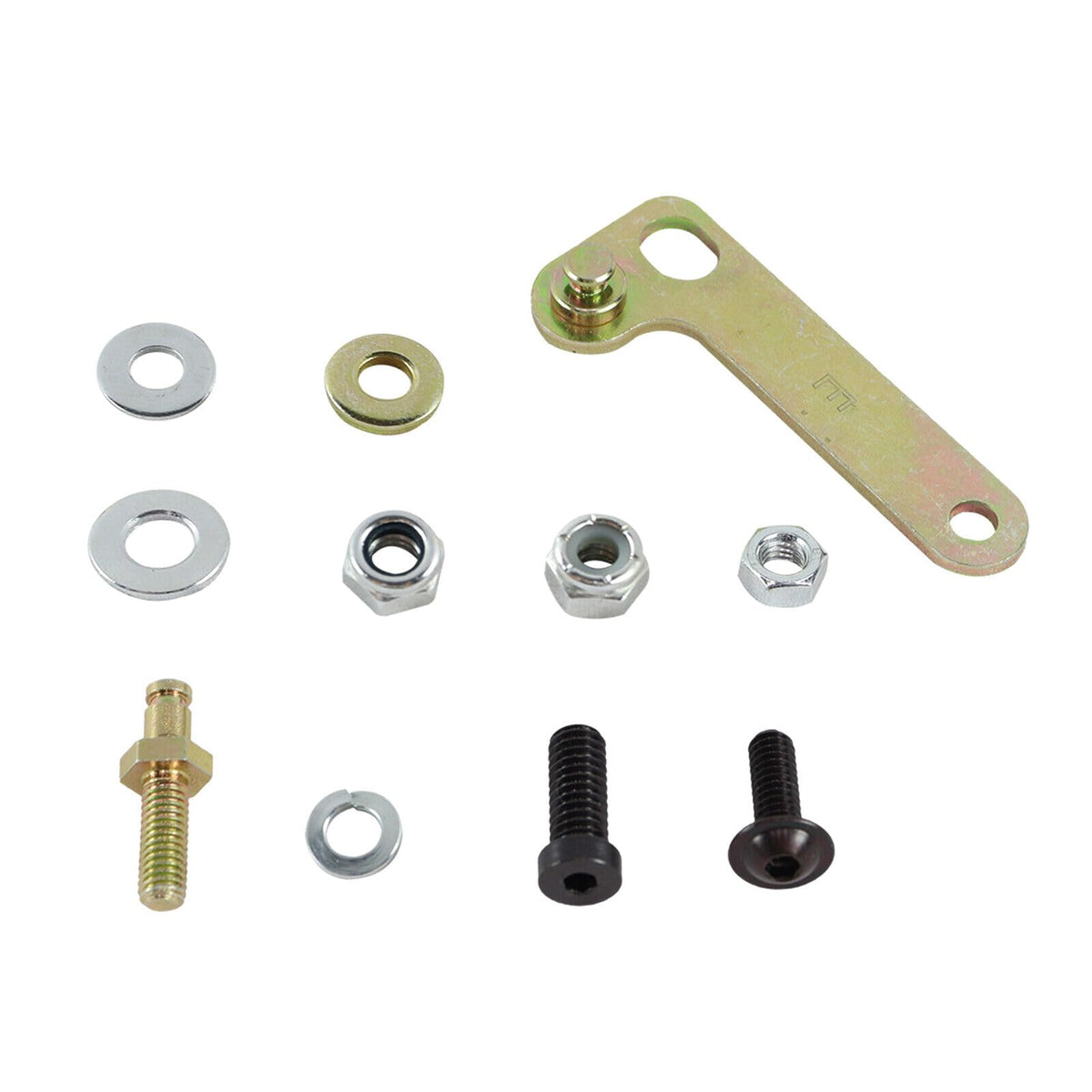

• Bolts, nuts and washers — provide proper clamping and vibration resistance

Will spacers, intake manifolds or bracket location still affect TV cable setup?

Yes — while the corrector plate sets the pivot location accurately, other changes to the intake or bracket placement will alter TV cable geometry. Use the kit as the baseline solution, then verify cable travel and transmission line rise after any spacer or manifold change.

• Verify cable travel after installing spacers or different intake manifolds
• Check and, if necessary, reposition TV cable bracket location for final adjustment
• Perform a transmission line rise or shift timing check after installation

Who this is for: mechanics, restorers and hot-rodders working with Edelbrock or Carter carburetors who need a straightforward, OEM-style solution to correct TV cable pivot geometry. If you are fitting a TV cable to a GM 700R4/4L60, TH200/TH200C/200-4R or a Ford AOD and want to avoid custom fabrication or expensive adapters, this kit provides the hardware to get a precise, repeatable setup. Avoid using this kit on 4L60E-equipped vehicles or non-Edelbrock/Carter linkage styles; in those cases consult a transmission or carburetor specialist for the appropriate adapter.

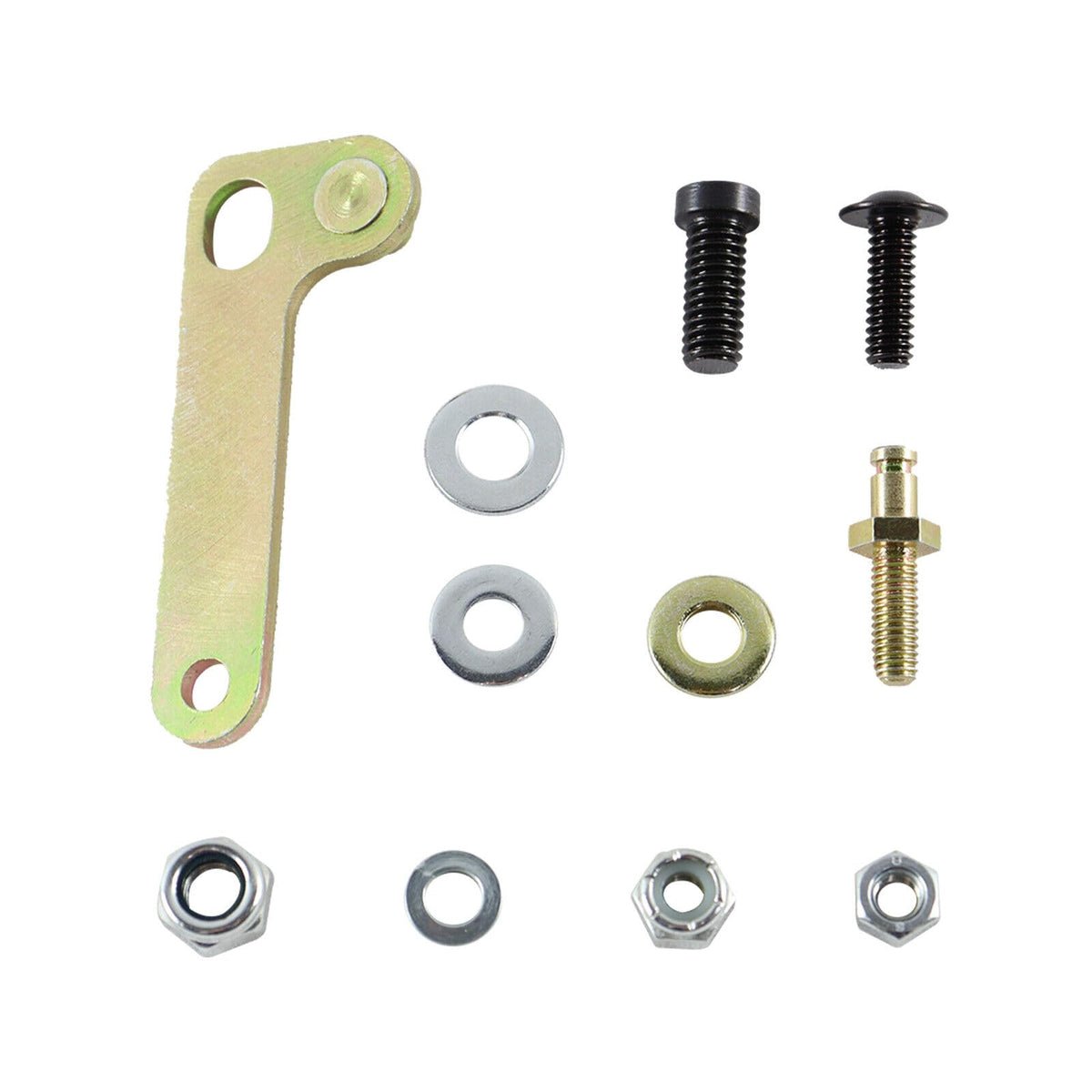

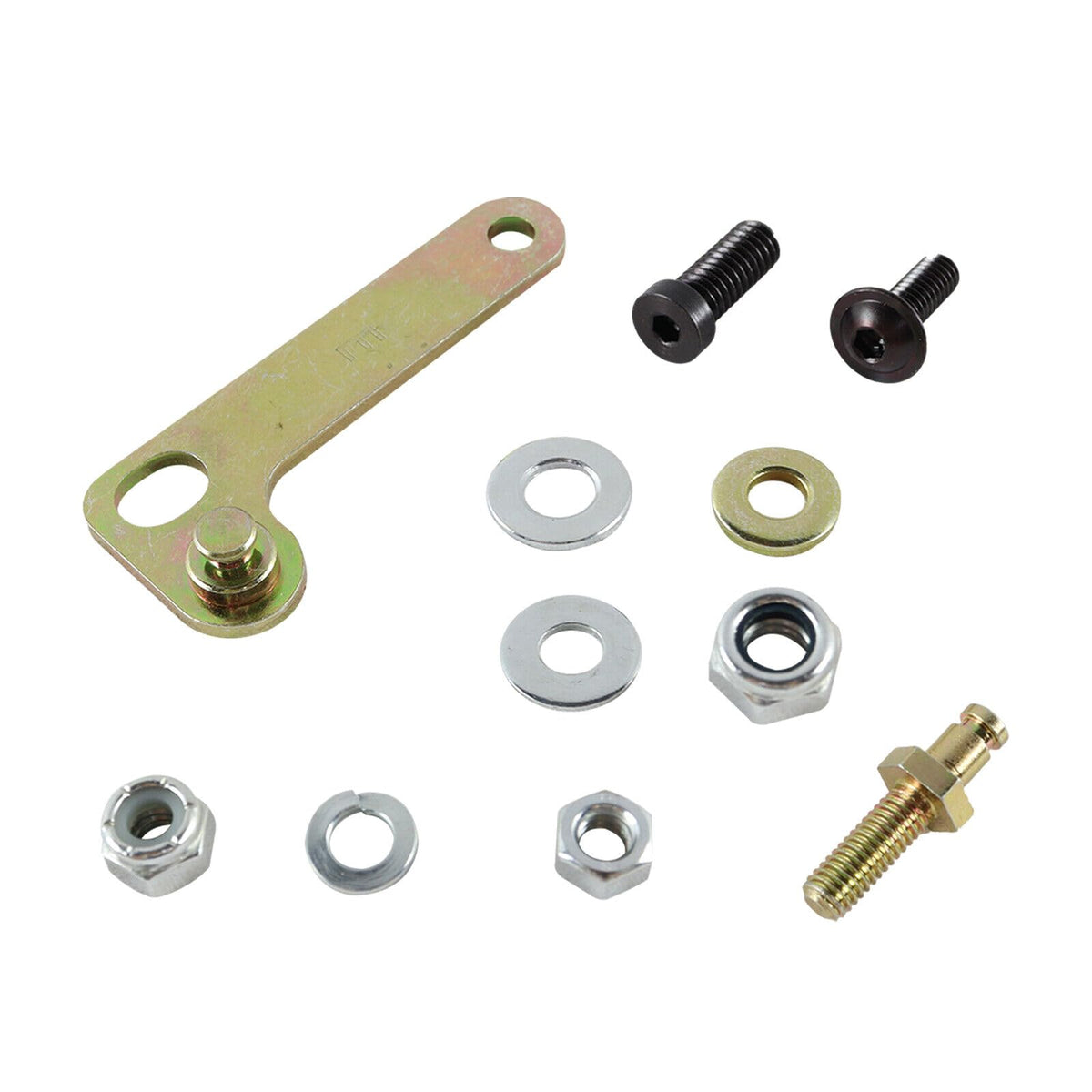

• Package contents: 1 x TV Corrector Plate, 1 x Throttle Cable Stud, 1 x Lock Washer, 2 x Bolts, 3 x Nuts, 3 x Washers
• Part numbers referenced: S74451G, AS3-03K, AS5-05K, 74451G, 200R4, 200C
• Intended outcome: precise TV cable travel, improved transmission shift timing consistency, and elimination of costly adapter systems
