THIKPO Fuel Injector Tester and Cleaner Kit, 8‑Mode Dual‑Output with 4 Adapters, 12V/5V Pulse

THIKPO Fuel Injector Tester and Cleaner Tool Kit is a portable 12V diagnostic and cleaning system that tests injector pulse patterns and cleans most petrol vehicle electronic injectors using eight selectable pulse modes and four adapter sizes.

This compact, workshop-ready kit combines an 8-mode pulse generator, dual output channels for testing two injectors at once, and a set of universal cleaning adapters to diagnose and restore injector performance on gasoline engines. It’s designed for DIY mechanics, home garages, and professional technicians who need a fast, low-cost way to locate clogged, leaking, or electrically faulty injectors and to perform off-engine cleaning with a fuel pressure gauge and cleaning solvent (sold separately).

How does the THIKPO kit diagnose injector problems?

The tester simulates engine driving signals to reproduce injector opening and closing patterns, revealing issues like blockage, electrical failure, or poor spray. By switching among pulse lengths and voltage levels you can compare expected injector response versus actual behavior.

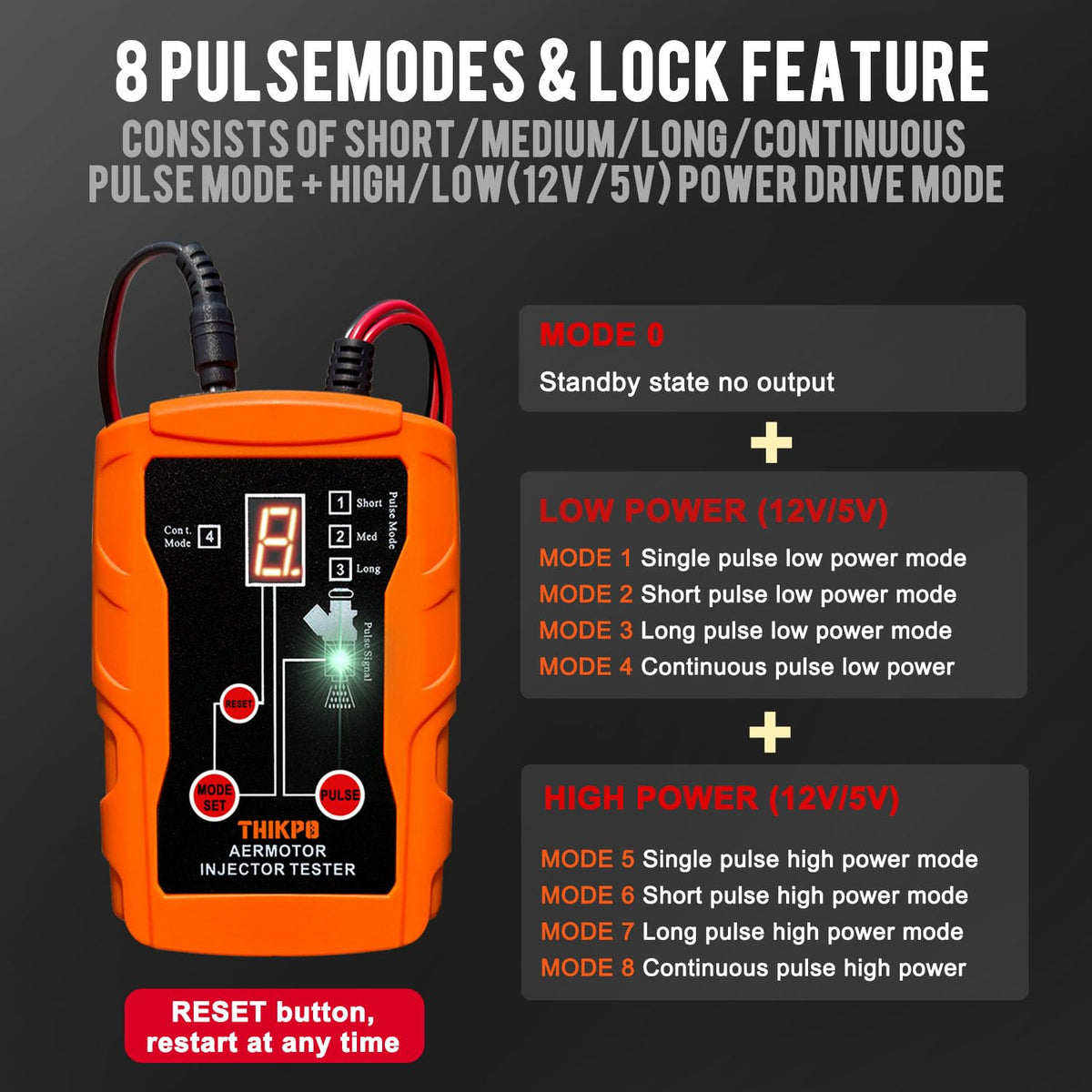

• Eight pulse modes: Short, Medium, Long, Continuous, with High (12V) and Low (5V) drive options.

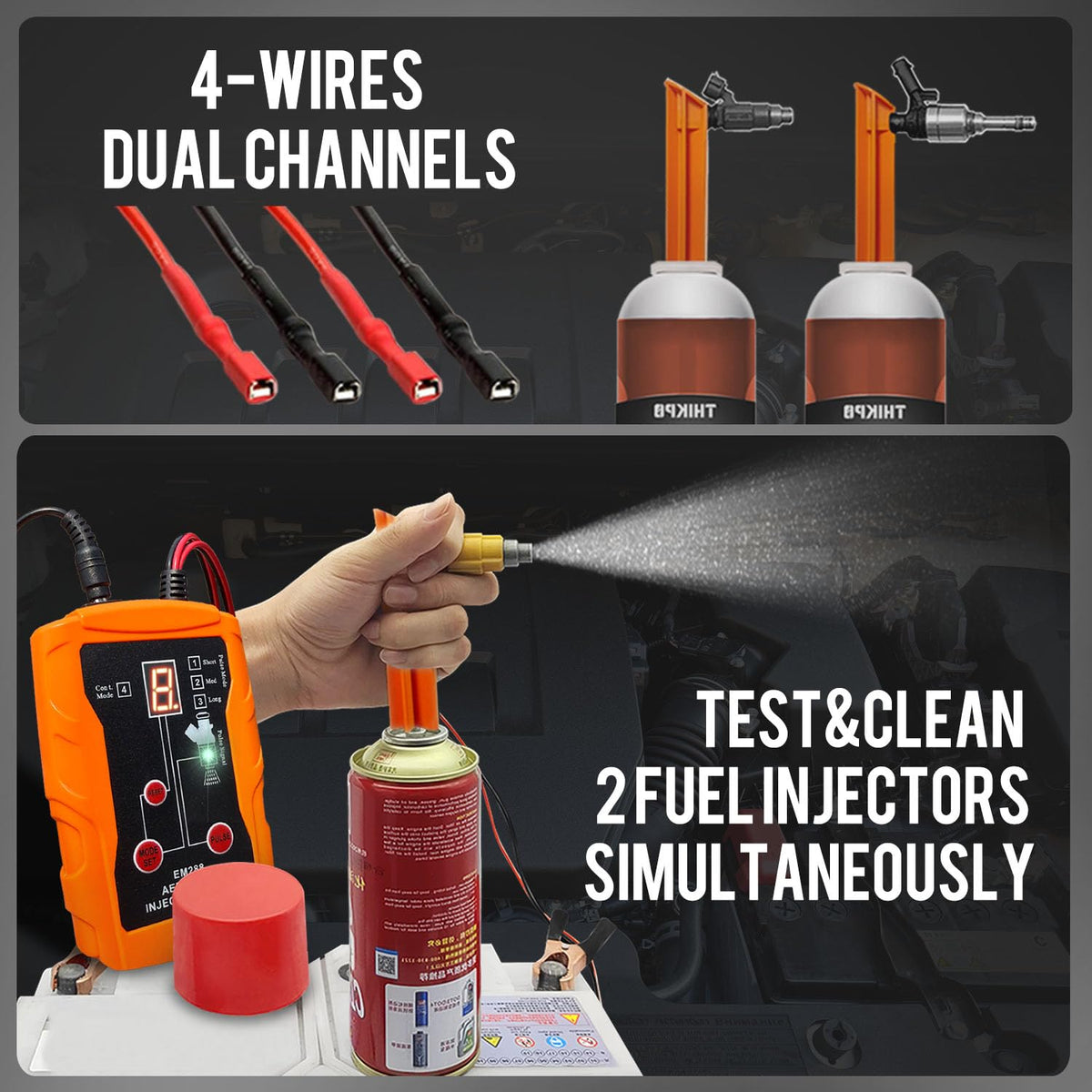

• Dual output terminals let you test one or two injectors simultaneously for comparison.
• Visual feedback via indicator light alerts you to reverse polarity or output short circuits.

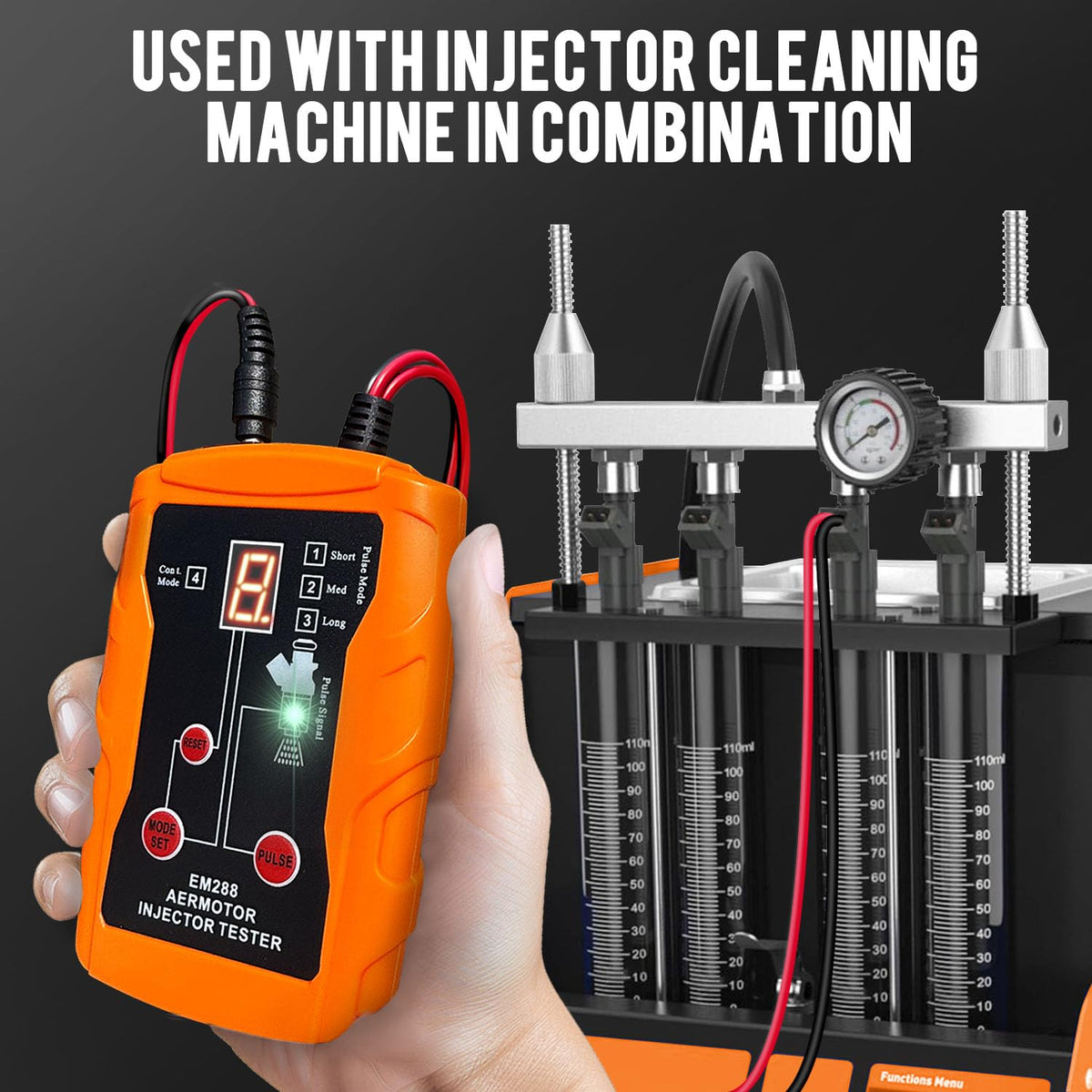

• Works in tandem with a fuel pressure gauge for off-engine diagnostics.

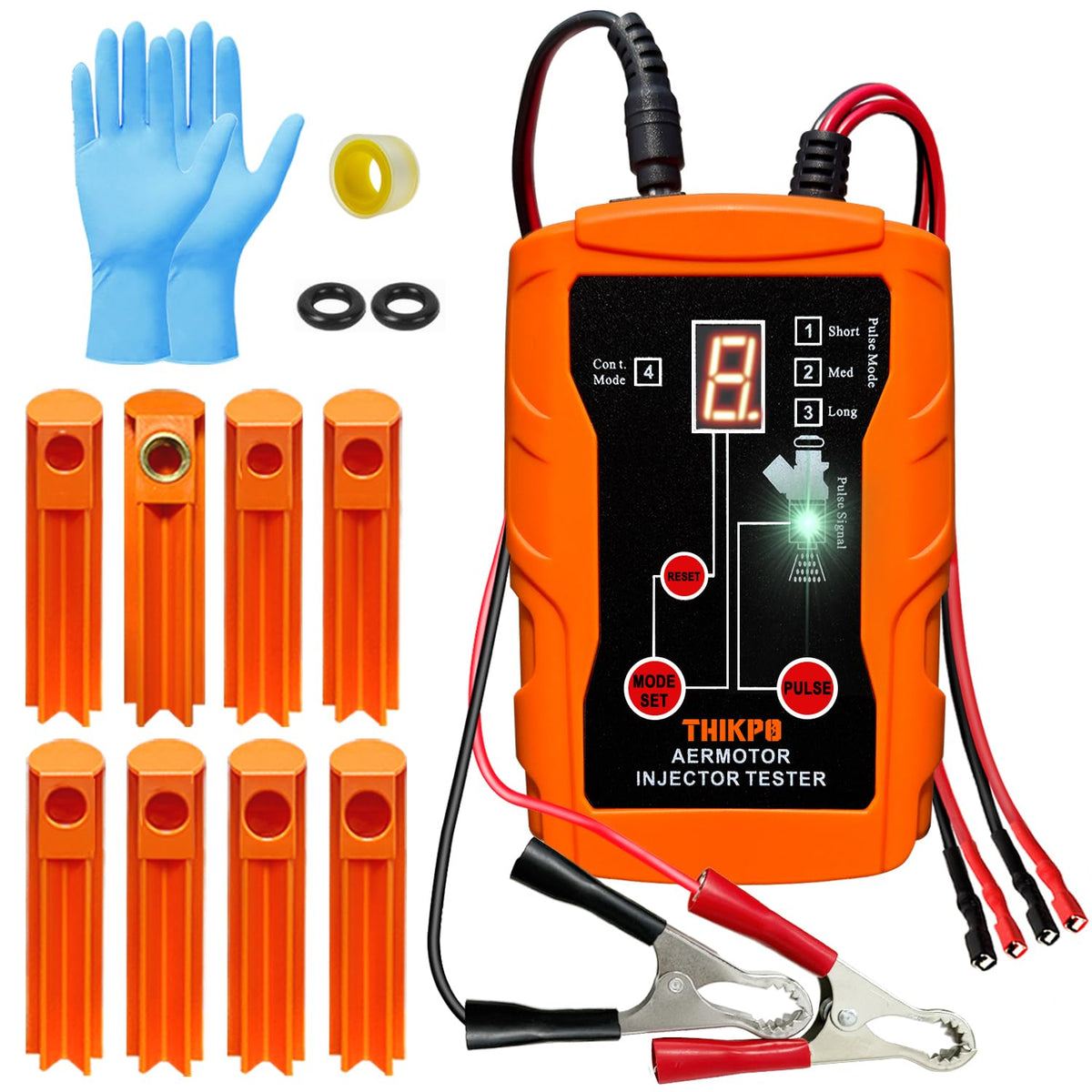

Can it clean injectors and which adapters are included?

The kit includes a set of cleaning adapters in multiple sizes and two specialist fittings for European models, enabling off-vehicle cleaning using pressurized cleaning fluid. Adapter variety helps seal injectors for effective back-flushing and solvent circulation during the timed pulse cycles.

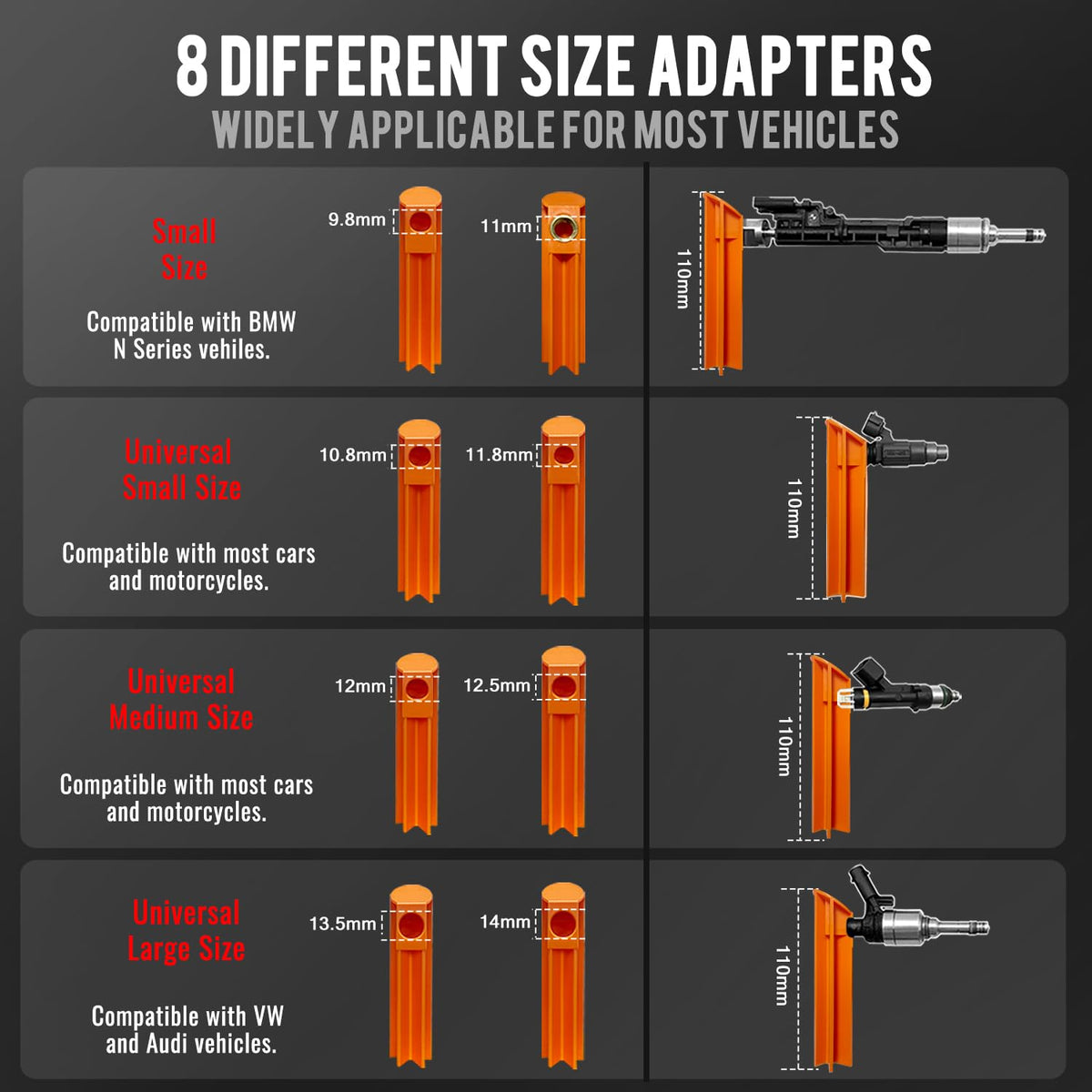

• Four universal-size cleaning adapters fit most 12V EFI and GDI injectors.
• Two additional adapters: one for common V.W. / Audi designs and a threaded BMW N-series specific adapter.
• Adapters allow direct connection to standard cleaning rigs or to a fuel pressure tester (not included).
• Cleaning requires compatible injector solvent and a 12V power source (both not included).

What safety and protection features does the tool provide?

The unit is engineered with protections to prevent damage if connections are made incorrectly or if an output short occurs. Built-in safeguards and visible indicators help you identify wiring faults before they harm the electronics or the vehicle components.

• Power input reverse-connection protection guards against wrong polarity hookup.
• Output short-circuit protection triggers flashing indicator if faults appear.
• Silica-gel insulated leads tolerate a wide temperature range for workshop use.
• Reset switch simplifies mode changes without disconnecting hardware.

What power sources and additional tools are required?

The tester runs from a 12V battery or a DC 12V adapter rated at least 1.5A, and it pairs with any standard fuel pressure tester when performing off-engine work. Keep in mind cleaning needs a separate cleaning solvent and a fuel pressure gauge for controlled flow and measurement.

• Power: 12V vehicle battery or DC 12V (≥1.5A) adapter.
• Compatible with most fuel pressure gauges and standard cleaning rigs.
• Not suitable for diesel mechanical injectors — gasoline engines only.
• Requires cleaning solvent and a stable power supply for injector cleaning operations.

Who is this for: The THIKPO Fuel Injector Tester and Cleaner Tool Kit is aimed at DIY enthusiasts, mobile mechanics, and small repair shops that need a versatile, economical system for diagnosing and performing off-engine cleaning on petrol electronic injectors. It’s especially useful when you want to compare multiple injectors, verify pulse integrity, or perform targeted cleaning on difficult-to-access European and BMW N-series injectors. For larger shops or heavy-duty fleets, this kit functions well as a portable diagnostic aid alongside professional bench equipment.
