THIKPO Fuel Injector Tester & Cleaner Kit — Universal 8-Adapter 12V Pulsed Diagnostic Tool

THIKPO's Universal Fuel Injector Tester Cleaner Tool Kit is a handheld diagnostic and cleaning system that pulses, tests, and enables off-engine cleaning of most 12V petrol injectors using eight adapter sizes and selectable pulse modes.

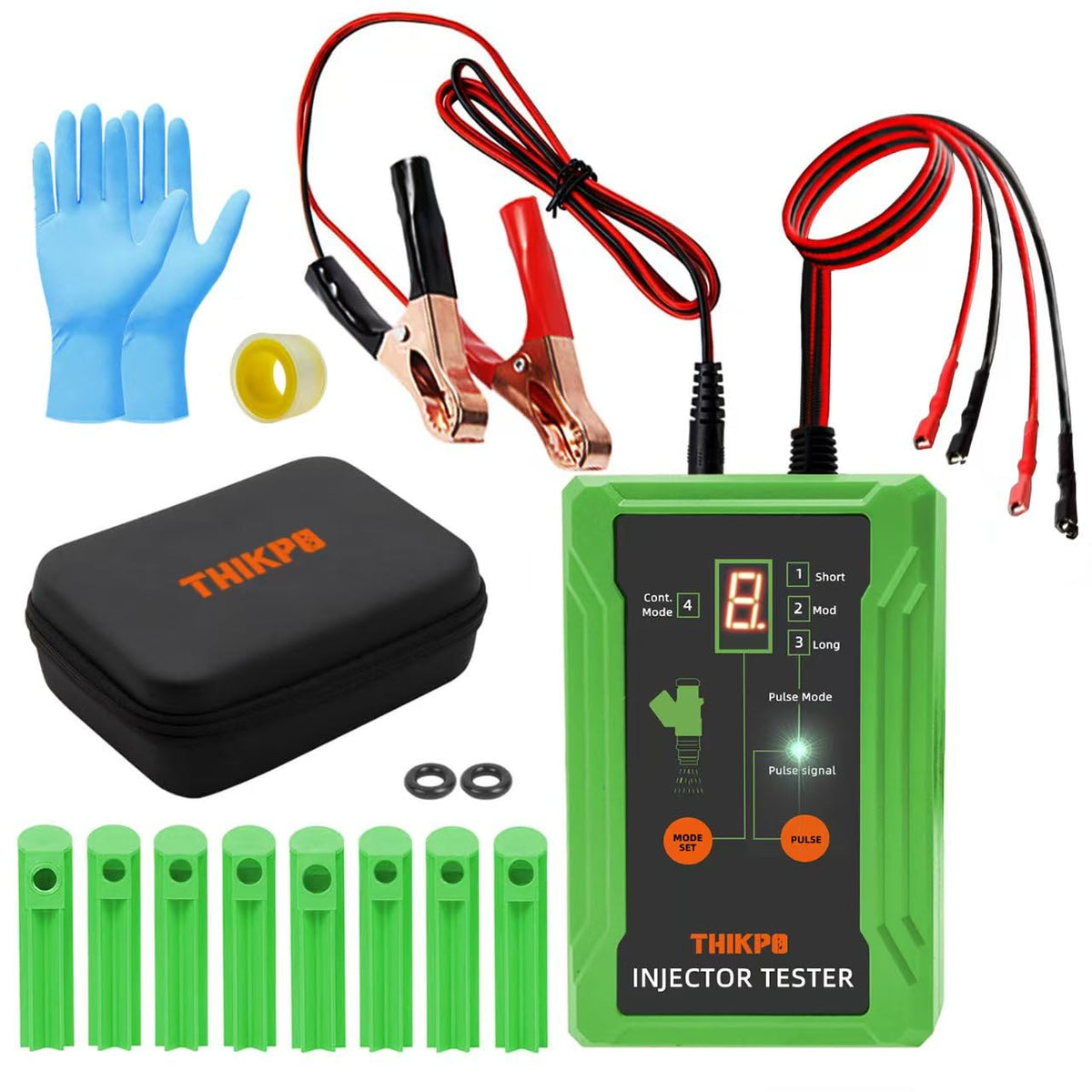

This compact kit combines a programmable pulse generator, adapters to fit a wide range of EFI and GDI injector tips, and protection circuitry so home mechanics and professional technicians can check spray patterns, spot leaks, and deliver ultrasonic-style cleaning cycles without removing complex wiring harnesses. It is designed for gasoline engines only (not diesel mechanical injectors) and requires a 12V DC power source plus a cleaning solvent (both sold separately).

How does this kit help me diagnose injector problems?

The tester creates controlled electrical pulses to open injectors so you can observe flow, listen for consistent clicking, and measure injector response off the engine. Using different pulse widths and voltages lets you simulate real operating conditions and pinpoint weak, stuck, or leaking injectors quickly.

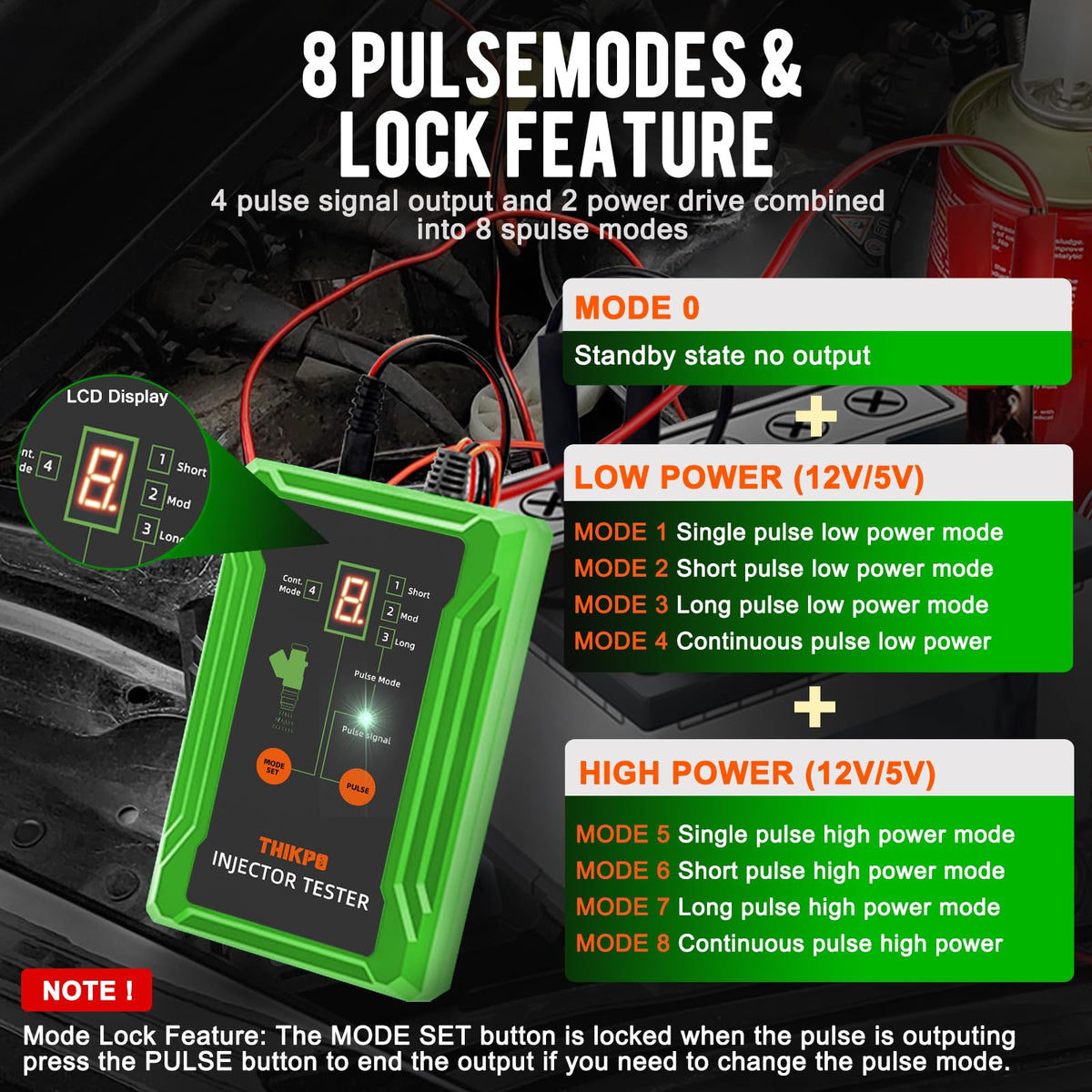

• 8 pulse modes: short, medium, long, continuous with high/low voltage options to match vehicle electronics.

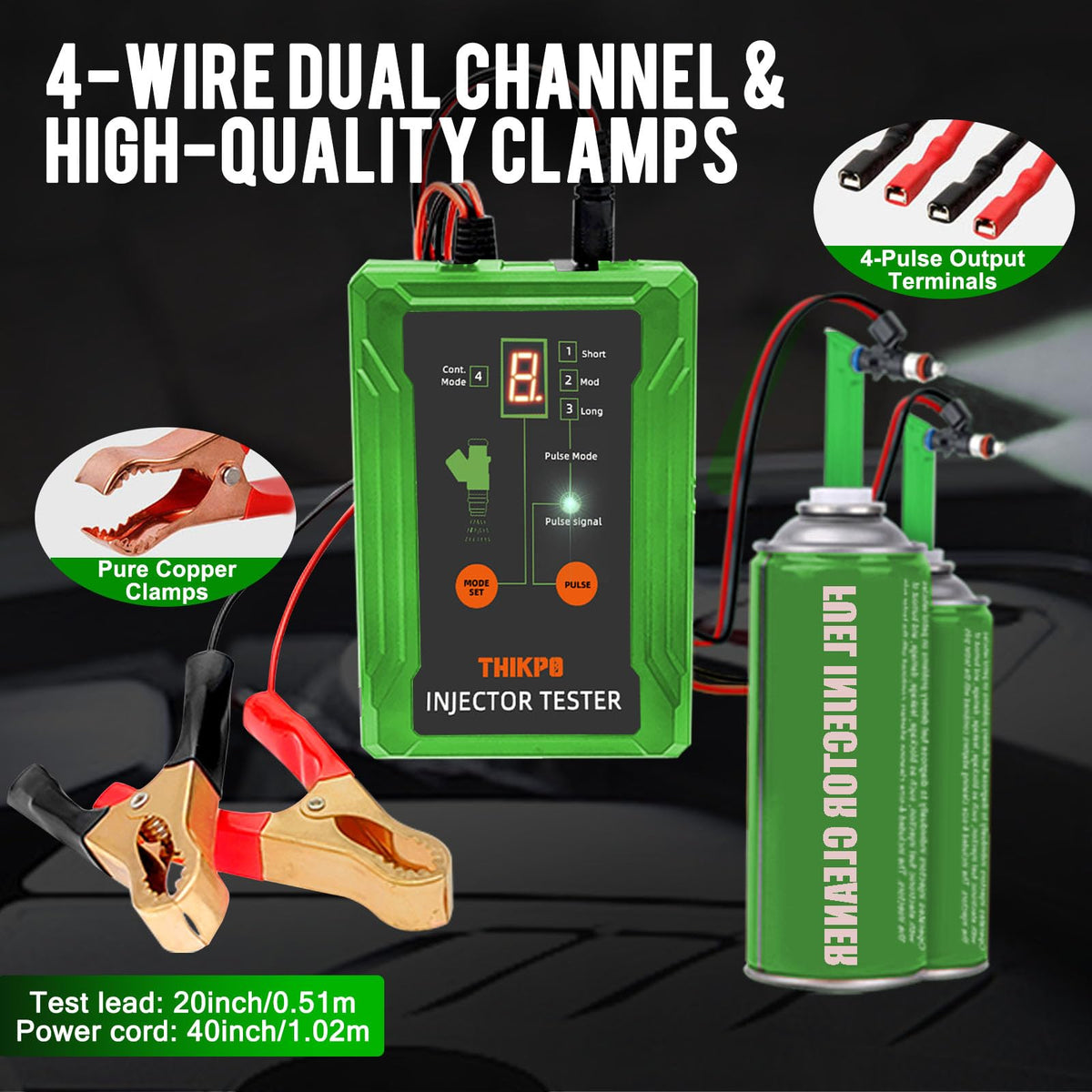

• Dual output terminals allow testing two injectors at once for comparison.
• LCD shows selected pulse mode for repeatable diagnostics.
• Polarity reverse and short-circuit protection safeguard unit and vehicle electronics.

Can it actually clean injectors or just test them?

This kit supports off-engine cleaning when combined with a cleaning solvent and a fuel pressure gauge or reservoir; the pulse output forces solvent through the injector for improved removal of deposits. The included assortment of eight adapter sizes plus two specialty fittings make a wide range of injector noses serviceable.

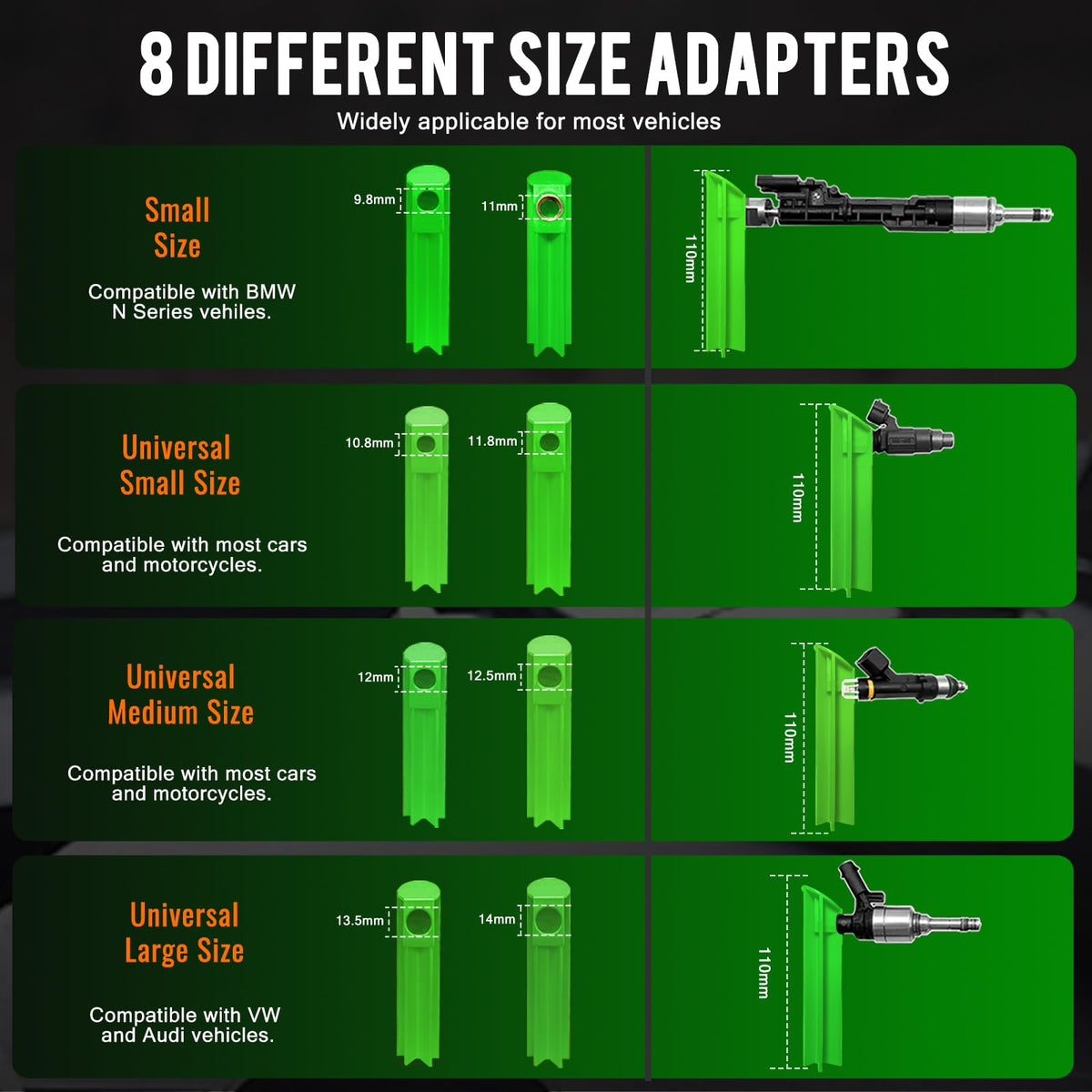

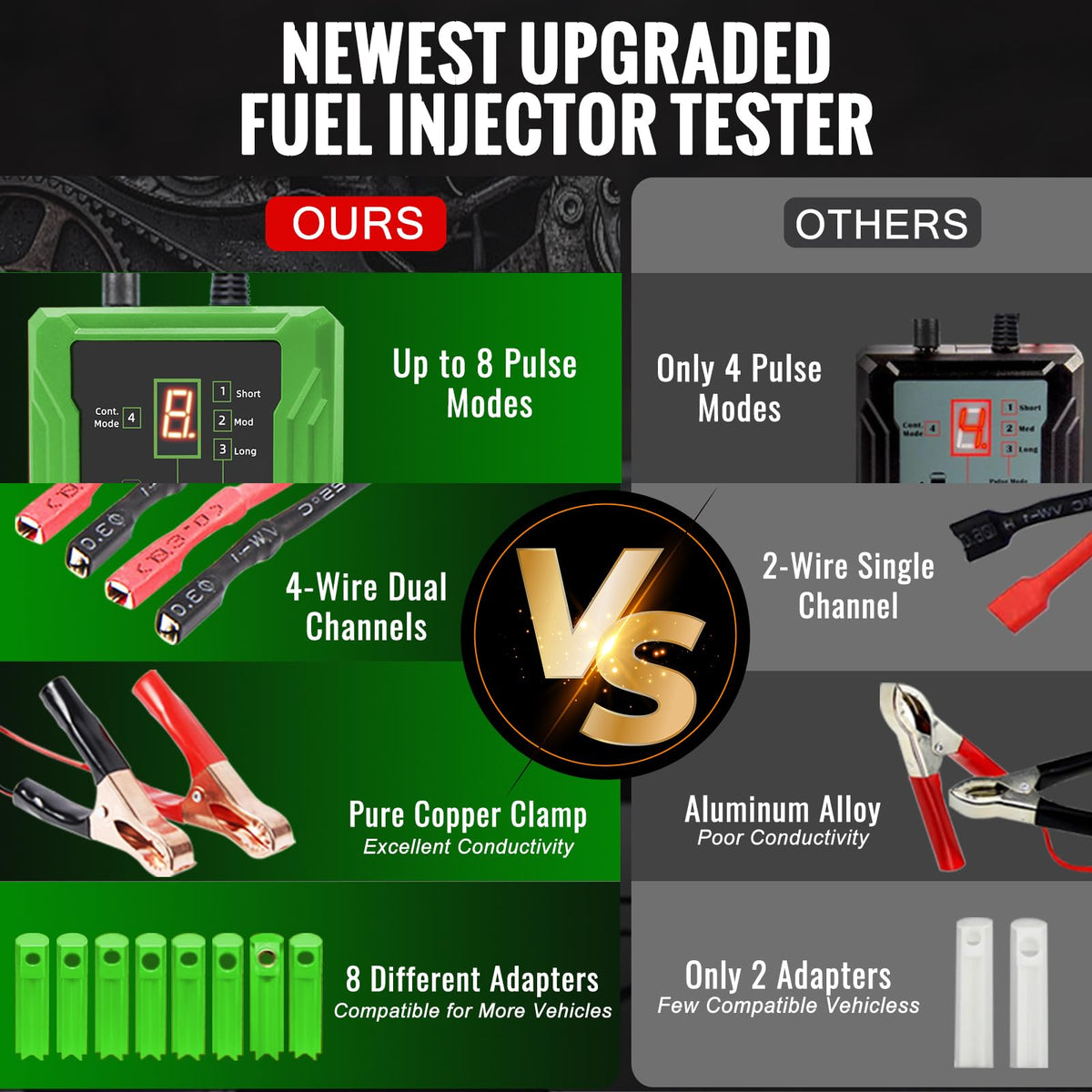

• 8-size cleaning adapters cover most 12V EFI and GDI injectors.
• Two specialty adapters for V.W./Audi and BMW N-series threaded injectors.
• Pulsed flow helps dislodge varnish and carbon build-up more effectively than static soaking.
• Use with a fuel pressure tester or container to collect and inspect cleaned fluid.

What vehicles and connectors will this kit fit?

The adapter set and adjustable pulse parameters are built to work with the majority of modern petrol direct/injection systems and port-injection units that operate at 12V. It is universal for gasoline injectors but not compatible with mechanical diesel injectors.

• Suitable for most 12V EFI and GDI injectors found on cars, light trucks, and motorcycles.
• Includes two BMW/Audi-specific fittings to cover brand-specific injector noses and threaded types.
• Adapters and silicone test leads withstand a wide temperature range for garage use.
• Powered from any 12V battery or external 12V DC adapter (minimum 1.5A required).

Is the tester safe and easy to use for DIYers?

The unit was designed with protection features and straightforward controls so experienced DIYers can operate it safely; however basic electrical knowledge and correct power connections are required. The LCD and labeled mode buttons make setup clear, and the long power/test leads give flexibility during bench or near-engine work.

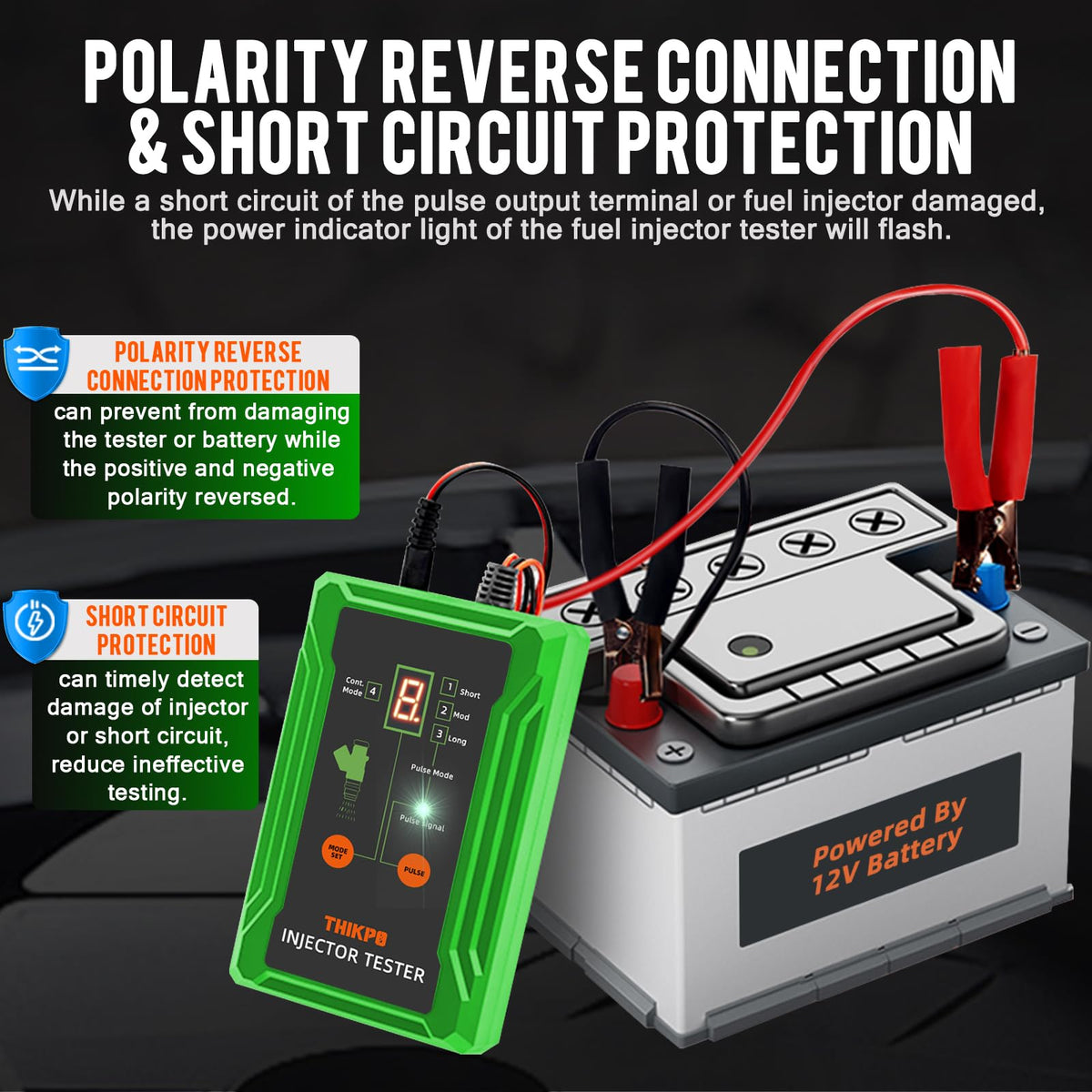

• Reverse polarity and short-circuit protection reduce risk of damage during connection errors.
• 40-inch power cord and 20-inch test leads provide reach without extra extension wires.
• Silica-gel insulated wires tolerate heat and cold, improving durability in workshop conditions.
• Not a substitute for in-vehicle ECU-level diagnostics; suitable for off-engine testing and cleaning.

Who this is for: The THIKPO Universal Fuel Injector Tester Cleaner Tool Kit is aimed at home mechanics, mobile technicians, and small repair shops who need an affordable, portable solution to check injector function and perform off-engine cleaning. It suits anyone who frequently services petrol injectors, wants to compare injector performance side-by-side, or needs a pulsed cleaning method without investing in heavy bench equipment. Note: prepare a 12V power source and appropriate fuel-cleaning solvent prior to use, and avoid use on diesel mechanical injectors.
