Threlaco EK-083S Flow Filter Drier 3/8" Sweat for Heat Pump & AC, 1–5 Ton, Molecular Sieve Moisture Removal

Threlaco's EK-083S 3/8" flow filter drier is a unidirectional refrigeration dryer built to remove moisture and particulate contamination from heat pump and air conditioning refrigerant lines for systems sized 1 to 5 tons.

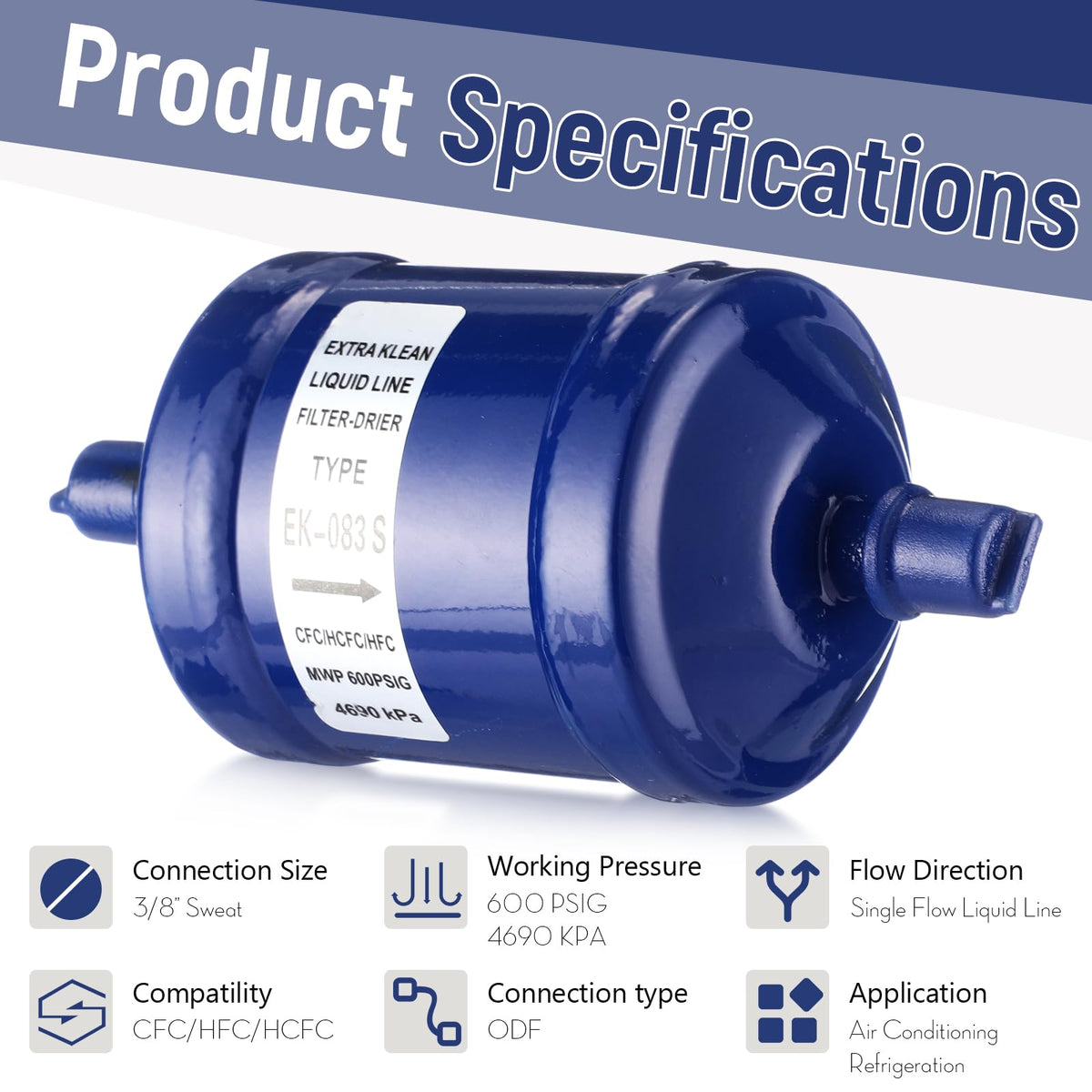

This compact, straight-flow filter drier is designed for use in heat pump and straight cool air conditioning systems, ductless mini-splits and other refrigeration applications that use HFC refrigerants. Constructed with a welded 10 mm (0.4") copper connection and an epoxy-coated steel body, it provides corrosion resistance and molecular-sieve based moisture adsorption while withstanding a working pressure up to 4690 kPa.

How does this filter drier protect my heat pump or AC system?

The EK-083S captures moisture and solid debris that can damage compressors, valves and expansion devices. Its internal molecular sieve adsorbent reduces risk of ice formation and acid-related corrosion by removing water from the refrigerant stream. Installing a flow filter drier in the liquid line helps maintain consistent system performance and prolong component life.

• One-way (unidirectional) flow design ensures proper refrigerant travel and adsorption.

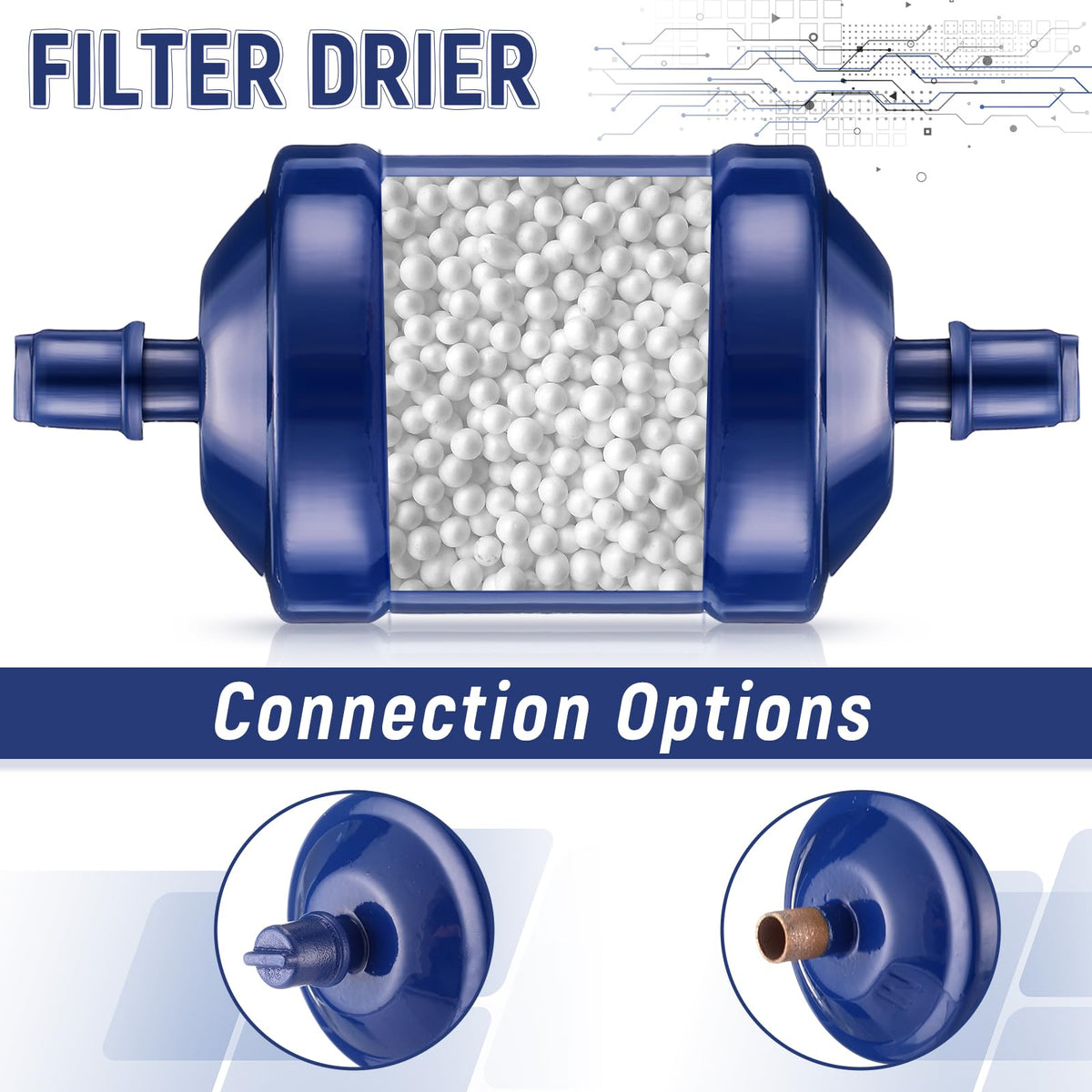

• Molecular sieve media traps moisture and fine particulates effectively.
• Rated for up to 4690 kPa working pressure for reliable operation.

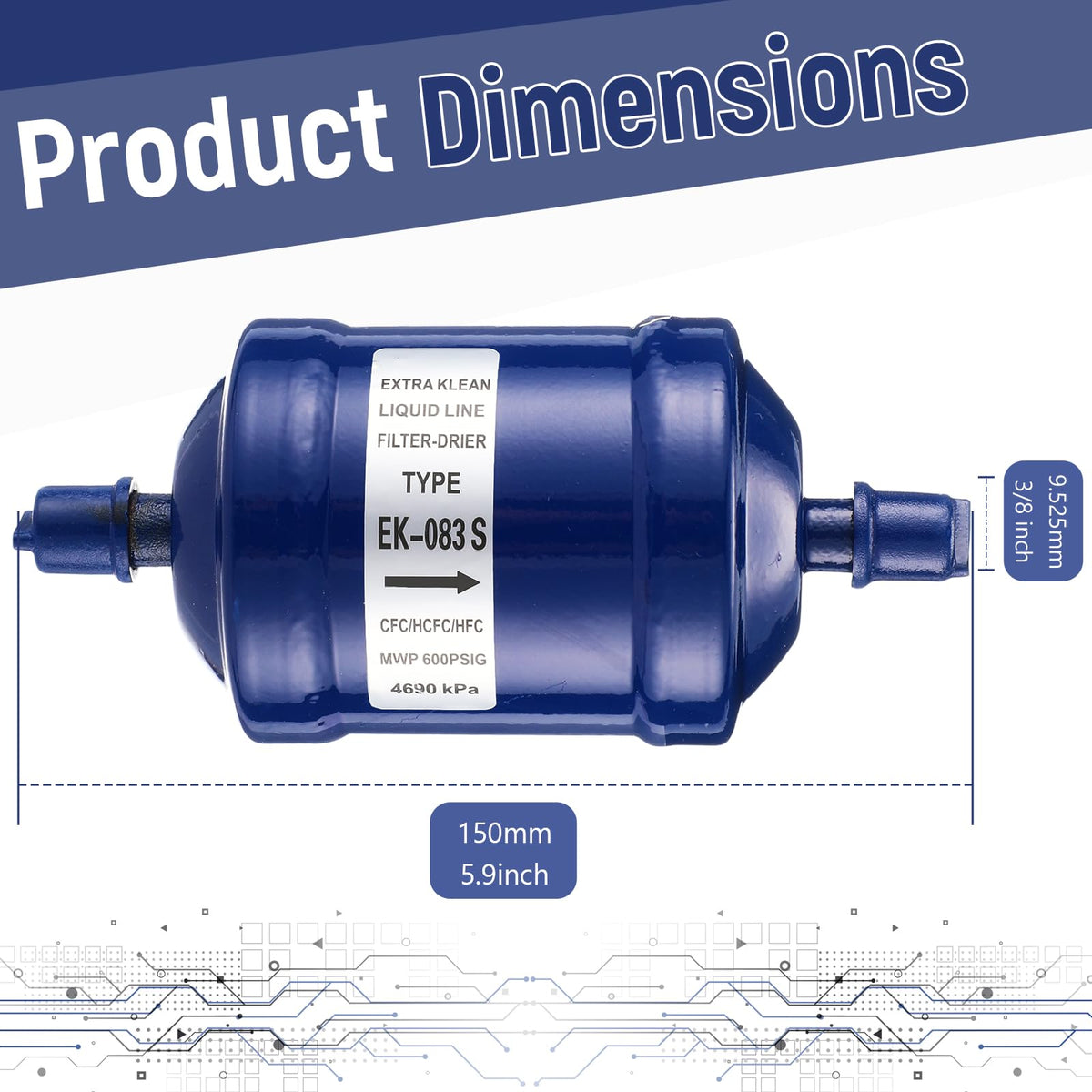

• Welded 0.4" (10 mm) copper connections for standard liquid line integration.

Is the EK-083S easy to install and where should it be placed?

Yes — the straight-through body and 3/8" sweat/weld joint make it straightforward to install in the liquid line. It can be mounted horizontally or vertically; when placed vertically the refrigerant should flow from top to bottom to maximize filtration effectiveness. Standard HVAC brazing techniques apply for secure attachment to copper tubing.

• Suitable for horizontal or vertical mounting; top-to-bottom vertical flow recommended.
• Connects via welded 10 mm (0.4") copper joint compatible with common liquid lines.
• No special tools beyond normal HVAC brazing equipment required for installation.
• Compact form factor fits easily into tight line runs on mini-splits or package units.

Which systems and refrigerants are compatible with this drier?

The EK-083S is intended for HFC refrigerants used in many modern heat pump and air conditioning systems. Its capacity and connection size make it appropriate for residential and light commercial equipment from roughly 1 to 5 tons. Always confirm refrigerant compatibility and sizing with system documentation or an HVAC professional before installation.

• Designed for HFC refrigerants common in modern heat pump and AC systems.
• Sized for systems approximately 1–5 tons capacity.
• Works in both ducted systems and ductless mini-split applications.
• Check system specs to verify flow direction and pressure limits prior to use.

What are the build quality and safety specifications?

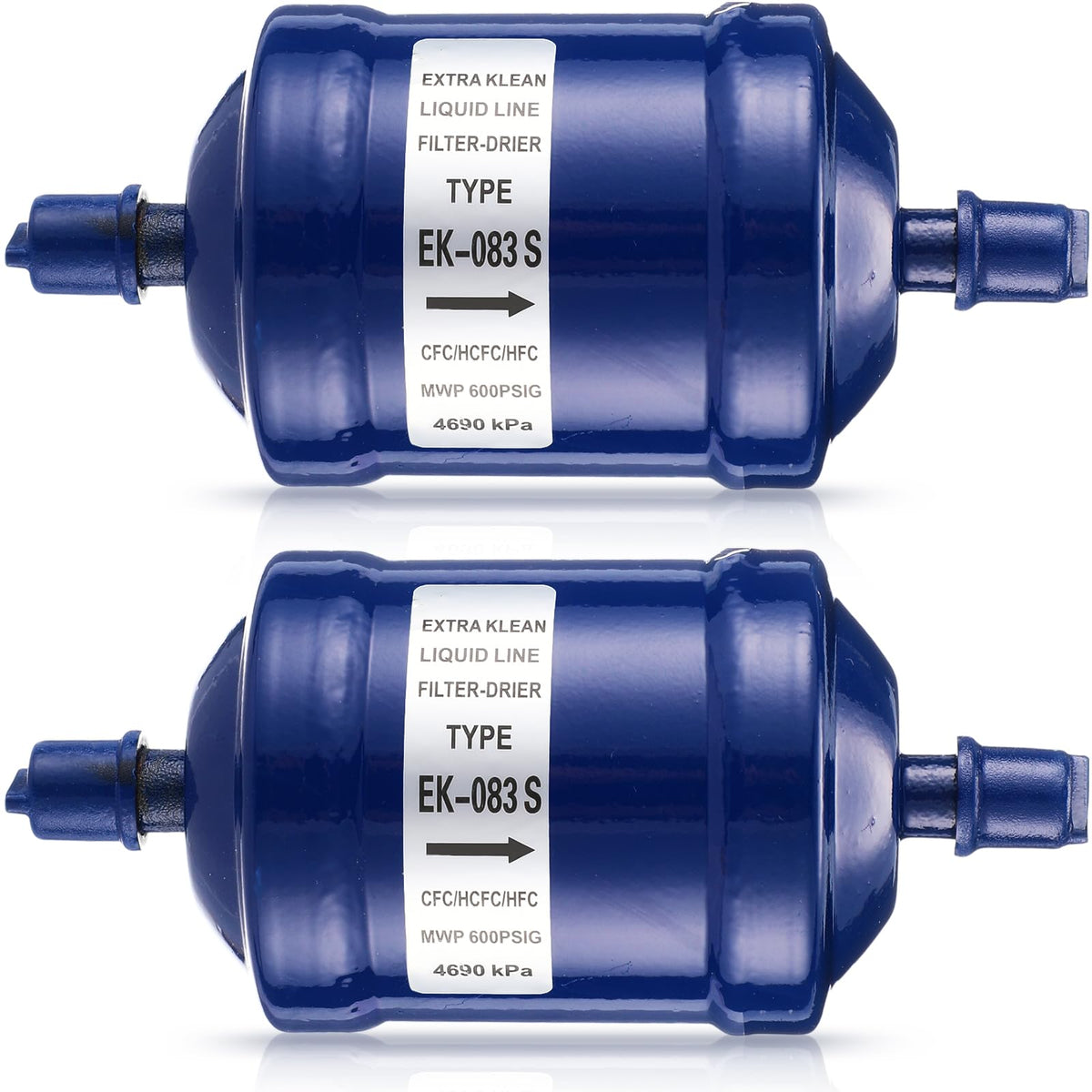

The housing is finished with a corrosion-resistant epoxy powder coat in dark blue and internally filled with molecular sieve media. The welded copper joint provides a secure liquid line connection and the drier is rated for a maximum working pressure of 4690 kPa. As with all refrigeration components, follow safe brazing and evacuation practices and verify leak-tightness before charging the system.

• Epoxy powder coated exterior for corrosion protection and longevity.
• Internal molecular sieve media for strong water adsorption.
• Maximum working pressure: 4690 kPa.
• Welded 0.4" (10 mm) copper tube connection for durable installation.

Who is this for: The Threlaco EK-083S flow filter drier is aimed at HVAC technicians, installers and knowledgeable DIYers working on residential and light commercial heat pump, straight-cool air conditioning and refrigeration systems needing a compact, reliable liquid line drier. It suits projects requiring a 3/8" welded connection and systems in the 1 to 5 ton range where moisture and particulate control are necessary to protect compressors and expansion devices.
