Threlaco Flow Filter Drier EK-083S 3/8" Sweat — 4-Pack for 1–5 Ton HFC Heat Pumps, Molecular Sieve & Epoxy-Coated

Threlaco 4 Pcs Flow Filter Drier EK-083S is a set of unidirectional refrigerant filter driers designed to remove moisture and particulates from 1–5 ton HFC heat pump and straight cool systems.

This four-piece pack of Threlaco EK-083S flow filter driers provides corrosion-resistant protection and molecular-sieve drying power for HFC refrigerant circuits. Factory-welded with a 3/8" (10 mm) copper connection, each drier handles working pressures up to 4690 kPa and is suitable for horizontal or vertical installation. The combination of epoxy-coated exterior and molecular sieve interior helps extend compressor life and preserve system efficiency by keeping refrigerant dry and contaminant-free.

How does this filter drier protect my heat pump or refrigeration system?

The EK-083S is a unidirectional flow drier that traps moisture, acids and fine particulates before they circulate through compressors, expansion devices and heat exchangers. By maintaining dry, clean refrigerant, it reduces the risk of valve corrosion, clogging and ice formation on thermostatic devices.

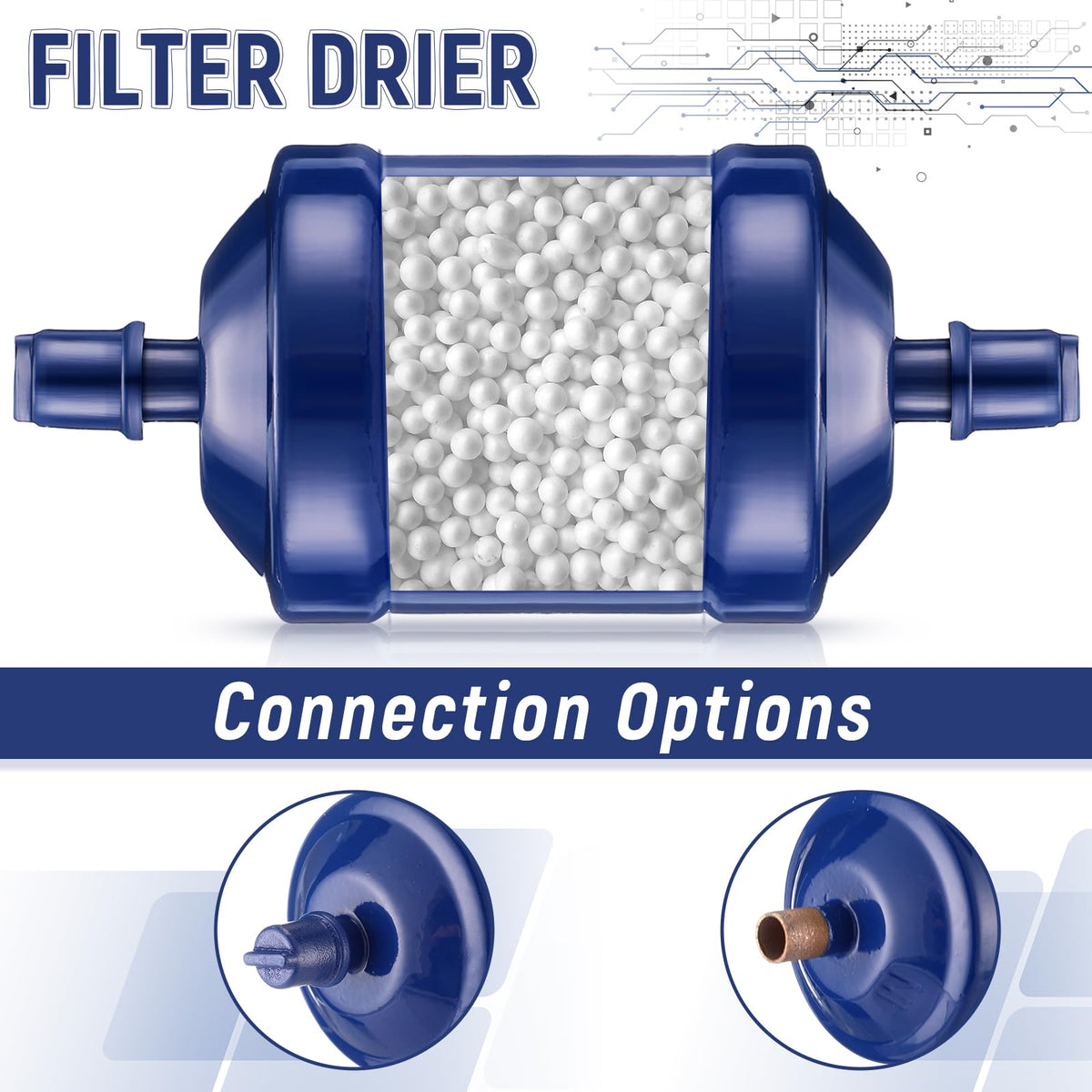

• Molecular sieve core absorbs water and acidic byproducts.
• Fine filtration removes metal shavings and debris.
• Epoxy-coated shell resists external corrosion in mechanical rooms.

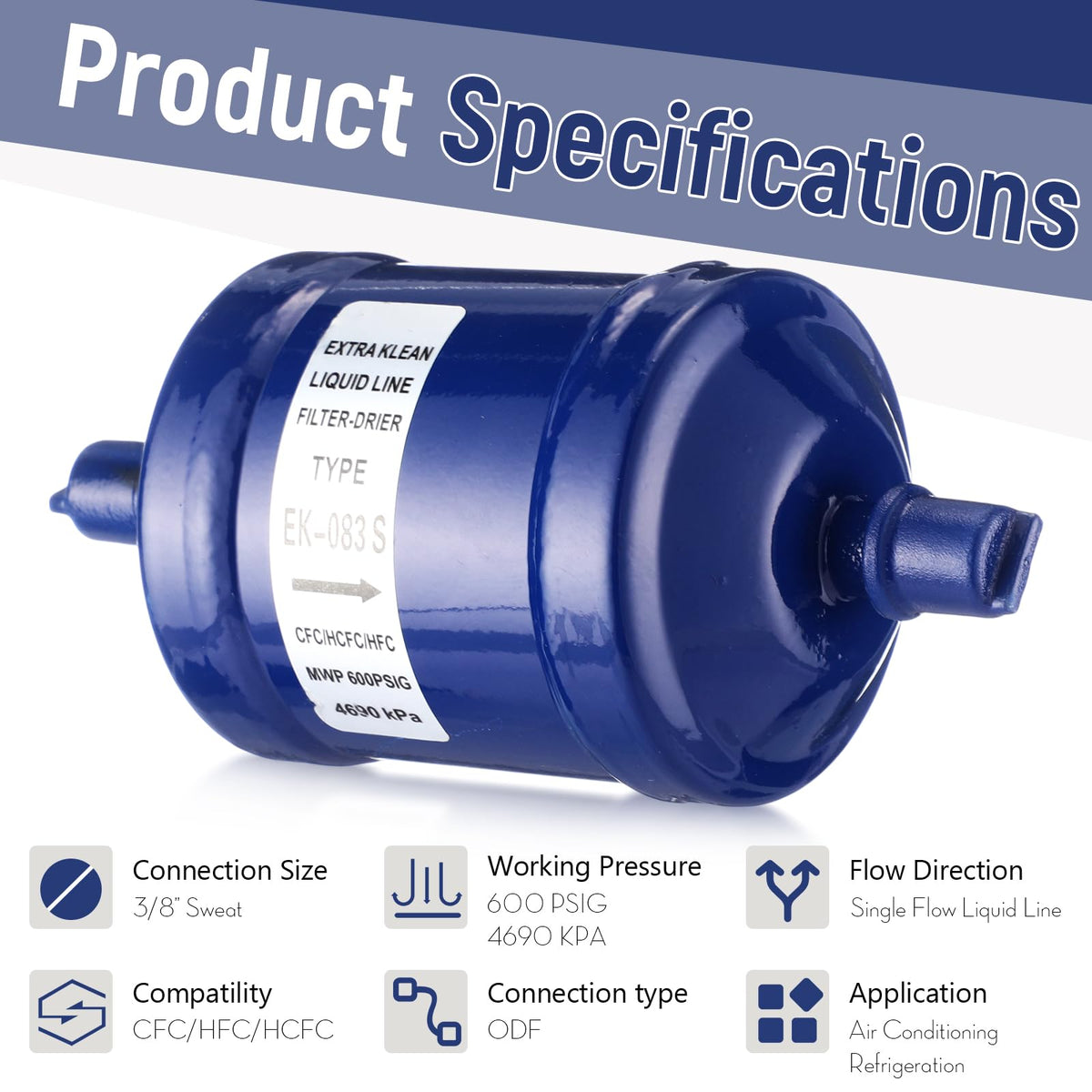

• Rated to 4690 kPa for common residential/commercial systems.

Will it fit my 1–5 ton HFC heat pump or straight cool air conditioner?

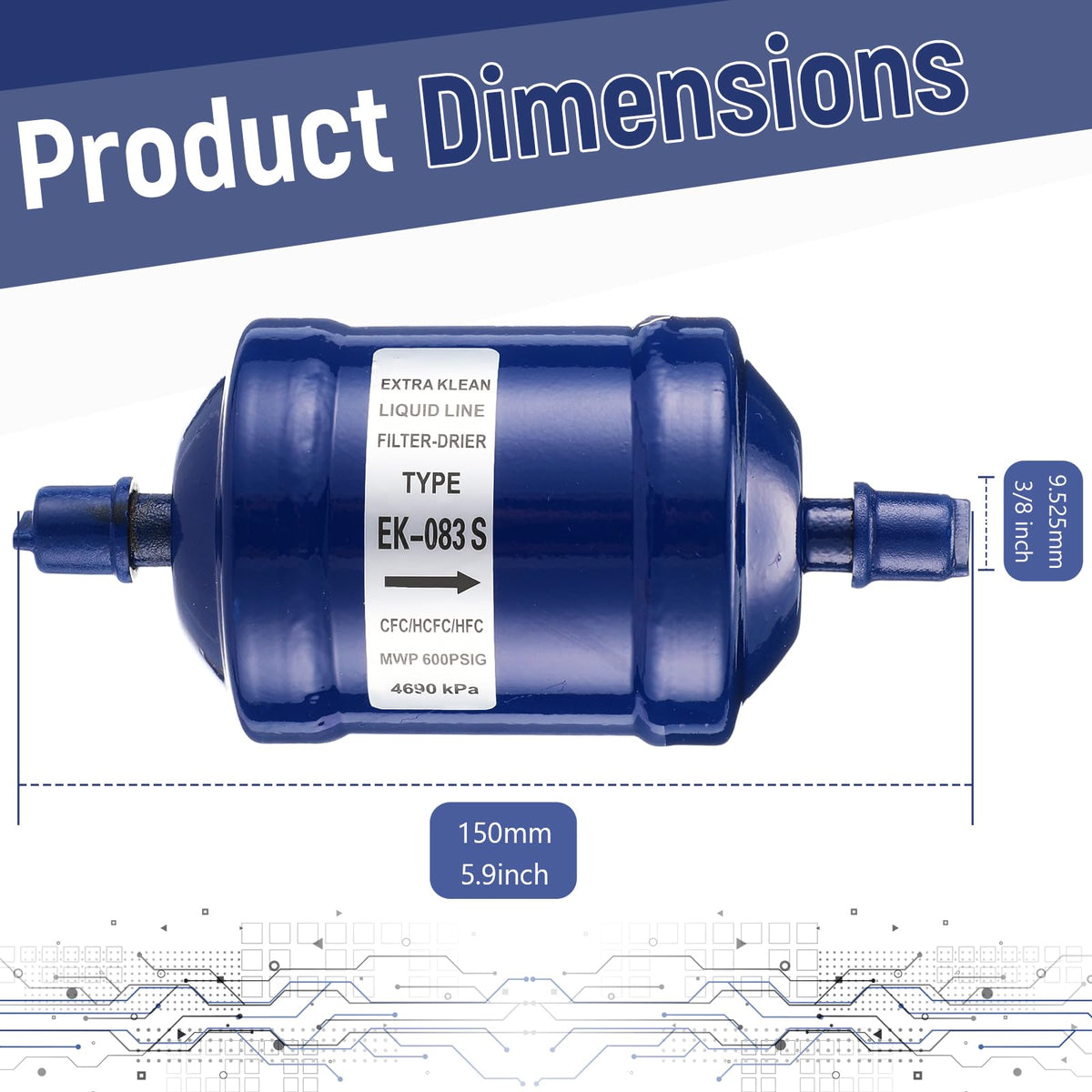

Yes. Each drier is built with a welded 3/8" (10 mm) copper tube connection and a flow capacity matched to systems from 1 to 5 tons using HFC refrigerants. Confirm line sizing and refrigerant type for best compatibility before installation.

• 3/8" sweat/weld copper inlet for standard refrigerant lines.
• Designed for HFC refrigerants commonly used in residential units.
• Recommended for system capacities between 1 and 5 tons.
• Can be installed horizontally or vertically (top-to-bottom flow for vertical).

How do I install and orient these flow filter driers for optimal performance?

Installation is straightforward: braze or sweat the 3/8" copper connections into the liquid line, observing the arrow that marks flow direction. For vertical placement, orient the inlet at the top so refrigerant passes downward through the molecular sieve; horizontal mounting is permitted when flow direction is respected.

• Observe arrow marking for correct unidirectional flow.
• Braze with proper flux and torch technique to avoid overheating desiccant.
• Install service ports nearby for pressure checks and evacuation.
• Replace drier after major system repairs or when contamination is suspected.

What are the construction and durability features of the EK-083S?

Threlaco’s EK-083S combines a corrosion-resistant epoxy-painted exterior with a molecular sieve interior to deliver long-term drying and filtration. The robust pressure rating and factory-welded connections make it suitable for regular HVAC service environments.

• Outer epoxy powder coat reduces rust and paint flaking.
• Internal molecular sieve provides strong water adsorption.
• Factory-welded 3/8" copper tube ensures leak-resistant joints.

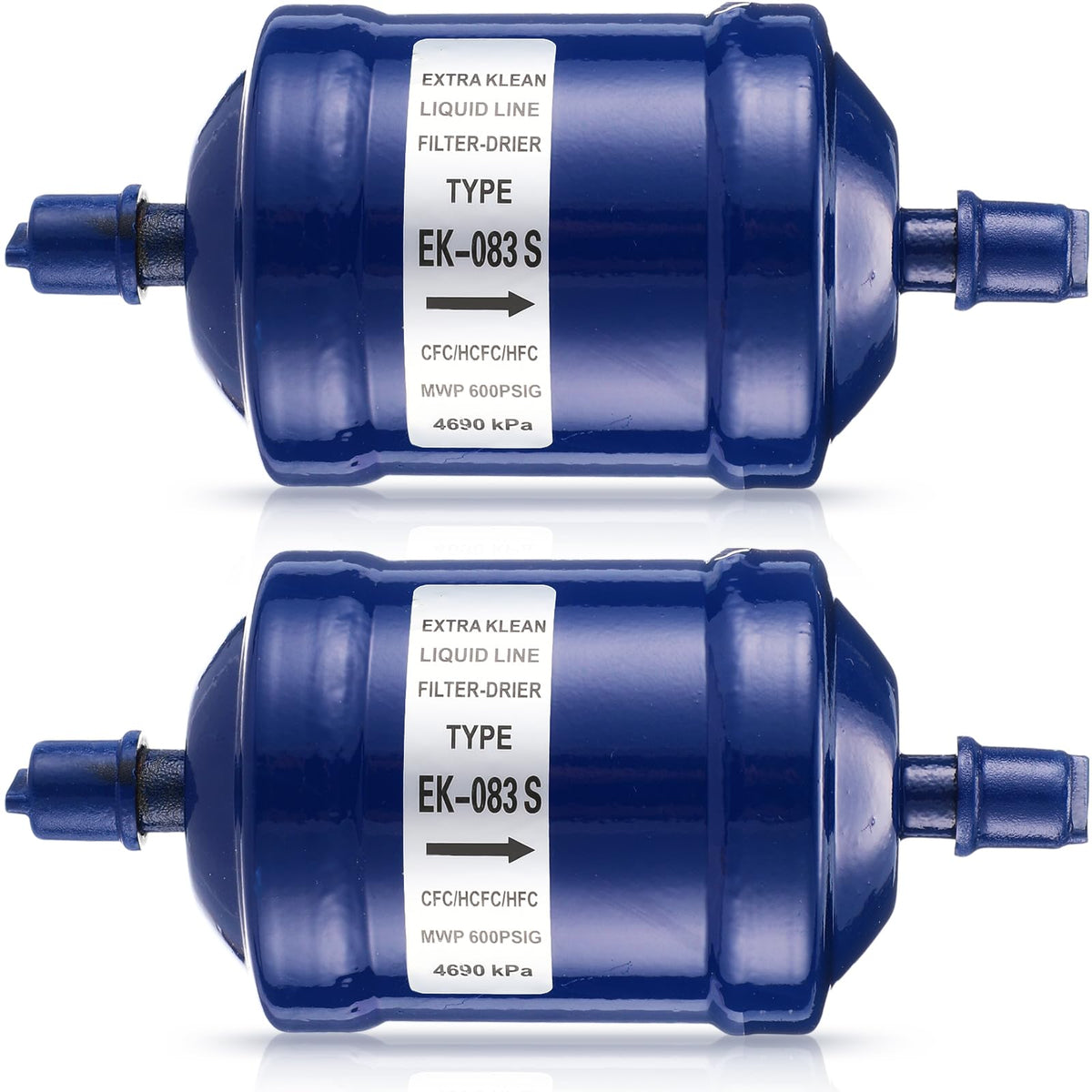

• Four-unit pack supports multiple units or spare inventory keeping.

Who is this for: HVAC technicians, refrigeration service professionals, and informed DIYers maintaining residential and light-commercial heat pump or straight cool systems will find the Threlaco EK-083S four-pack useful. It’s intended for systems using HFC refrigerants rated 1–5 tons that require reliable moisture and particulate removal, straightforward installation, and durable hardware for routine service and repair.
