THUNDERMINGO Rochester Quadrajet 4‑Barrel Carburetor replacement 1901R/4MV — Vacuum‑secondary, 650–750 CFM

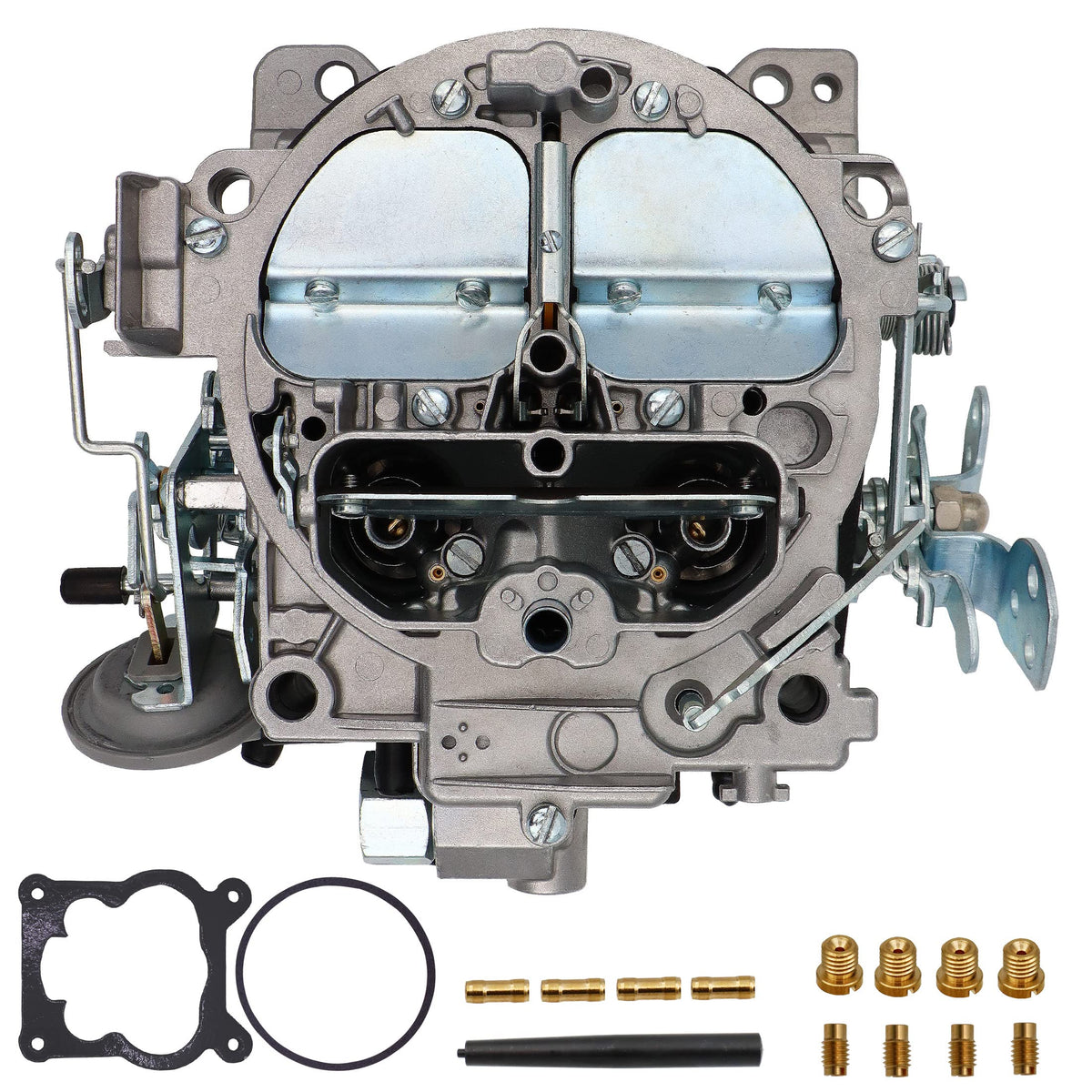

THUNDERMINGO's 4-barrel replacement carburetor is a vacuum-secondary, divorced-choke unit built to directly replace Rochester Quadrajet 1901R/4MV-style carbs on many 1966–1979 Chevy and GMC V8s.

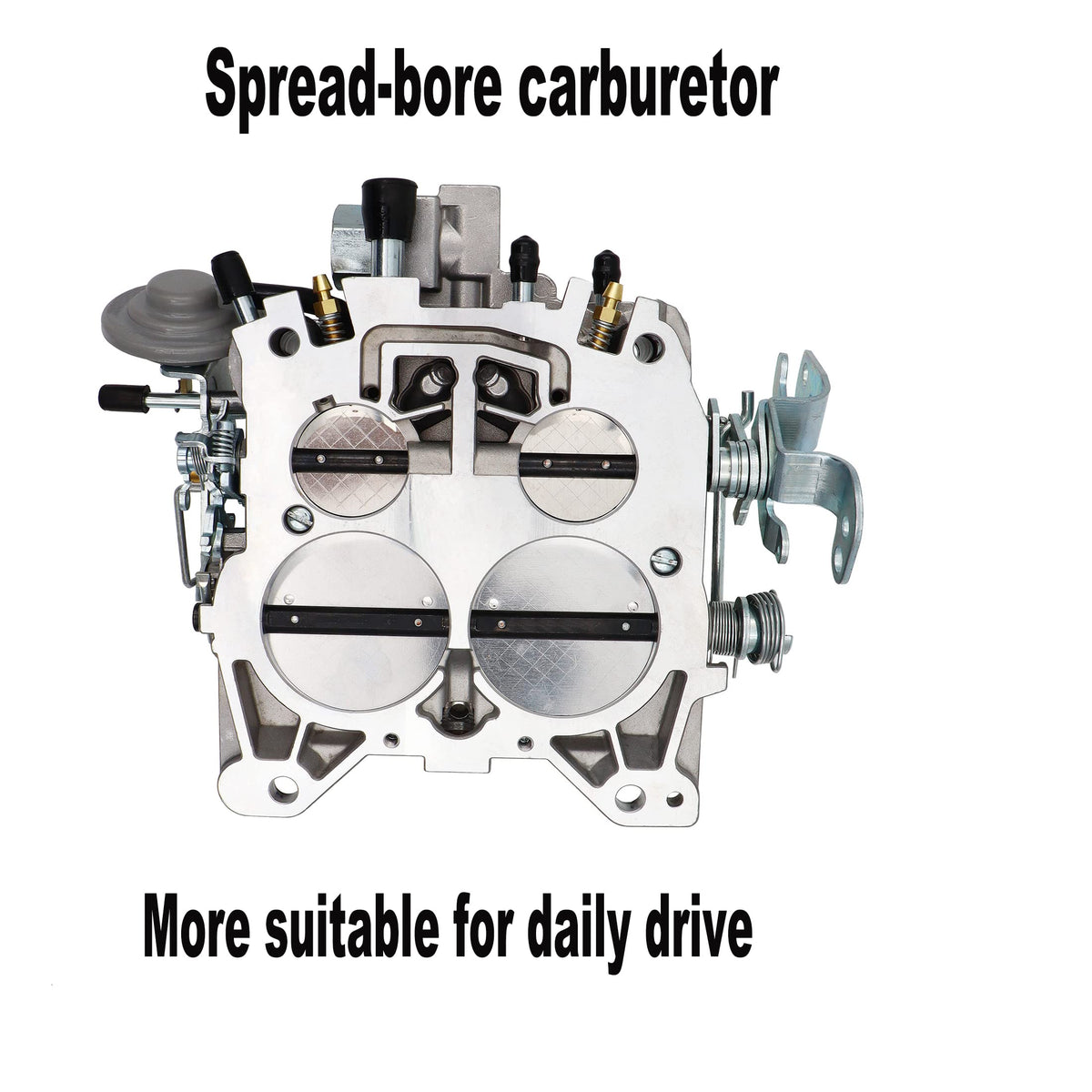

This new THUNDERMINGO carburetor is manufactured as a direct-fit replacement for the Rochester Quadrajet family (1901R / 4MV-style) and is intended for automotive use on small- and big-block Chevy and GMC engines. It comes factory-configured with a multi-stage fuel curve and commonly measured CFM in the 650–750 range, designed to improve throttle response and drivability across a broad RPM band. The unit uses a vacuum-secondary, spread-bore design and a divorced mechanical choke, so it’s important to confirm bolt pattern, throttle linkage, and choke style before purchase.

Will this carburetor physically fit my 1966–1979 Chevrolet or GMC engine?

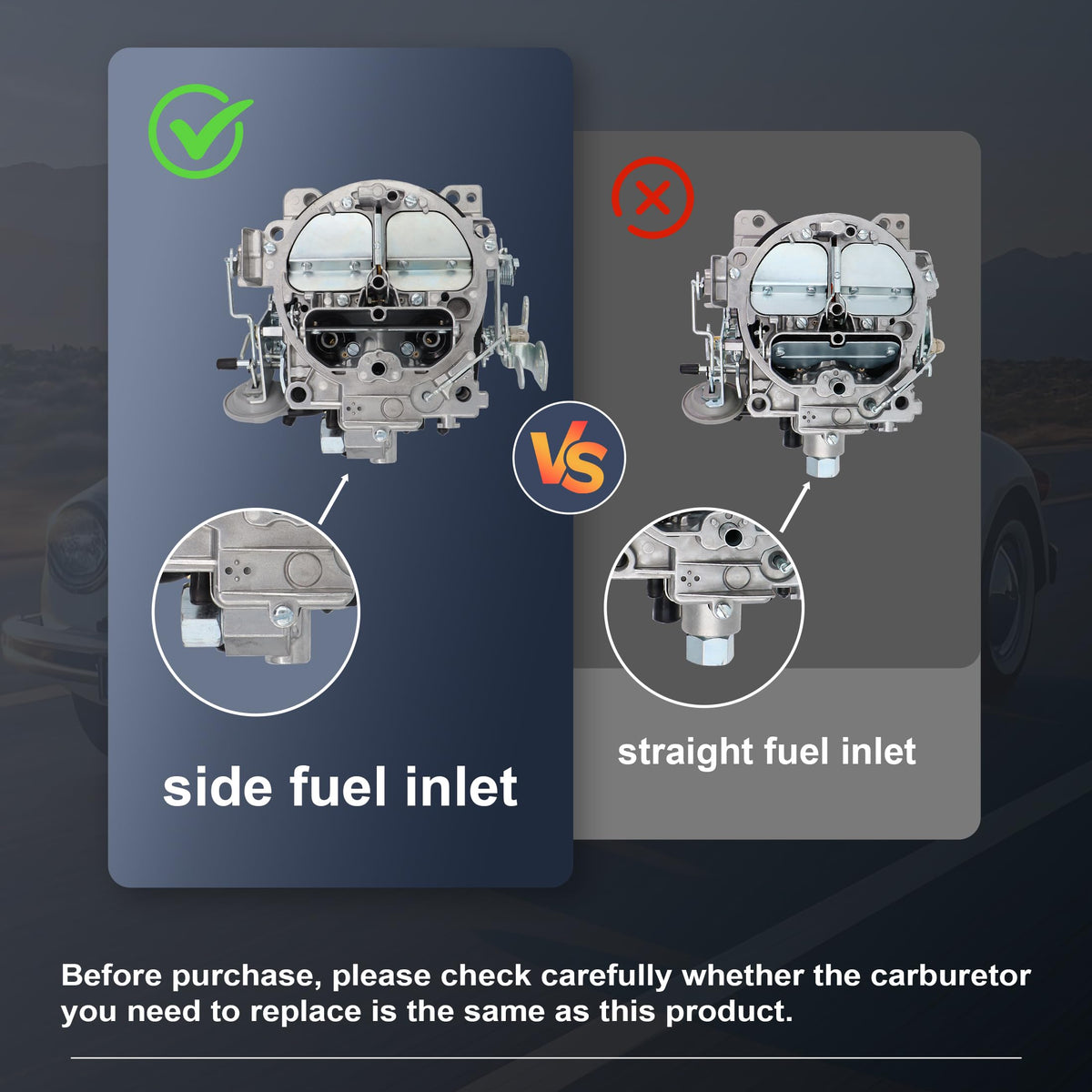

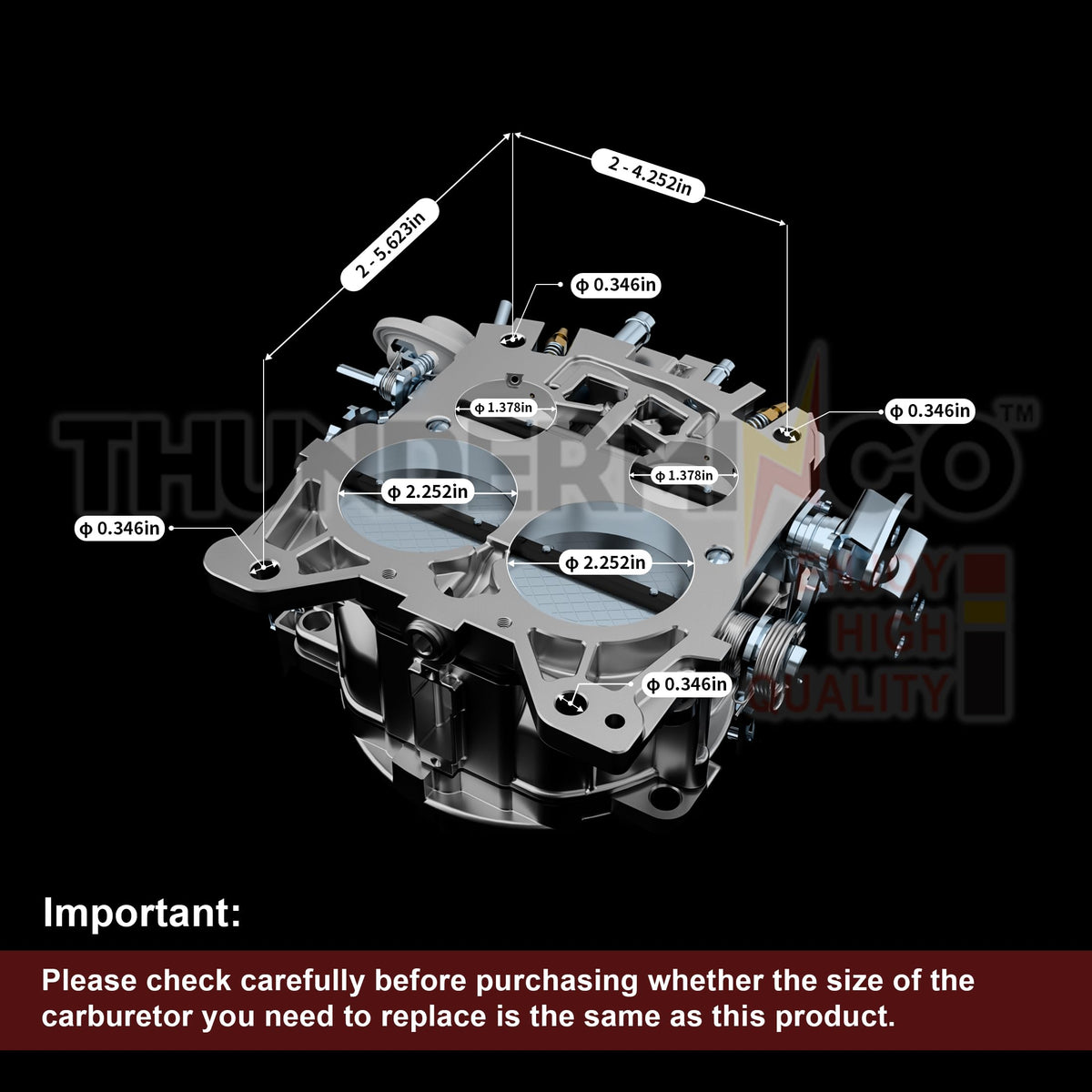

Fitment covers many Chevy and GMC V8 engines from the late 1960s through the 1970s, including popular 327, 350, 427 and 454 displacements and Corvette applications. It is a spread-bore (Quadrajet-style) flange designed to match the standard base gasket and linkage locations of 1901R/4MV variants. Always compare your original carburetor’s mounting pattern, throttle linkage, and choke arrangement with this unit before ordering.

• Compatible with 1966–1973 Chevy/GMC trucks and 1966–1979 passenger V8s (327–454 ci)
• Designed as a direct replacement for Rochester Quadrajet 1901R / 4MV styles
• Vacuum-secondary, divorced mechanical choke — confirm choke type on vehicle
• Not recommended for marine use

How does it affect performance and throttle response?

The THUNDERMINGO unit offers a performance-oriented fuel curve and larger CFM options (commonly around 650–750 CFM), which can improve throttle responsiveness and midrange power versus an aged or clogged stock carb. Because the carb is universal-performance tuned, final results depend on engine displacement, cam profile, intake manifold and exhaust. Minor idle and fuel circuit adjustments are often required to optimize drivability for small-block versus big-block engines.

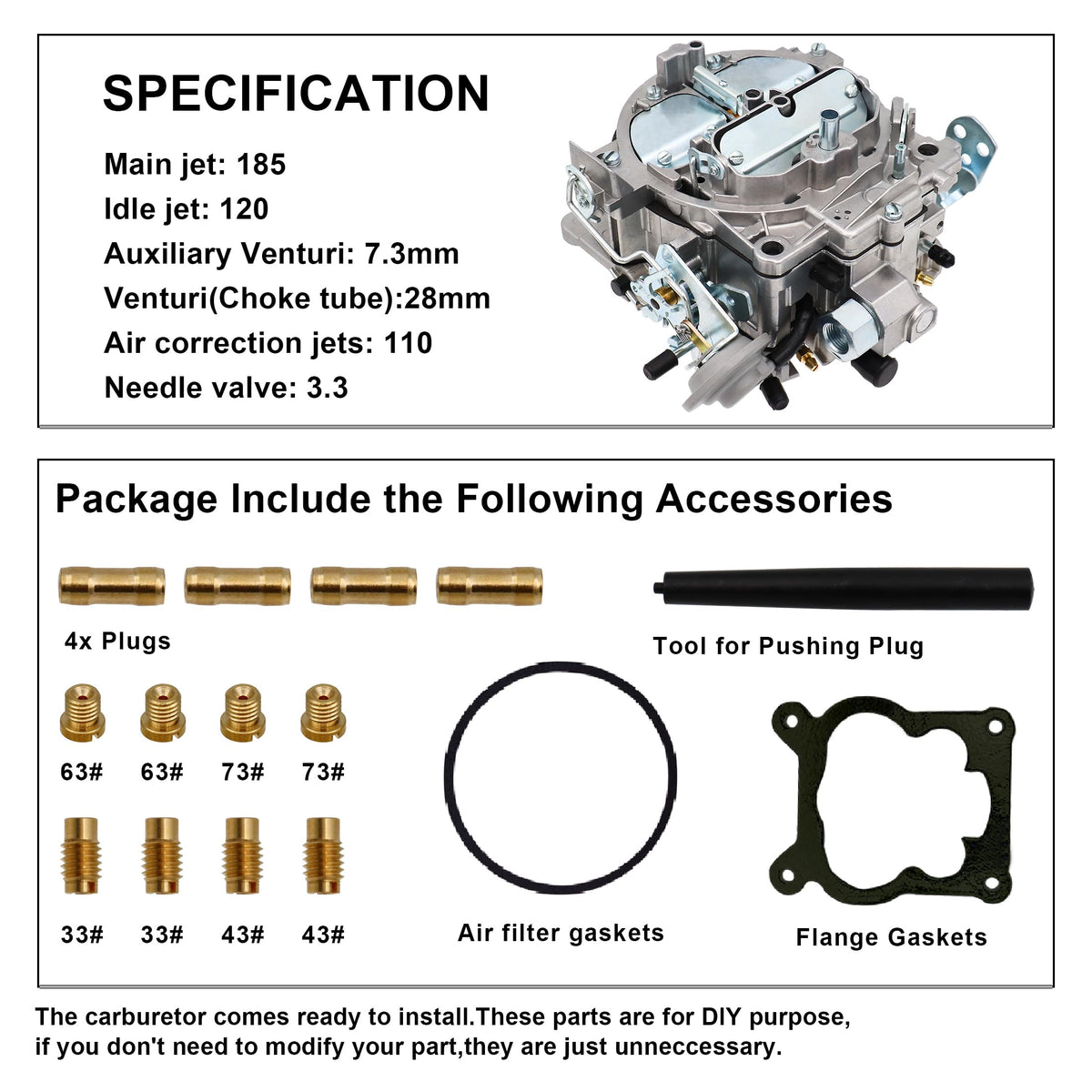

• Factory jet sizes: main 185, idle 120, air correction 110
• Auxiliary venturi 7.3 mm; choke tube 28 mm; needle valve 3.3
• Commonly rated near 750 CFM but can function between ~600–750 CFM

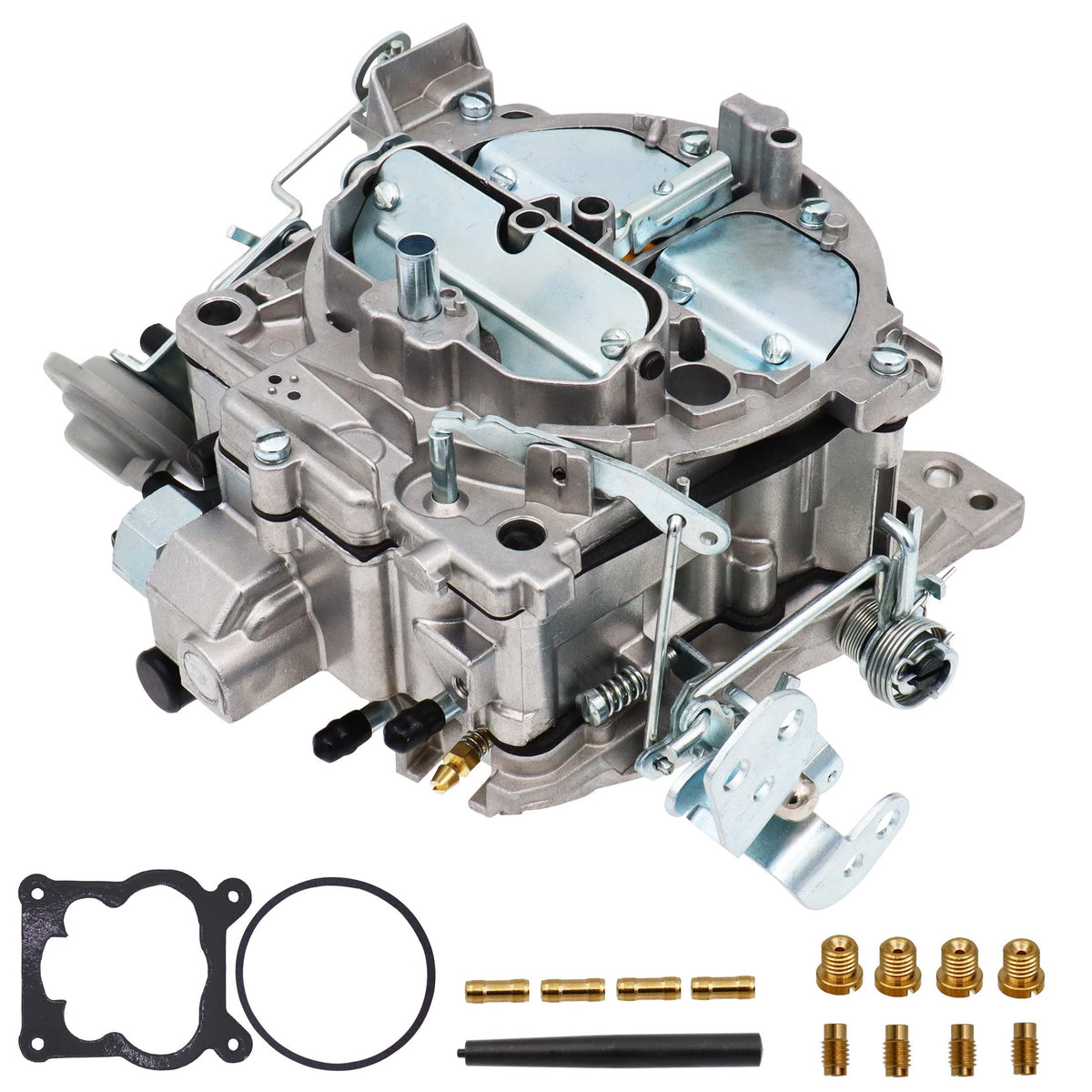

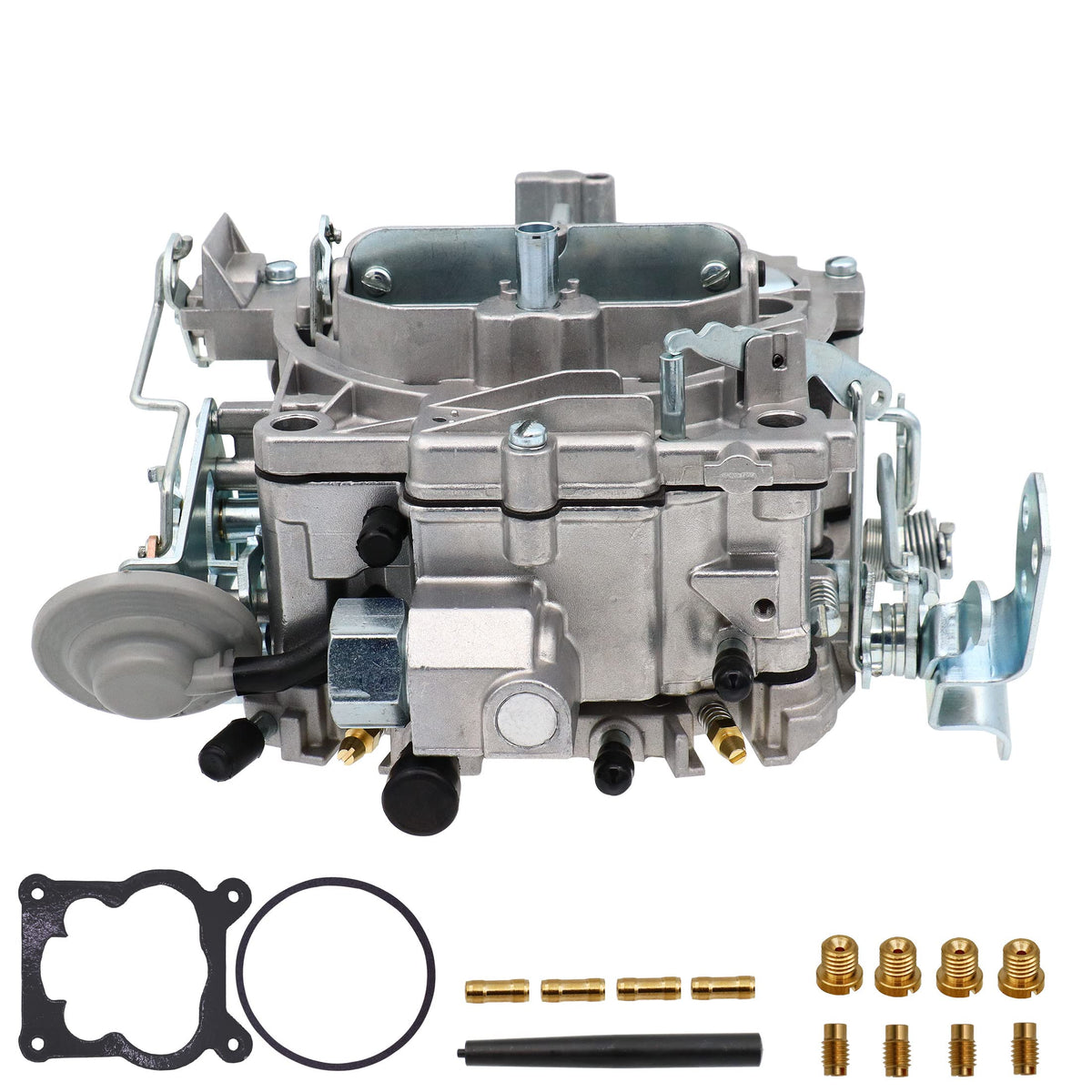

• Includes a small copper pin and tool for idle circuit tuning guidance

What installation and tuning should I expect?

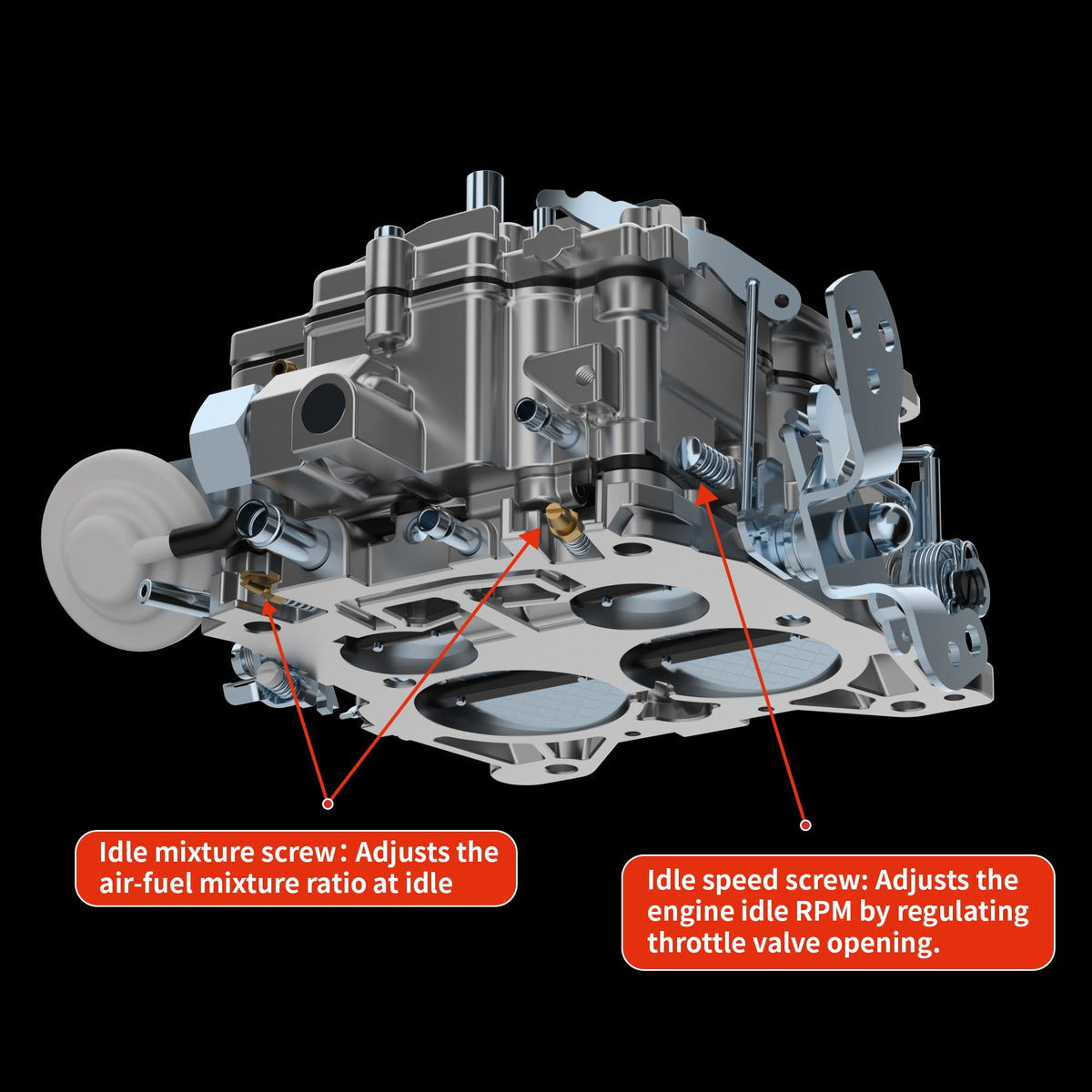

This carburetor ships without detailed installation instructions, so plan for basic mechanical skills or professional installation. You may need to block or restrict certain air channels for optimal idle on some small-block setups using the included pin and tool. Tuning—jetting, mixture screws and float level—will likely be required to match your engine, fuel pressure and emissions equipment.

• No installation manual included; follow trusted online guides or shop procedures
• May require idle circuit adjustments for small-block engines
• Recommended: confirmed correct carb size and professional tuning for best results
• Not intended for marine applications; automotive use only

Who is this for: The THUNDERMINGO 4-BBL replacement is aimed at classic Chevy and GMC owners, restorers and hot-rodders who need a reliable Quadrajet-style replacement for 327–454 V8s from the late 1960s through the 1970s. It suits drivers who want improved throttle response and a widely compatible spread-bore setup but who are prepared to confirm physical fitment and tune the carburetor to their engine or have a qualified mechanic handle installation and calibration.
