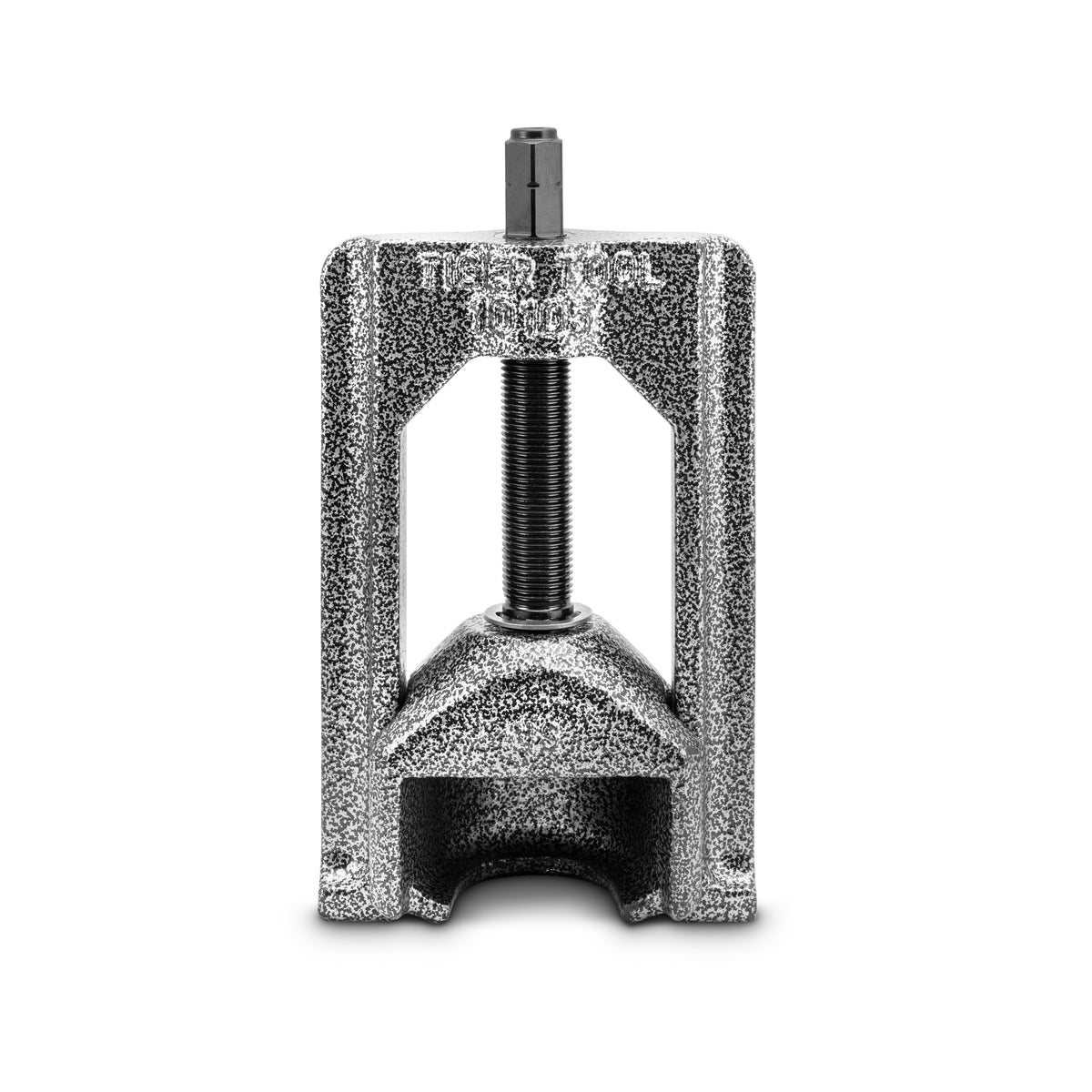

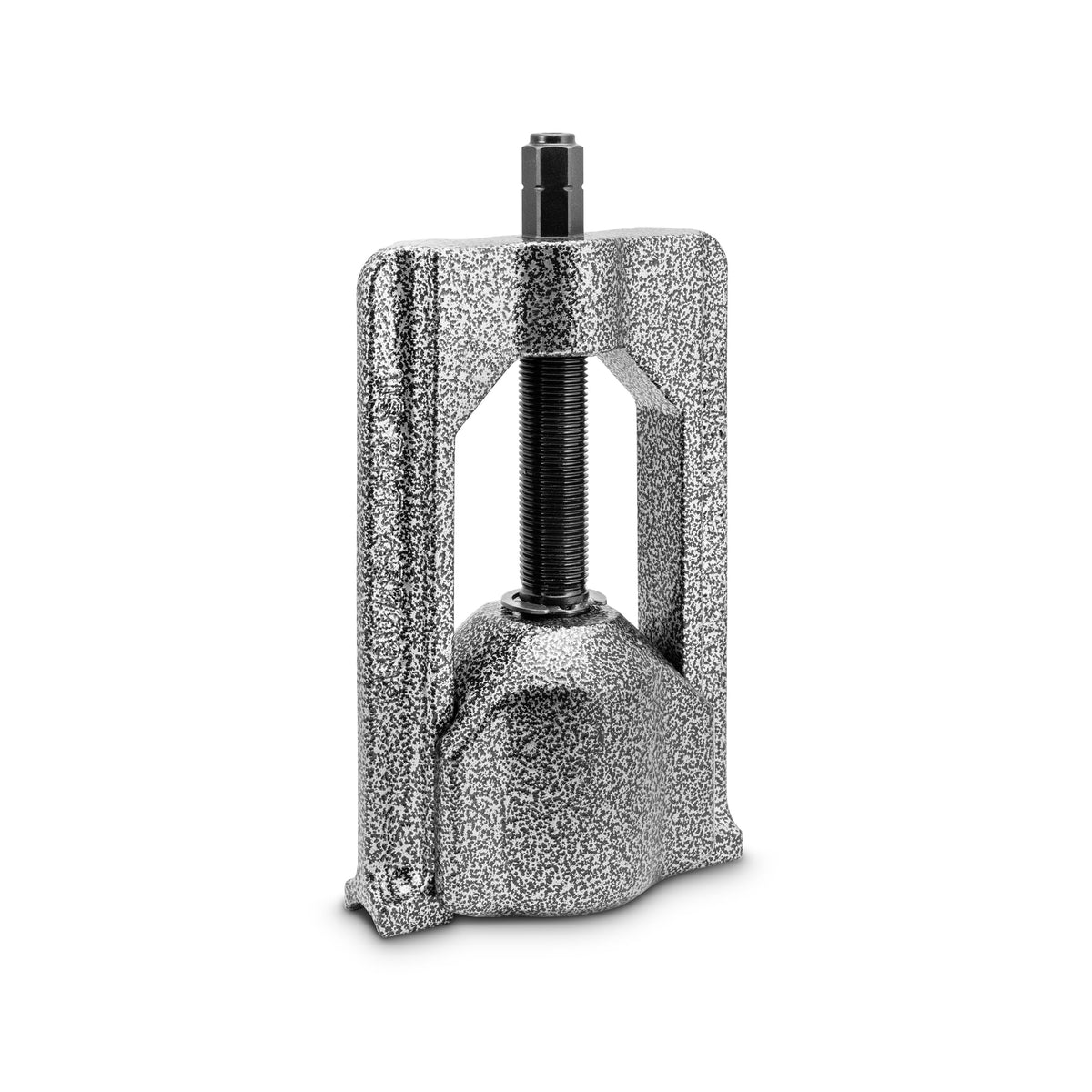

Tiger Tool U-Joint Puller 10105 — Universal U-Joint Extractor for Cars & Class 1–2 Trucks, Press-Style, 1.00"–1.25" O.D.

When a U-joint locks up or its bearing cups seize, using hammers and improvised adapters risks damaging the driveshaft, yoke flanges, and surrounding components. The Tiger Tool 10105 replaces risky removal methods with a controlled press-style extraction that targets bearing cups sized roughly 1.00" to 1.25" O.D. Built with hardened steel components and high-quality threads, this tool is made to withstand the force needed to free stuck bearings while minimizing collateral damage.

How does this tool remove seized U-joints without damaging the driveshaft?

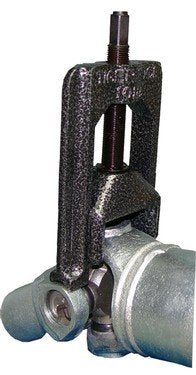

The 10105 uses a press-action design that delivers steady, centered force to the bearing cup, avoiding the shock and misalignment caused by hitting with hammers or using improper sockets. Threaded components and a precision-fit receiver guide the cup out straight, reducing the chance of deforming the yoke or flange. Its robust construction resists bending and stripping under heavy loads.

• Press-style extractor applies uniform axial force to bearing cups
• Precision receiver aligns the cup to prevent yoke flare

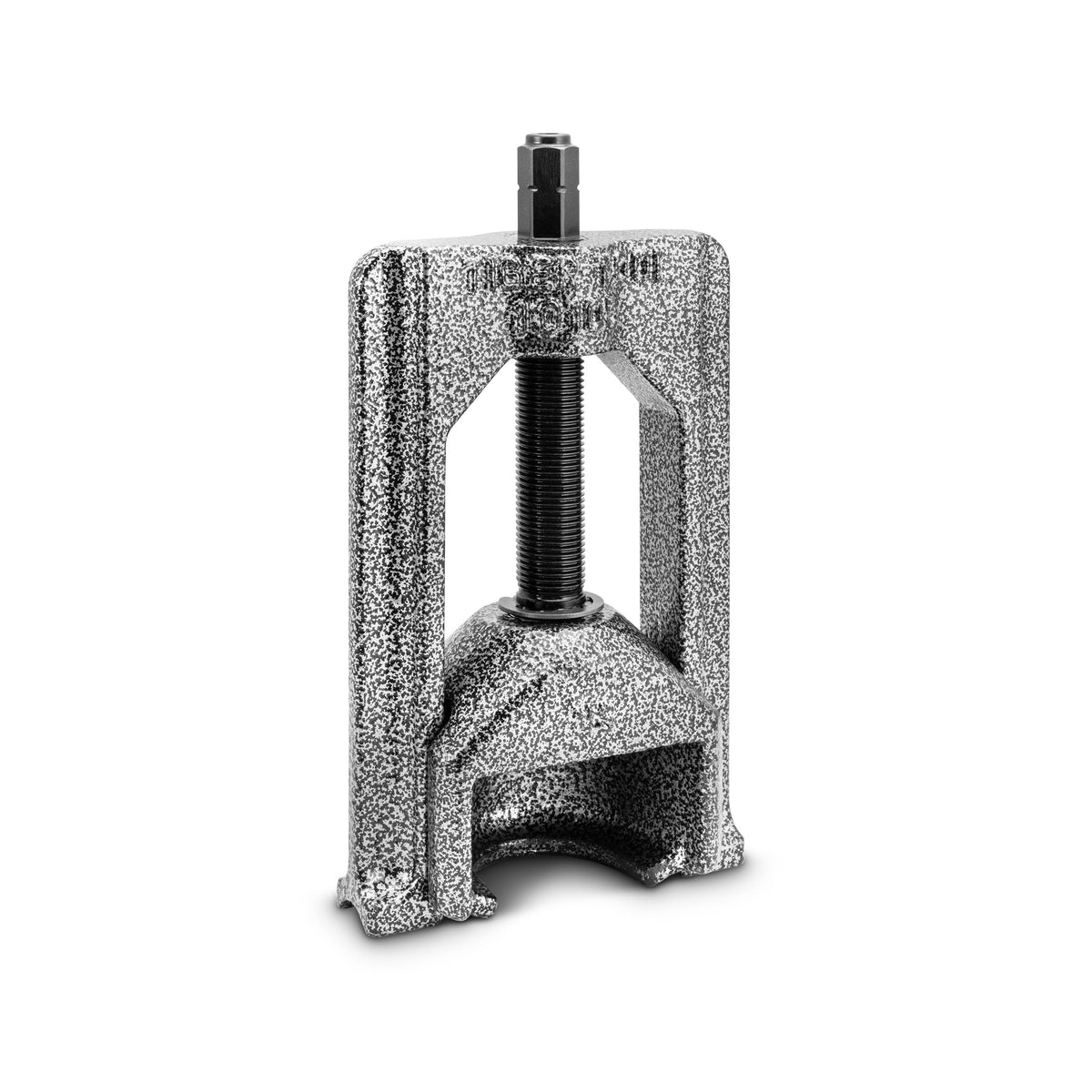

• Hardened steel parts and treated threads for durability

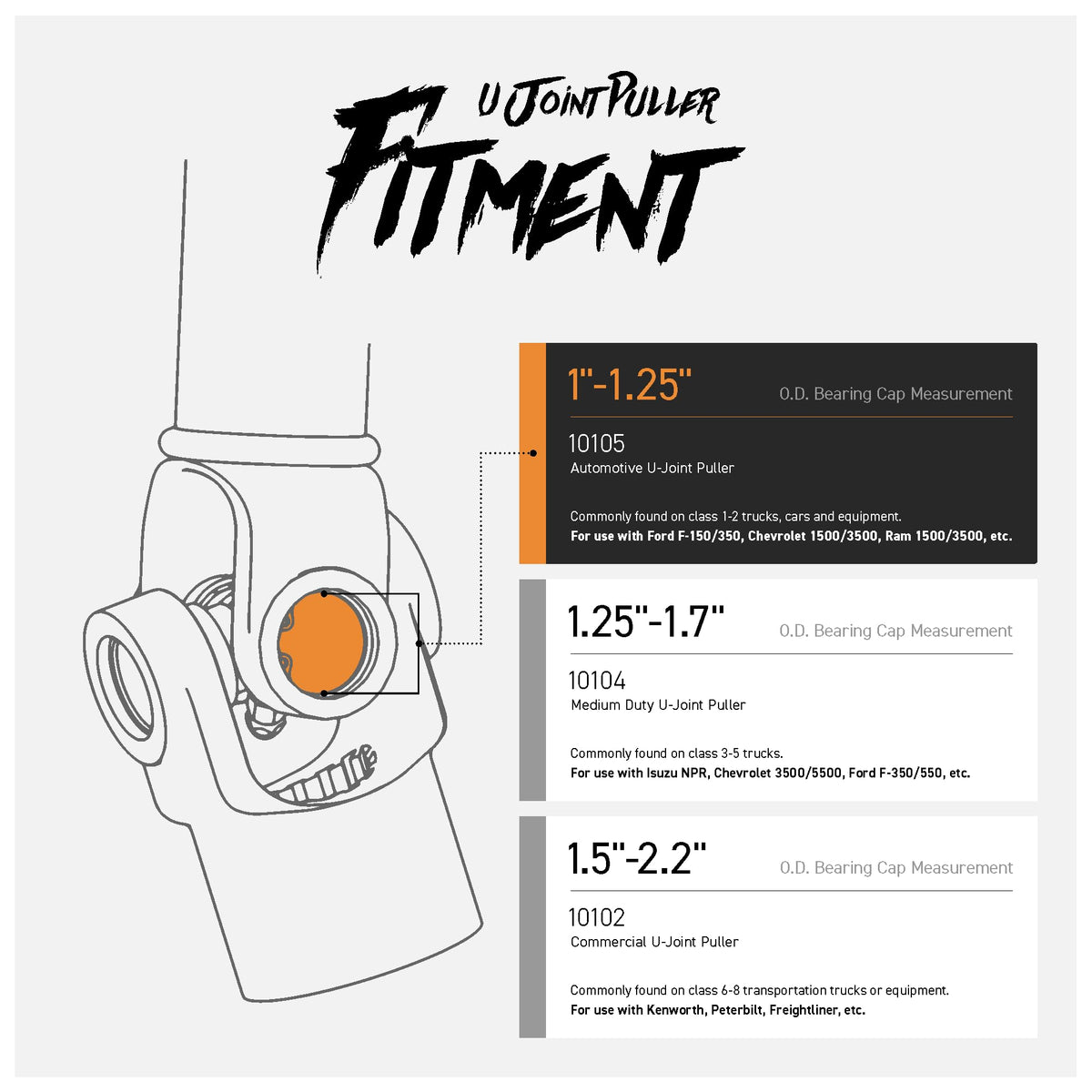

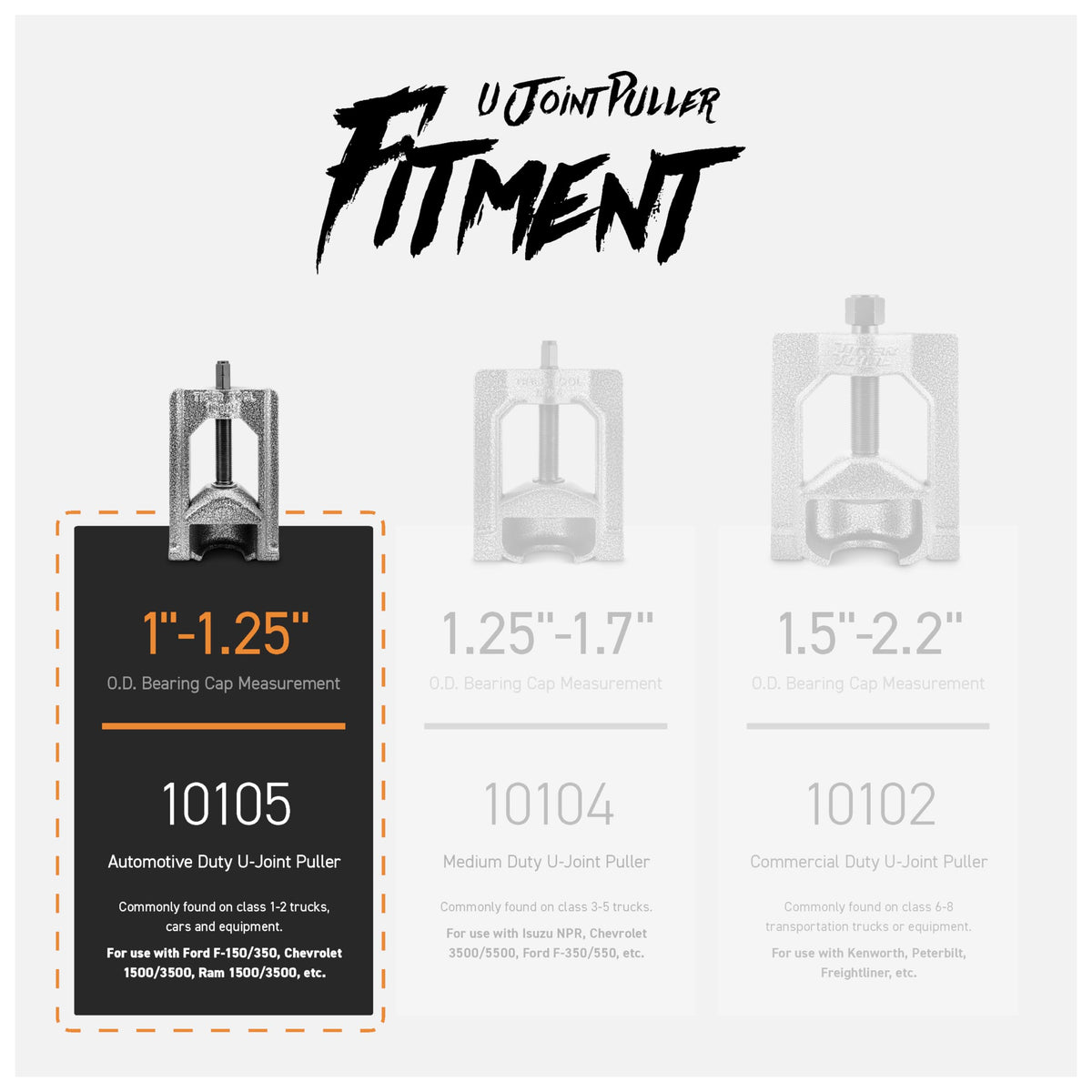

Which vehicles and U-joints is the 10105 compatible with?

This puller is intended for light-duty use on passenger cars, SUVs, and class 1–2 pickup trucks and equipment that use standard U-joint bearing cups between about 1.00" and 1.25" outside diameter. It fits many common domestic applications, including Ford, Chevrolet, and Ram models within that size range. Note: it is not suitable for Double Cardan joints or extremely corroded flange-style yokes where cups are fused to the yoke.

• Designed for bearing cups ~1.00"–1.25" O.D.
• Common fitment: many Ford F-series, Chevrolet 1500/3500, Ram 1500/3500
• Not for Double Cardan joints or badly fused flange yokes

How robust and safe is the tool under heavy use?

The 10105 is manufactured from high-grade steel and receives advanced metal treatments to preserve thread integrity and resist wear. Because it replaces hammering or improvised presses, it lowers the chance of accidental damage to the part being serviced and improves operator safety. The components are engineered to tolerate the torque and compression needed to extract stubborn cups repeatedly.

• High-strength cast and machined components for long life
• Heat-treated threads to resist galling under load
• Reduces risk compared with vice-and-socket hammering techniques

What should I watch for when using the 10105 on flange-style yokes?

While the puller is effective on many flange-style yokes, severely seized or fused cups can damage the yoke during removal. If you encounter excessive resistance beyond normal seized conditions, inspect the flange and consider alternative service methods or professional assistance. For Double Cardan joints or larger specialty applications, choose a tool specifically made for those designs.

• Avoid forcing on visibly fused or heavily corroded cups
• Inspect yoke condition before applying full extraction force
• Use alternative Tiger Tool models for Double Cardan applications

Who is this for: The Tiger Tool 10105 is aimed at professional mechanics, independent service shops, and serious DIYers who service cars, light trucks, and farm equipment and need a reliable, repeatable method for removing standard-sized U-joint bearing cups. If you frequently work on domestic pickups and passenger vehicles and want to replace risky hammer-and-socket techniques with a purpose-built press extractor, this tool is a practical, North American-made option.
