Titan 1/4" Double Flaring Tool — 51515 compact kit for 1/4" brake tubing, removable handle & die lubricant

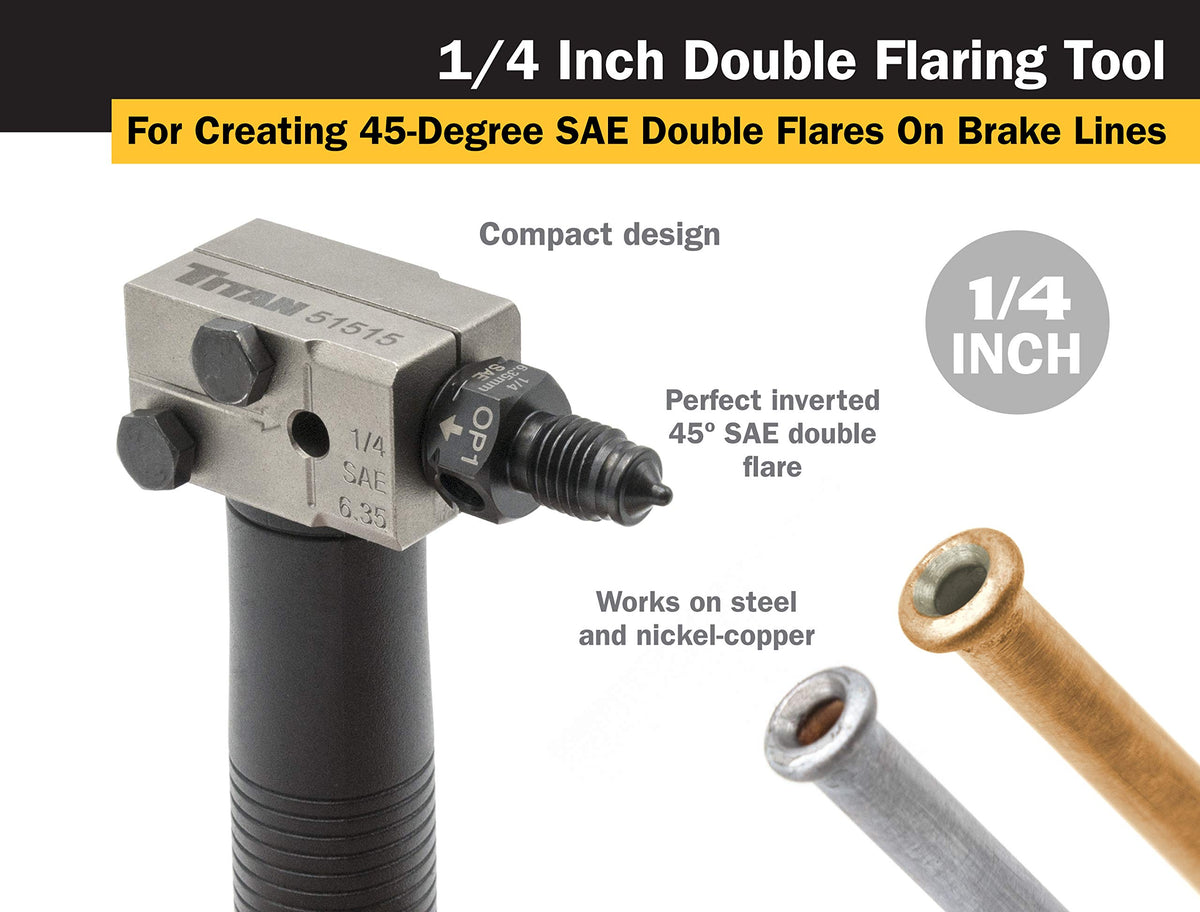

The Titan 51515 1/4-Inch Double Flaring Tool is a compact, vehicle-friendly kit that produces precise inverted 45° double flares on 1/4" brake tubing.

If you work on automotive brake systems, the right flaring tool saves time and reduces the need to remove long runs of tubing. The Titan 51515 is a compact, Taiwan-made flaring kit designed to form consistent SAE inverted 45° double flares in 1/4" steel and nickel-copper tubing. It ships with a removable handle, positioning bolt, a double-ended punch, and a small container of die lubricant so you can complete repairs on the vehicle or in the shop.

How does this tool create a reliable double flare?

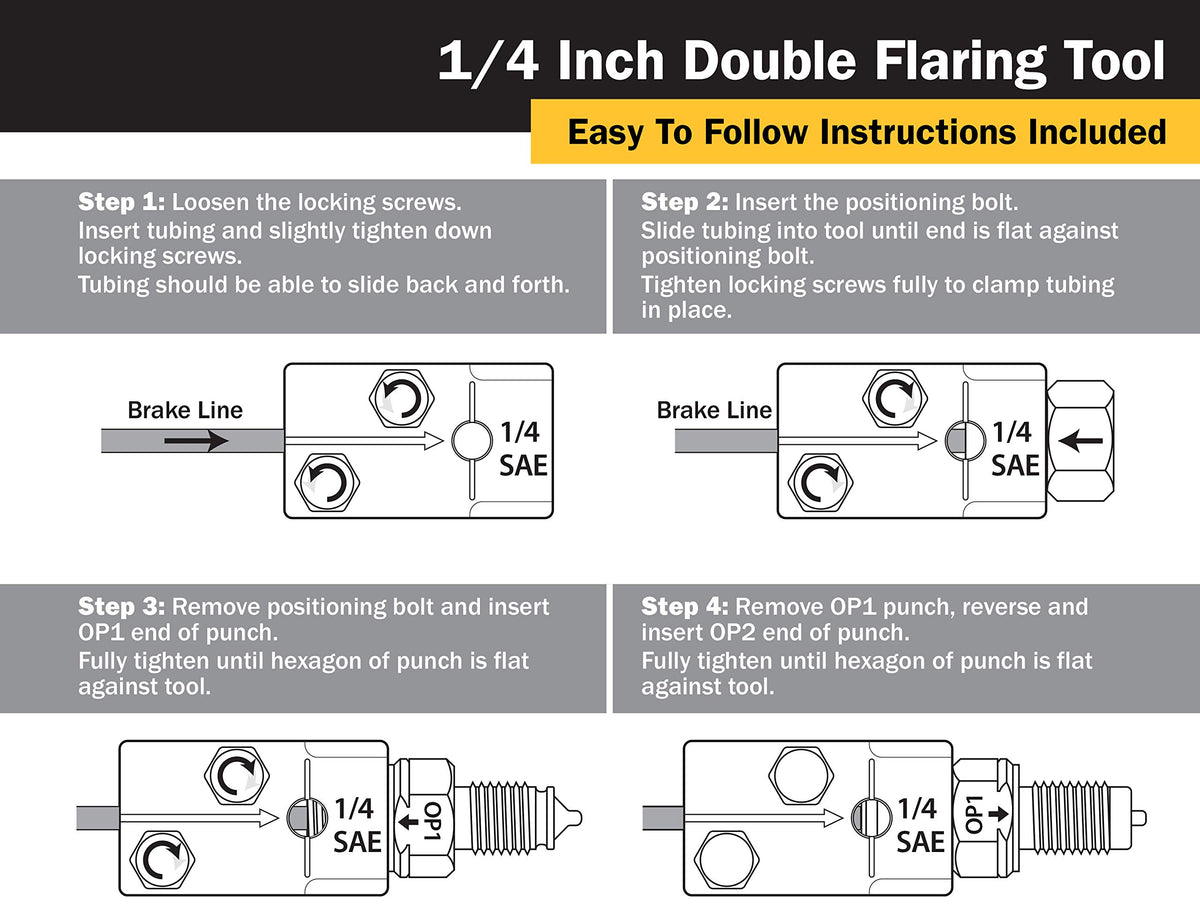

The kit uses a two-step flaring method: the punch first folds the tubing edge inward, then a conical die compresses and shapes the flange into the inverted 45° SAE profile. Materials and tolerance control in the die and punch produce repeatable geometry for leak-free fittings when assembled correctly. Built-in lubricant eases metal flow and reduces scoring during forming.

• Creates an SAE inverted 45° double flare specifically for 1/4" tubing
• Includes double-ended OP1/OP2 punch for the two-step forming process
• Die lubricant in the kit improves metal flow and finish

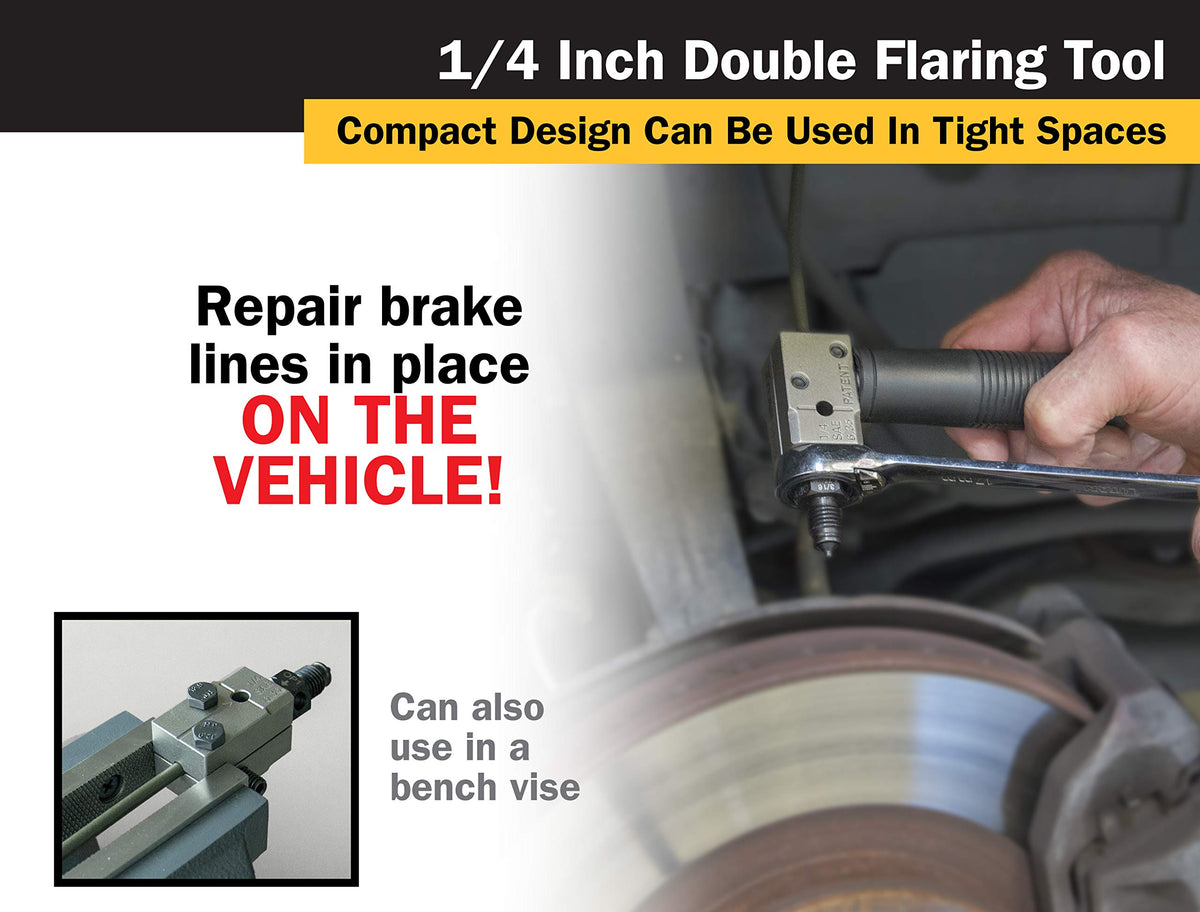

Can I use the Titan 51515 under a car without removing the brake line?

Yes — the tool’s compact frame and removable handle make it suitable for confined spaces beneath a vehicle. Remove the handle to clamp the tool in a bench vise or keep it on for hand operation in tight areas. The small footprint helps you flare lines in place, avoiding lengthy tubing removal and re-bending.

• Low-profile clamp fits into cramped undercarriage areas
• Removable handle allows bench-vise mounting or handheld use
• Designed for on-vehicle repairs to save disassembly time

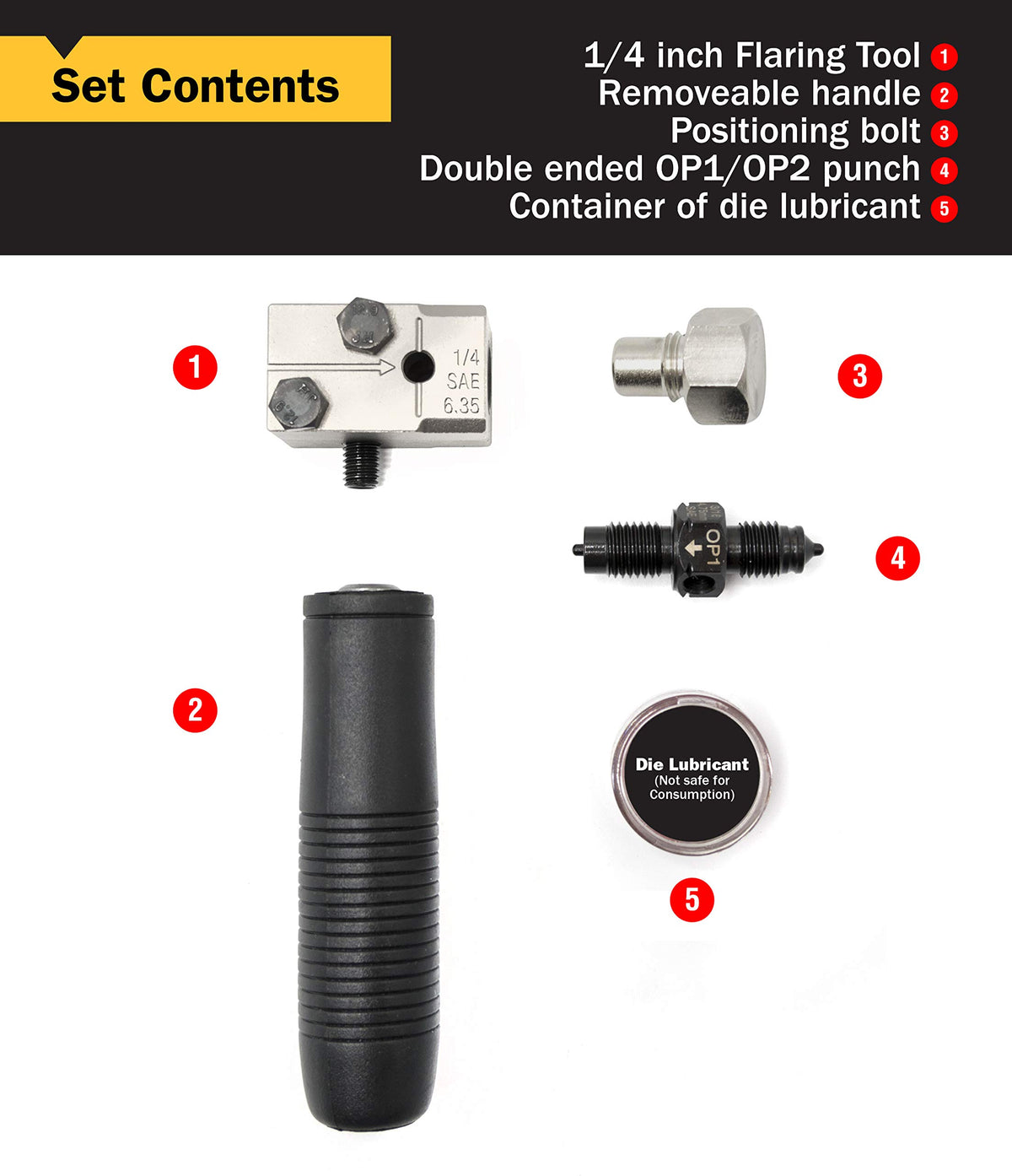

What parts are included and how do they help the job?

The Titan 51515 kit contains the essential components to form 1/4" double flares and protect your tooling. Each piece has a specific role — the positioning bolt holds tubing in exact alignment, the punch forms the initial bubble and final flare, and lubricant reduces friction for a cleaner result. Together they provide a complete small-flare solution for typical automotive brake lines.

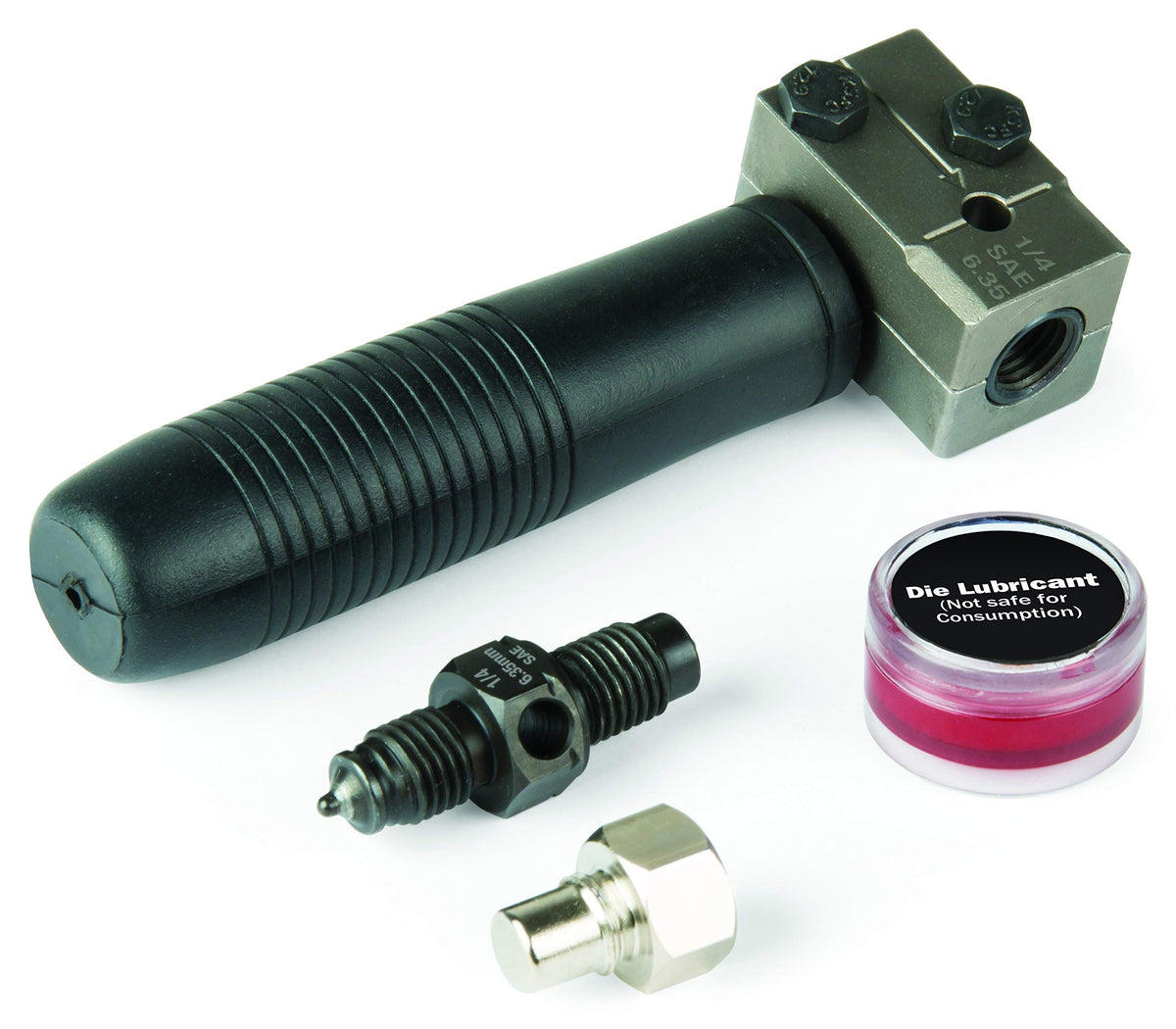

• 1/4" Double Flaring Tool with removable handle for accessibility
• Positioning bolt ensures accurate tubing alignment during forming
• Double-ended OP1/OP2 punch supports the two-stage flare process
• Container of die lubricant to minimize scoring and ease forming

Which tube materials and fittings does this tool support?

The Titan 51515 is engineered for 1/4" steel and nickel-copper brake tubing commonly used in automotive systems. It produces the SAE-style inverted 45° double flare used with standard brake fittings. It is not intended for tube sizes or flare types outside the stated specification.

• Works with 1/4" steel and nickel-copper tubing
• Produces SAE inverted 45° double flares for brake fittings
• Compact design tailored to automotive maintenance and repair

Who is this for: The Titan 51515 is aimed at mechanics, DIY automotive enthusiasts, and fleet technicians who need a portable, reliable flaring kit for brake-line repairs. If you frequently work on vehicles with 1/4" brake tubing or prefer to repair lines in place rather than remove and reroute them, this tool provides the components and compact form factor to get consistent inverted 45° double flares in the field or shop.
