Togarhow 740mm Rear Axle Assembly Kit for 13x5-6 Karts — Complete Wheel, Brake & T8F Drive

Togarhow's 740mm rear axle assembly kit is a complete drop-in solution that supplies axle, hubs, wheels, brake components and a T8F chain to rebuild or upgrade small go-karts, trikes and drift bikes.

This all-in-one rear-end kit bundles the main mechanical parts hobbyists need to finish a DIY go-kart or to replace worn components on a compact quad or trike. Engineered around a 740 mm (29.13") shaft and compatible 13" x 5-6" tubeless wheels with 6" rims, the package reduces parts-sourcing time by delivering wheels, pillow block bearings, a sprocket and brake hardware in a single shipment.

What components are included and how complete is the kit?

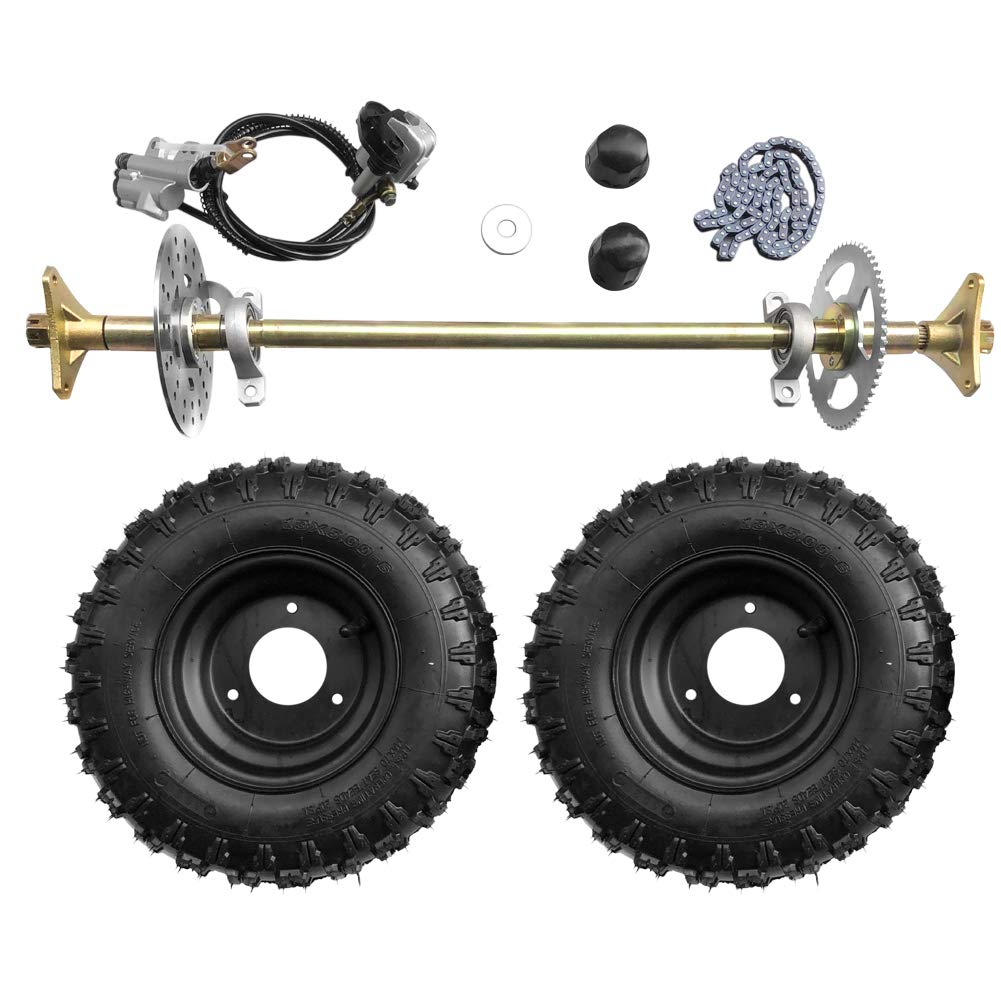

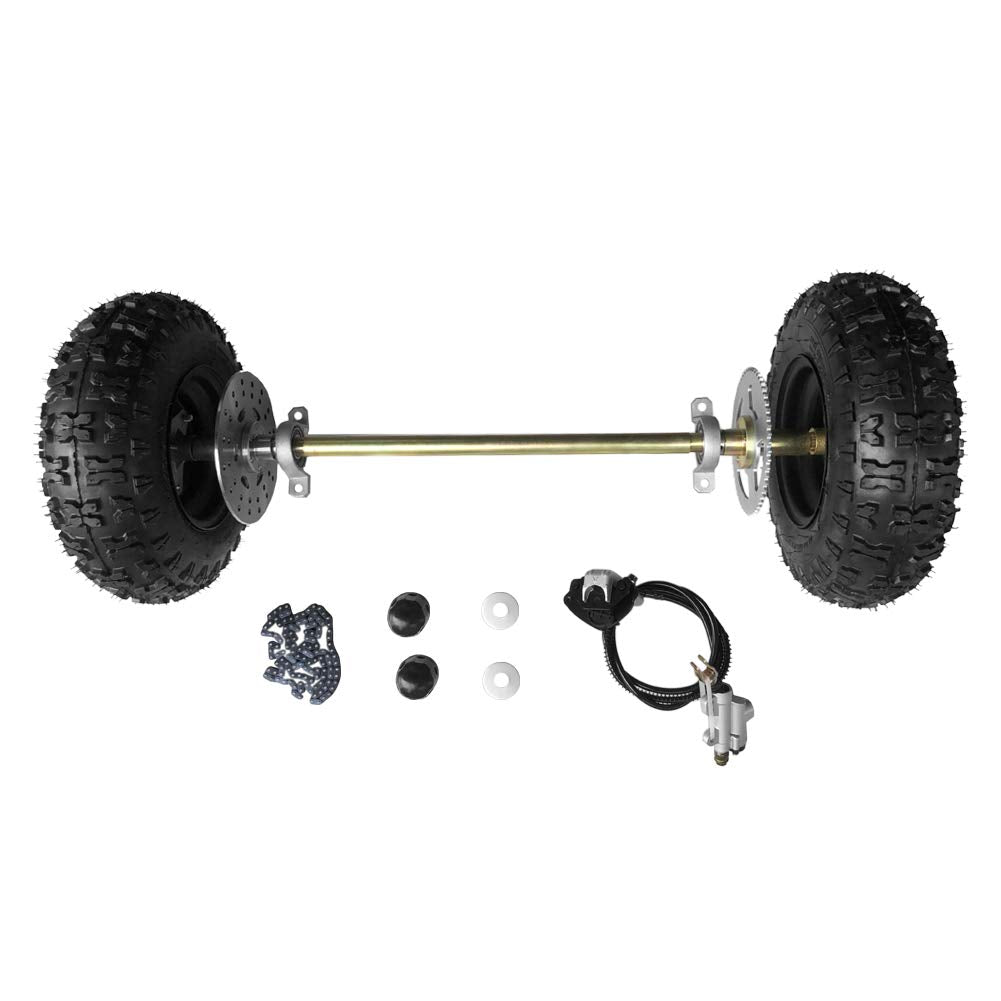

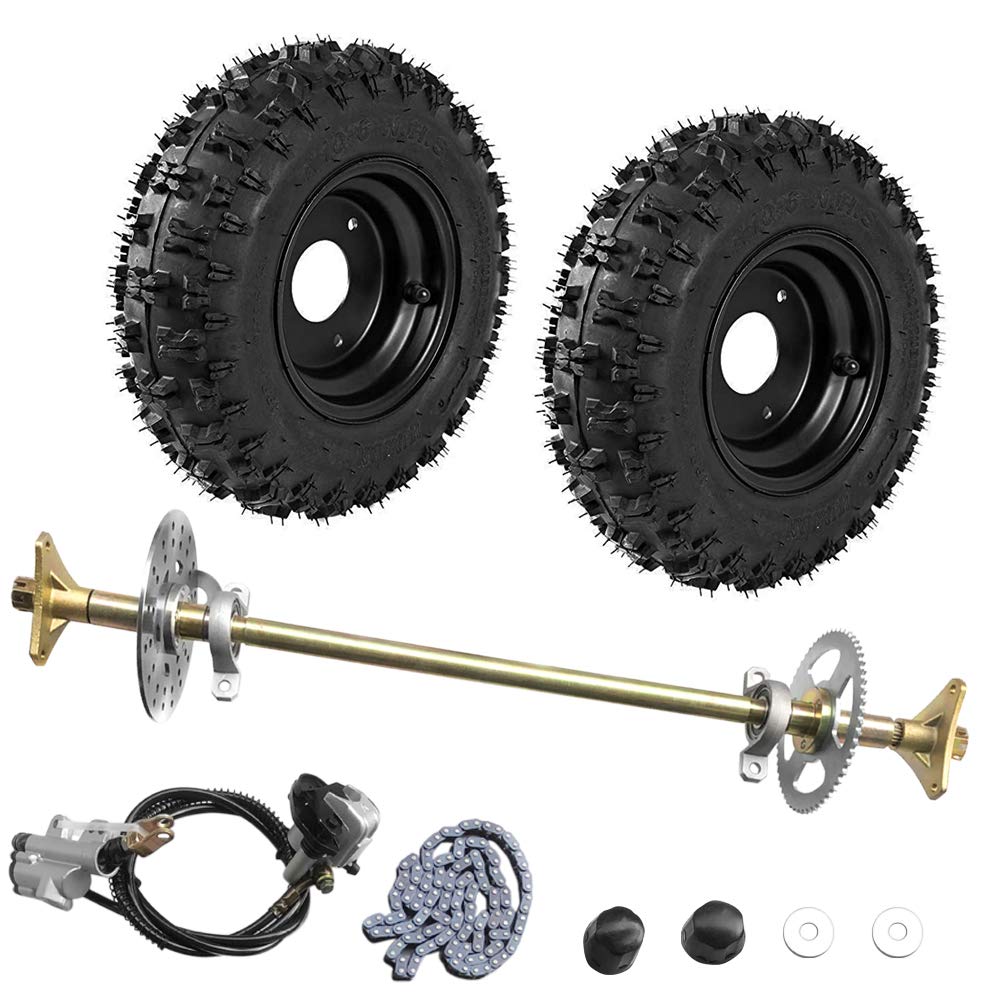

The Togarhow kit arrives with the key rear-end items required for most small kart builds: two pre-mounted wheels and tubes, pillow block bearings, the full axle assembly, T8F chain and sprocket, plus the brake disc and master caliper assembly. It covers mounting and drive elements so you can focus on frame fitment and engine/sprocket alignment.

• 2 wheels with tires, rims, and inner tubes (13" diameter, 4.1-6 tire)
• 1 axle assembly (740 mm overall length, 22 mm max diameter)
• 2 pillow block bearings, T8F chain, sprocket, brake disc and caliper

How does the axle fit my kart frame and wheels?

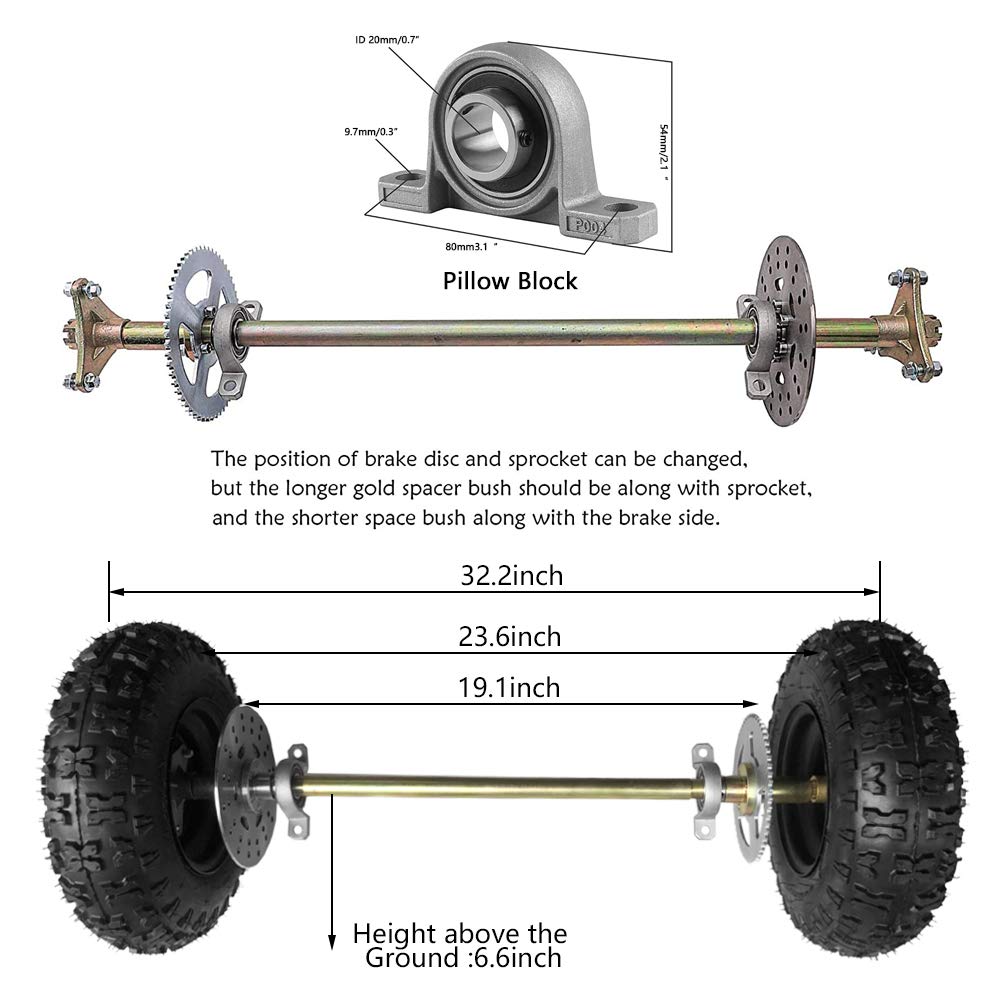

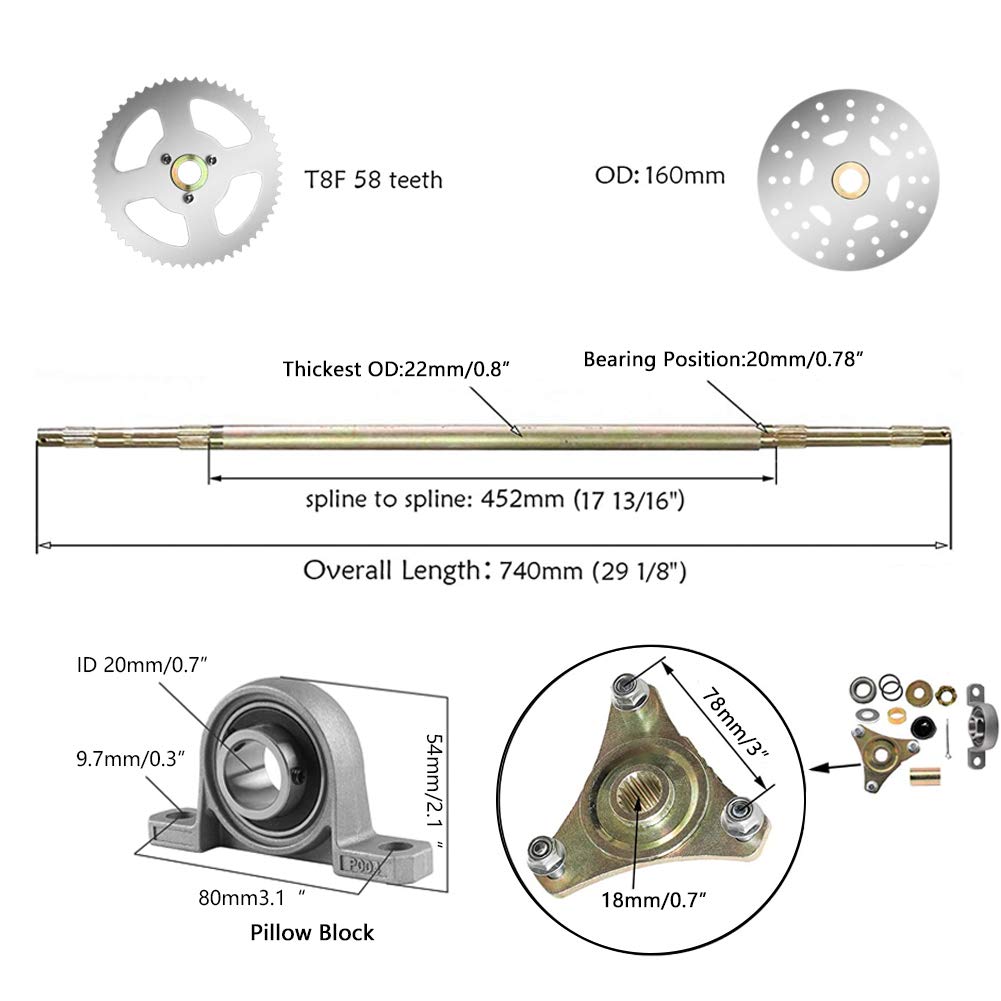

The solid shaft measures 740 mm long with 452 mm spline-to-spline spacing and a thickest section of 22 mm, making it suitable for many compact DIY frames. The wheels use 6" rims with a 3-bolt hub pattern and roughly 3" bolt-to-bolt spacing—verify your mounting points and frame width before installation.

• Shaft overall length: 740 mm (29.13")
• Spline-to-spline center: 452 mm (17.79")

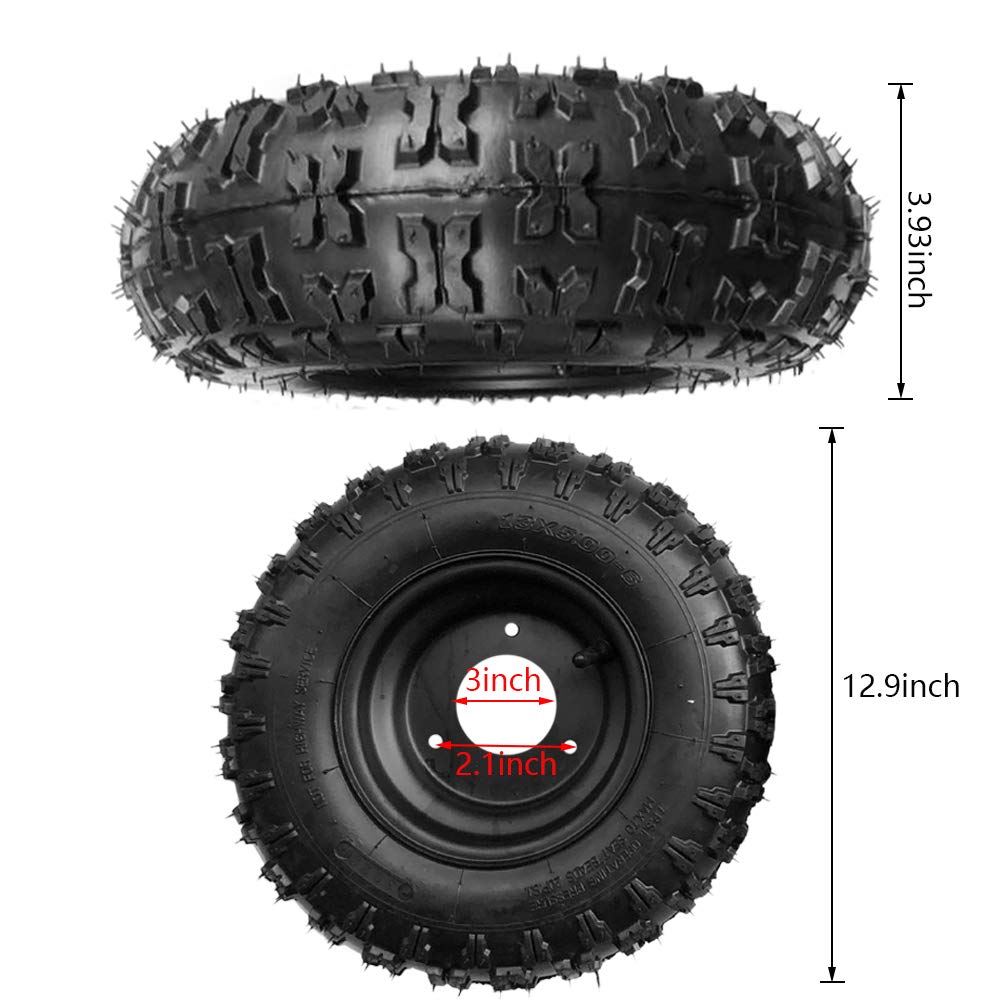

• Rim size: 6" with 3-bolt pattern, wheel diameter 13"

Will the brake and drive pieces work with my engine or motor?

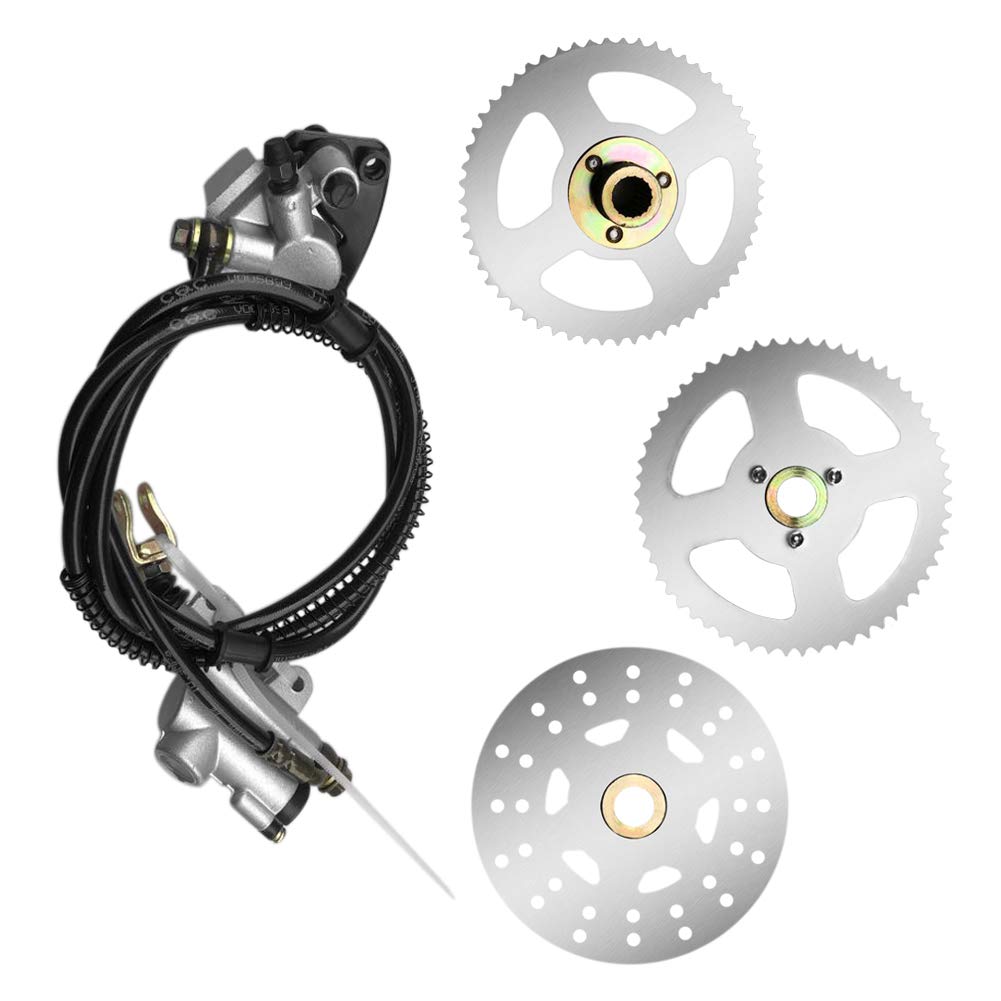

The kit includes a T8F chain and matching sprocket plus a brake disc and master caliper assembly suitable for small kart powertrains. The T8F chain is common on compact engines and electric motors, but confirm your engine sprocket pitch and tooth count to ensure the supplied sprocket meets your gear ratio needs.

• T8F chain compatible with typical small-engine sprockets
• Brake disc and master caliper included for rear braking capability
• Assess sprocket tooth count to tune final drive ratio

What durability and fitment should I expect during use?

The assembly is intended for recreational and light-duty applications such as DIY go-karts, drift trikes, and small quads. Components are sized and grouped to simplify installation, but longevity depends on correct mounting, alignment, and regular maintenance like chain tensioning and bearing checks.

• Designed for hobbyist and small recreational vehicles
• Regular inspection of bearings, chain, and brake hardware recommended
• Not designed for heavy industrial or high-performance racing loads

Who is this for: The Togarhow 740mm rear axle kit suits DIY builders, garage mechanics and hobbyists restoring or customizing small go-karts, trikes and drift bikes. If you need a largely complete rear-end package—axle, hubs, wheels, drivetrain and brake hardware—to speed up a build or replace worn parts on compact vehicles, this kit provides a convenient, compatible set of components. Confirm frame width, hub bolt pattern and desired sprocket ratio before purchasing to ensure a smooth fit and proper drivetrain performance.
