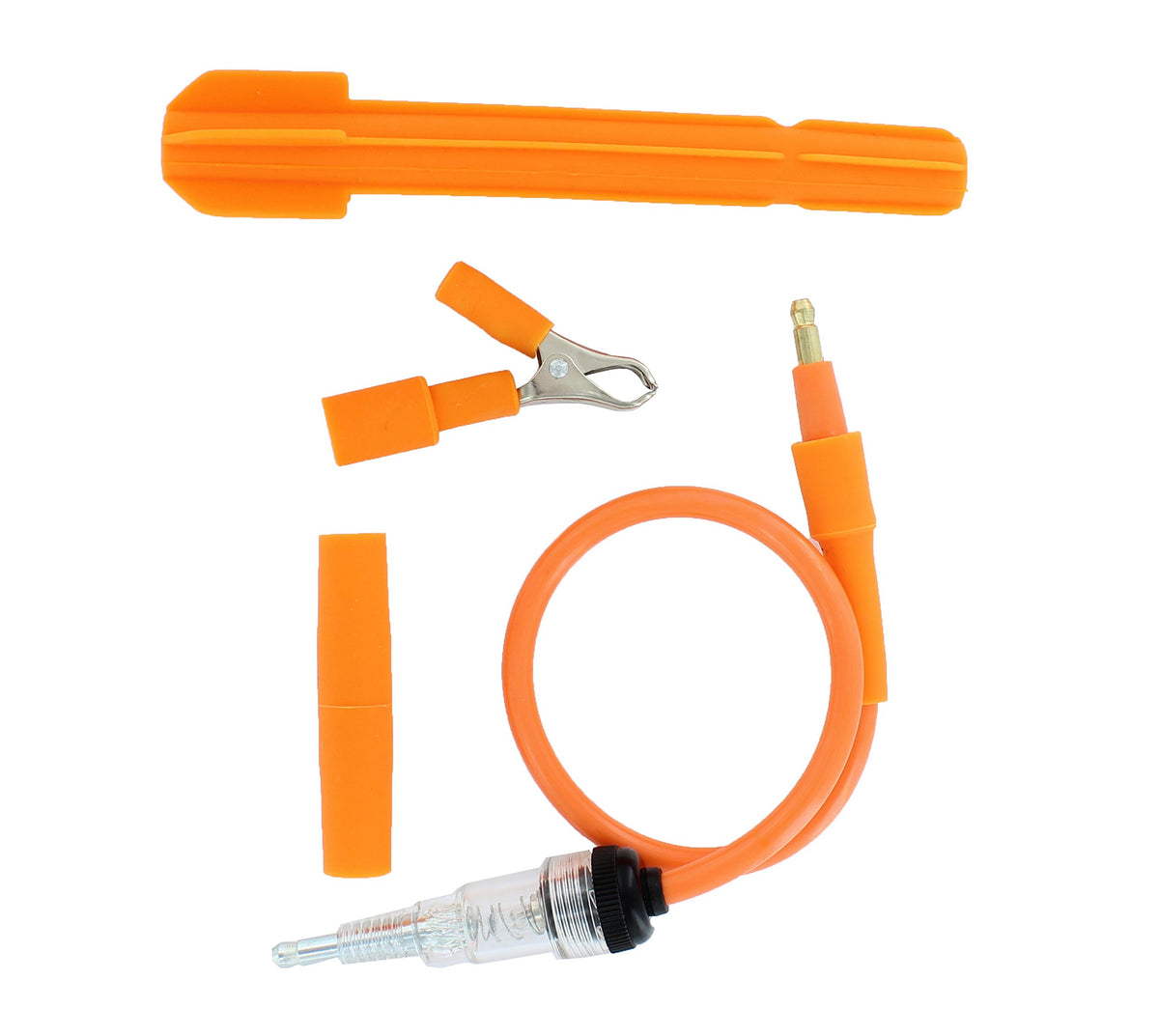

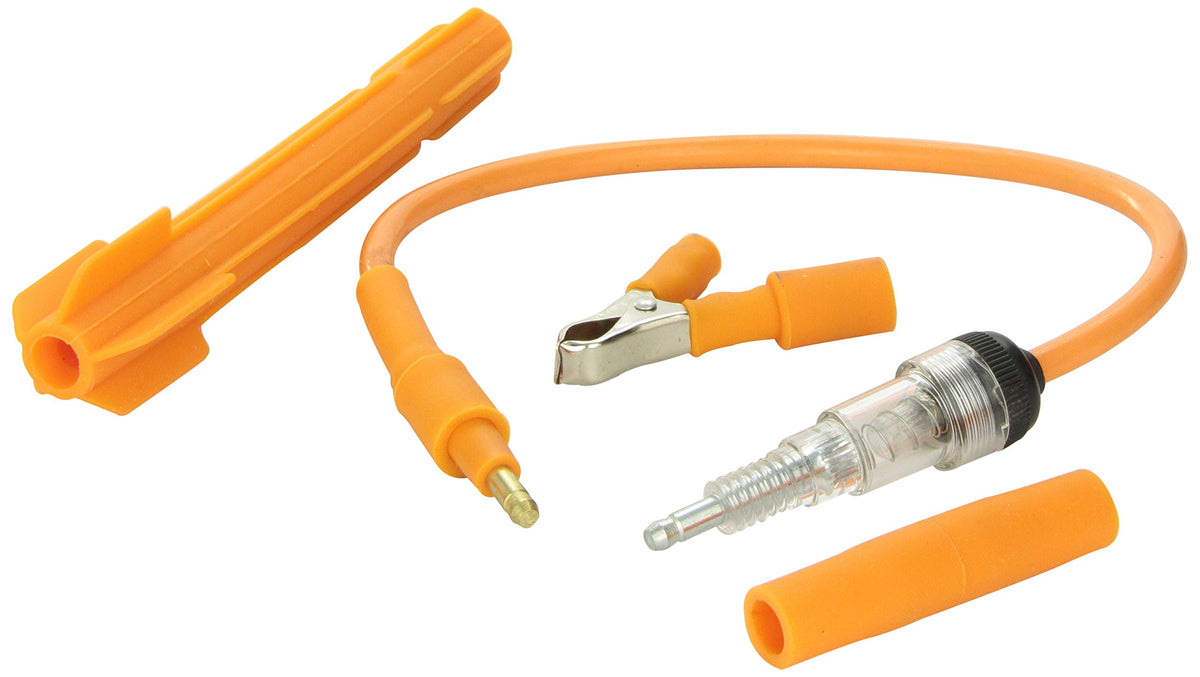

Tool Aid in-line spark checker kit 23970 — recessed-plug spark tester, safety-orange housing, visible flashing bulb

The Tool Aid 23970 in-line spark checker kit is a handheld diagnostic tool that lets you safely verify ignition spark and diagnose ignition versus fuel delivery issues on cars, SUVs, and trucks with recessed spark plugs.

The Tool Aid 23970 combines a visible flashing indicator bulb with a compact in-line design so you can confirm whether an engine’s ignition circuit is producing spark without removing the plug from the cylinder head. Its safety-orange housing improves visibility in a busy garage or roadside environment, and the flash pattern helps separate ignition failures from fuel delivery faults for quicker, more informed troubleshooting.

How does the spark checker tell ignition problems from fuel delivery faults?

The unit uses a bulb that flashes in response to the ignition pulse. A consistent, strong flash typically points to a functioning ignition circuit but possible fuel delivery issues, while weak or absent flashes indicate an ignition or coil problem. Reading the frequency and intensity of the flashes gives a quick, practical clue for next steps.

• Visible bulb shows spark pulse strength and timing.
• Flash frequency correlates to ignition firing events.
• Intensity differences help prioritize fuel system vs. ignition system diagnosis.
• Works on most domestic and imported vehicles.

Can I use this on modern recessed spark plug engines?

Yes—this kit is specifically designed for recessed plug applications common on many modern engines. Its in-line connection reaches into recessed plug wells without forcing removal of the plug, making checks faster and reducing the risk of damaging threads or connectors. It’s compatible with a wide range of cars, SUVs, and trucks.

• Fits recessed spark plug wells without plug removal.
• Safe for domestic and imported engine designs.
• Compact construction for tight engine bays.
• Reduces time compared with full plug removal checks.

Is the Tool Aid 23970 safe and easy to use for DIY mechanics?

Designed for practicality and visibility, the spark checker features a safety-orange housing and a simple, in-line bulb indicator so both pros and home mechanics can use it with minimal training. It requires basic precautions—engine off for hookup unless following manufacturer instructions for live checks—and offers clear visual feedback instead of complex electronics. This simplicity reduces user error and accelerates troubleshooting.

• Bright safety-orange color for easy locating in a toolbox or engine bay.
• Plug-and-check operation with no complicated setup.
• Visual flash eliminates guesswork from sound-based checks.
• Ideal for quick roadside or garage diagnostics.

What practical steps should I take after the checker indicates a problem?

Use the flash pattern to guide your follow-up: a strong, consistent flash suggests inspecting fuel delivery components, while weak or absent flashes point to coils, ignition modules, or wiring. From there, perform targeted tests like fuel pressure checks, coil resistance measurements, or wiring inspections to confirm the fault before replacing parts. The spark checker is a triage tool—not a full replacement for in-depth testing equipment.

• Strong flash: inspect fuel pump, injectors, filters, and pressure.
• Weak/absent flash: test coils, modules, distributor (if applicable), and wiring.
• Follow with multimeter, fuel pressure gauge, or scope for confirmation.
• Document findings before ordering replacement parts.

Who is this for? The Tool Aid 23970 in-line spark checker is aimed at professional technicians, mobile mechanics, and knowledgeable DIYers who need a quick, visible way to separate ignition issues from fuel-related problems on domestic and imported vehicles with recessed spark plugs. It’s a low-cost diagnostic addition for anyone who wants faster troubleshooting, fewer unnecessary part replacements, and safer checks in tight engine bays.
