TOPDC 8-Way Battery Terminal Connector Pair — 2/0 AWG Ports, M8 Studs, 6061 Aluminum Positive & Negative Set

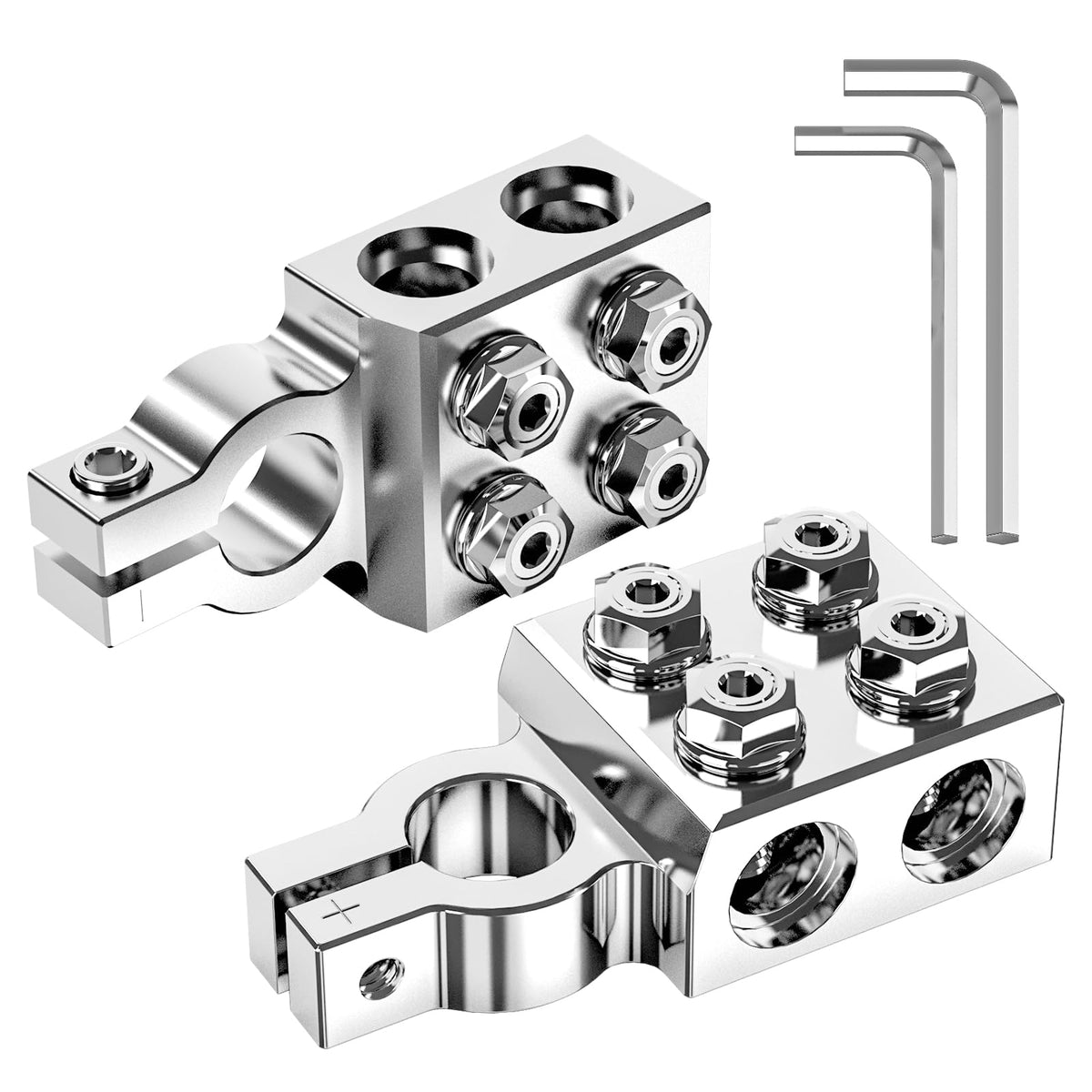

TOPDC 8-Way Battery Terminal Connector Pair is a heavy-duty positive and negative battery terminal set that gives eight connection points per clamp for organized multi-accessory wiring on compatible lead-acid batteries. This pair of battery terminals is designed to simplify adding multiple electrical accessories to cars, trucks, RVs and other vehicles that use tapered top posts (SAE/DIN/EN). Each terminal combines four direct-wire clamping ports and four M8 threaded studs so you can mix stripped cables and ring-lug terminations. Constructed from 6061 aluminum, the set includes both positive and negative connectors plus two Allen wrenches for installation.

How do these terminals let me connect many accessories without a distribution block?

The TOPDC terminals provide eight secure attachment points per clamp so you can route power to multiple accessories directly at the battery. This reduces extra wiring runs and can keep accessory circuits centralized and tidy.

• 4 direct-wire ports clamp stripped cable up to 2/0 AWG for quick insertion.
• 4 M8 studs accept ring lugs sized for 5/16, 3/8, or 1/2 inch eyelets and up to 4/0 AWG cable.
• Mix stripped leads and lugged cables on the same terminal for flexibility.
• Includes Allen wrenches to tighten studs and cable clamps during install.

Will these fit my battery posts and common vehicles?

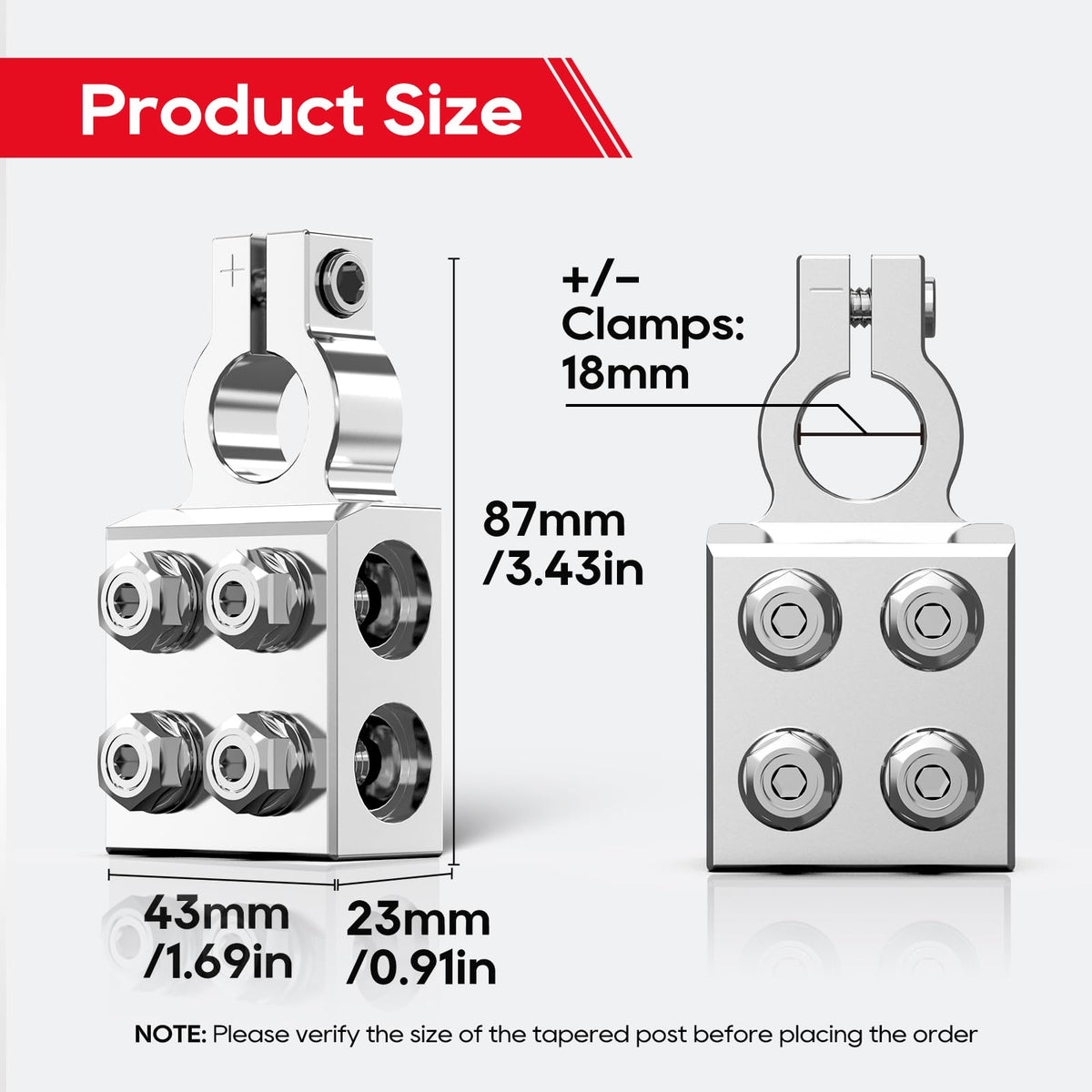

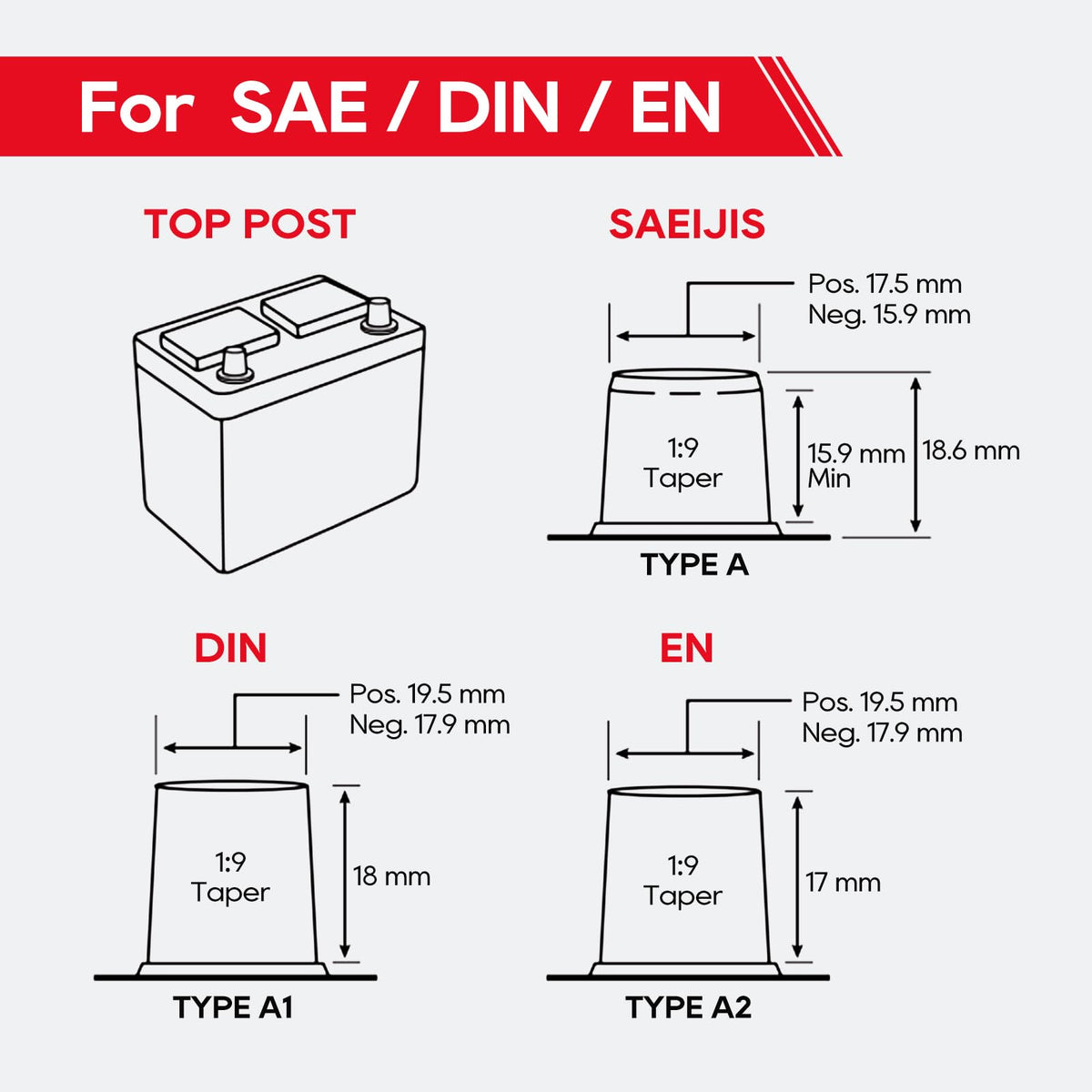

These connectors are built for tapered top posts with approximate diameters 17.5–19.5 mm (positive) and 15.9–17.9 mm (negative). They are suitable for many domestic and imported cars, light trucks, pickups and RV batteries that use SAE/DIN/EN posts. They are not compatible with JIS pencil posts or side-post battery designs.

• Check your battery post diameter before buying to ensure compatibility.
• Not intended for JIS-style pencil posts or batteries with side terminals.

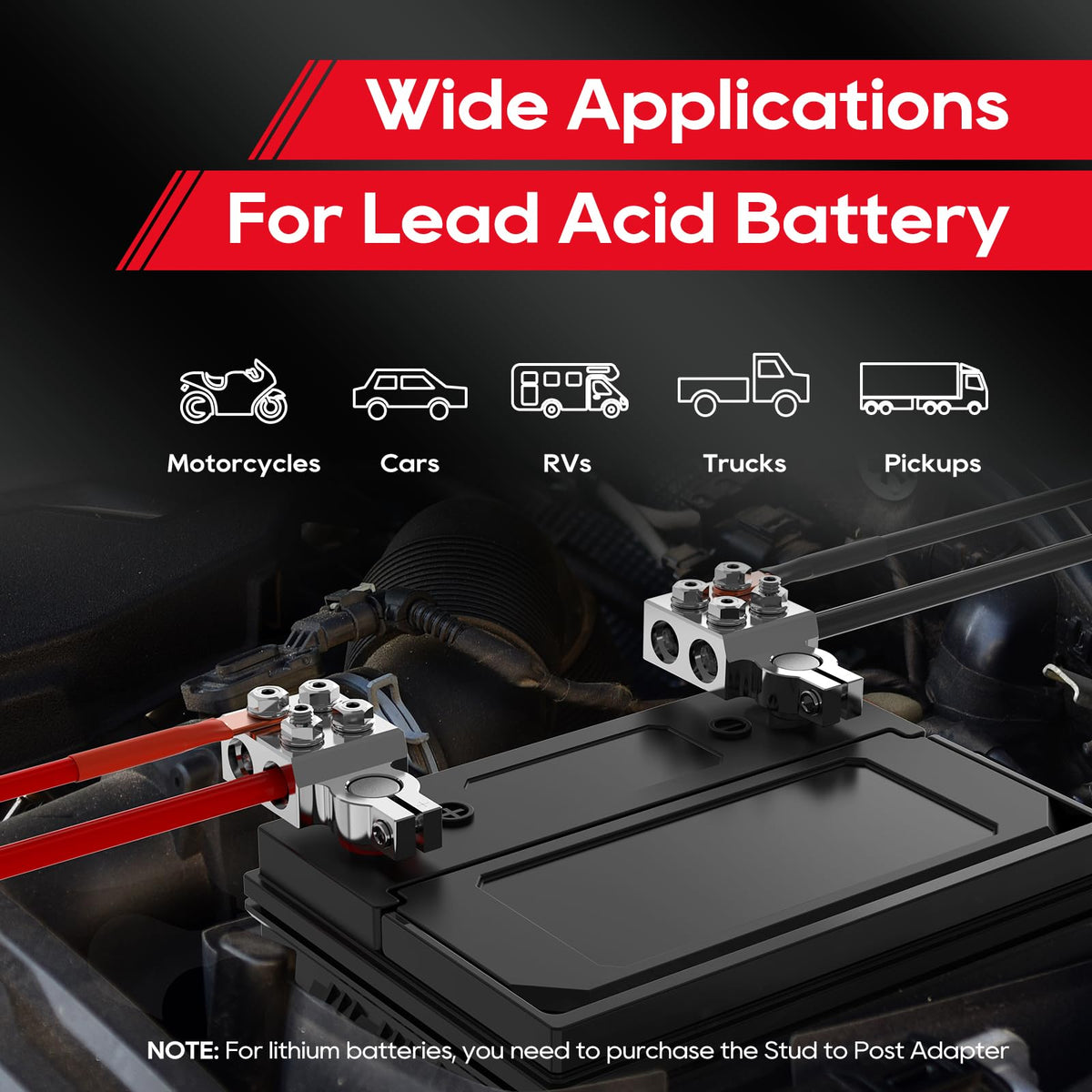

• Use on lead-acid batteries with tapered top posts common in vehicles and marine starting batteries.

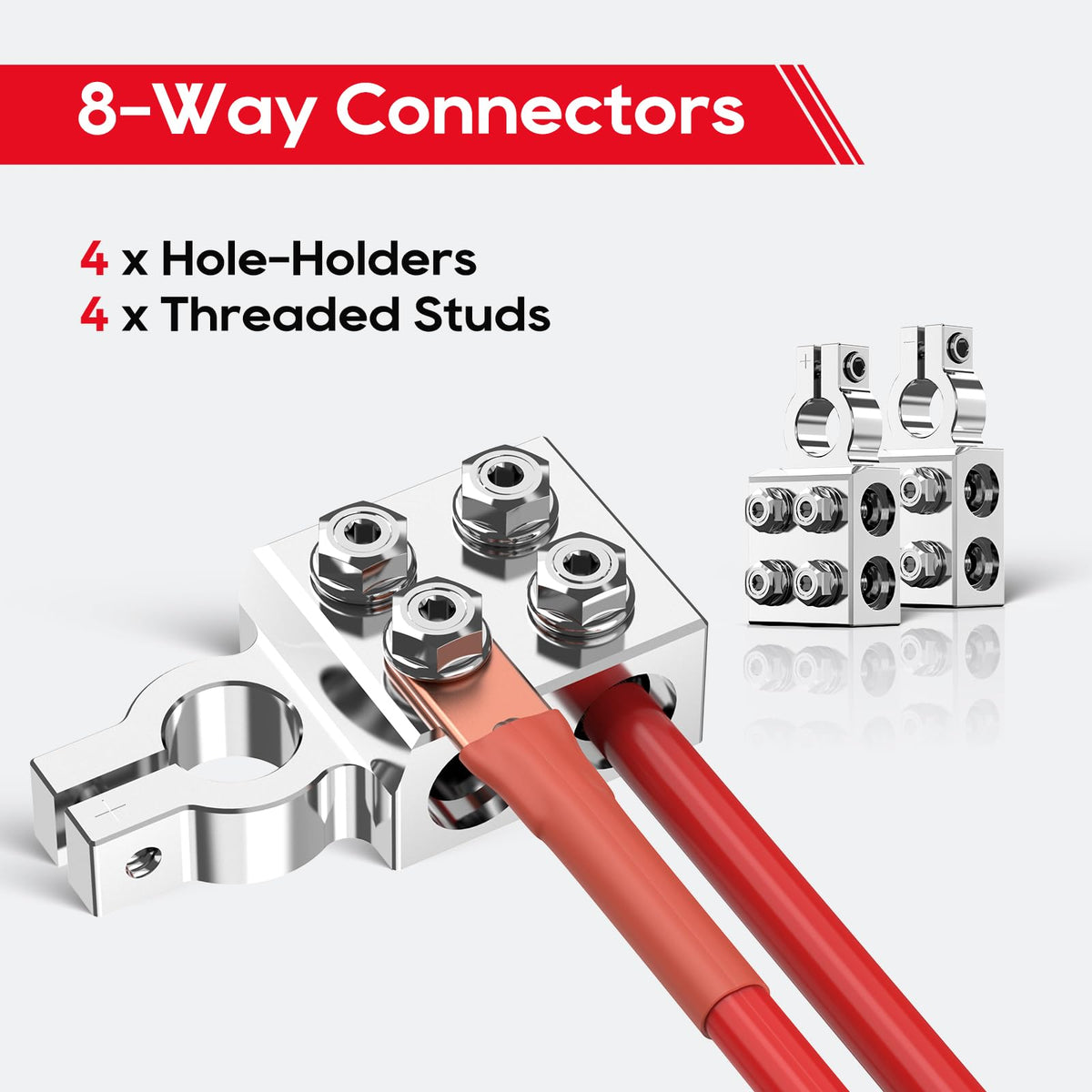

How do the two cable connection methods work and what sizes do they accept?

The terminals accept two types of cable terminations so you can choose the method that fits each accessory. Direct-wire clamp ports secure stripped cable, while the M8 studs accept ring lugs for larger gauge runs and permanent connections.

• Direct-wire ports clamp stripped conductors up to 2/0 AWG for tight, tool-assisted grips.
• M8 studs accommodate ring lugs with 5/16, 3/8, or 1/2 inch eyelets and handle cable up to 4/0 (XL) AWG.

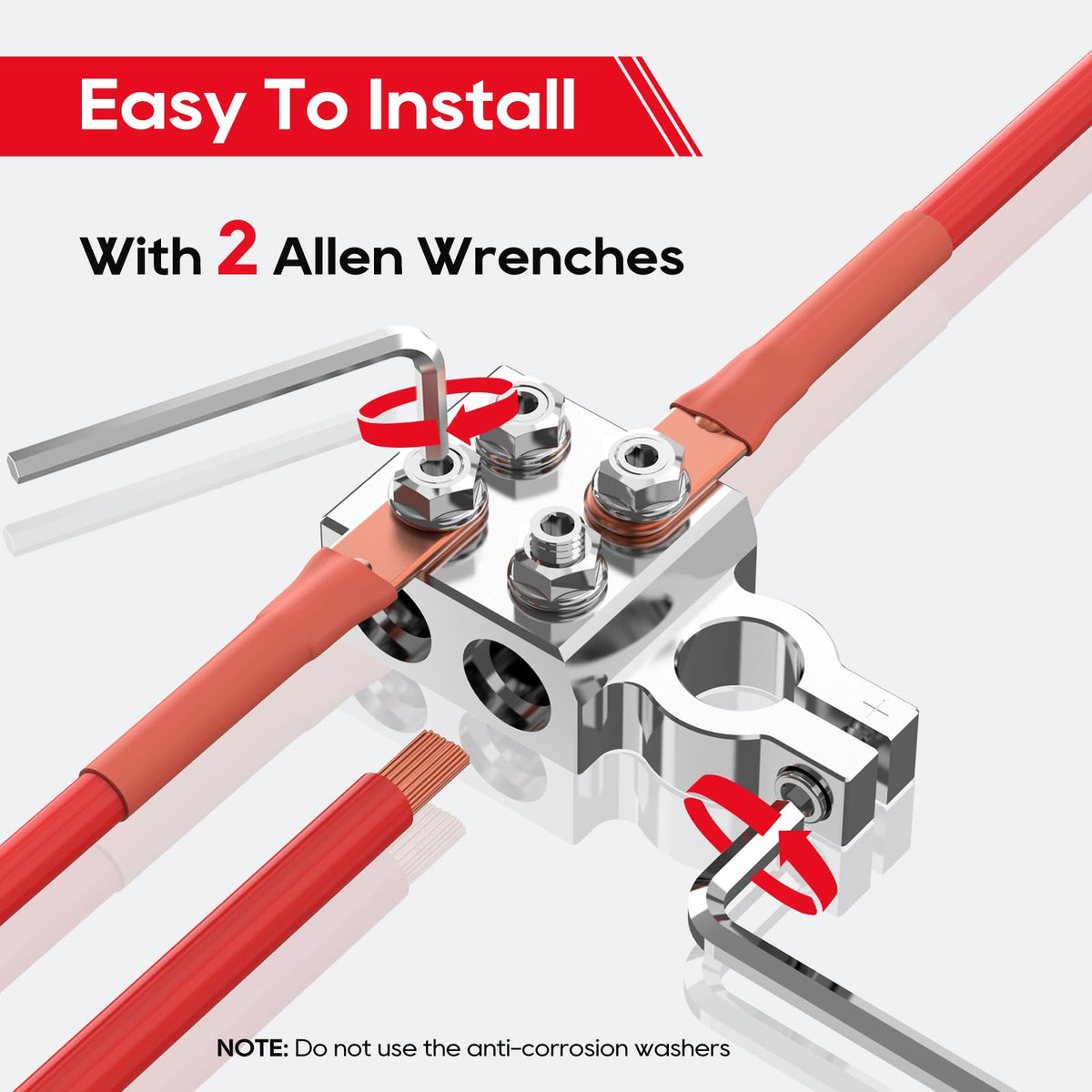

• Tighten studs and wire clamps with included Allen wrenches for reliable connections.

What materials and installation notes should I know before fitting these terminals?

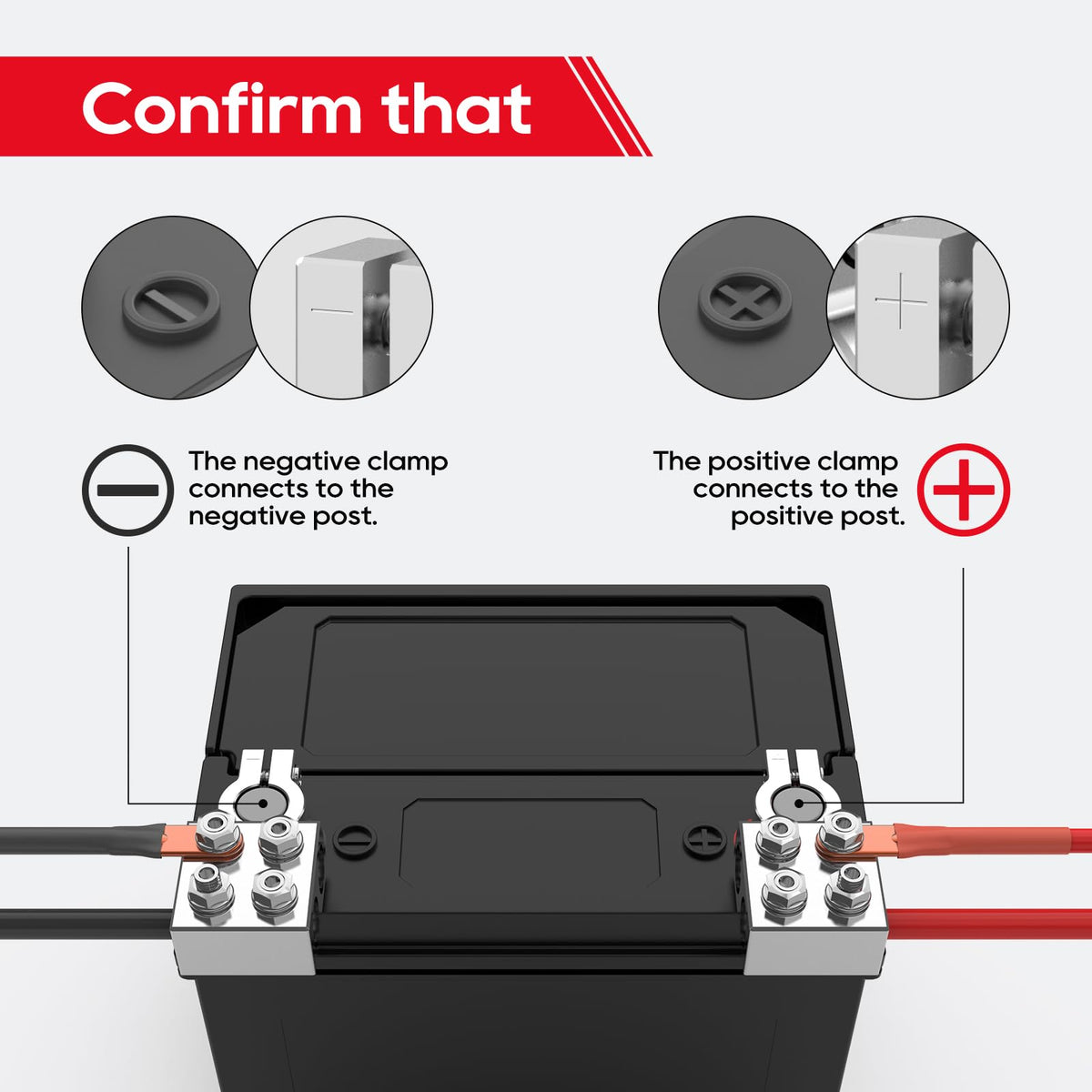

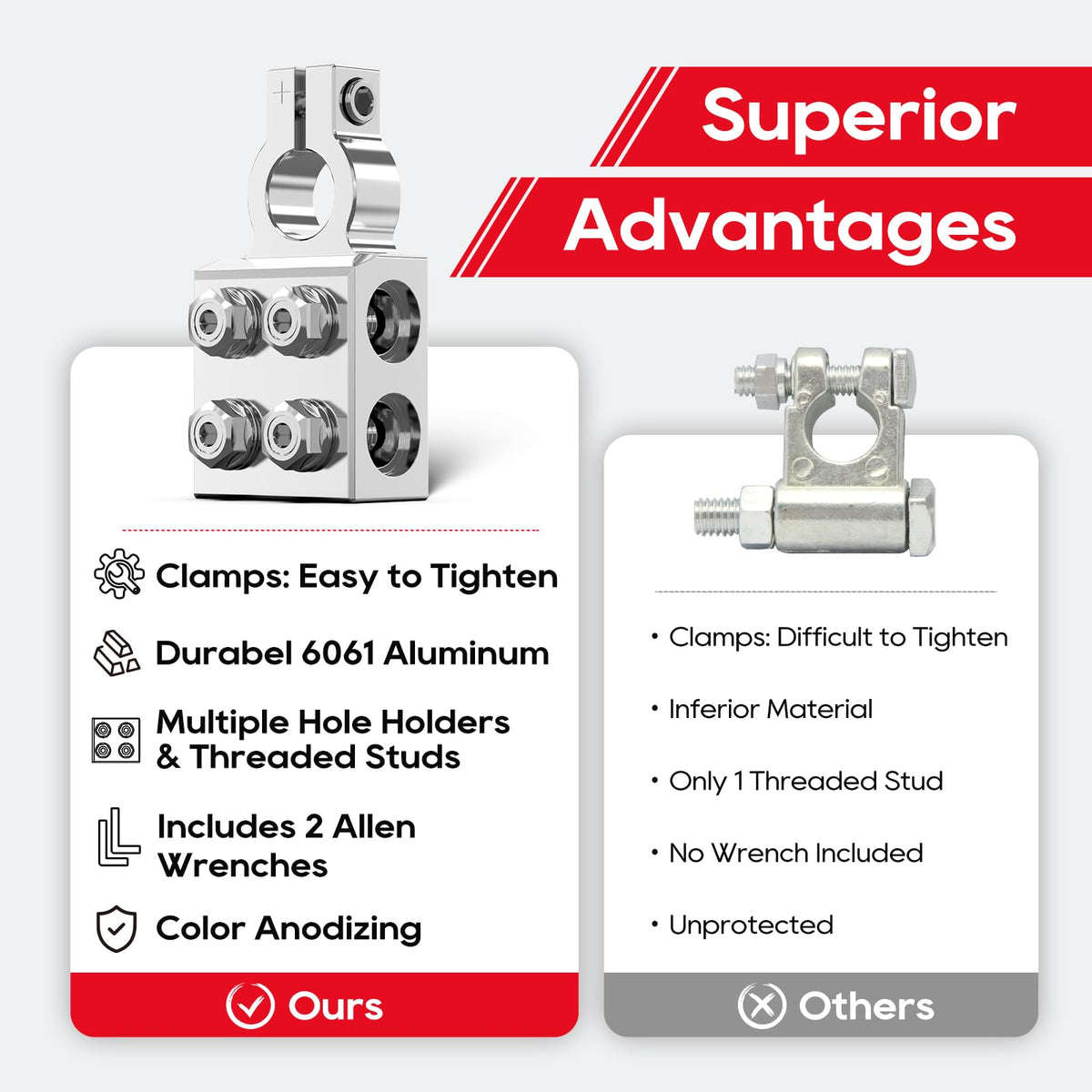

Made from 6061 aluminum, the connectors balance strength and weight for a durable mounting point at the battery. Proper seating and tightening are important: fully seat each clamp at the base of the battery post and avoid placing anti-corrosion washers underneath the clamps.

• 6061 aluminum body resists corrosion while providing strong electrical contact surface.

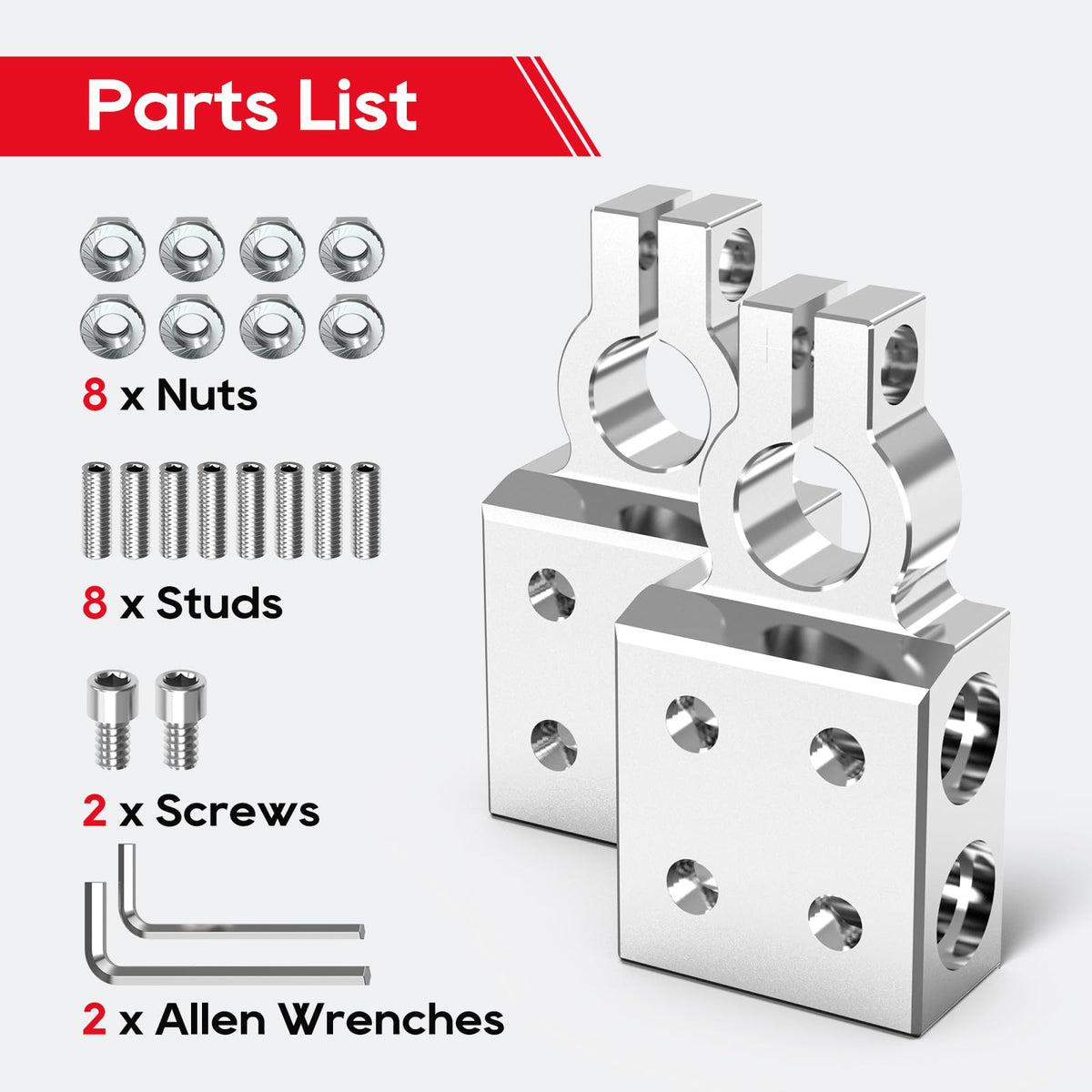

• Includes a positive and a negative connector plus two Allen wrenches for installation.
• Do not install on side-post batteries; ensure clamps sit flush at post base for best contact.

Who is this for? These TOPDC 8-way battery terminal connectors are for vehicle owners, installers and hobbyists who need a neat, reliable way to power multiple accessories directly at the battery. If you retrofit winches, auxiliary lighting, radios, inverters or multiple charging feeds and prefer fewer distribution boxes, these terminals offer organized, space-saving attachment points. Confirm your battery post type and size before purchase to ensure fitment.

FAQ

Q: Do these terminals fit side-post batteries?

A: No. They are designed for tapered top posts (SAE/DIN/EN) and are not compatible with side-post or JIS pencil-post batteries.

Q: What cable sizes can I use with the M8 studs and clamp ports?

A: M8 studs accept ring lugs up to 4/0 AWG and 5/16–1/2" eyelets; clamp ports secure stripped cable up to 2/0 AWG.
