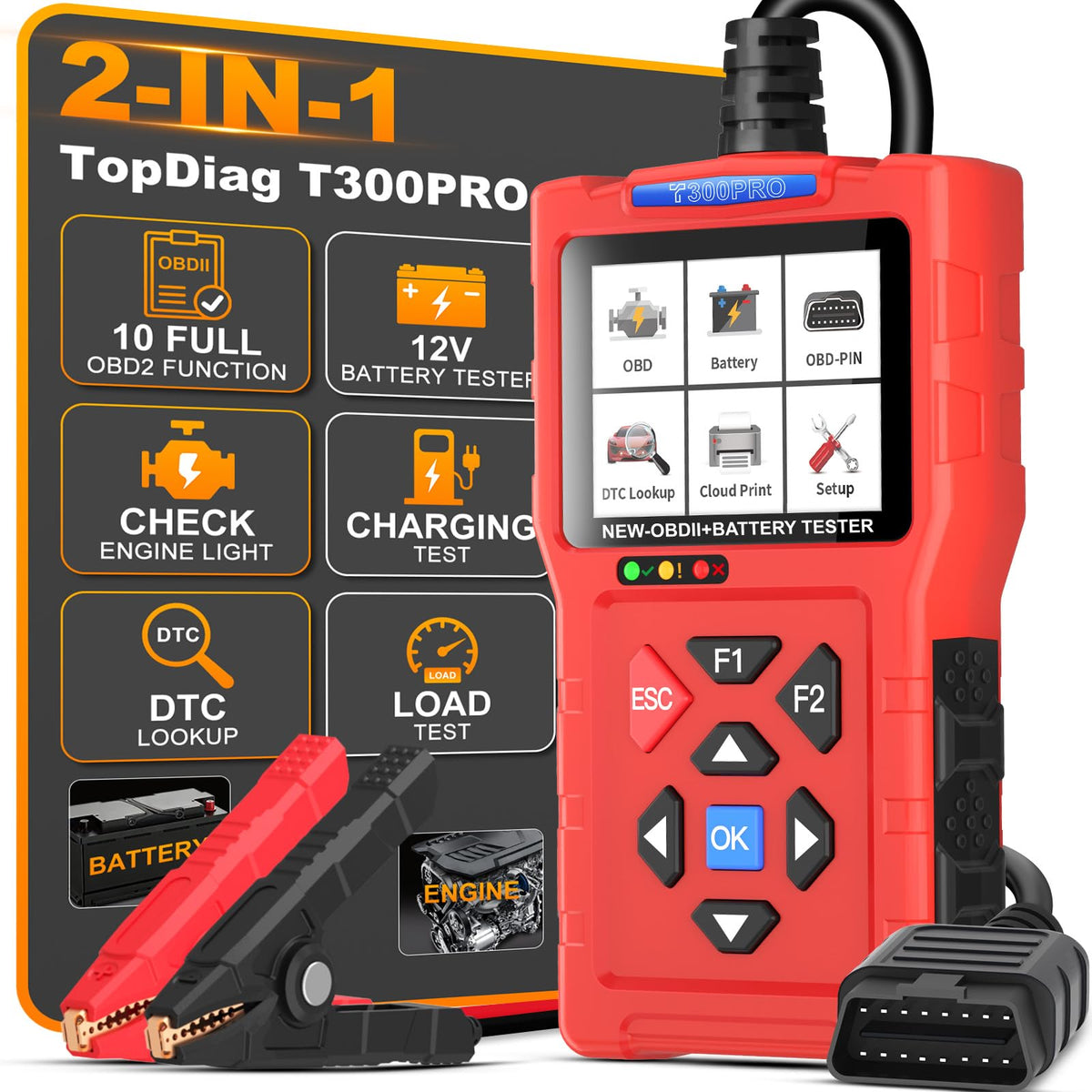

TopDiag T300PRO OBD2 Scanner — 3-in-1 Diagnostic Tool with 16‑Pin Breakout Box & 12V Battery/Charging Analyzer

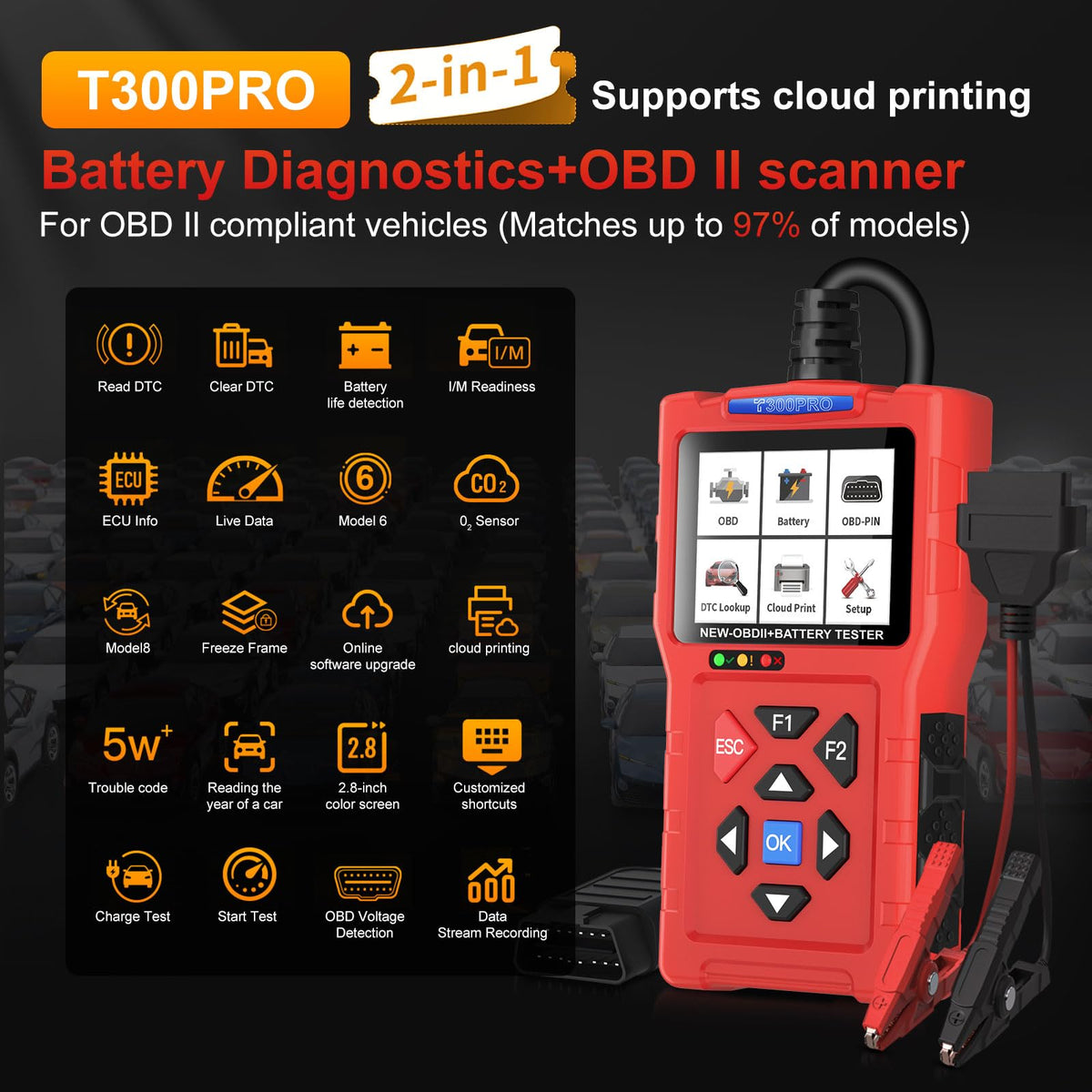

The TopDiag T300PRO is a compact 3-in-1 automotive diagnostic tool that combines a full OBD2 code reader, a 16-pin ECU breakout box, and a 6-mode 12V battery/charging system analyzer.

Designed to give drivers and small-shop technicians fast, actionable insight into engine faults, wiring issues and 12V battery health, the T300PRO removes guesswork from troubleshooting. It pairs a 2.8" color display and a comprehensive DTC database with specialized hardware for ECU port diagnostics and an accurate battery tester that supports Flooded, AGM, EFB and GEL batteries. The unit is plug-and-play and powers from the vehicle OBD2 port, so there’s no need for separate batteries or smartphone apps.

How will the T300PRO help me understand a check engine light?

The T300PRO reads and clears engine fault codes and shows built-in definitions to explain why a MIL (check engine) light is on. It supports OBD2 standard modes plus vehicle-specific tests to give clear next steps.

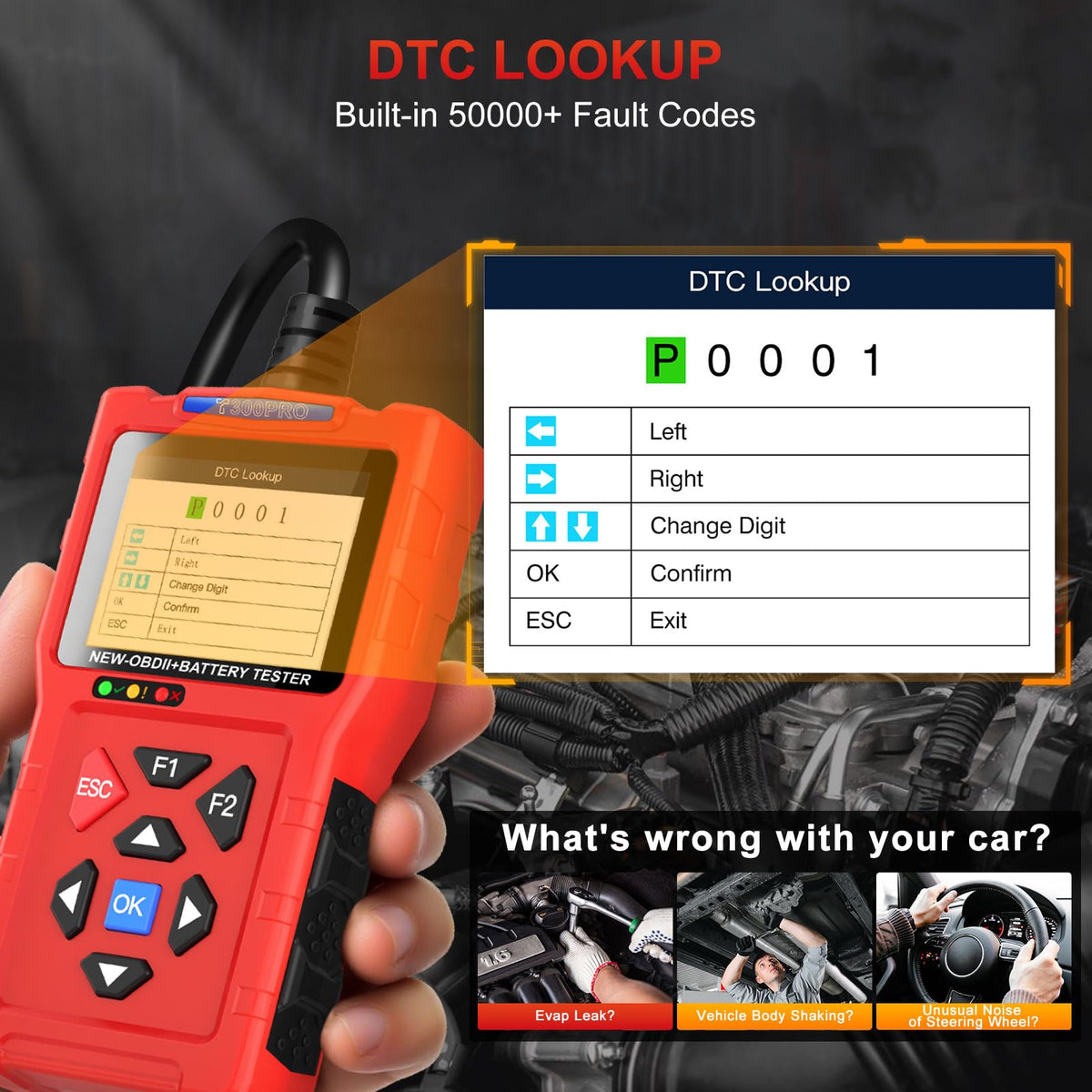

• Reads and clears generic and manufacturer DTCs from a 30,000+ code database.
• Displays code definitions so you know what to tell your mechanic.

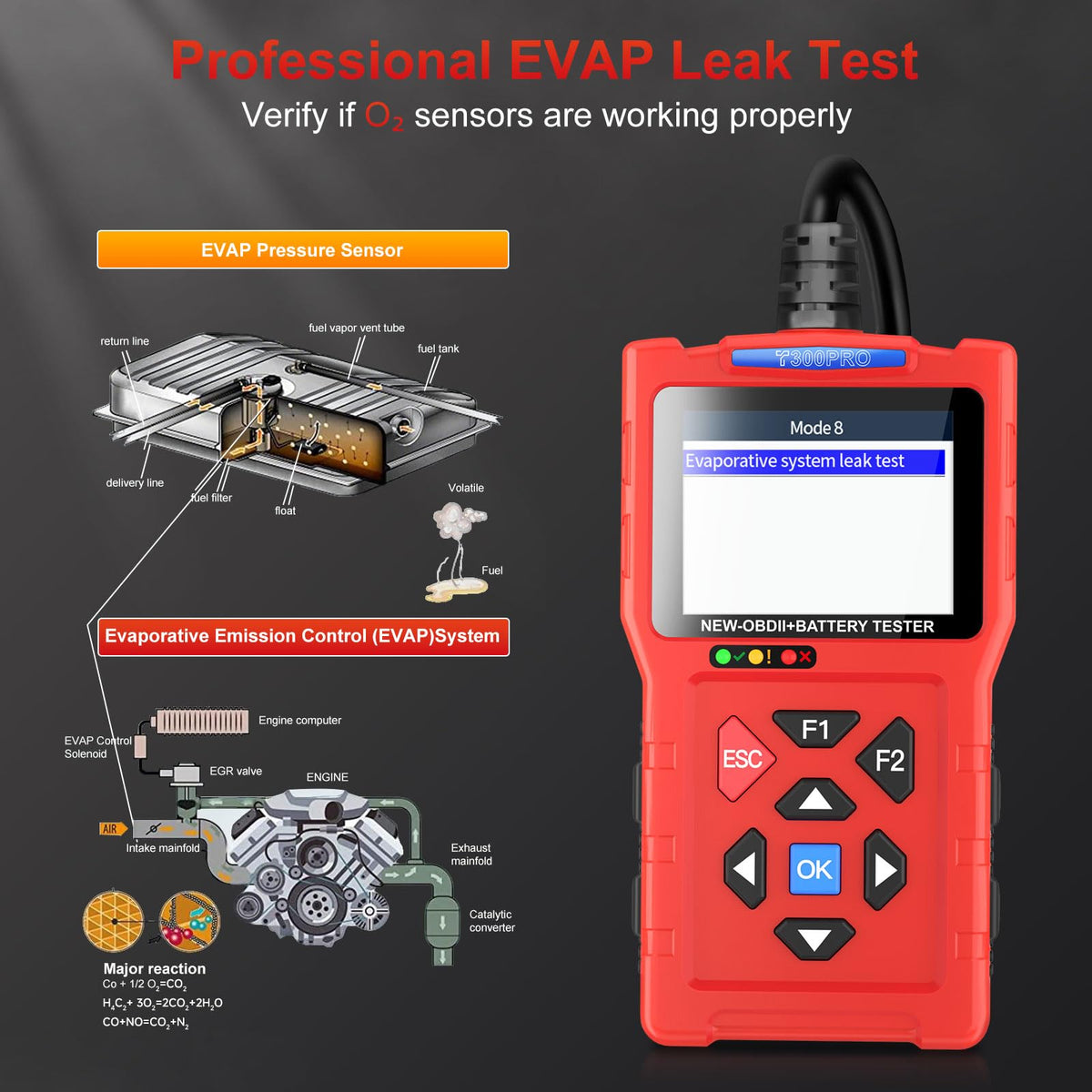

• Runs I/M readiness, O2 sensor checks and EVAP leak tests for emissions insights.

What makes the breakout box useful for wiring and communication problems?

The integrated 16-pin breakout diagnostic circuit helps inspect ECU port power, detect loose wiring and trace communication faults that ordinary readers miss. It’s particularly helpful when the vehicle’s diagnostic interface is intermittent or unresponsive.

• Isolates pin-level faults at the OBD2 connector to find power or CAN bus issues.
• Simplifies troubleshooting during training or advanced diagnostics.
• Prevents needless ECU replacements by pinpointing connection problems.

How accurate is the T300PRO for testing batteries, starters and alternators?

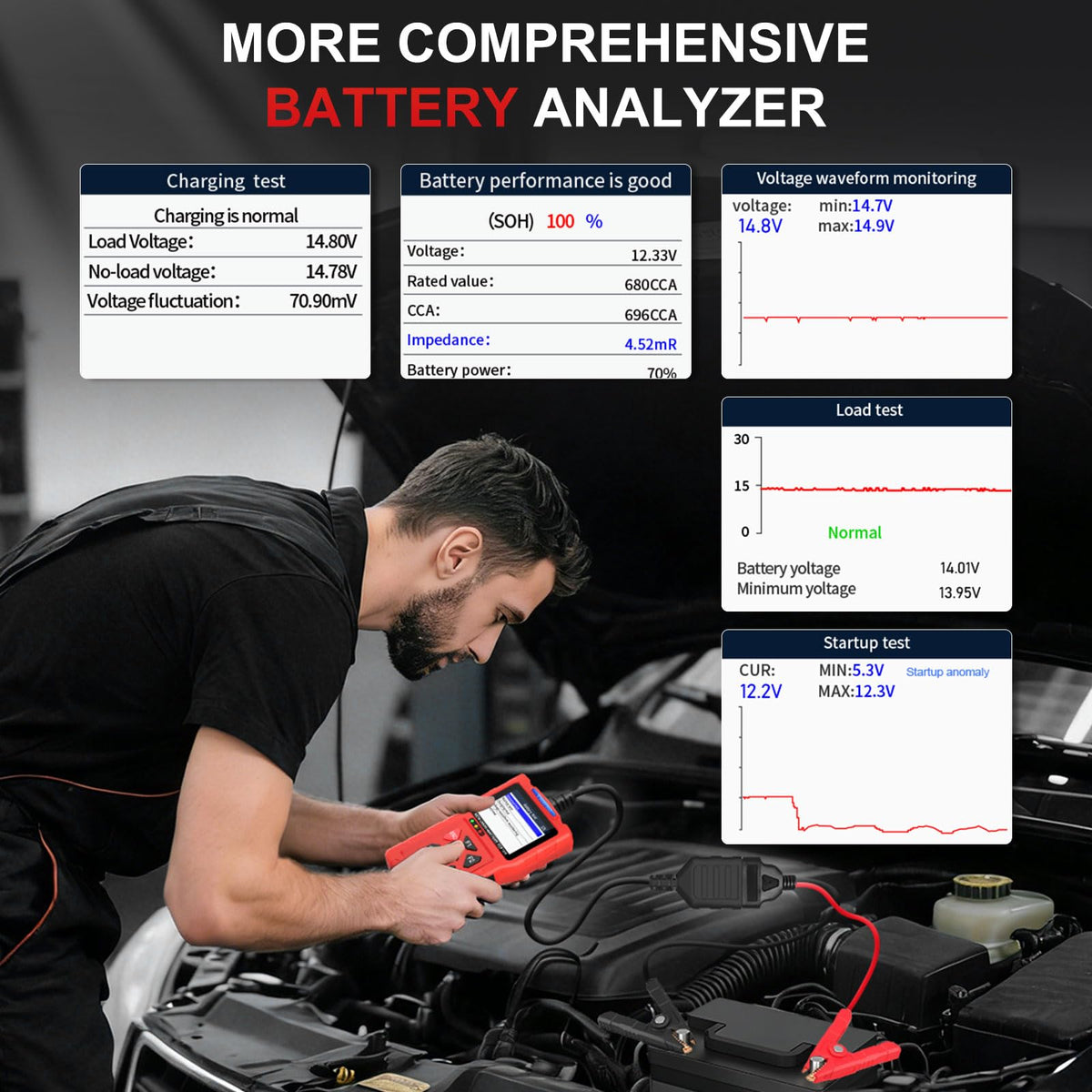

The T300PRO offers six dedicated battery and charging tests to evaluate state-of-health (SOH), state-of-charge (SOC), CCA, internal resistance, starter cranking performance and alternator output. This helps you determine whether a failing start is battery, starter or charging-related.

• Measures CCA and internal resistance to detect aging or sulfation.

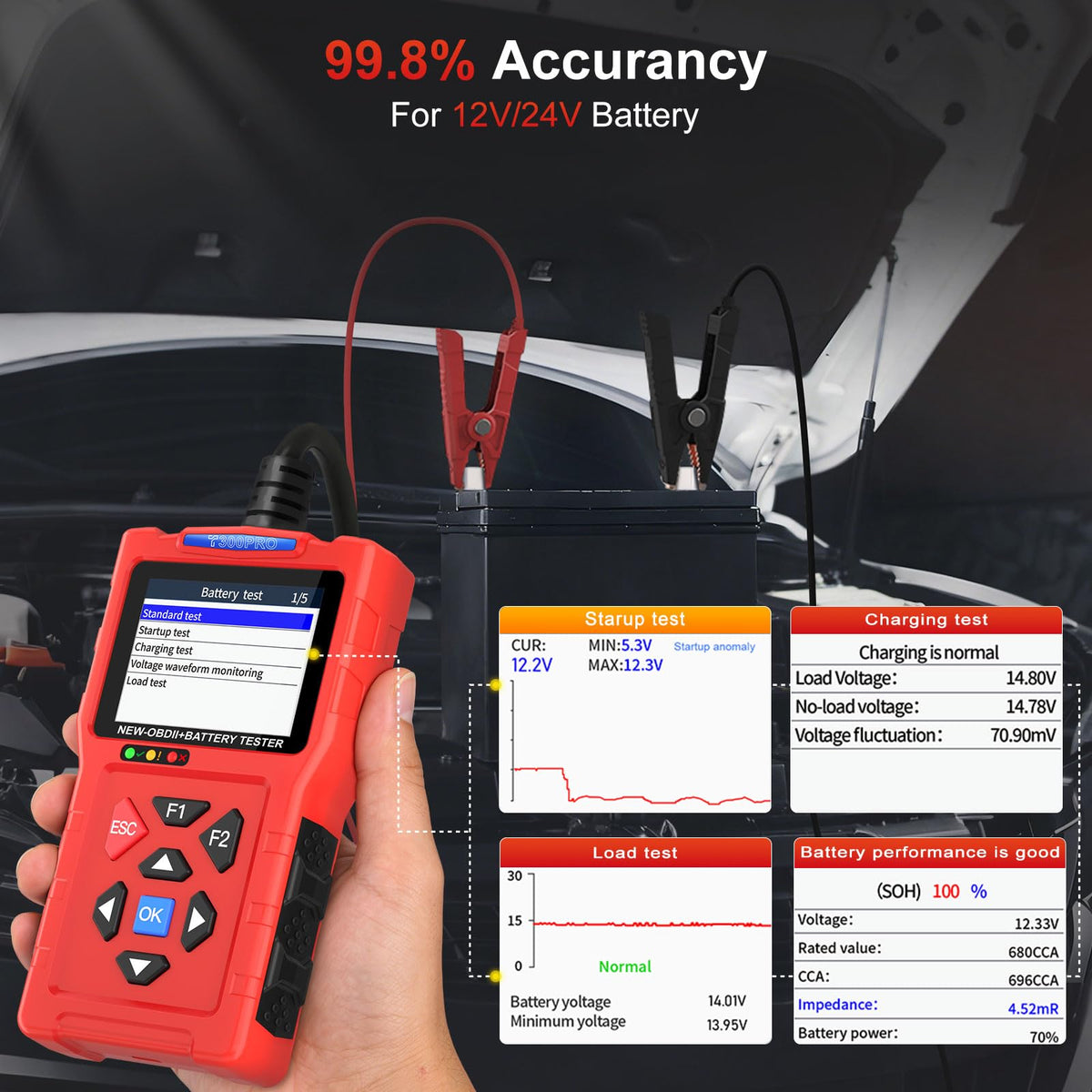

• Records starter cranking voltage and alternator charging under load.

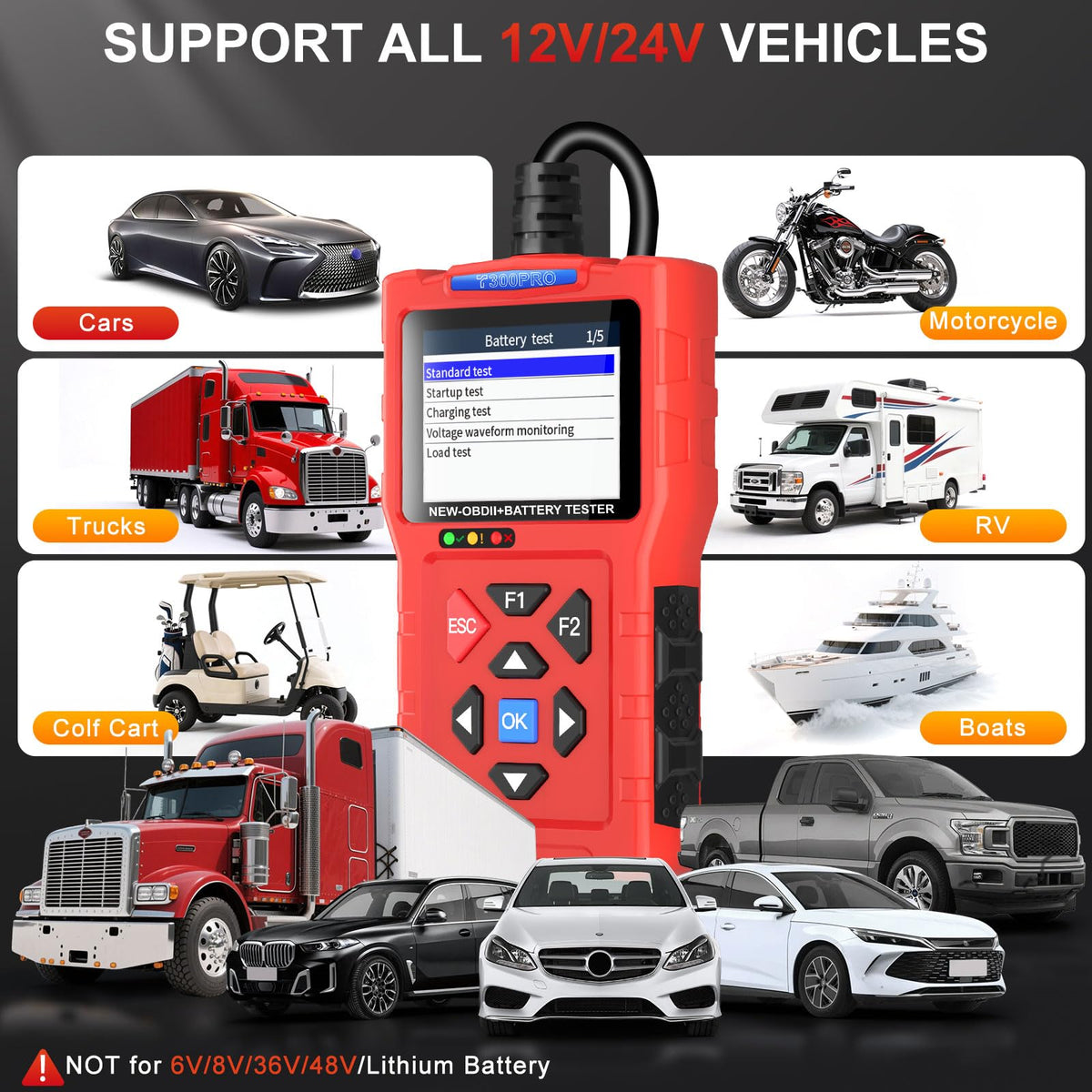

• Supports common 12V battery types: Flooded, AGM, EFB and GEL.

Can I monitor live sensor data and save it for later review?

Yes — the T300PRO displays live data streams graphically on its 2.8" TFT screen and includes a record & playback feature. You can capture intermittent faults and compare readings before and after repairs.

• Shows RPM, coolant temp, fuel trims, O2 sensor voltages and more in real time.
• Records sessions for offline playback to analyze intermittent issues.
• Useful for documenting repair results or sharing data with a shop.

Who this is for: The TopDiag T300PRO is aimed at DIY mechanics, used-car inspectors, motorcycle owners and small repair shops that need a single, affordable device to diagnose engine DTCs, verify battery and charging health, and troubleshoot OBD2 port wiring. If you want a rugged, no-app, plug-and-play tool that replaces separate code readers, breakout testers and battery analyzers, this unit streamlines diagnostics without requiring advanced training.
