TOWKING 2000 lb A-Frame Trailer Jack 15" Lift with Removable Drop Leg, Powder-Coated Steel

TOWKING's 2000 lbs A-frame trailer jack is a heavy-duty tongue jack with a 15-inch vertical lift and a removable drop leg for stable, easy hitching and storage.

Built for owners of small to medium trailers, this A-frame jack combines a 2,000 lb capacity with corrosion-resistant finishes and flexible mounting options. The jack provides 8-1/2" retracted height and 23-1/2" extended height, plus an additional 10" drop leg, giving a total potential reach of 25" for low-profile or raised towing setups. Its powder-coated steel body and zinc-plated components help resist road salt, dirt, and moisture, while the design accepts bolting or welding for secure installation.

How much weight can this trailer jack safely support?

The TOWKING A-frame jack is rated for a static capacity of 2,000 pounds, suitable for many utility, cargo, and small boat trailers. This rating refers to its vertical lifting capability while stationary and should be used with appropriate trailer tongue load calculations.

• Maximum vertical capacity: 2,000 lbs
• Intended for small/medium trailer tongues and light-duty applications
• Not rated for dynamic towing loads—only for lifting and support

What are the lift range and drop leg details?

The jack body provides 15" of vertical movement: 8-1/2" when retracted and 23-1/2" when fully extended. A removable drop leg adds an extra 10" of support, yielding a combined maximum extension of about 25" when both are used.

• Jack travel: 15" (8-1/2" retracted, 23-1/2" extended)

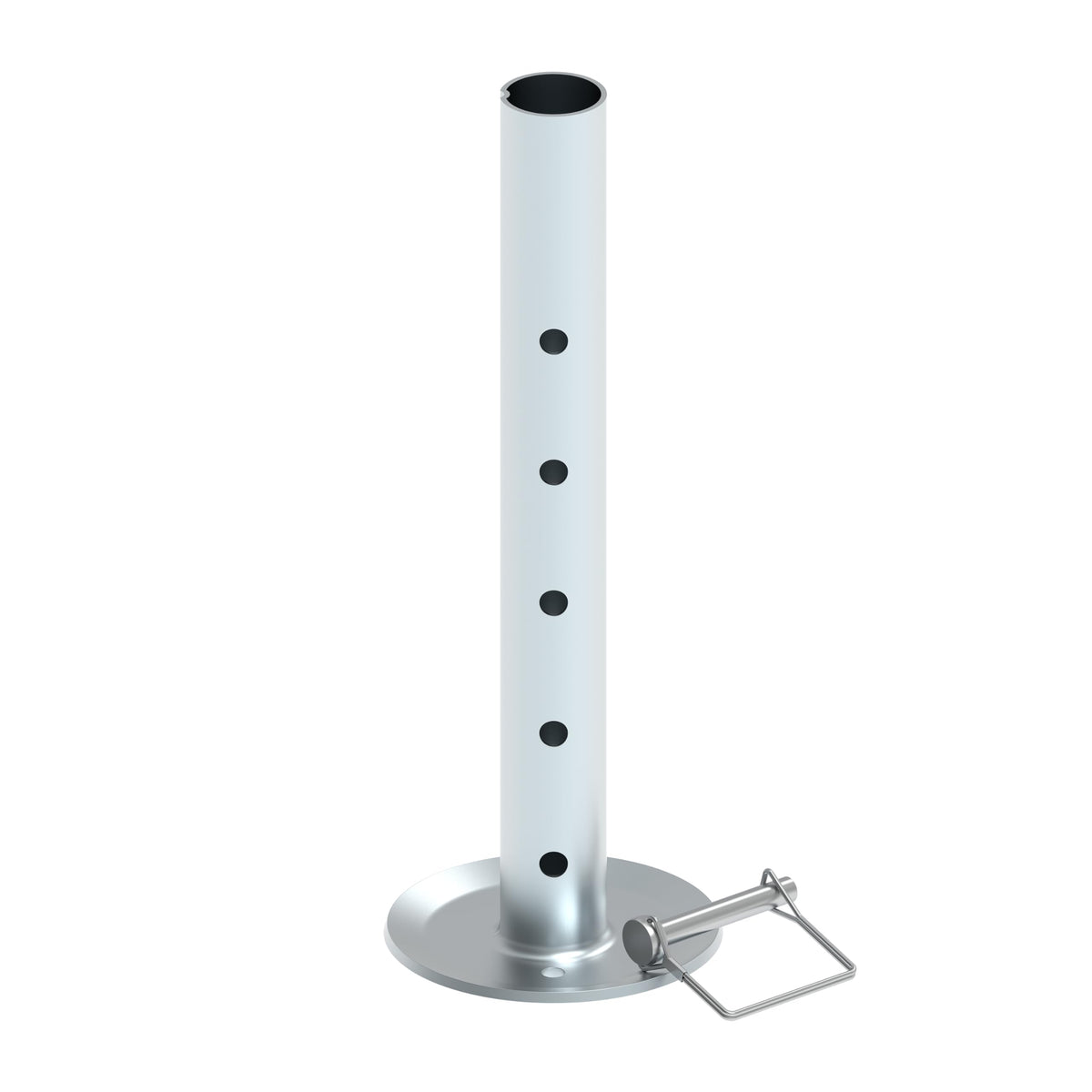

• Drop leg height: 13" with 2" hole spacing and 1-3/4" outside tube
• Drop leg fits jacks or mounts with a 2" inner diameter

How does it hold up to weather and road conditions?

This jack is constructed from heavy-duty steel treated with a black powder coat and zinc-plated finish to reduce corrosion exposure. Those protective layers help slow rust and deterioration from water, dirt, and road salt when compared to raw steel alternatives.

• Black powder coating for surface protection and wear resistance
• Zinc-plated components to guard critical contact areas
• Recommended periodic inspection and touch-up for long-term corrosion control

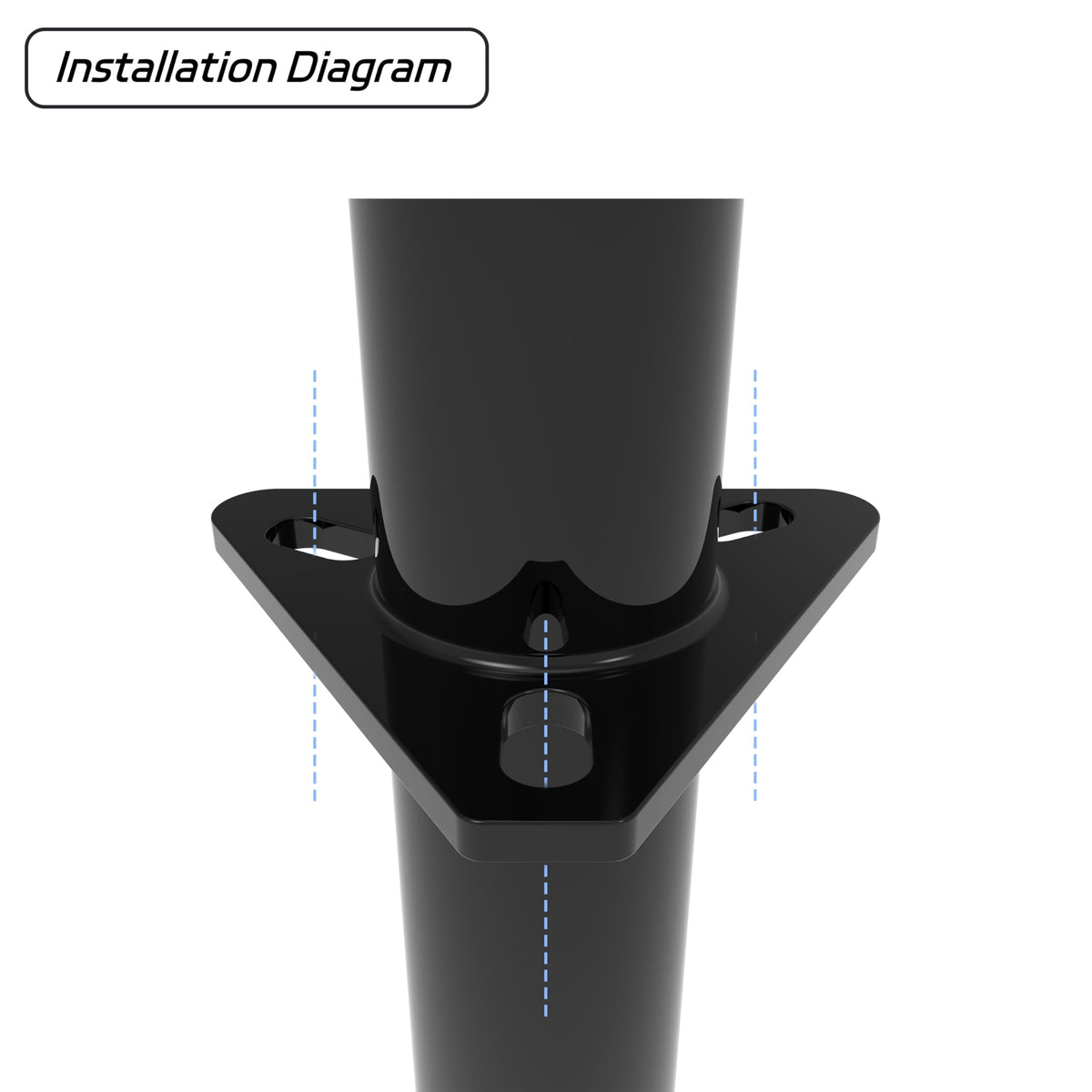

How is this jack installed and adjusted?

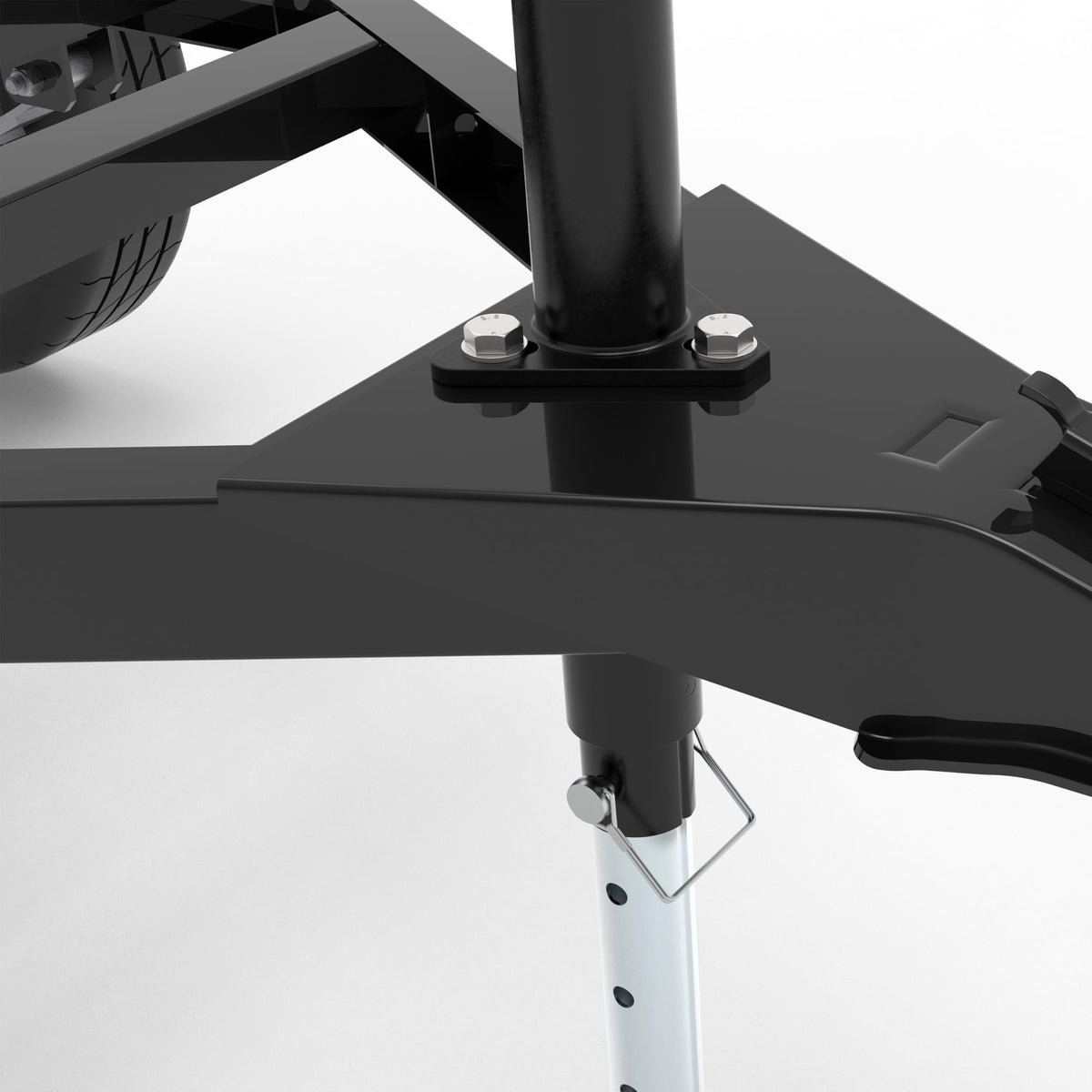

The A-frame jack accepts either bolting or welding to the trailer tongue, allowing installers to choose the most secure method for their application. Hardware is not included, so plan for appropriately sized bolts or professional welding to ensure safe mounting.

• Mount types: bolt-on or weld-on (hardware not supplied)
• Drop leg keyed with 2" hole spacing for secure pinning

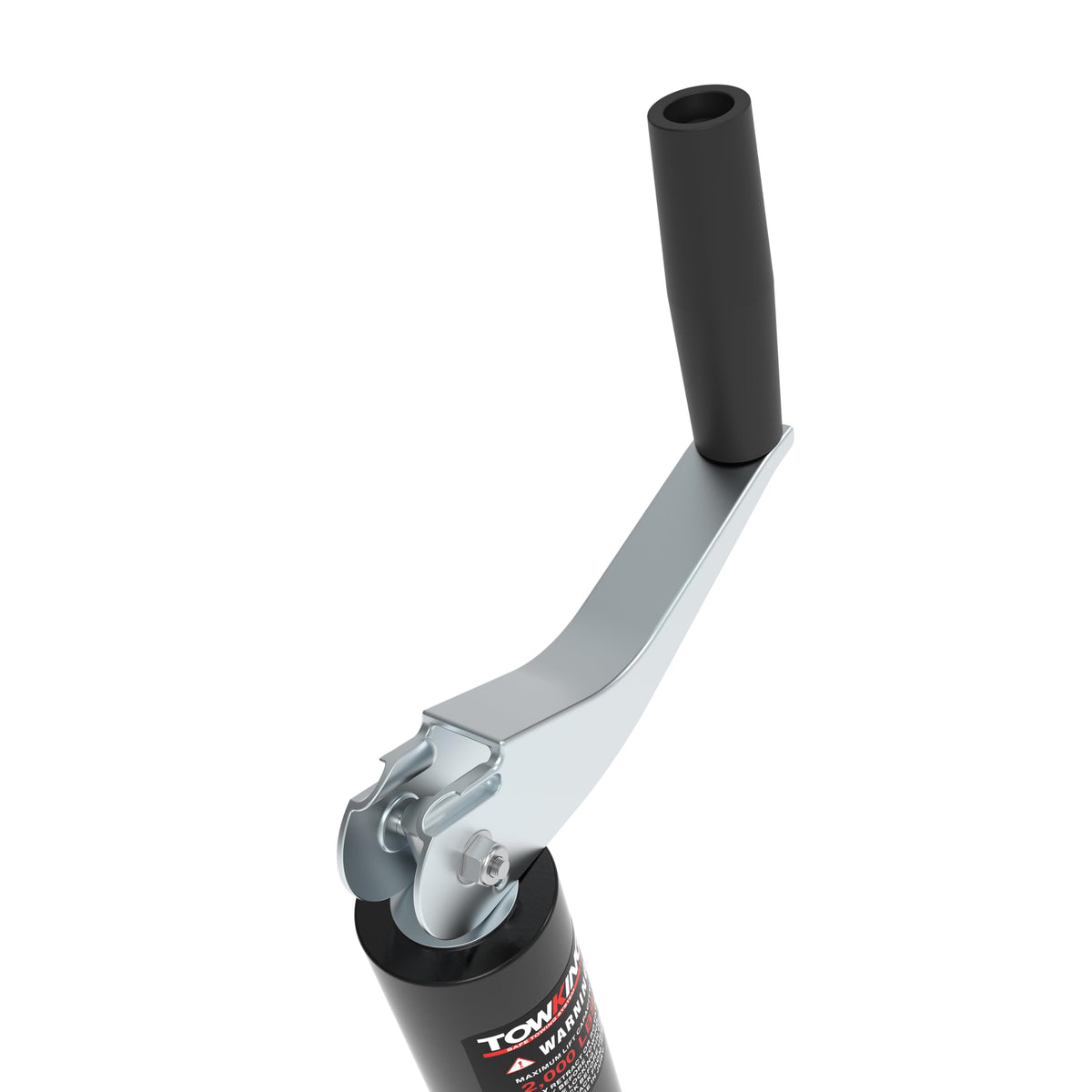

• Hand-crank operation for controlled lifting and lowering

Who is this for: Owners of utility trailers, small cargo trailers, and light boat trailers who need a reliable, compact tongue jack with a modest 2,000 lb capacity. Choose this model if you want an A-frame style jack that resists corrosion, offers a removable drop leg for extra height or storage convenience, and can be secured by bolting or welding to the trailer tongue. Not intended for heavy-duty commercial trailers or as a substitute for towing-rated hitch components.
