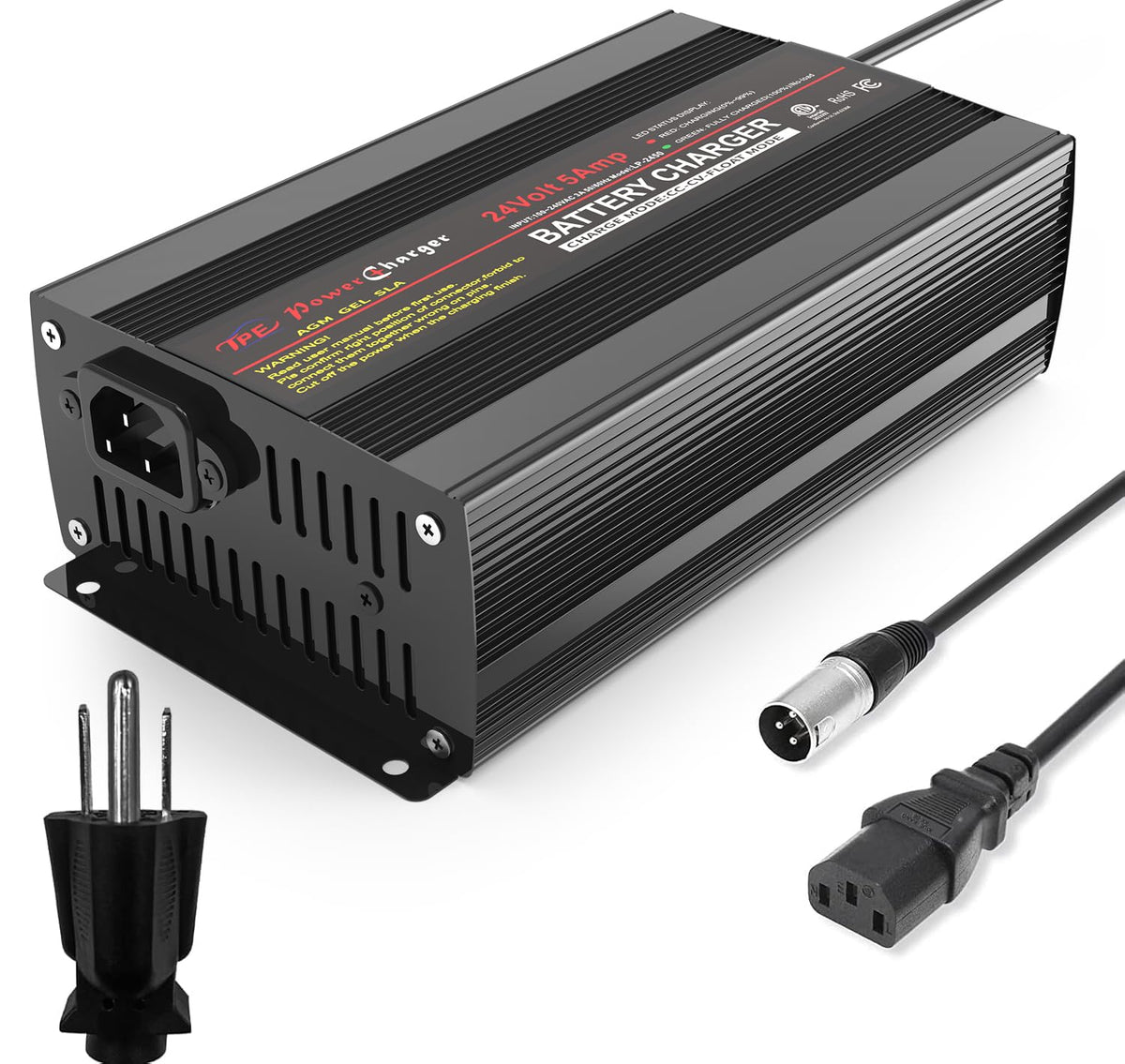

TPE 24V 5A Battery Charger for Wheelchair — Smart Automatic Trickle Charger, Black Aluminum

The TPE 24V 5A Battery Charger is an automatic smart charger and maintainer engineered to safely charge and preserve 24V lead-acid battery packs used in wheelchairs and similar mobility devices.

Compact and built with a black aluminum shell, this charger offers 5A charging current and multi-stage regulation for batteries between roughly 15–100Ah. It combines active cooling, multiple safety protections, and compatibility with AGM, GEL, SLA, VRLA and other lead-acid chemistries so you can charge, top up, and maintain 24V systems reliably.

How does this charger protect my battery during regular use?

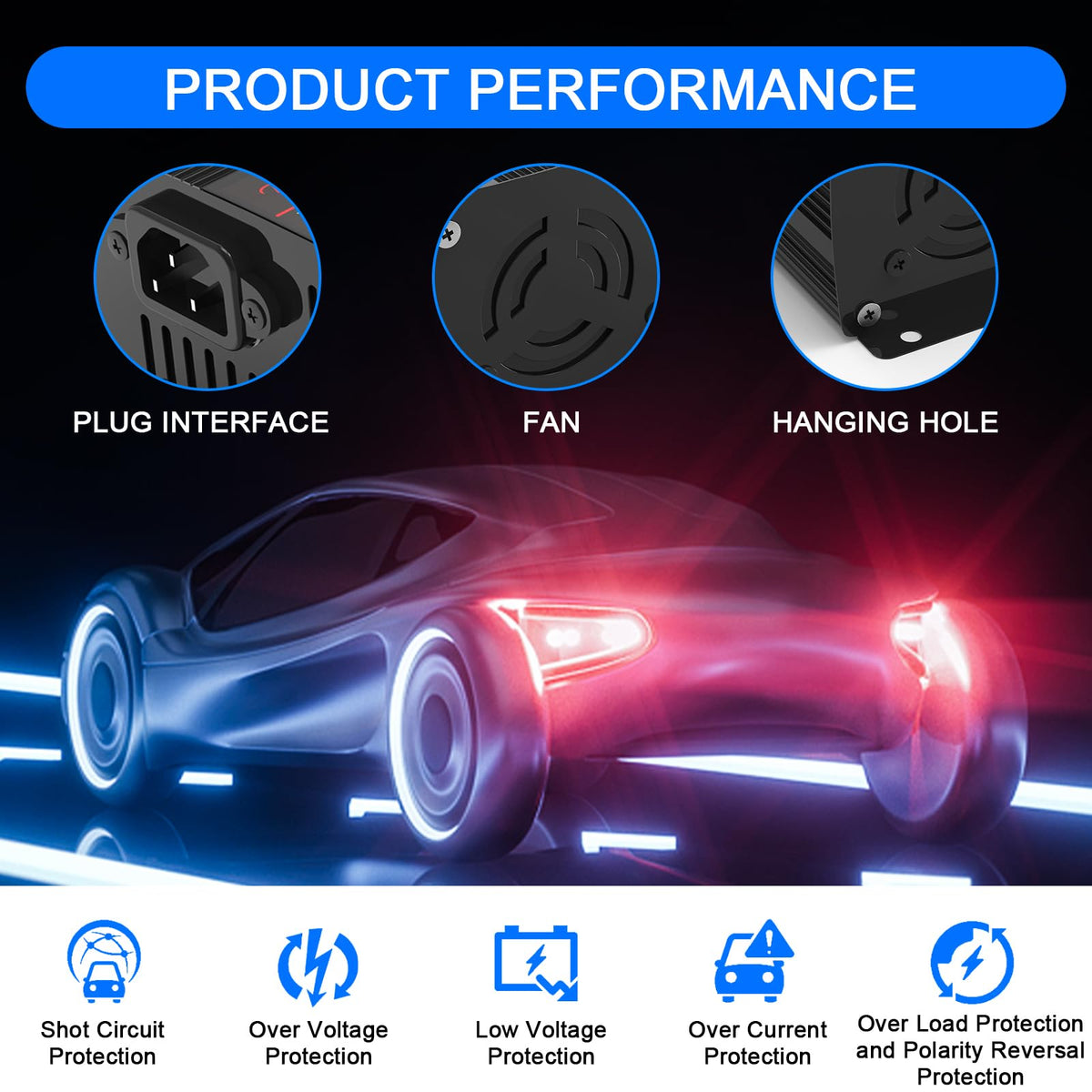

The TPE charger uses regulated output and multi-stage controls to avoid overcharging and harmful stress on battery cells. It integrates protections for short circuit, overvoltage, overcurrent, overload and reverse polarity, and adapts fan speed to temperature and load to keep temperatures stable.

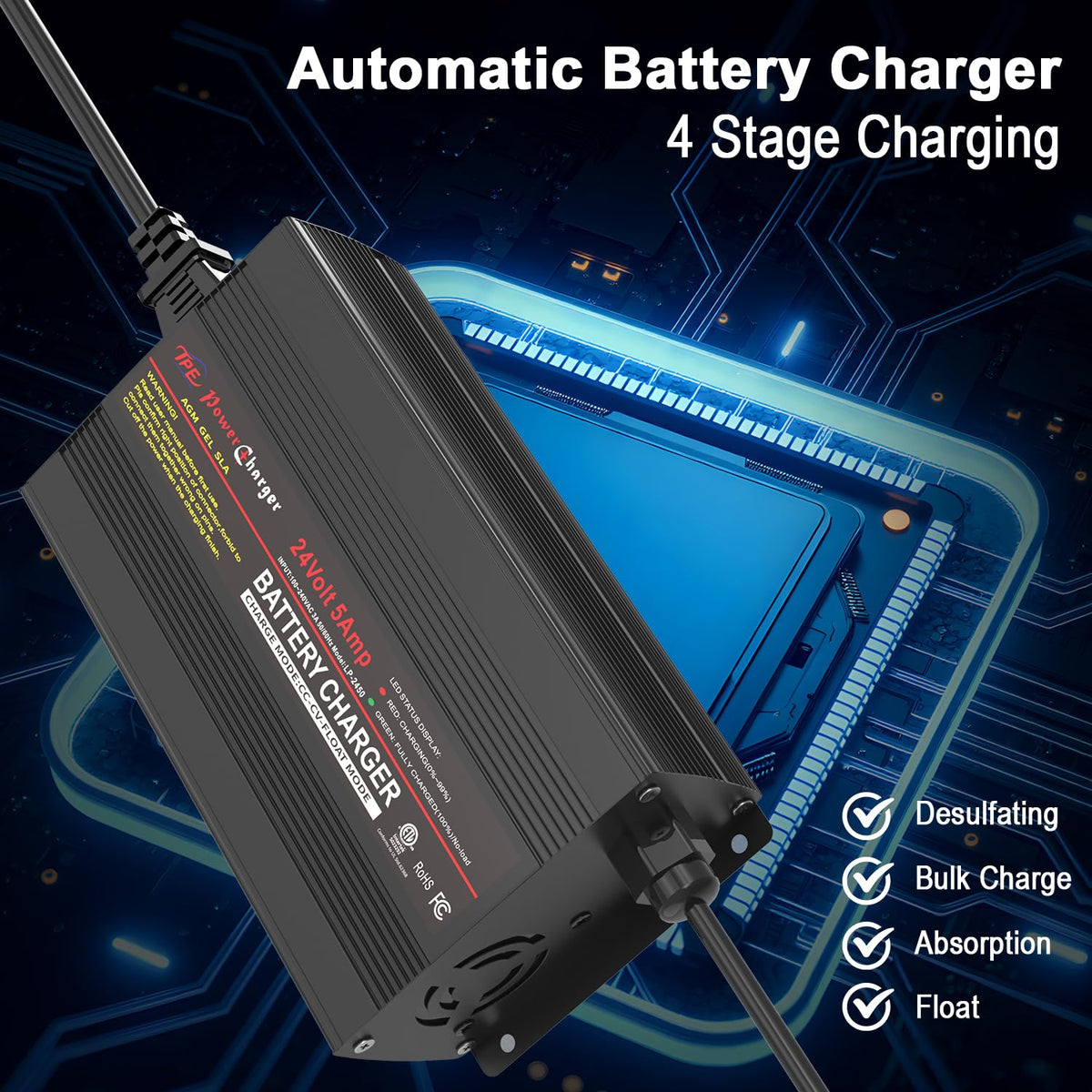

• Automatic multi-stage charging reduces gassing and sulfation risk
• Built-in short-circuit and reverse-polarity safeguards prevent damage
• Thermal-aware fan moderates heat under heavy loads
• Designed output: steady 13.8V float behavior and controlled bulk charging

Which battery types and devices will this charger work with?

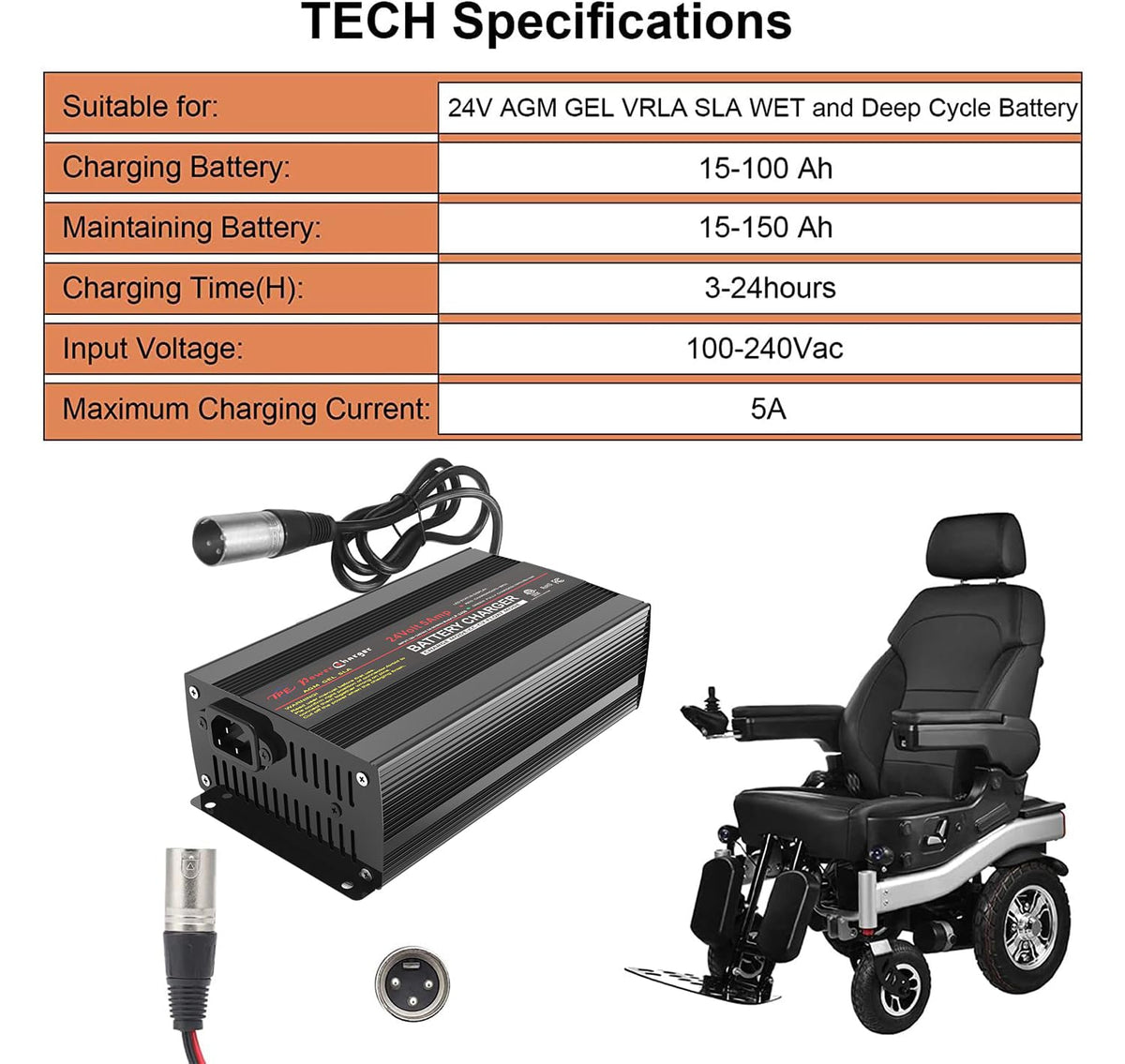

This smart charger is designed for common lead-acid formulations including AGM, GEL, SLA and VRLA, and supports battery capacities generally between 15–100Ah. It’s appropriate for mobility scooters and wheelchairs, small marine batteries, motorcycles, lawn mowers and other 12–48V systems when used with matching wiring or models.

• Compatible chemistries: AGM, GEL, SLA, VRLA and lead-acid
• Capacity range supported: ~15–100Ah battery packs
• Common applications: wheelchairs, scooters, motorcycles, marine and outdoor equipment
• Connector: 3-pin XLR interface for secure attachment

What are the key performance and hardware features to expect?

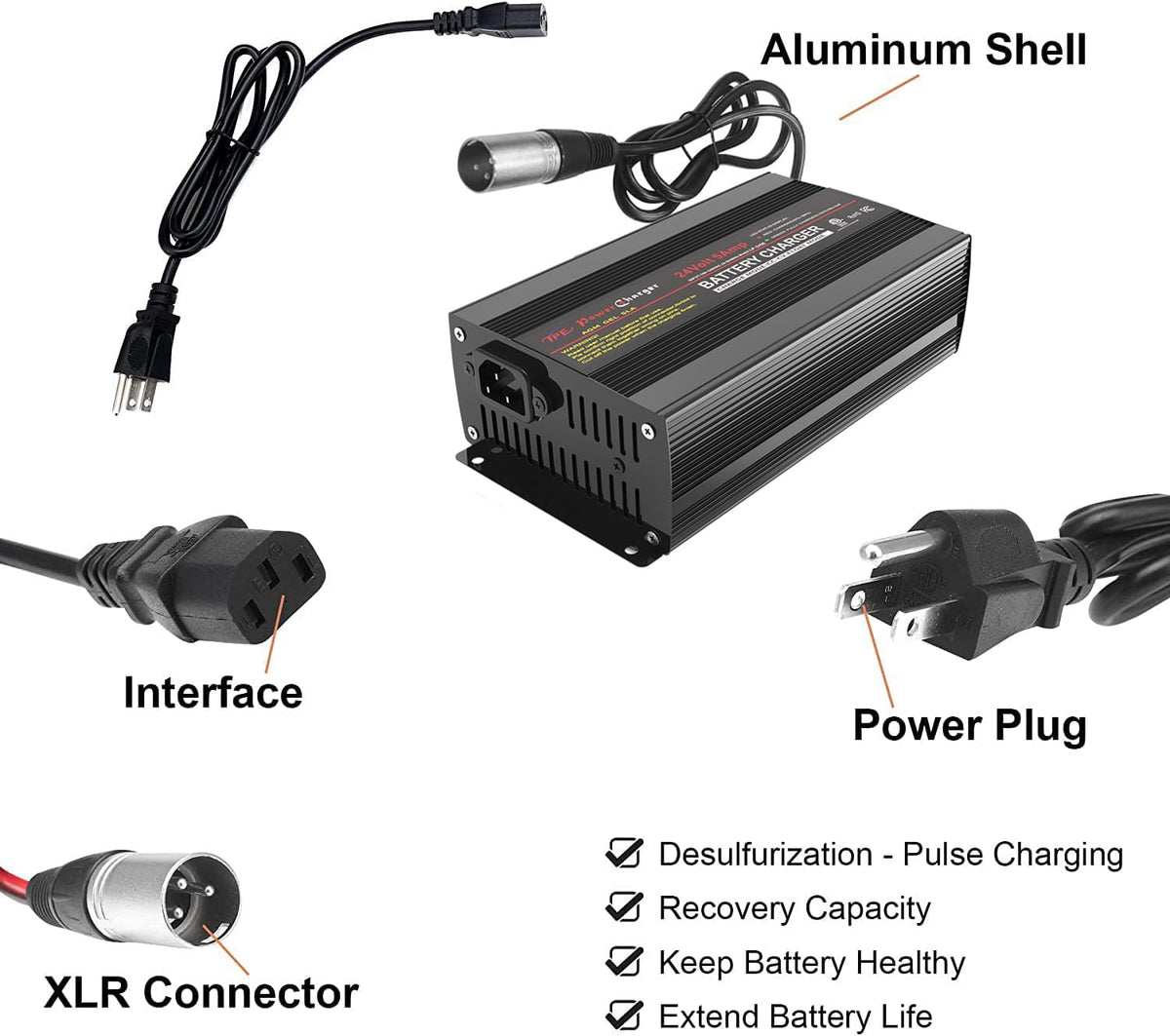

The charger delivers a 5A nominal charging current with an aluminum enclosure for durability and heat dispersion. Inside is a high-efficiency charging module and an internal cooling fan whose speed adjusts with load and temperature, giving consistent output and longer component life.

• Rated input: 100–240V AC for worldwide use
• Output options include regulated 13.8V float characteristics and up to 5A current
• Robust black aluminum case with integrated cooling fan

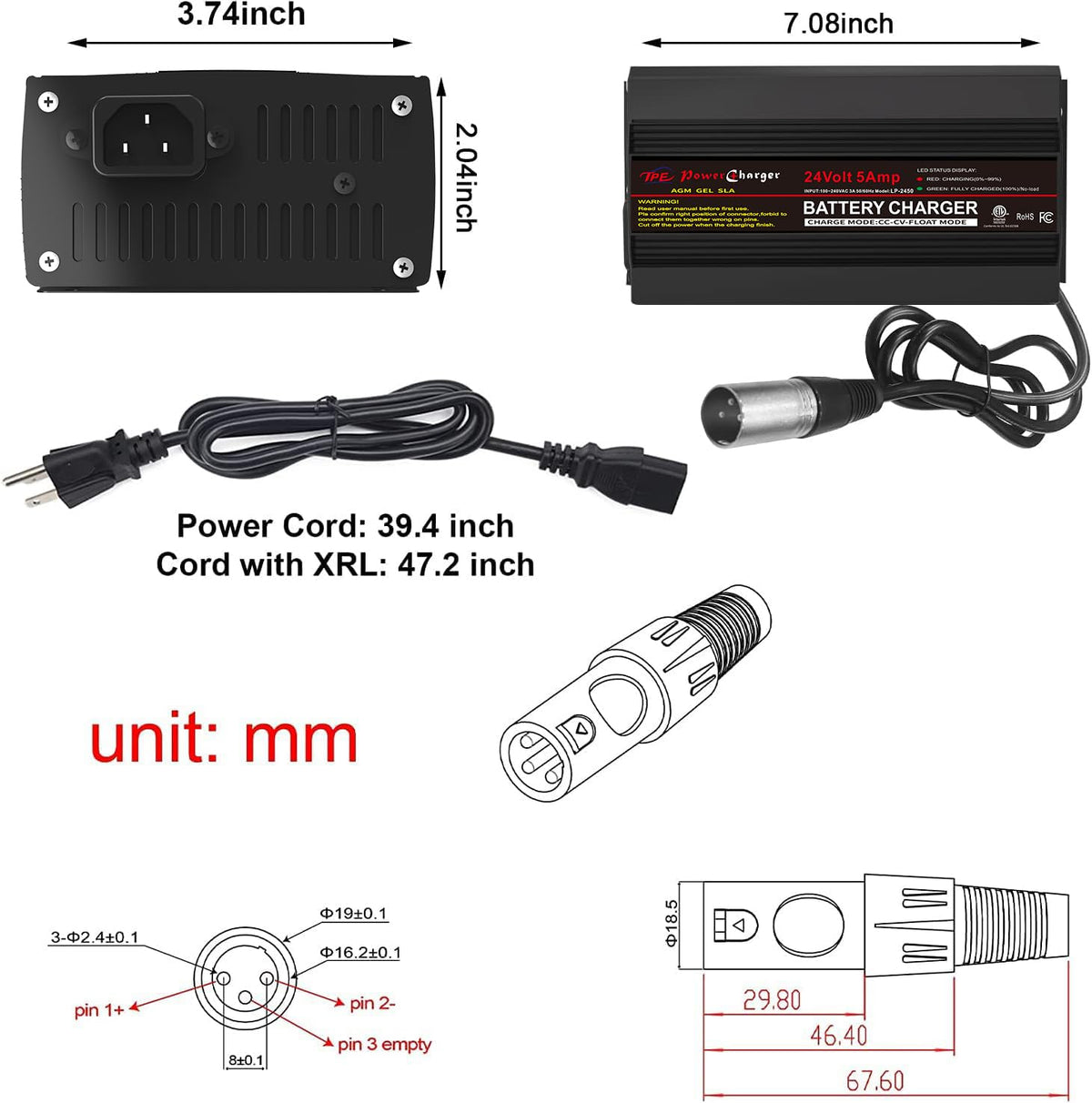

• 3-pin XLR connector for stable, low-resistance connection

How easy is it to install and maintain this charger?

Installation is straightforward: connect the 3-pin XLR plug to the matching cable, confirm correct polarity, then plug into a standard AC outlet. After initial setup the charger can be left connected for trickle maintenance without manual intervention, thanks to its automatic regulation and float stage.

• Simple plug-and-play with 3-pin XLR and standard AC input
• Automatic transitions between charging stages require no user adjustments
• Fan adjusts automatically—no routine cooling maintenance needed
• LED or status indicators (where present) show charge or error conditions

Who is this for: The TPE 24V 5A Battery Charger is aimed at owners and technicians who need a dependable, no-fuss charger for mobility equipment and other 24V lead-acid systems. It suits caregivers, mobility repair shops, small-boat owners and anyone who wants a compact, safety-minded charger that can be left connected for long-term battery maintenance without risking overcharge or overheating.
