TREXFLOW TF 170° Universal UTV Wiper Motor Kit B170 — 2-Speed, Washer System Included

This kit supplies a weather-resistant 12V motor assembly, wiring harness and a complete washer plumbing set so you can upgrade visibility on a variety of UTV models. The B170 kit does not include the wiper arm or blade—those must be purchased separately to match your windshield radius. Installation is straightforward for DIYers familiar with electrical connections and basic mounting adjustments.

How wide is the sweep and will it fit my windshield?

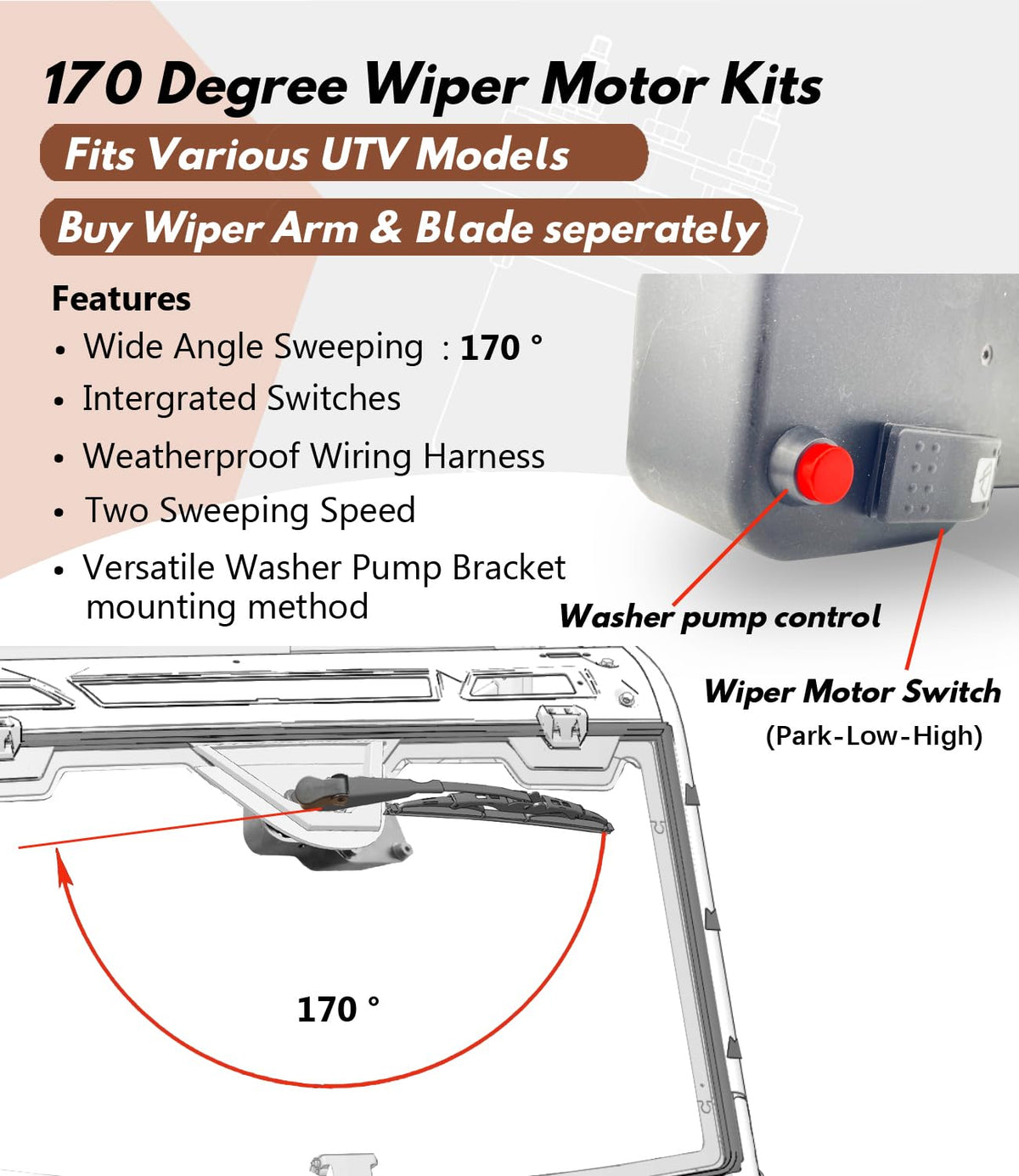

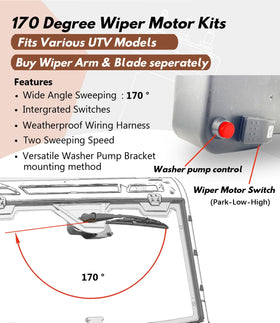

The motor offers a 170-degree sweep that reaches much further than conventional small kits, giving broader coverage across curved windshields. Because windshields vary, you should measure the wiping radius and choose an appropriate arm and blade length.

• Sweep angle: 170 degrees for extended coverage.
• Compatible in many applications that accept 165–180° style kits with minor mounting adjustments.

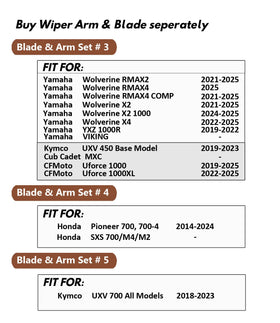

• Arm and blade not included—select lengths that match your windshield contour.

What performance can I expect in day-to-day use?

The TF B170 is a two-speed motor with self-parking and a separate washer bottle and nozzle set for on-demand cleaning. You get reliable sweep speeds for light and heavy spray conditions and a durable torque rating for steady motion under load.

• Two speeds: approximately 40 ±5 SPM (low) and 55 ±5 SPM (high).
• Torque: rated around 10 Nm to move larger blades or slightly obstructed arms.
• Self-park mechanism returns the arm to the left-side rest position when switched off.

What comes in the box and how weather-resistant is it?

The kit is packaged with the motor, a long power harness, and a washer system including bottle, hoses, nozzles, fittings and mounting hardware. Connectors and tubing use weather-friendly materials to withstand outdoor exposure typical of off-road use.

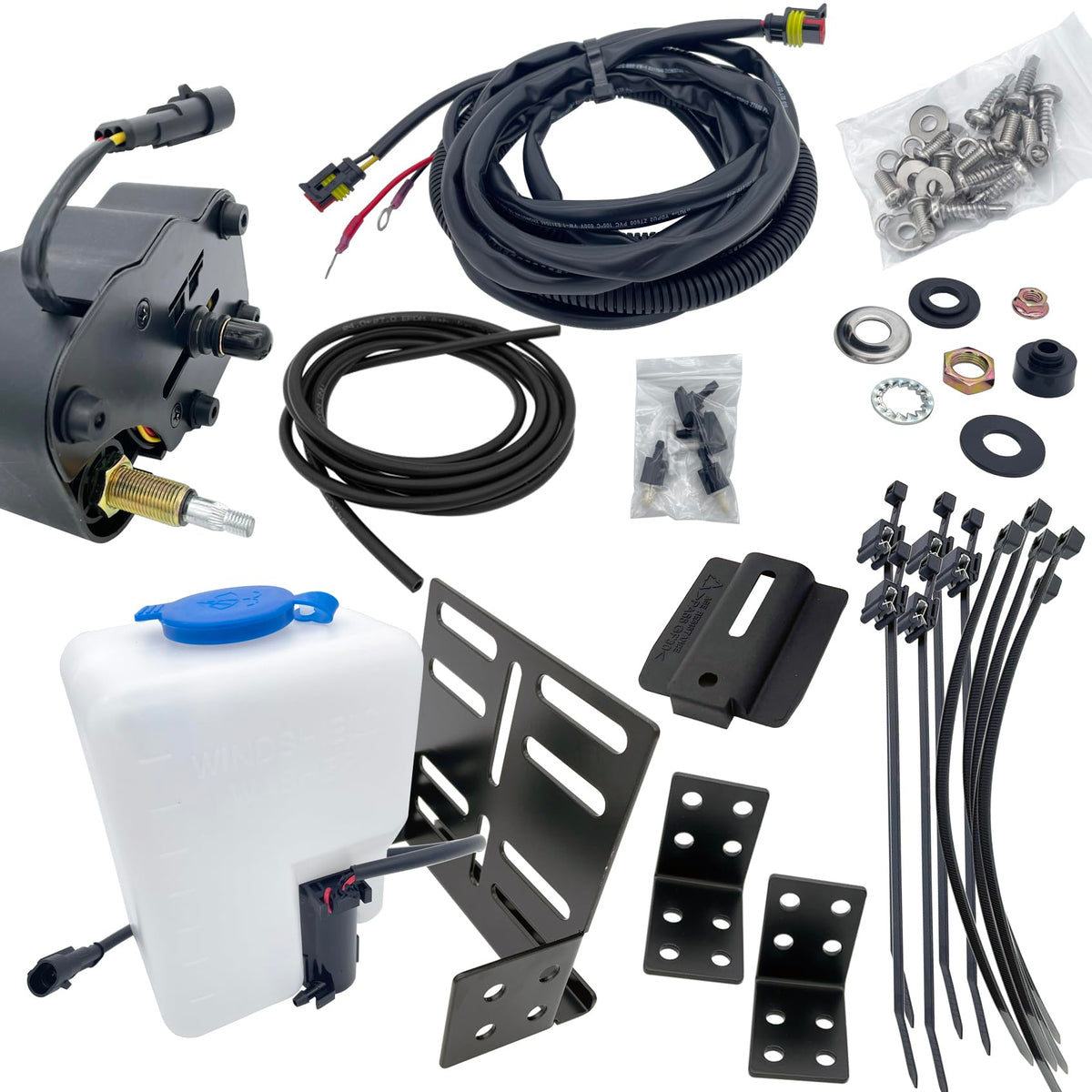

• Included: motor assembly, 11.5 ft power wiring harness, washer bottle, 10 ft EPDM hose, mounting brackets, nozzles and fasteners.

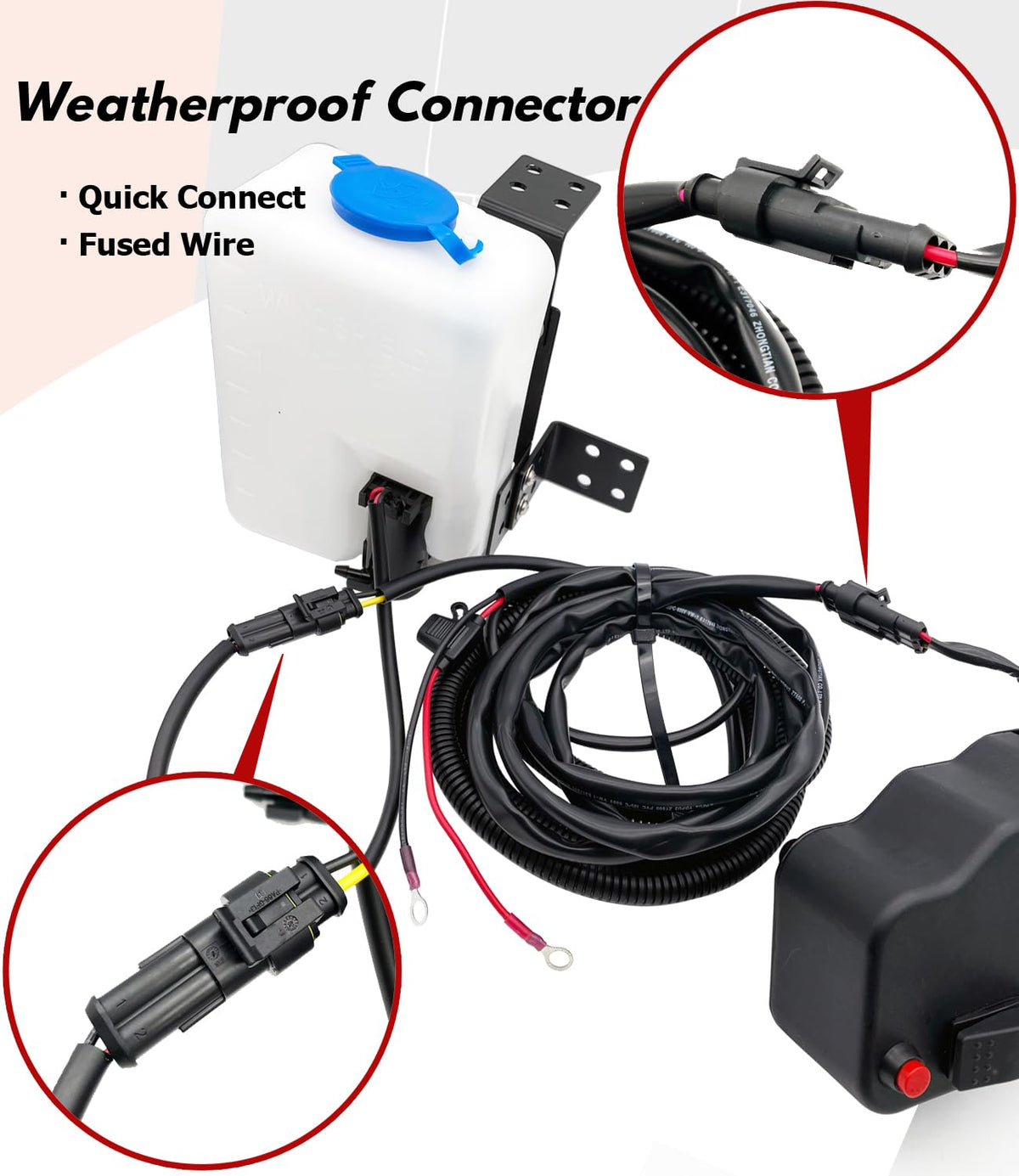

• Harness features sealed connectors for moisture resistance.
• Washer hose: EPDM rubber for better durability than standard PVC tubing.

How hard is installation and what should I watch for?

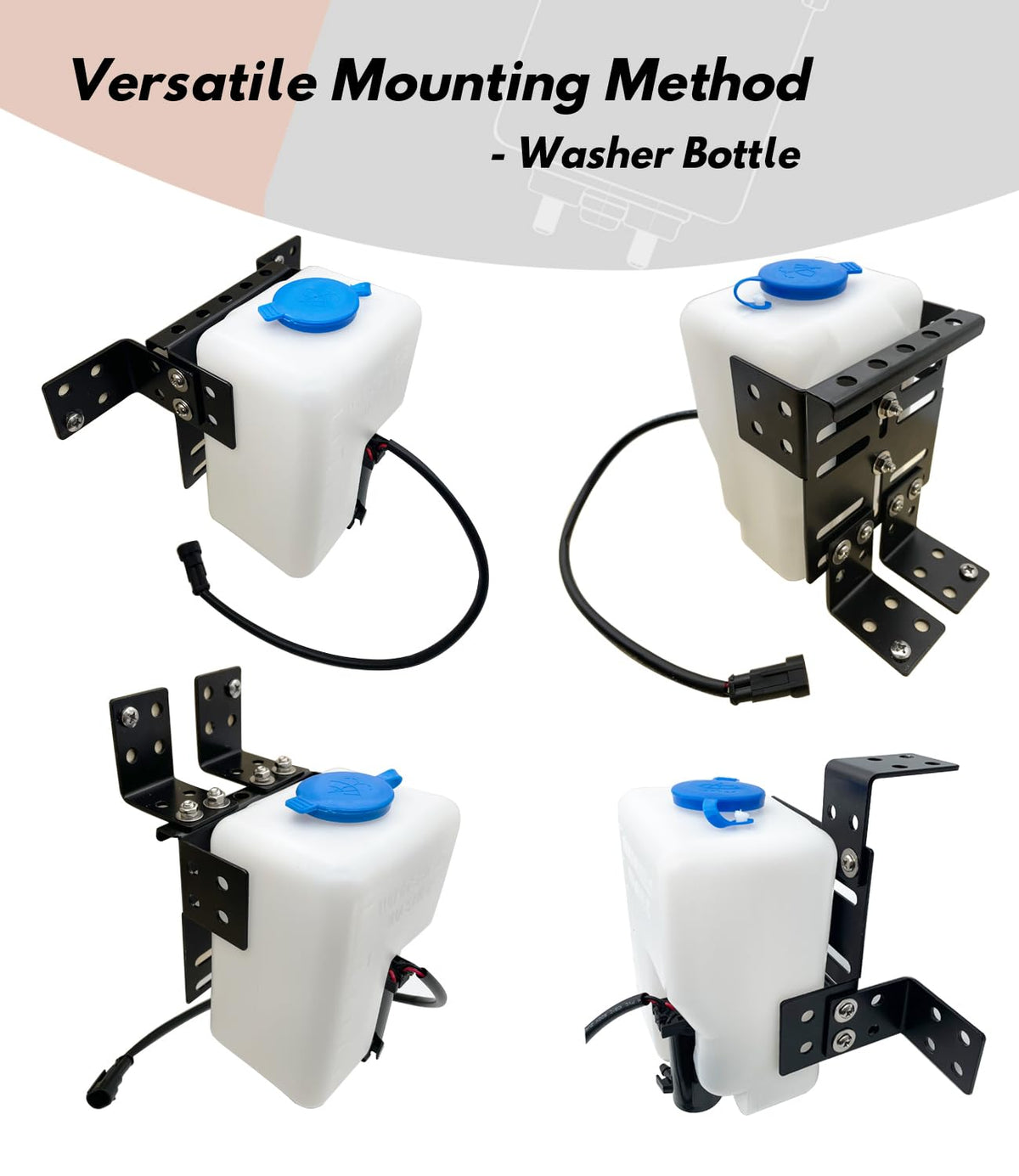

Installation is achievable with basic tools and a helper to hold the arm during fitment. Plan wiring to a fused 12V source, secure the washer bottle in a protected location, and verify the blade length to avoid hitting the cowl or leaving gaps.

• Typical tasks: mount motor, route and connect harness, secure washer bottle, run hose to spray nozzles.
• Confirm arm/blade length before use—wrong sizing may bind or miss areas.
• Some vehicles require small bracket or hole adjustments for ideal alignment.

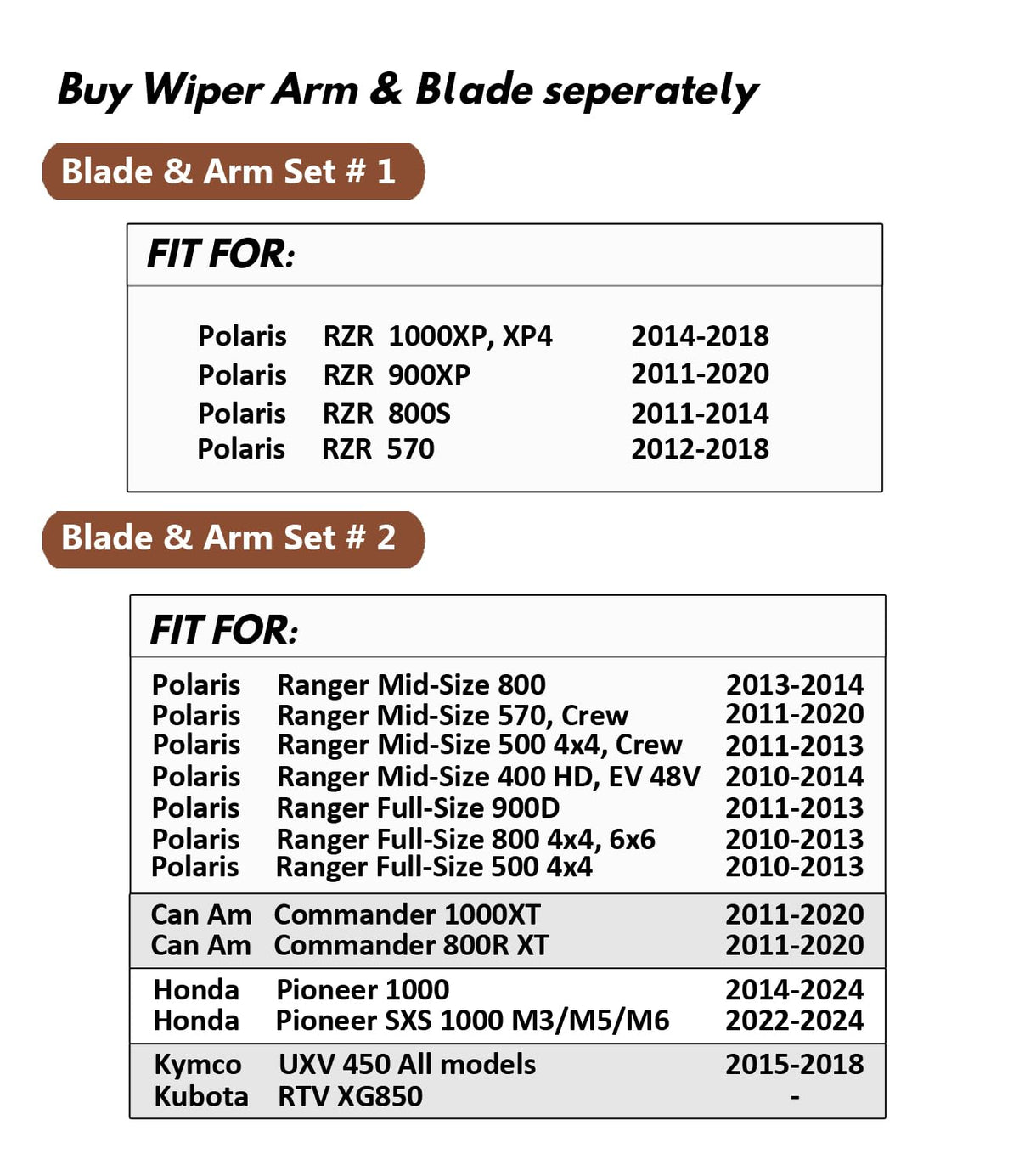

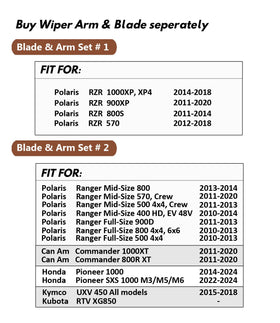

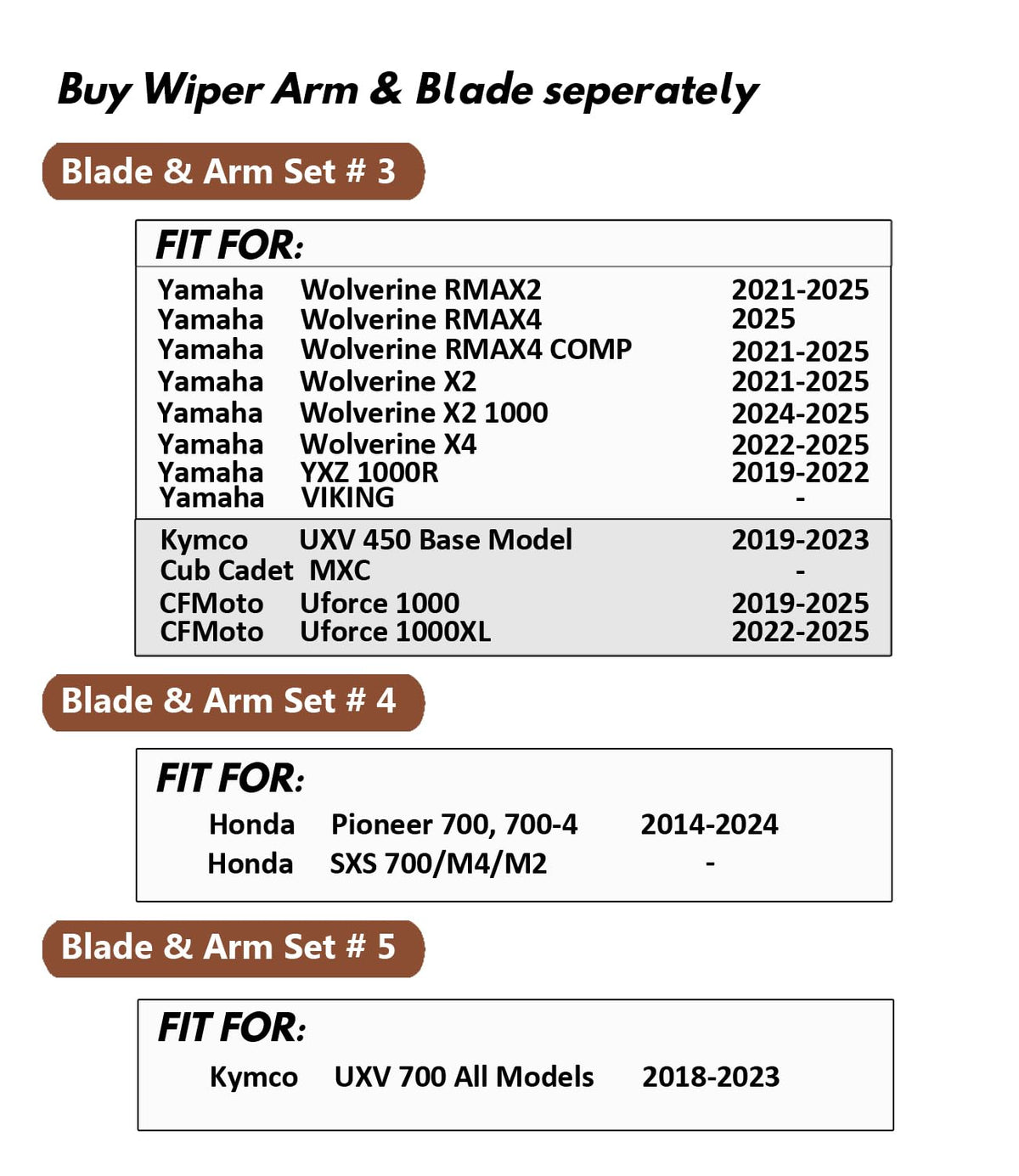

Who is this for: The Trexflow TF B170 kit suits UTV owners, installers, and mechanics upgrading visibility on Polaris RZR and Ranger models, Honda Pioneer SXS machines, select Yamaha, Can-Am, Kubota, CFMOTO and similar side-by-sides. It is aimed at riders who need a wide sweeping wiper, integrated washer plumbing, and weatherproof electrical connections—provided you purchase a compatible wiper arm and blade separately to match your windshield size.
