TYT 5000 lb Swivel Weld-On Pipe Mount Trailer Jack — 15" Travel, Sidewind, Corrosion-Resistant

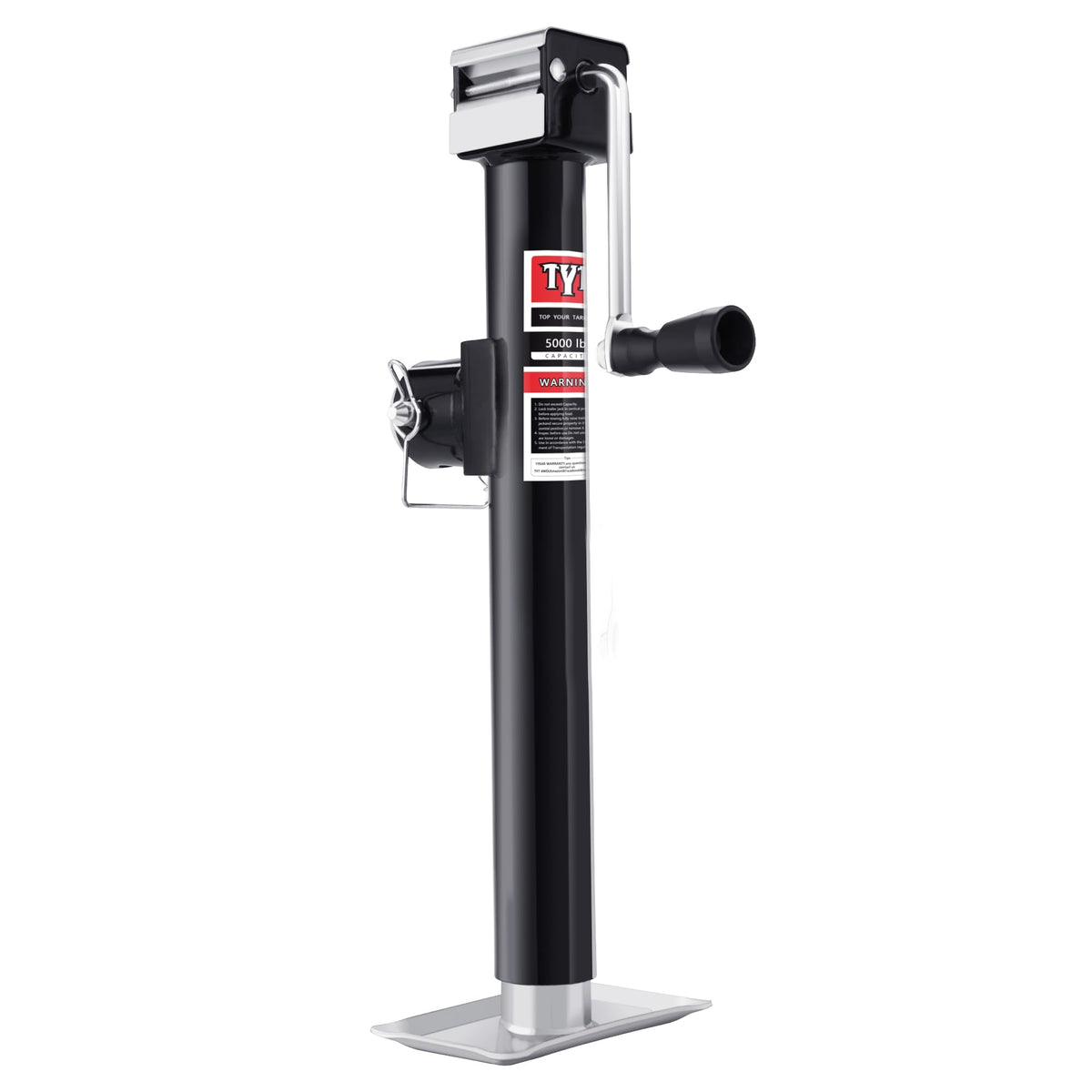

This weld-on swivel jack from TYT combines robust lifting power with corrosion-resistant finishes and a user-friendly sidewind handle, making it suitable for boat trailers, pop-up campers, RVs and small travel trailers. Built from heavy A3 steel with a black powder coat and zinc plating, it resists road salt and water while offering a built-in grease fitting for straightforward maintenance. The jack mounts via a male pipe and locks into place with a pull pin so it stays secure when stowed or deployed.

How much weight can this jack safely lift?

The TYT swivel jack is rated to lift up to 5,000 pounds, which covers many small travel trailers, campers and most boat trailers. That 5,000 lb capacity refers to vertical load when the jack is properly welded and mounted to a compatible trailer frame.

• Rated lift capacity: 5,000 pounds

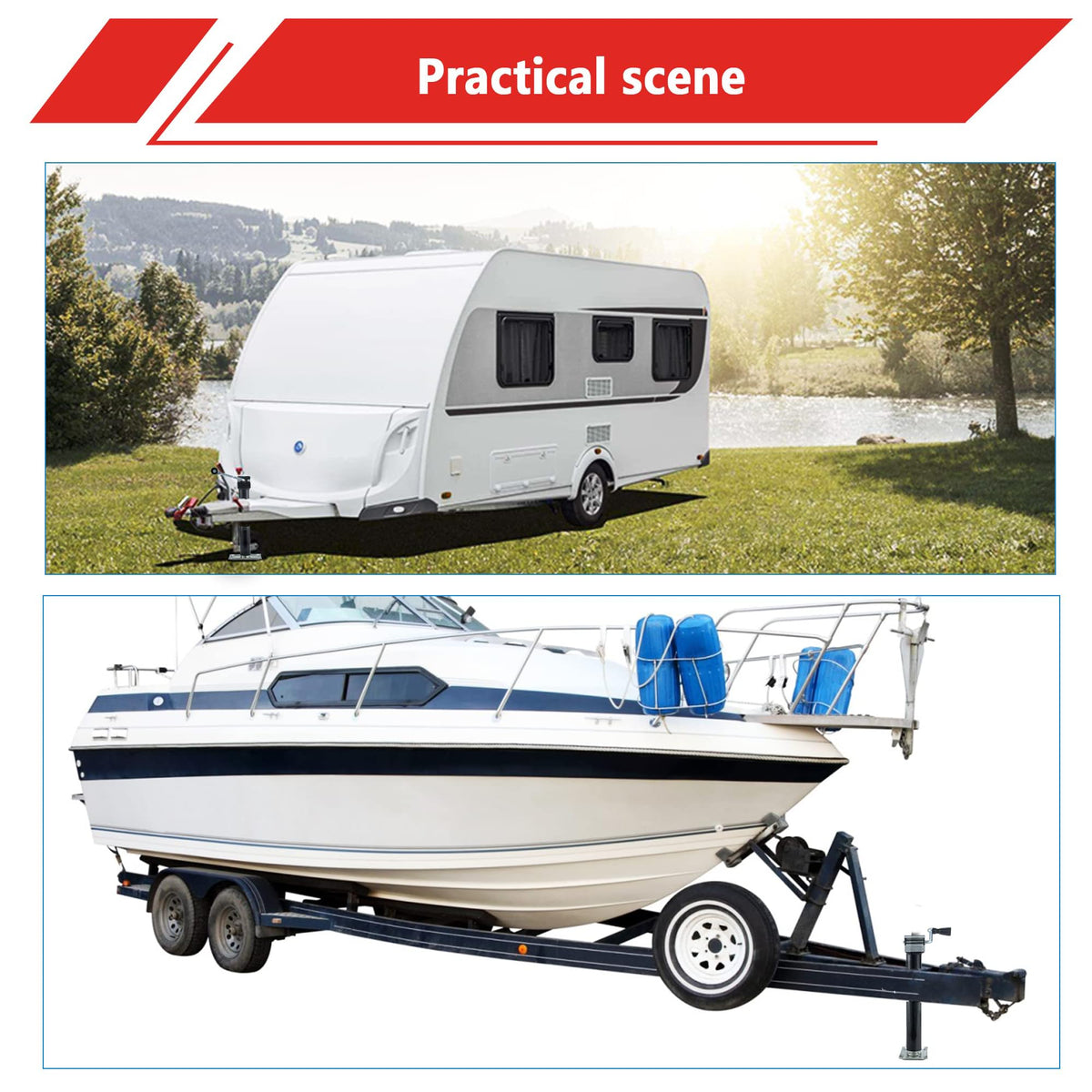

• Designed for boat trailers, small RVs, pop-up campers and utility trailers
• Wide foot plate improves ground contact for heavier loads

What are the height and travel measurements I should expect?

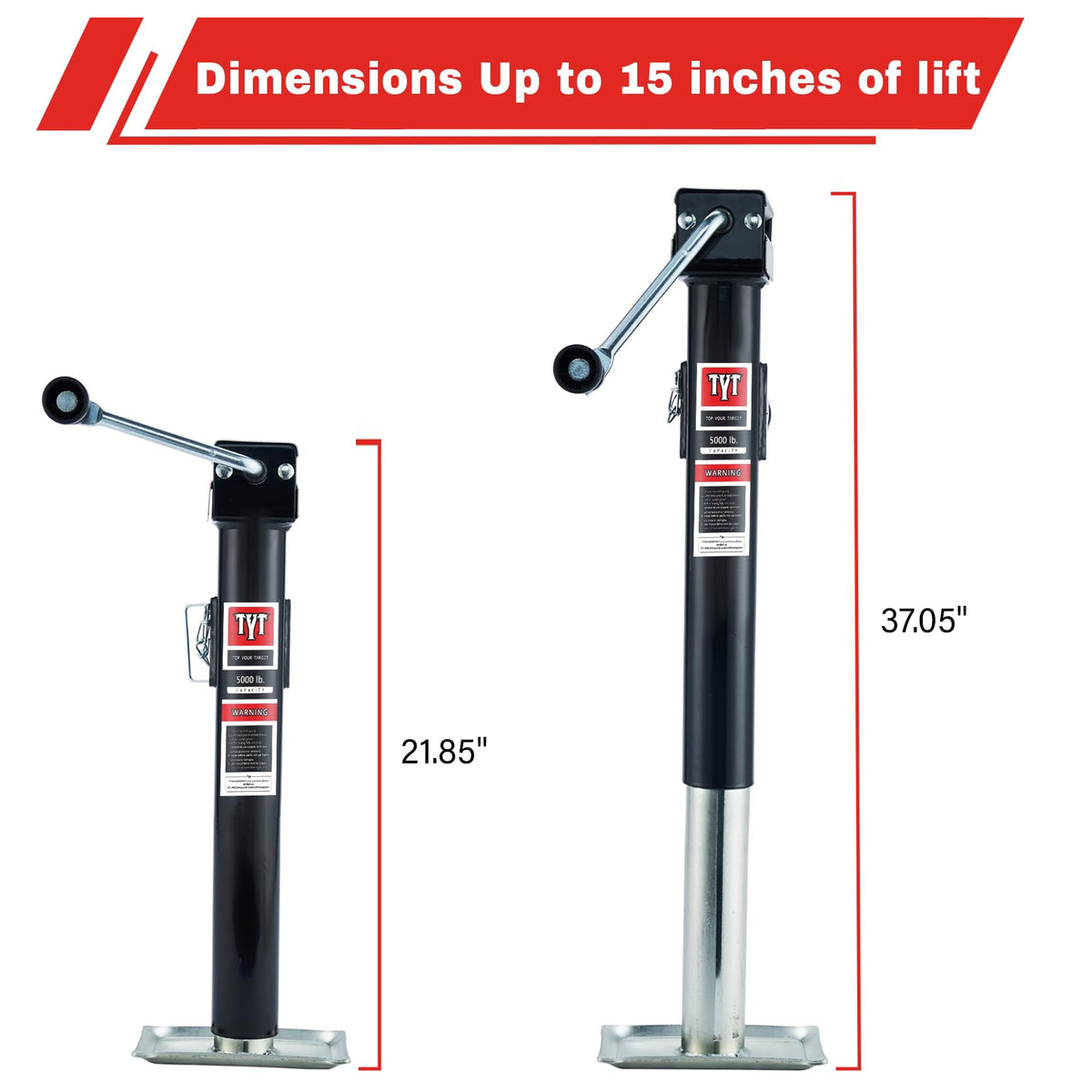

This sidewind jack offers 15 inches of vertical travel from retracted to fully extended. Measurement details matter for fitment: the unit’s retracted and extended overall heights account for bracket dimensions and clearance so you can confirm compatibility before welding or installing.

• Maximum vertical travel: 15 inches
• Retracted and extended overall heights designed to suit common tongue clearances
• 2.5 inch outer tube diameter fits standard pipe-mount brackets

How is the jack built to resist corrosion and simplify maintenance?

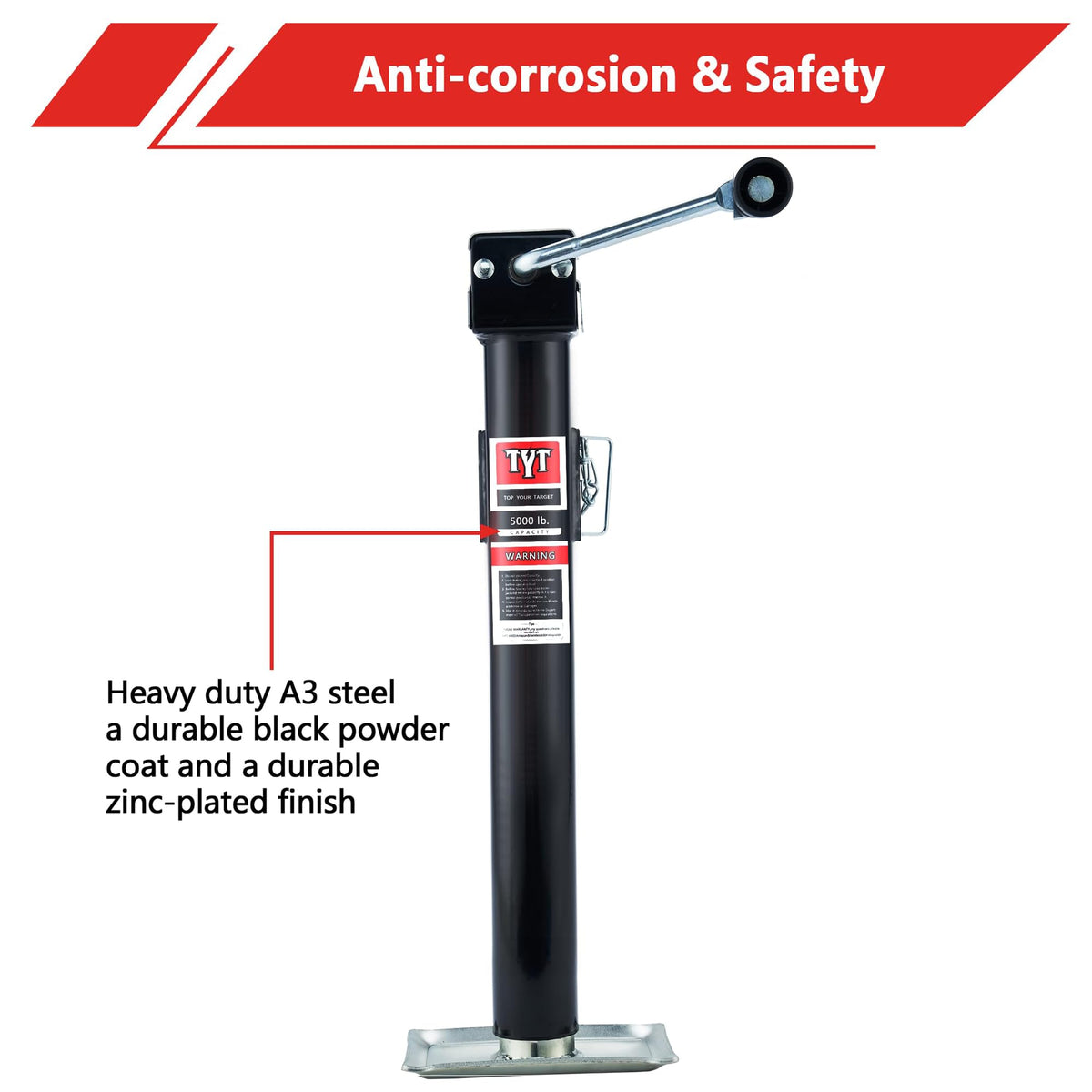

TYT constructed the jack from heavy-duty A3 steel and applied a durable black powder coat plus zinc plating to slow rust and wear from road spray and marine environments. A grease zerk is integrated so routine lubrication is quick, extending the life of internal gears and threads.

• A3 steel core for strength and longevity
• Black powder coat and zinc-plated finish for corrosion resistance
• Built-in grease zerk for easy lubrication and maintenance

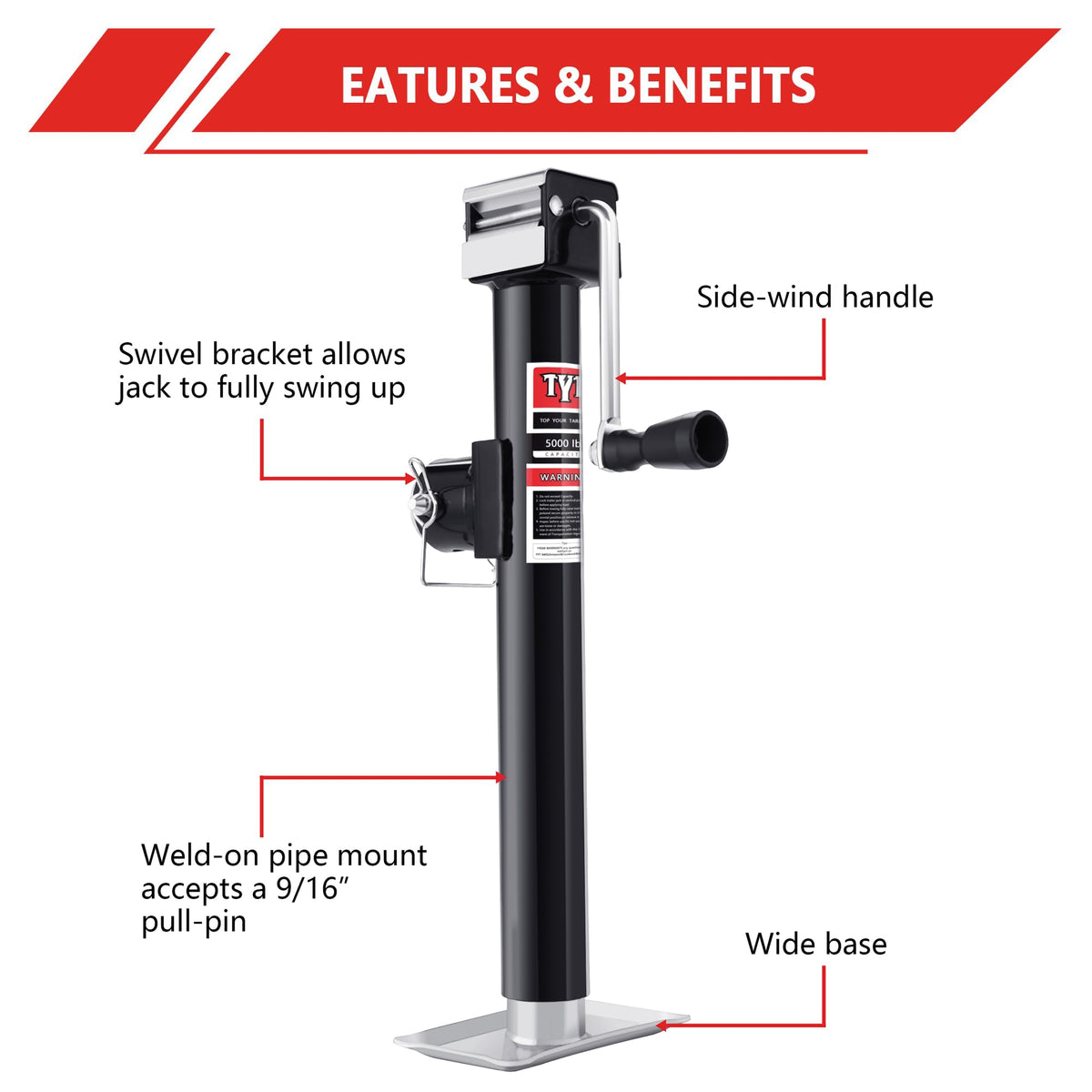

What operating features improve daily use and stability?

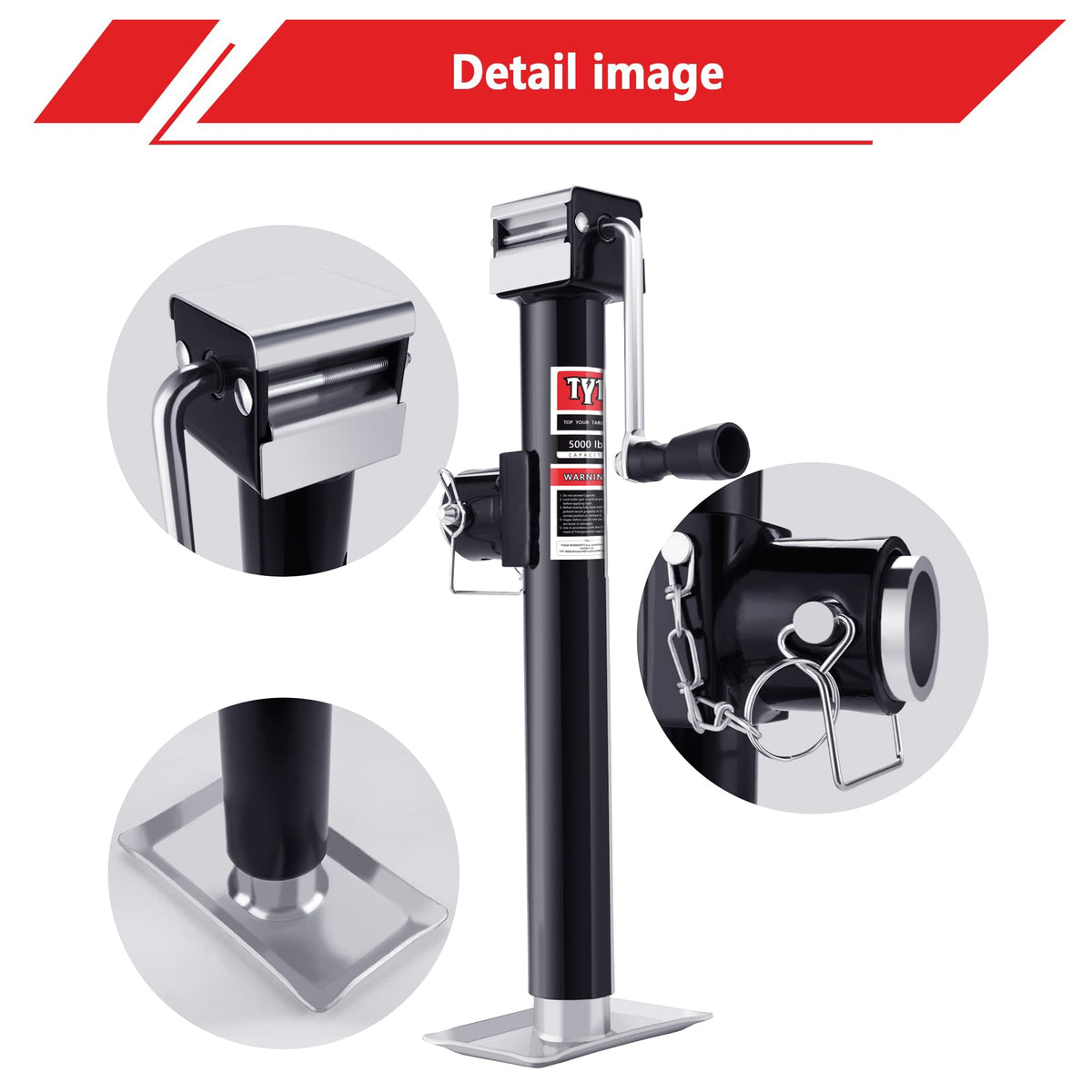

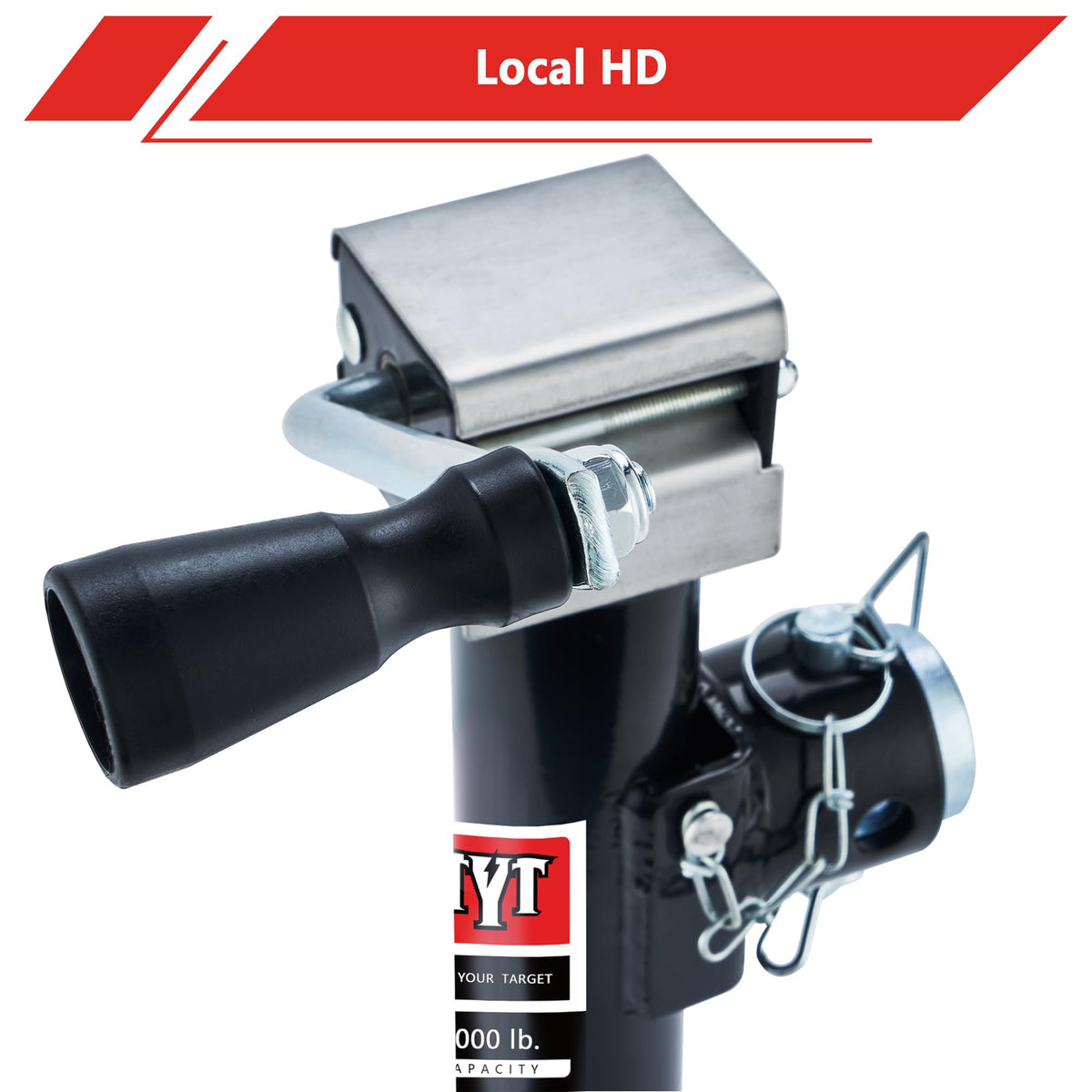

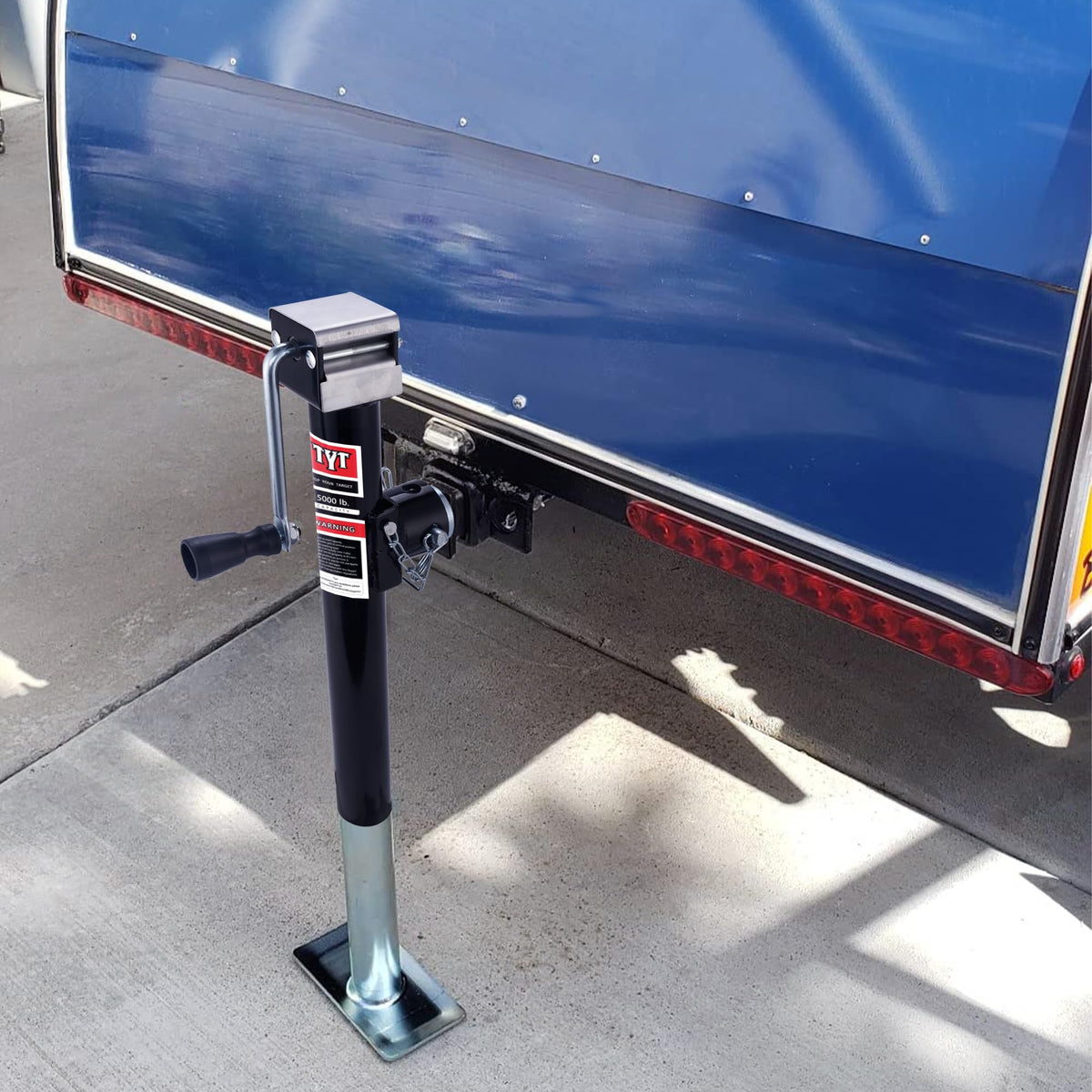

The jack uses a sidewind handle with an ergonomically shaped plastic sleeve for a more comfortable grip and reduced effort when raising or lowering a trailer. The swivel male pipe and pull-pin locking system let the jack swing up and out of the way for towing and lock securely when needed.

• Sidewind handle with plastic sleeve for comfort and leverage
• Swivel design with pull pin for stowing during travel
• Wide foot plate spreads load to reduce ground pressure

Who is this for? The TYT 5000 lb weld-on swivel trailer jack is aimed at owners of boat trailers, small travel trailers, pop-up campers, and light-to-medium duty utility trailers who need reliable lifting power, corrosion resistance and an easy-to-operate sidewind mechanism. It is a good match for users who plan to weld the jack into place or who have a compatible male pipe mounting setup and want a durable, low-maintenance jack that clears away for towing.

• Package weight: 13.23 lbs, compact shipping size
• Outer tube diameter: 2.5 inches for standard fitment
• Includes wide base plate for safer ground contact
