UCkasayfy Dual Battery Isolator 12V 140A VSR — Lead‑Acid Only, IP65 Sealed Automatic Battery Management

UCkasayfy Dual Battery Isolator 12V 140Amp is a voltage-sensitive relay that automatically combines and separates your vehicle’s starter and auxiliary batteries to keep the primary battery charged while protecting it from drains.

This compact VSR is engineered for 12V lead-acid systems and provides automatic, hands-free battery management for UTVs, boats, RVs, trucks, trailers, ATVs and campers. It closes at around 13.3 volts to allow charging both batteries in parallel and opens near 12.8 volts to stop auxiliary loads from discharging the starter battery. Designed with an IP65-rated, silicone-sealed housing, the relay tolerates wet and dusty conditions but is not suitable for lithium battery chemistries.

How does this VSR preserve my main starter battery?

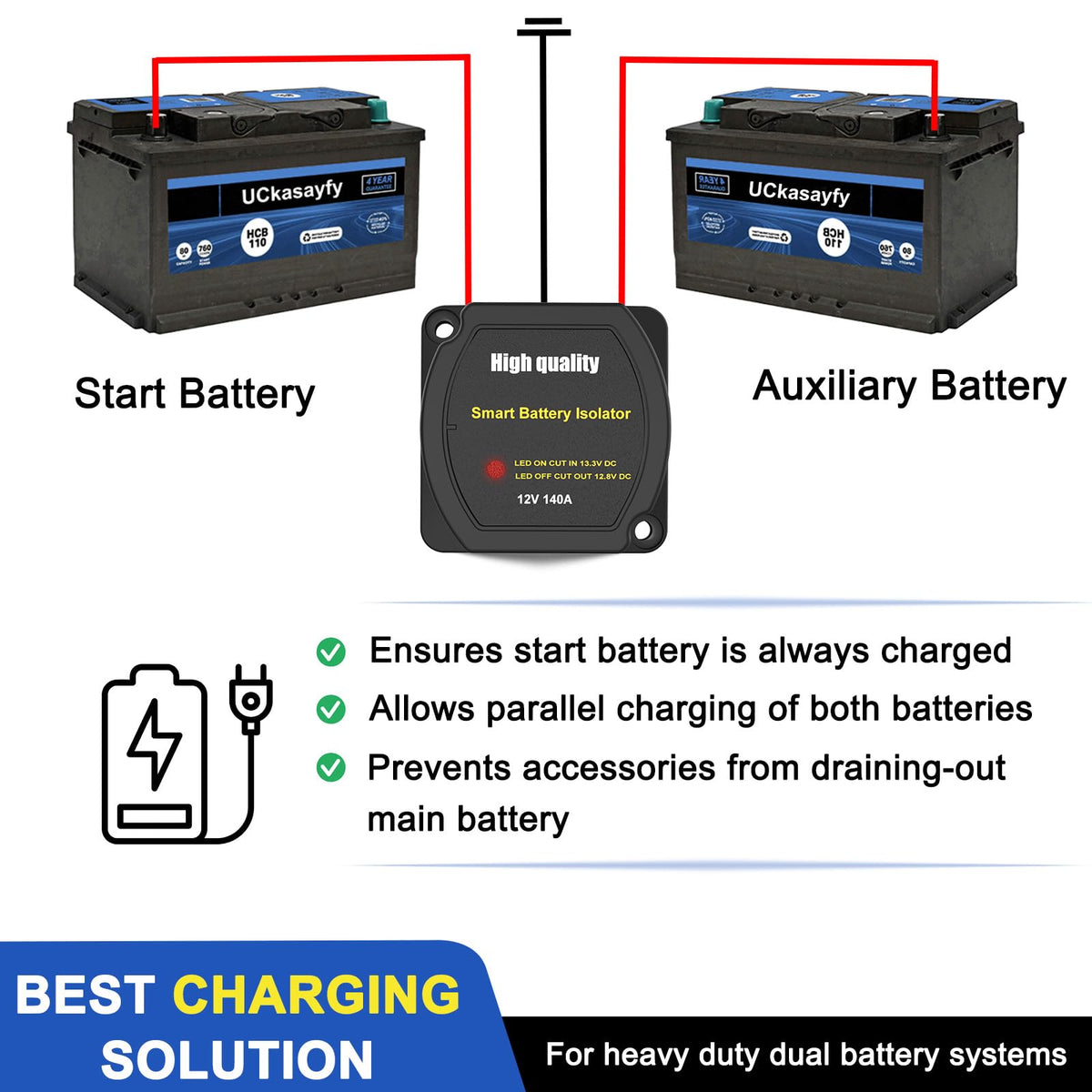

The isolator monitors charging voltage and only connects batteries when the alternator or charger raises system voltage above its cut-in threshold, preventing accessory loads from draining the starter battery when the engine is off. It also disconnects at a lower threshold so the starter battery retains enough reserve to start the vehicle.

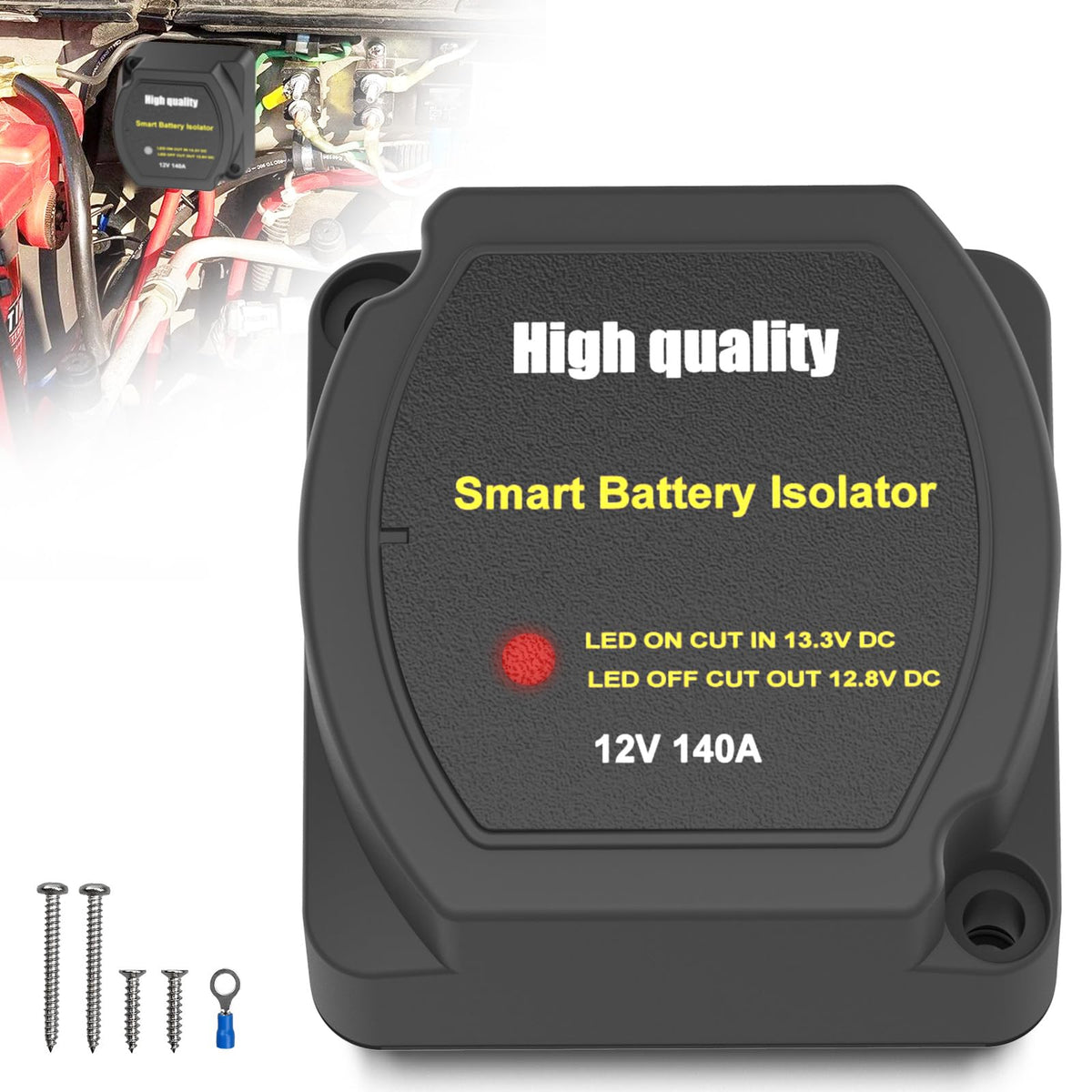

• Automatic cut-in at ~13.3V and cut-out at ~12.8V
• Prevents deep discharge of the primary battery
• Simple, maintenance-free operation — no manual switching

Will this isolator work in harsh outdoor or marine conditions?

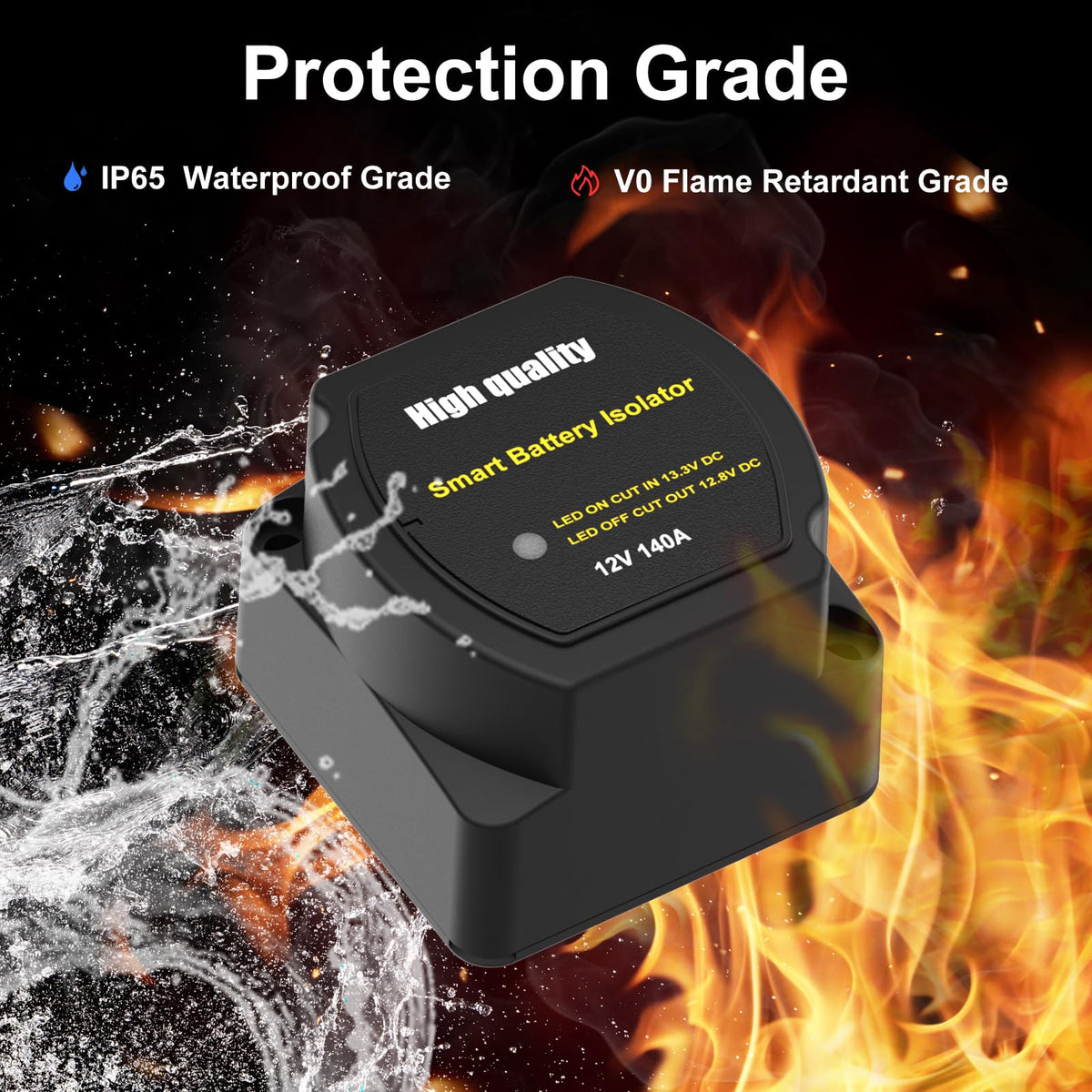

Yes — the device is built with a silicone-sealed interior and an IP65-rated enclosure to resist water spray and dust, making it suitable for exposed installations on boats, ATVs and utility vehicles. The sealed construction also increases reliability in dusty or vibration-prone environments.

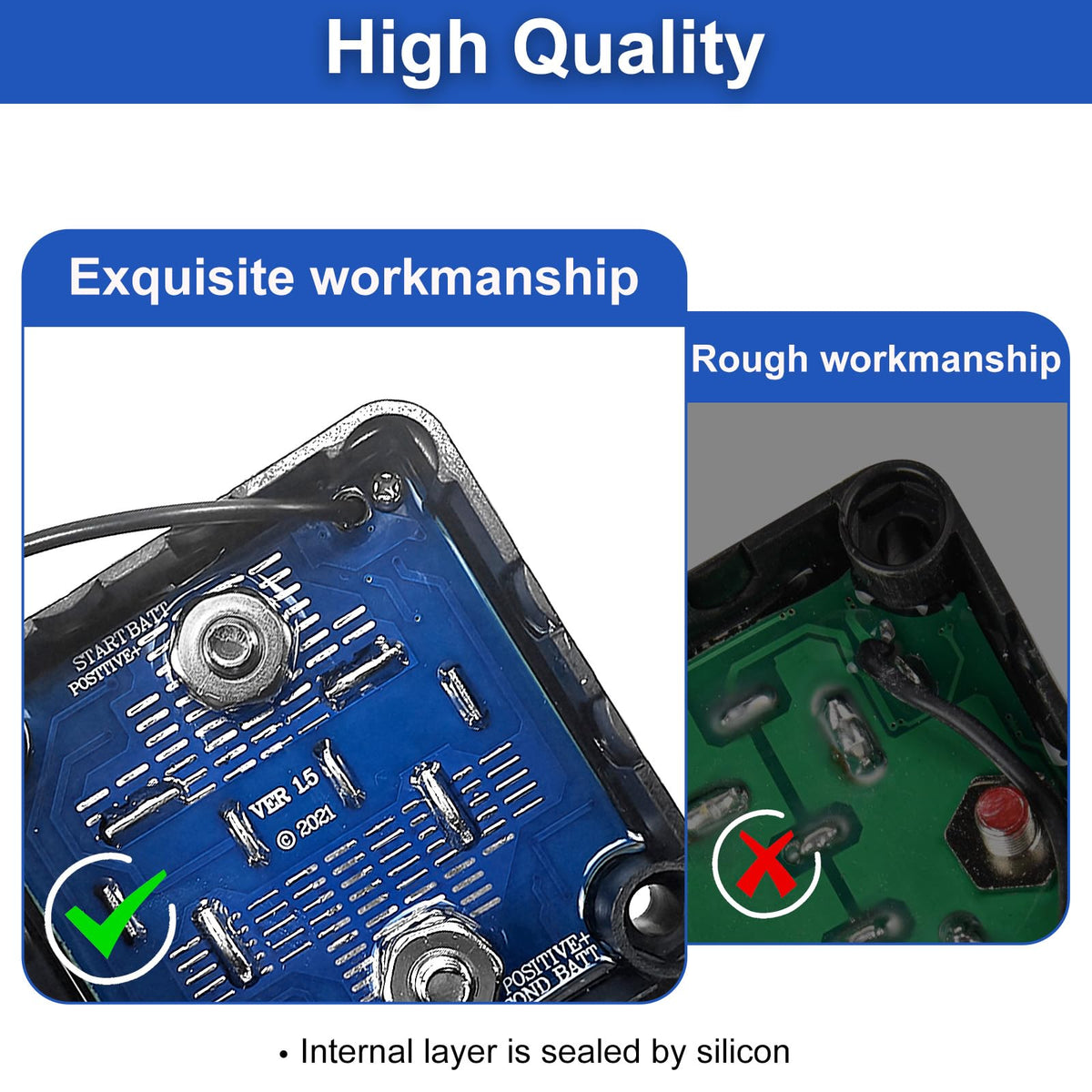

• Silicone-sealed internals for environmental protection
• IP65 rating for dust and water spray resistance
• Compact footprint fits tight engine bays and battery compartments

Can the isolator charge the main battery from the auxiliary battery in emergencies?

Yes — the relay supports reverse charging: if the primary battery is depleted and the auxiliary has charge, closing the circuit lets the auxiliary supply the main battery. Ensure any accessories connected to the secondary battery are properly fused and that wiring runs are within recommended lengths.

• Permits reverse charging from auxiliary to main when necessary
• Recommend fusing accessories within 0.98 ft for safety
• Designed for lead-acid systems; do not use with lithium batteries

How do I know it fits my vehicle and installation needs?

The isolator is rated for continuous loads up to 140 amps, compact enough for cramped spaces, and compatible with most 12V lead-acid systems found in cars, RVs, trailers, and marine craft. It’s an easy addition to existing wiring harnesses or new dual-battery setups when you need automatic parallel charging without added complexity.

• 140A rating suits alternators on many recreational and utility vehicles
• Small size for flexible mounting locations
• Works with conventional lead-acid, AGM and flooded batteries (not lithium)

Who is this for: Adventurers, fleet operators and DIY mechanics who run accessories from a secondary battery and want a reliable, automatic way to keep their starter battery charged. It’s ideal for boaters, campers, off-road riders and tow-vehicle owners who need a low-maintenance relay with good environmental protection. Avoid this model if your system uses lithium batteries — choose a lithium-compatible management device instead.
