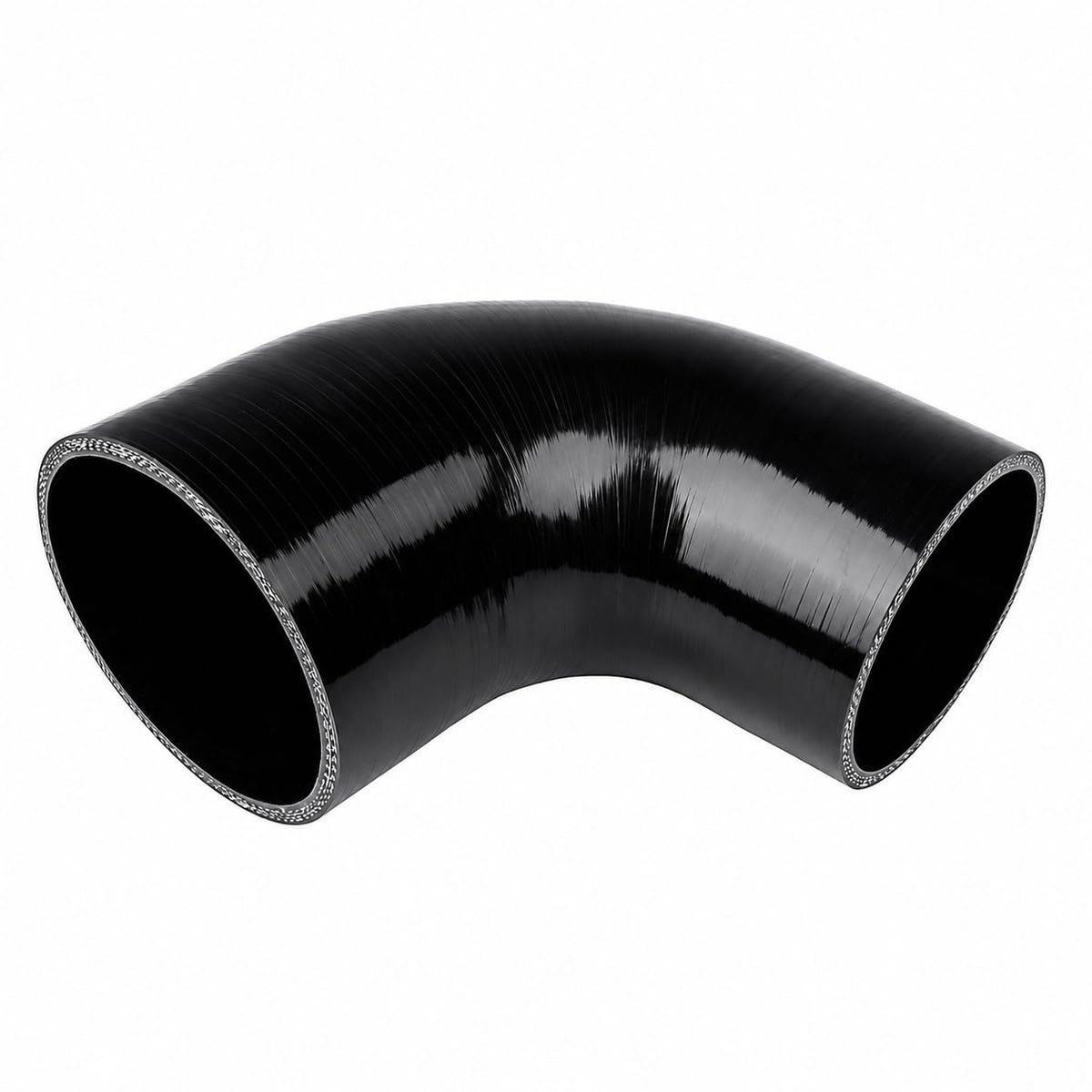

Ucreative 90° Silicone Elbow Coupler 3.5"–4" — 5mm Wall, Four‑Ply Heavy‑Duty Turbo Intake Hose

Ucreative’s 90° silicone elbow is a heavy‑duty 3.5" to 4" coupler designed to join turbo or intake piping where a compact 90° turn is required.

This straight-to-the-point silicone elbow replaces bent metal or rigid pipe sections with a flexible, heat‑resistant connection that keeps boost, vacuum, and intake air moving efficiently. Built from a four‑ply silicone compound with a full 5mm wall thickness, the coupler tolerates extreme temperatures and pressure spikes typical in forced‑induction and engine bay environments. It’s intended as a universal fit for piping between 88.9 mm and 101.6 mm I.D., and the combination of a short leg length and a true 90° angle makes it ideal where space is limited.

How does this elbow perform under high temperatures and pressure?

The Ucreative elbow is formulated to withstand extreme conditions common around turbochargers and hot engine bays. Its rated operating range covers severe cold and high heat, and it can resist short-term pressure surges without splitting.

• Temperature range: -60°C (-140°F) to 230°C (428°F)
• Bursting pressure: up to 2 MPa for resistance to boost spikes
• Thick 5mm silicone wall for thermal insulation and strength
• Four‑ply construction for improved tear and puncture resistance

Will this coupler fit my piping and how easy is installation?

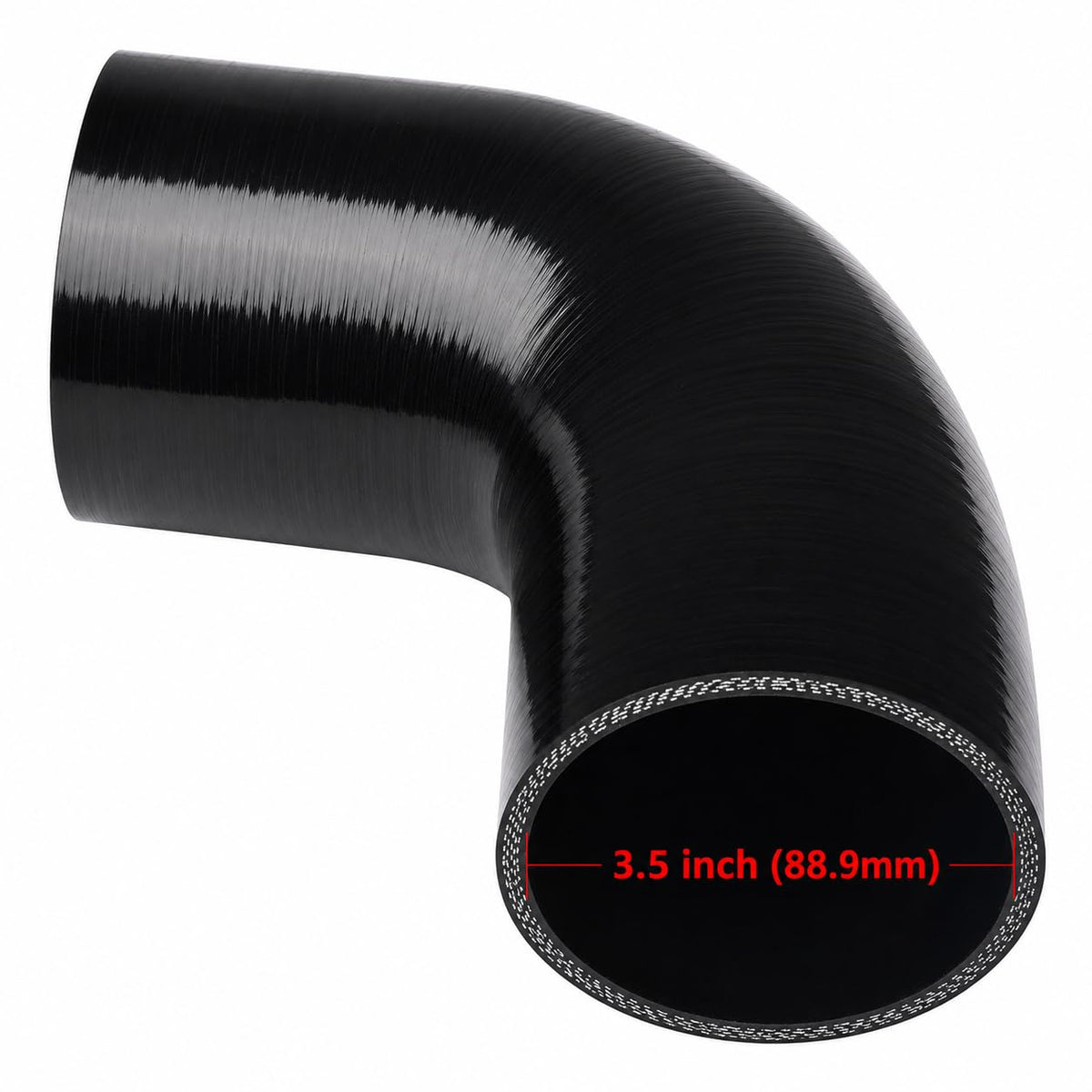

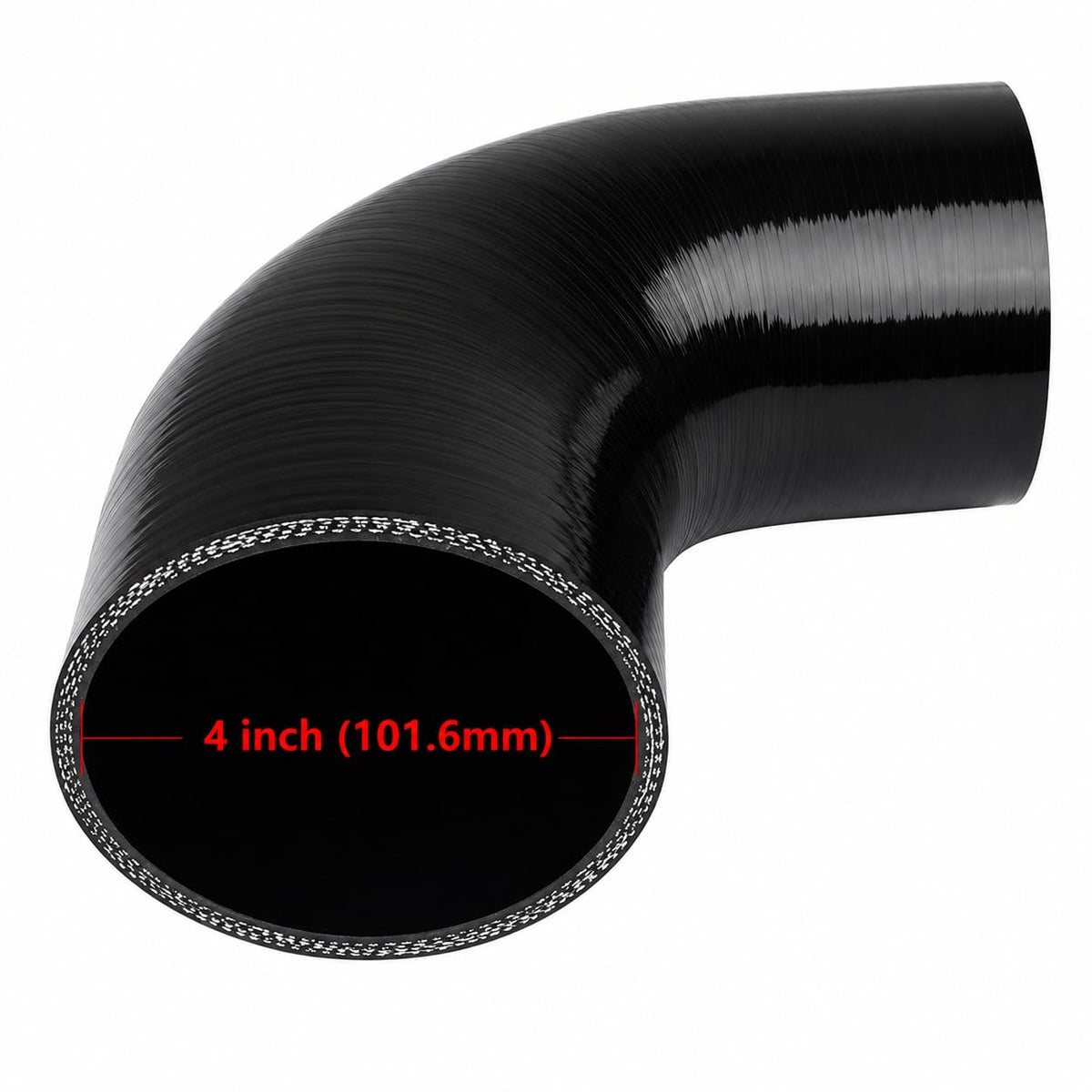

The elbow is sized to bridge pipes with inner diameters from 3.5" to 4.0" (88.9–101.6 mm). The short 5" legs and flexible silicone make alignment forgiving, so it slips over tubing and seals with standard clamps.

• Inner diameter span: 3.5"–4.0" for common turbo and intake pipes

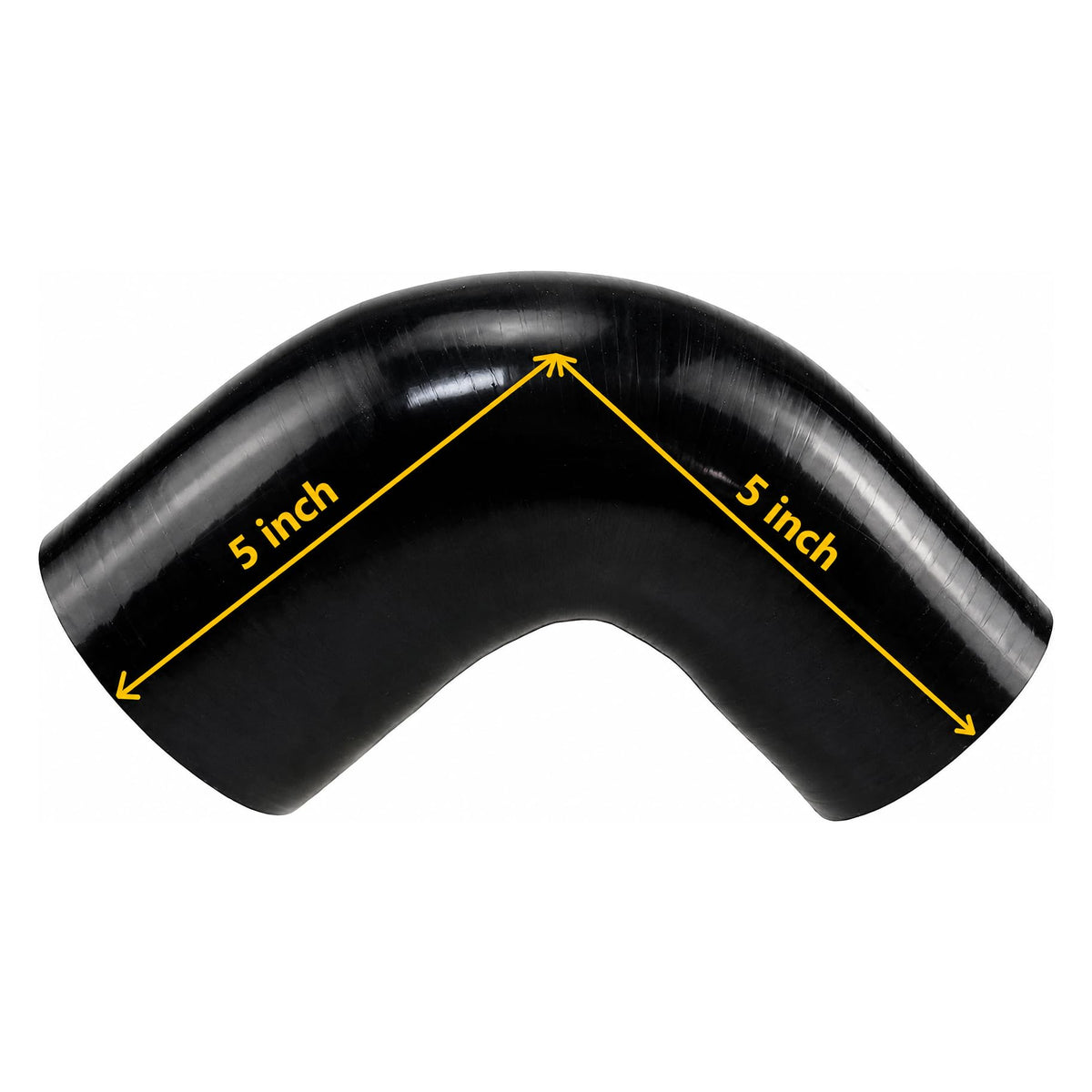

• Leg length: 5" (125 mm) for compact routing in tight areas
• Flexible material eases installation without precision adapters
• Use standard hose clamps for a reliable, leak‑resistant seal

What construction and materials protect against wear and damage?

The elbow uses a four‑layer silicone laminate with a robust thickness to resist abrasion, oil, and repeated heat cycles. That construction reduces the risk of premature failure where hoses are under vibration or contact with rough fittings.

• Silicone four‑ply build increases tear strength and durability
• 5 mm wall thickness shields against chafing and punctures
• Silicone resists oil, ozone, and most automotive fluids
• Reinforced design tolerates engine‑bay vibration and flexing

How will this elbow affect airflow and performance?

A smooth silicone elbow reduces turbulence compared with crude pipe bends and can help maintain consistent boost delivery in turbo systems. The short radius keeps flow disruption minimal, while the thick walls help stabilize temperature of the air passing through.

• Short 90° turn minimizes pressure drop for better boost response
• Internal surface maintains steady airflow with reduced turbulence
• Thermal insulation helps keep intake air temperatures more stable

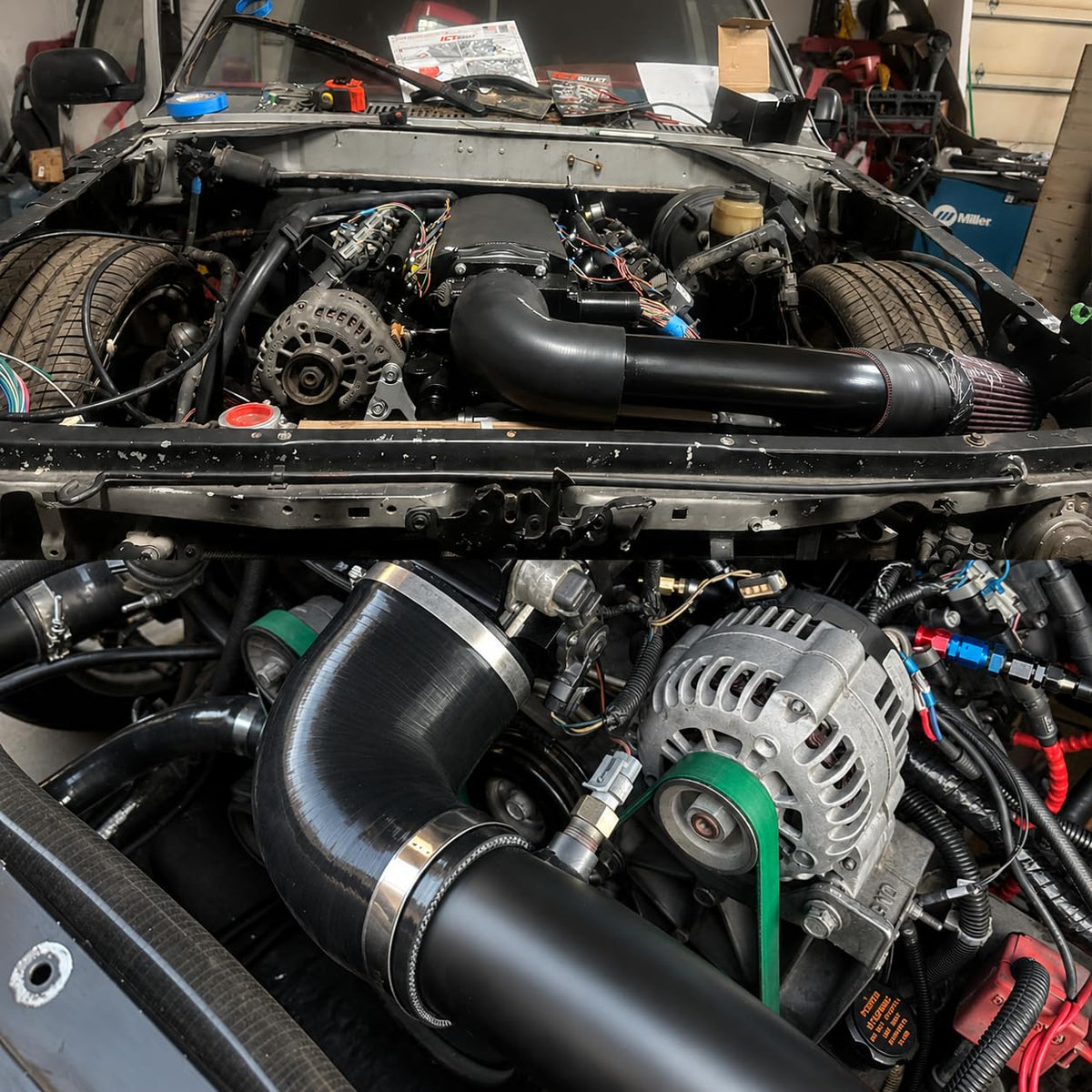

• Ideal for connecting intercooler, turbo, or intake plumbing in compact layouts

Who is this for: Mechanics, tuners, and DIY enthusiasts who need a compact, tough silicone solution for joining 3.5"–4" intake or turbo piping in confined engine bay spaces. It’s suited to street and track builds where high temperatures, pressure changes, and space constraints demand a short, durable 90° coupler.

• Package includes: 1x 90° silicone hose
• Inner diameter: 3.5"–4.0" (88.9 mm–101.6 mm)
• Leg length: 5" (125 mm); wall thickness: 0.197" (5 mm)
• Temperature rating: -60°C to 230°C (-140°F to 428°F); bursting pressure: 2 MPa
