Ucreative AN10 Nylon-Braided Fuel Line Kit 10ft CPE Hose with Swivel AN Fittings & Clamp — 500 PSI Rated

Ucreative's 10-foot AN10 CPE nylon-braided fuel line kit is a ready-to-install fuel delivery hose assembly with matching AN swivel fittings and a clamp, built for high-pressure automotive applications.

This kit combines a 10-foot length of CPE synthetic rubber hose wrapped in nylon braid with a selection of swivel AN hose ends so you can route fuel lines cleanly and securely. Designed for use where PTFE or rubber hoses are not appropriate, the assembly provides a durable pathway rated for demanding environments, with temperature and pressure thresholds suitable for many performance and replacement uses. The package also includes a separator clamp to keep runs neat and prevent chafing.

What components come with the complete fuel line kit?

The kit includes the hose plus multiple swivel fittings so you can configure straight and angled connections without cutting extras. Each fitting is designed to crimp onto the CPE/nylon line for a sealed connection, and a clamp is included to anchor the hose along the chassis or frame.

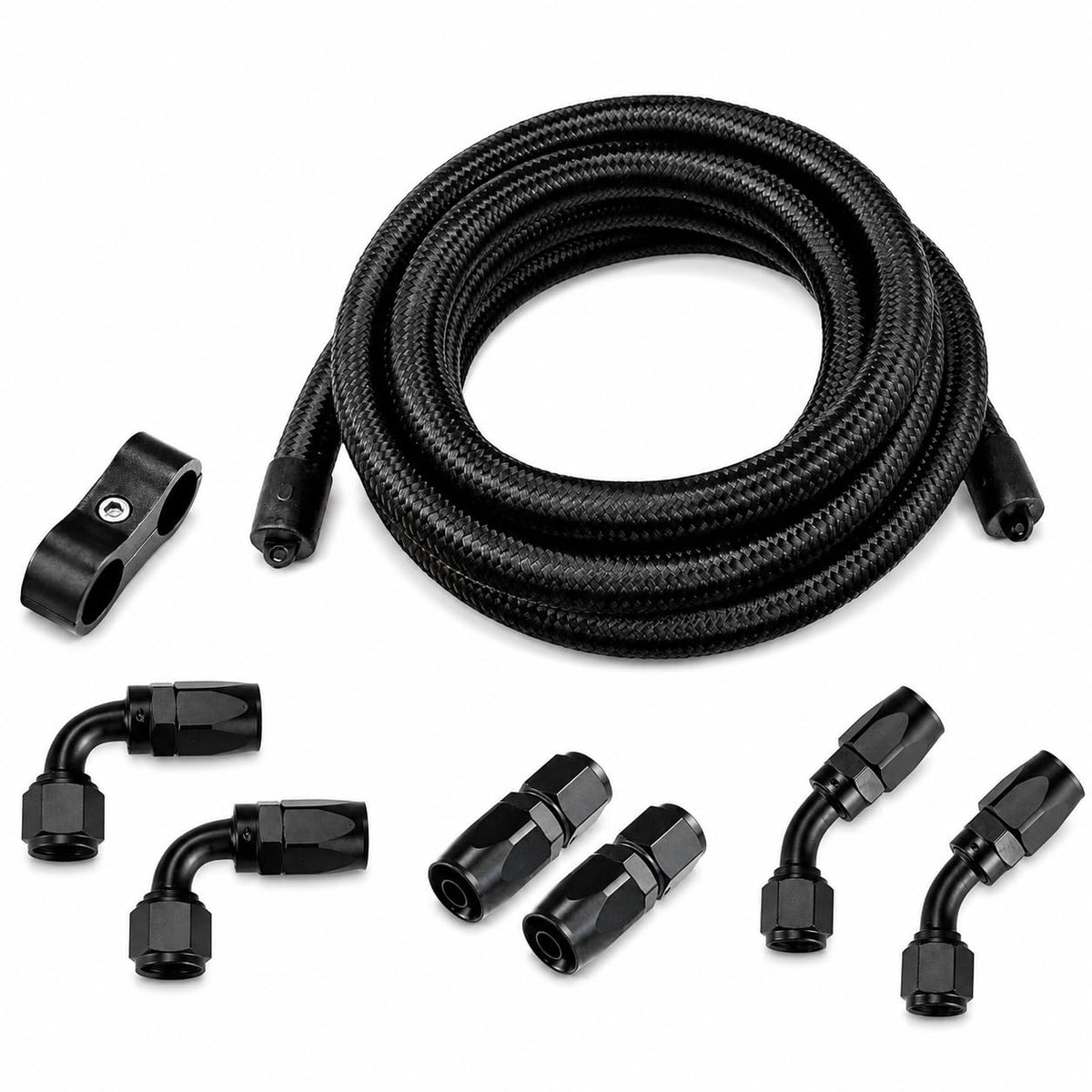

• 1 × 10-foot CPE nylon-braided hose (AN10 internal diameter)
• 2 × straight swivel AN hose ends for inline runs
• 2 × 45° swivel AN hose ends for moderate angle bends
• 2 × 90° swivel AN hose ends for tight corners and bulkhead exits
• 1 × hose separator clamp for routing and vibration isolation

How does this hose perform under pressure and temperature extremes?

The CPE synthetic rubber core with a tough nylon braid gives the hose good mechanical strength and a broad operating range. It’s rated for a maximum working pressure of 500 psi and a bursting pressure around 2000 psi, while handling temperatures from deep cold up to high heat commonly seen in engine bays.

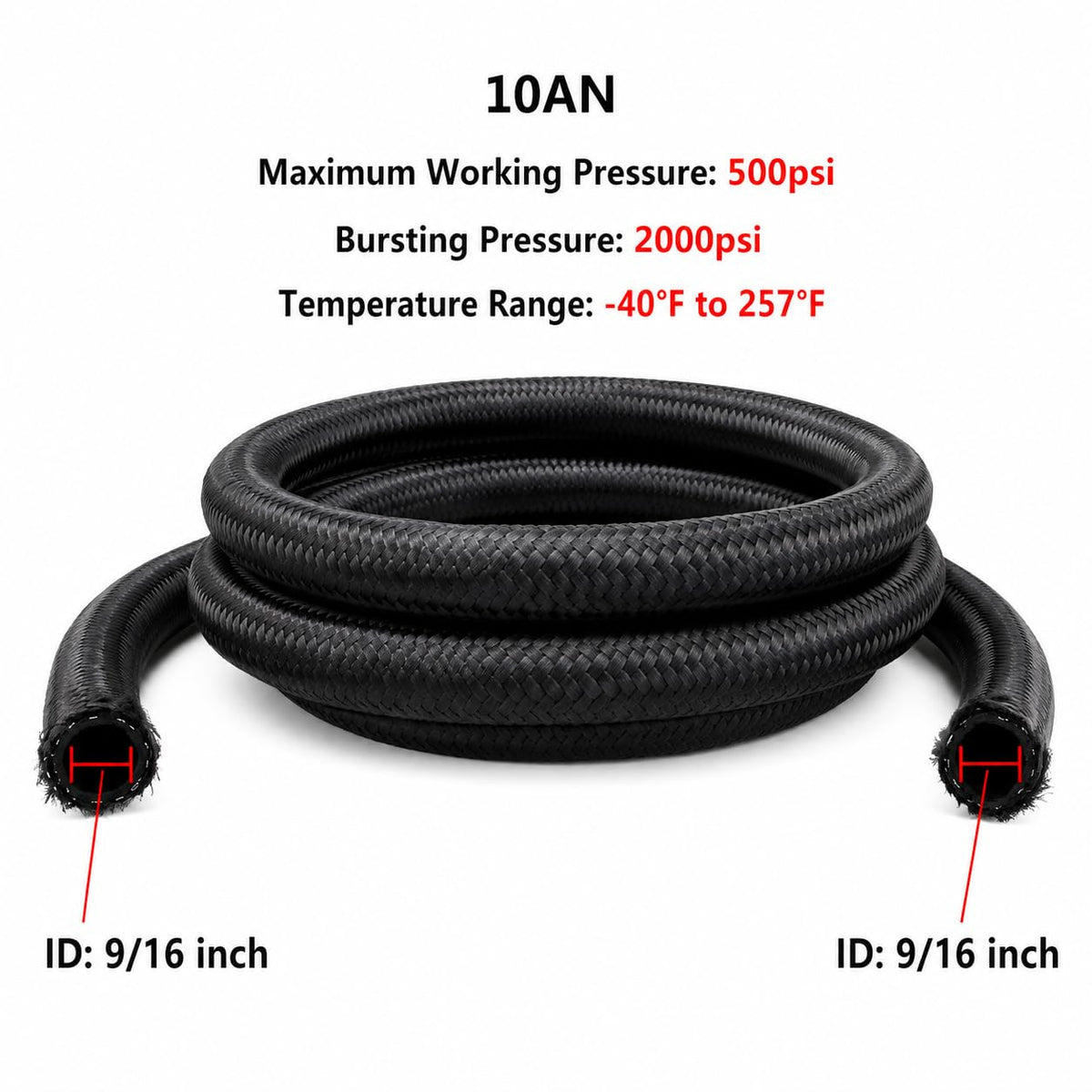

• Maximum working pressure: 500 psi for sustained operation
• Burst pressure: approximately 2000 psi for safety margin
• Temperature capability: from -40°F up to 257°F (-40°C to 125°C)

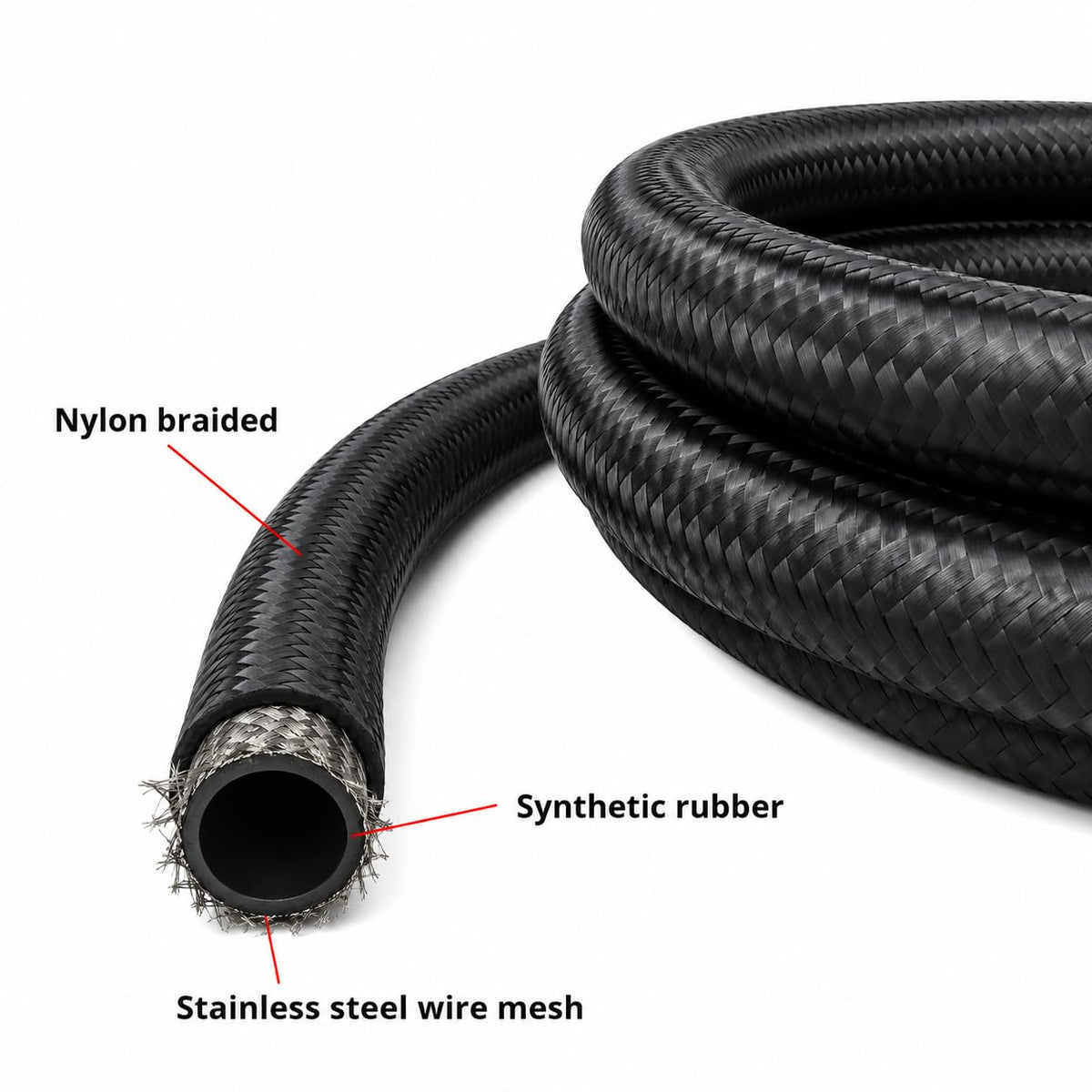

• Construction: CPE rubber core with nylon braid for abrasion resistance

Which fittings and hose types are and aren’t compatible?

The supplied AN-style fittings are matched to the kit’s CPE nylon-braided hose and are not intended for use with every hose material. Avoid pairing these fittings with PTFE-lined, E85-specific rubber, or other incompatible hose types to prevent poor seals or leaks.

• Compatible: CPE synthetic rubber hose with nylon braid (included)
• Not compatible: PTFE-lined hoses, E85-specific rubber hoses, or certain aftermarket rubber lines
• Recommendation: use the included fittings only on the supplied hose for best seal integrity
• Installer note: professional installation is recommended to ensure correct crimping and leak-free joints

How should I plan and install this 10 ft AN10 hose kit?

Measure twice before cutting: confirm the 0.56-inch inner diameter and 10-foot length meet your route and connector needs. Use the right crimp tooling or have a shop install the swivel ends; improper assembly can cause leaks. The included separator clamp helps secure the hose away from hot surfaces and moving parts.

• Hose ID: 0.56 inch (14.2 mm); OD: 0.78 inch (20 mm) — verify fitment with your fittings

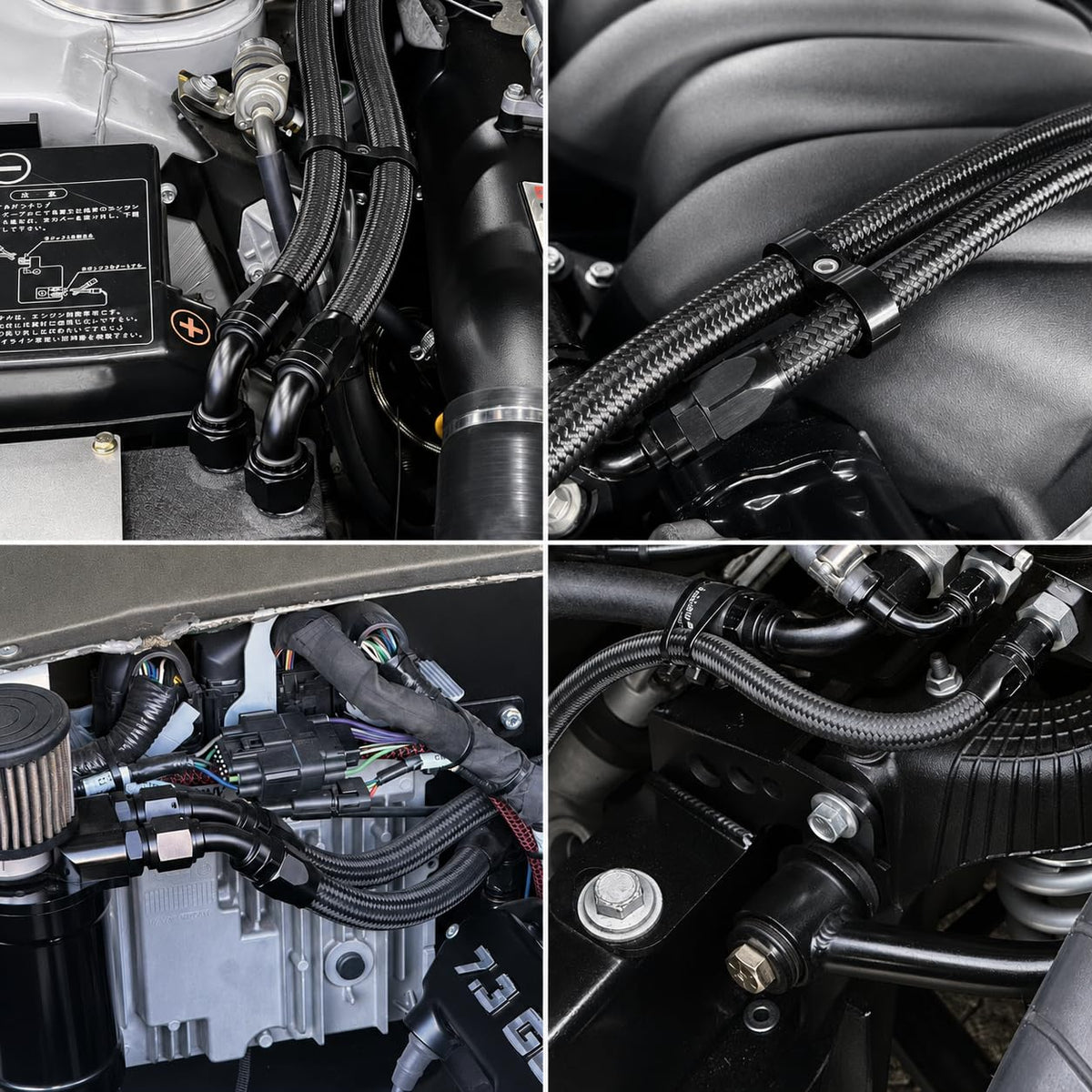

• Plan routing to minimize sharp bends and heat exposure; use included 45°/90° fittings where needed
• Professional crimping or experienced installer recommended to ensure leak-free connections
• Free replacement offered if a leak occurs (no return required) — follow seller instructions

Who is this kit best suited for: Enthusiasts upgrading fuel lines on performance cars, custom fabricators routing new fuel systems, and repair shops replacing worn nylon-braided CPE lines will find this Ucreative kit convenient. It’s meant for users who need a robust, pre-matched hose and fitting set rated for high pressure and elevated temperatures, and who either have the tools to crimp AN fittings properly or will use a professional installer to complete the job.
