Ucreative Oil Cooler 30-Row AN10 Stacked-Plate Aluminum — Compact 2" Thin High-Efficiency Engine & Transmission Cooler

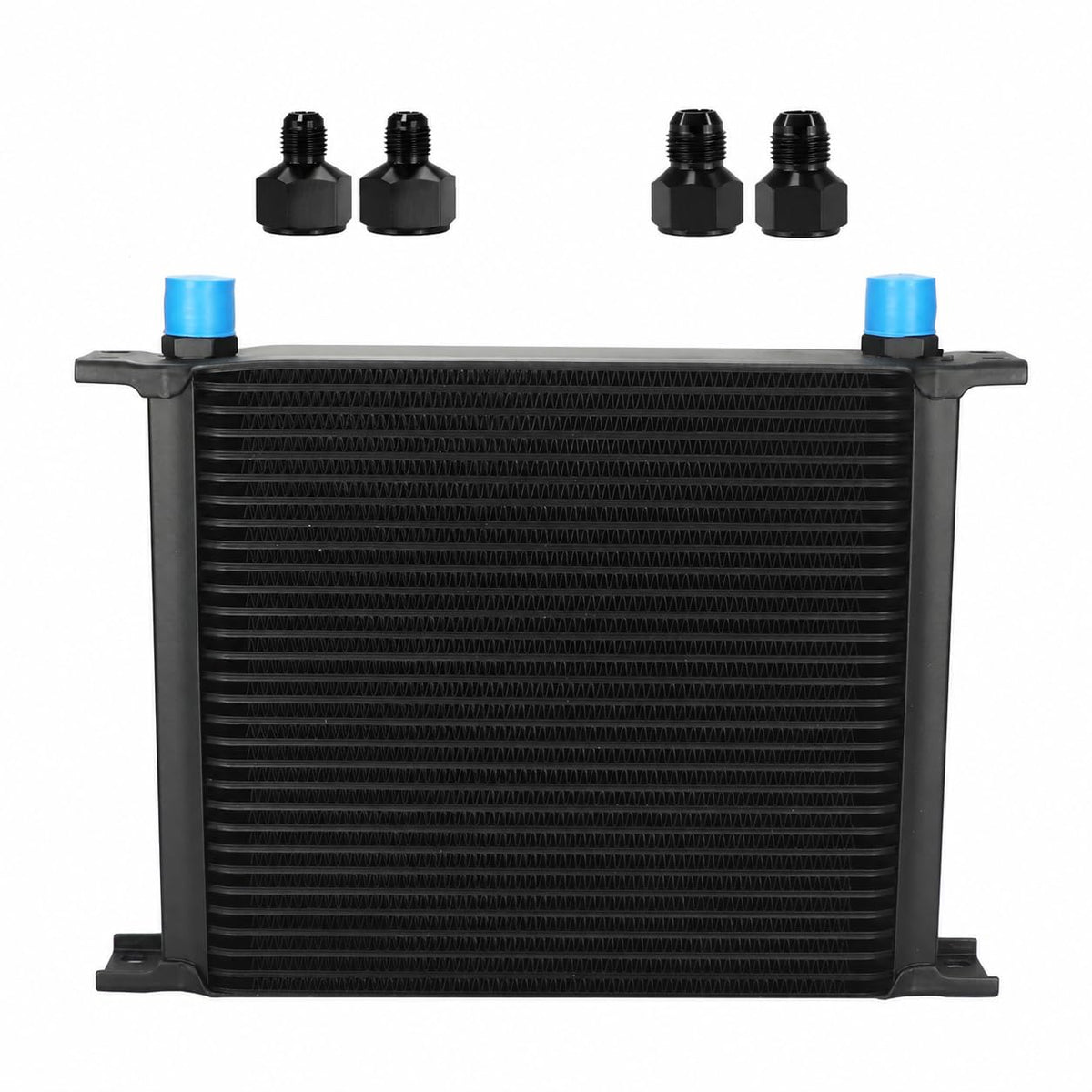

The Ucreative 30 Row AN10 stacked-plate aluminum oil cooler is a compact, high-efficiency heat exchanger designed to lower oil temperatures for engines, transmissions, and differentials.

Built from lightweight aluminum alloy, this 30-row stacked plate cooler brings added oil capacity and improved heat dissipation to performance and maintenance projects. It fits into tight engine bays with overall dimensions of 13" × 10.2" × 2" and accepts AN-style hose fittings to integrate with braided lines. The unit is pressure-rated for routine automotive use, and the included adapters make it compatible with common hose sizes.

How does the Ucreative stacked-plate design improve cooling?

The stacked plate layout increases surface area and creates turbulent flow paths, which helps transfer heat from oil to passing air more effectively than a simple tube. That enhanced contact lowers operating temperatures and supports more stable oil viscosity during heavy use.

• 30 closely packed cooling plates for greater heat exchange.
• Aluminum alloy construction for fast heat conduction and low weight.
• 0.74 L extra oil capacity to moderate temperature swings.
• Compact 2" thickness fits behind grilles or in crowded bays.

What fittings and hoses can I use with this cooler?

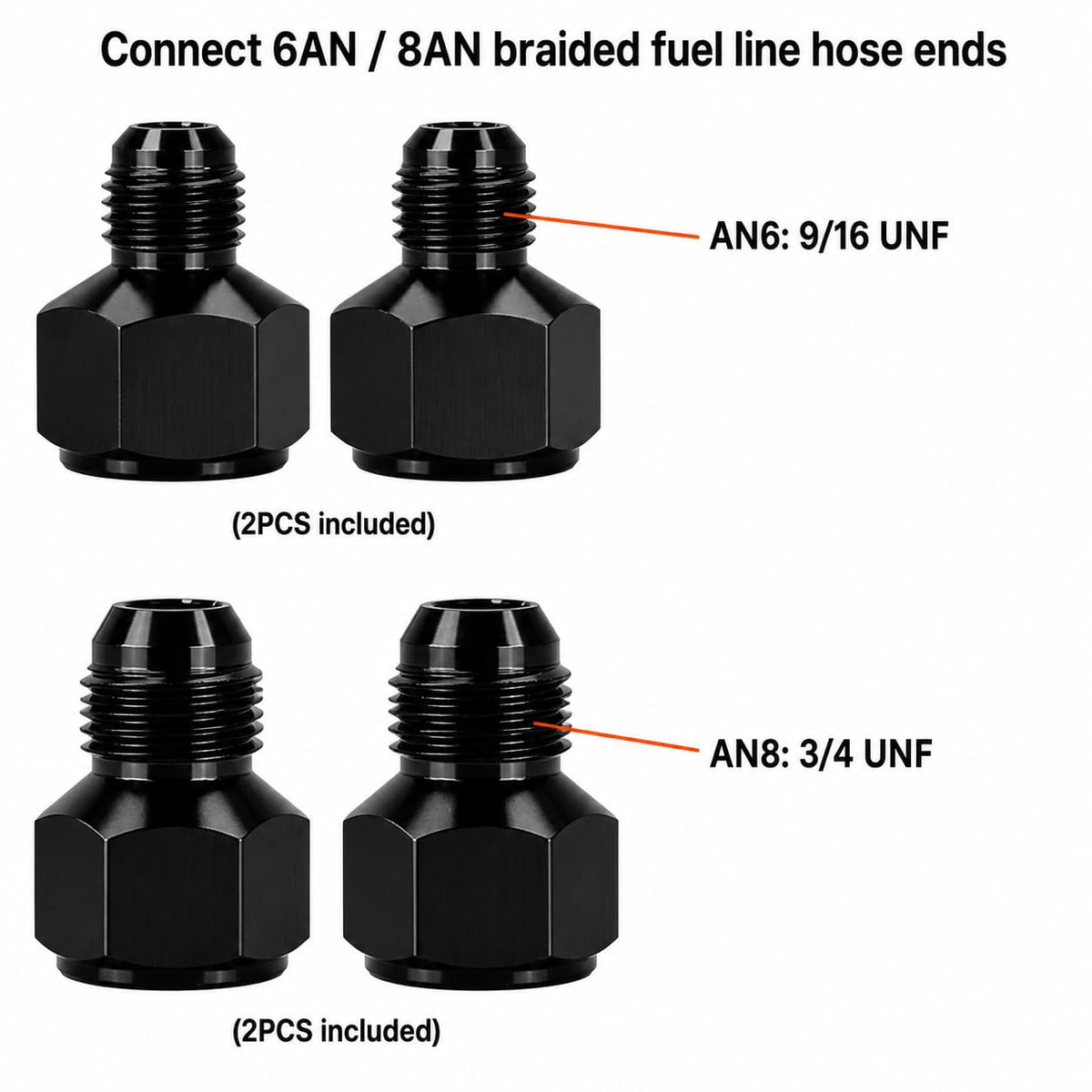

The cooler ships with AN-series adapters to connect standard braided hose ends. You’ll get both 10AN-to-8AN and 10AN-to-6AN fittings so the unit pairs with a range of aftermarket hose sizes. That flexibility makes it straightforward to match your existing lines or upgrade to larger-diameter hoses for higher flow.

• Includes two 10AN→8AN and two 10AN→6AN fittings.
• Works with 8AN and 6AN braided fuel or oil hoses when adapted properly.
• AN fittings allow leak-resistant, reusable connections with proper clamps.

What are the pressure ratings and physical specs I should know?

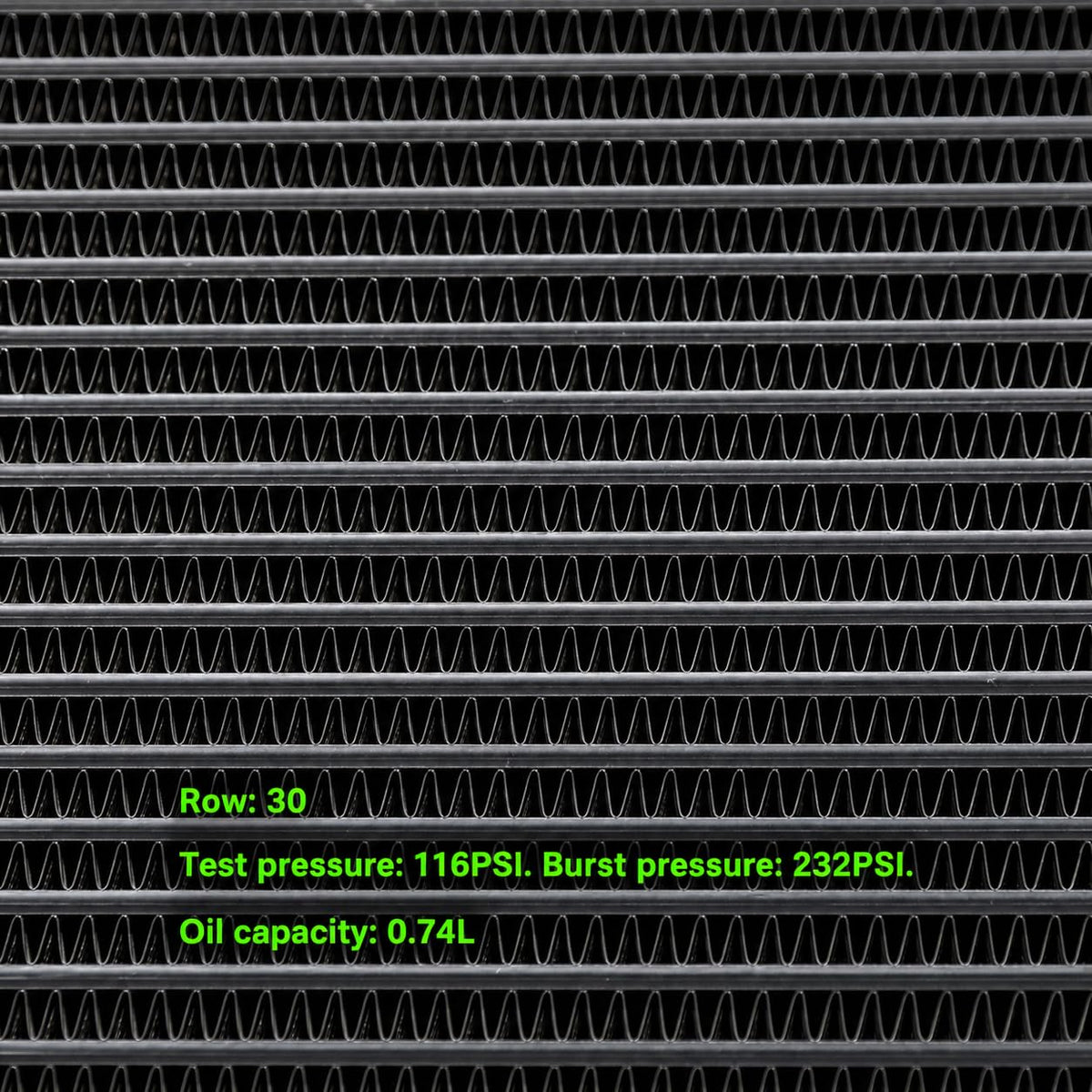

The Ucreative cooler is engineered for typical automotive pressures with a test rating of 116 PSI and a burst rating of 232 PSI, giving a margin for safe operation under demanding conditions. Its compact footprint and low profile are suited for many installations, though you should confirm available mounting space before ordering.

• Oil capacity: 0.74 liters (approximately).
• Test pressure: 116 PSI; burst pressure: 232 PSI.

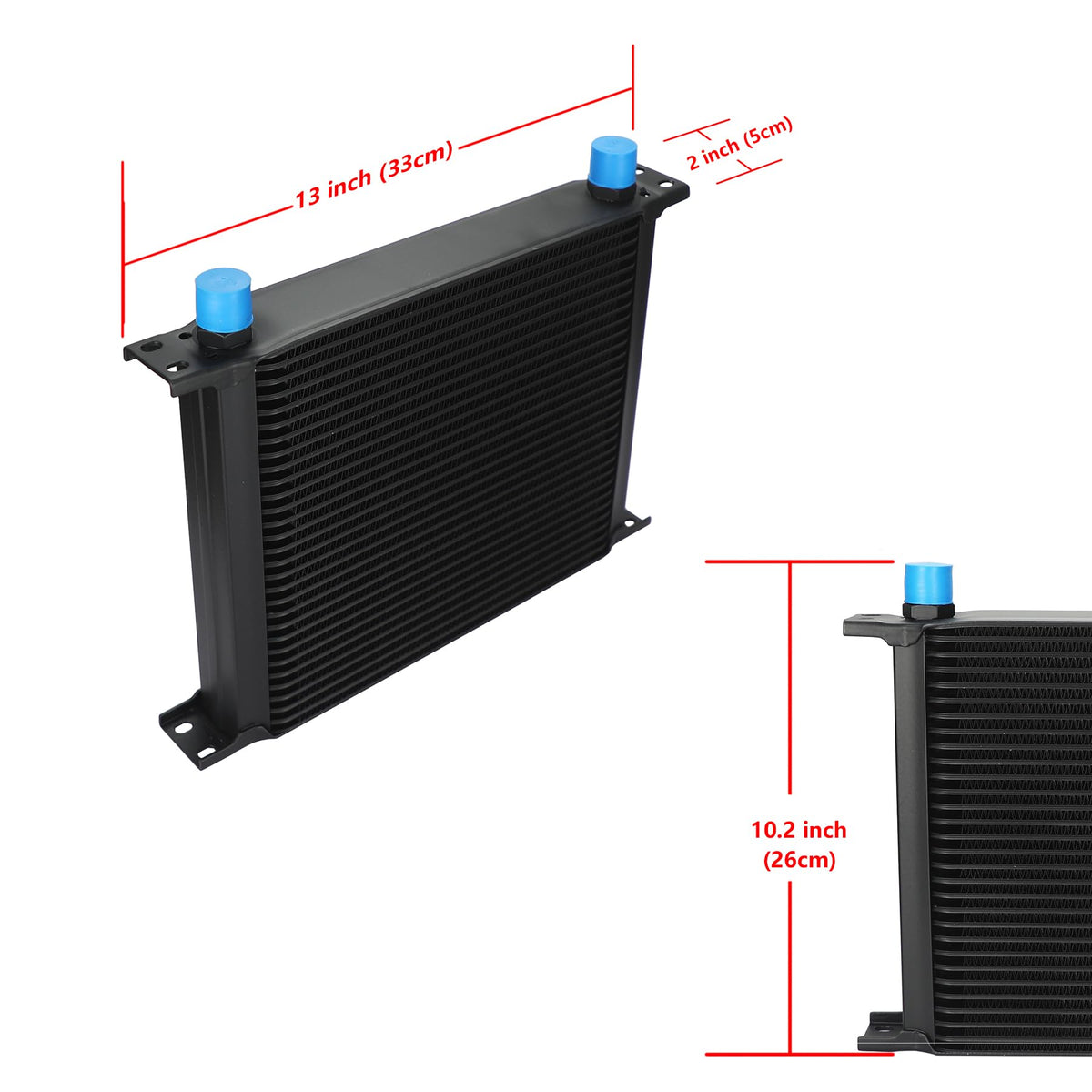

• Overall size: 13" × 10.2" × 2" (length × height × thickness).

Where should I mount this cooler and what installation details matter?

Install the cooler in a location with steady airflow and protection from road debris to maximize heat rejection and durability. Because this is a universal-style unit, you may need brackets, hoses, or adapters specific to your vehicle; instructions are not included, so plan fittings and mounting hardware in advance.

• Mount where air can flow freely—front grille, bumper, or radiator support are common spots.
• Keep the face clear of obstructing panels and road spray to maintain cooling performance.
• Check clearance and routing for braided lines; additional accessories might be required.

Who is this for? Drivers upgrading transmissions, performance builds, or vehicles that carry heavy loads will value the added oil capacity and targeted cooling this compact cooler supplies. It’s aimed at DIY mechanics and professional installers who need a small, efficient heat exchanger compatible with AN-style fittings and who can supply vehicle-specific mounting hardware and hoses.
