ultramindz Front Fuel Pump Assembly for Ford F-150/F-250/F-350 1992–1997 — SP2006H 19‑Gallon Midship, OE‑Style Complete Kit

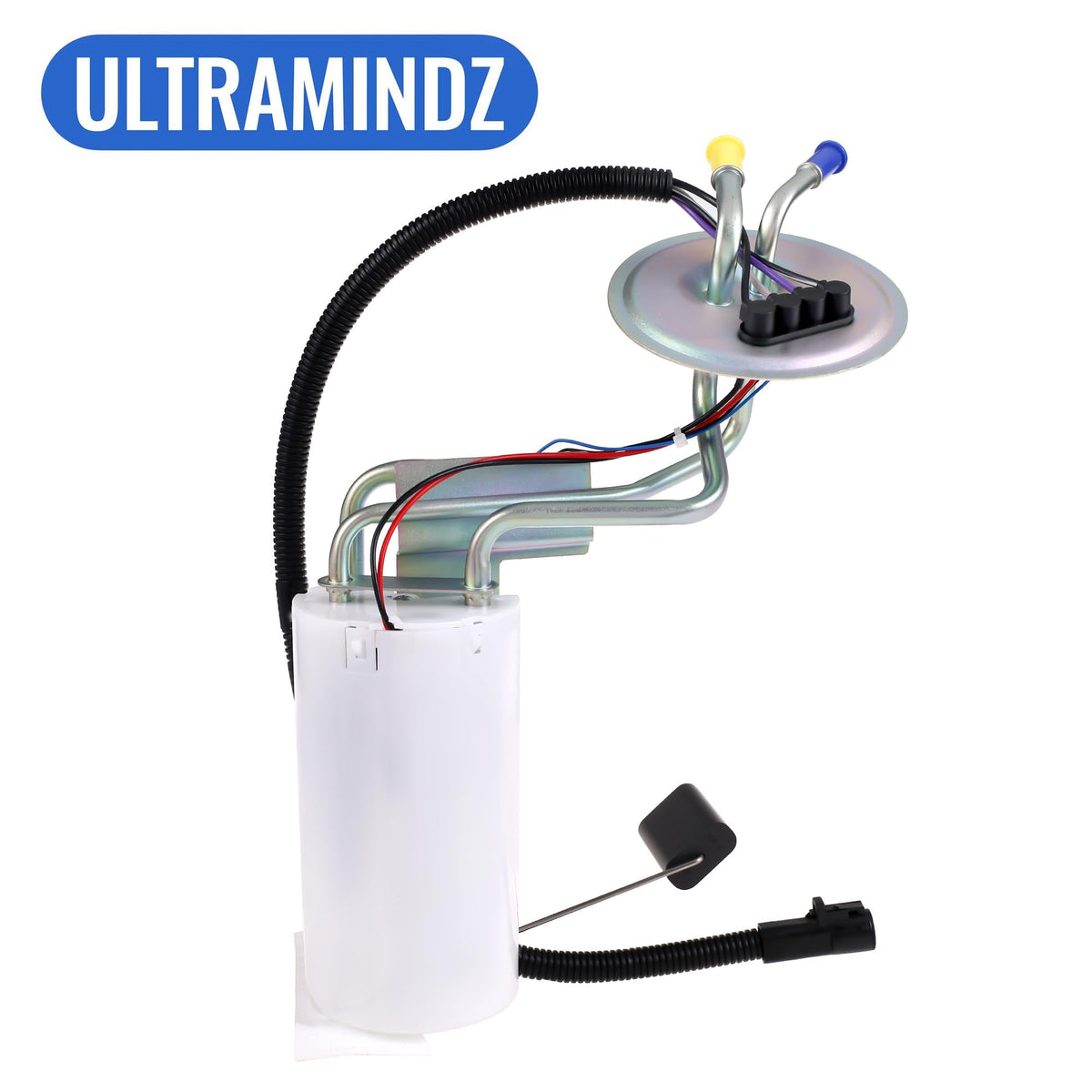

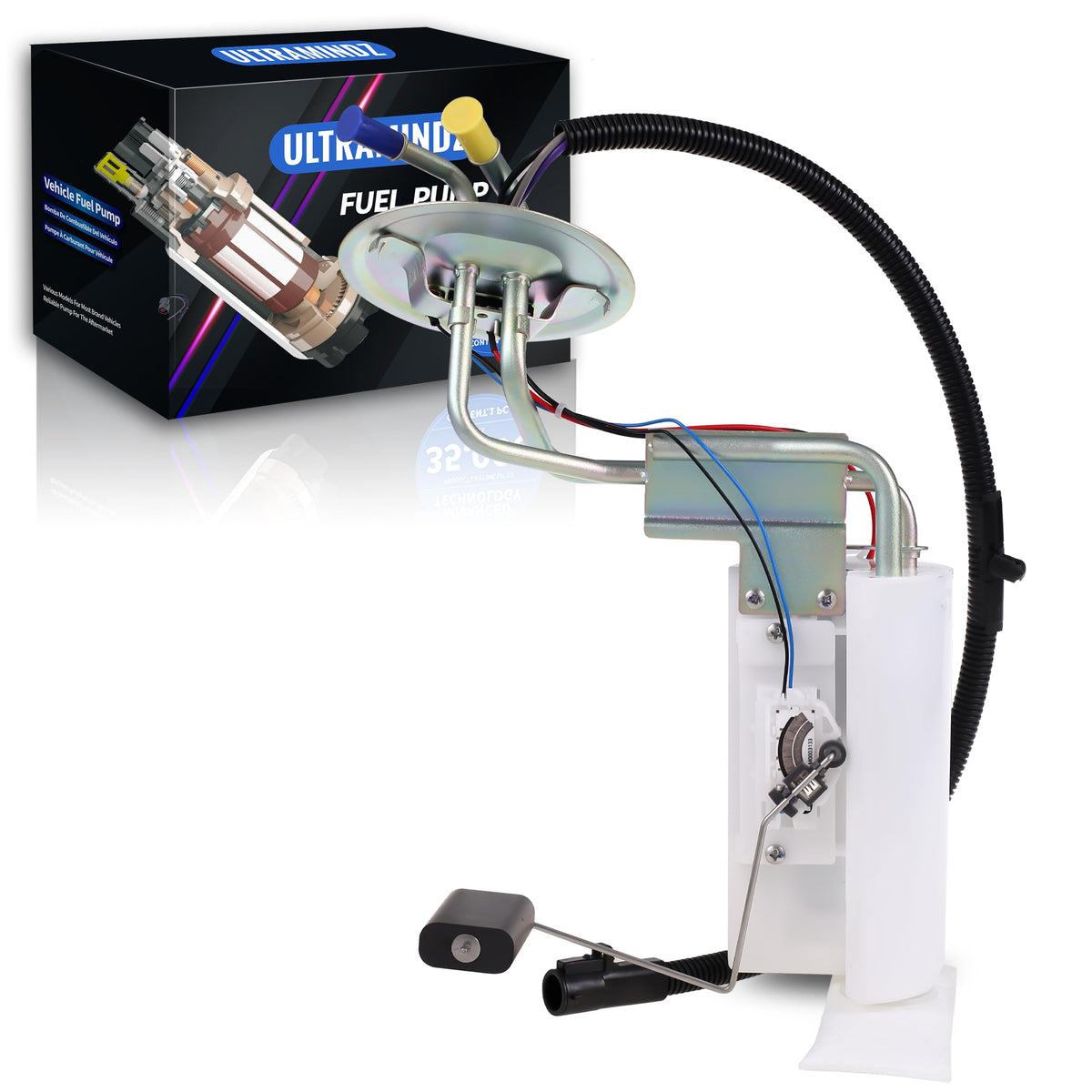

ultramindz SP2006H is a direct-fit front (midship) fuel pump assembly built to replace OE units on 1992–1997 Ford F-150, F-250 and F-350 models with 19‑gallon tanks.

This complete fuel pump kit includes the pump, sending unit, seals, harness and fittings you need for a proper replacement of OE numbers such as F6TZ9A407BA and related part references. It’s designed specifically for front/midship tanks with two tube ports and the factory 4‑way micropin connector on the 133", 137", 155", 161", 168" and 185" wheelbase trucks and Super Duty variants listed below. Follow professional installation guidance; fuel system work should be done by a trained technician.

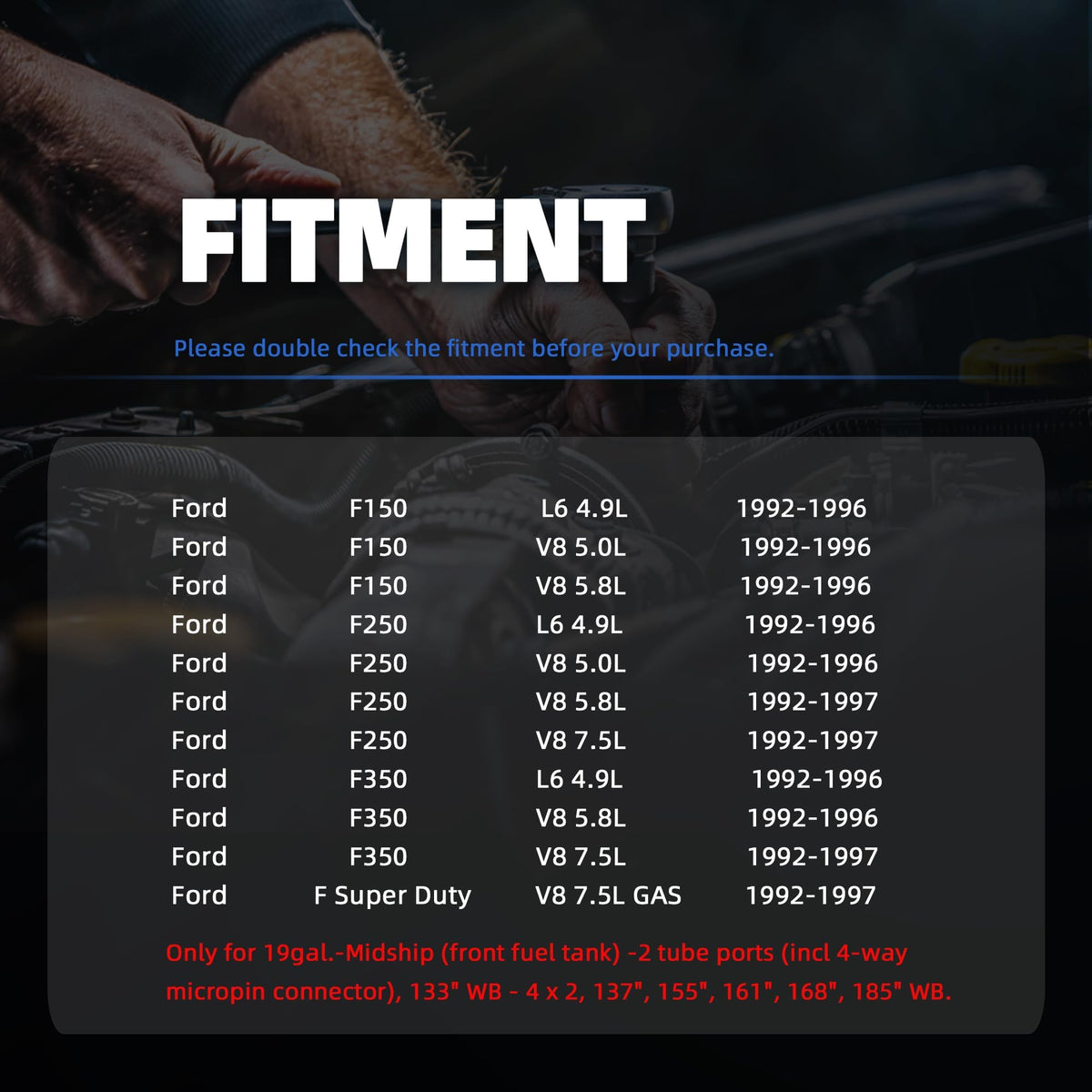

Which Ford models and engines does this pump fit?

The SP2006H is engineered for 1992–1997 Ford full‑size trucks with front/midship 19‑gallon fuel tanks. It fits inline-six and V8 engines in F‑150, F‑250 and F‑350 applications specified by wheelbase and tank location.

• F-150: 4.9L L6 (1992–1996), 5.0L and 5.8L V8 (1992–1996).
• F-250: 4.9L L6 (1992–1996), 5.0L (1992–1996), 5.8L and 7.5L (1992–1997).
• F-350 and F Super Duty: 4.9L, 5.8L and 7.5L where specified (1992–1997 range).

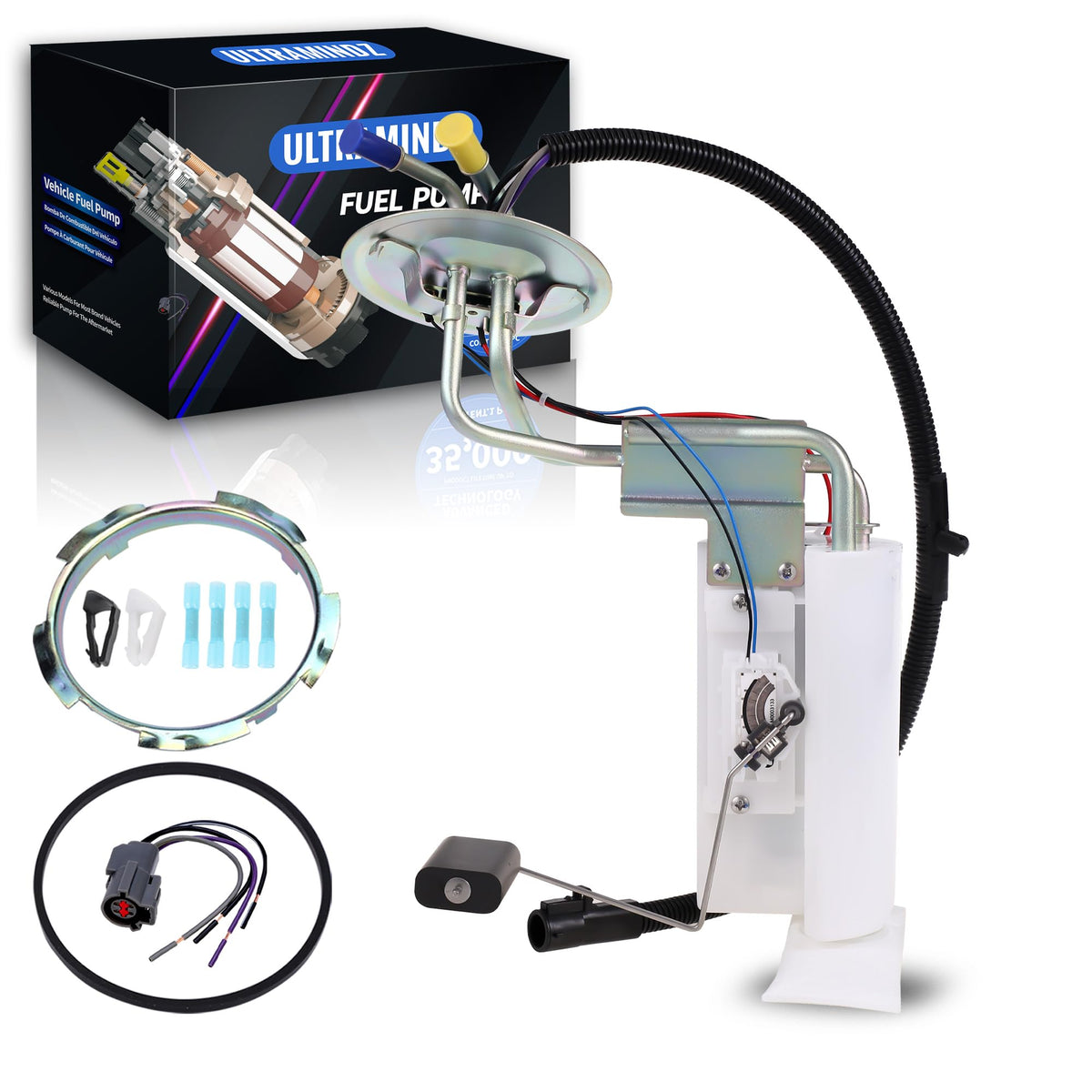

What components are included in the replacement kit?

This package supplies a full assembly so you won’t need to source extra parts for a standard swap. All items necessary for connection to the factory harness and tank are provided.

• Fuel pump motor and sending unit integrated assembly.
• Tank seal ring, tank sealing gasket and strainer to prevent debris intake.
• Wiring harness, four wire connectors, two retaining clips and a float for accurate gauge readings.

Does this match original equipment (OE) specifications?

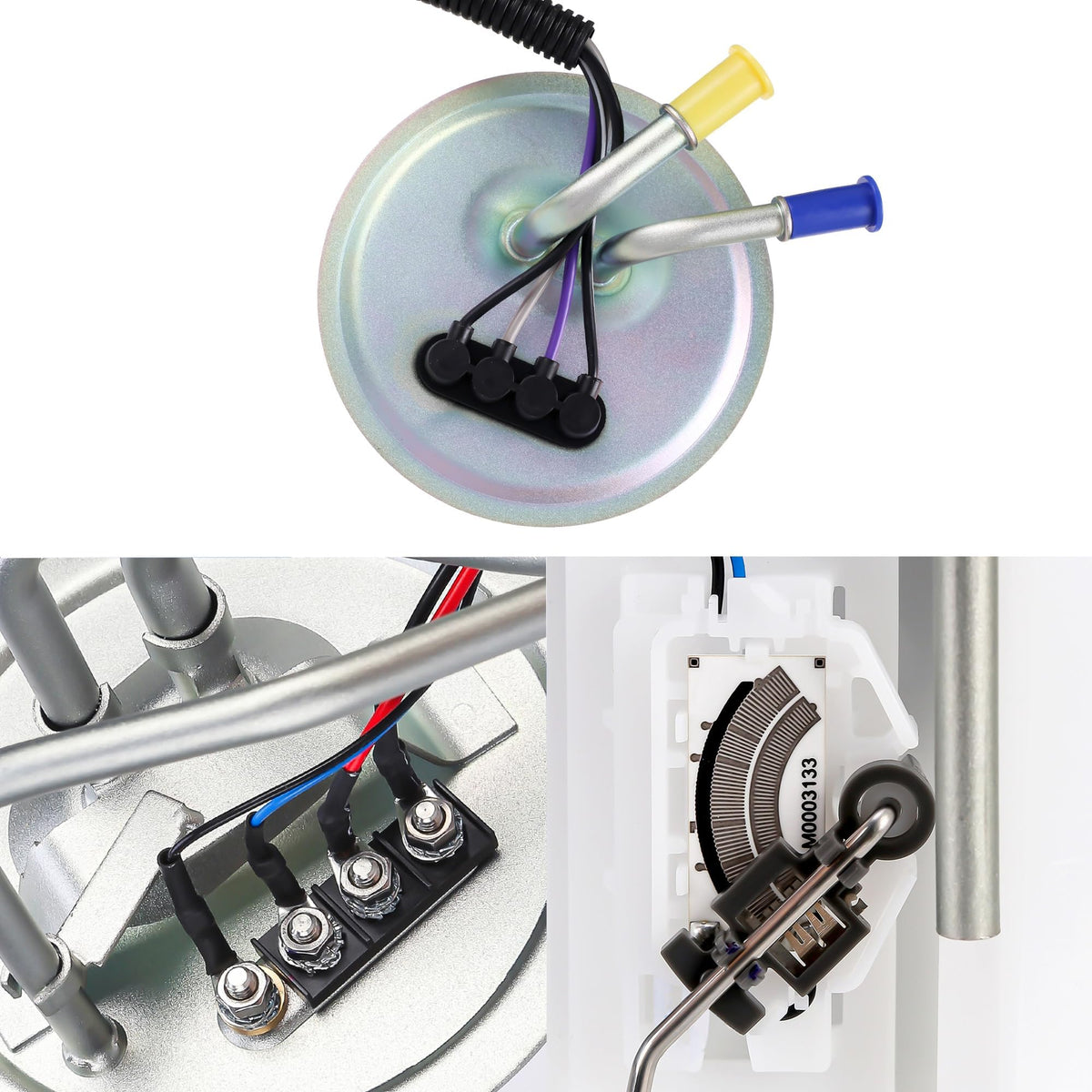

The SP2006H is made as an OE-style replacement and lists common OEM part numbers so it aligns with factory connections and mounting points. It’s compatible with the factory 4‑way micropin connector and two tube ports found on the specified midship tanks.

• Replaces OE references such as F6TZ9A407BA, F6TZ9A407BB and aftermarket cross-reference numbers.
• Designed for the 19‑gallon midship tank configuration with two fuel tube ports.
• Meets physical fit and electrical connector expectations for listed wheelbases.

What should I know about installation and compatibility checks?

Installing a fuel pump requires care and the right tools; observe all safety precautions and consider professional service. Verify tank location, wheelbase and connector type on your truck before purchase to avoid returns and downtime.

• Only for 19‑gallon midship (front) tanks with two tube ports and 4‑way micropin connector.
• Fits specified wheelbases: 133", 137", 155", 161", 168" and 185" where applicable.
• Professional installation recommended to ensure correct seal and wiring connections.

Who is this for: The ultramindz SP2006H is intended for owners, mechanics and restoration specialists working on early‑’90s Ford F‑series trucks that require an OE‑style replacement fuel pump for the 19‑gallon front/midship tank. If you need a complete assembly with harness, seals and hardware to restore fuel delivery and sender function on the listed model years and wheelbases, this kit provides the core parts for a correct swap.
