ultramindz Fuel Pump for Honda Rancher, Foreman & Rubicon TRX420/500/520 (16700-HR3-A21) — direct-fit complete module

ultramindz replacement fuel pump restores reliable fuel delivery for compatible Honda Rancher, Foreman and Rubicon models using OE part 16700-HR3-A21.

If your ATV is showing signs of fuel delivery trouble or you're rebuilding a fuel module, this ultramindz fuel pump is engineered as a direct-fit OE replacement for a range of Honda models. It arrives as a complete pump module with float and is designed to match the original equipment spec for fit and function. Read the compatibility notes carefully—some California-model years are excluded—and always verify connector lengths before installation.

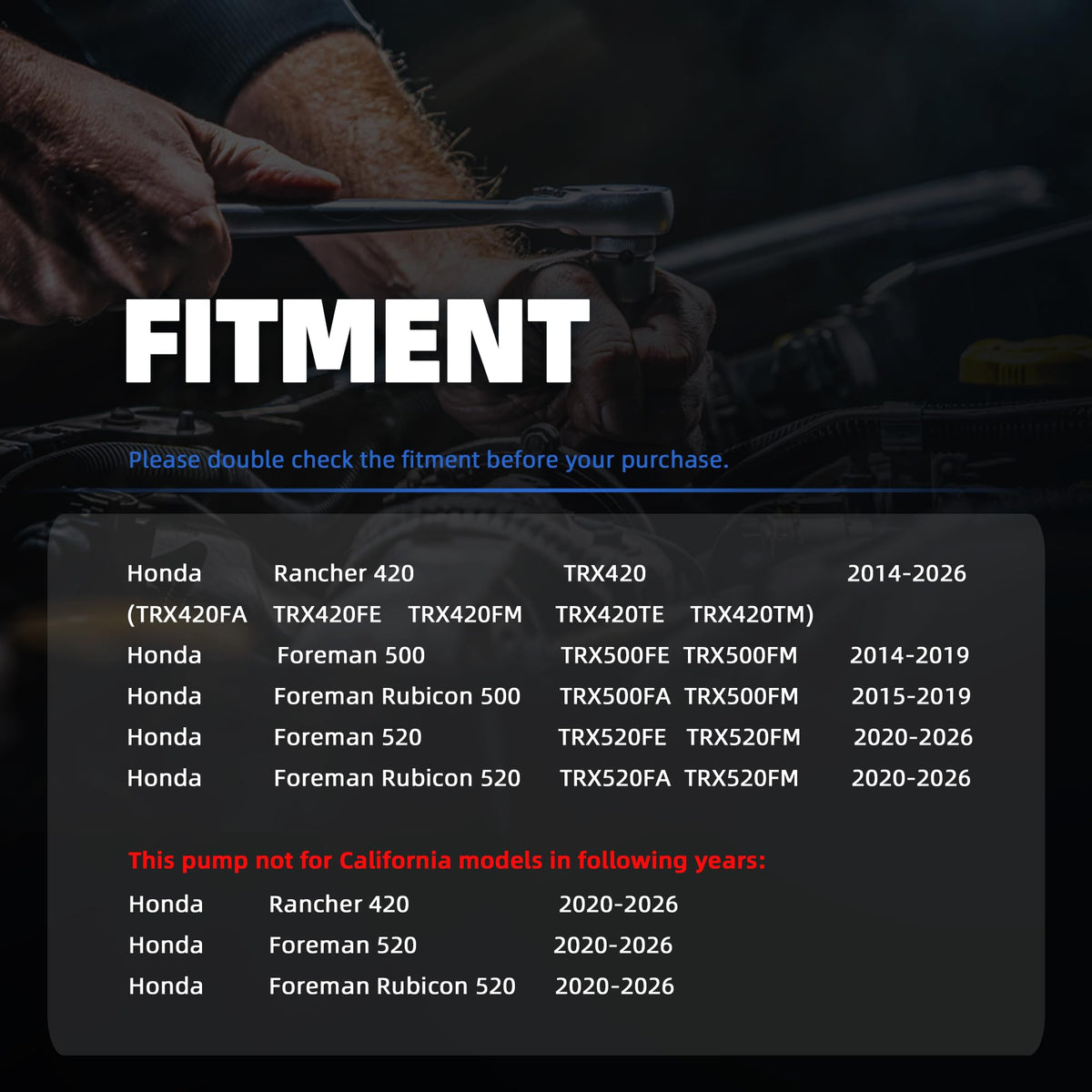

Which Honda models and years will this pump fit?

This pump is specified for multiple Honda TRX platforms across several model years. It covers Rancher 420, Foreman 500, Foreman Rubicon 500, Foreman 520 and Rubicon 520 variants listed by year ranges, but some California-market vehicles in later years are excluded.

• Rancher 420 (TRX420FA/FE/FM/TE/TM): 2014–2026
• Foreman 500 (TRX500FE/FM): 2014–2019
• Foreman Rubicon 500 (TRX500FA/FM): 2015–2019
• Foreman 520 & Foreman Rubicon 520 (TRX520FE/FA/FM): 2020–2026 (excluding some Cali models)

How does this replacement match the original Honda part?

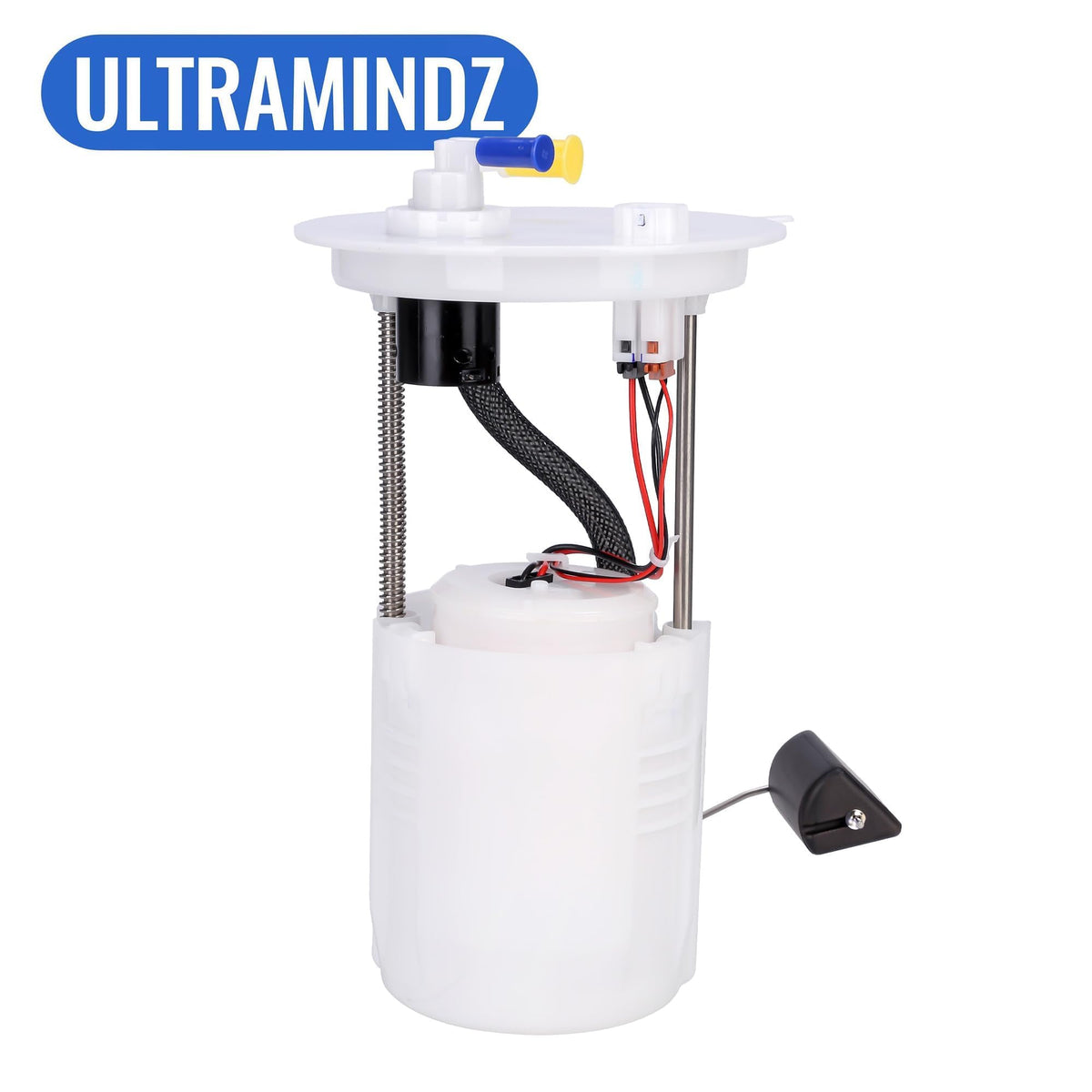

The ultramindz unit is manufactured to replace OE part number 16700-HR3-A21 and ships as a pump assembly complete with a float. Although sold as a direct replacement, the pump may require minor connector checks to ensure a trouble-free install.

• Supplies the fuel delivery components included with the original assembly.
• Float arm may ship detached to prevent transit damage; snaps into place during installation.
• Designed to meet form, fit and basic function of the OE part number listed.

What should I check before buying or installing?

Measure connectors and note your vehicle’s emissions market (California vs. federal) before ordering. If your wiring harness or connectors are longer or different, a quick bellow connector or local mechanic can adapt the fit without affecting pump operation.

• Confirm part number 16700-HR3-A21 compatibility with your VIN or service manual.

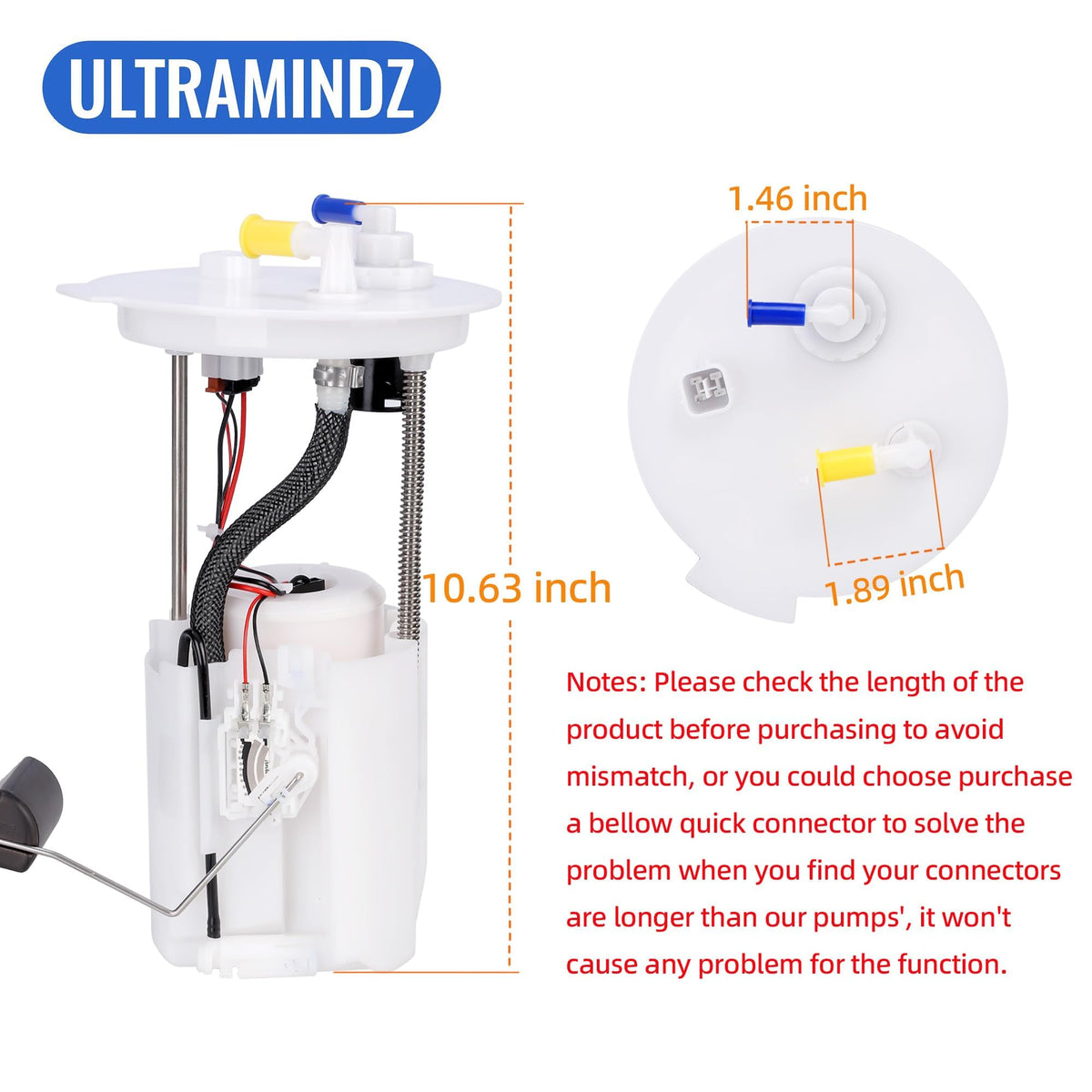

• Measure connector length and compare to the pump to avoid mismatch.
• Check whether your ATV is a California-spec model for certain excluded years.

What should I expect during installation and service life?

Installation requires disassembly of the fuel tank and handling of fuel system components—tasks best performed by a qualified mechanic. The package includes pump and float; the float arm may arrive detached and snaps into the sender housing. Proper installation and fuel system testing ensure reliable operation.

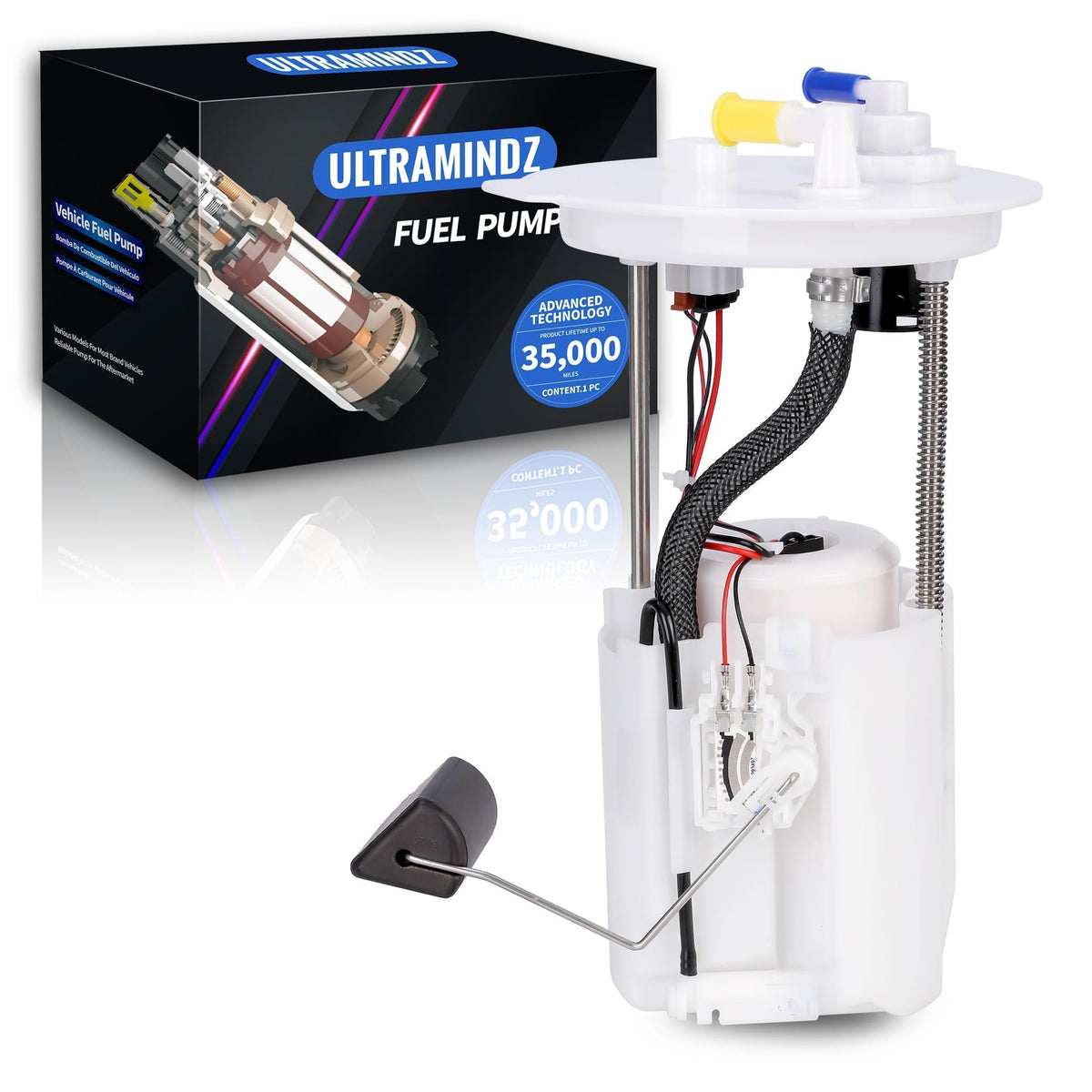

• Package contents: 1 fuel pump assembly and 1 float (float arm may be detached).
• Professional installation recommended to prevent damage and ensure safety.
• If connectors differ in length, use an adapter or consult a mechanic to avoid strain on fittings.

Who is this for: This ultramindz fuel pump is intended for owners, repair shops and restoration specialists working on Honda Rancher, Foreman and Rubicon ATVs who need a cost-effective replacement for part 16700-HR3-A21. It's a good option when you require a pump that mirrors the original assembly’s layout and components, but remember to verify fitment for California-specific models and consult a professional for installation to ensure safe, correct operation.
