VALYHOOD 110V 15 GPM Fuel Transfer Pump Kit — Cast-Iron, Explosion-Resistant with Automatic Nozzle & Inline Filter

VALYHOOD 110V 15 GPM fuel transfer pump is a heavy-duty, explosion-resistant electric pump kit that moves gasoline, diesel, kerosene and fuel blends quickly and safely for vehicle and equipment refueling.

This pump kit combines a cast-iron, 110V AC motor with a calibrated discharge hose, automatic nozzle and a replaceable inline filter so you can transfer up to 15 gallons per minute from containers, tanks or drums. Built for workshops, farms, marinas and construction sites, the package emphasizes durability and safety features like thermal protection, bypass relief and an explosion-proof design. It is intended for liquid fuels, not water, urea or corrosive chemicals, and short run cycles are recommended for continuous reliability.

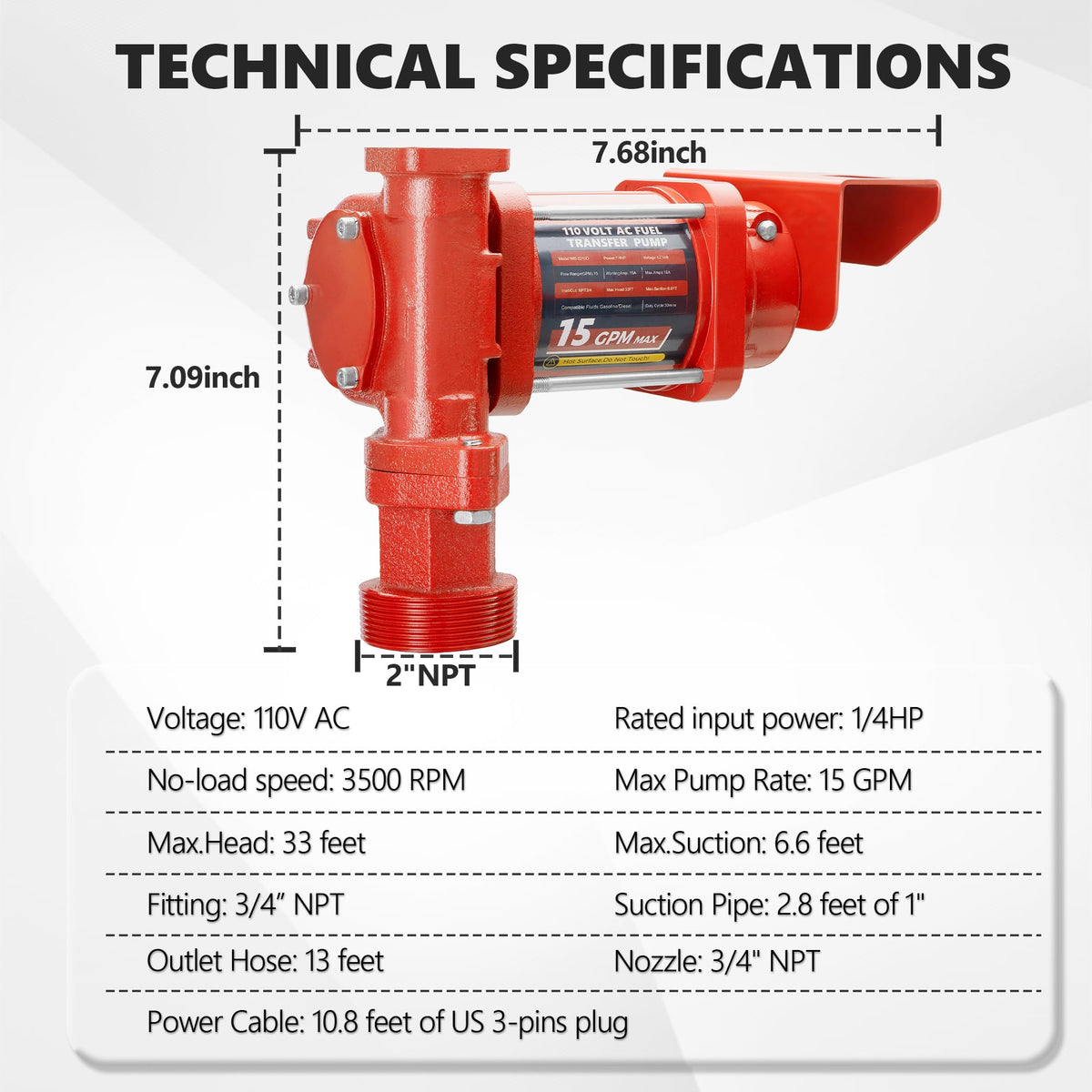

How fast and how high can this pump move fuel?

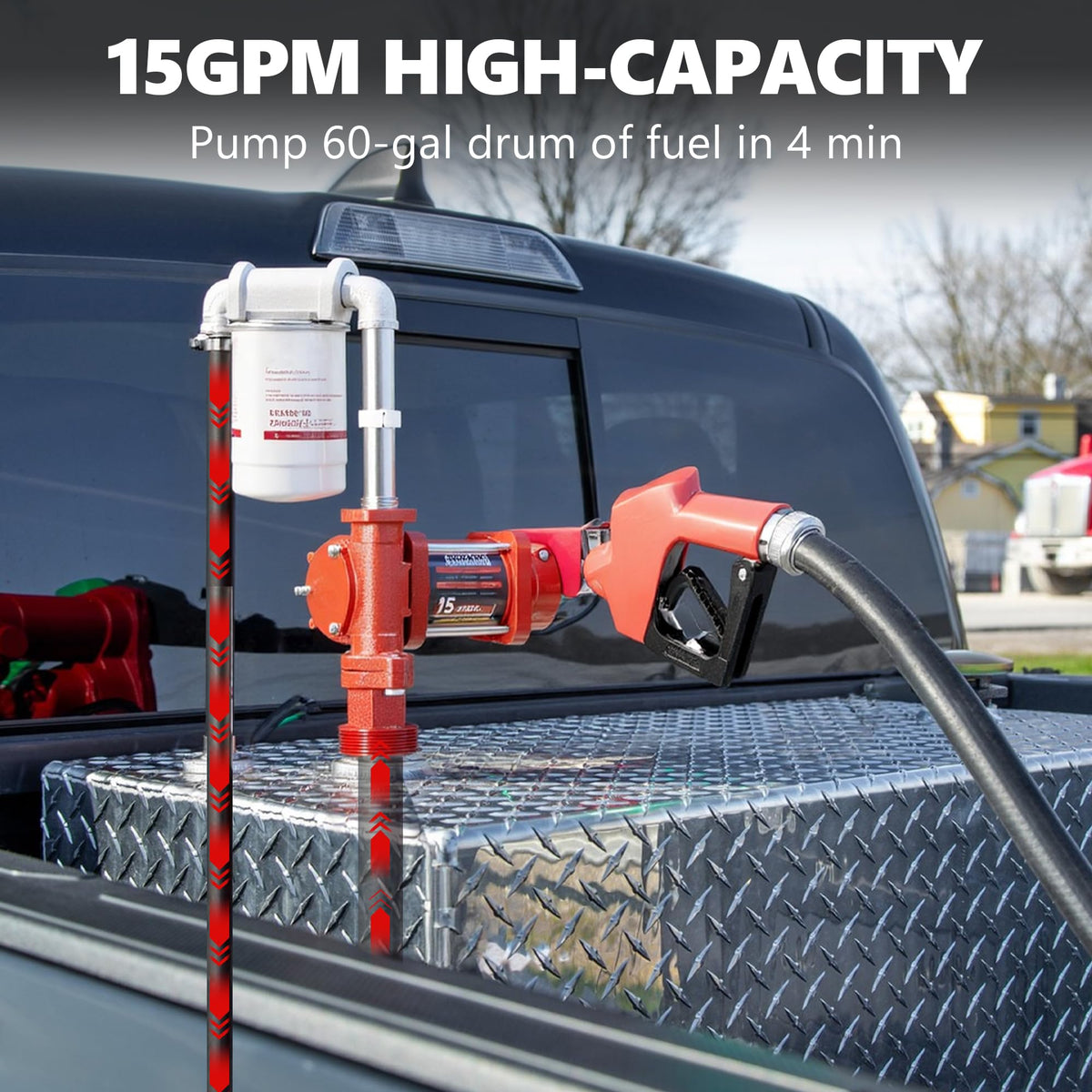

The VALYHOOD pump delivers a maximum flow of 15 gallons per minute and can draw fuel from depths up to about 6.6 feet while discharging to elevations up to 33 feet. Flow rates will vary with hose length, fittings, fluid viscosity and suction lift; expect slightly lower rates with long hose runs or thicker fuels.

• Maximum flow: 15 GPM (gallons per minute).
• Suction capability: from containers up to 6.6 ft deep.
• Discharge head: up to 33 ft vertical lift.

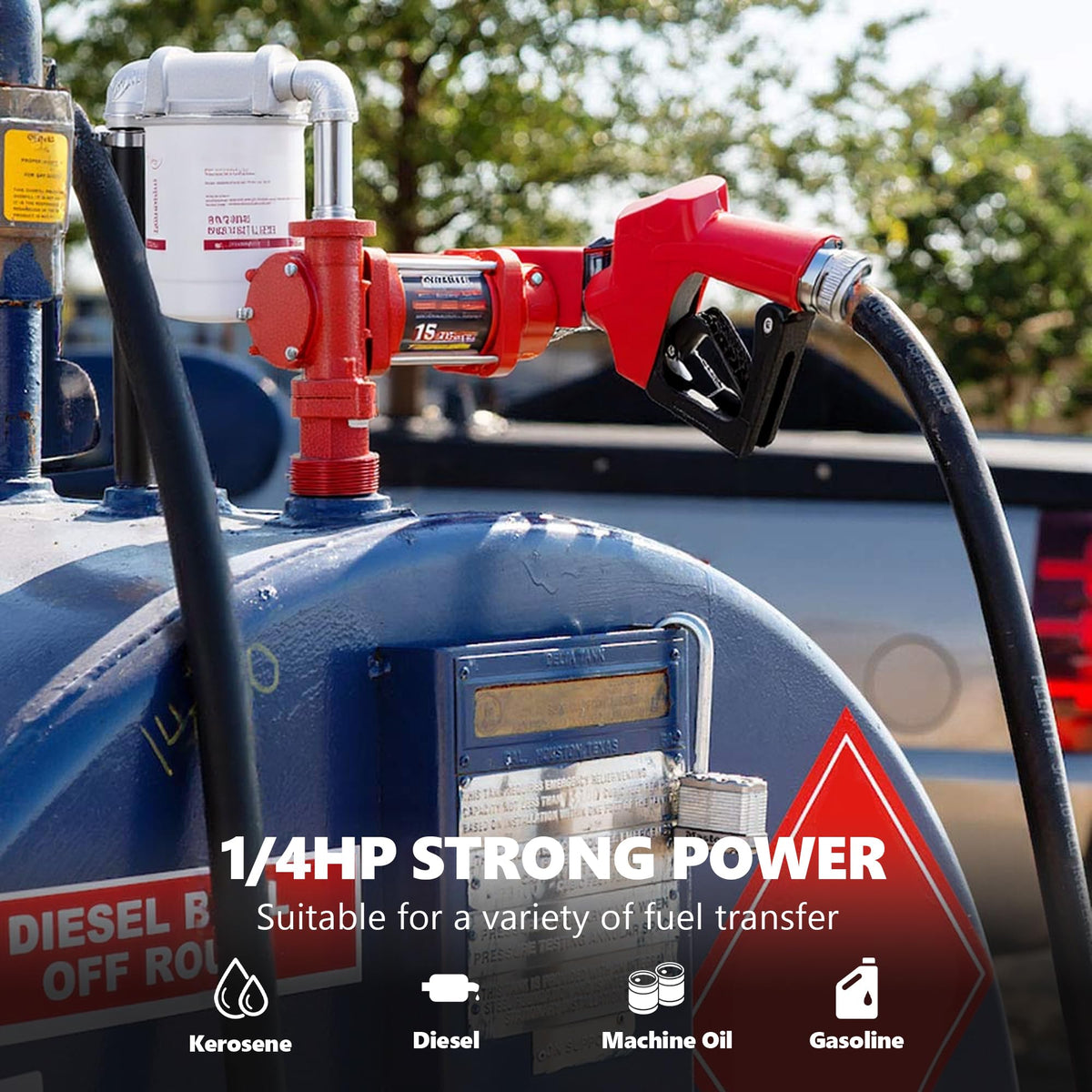

• Power: 110V AC, rated input approximately 1/4 HP.

What safety and durability features are included?

The pump housing is heavy-duty cast iron and the motor assembly uses an explosion-resistant design to reduce spark risk when handling volatile fuels. Built-in thermal protection and a bypass path protect the motor from overheating and pressure spikes, while the included filter helps keep particulates out of engines and equipment.

• Cast-iron construction for long service life and impact resistance.
• Explosion-proof design reduces ignition risk near fuels.
• Thermal protection and bypass to prevent motor damage from overload.
• Inline premium filter to capture debris and extend equipment life.

Which fuels and applications are supported?

This transfer pump is rated for a broad set of liquid fuels including gasoline, diesel, kerosene, ethanol and methanol blends as well as many biodiesel formulations. It’s suited to topping off cars, trucks, tractors, boats and light construction machinery, and works with drums, gravity tanks and small fuel storage systems.

• Compatible fuels: gasoline, diesel, kerosene, ethanol/methanol blends, many biodiesels.
• Not suitable for: water, urea solutions, strongly corrosive chemicals or solvents.
• Common uses: farm tractors, fleet trucks, marine fuel transfer, equipment refueling.

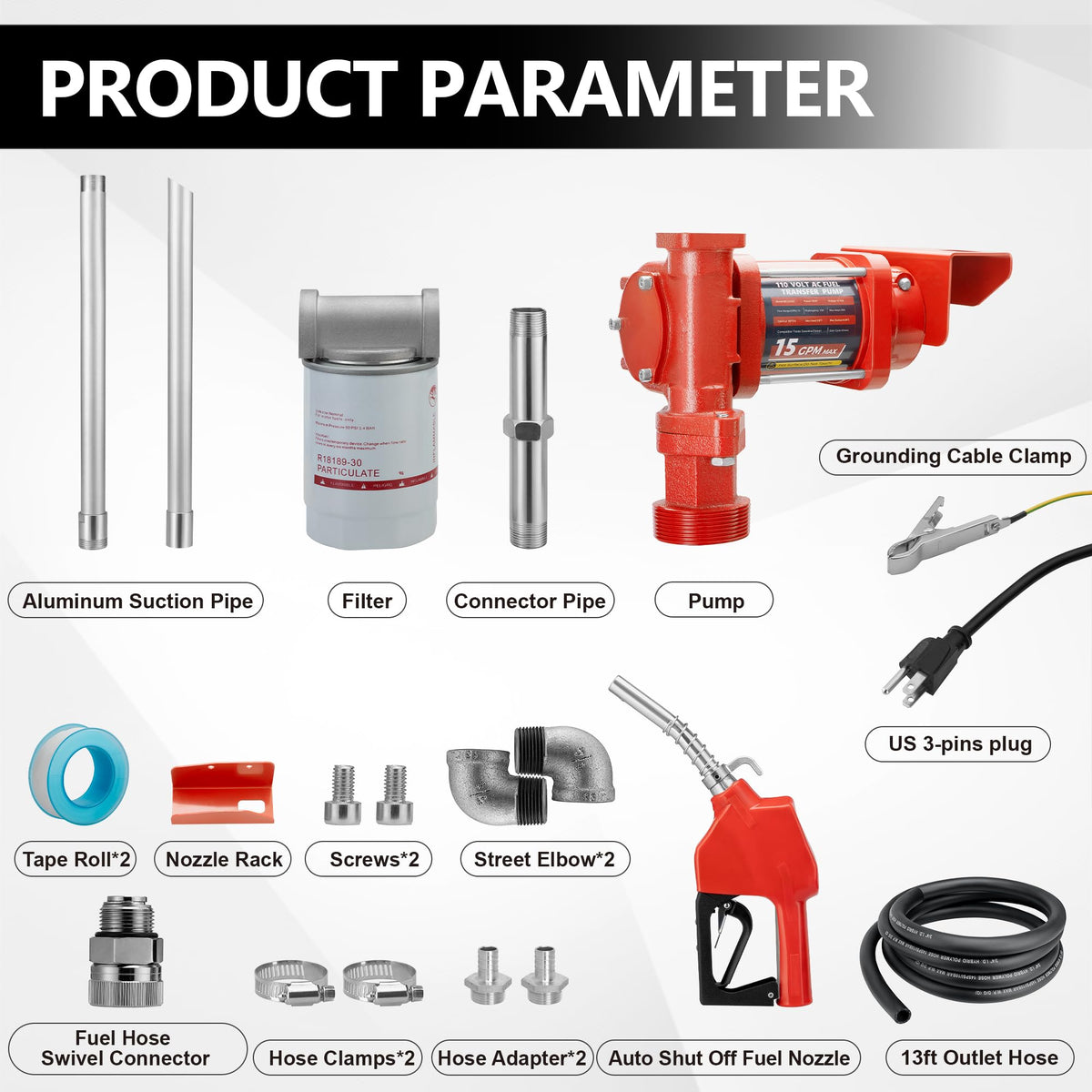

• Includes hose, automatic nozzle and filter for immediate use out of the box.

What installation, run-time and maintenance should I expect?

Installation is straightforward for anyone comfortable with basic electrical connections and hose fittings — the pump runs on household 110V power and ships with the discharge hose and nozzle pre-sized. For long-term reliability, limit continuous operation to short intervals (recommended runs up to 30 minutes), monitor temperature, and replace or clean the filter per usage conditions.

• Power: standard 110V AC outlet required; follow local electrical codes for wiring.
• Recommended run time: intermittent use, maximum recommended single run about 30 minutes.
• Maintenance: inspect hose/nozzle, change filter as needed, check seals and mounting.
• Support: contact VALYHOOD customer service for troubleshooting within 24 hours.

Who is this for? If you need a rugged, quick refueling solution for light- to medium-duty fleets, farm equipment, boats or construction gear and prefer a powered, hose-and-nozzle kit rather than manual siphons, this VALYHOOD pump provides a balance of throughput, safety and filtration. Choose it when you want cast-iron durability, explosion-resistant design and a ready-to-use package that handles common liquid fuels — but not for water or corrosive liquids, and plan short, repeated runs rather than continuous operation.
