VEVOR Hydraulic Long Ram Jack 3 Ton (6,600 lb) — 26"–45.7" Lift, Single-Piston Pump, Clevis Base

VEVOR's 3-ton hydraulic long ram jack is a heavy-duty piston lift designed to mount to shop cranes and engine hoists, delivering a 26"–45.7" lift range with a single-piston pump for effortless raising of loads up to 6,600 lbs.

This long-throw hydraulic cylinder converts many shop cranes and engine hoists into faster, easier lifting systems. Built from high-grade steel with a clevis base for direct mounting, it combines a large-diameter cylinder and a glide-action pump to reduce operator effort while offering safety features like an oil-bypass and overload protection. The unit ships with a comfort-grip handle and is powder-coated for corrosion resistance and easy cleaning.

How much weight can this long ram jack safely lift?

The jack is rated for a maximum load of 3 tons (6,600 lbs). Its large-diameter hydraulic cylinder reduces internal pressures, helping the unit run cooler and extending component life under regular shop use.

• Rated capacity: 3 tons / 6,600 lbs

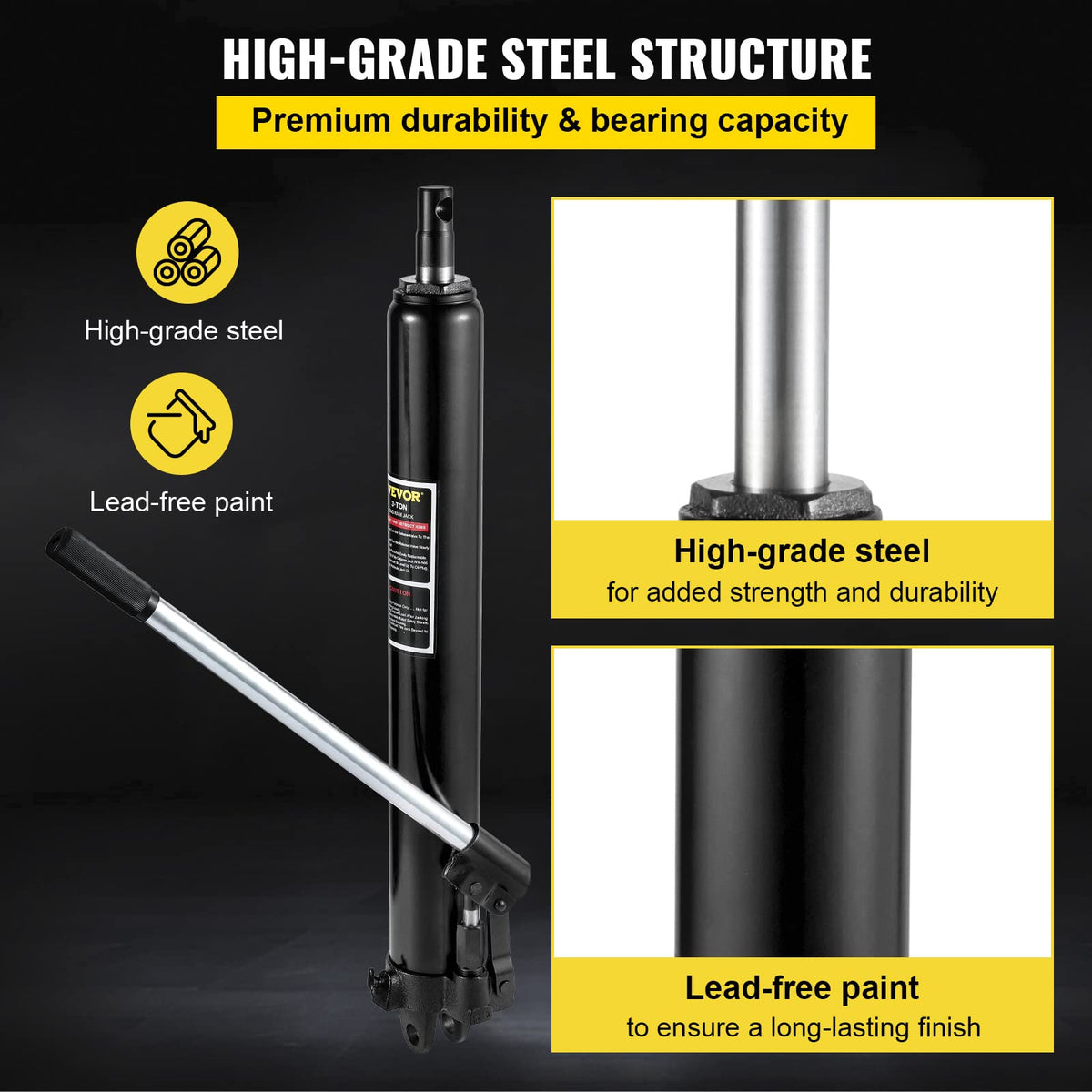

• Heavy-gauge steel construction for structural integrity
• Integrated overload valve to prevent over-extension

What lifting heights and stroke does the ram provide?

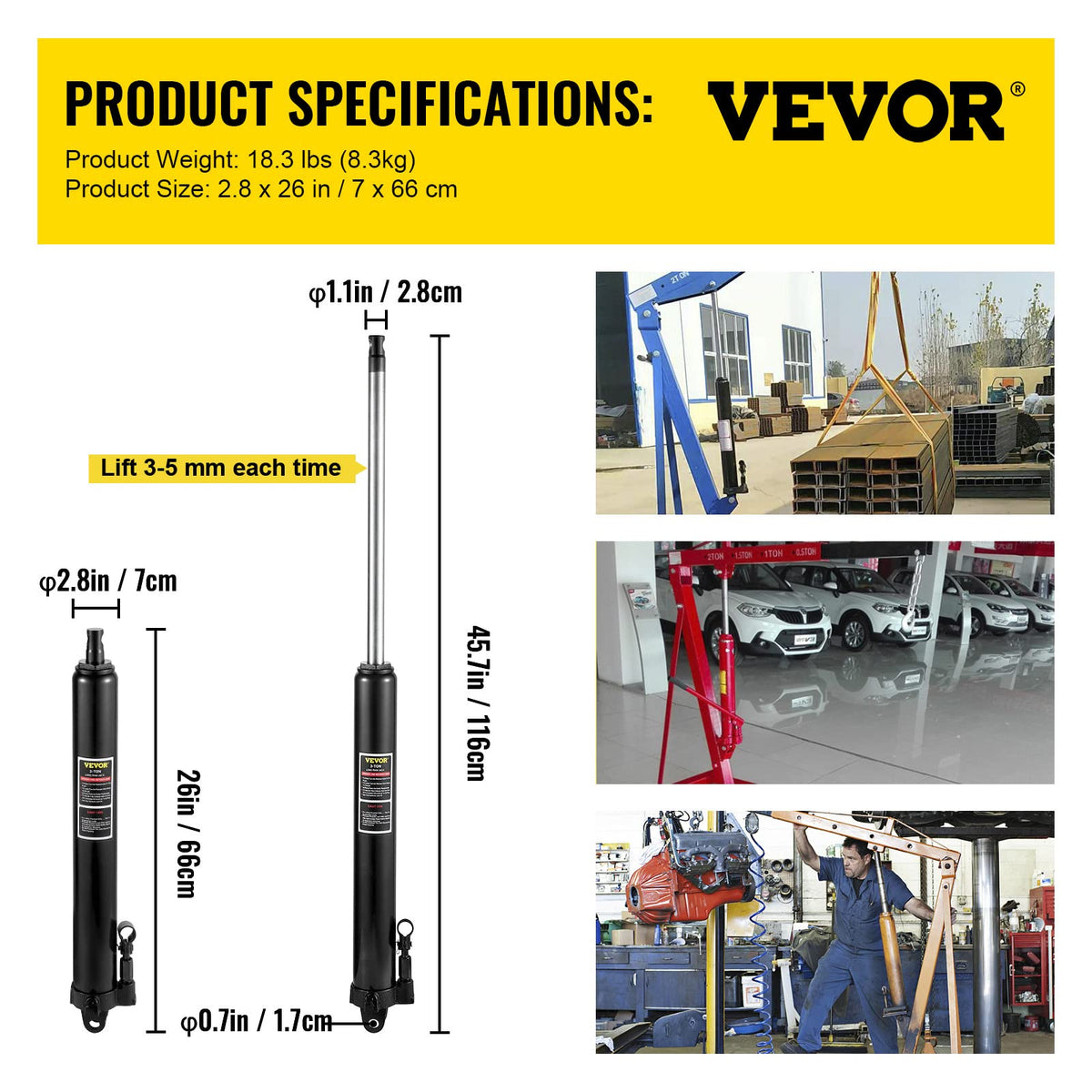

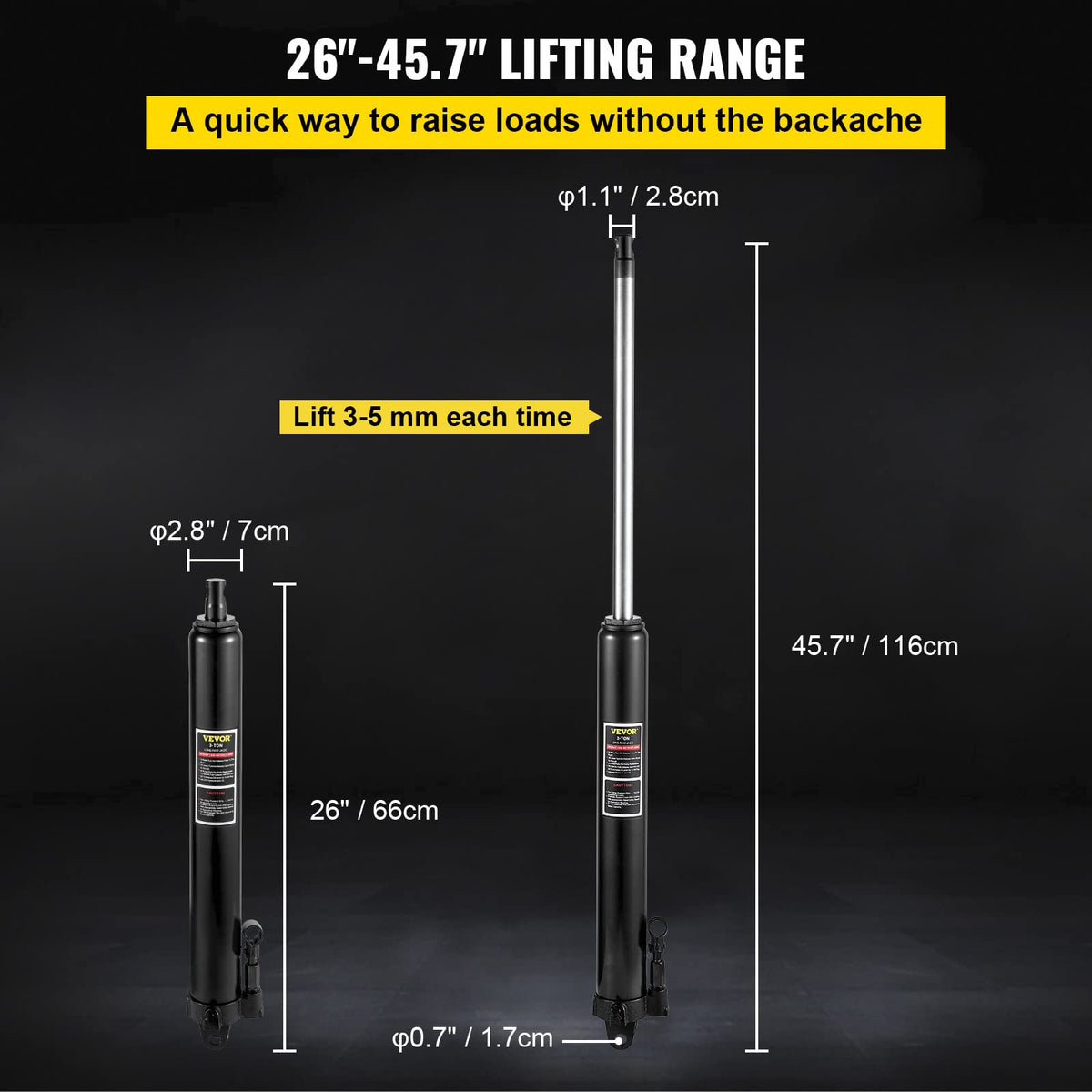

This long ram jack offers a minimum height of 26" and extends to 45.7", yielding a stroke of 19.7" for a wide range of hoisting positions. That travel makes it suitable for raising engines, chassis sections, and other workshop loads where extra reach is needed.

• Minimum lift height: 26 in (66 cm)
• Maximum lift height: 45.7 in (116 cm)
• Stroke length: 19.7 in (50 cm)

What safety and durability features are included?

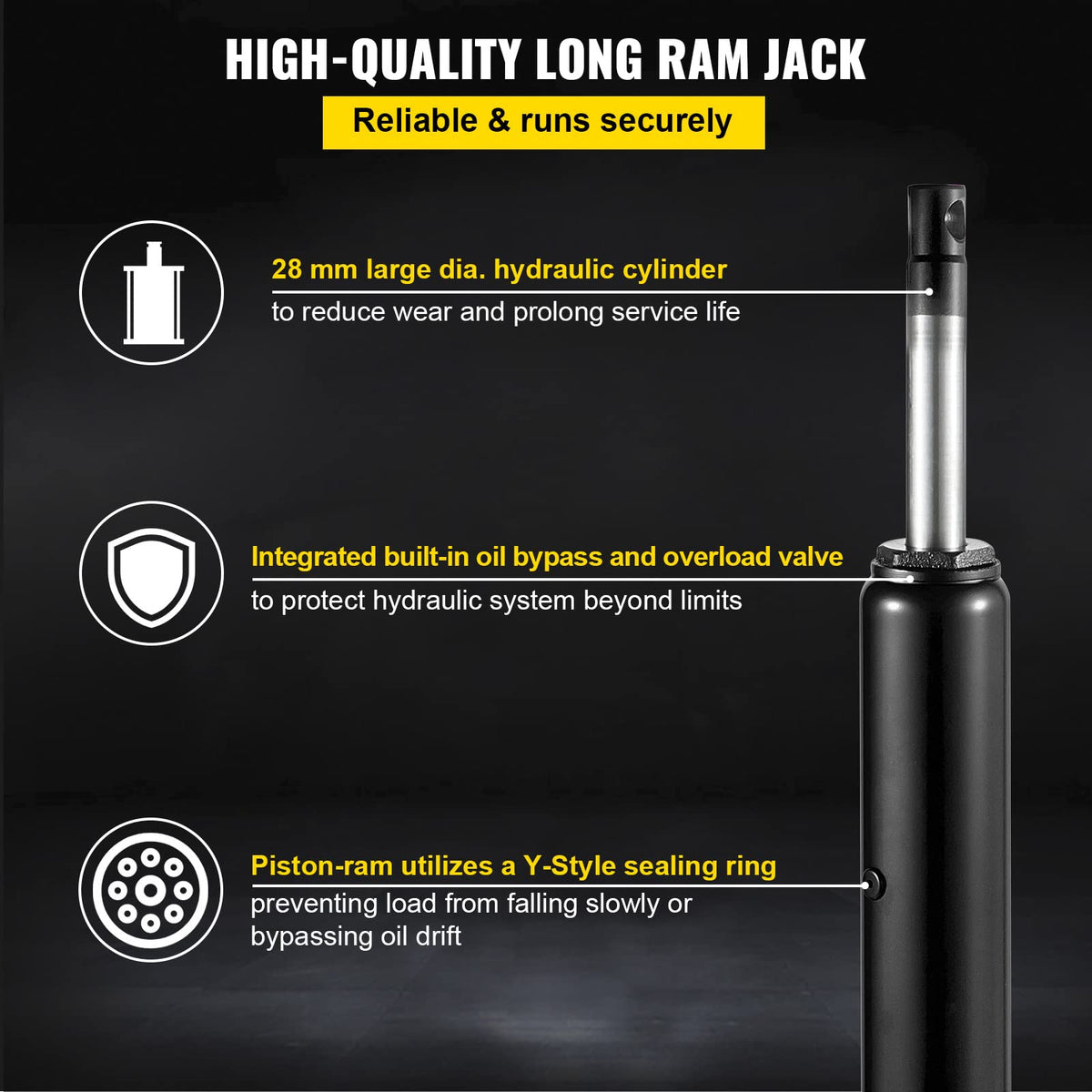

The jack uses a polished piston rod and a Y-style polyurethane sealing ring with a backup ring to minimize oil bypass and slow descent. A built-in oil-bypass and overload valve protect the hydraulic system from damage, while the powder-coated finish resists oil and grime.

• Polished piston rod and robust sealing for leak resistance
• Oil-bypass and overload protection to safeguard components
• Lead-free powder-coat finish for long-term wear resistance

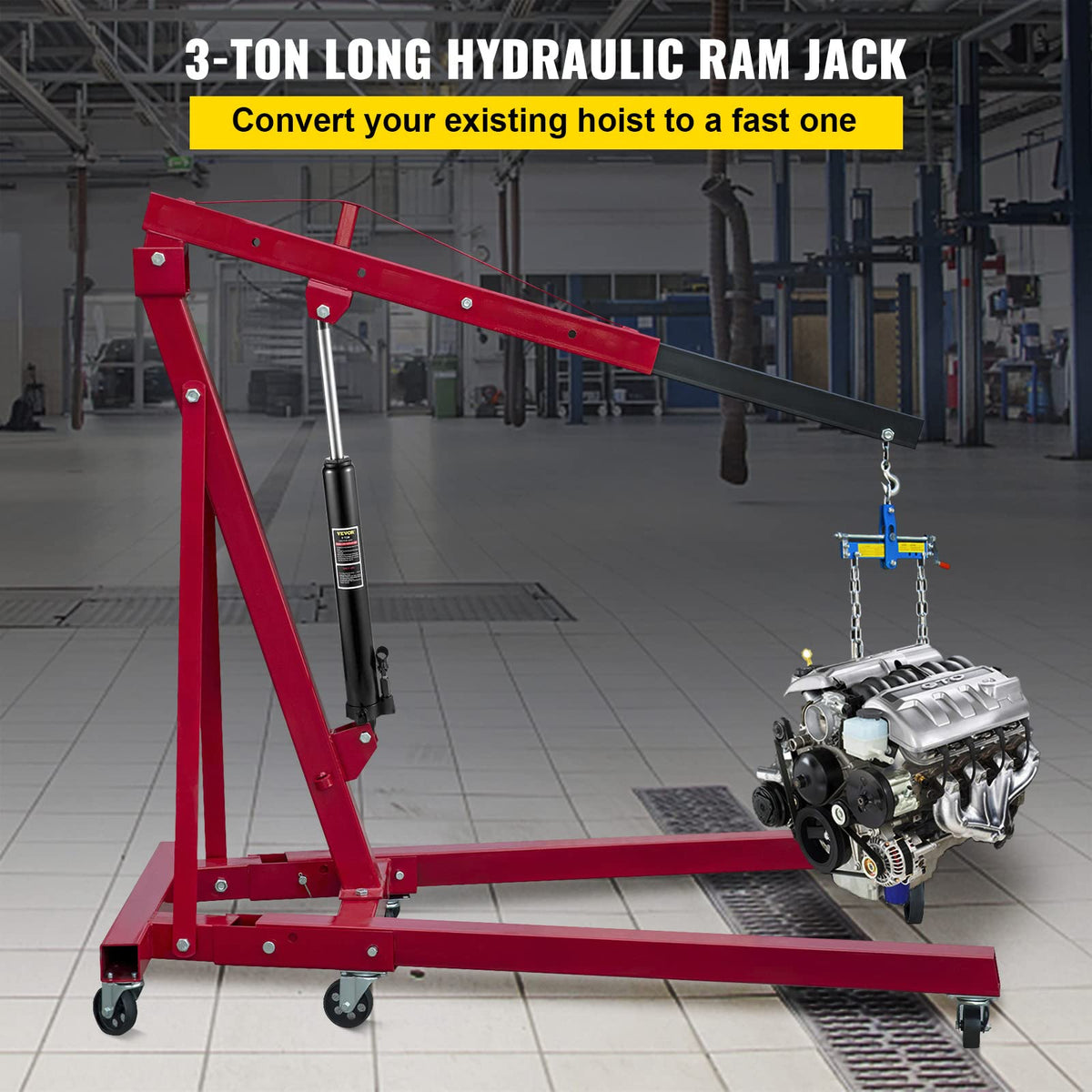

How does it mount and operate with existing shop cranes?

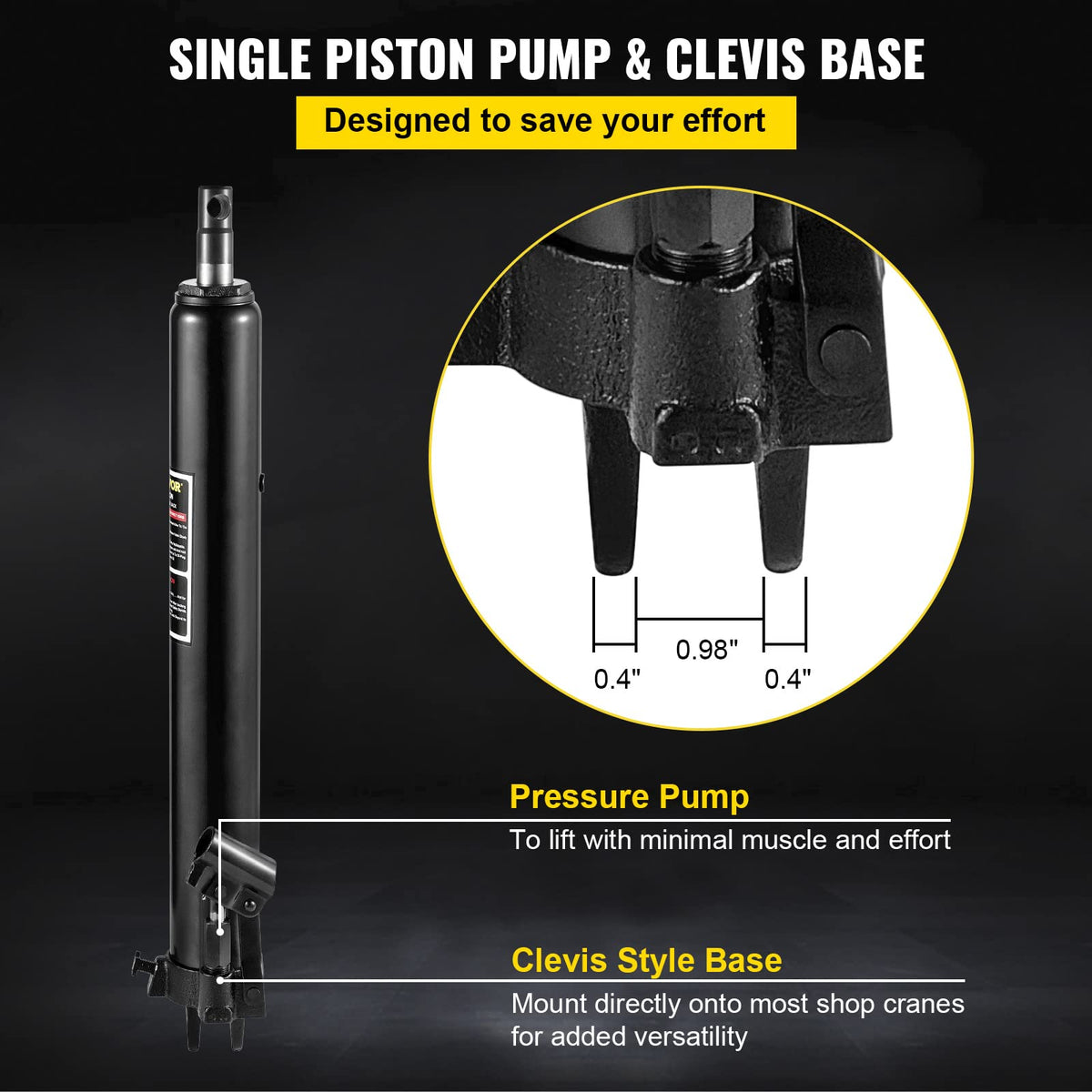

The clevis-style base is sized to accept standard crane pins, allowing direct attachment to most engine hoists and shop cranes. The single-piston glide-action pump minimizes physical effort, and the supplied handle has a rubberized grip for better control during operation.

• Clevis base for pin-mounted installation on shop cranes
• Single-piston pump design reduces manual force required

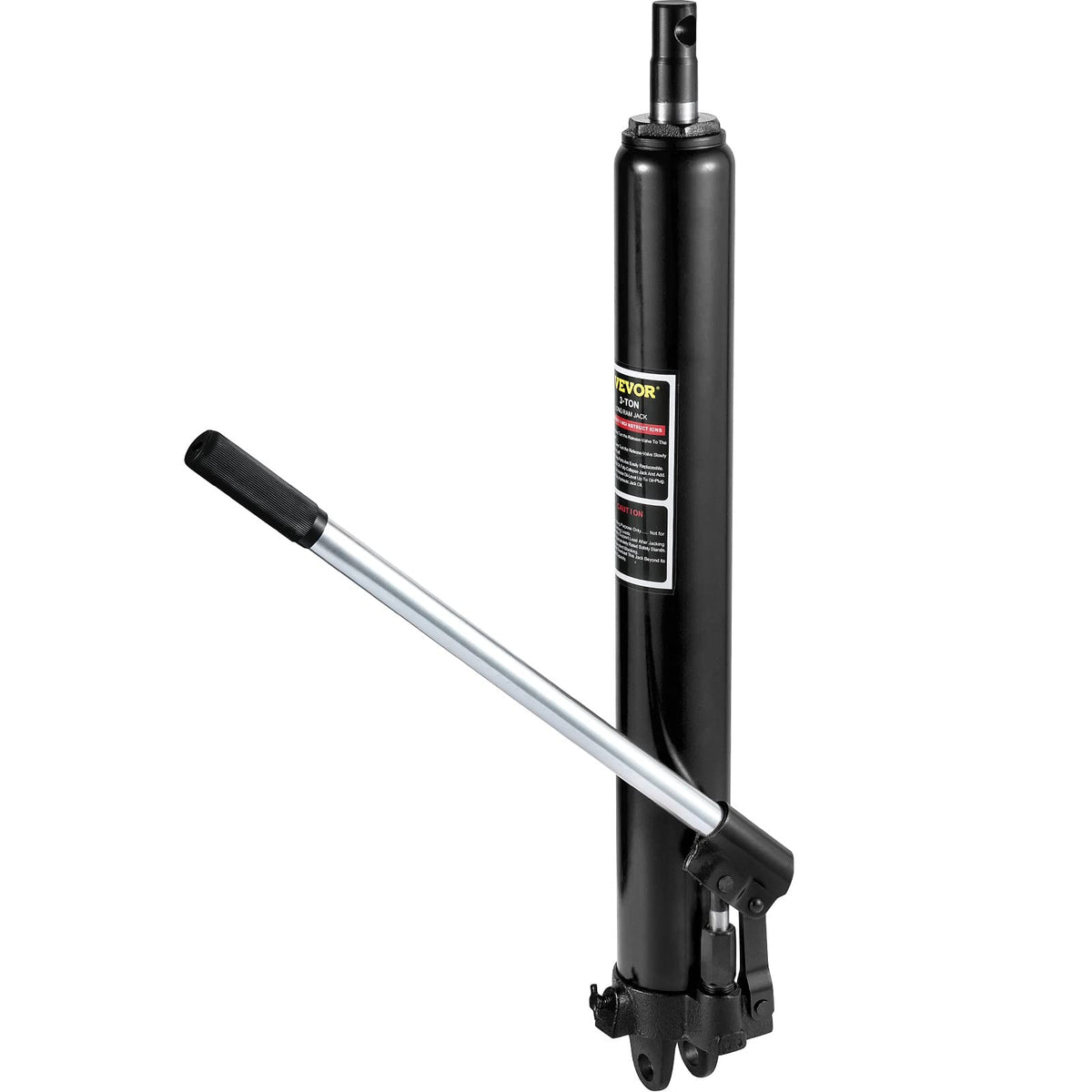

• Includes rubber-grip handle for comfortable pumping

Who is this for: The VEVOR Hydraulic Long Ram Jack is aimed at home mechanics, professional shops, and anyone who needs to upgrade a crane or hoist for higher reach and smoother lifting. It suits users who require a compact, durable hydraulic cylinder that mounts to existing equipment, offers a substantial travel range, and provides the lifting capacity to handle engines, transmissions, and other heavy components in both residential and commercial settings.
