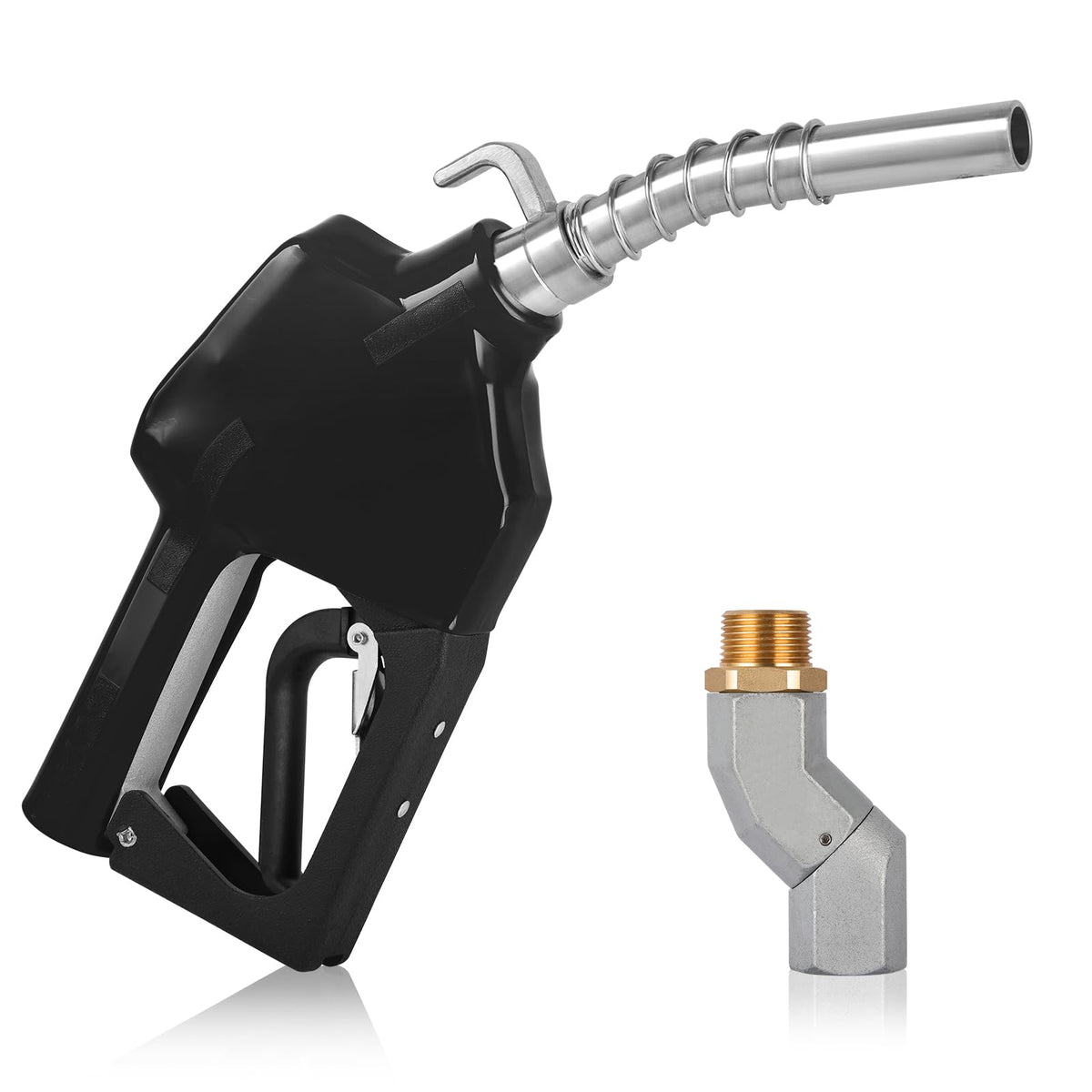

Vexalify 3/4" NPT Auto-Shutoff Fuel Nozzle 13/16" Outlet — Black, 16 GPM, 360° Swivel & 3-Position Padlock

The Vexalify 3/4" NPT Auto Shutoff Fuel Nozzle is a heavy-duty, automatic shutoff dispensing gun engineered for fast, spill-minimizing fueling of diesel, gasoline, kerosene and biodiesel at up to 16 gallons per minute.

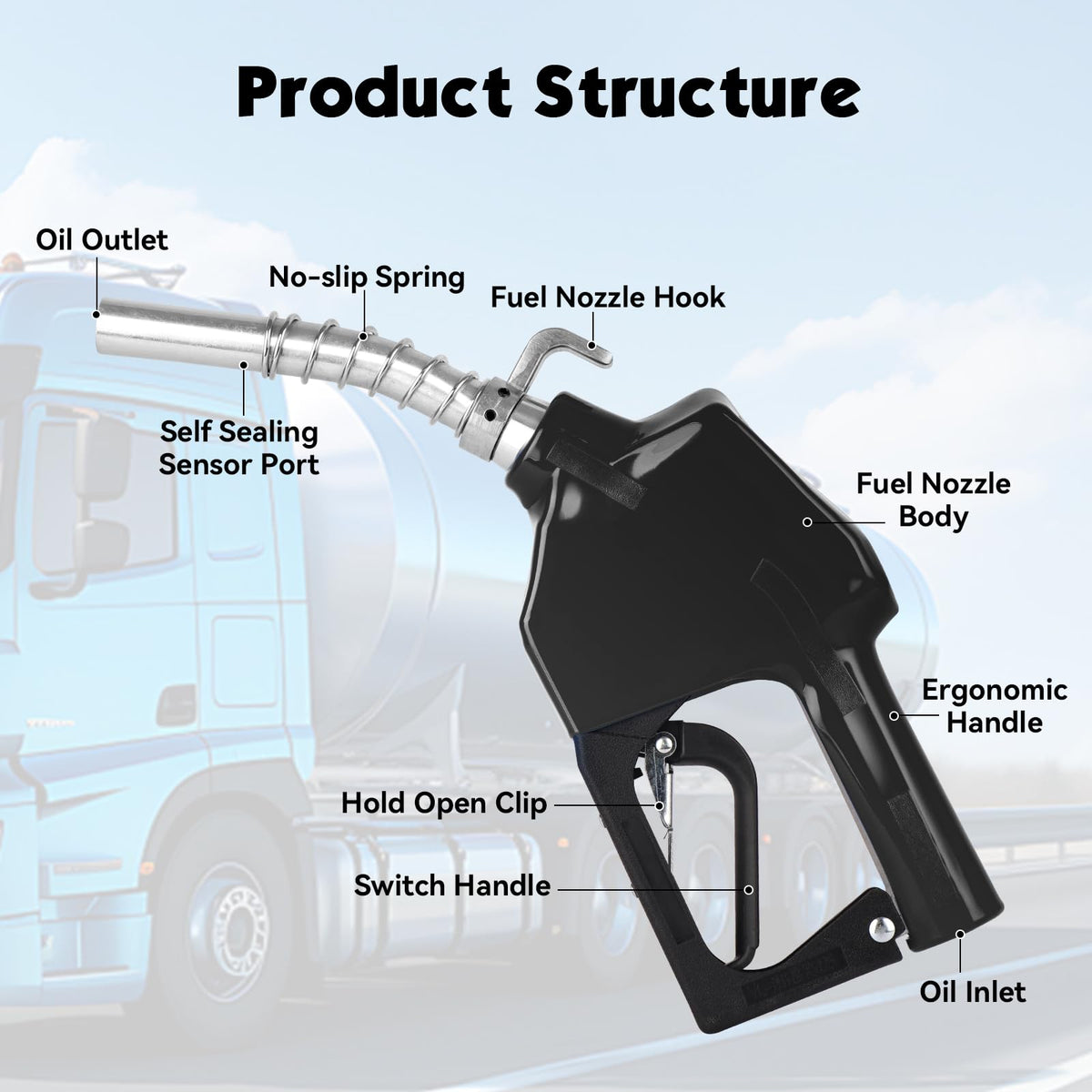

This fuel nozzle combines a robust aluminum-alloy body, a 360° fuel swivel and a comfortable ergonomic handle to streamline refueling tasks on vehicles, tankers, and at job sites. Its 3/4" NPT inlet and 13/16" outlet are sized for high-capacity flow, while the automatic shutoff and three-position padlock give operators control over fill rates and prevent overfills. Built to resist kinking and twisting of the hose, the nozzle supports commercial use where durability and safety matter.

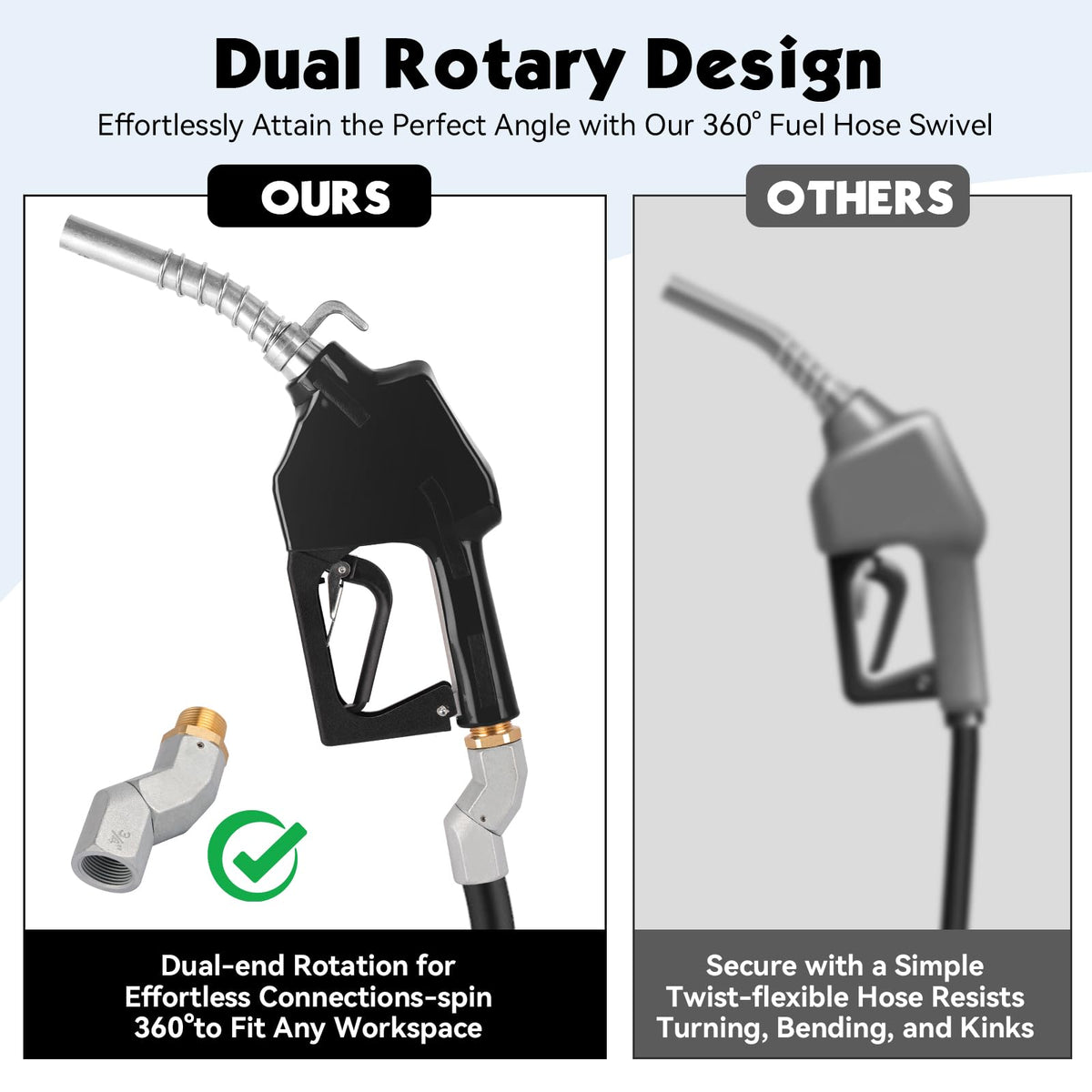

How does the swivel feature protect the hose and improve refueling?

The integrated 360-degree fuel swivel allows the nozzle to rotate freely, preventing the hose from twisting or forming kinks that can shorten hose life or restrict flow. This reduces wear at the connection point and keeps the nozzle aligned for smoother operation.

• 360° rotation reduces hose torsion and abrasion
• Maintains consistent flow without hose stress
• Helps prevent leaks at the inlet connection

What controls are available for flow and shutoff?

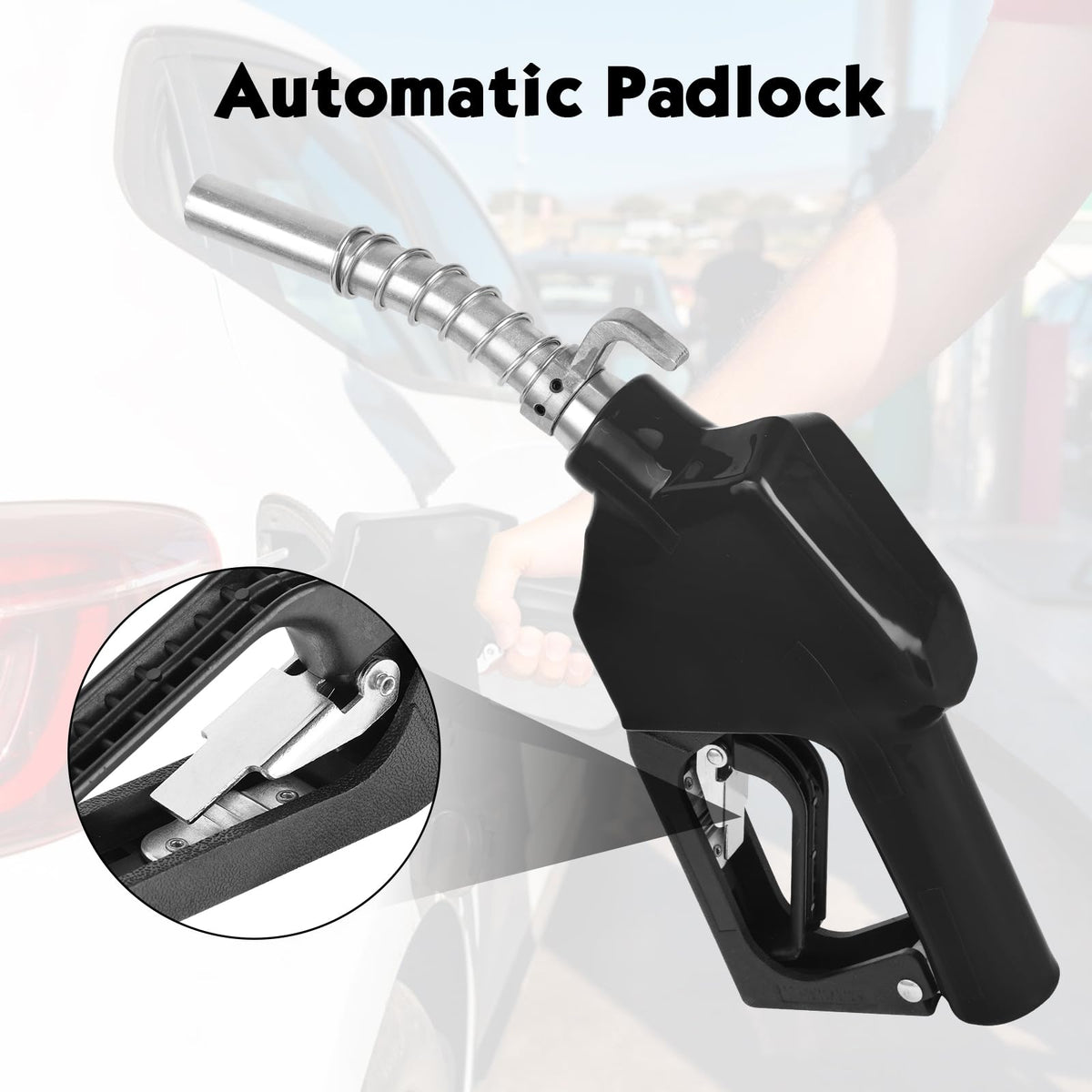

The nozzle offers automatic shutoff to stop fueling when a tank reaches capacity and a three-position control padlock to select different flow settings or lock the trigger. These features help prevent spills and let users choose the right flow for tanks, engines, or refueling situations.

• Automatic shutoff minimizes overflow and waste
• Three-position padlock for adjustable flow and security
• Up to 16 GPM (60 L/min) for fast transfer when needed

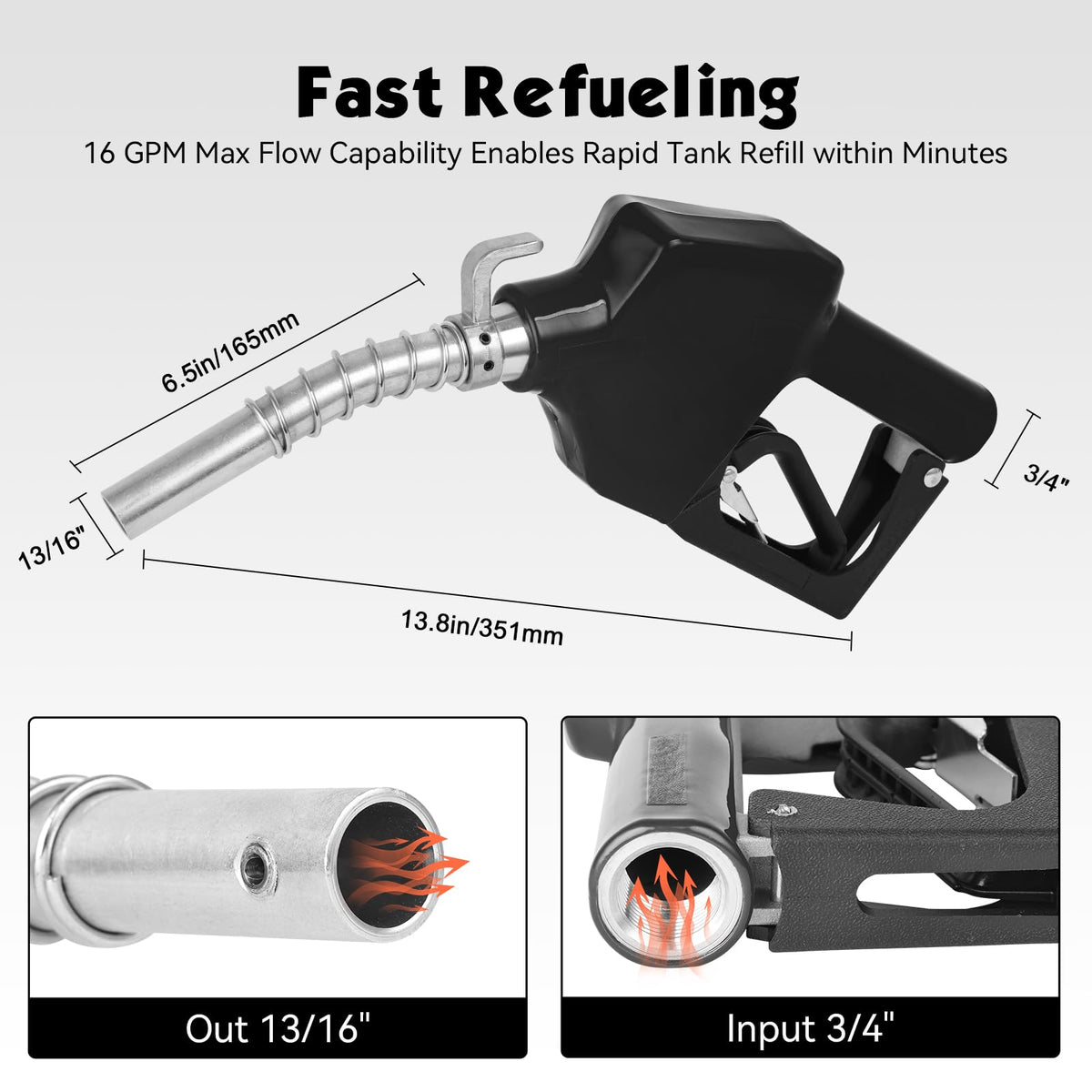

What are the dimensions, materials, and compatibility?

The inlet thread is a 3/4" NPT and the outlet nozzle measures 13/16", supporting a maximum flow of about 16 gallons per minute. The construction uses aluminum alloy and engineered PVC components to balance strength with corrosion resistance for long-term field use.

• Inlet: 3/4" NPT; Outlet: 13/16"
• Max flow approximately 16 GPM (60 L/min)
• Suitable materials for diesel, gasoline, kerosene, biodiesel

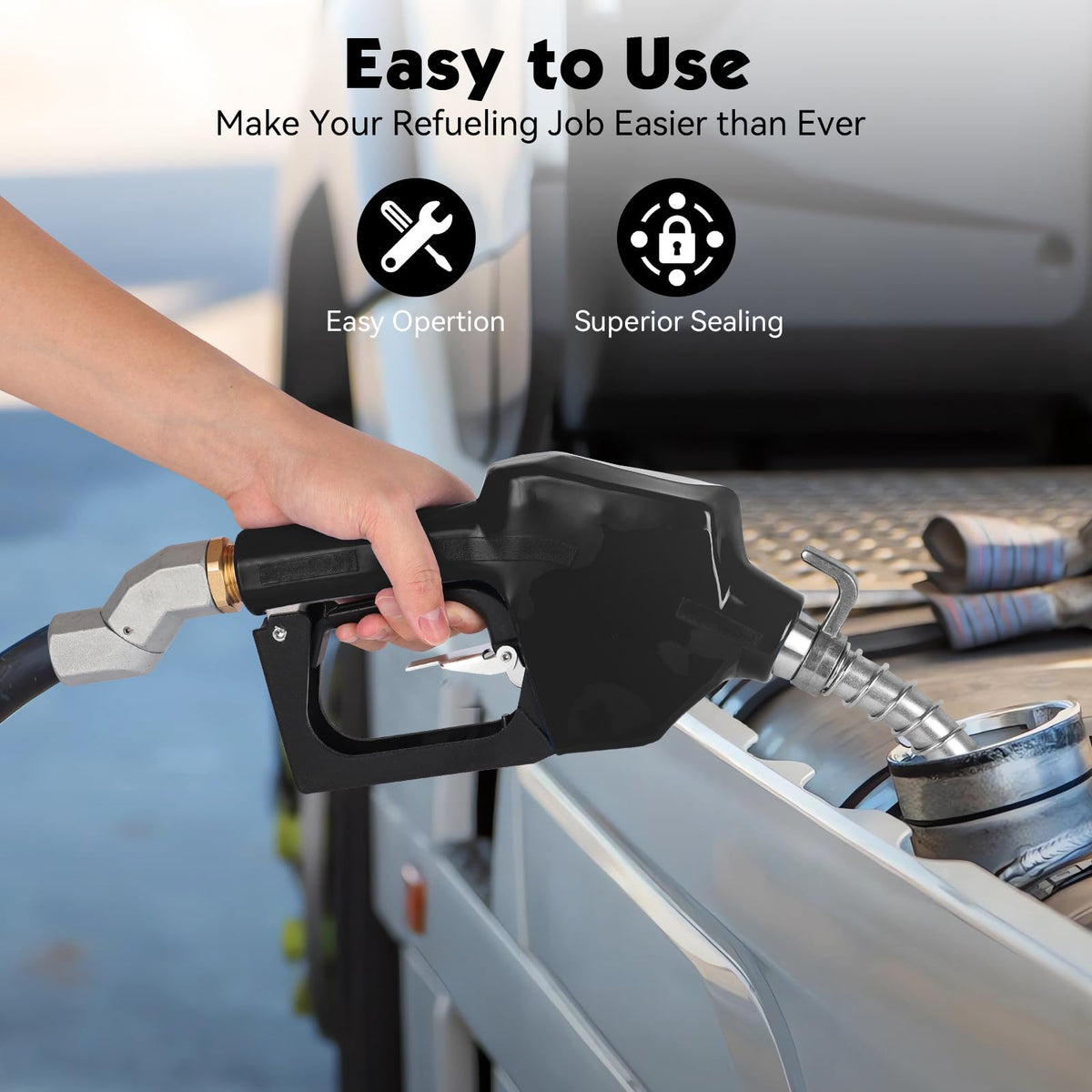

How easy is this nozzle to handle and store during daily work?

An ergonomically shaped handle reduces fatigue during extended fueling, and the integrated hook plus padlock point let technicians hang and secure the nozzle when not in use. The design supports high-load commercial operations while remaining straightforward for individual operators.

• Ergonomic handle for prolonged comfort and control
• Built-in hanging hook for tidy storage between uses
• Padlock option frees hands and prevents unauthorized use

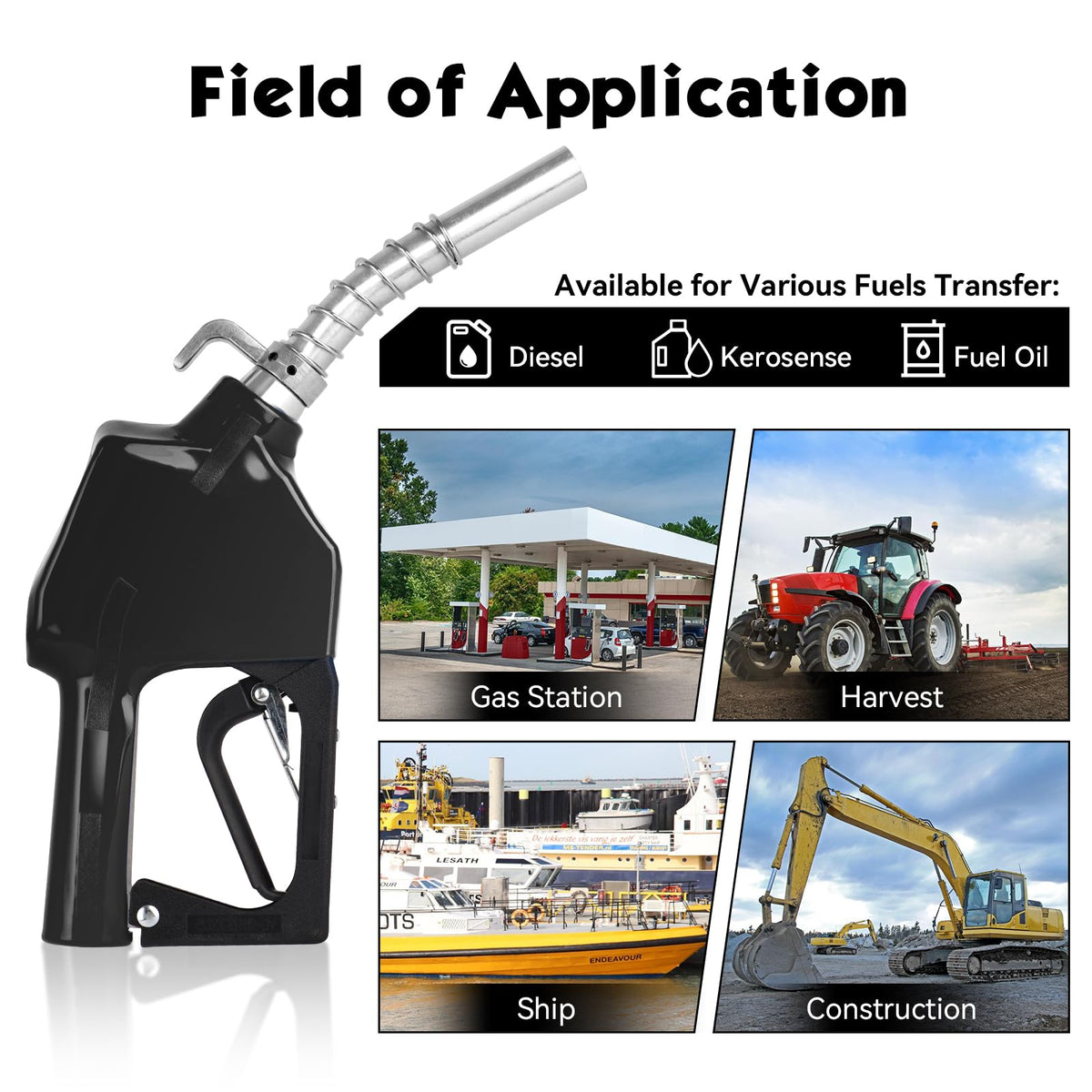

Who is this for? This Vexalify nozzle is made for fleet managers, fuel truck operators, service stations, construction sites and marine refueling where rugged components, reliable automatic shutoff and adjustable flow control reduce downtime and spills. If you need a high-flow nozzle that resists hose damage, offers secure padlock settings and handles multiple fuel types, this model fits industrial and heavy-duty consumer applications.
