Vgate 12-Way Battery Terminal Connector — Positive & Negative Post, 8AWG–4/0 Capacity, Multi-Stud

Vgate's 12-way lead-acid battery terminal connector organizes multiple connections into a single rugged positive or negative post assembly for cars, RVs, trucks, boats and solar systems.

This heavy-duty terminal combines several screw studs and multi-size hole holders so you can attach many wires or accessories to one battery post without repeated clamps or crowded bolt heads. Built for common lead-acid chemistries (AGM, GEL, WET, MF, CA/CA) and compatible with SAE, DIN and EN tapered top posts, the Vgate unit accommodates wire sizes from 8AWG up to large 4/0 (XL) AWG and includes hole holders for 2/0 and 2 AWG cables. It’s especially useful when you need to centralize charging, starting, and accessory feeds while maintaining neat, reliable connections.

How does this connector simplify multiple wiring runs?

Instead of stacking multiple clamps on a single post, the Vgate 12-way terminal provides dedicated studs and hole holders so each circuit has its own attachment point. That reduces mechanical stress on the battery post and makes adding or removing circuits easier.

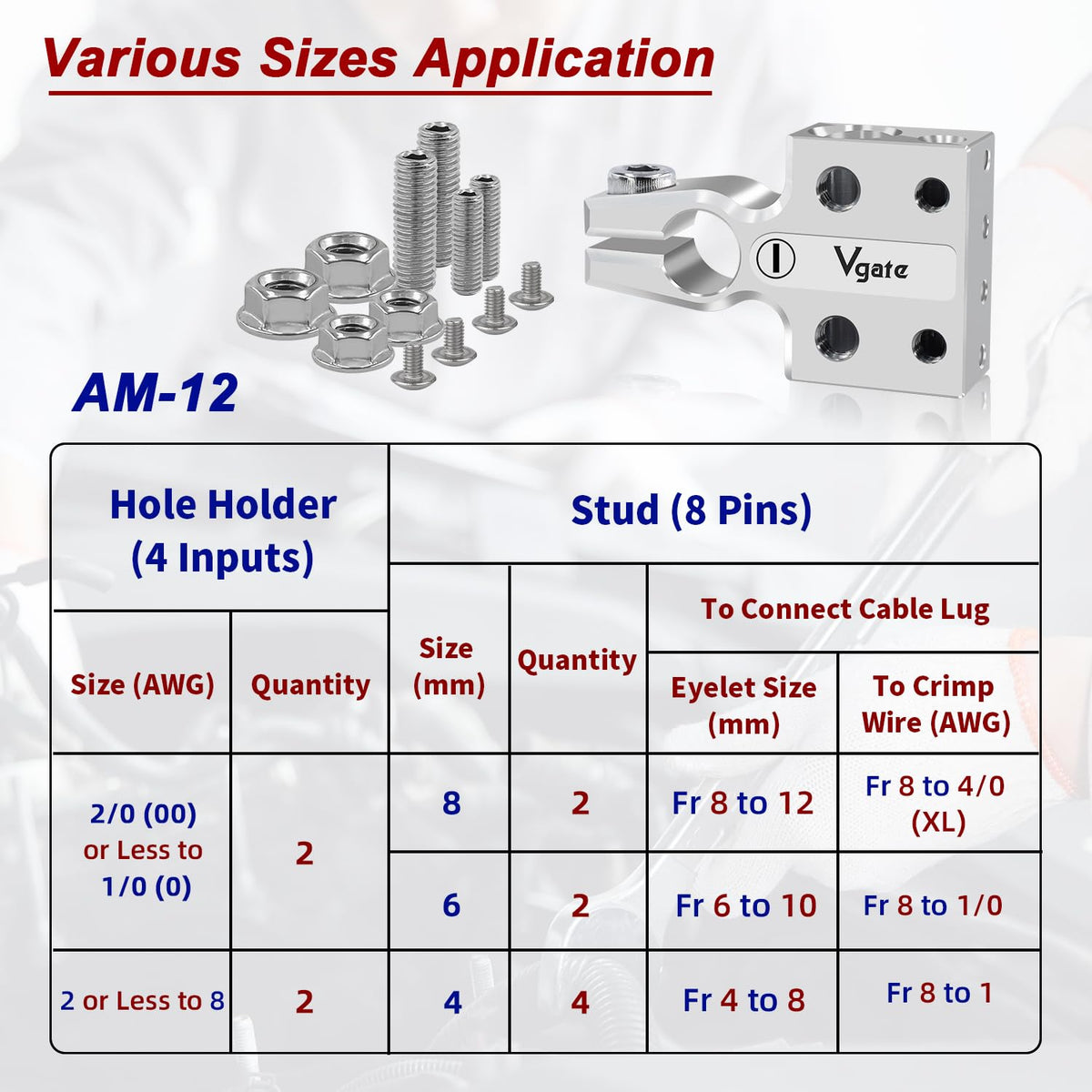

• 12 connection points: 4 hole-holders plus 8 threaded studs for separate circuits

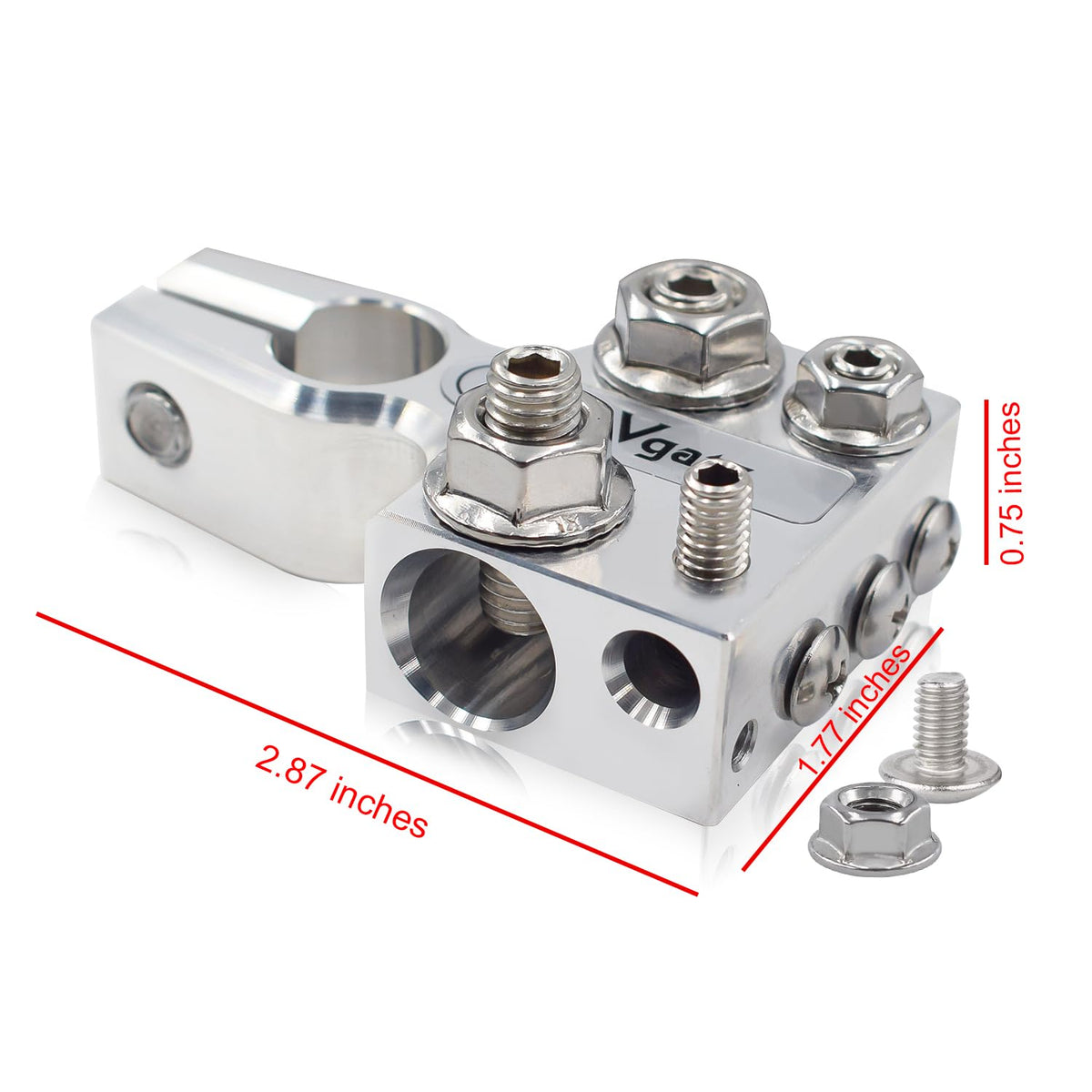

• Included sizes: two 2/0 AWG and two 2 AWG hole holders for large cable ends

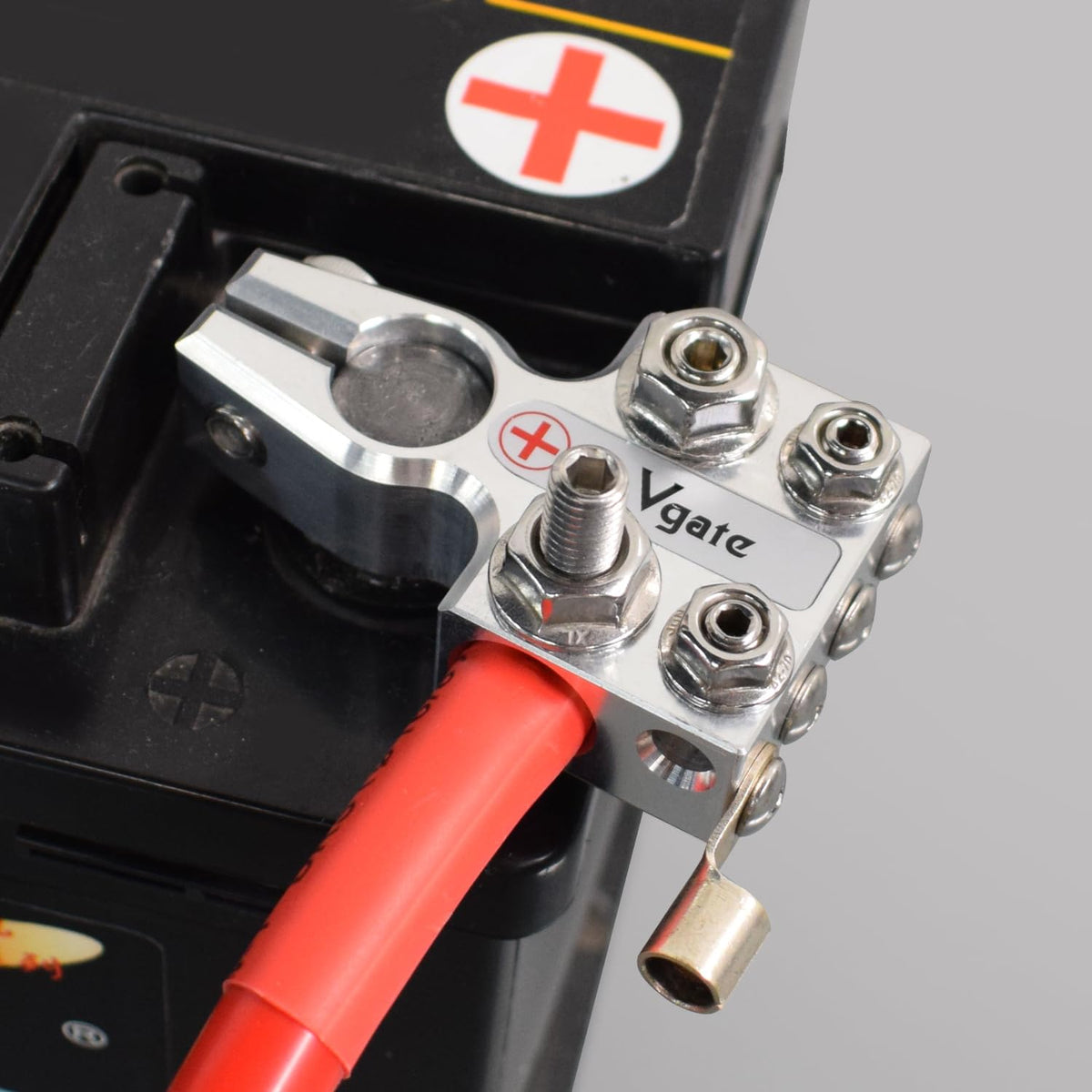

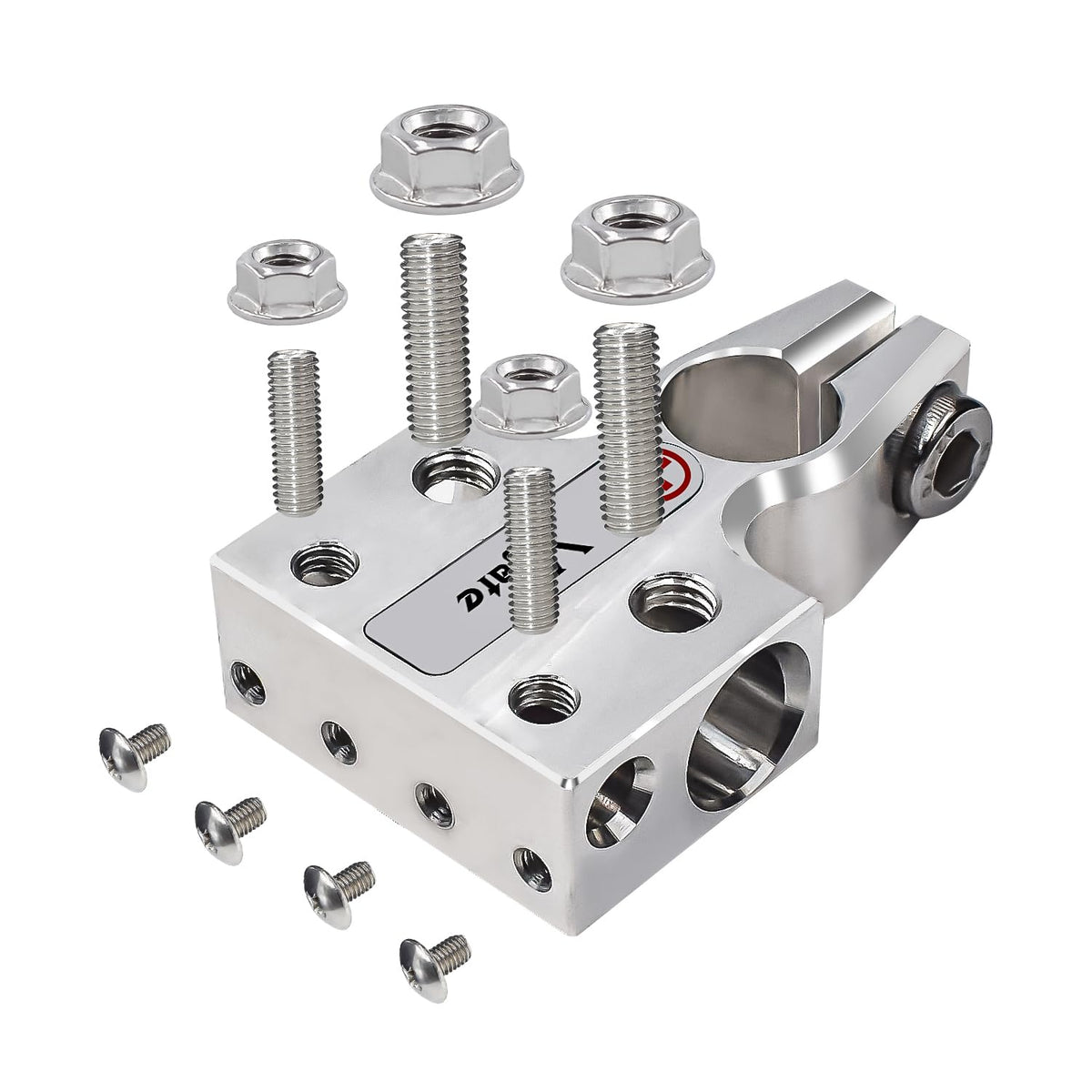

• Screw studs sized 4 mm, 6 mm and 8 mm to accept common ring terminals

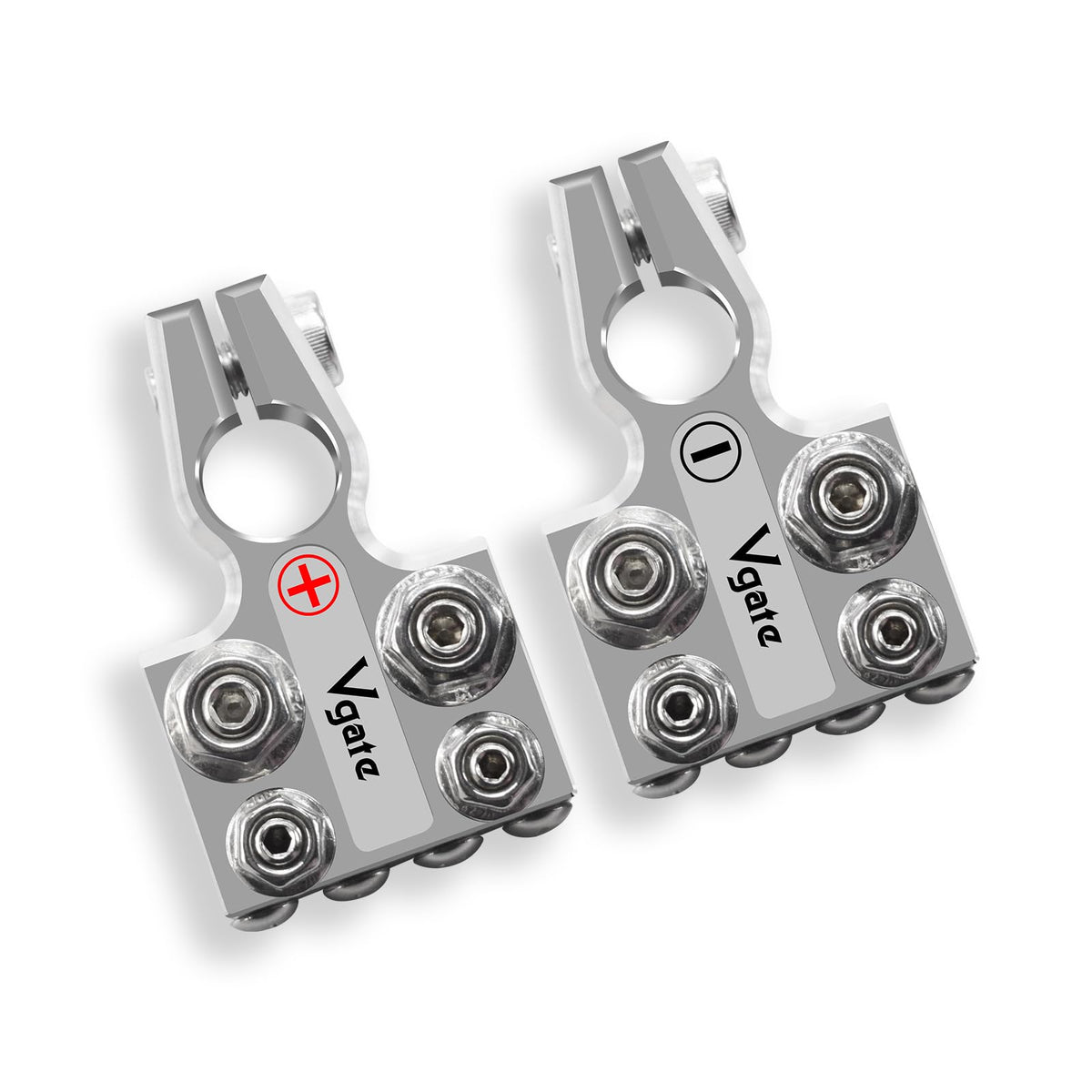

• Positive and negative configurations available for either battery post

Will this fit my battery and wiring sizes?

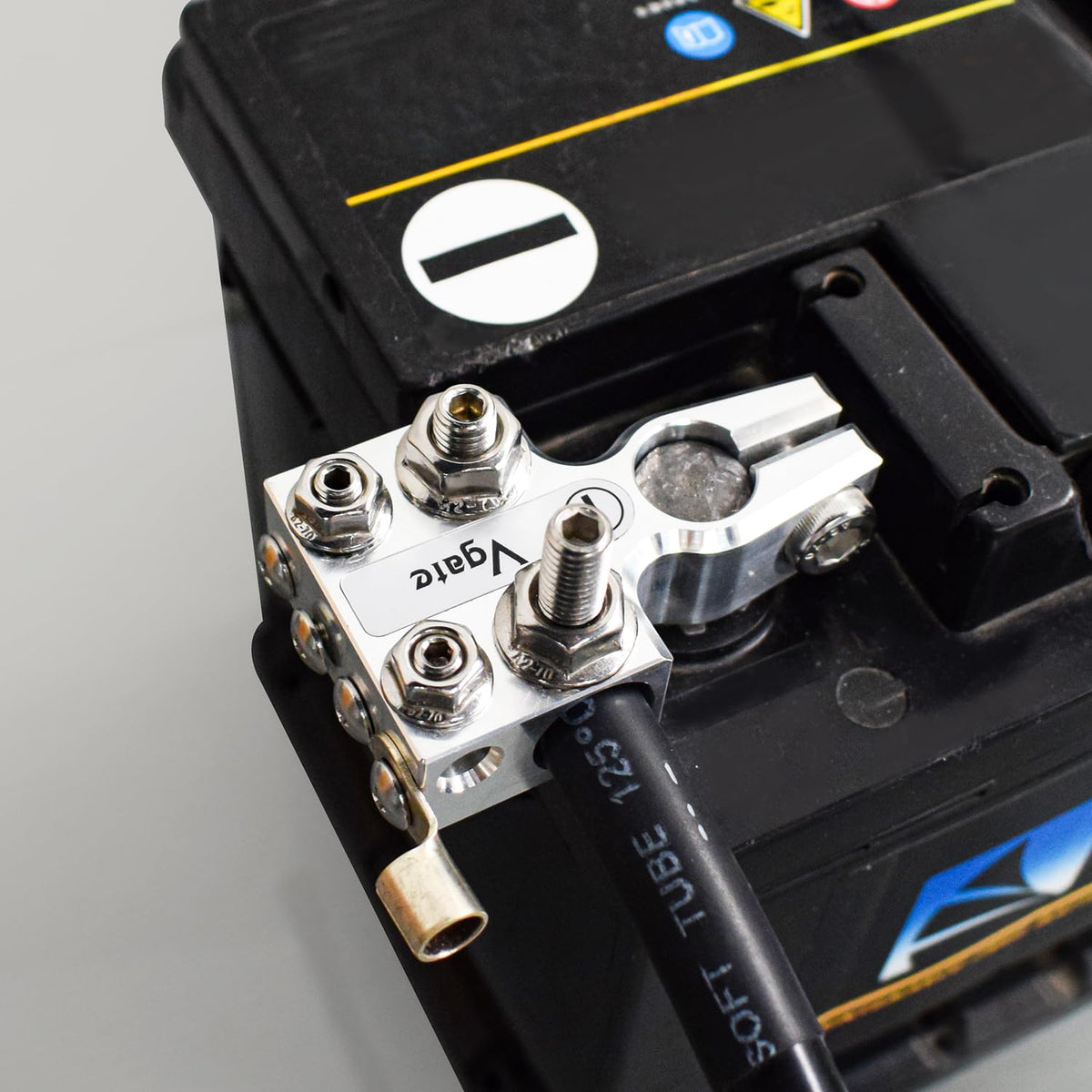

The terminal is designed for lead-acid batteries with tapered top posts that follow SAE, DIN and EN standards; it does not include JIS pencil posts. It supports a broad range of conductor gauges, from smaller 8AWG wires up to heavy 4/0 (XL) AWG through the included hole holders.

• Compatible chemistries: AGM, GEL, WET, MF, CA/CA

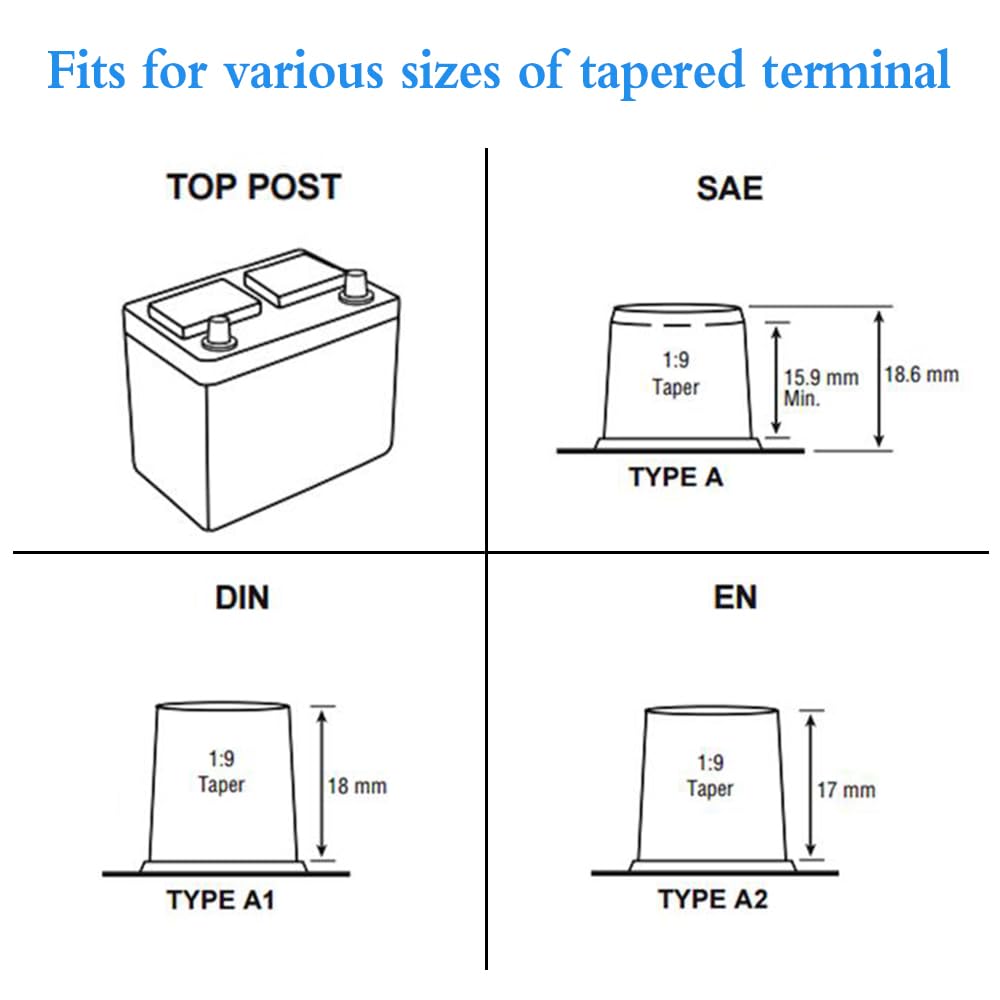

• Post types: SAE / DIN / EN tapered tops (JIS not supported)
• Wire capacity: 8AWG up to 4/0 (XL) AWG using hole holders and studs
• Adapter option: stud-to-post adapter needed for lithium battery posts

How do I install and maintain the Vgate terminal?

Installation is straightforward: loosen the clamp fully before positioning on the post, then secure and tighten to ensure good contact. Avoid over-tightening the battery clamp during assembly; if the clamp feels too tight to secure wiring, fully loosen it, install the wires, then re-tighten. The design includes a lower groove to reduce acid contact—do not add a corrosion pad over the groove.

• Tip: loosen clamp completely if assembly seems too tight, then re-tighten after wiring
• Do not place corrosion pads over the post groove; the groove helps prevent acid contact
• For lithium batteries, purchase the separate stud-to-post adapter or select Vgate's matching terminal models
• Check torque on studs and battery clamp periodically for safety and conductivity

What vehicles and systems benefit most from this terminal?

This multi-connection terminal suits vehicles and equipment that need multiple fused feeds or accessory wiring from a single battery source. It keeps installations cleaner and reduces the risk of loose clamps or tangled leads in high-vibration environments.

• Suitable for cars, caravans, motorhomes, RVs, buses, trucks, pickups and boats
• Works for motorcycles, forklifts, cranes and solar power banks where multiple connections are needed
• Ideal for fleets and off-grid systems that require tidy, serviceable battery terminals
• Handy for DIY wiring upgrades, audio systems, battery banks and dual-battery setups

Who is this for: installers, vehicle owners and system builders who need a durable, organized way to connect many circuits to a single lead-acid battery post. If you’re outfitting an RV, boat, service truck, or a residential solar/generator backup and want clear, separated attachment points with support for large gauge cables, the Vgate 12-way terminal gives you that flexibility. Choose the correct positive or negative version for your application and order a stud-to-post adapter if you plan to use lithium battery posts.
