Vgate 20-Way Battery Distribution Block — Tapered-Top Post Bus Bar, 8AWG–4/0, Heavy-Duty 6–48V

The Vgate 20-way lead-acid battery distribution block is a heavy-duty post terminal bus bar that organizes and connects multiple wire gauges (8 AWG up to 4/0) to SAE/DIN/EN tapered top battery posts for 6–48 V systems.

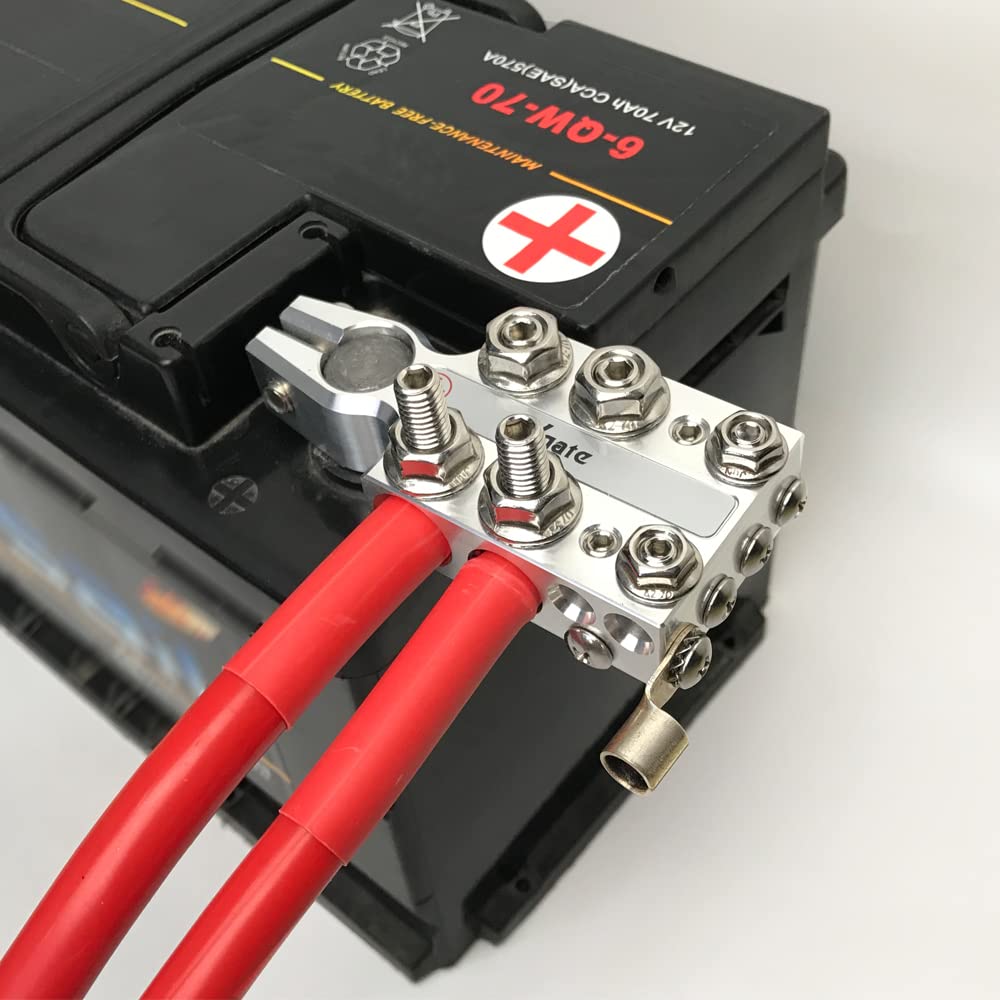

This compact distribution block turns a single tapered top battery post into a tidy, serviceable power hub for vehicles, solar banks, golf carts, marine batteries, and backup systems. Built to accept both input hole holders and threaded studs, it supports a range of lead-acid chemistries (AGM, GEL, WET, MF, CA/CA) and multiple voltages while keeping cable routing safer and more professional than loose clamps or layered lugs.

How does the Vgate block simplify wiring on multi-battery setups?

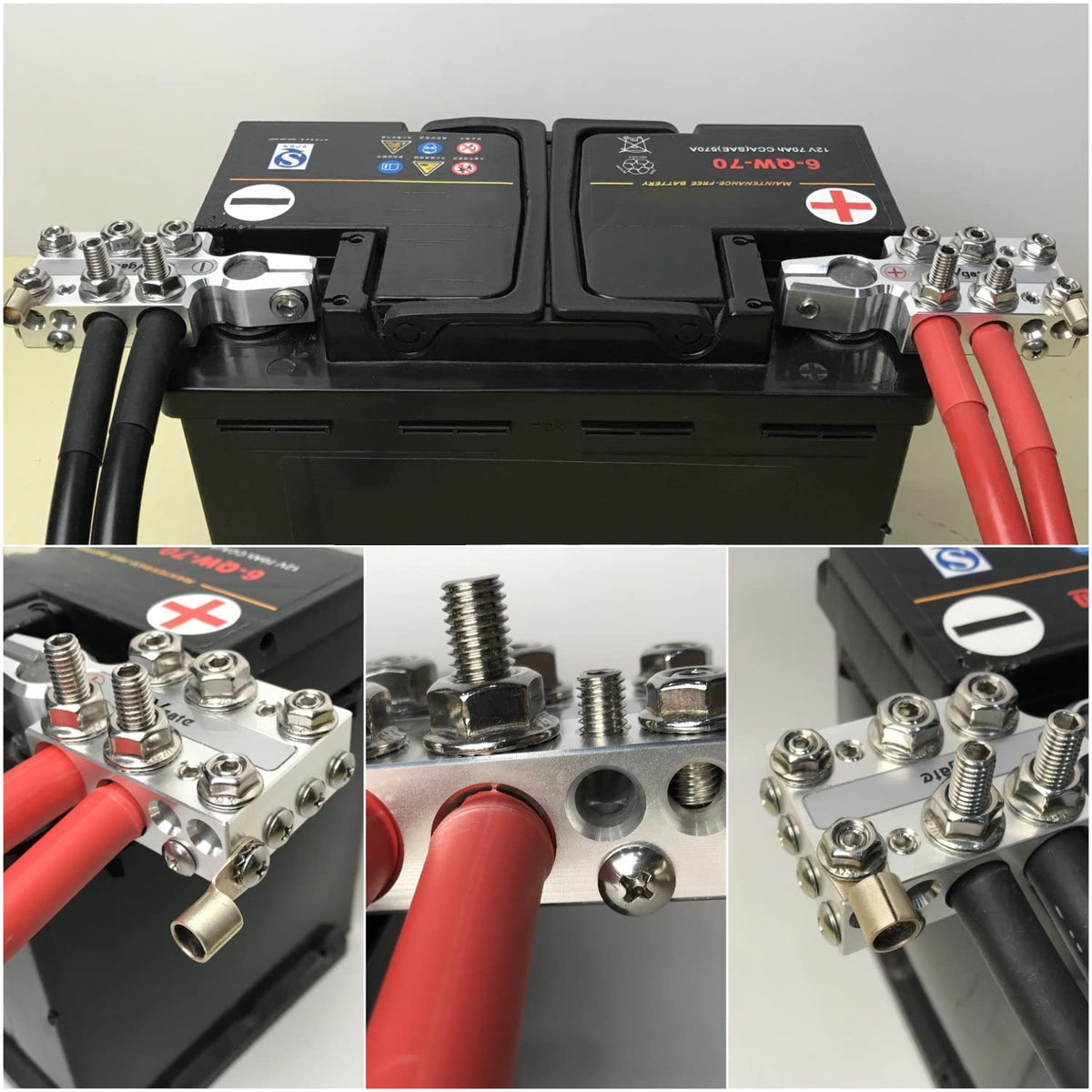

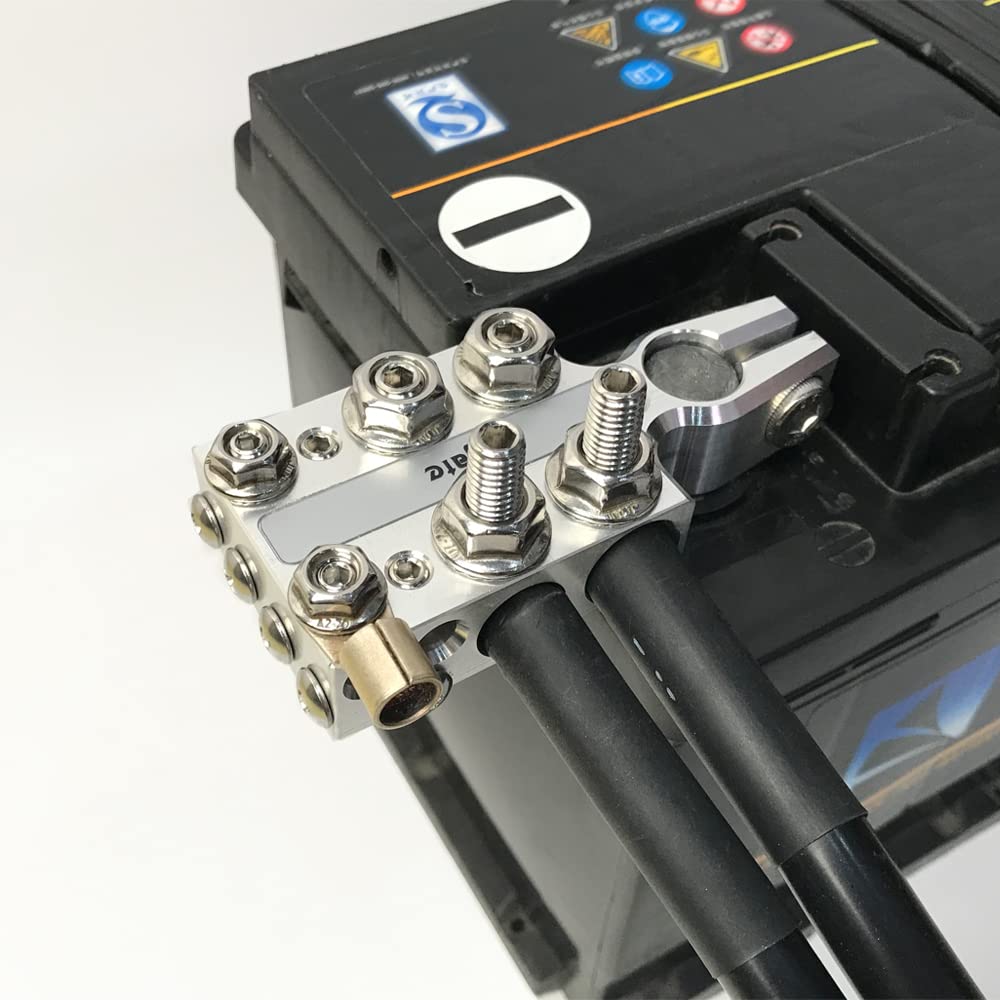

Instead of stacking lugs or relying on bulky clamps, the Vgate distribution block gives you dedicated connection points for fusing, switches, chargers, and accessory feeds. That reduces clutter and makes troubleshooting or changing circuits faster.

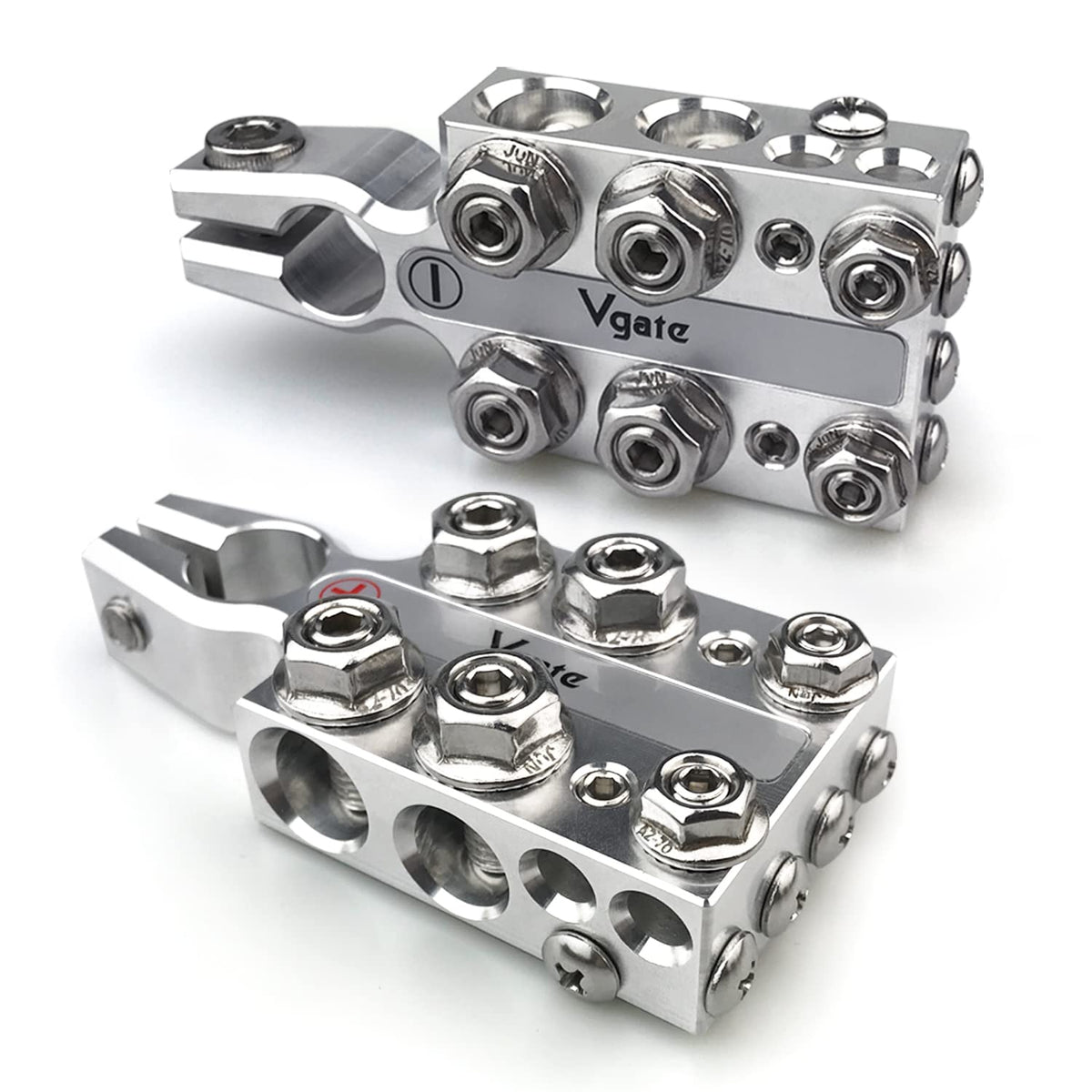

• 20 discrete connection points: 8 input holes and 12 threaded studs for neat separation of feeds
• Supports multiple wire sizes so you can mix power and control wiring
• Quickly add or remove accessories without detaching the main battery clamp

Which batteries and post types are compatible with this bus bar?

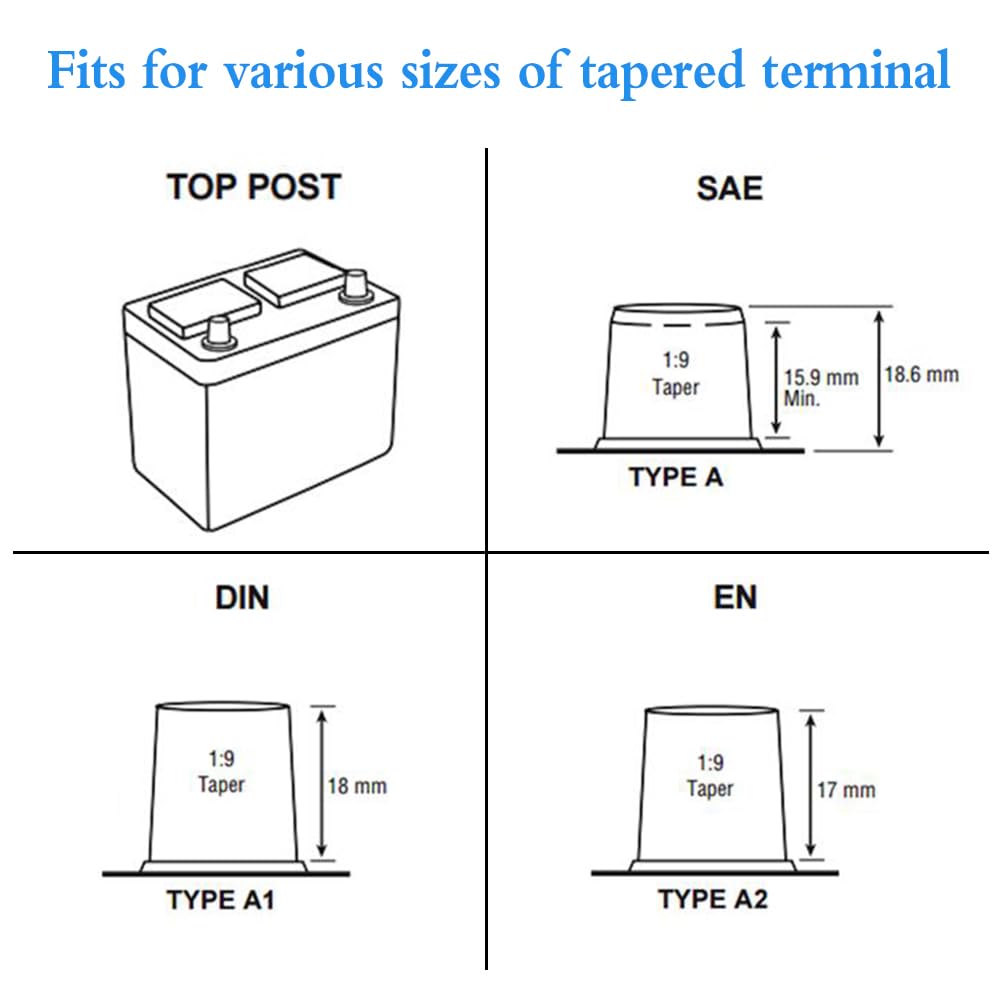

The terminal is designed for tapered top post batteries meeting SAE, DIN, or EN standards (Pencil/JIS small posts not included). It works directly with common lead-acid batteries but requires a stud adapter for most lithium terminals.

• Direct fit: AGM, GEL, WET, MF, CA/CA lead-acid batteries
• Voltage range: 6 V, 12 V, 24 V, 36 V, 48 V systems supported
• Lithium use: requires a stud-to-post adapter or Vgate compatible terminal models

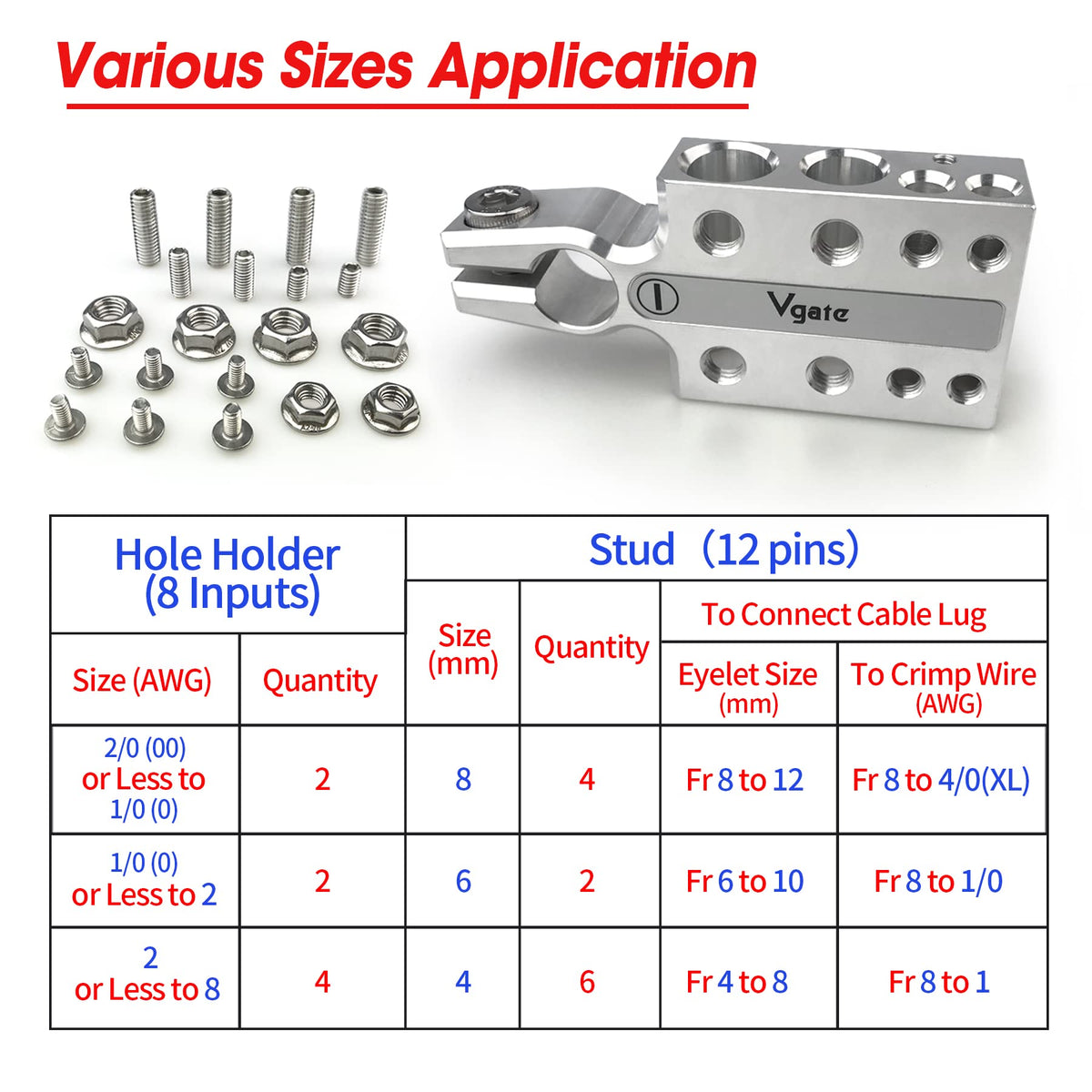

What wire sizes and connection styles does it accept?

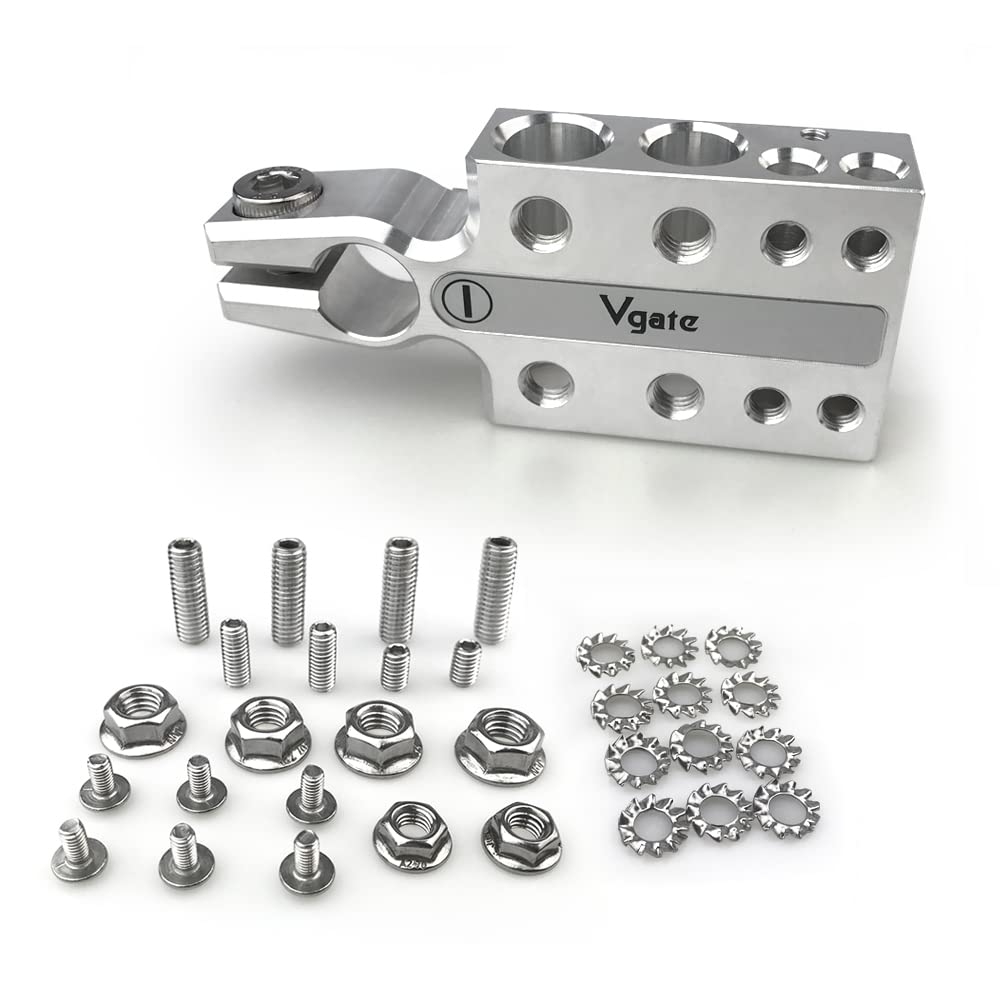

The Vgate distribution block accepts a wide range of conductors from 8 AWG up to heavy 4/0 wiring via appropriately sized studs and holes. That flexibility makes it suitable for everything from small accessory feeds to main power cable runs.

• Input hole holders sized for 8 AWG up to 2/0 AWG (upgrade range)

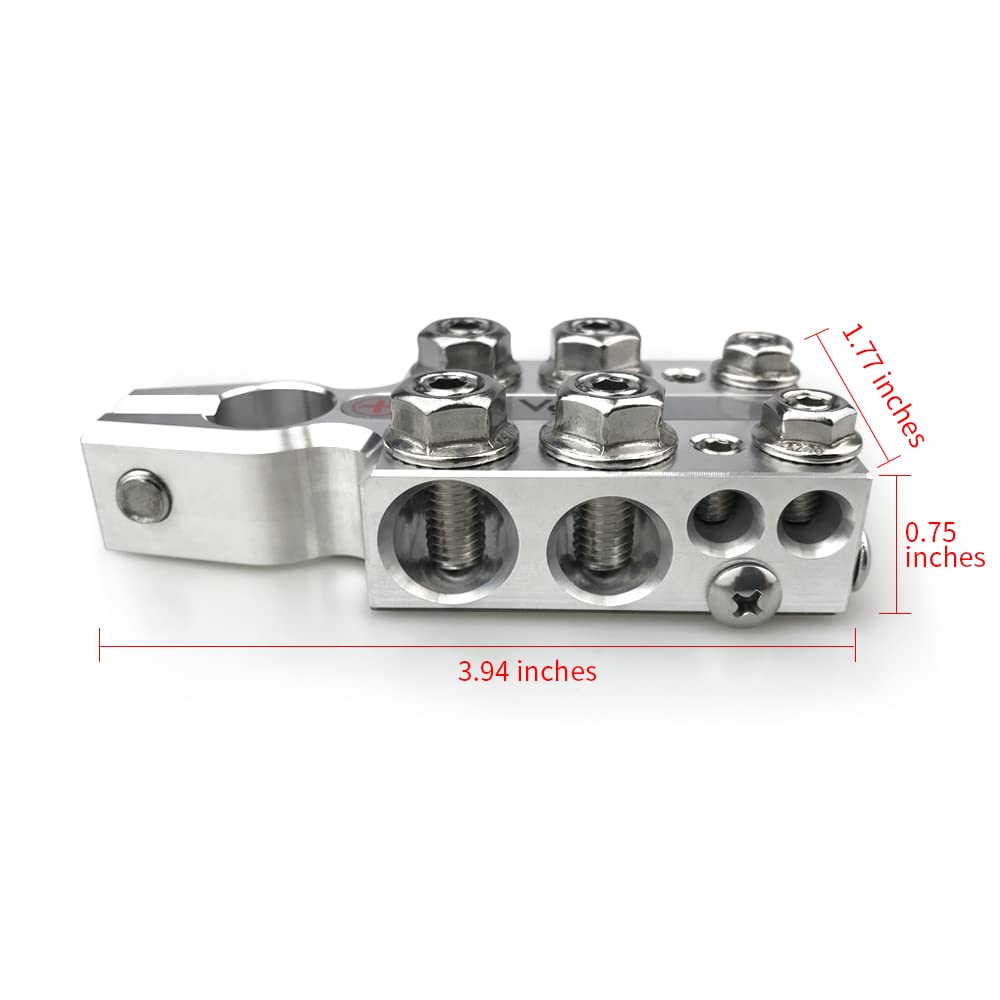

• Multiple threaded studs to mount ring terminals, lugs, or fused links
• Sturdy metal construction to handle high current loads safely when installed correctly

Any tips for installing and maintaining the terminal block?

Proper assembly prevents clamping issues and corrosion. Loosen the battery clamp fully before positioning the block to avoid over-tightening, and do not place corrosion pads where the built-in groove prevents acid contact.

• If clamp feels tight during install, fully loosen then align—the block stays secure after tightening
• Avoid placing corrosion pads directly on the post; the groove is designed to keep acid away
• For lithium batteries, add the correct stud adapter to match stud-to-post requirements

Who is this for: The Vgate 20-way distribution block is aimed at DIYers, fleet technicians, marine and RV installers, and anyone managing multi-accessory battery systems who needs a compact, reliable way to expand a single battery post into multiple fused or unfused feeds. It’s a practical choice when you want more organized wiring, easier serviceability, and compatibility with a variety of lead-acid battery types and common voltages. For lithium setups, include the correct stud adapter to ensure a secure fit.
