Vgate 8-Way Lead Acid Battery Terminal Connector — SAE/DIN/EN Tapered Top Adapter, 4 Hole Holders + 4 Threaded Studs, Fits 8AWG–4/

Vgate 8-Way Lead Acid Battery Terminal Connector is a multi-post battery terminal adapter that converts a single SAE/DIN/EN tapered top post into four hole holders and four threaded studs for 8AWG up to 4/0 AWG connections.

Designed for lead-acid batteries including AGM, GEL, WET, MF and CA/CA types, this compact terminal adapter simplifies wiring multiple accessories, paralleling batteries, or creating distributed power points without cutting factory posts. It fits common tapered top posts (SAE/DIN/EN) and provides a durable solution for 6 V through 48 V systems; note JIS pencil posts are not supported and lithium battery use requires a stud-to-post adapter or a compatible Vgate terminal model.

How does the Vgate 8-way connector organize multiple battery connections?

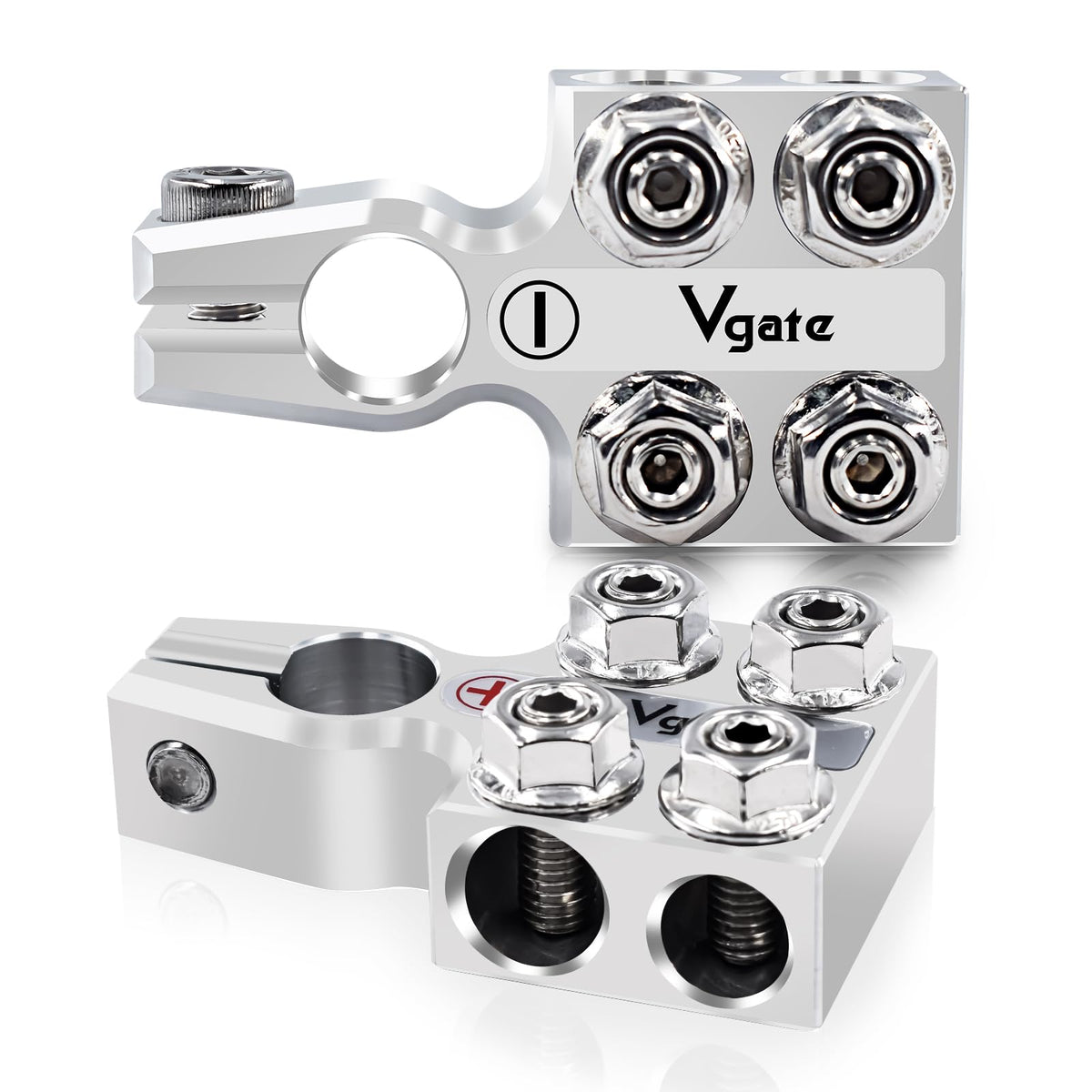

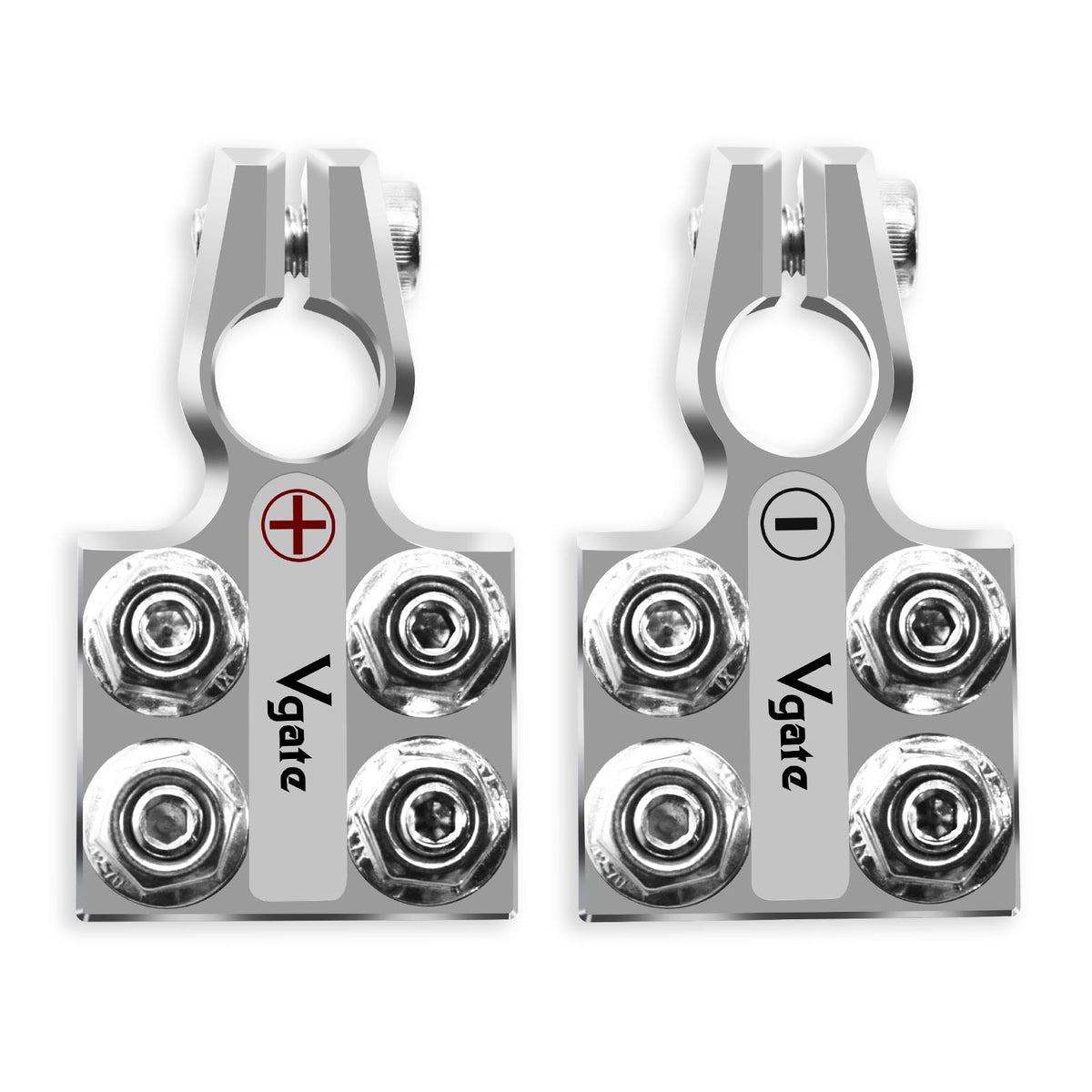

The unit turns one battery post into several independent connection points so you can attach multiple cables or accessories safely. It combines four hole-type holders and four threaded studs in a single low-profile block to reduce clutter and improve serviceability.

• Includes two 2/0 AWG and two 1/0 AWG hole holders for heavy gauge leads.

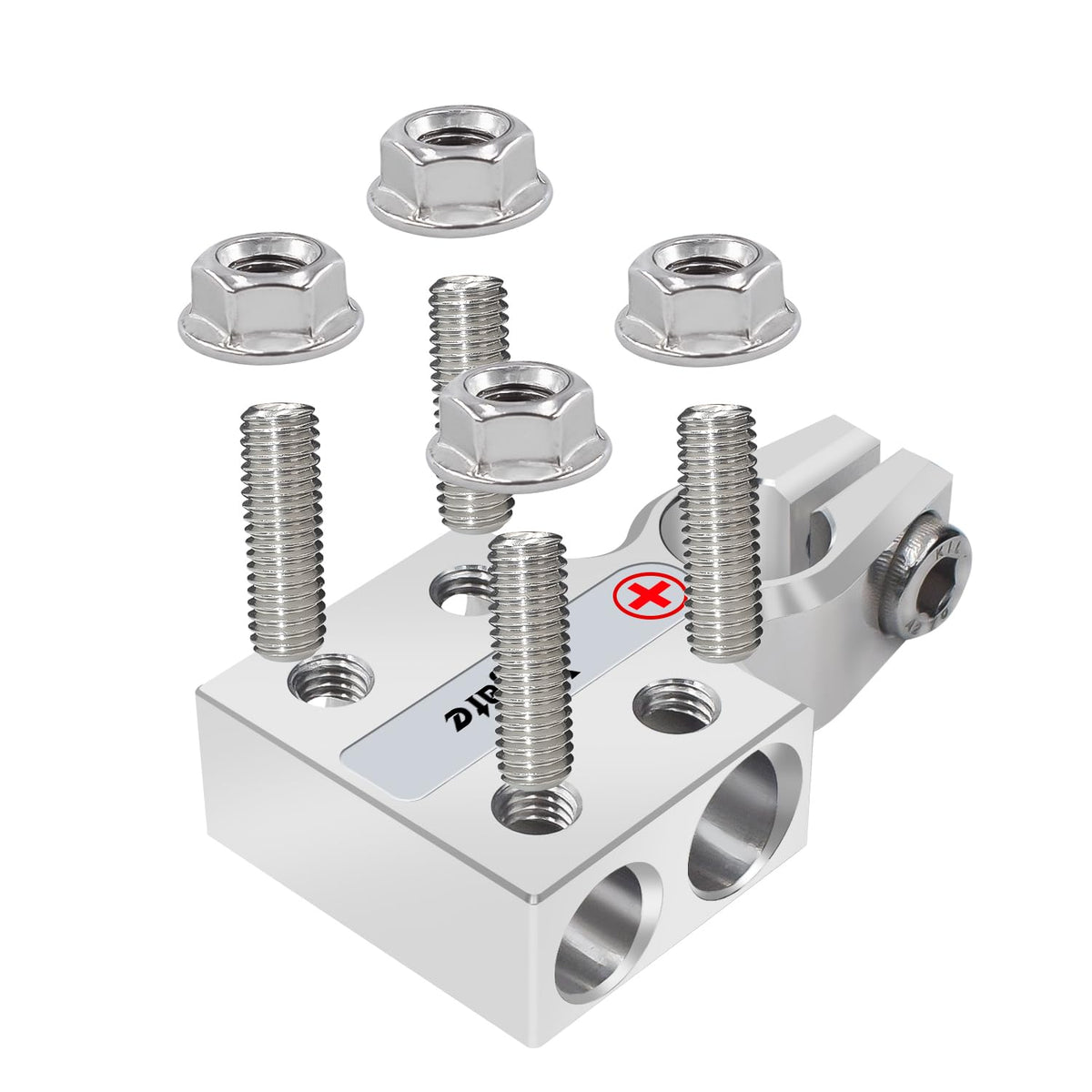

• Four threaded studs accept a range of bolt sizes and ring terminals.

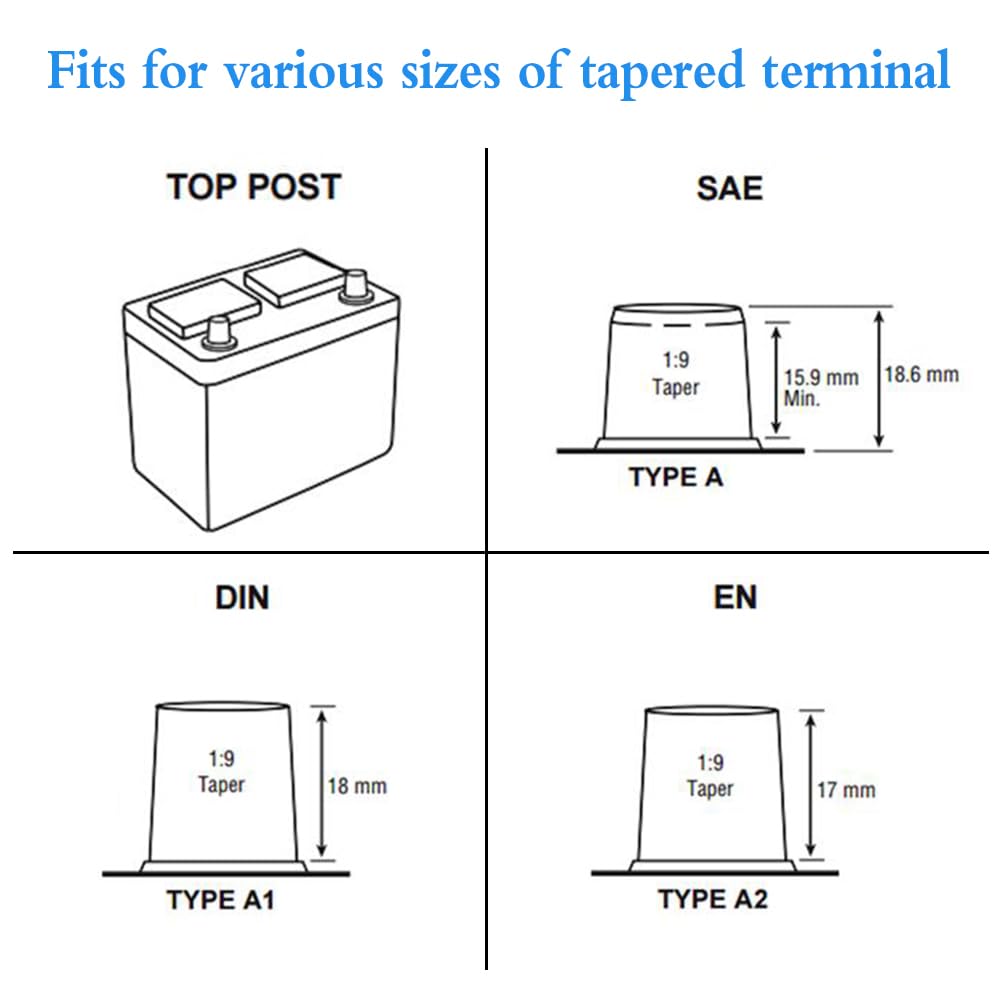

• Mates to SAE/DIN/EN tapered top posts for straightforward installation.

Will this terminal work with my battery voltage and chemistry?

The Vgate 8-way terminal supports typical lead-acid chemistries and voltages from 6 V up to 48 V, covering most automotive, marine, RV and power-sports applications using lead-acid cells. It is not a complete solution for lithium batteries unless you add the appropriate stud-to-post adapter or choose the matching Vgate stud terminals.

• Compatible with AGM, GEL, WET, MF and CA/CA lead-acid batteries.
• Voltage range: 6 V, 12 V, 24 V, 36 V and 48 V systems supported.
• For lithium systems, purchase Vgate stud-to-post adapter or M10/M8/M6/M5 alternative terminals.

How is the 8-way terminal installed and secured?

Installation is straightforward: place the adapter over the tapered top post, align, and tighten the clamp hardware. If the clamp feels tight to engage, fully loosen it before positioning the connector—the clamp will hold once properly seated; avoid using a corrosion pad that interferes with the protective groove.

• Clamp fits SAE/DIN/EN tapered top battery posts (not JIS pencil posts).
• Fully loosen clamp if assembly seems overly tight, then re-tighten after seating.

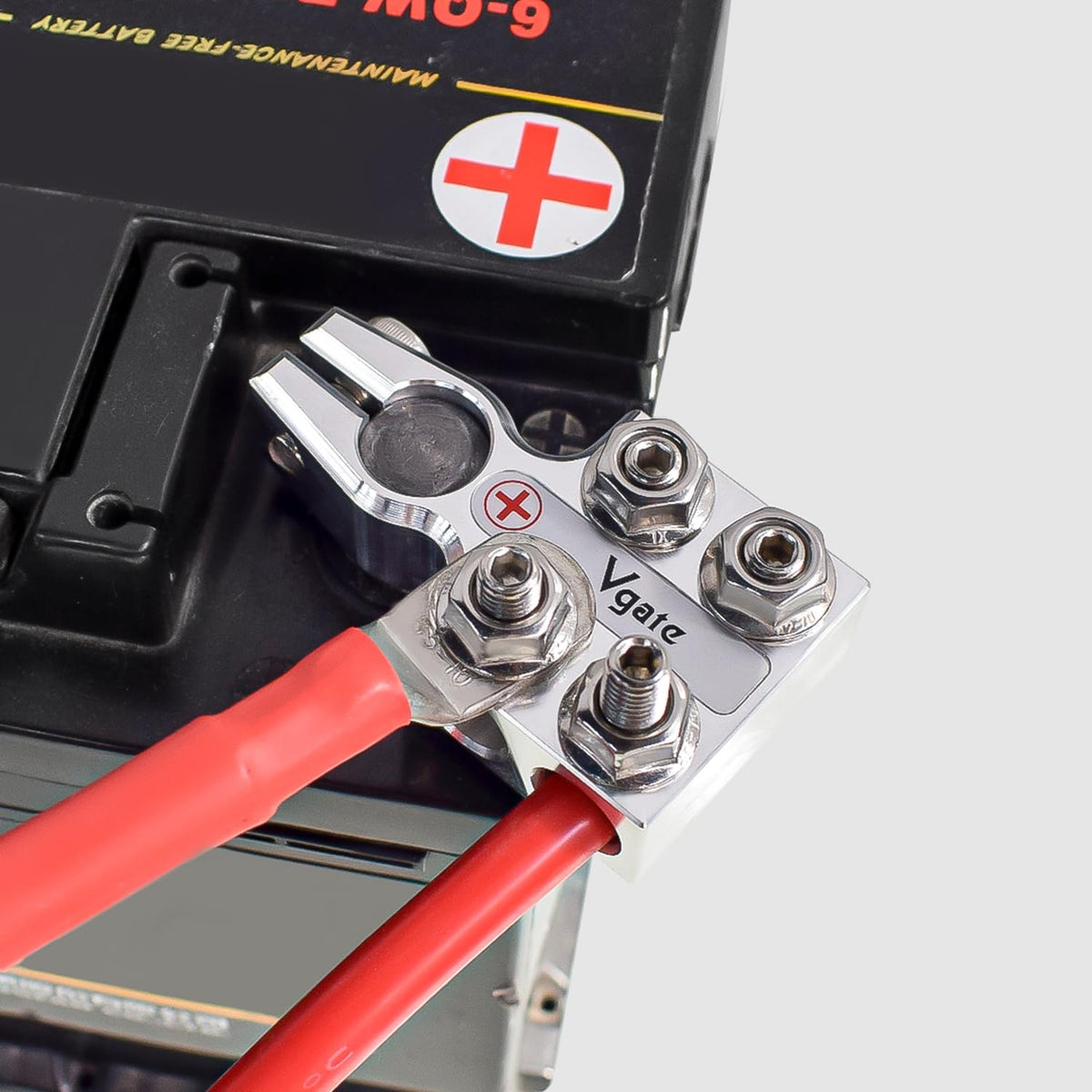

• Groove at the base prevents acid contact—do not place a corrosion pad on the post.

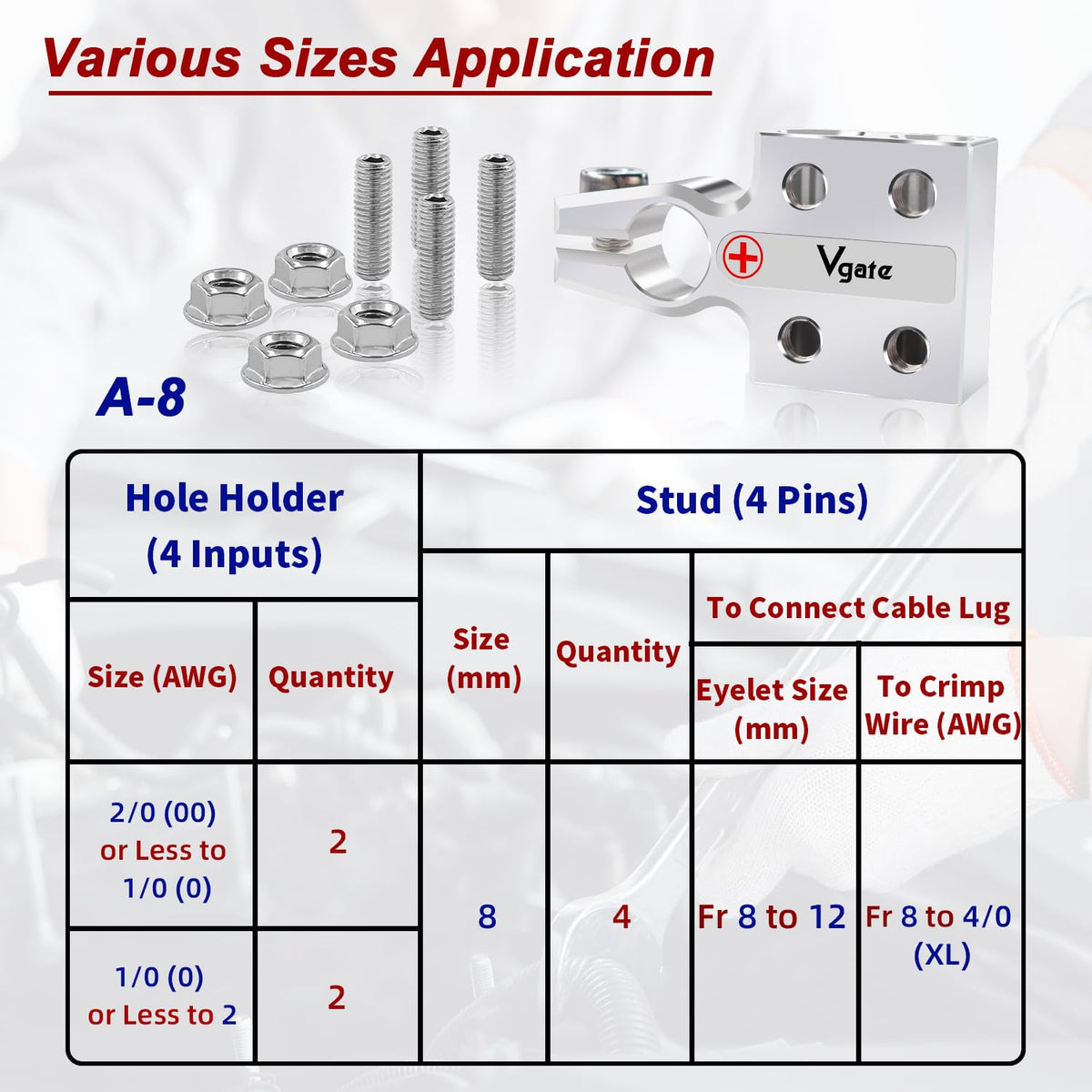

What wire gauges and terminal types does it accept?

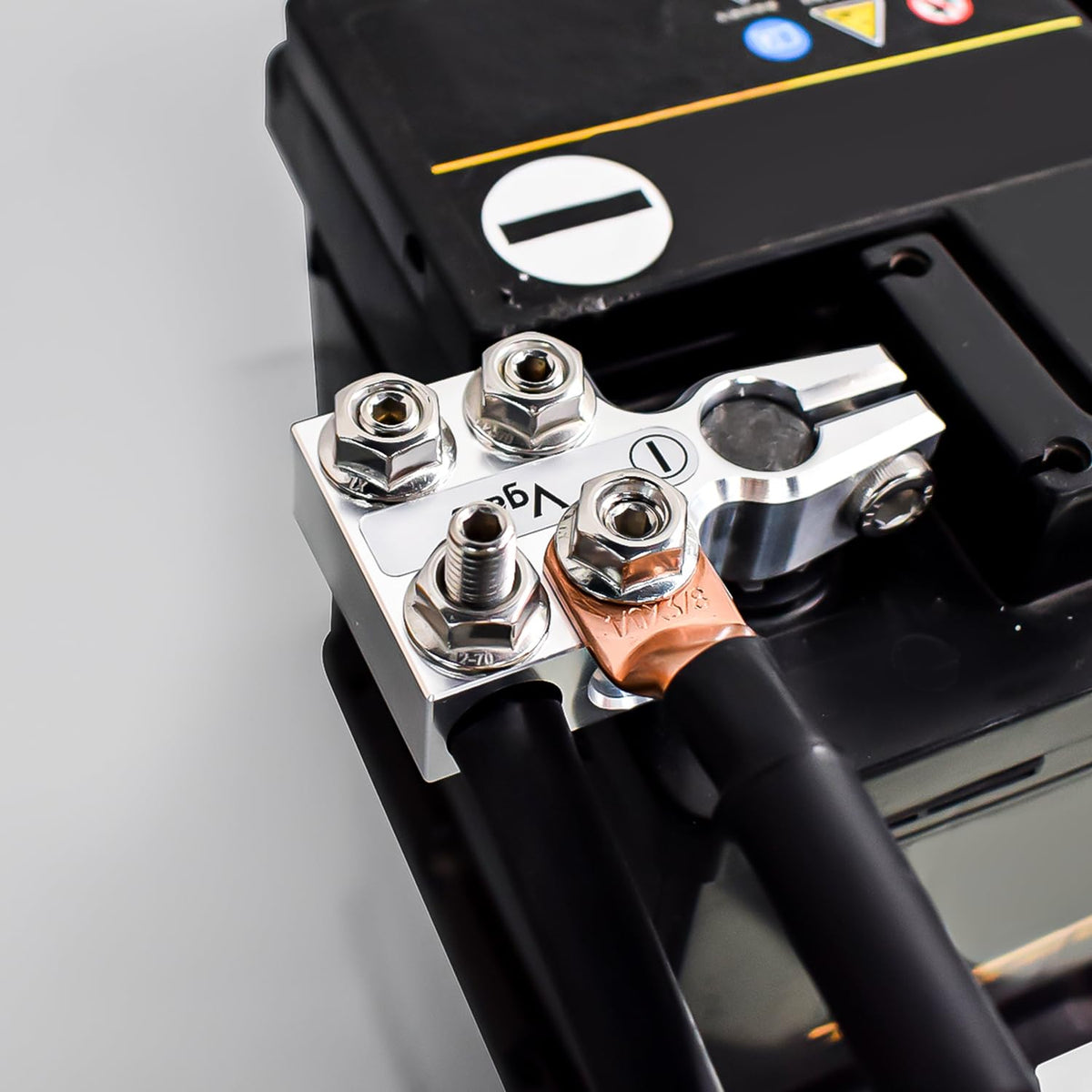

This adapter supports heavy conductors up to 4/0 AWG (XL) and includes specific hole holders for large gauge hookups, plus threaded studs for ring terminal connections. The combination of hole holders and studs makes it flexible for high-current feeders and multiple accessory lines.

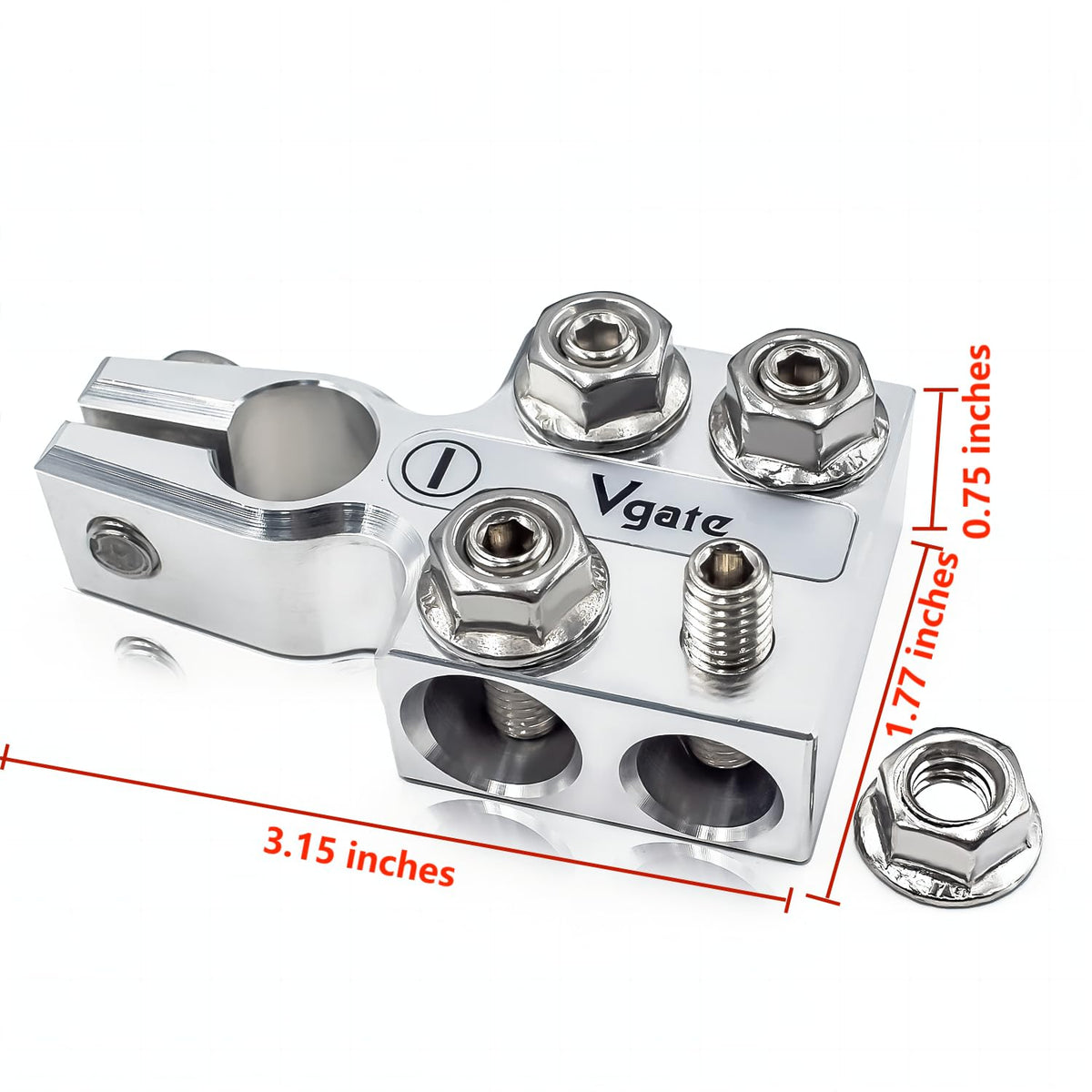

• Holds two 2/0 AWG and two 1/0 AWG hole holders for large cables.
• Threaded studs accommodate bolt-on ring terminals and accessories.
• Accepts 8 AWG up to 4/0 (XL) AWG depending on connection type used.

Who is this for: The Vgate 8-Way Lead Acid Battery Terminal Connector is aimed at vehicle owners, marine technicians, RV and off-grid hobbyists, fleet maintainers, and anyone who needs to add multiple heavy-duty connections to a single lead-acid battery post. Choose it when you want a tidy, serviceable way to distribute battery power to starters, inverters, accessory circuits, or parallel banks while keeping wiring organized and accessible.
