Vgate Lead Acid Battery Terminal Clamps — 12-Way SAE/DIN/EN Tapered Top Post Pair, 8 AWG–4/0, 6061 Aluminum

Vgate 12-way lead acid battery terminal clamps are precision-machined aluminum connectors that turn a tapered SAE/DIN/EN top post into multiple secure outputs for wire sizes from 8 AWG up to 4/0 (XL) AWG.

These heavy-duty battery terminals provide a compact, corrosion-resistant solution for splitting a single tapered top post into twelve connection points — six 2/0 AWG wire holes and six 8 mm threaded studs — suited to cars, RVs, trucks, solar banks and other lead-acid systems. Machined from 6061 aluminum for strength and conductivity, the pair includes both positive and negative clamps and covers common battery voltages from 6 V up to 48 V.

How do these clamps attach to tapered top-post batteries?

The clamps are engineered to clamp onto SAE/DIN/EN tapered top posts (note: JIS pencil posts are not supported). Each terminal slides onto the tapered post, then tightens to form a reliable mechanical and electrical contact. If the clamp feels too tight during assembly, fully loosen it before re-seating — it will grip correctly afterward.

• Fits SAE, DIN and EN tapered top posts (not JIS pencil post)

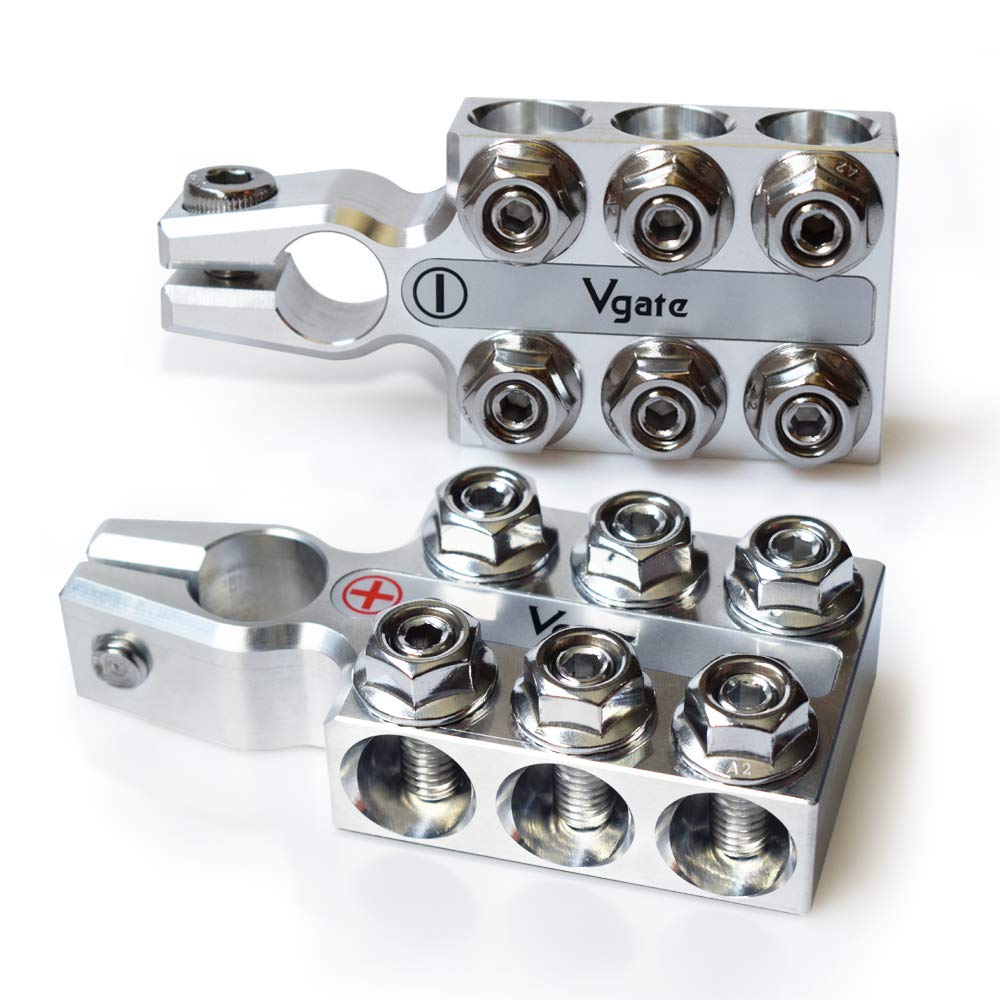

• Pair includes one positive and one negative terminal
• Installation tip: loosen fully then re-tighten for proper seating

What wire sizes and connection options are supported?

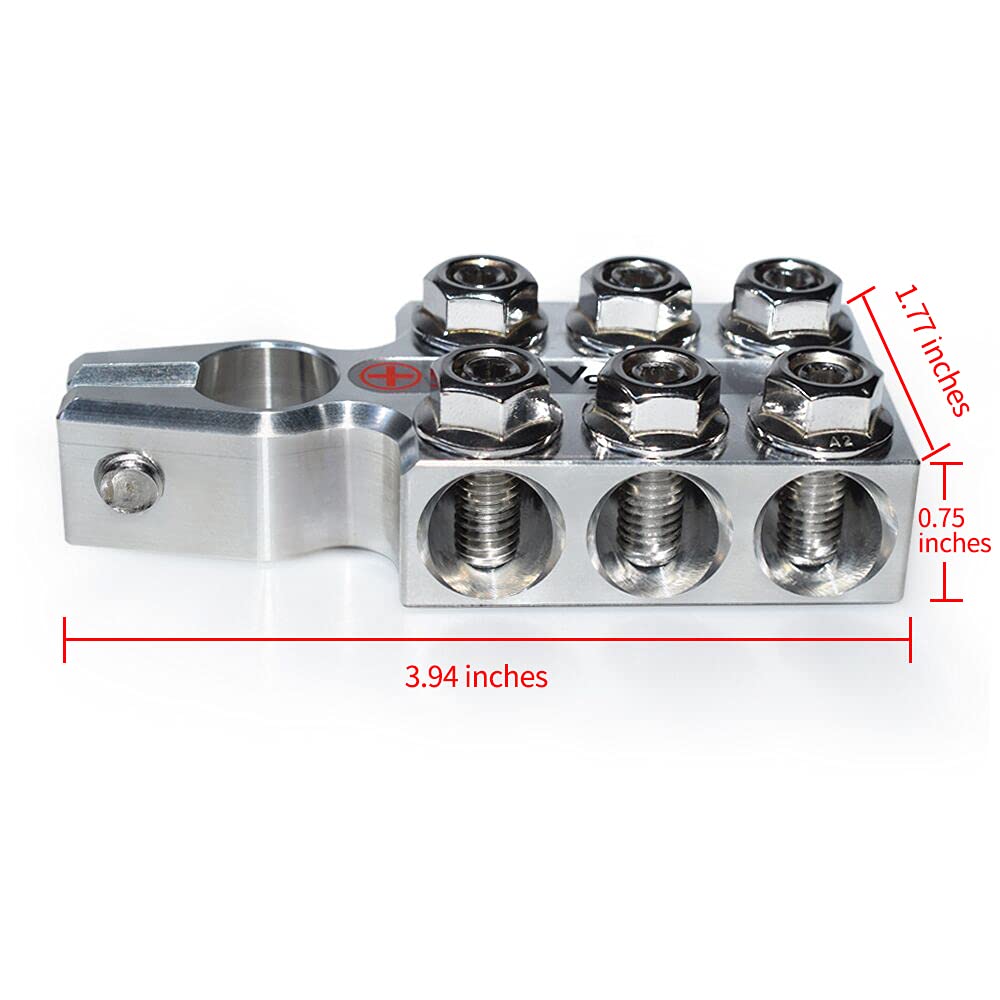

Each Vgate terminal converts the single post into twelve outputs: six large holes sized for 2/0 AWG and six 8 mm threaded studs for ring or bolt terminations. The design accepts a broad range of cable gauges from small 8 AWG up to extra-large 4/0 AWG, making it useful in multi-feed applications or when adding accessories.

• Six 2/0 AWG-compatible holes for large conductors

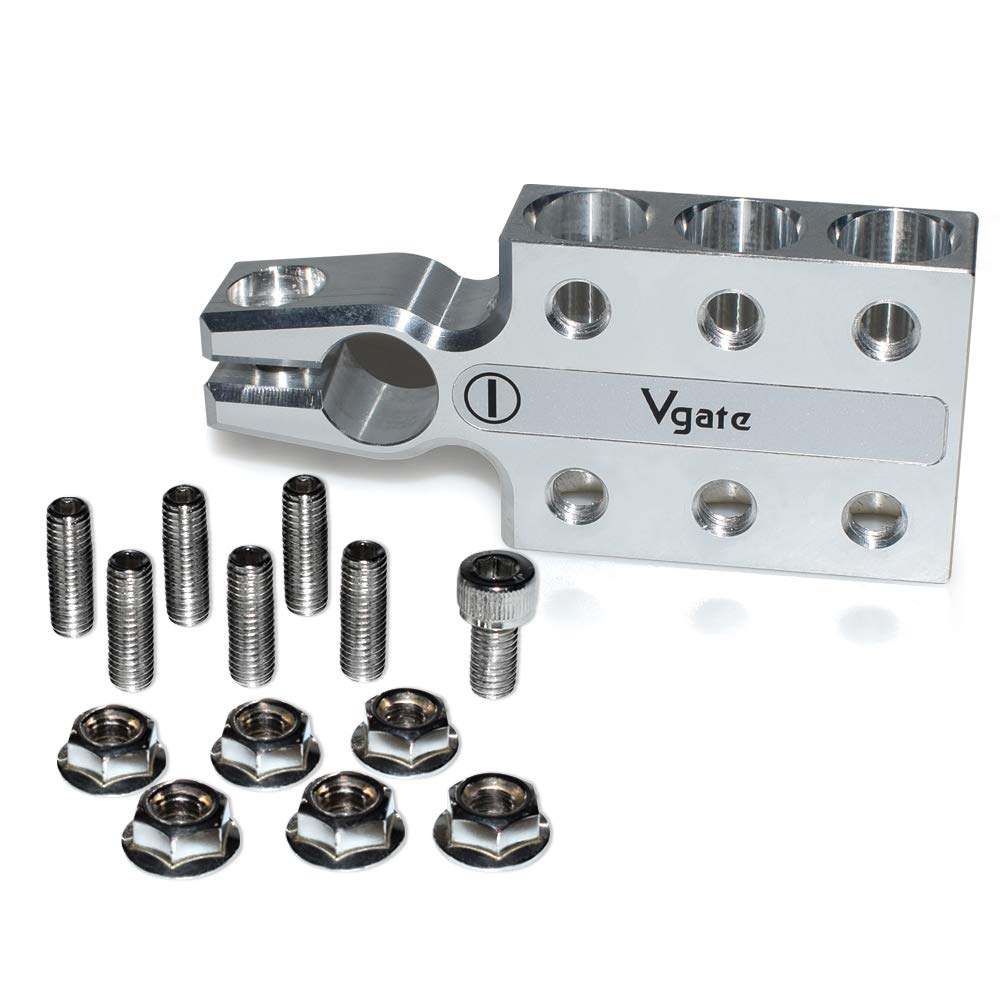

• Six 8 mm threaded studs for ring terminals and bolts
• Accepts wires from 8 AWG through 4/0 (XL) AWG

Are these terminals durable and corrosion-resistant?

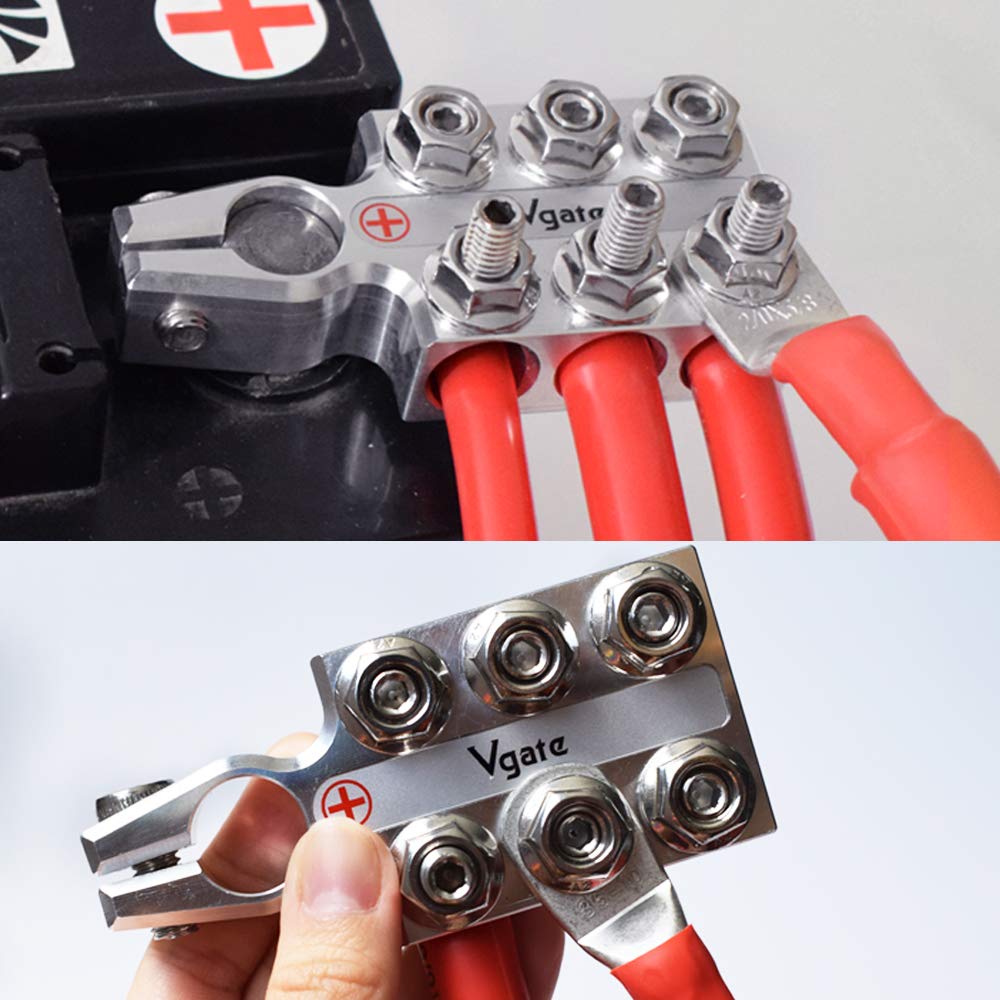

Yes — the clamps are machined from 6061 aluminum, a material known for toughness and resistance to corrosion while maintaining good electrical conduction. The precision machining ensures consistent fit and reduces the risk of loose connections over time. The terminal base includes a groove that helps prevent acid contact with any placed corrosion pad.

• 6061 aluminum construction for strength and longevity
• Precision-machined surfaces for reliable electrical contact
• Built-in groove reduces acid exposure at the post interface

Can I use these with lithium batteries or different stud sizes?

These clamps are meant for standard tapered lead-acid posts; if your lithium battery uses a different stud or post interface you'll need a stud-to-post adapter or one of Vgate’s terminal models with specific thread sizes. Vgate recommends choosing the correct adapter or terminal model (M10/M8/M6/M5 or imperial equivalents) when connecting to alternate stud types.

• Works natively with tapered post batteries (lead-acid)
• Lithium setups may require an additional stud-to-post adapter
• Compatible Vgate thread sizes: M10, M8, M6, M5 (or imperial equivalents)

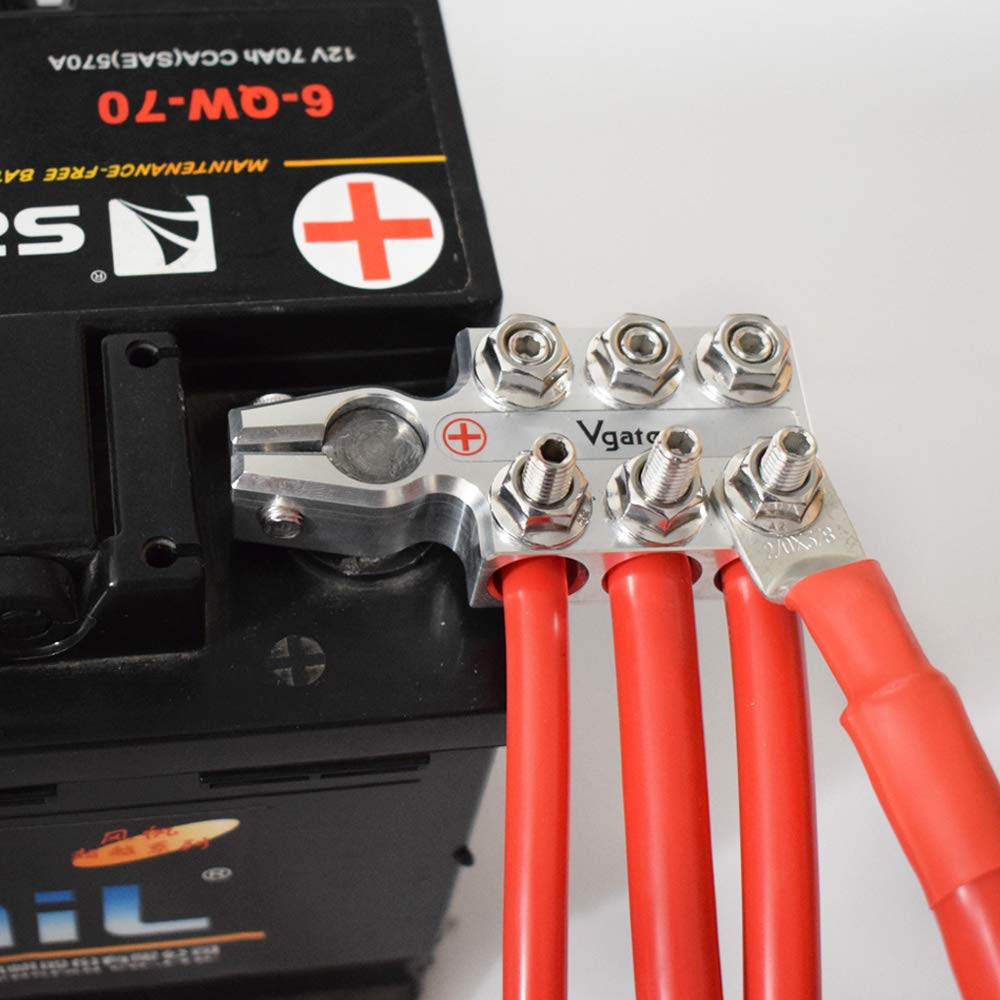

Who is this for? These Vgate 12-way battery terminals suit DIYers, mechanics, fleet operators and marine or RV owners who need to split a single battery post into multiple, heavy-gauge outputs. Ideal for installations with multiple accessories, auxiliary starter circuits, solar charge distribution or heavy-current feeds where durable, corrosion-resistant connections and wide gauge compatibility matter. Choose these clamps when you need a compact, rugged way to expand a tapered top post without welding or complex adapters.
