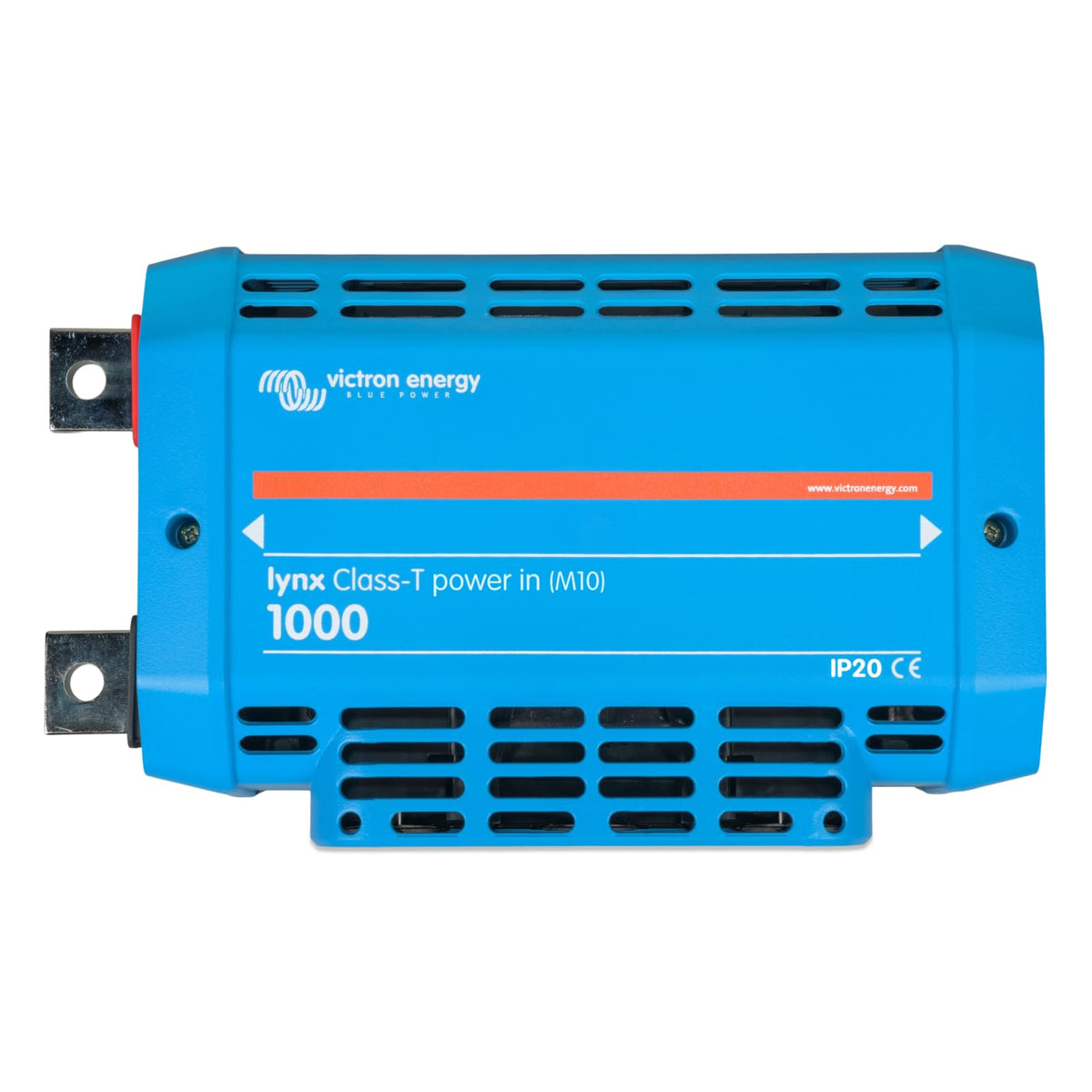

Victron Energy Lynx Class-T Power In M10 — Dual lithium battery input module with Class-T fuse holders

The Victron Energy Lynx Class-T Power In (M10) is a compact fusing and connection module designed to accept and protect up to two lithium battery strings in a Lynx Distribution setup.

The Lynx Class-T Power In (M10) is part of Victron Energy's modular Lynx Distribution ecosystem, engineered to simplify battery input management and overcurrent protection in small to mid-size DC power systems. It pairs with other M10 Lynx components to create a compact, serviceable, and high-current DC distribution hub. Class-T style fuse cartridges (sold separately) give installers flexibility in selecting the right fuse rating to match battery and inverter requirements.

How does the Lynx Class-T Power In (M10) integrate into a Lynx Distribution system?

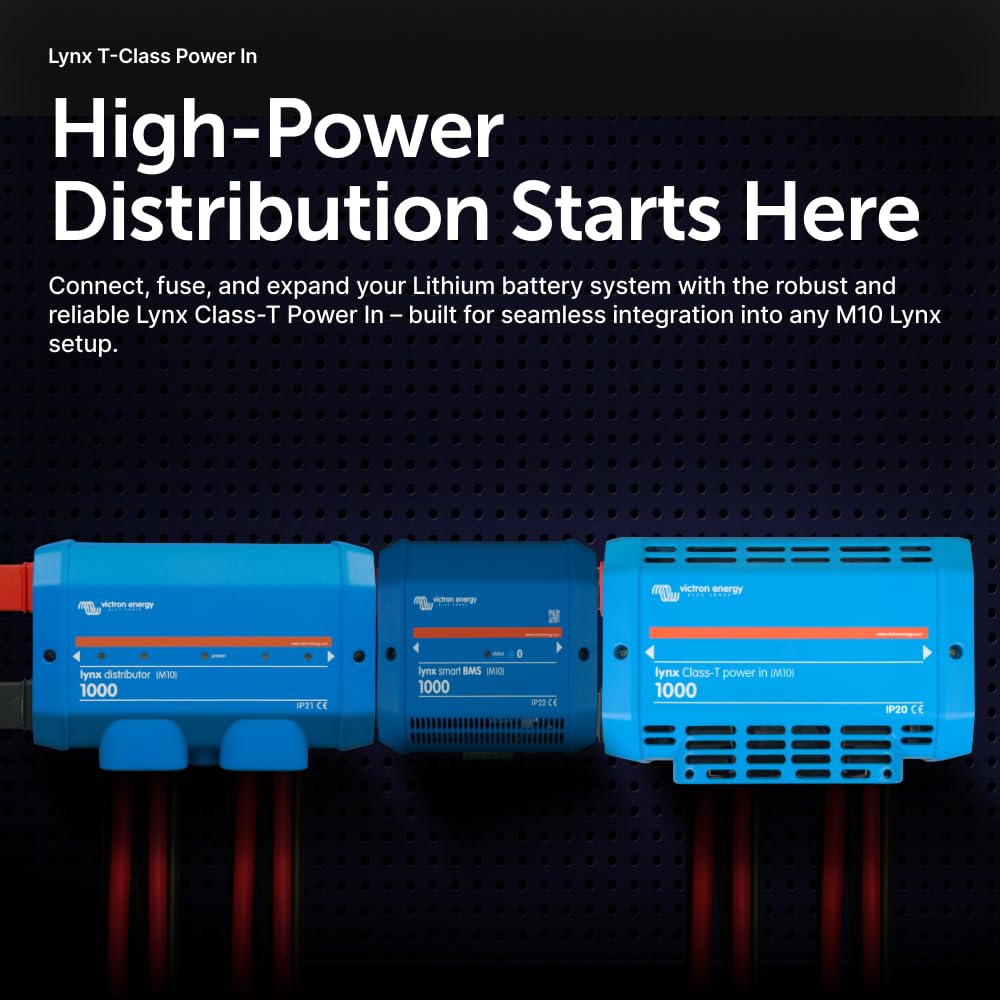

The module mounts directly into the Lynx bus assembly and interfaces with other M10 Lynx devices using the common DC bus. It provides a neat, plug-and-play way to add protected battery inputs without fabricating custom busbars or cables. Integration reduces wiring complexity and centralizes protection where the battery strings enter the system.

• Fits into the Lynx M10 bus architecture for clean assembly
• Works alongside Lynx shunt, distribution, and breaker modules
• Plug-in installation reduces on-site wiring time
• Maintains accessible fuse location for maintenance

Which battery configurations and fuse options are supported?

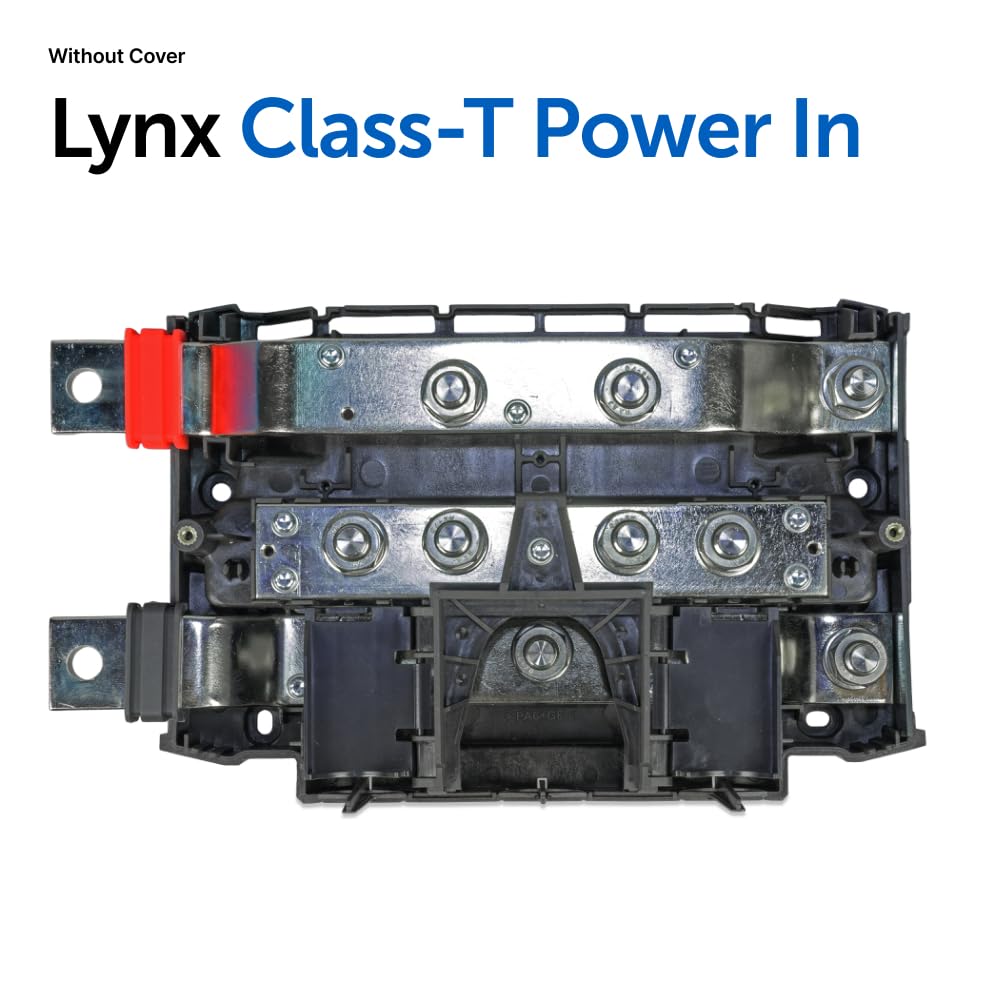

The unit accepts up to two separate lithium battery strings and provides individual Class-T fuse holders for each. Fuse cartridges are not included — choose 225A, 250A, 350A, or 400A Class-T fuses to match your system's maximum charge/discharge profile. For systems with three or more strings, multiple Class-T Power In modules can be combined to scale safely.

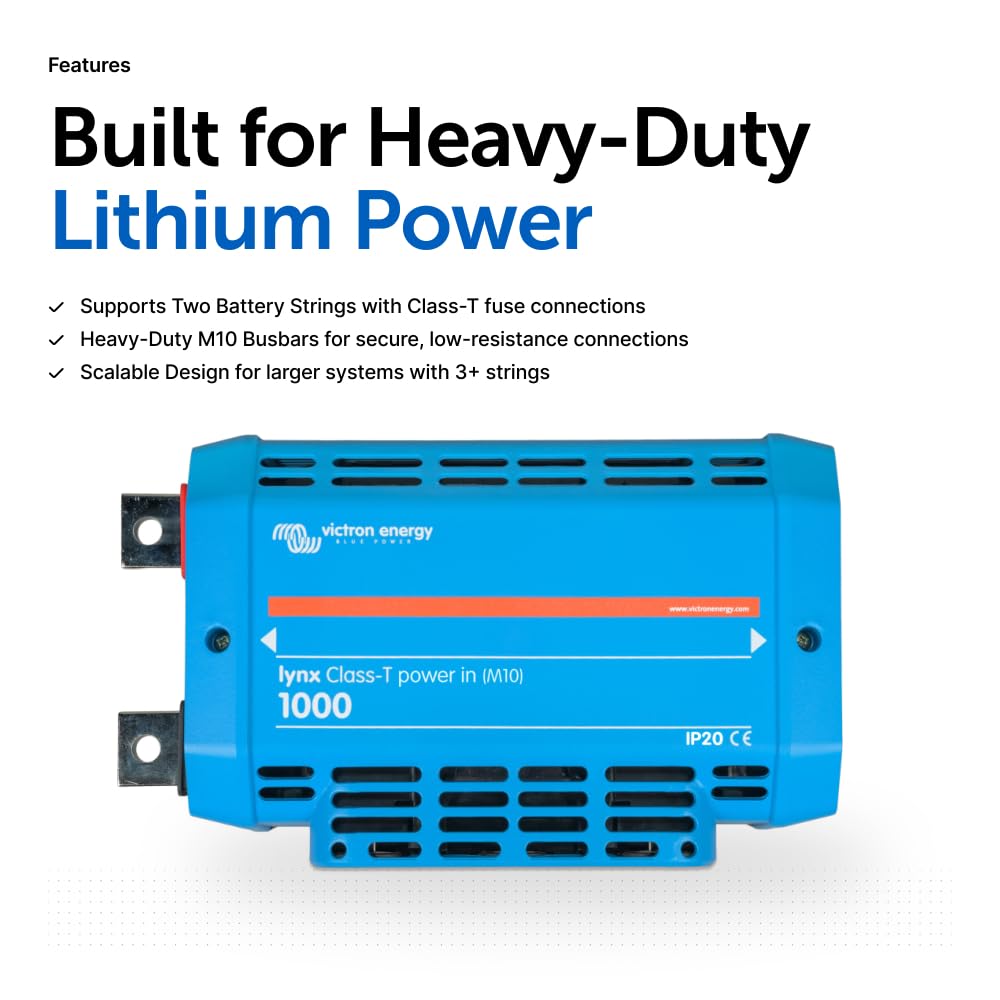

• Supports up to two battery strings per module
• Compatible with 225A, 250A, 350A, 400A Class-T fuses
• Install additional modules for multi-string systems
• Fuse choices let you size protection to inverter/battery specs

What installation and maintenance advantages does this module offer?

The Lynx Class-T Power In (M10) simplifies service access and keeps high-current fuses in a centralized, clearly labeled location. Its modular design reduces custom fabrication and speeds up commissioning, while standardized fuse cartridges make replacement straightforward for field technicians. The unit's layout helps maintain tidy DC wiring and safer inspection points.

• Accessible fuse holders for quick replacement
• Standardized Class-T cartridge format simplifies spares stocking
• Reduces need for custom busbars and welding on-site
• Organized wiring improves safety and system diagnostics

Who is this for? The Lynx Class-T Power In (M10) is aimed at installers, integrators, and advanced DIYers building small to medium lithium-based DC power systems who want a modular, serviceable way to bring battery strings into a Lynx Distribution network. It suits off-grid homes, marine installations, mobile power builds, and commercial systems that need clean, centralized DC protection without large bespoke busbar work. Choose appropriate Class-T fuses to match the battery and inverter ratings and combine multiple modules when more than two battery strings are required.
