Victron Energy Lynx Distributor M10 DC Bus Bar — 4 Fused Outputs, Modular with LED Fuse Indication

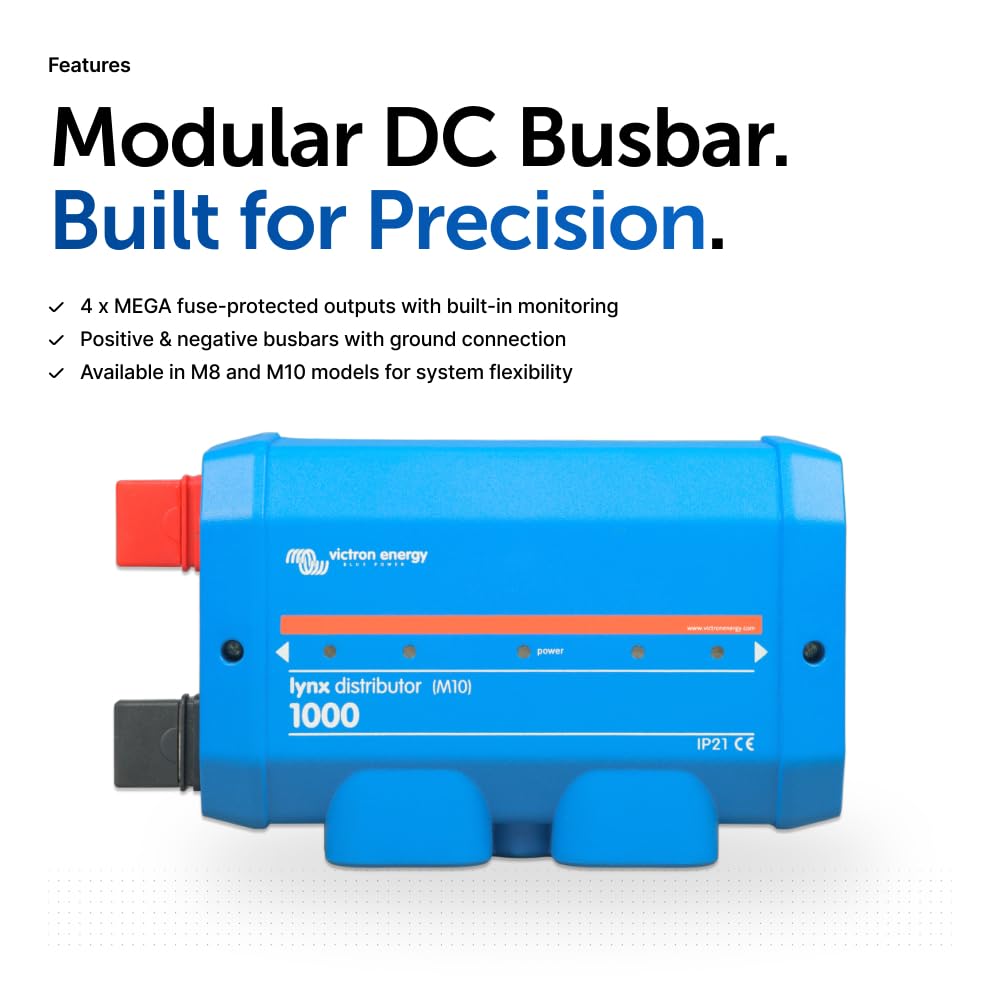

The Victron Energy Lynx Distributor is a modular M10 DC bus bar that splits positive and negative DC circuits into four individually fused outputs with optional LED fuse indication.

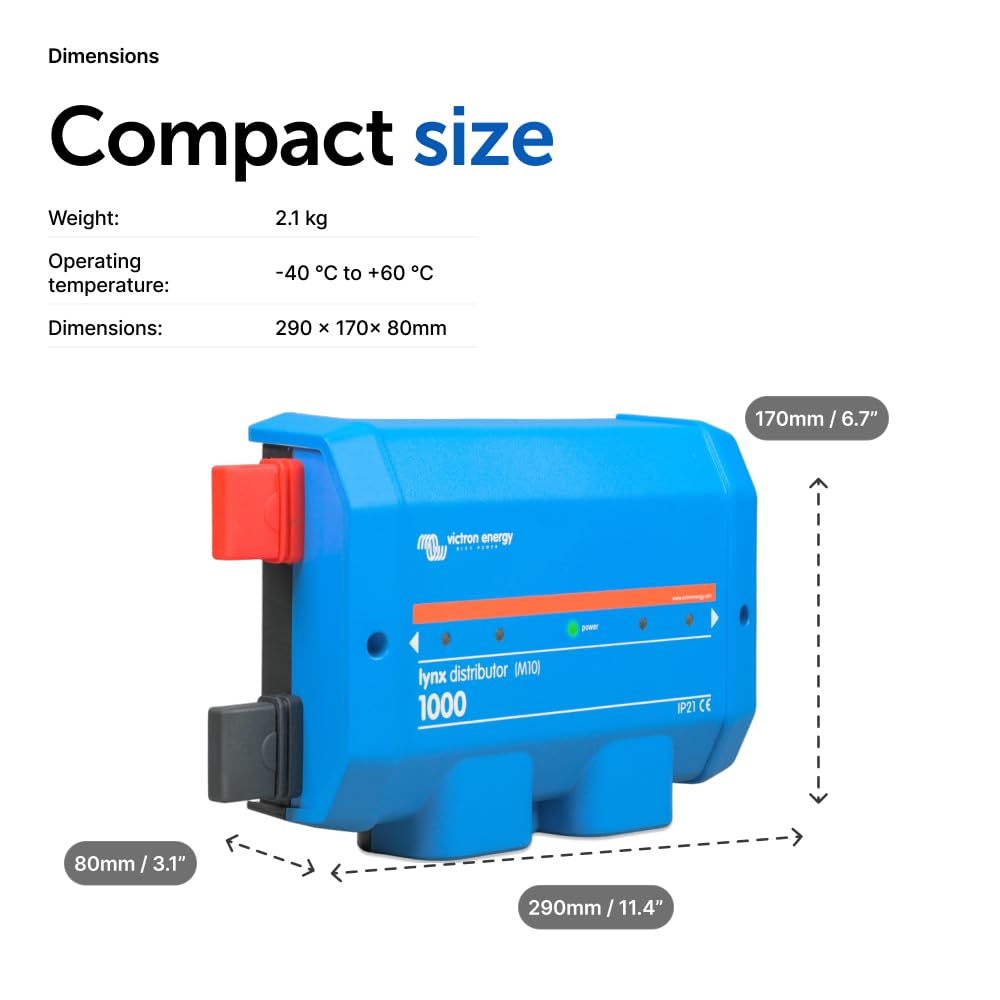

Compact and engineered for battery-based systems, the Lynx Distributor organizes DC wiring, centralizes fusing, and offers visible fuse-status LEDs when paired with a Lynx Shunt. Its M10 terminals accept heavy-gauge cables for reliable current distribution, while the modular layout keeps multiple loads tidy and protected in boats, RVs, off-grid cabins, and vehicle-power installations.

How does the Lynx Distributor simplify DC wiring?

The Lynx Distributor centralizes positive and negative bus bars so you connect main battery feeds once and distribute power to up to four separate DC groups. That eliminates multiple direct battery terminations, shortens cable runs, and reduces clutter for safer, neater installations.

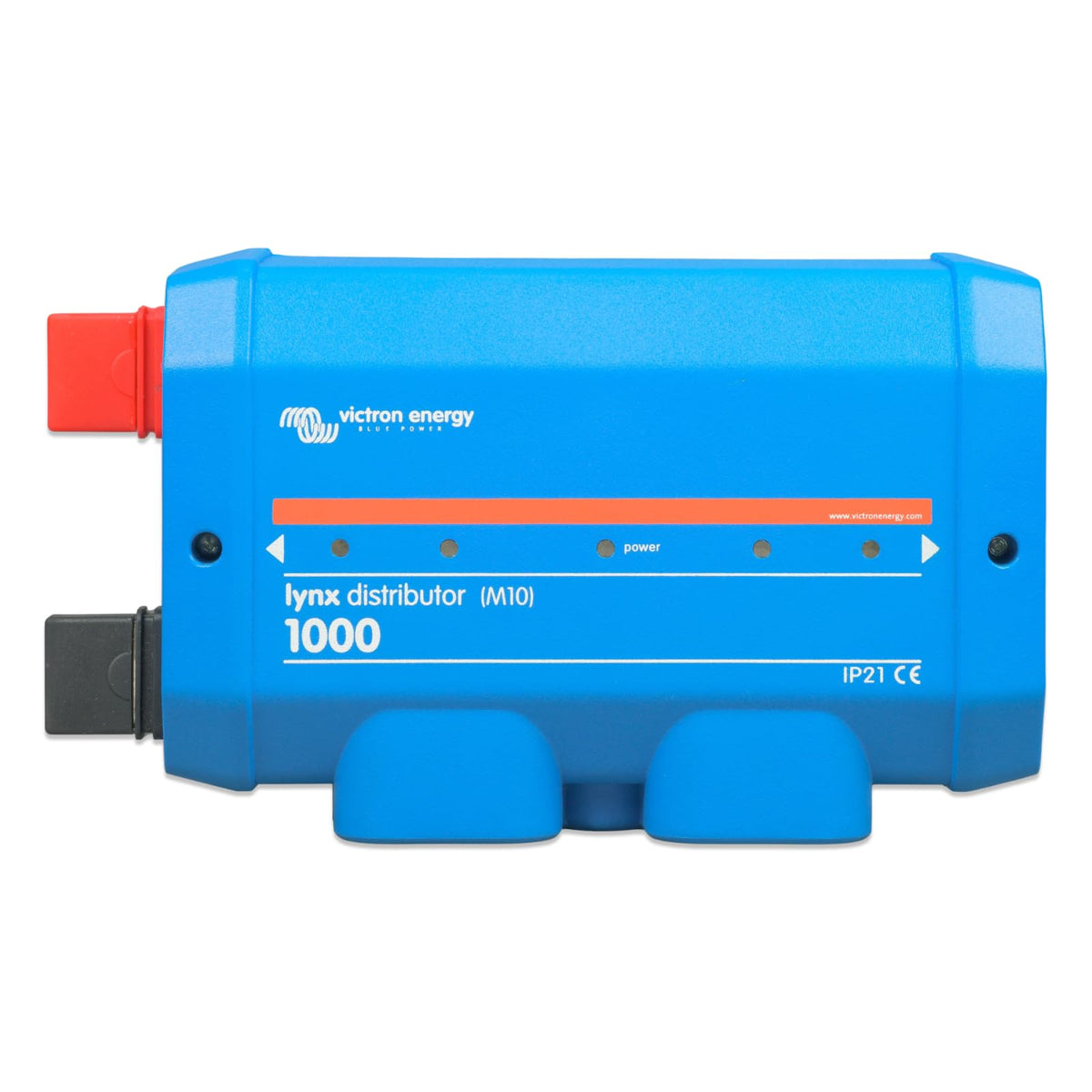

• Positive and negative M10 bus bar terminals for heavy conductors
• Four dedicated output positions to feed independent DC loads
• Neat cabling layout that reduces voltage drop and heat points

What fuse and status features does it provide?

Each output position accepts an individual DC fuse so each circuit is independently protected and serviceable. The unit also supports optional LED indicators to show fuse health; LEDs require a connection to a Victron Lynx Shunt to operate.

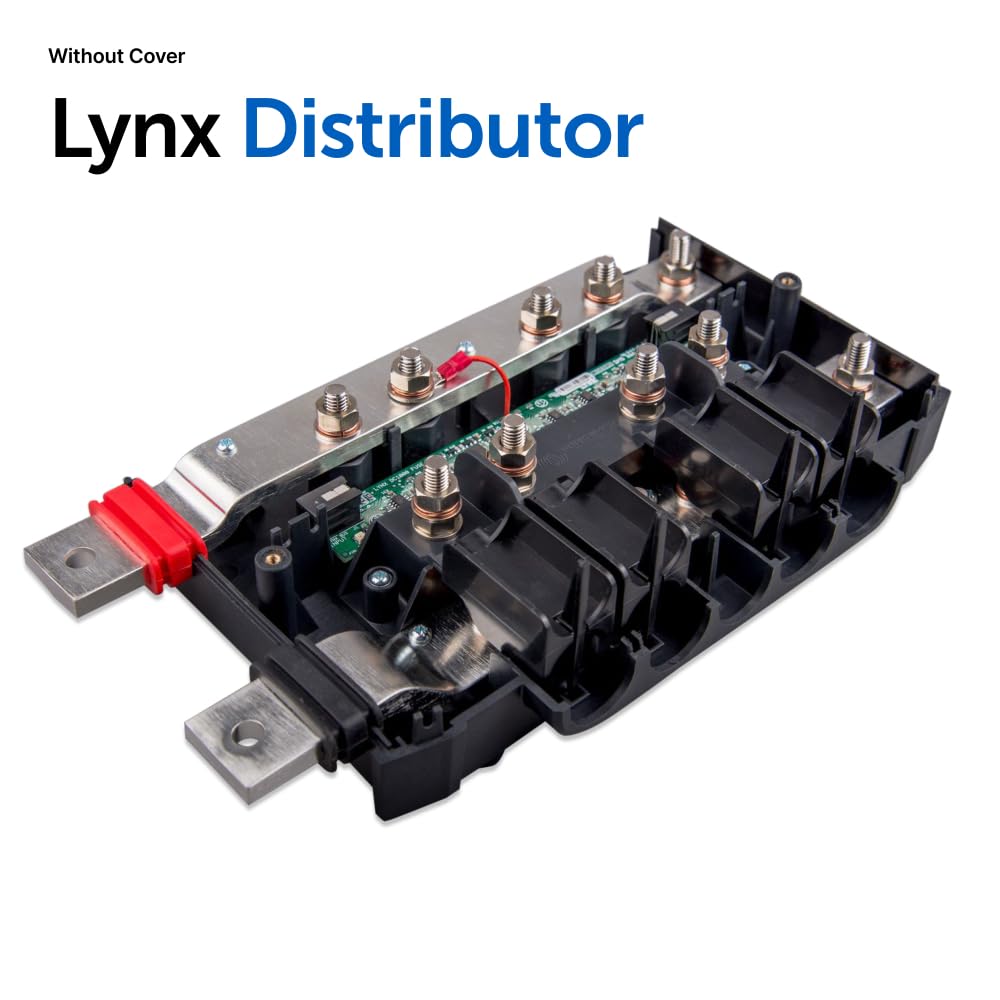

• Four individual fuse spaces—replaceable fuses per circuit
• Integrated LED sockets for visual blown-fuse indication (needs Lynx Shunt)
• Constant internal monitoring of fuse conditions for quick diagnostics

How is the Lynx Distributor installed and maintained?

Installation requires mounting the module in a dry, ventilated location and making M10 terminal connections for battery and load cables. Because DC work can be hazardous, Victron recommends installation and inspection by a licensed electrician or certified marine/vehicle technician and following local electrical codes.

• M10 terminal torque specifications for secure cable clamps
• Mount with adequate clearance for heat dissipation and access
• LED fuse indication needs wiring to a Lynx Shunt for power and signaling

What system types and components pair well with this distributor?

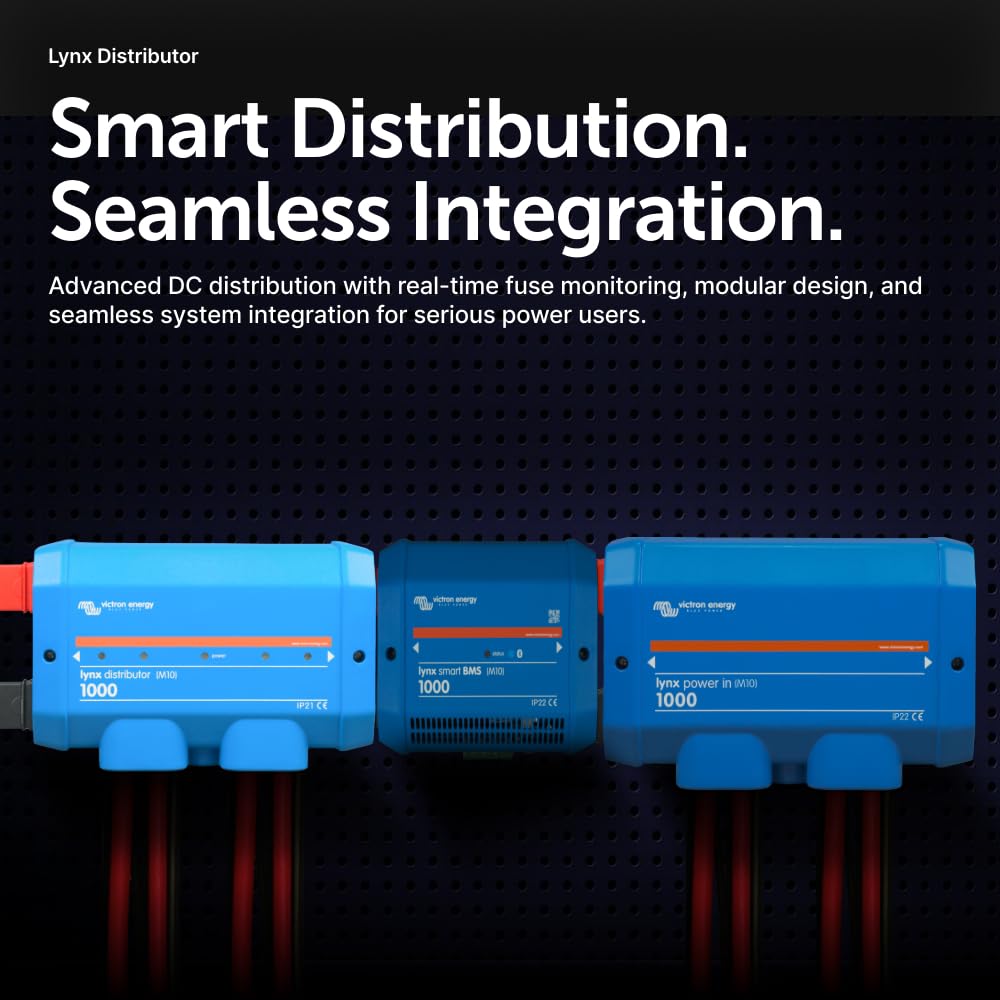

The Lynx Distributor is designed to integrate seamlessly within Victron Lynx systems and other battery-based installations. It works well with battery monitors, shunts, inverters, chargers, and distribution panels where neat, protected DC branching is needed.

• Use with Victron Lynx Shunt to activate LED fuse indicators
• Compatible with inverters, chargers, battery management units, and DC loads
• Ideal for marine, mobile, and off-grid residential power systems

Who is this for? Installers, boatbuilders, RV technicians, and off-grid homeowners who need a compact, professional DC distribution block will find the Lynx Distributor valuable. It suits anyone wanting centralized fusing, tidy cable runs, and optional LED fuse-status feedback when combined with Victron Lynx components. Always follow safety guidelines and use a qualified professional for installation and wiring verification.

• Key safety note: Incorrect installation can be hazardous—consult a licensed professional and adhere to all relevant electrical codes.
