VINCA Digital Rotor Gauge DRGA-0605 0–6 in (150mm) Stainless Steel — Large LCD & RS232

VINCA DRGA-0605 is a stainless-steel digital rotor gauge that measures brake rotor thickness from 0 to 6" (150mm) with high resolution and inch/metric/fraction display options.

This compact, shop-ready gauge is built for mechanics, technicians and fabricators who need a fast, repeatable way to check brake disc wear and verify machining results. The DRGA-0605 combines a rugged stainless-steel body with a large, easy-to-read LCD, fine 0.0005"/0.01mm resolution, and multi-unit display so you can work in inches, millimeters or fractions without conversion errors.

How accurate and precise is the VINCA DRGA-0605?

The DRGA-0605 delivers precise readings suitable for brake inspection and precision machining. It offers a resolution of 0.0005" (0.01mm) and fractional readout to 1/128", with an accuracy of ±0.08mm (±0.003").

• Measuring range: 0–6" (0–150mm)
• Resolution: 0.0005" / 0.01mm / 1/128"
• Accuracy: ±0.08mm / ±0.003"

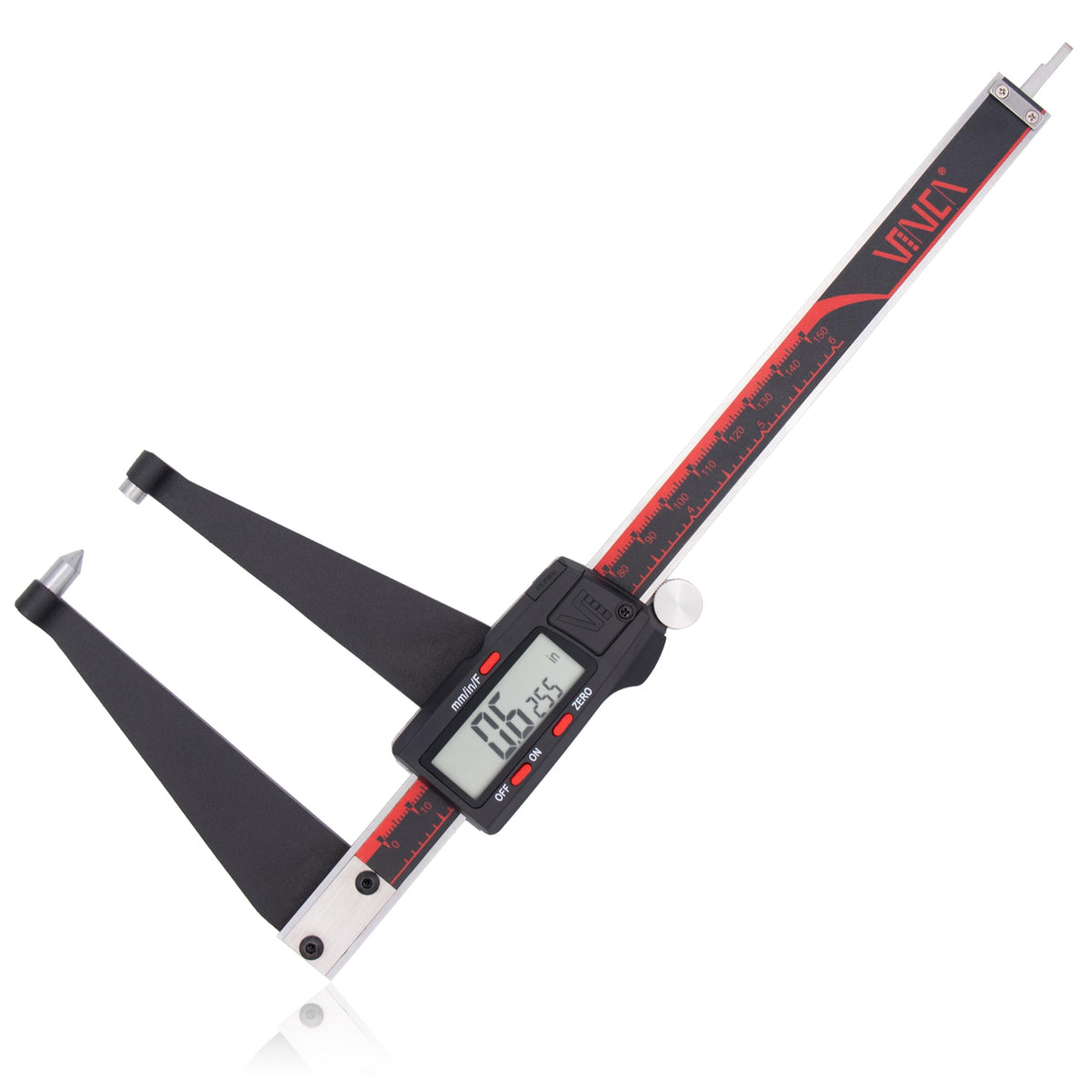

• Stainless-steel construction for stable, repeatable contact

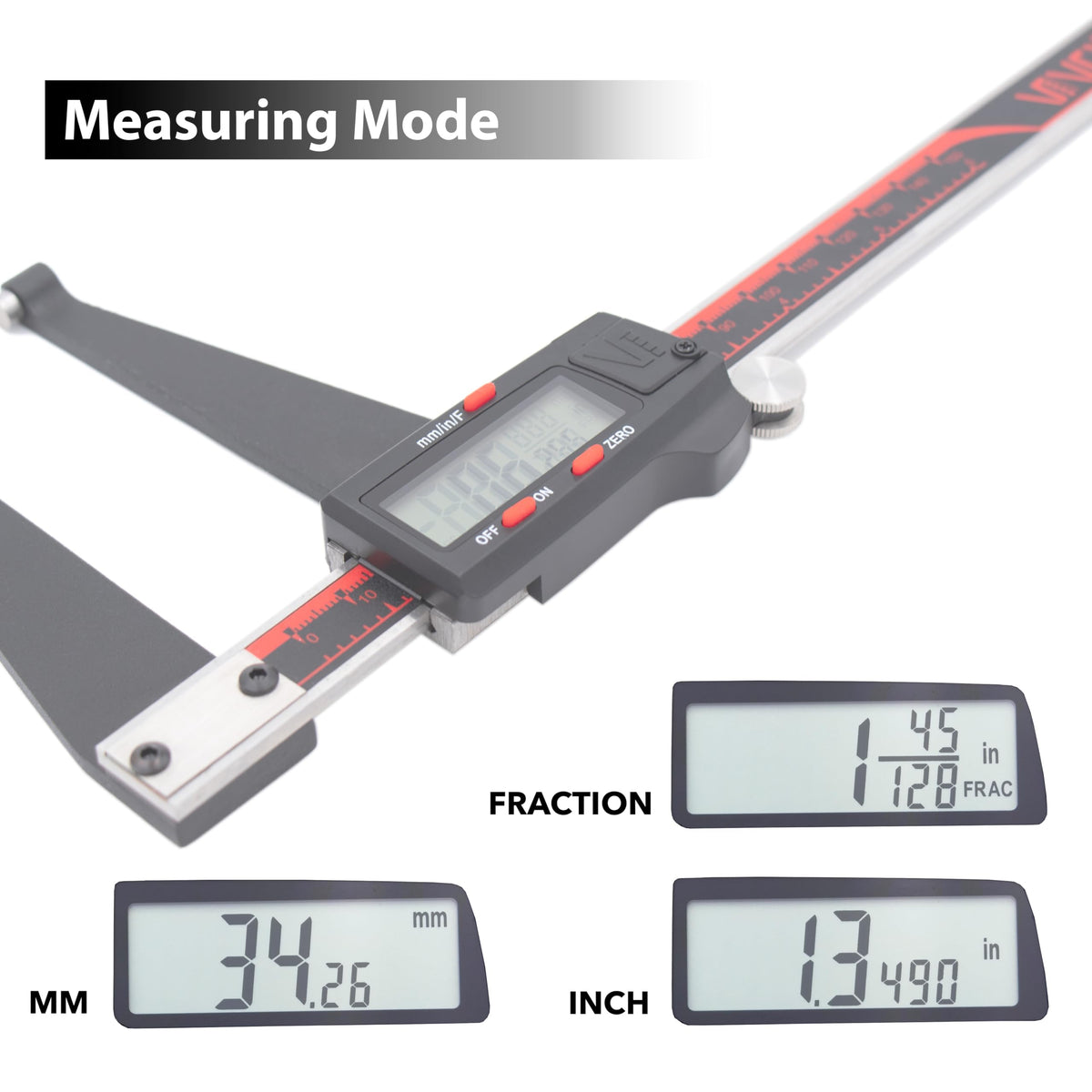

What display and readout features help speed inspections?

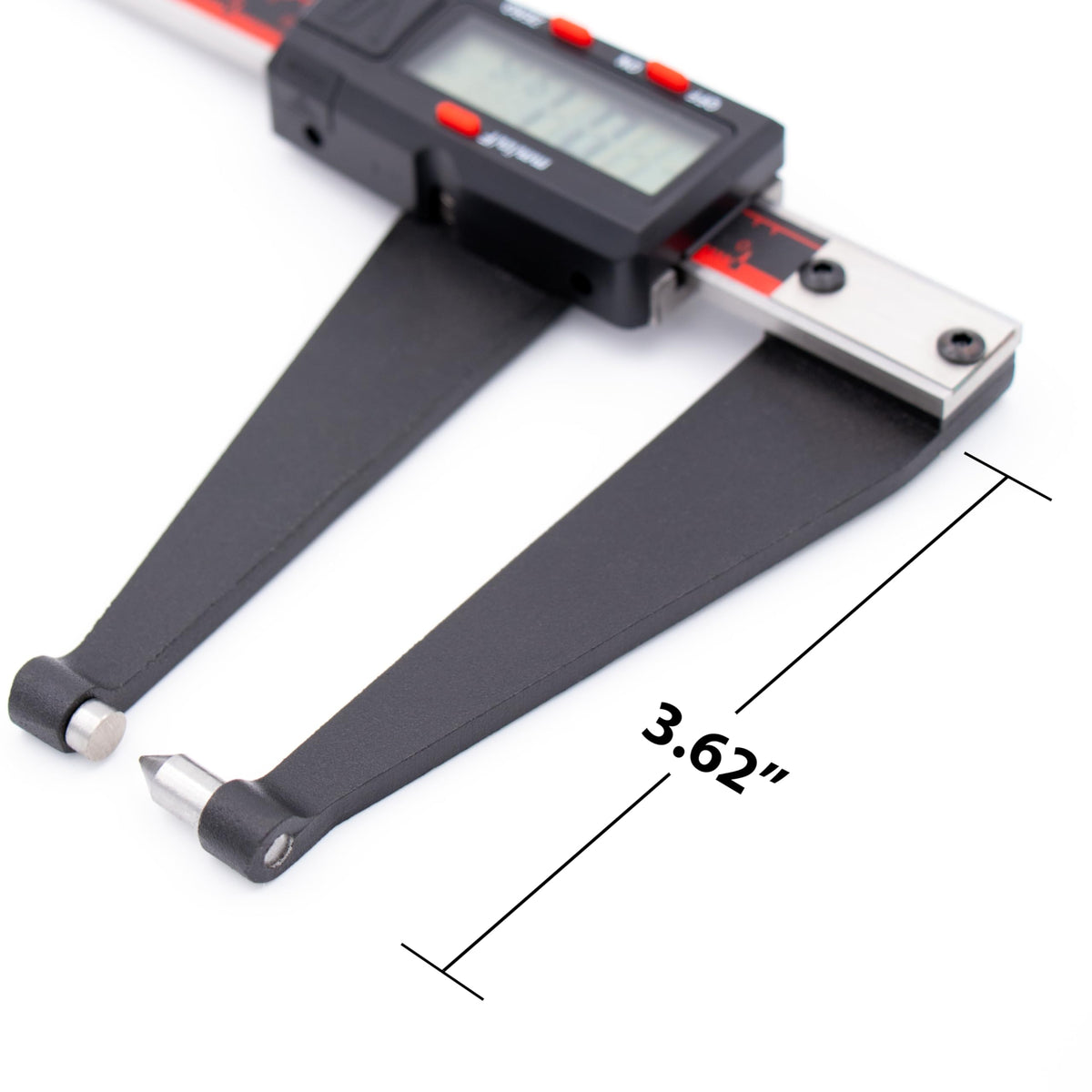

The gauge includes a 1/2" x 1 1/2" (13mm x 38mm) large LCD that keeps figures clear at a glance, reducing rechecks and eye strain during batch inspections. Switch units instantly between inches, millimeters and fractions to match service manuals or machine setups.

• Extra-large LCD for quick reading in dim shop light
• One-button unit conversion (inch / mm / fraction)
• Clear numerical display to prevent transcription errors

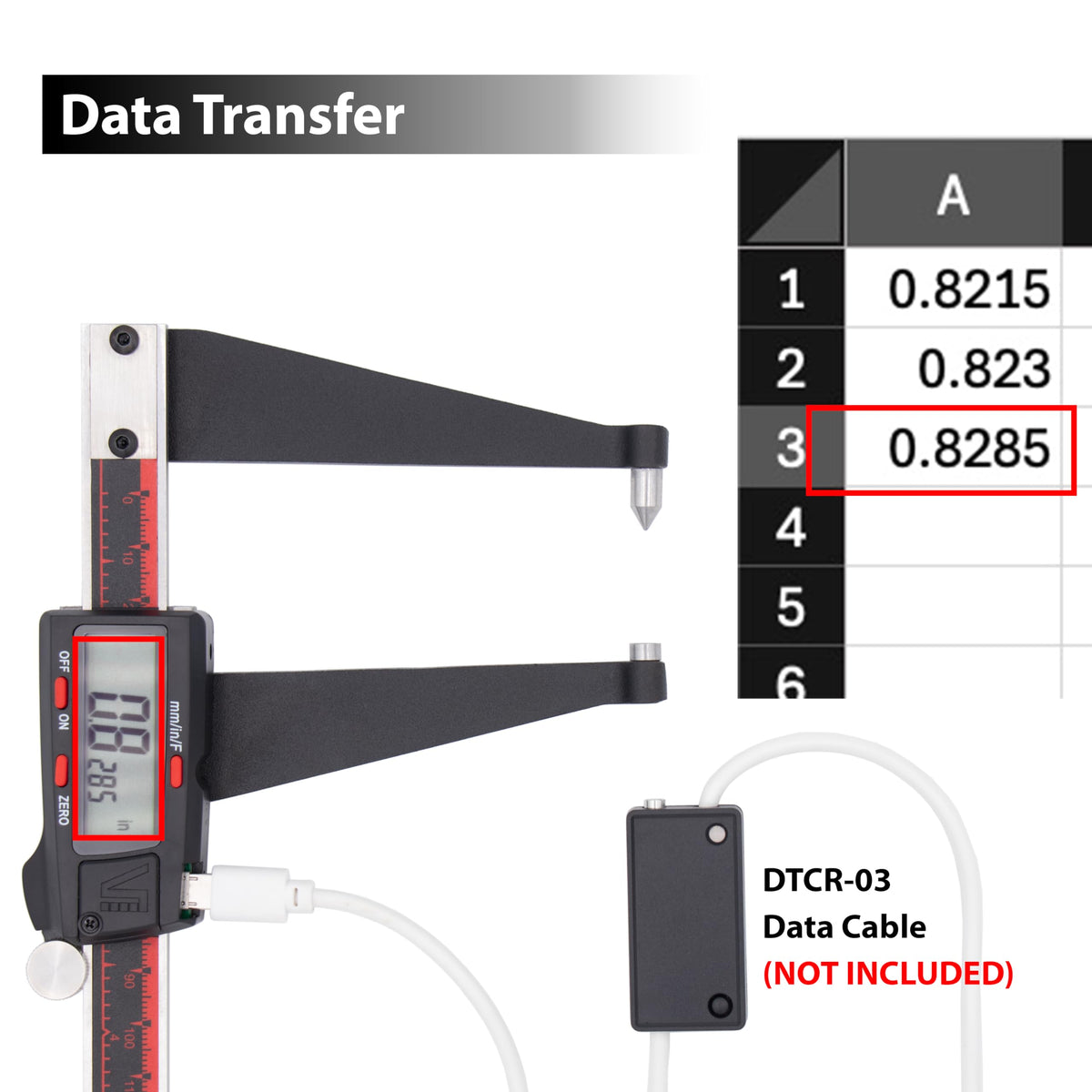

Can I record measurements or connect to a computer?

Yes — the DRGA-0605 supports digital data transfer through an RS232 port, enabling logging and automated reporting. For PC connectivity use VINCA DTCR-03 cable (sold separately); do not substitute a regular USB cable to avoid connection issues.

• RS232 output for direct data capture
• Requires VINCA DTCR-03 cable (not included)
• Ideal for quality-control records and machining verification

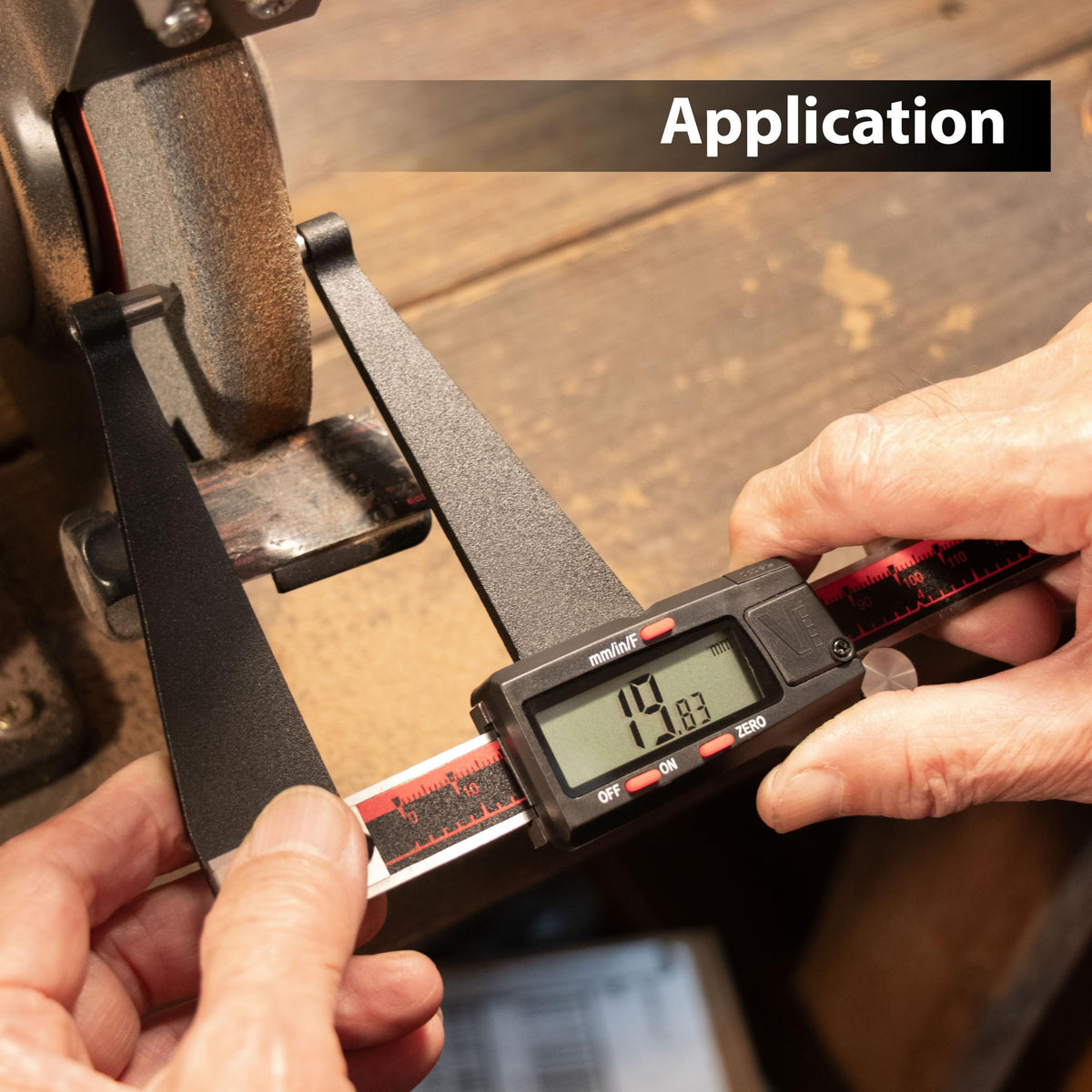

Who is this for? The VINCA DRGA-0605 is aimed at automotive shops, brake rebuilders, machinists and quality-control technicians who need an accurate, durable rotor thickness gauge with clear readout and digital logging capability. It’s practical for routine brake inspections, post-machining checks, and any workflow that benefits from precise rotor-thickness data and repeatable measurements.

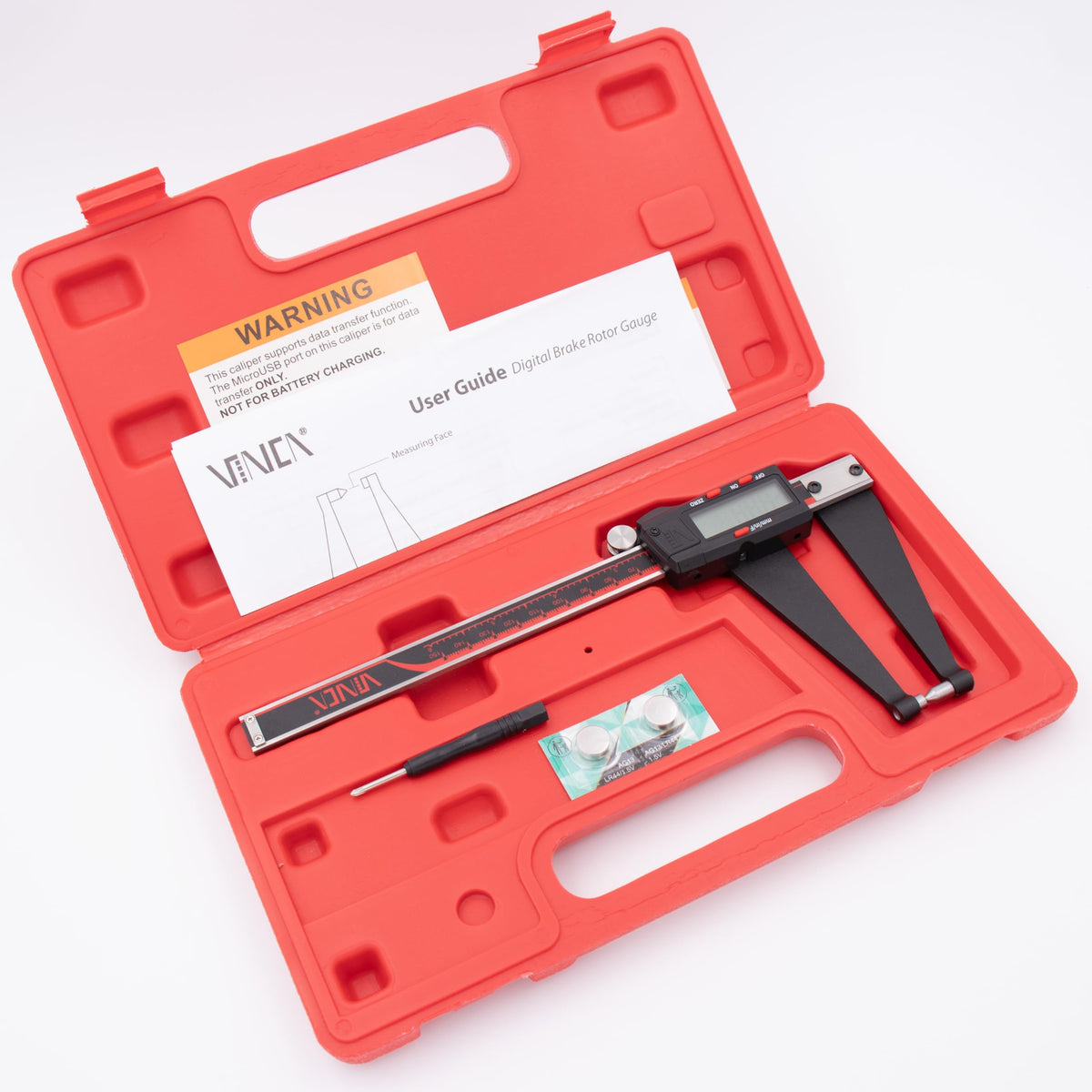

Additional practical details: the gauge ships with an extra battery for extended use and uses a US-patented design for durability in professional environments. Its stainless-steel frame resists shop wear while the compact form factor fits into a toolbox or bench kit for field service. Note: the RS232 cable is optional and sold separately as VINCA DTCR-03.
