Vkinman Liquid Line Filter Drier 3/8" ODF EK-083S — 600 PSI Refrigerant Moisture & Particle Protection

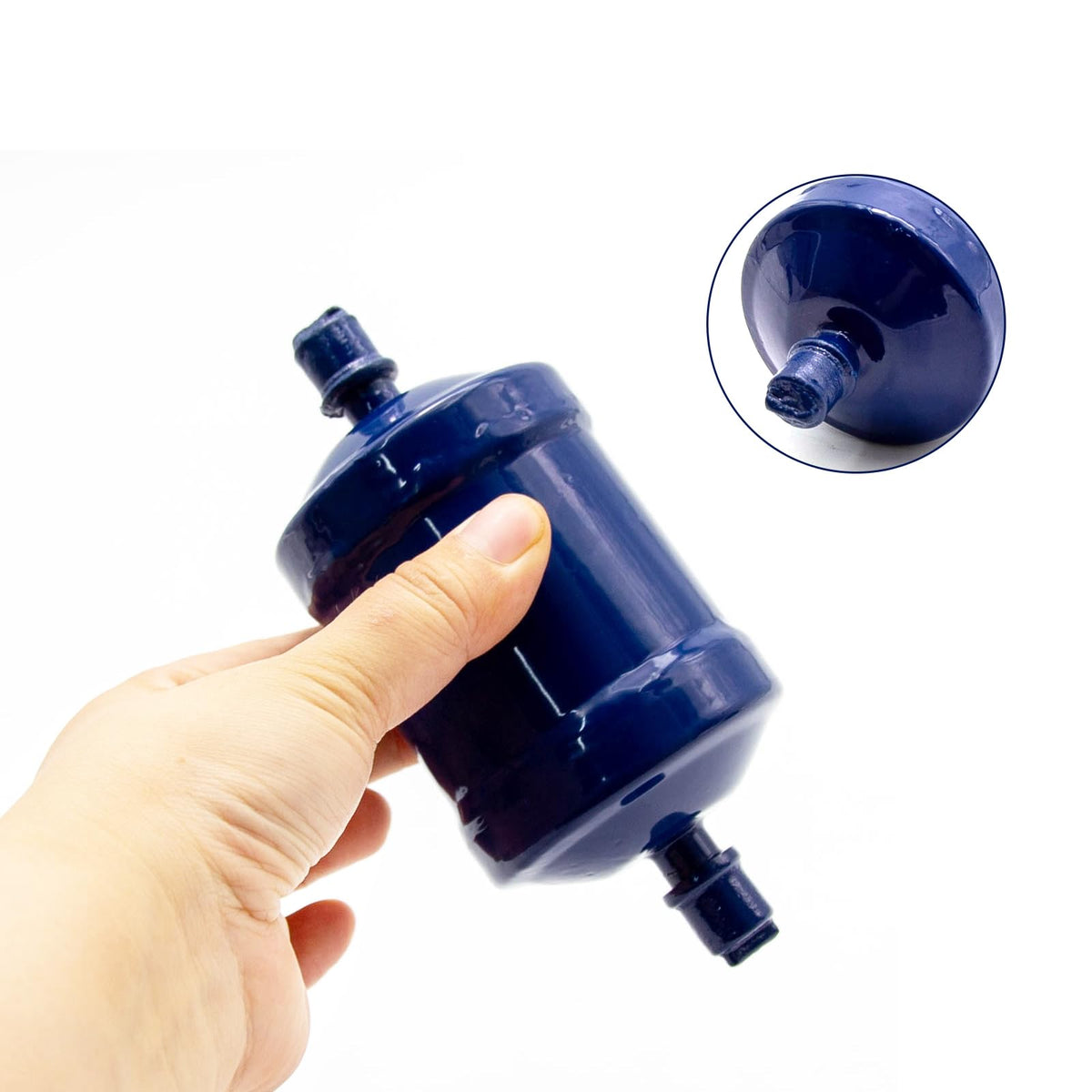

Vkinman EK-083S liquid line filter drier is a compact 3/8" ODF in-line unit that removes moisture and solid contaminants from refrigerant to protect heat pumps and air conditioning systems.

Built for technicians and DIY-savvy homeowners, this Vkinman EK-083S filter drier is engineered to keep refrigerant circuits clean and dry across a wide range of refrigerants including R22, R134a, R404A, R407C, R502 and R507. Rated to withstand up to 600 PSI (4140 kPa), the device connects with 3/8" ODF fittings and installs in the liquid line to trap particles and absorb moisture before they reach expansion devices or compressors. Its straightforward design makes it a practical, low-cost part to include during repairs, retrofits, or routine system maintenance.

How does this filter drier reduce system downtime?

The EK-083S captures particulates and chemically binds moisture so contaminants don't clog or corrode downstream components. Cleaner refrigerant helps expansion valves operate correctly and lowers the risk of compressor damage due to moisture-related reactions.

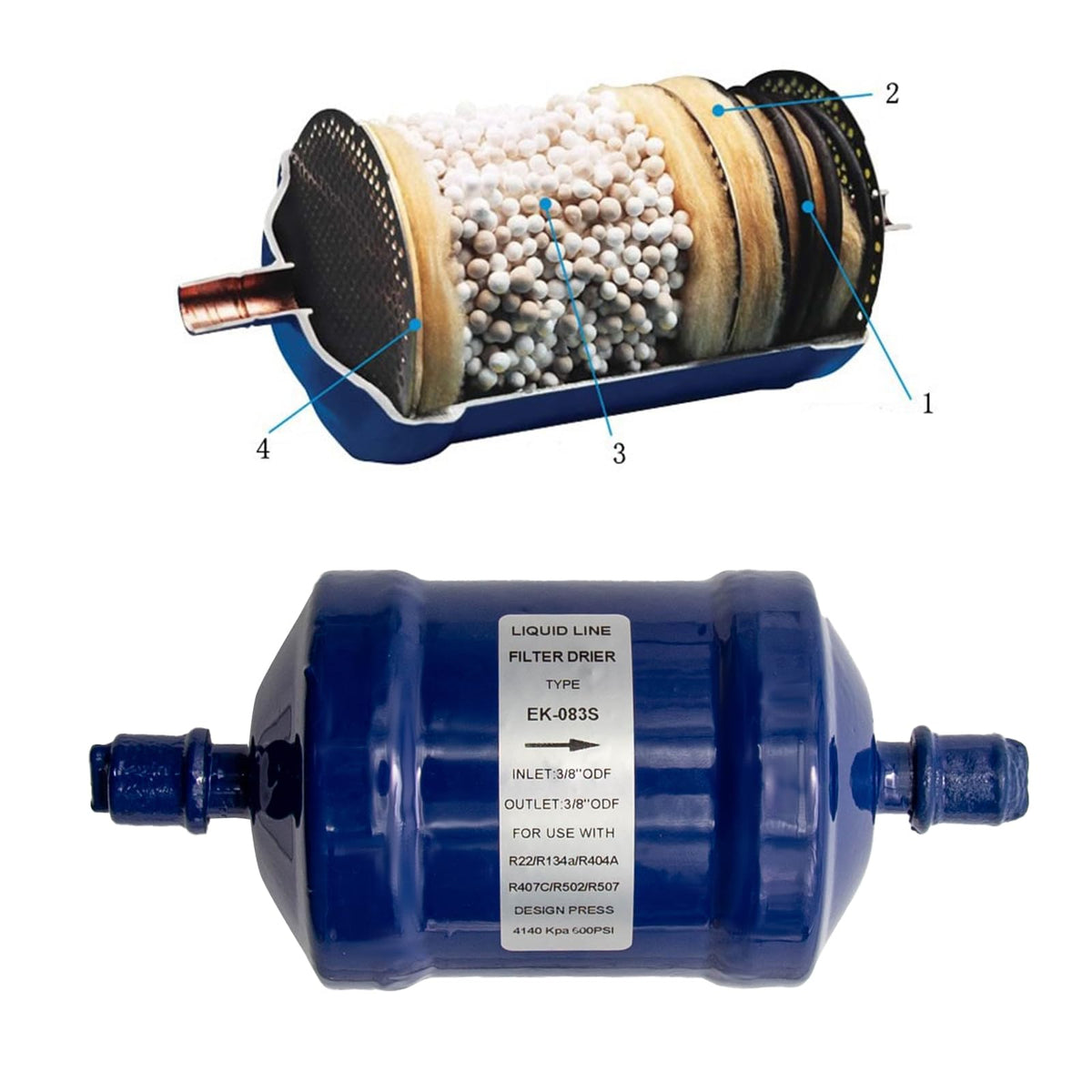

• Desiccant core absorbs moisture and reduces freeze risks at expansion devices.
• Internal media traps metal shavings and debris from installations or wear.
• Installed in the liquid line ahead of the metering device for maximum protection.

Which refrigerants and pressures is this compatible with?

The EK-083S is suitable for multiple common refrigerants used in heat pumps and air conditioners and is built to a robust working-pressure specification. Check compatibility with your system refrigerant and service limits before installation.

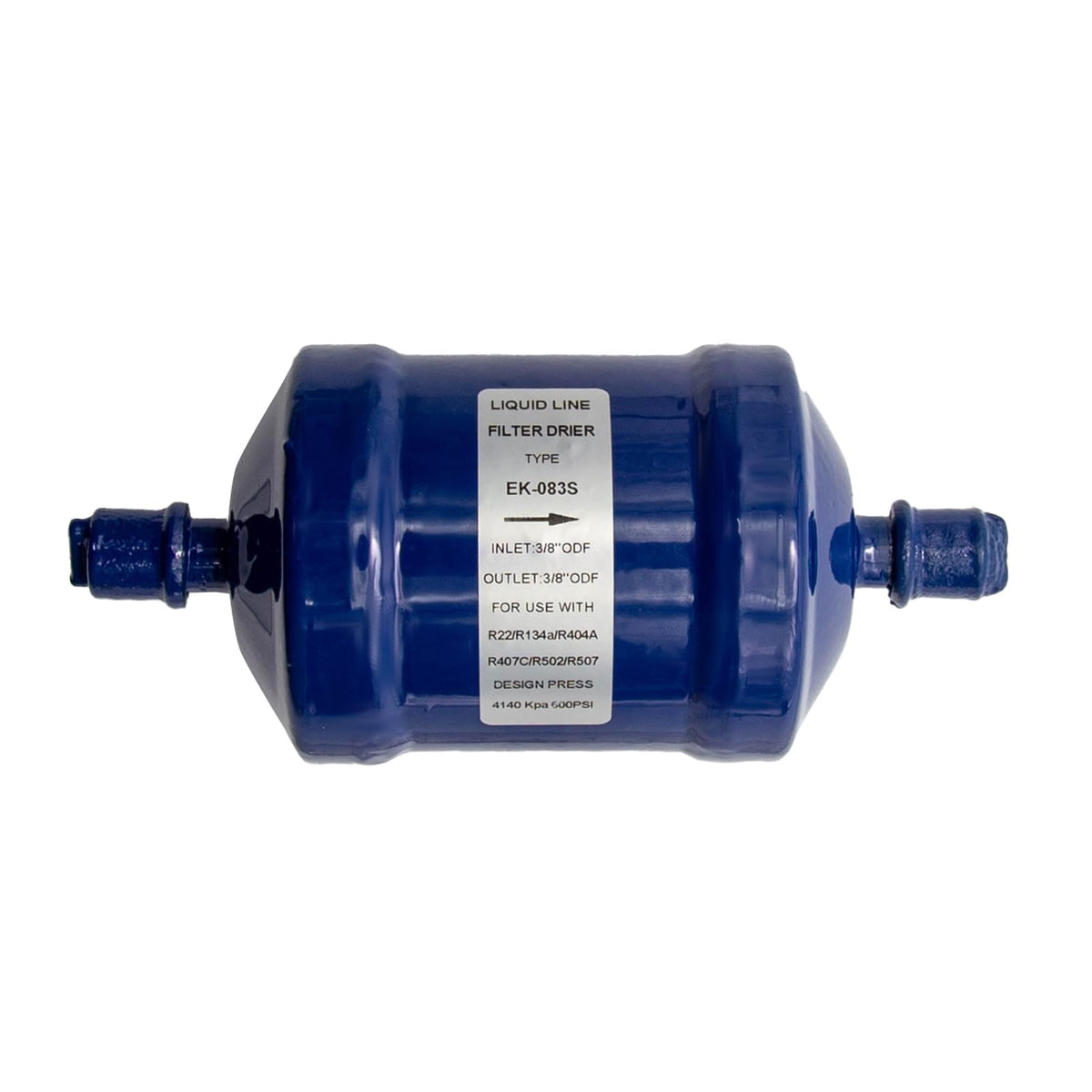

• Compatible refrigerants: R22, R134a, R404A, R407C, R502, R507.
• Maximum working pressure: 600 PSI (4140 kPa).

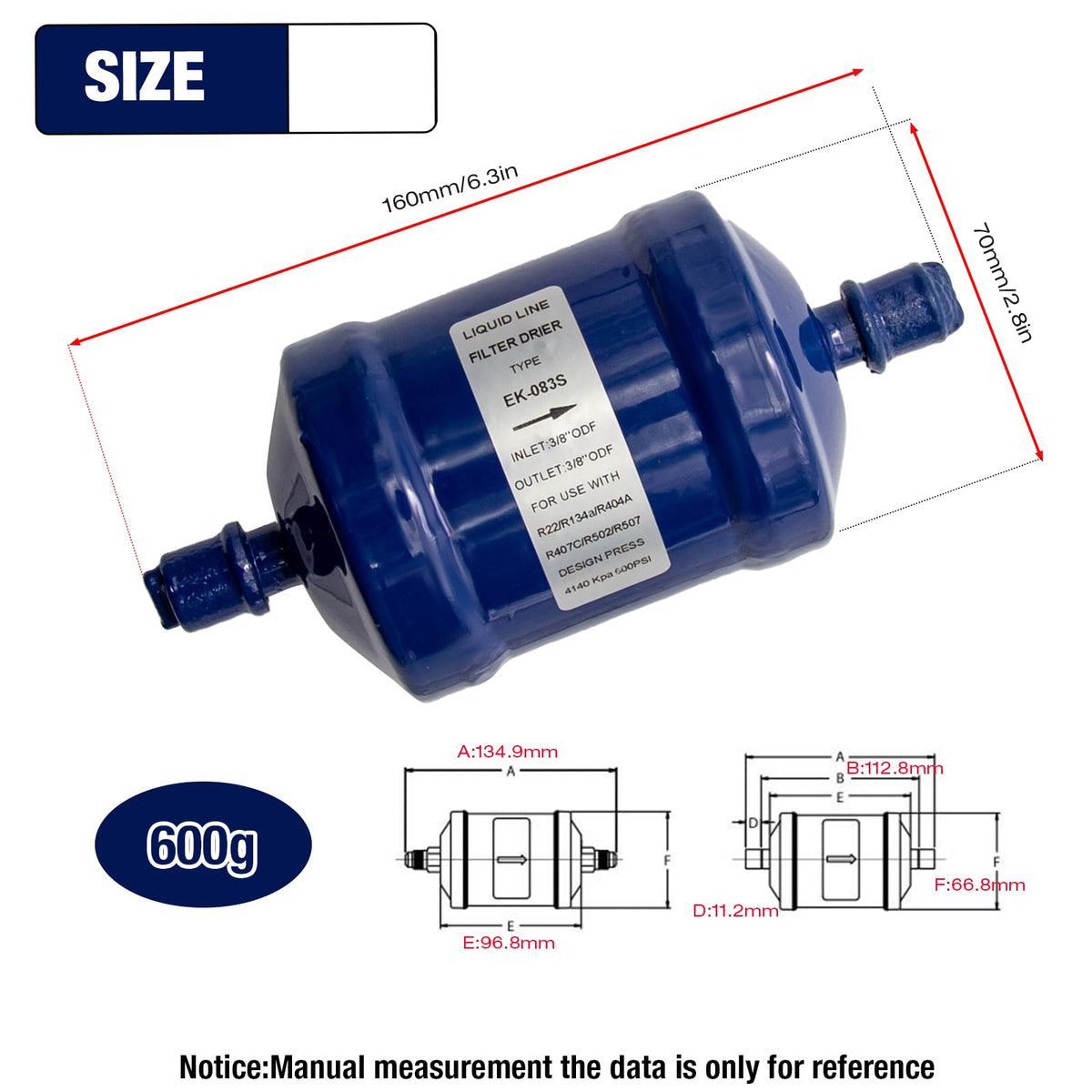

• Connection type: 3/8" ODF (sweat) for soldering to standard liquid lines.

What are the practical installation and maintenance considerations?

Installation is simple for a trained HVAC technician using standard brazing or sweat techniques for ODF connections. Replace the drier whenever a system is opened, contaminated, or after compressor failure to prevent recontamination.

• Install in the liquid line upstream of the expansion device for best results.
• Use appropriate torch technique and purge with nitrogen during brazing to protect internals.
• Replace after major repairs, compressor burnout, or when moisture indicators signal saturation.

How will this component affect system longevity and efficiency?

Keeping refrigerant free of moisture and particles improves metering accuracy and reduces wear on the compressor and valves. While not a performance booster by itself, a properly selected and installed filter drier helps the system perform more reliably over time.

• Prevents ice formation and acid production that damage compressors and valves.
• Reduces risk of valve clogging and erratic superheat readings.
• Cost-effective preventative part for routine service intervals or post-repair replacement.

Who is this for: The Vkinman EK-083S liquid line filter drier is intended for HVAC technicians, refrigeration professionals, and knowledgeable homeowners servicing heat pumps, air conditioners, or refrigeration units using the listed refrigerants. It’s ideal for routine system service, component replacements, retrofit work, and emergency repairs where moisture and particulate removal is required to protect metering devices and compressors. Always confirm refrigerant compatibility and pressure ratings for your application and follow proper brazing and safety procedures during installation.
