Vphix Fuel Tank Sending Unit FG86A — Classic 16‑gal replacement for 1960–1968 Falcon & Mustang

Vphix FG86A is a direct-replacement fuel tank sending unit engineered to restore accurate fuel-level readings in 1960–1968 Ford and Mercury compact and pony cars.

If your vintage Falcon, Mustang, Comet or Cougar shows erratic or stuck fuel gauges, a worn sending unit is a common culprit. The Vphix Classic Fuel Tank Sending Unit FG86A is built to fit the original-style 16‑gallon replacement tanks (and specific OE configurations listed below), giving a plug-and-play upgrade that helps return your dash gauge to dependable operation without significant tank modification.

Will this unit fit my specific year and model?

The Vphix FG86A covers a range of 1960s Ford and Mercury cars but requires matching tank type and line size. It is designed for Falcon, Comet, Mustang, and Cougar applications that used the 16‑gallon replacement fuel tank and the listed electrical/line setups.

• Fits 1960–1965 Ford Falcon (for use with 16-gallon replacement tank).
• Compatible with 1964–1968 Ford Mustang that use 3/8" fuel line and have no low-fuel warning circuit.
• Fits 1960–1963 Mercury Comet with 16-gallon replacement tank (excludes station wagon, Ranchero, and 14-gallon OE tanks).
• Also suitable for 1967–1968 Mercury Cougar applications matching above tank/line specs.

How simple is installation and what hardware is required?

Installation is straightforward for mechanically inclined owners and restoration shops: the unit mounts to the tank sending opening using the same footprint as the original. Basic tools and care to avoid fuel spillage are required; some vehicles may need minor re-drilling or gasket changes depending on previous repairs or tank replacements.

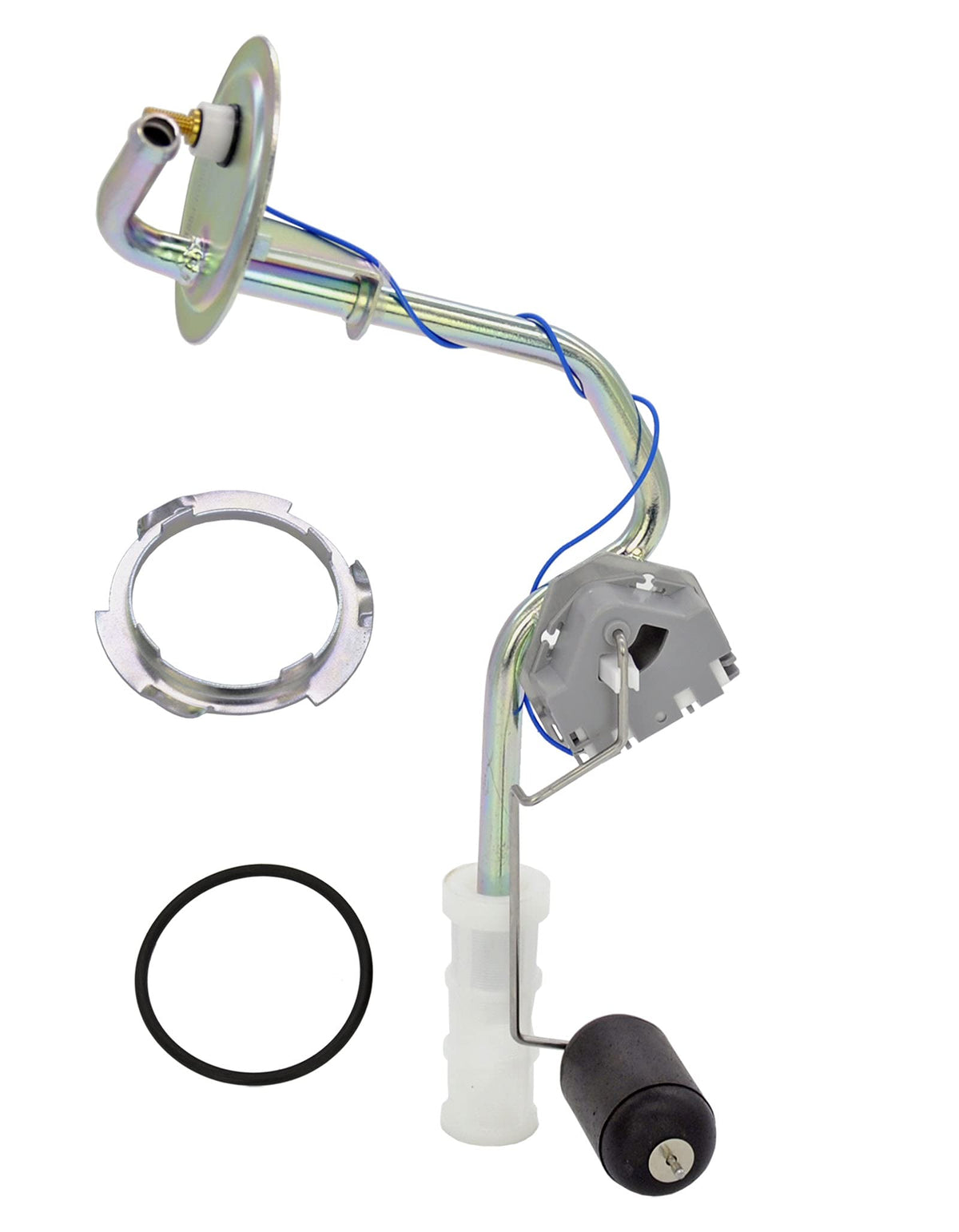

• Uses the OEM-style mounting flange—verify measurement against your tank opening before fitting.
• Requires matching electrical connector or simple terminal splicing for older wiring harnesses.

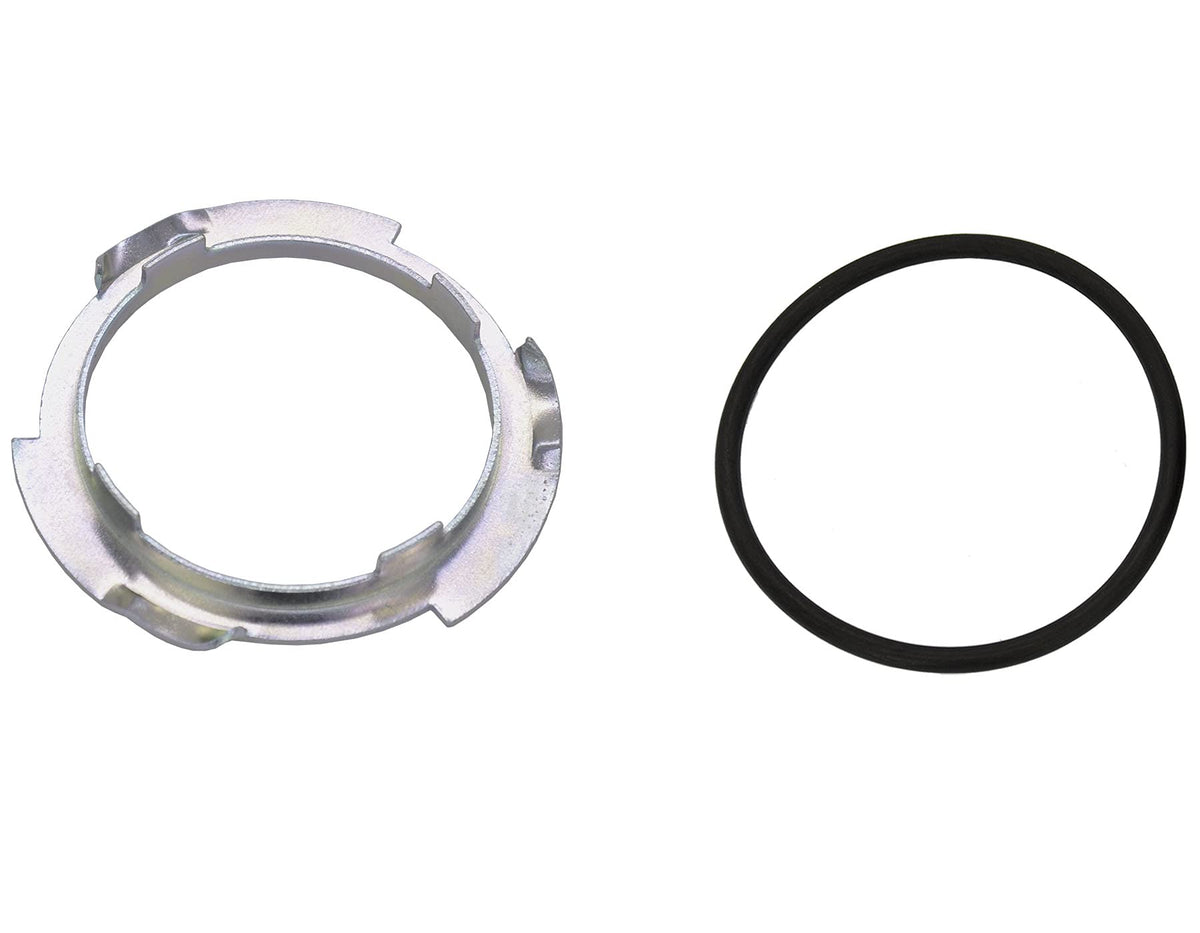

• Replace or reuse the original tank gasket to ensure a proper seal and prevent leaks.
• Recommended fuel level calibration after installation to confirm accurate gauge readings.

What materials and build quality can I expect from the Vphix FG86A?

Vphix engineered the FG86A with corrosion-resistant components and durable float mechanisms suited for classic car fuel environments. The assembly balances vintage fitment requirements with modern materials to extend service life versus aged original parts.

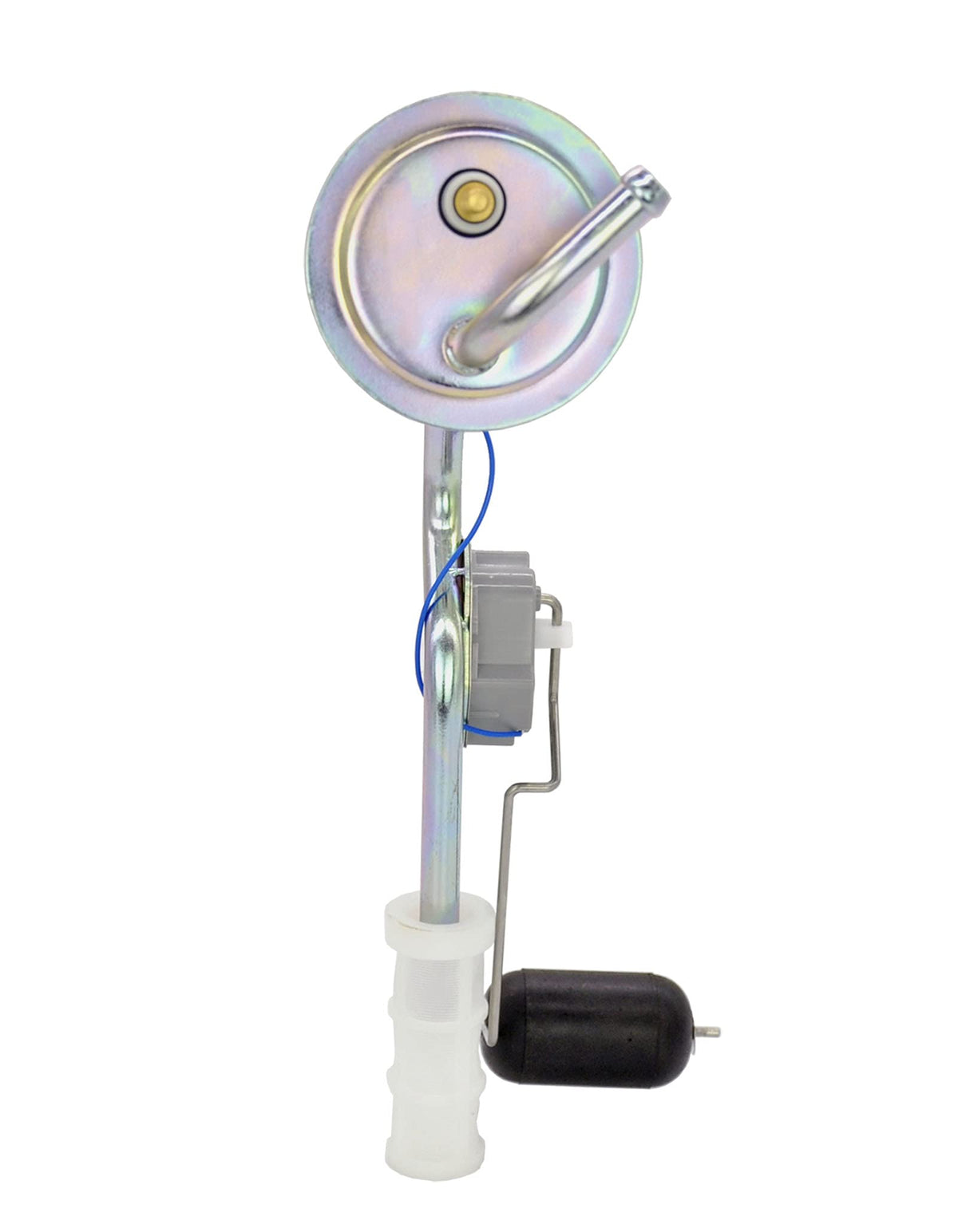

• Corrosion-resistant sender arm and float to withstand ethanol-blended fuels.

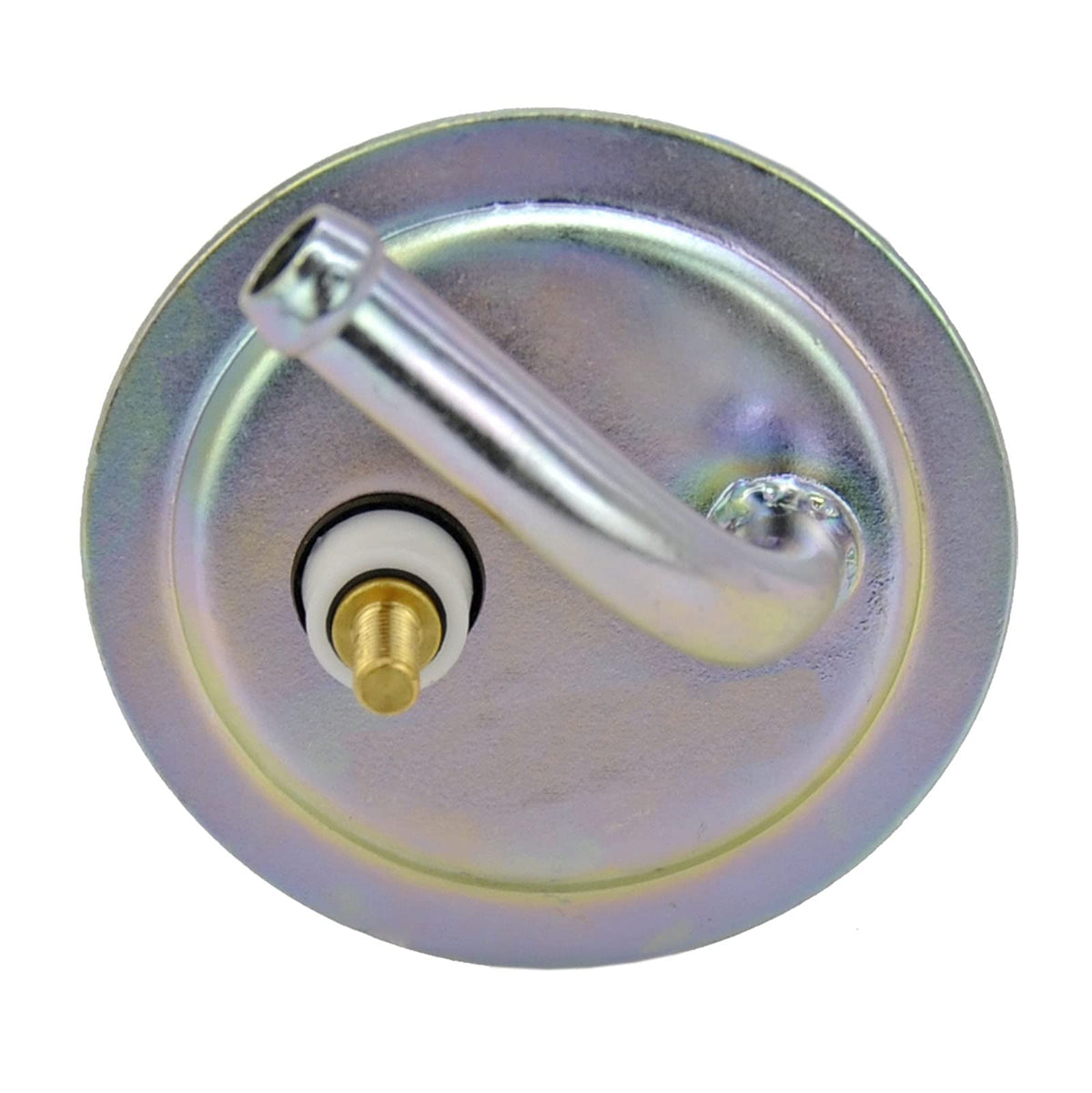

• Robust electrical contacts for consistent signal to the gauge cluster.

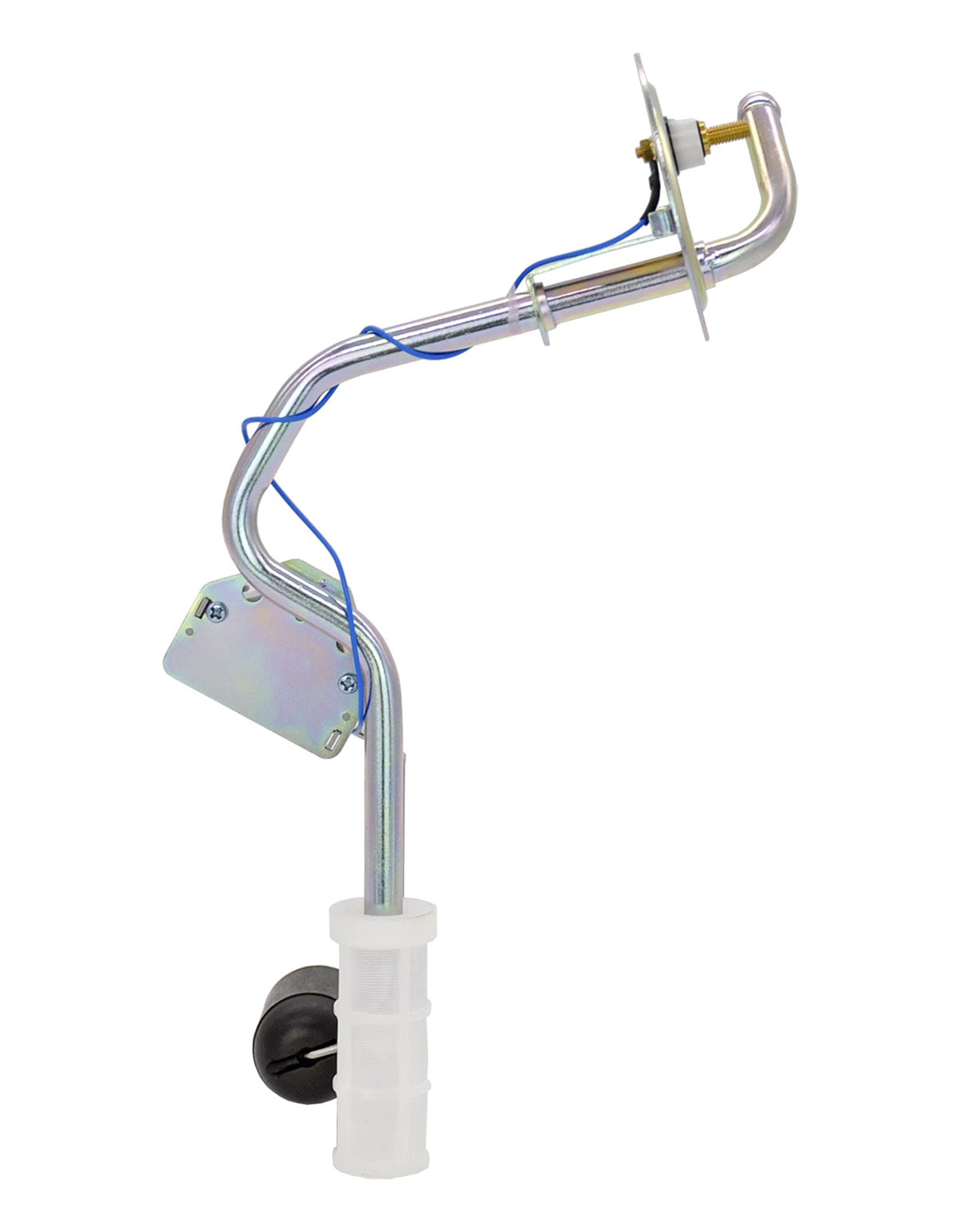

• Precision float travel matched to original resistance curve for accurate readings.
• Pre-assembled for quick installation, minimizing time under the vehicle.

Are there any limitations or things to check before purchasing?

Confirm your vehicle’s tank capacity, fuel line size, and presence of a low-fuel indicator circuit before ordering. The FG86A does not fit OE 14‑gallon tanks, station wagon or Ranchero variants that used different sender designs, nor Mustang models with 5/16" fuel lines or integrated low fuel light wiring.

• Not compatible with 14-gallon OE tanks without modification.
• Not intended for Mustang variants using 5/16" fuel lines or low-fuel lamp circuits.
• Verify float arm orientation and sink clearance inside your replacement tank.
• Read vehicle-specific fitment notes to avoid returns or modifications.

Who is this for: The Vphix FG86A is aimed at restorers, hobbyists, and professional mechanics working on 1960–1968 Ford and Mercury compact/pony cars who need a reliable, OEM-pattern fuel level sender for projects using 16‑gallon replacement tanks. If you require an original 14‑gallon OE fitment, low-fuel lamp integration, or a different fuel line diameter, review vehicle specifications or contact a specialist to confirm fit before purchase.
