Walker Products Fuel Injection Idle Air Control Valve 215-1003 — IAC Stepper Motor Replacement for GM/Isuzu, Restores Stable Idle

Walker Products 215-1003 is an engine idle control stepper valve that lets the vehicle computer regulate idle speed by moving a pintle to bypass the throttle blade.

This Walker idle air control (IAC) valve is a replacement component designed to restore precise idle management on compatible late‑20th-century GM, Isuzu and other domestic vehicles. It interfaces with the engine control unit to adjust airflow around the throttle plate, compensating for changes in accessory loads, temperature and engine load. When the original IAC fails, drivers commonly notice rough idling, unexpected stalling, surging RPM or a diagnostic trouble code. Walker Products manufactures this part to meet OEM-style specifications and industry quality standards.

How does this valve control idle speed?

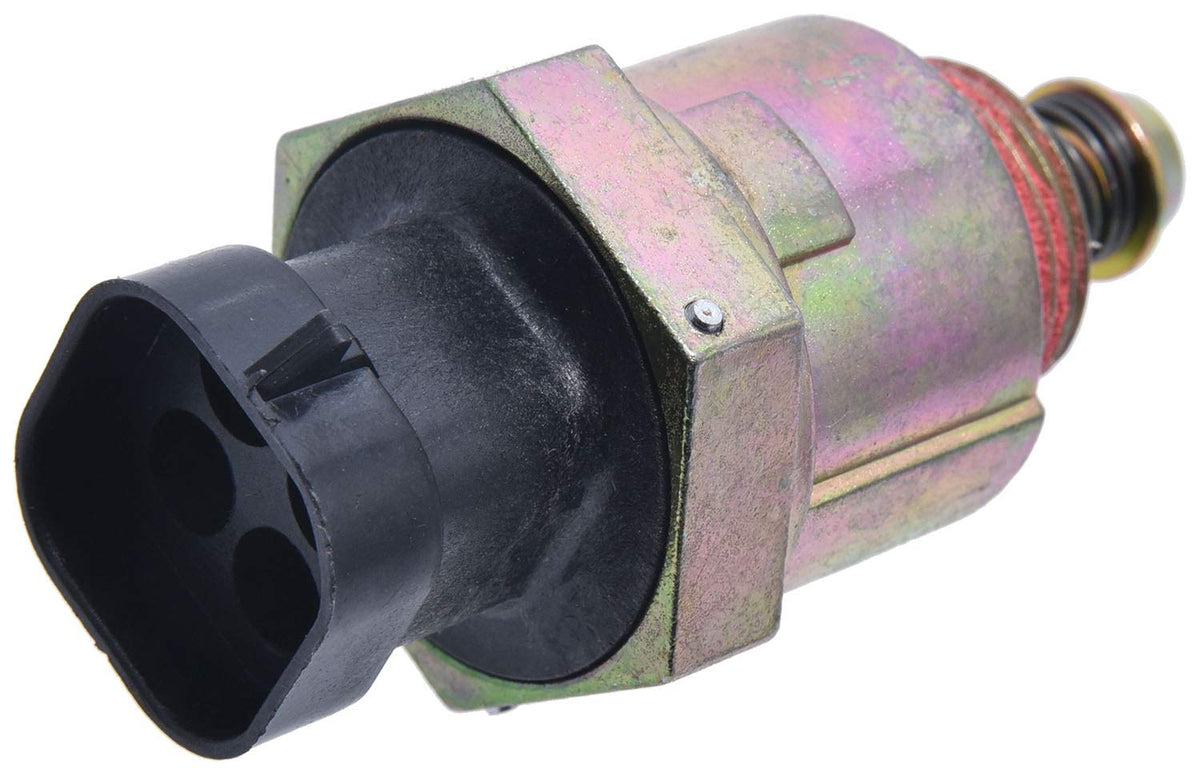

The IAC unit contains a stepper motor that moves a small pintle in and out of a bypass passage adjacent to the throttle. The engine computer sends electrical pulses to position the pintle, regulating the amount of air that bypasses the closed throttle blade. That precise metering allows the ECU to hold a stable idle under changing loads, like A/C engagement or power steering demand.

• Stepper-motor-driven pintle adjusts bypass airflow
• Works with the vehicle’s engine control unit for fine control
• Modulates idle to prevent stalling and RPM hunting
• Direct-replacement form factor for listed vehicle applications

What symptoms indicate a failing Walker 215-1003 IAC?

When an IAC begins to fail, drivability issues at idle are most common. Expect unstable or excessively high/low idle RPM, engine stalling soon after starting or when accessories engage, and potentially a check engine light with related trouble codes. Visual inspection or bench testing during scheduled tune-ups can confirm malfunction before complete failure.

• Rough or fluctuating idle speeds
• Engine stalls at idle or when stopping
• Surging RPM response during idle conditions
• Diagnostic trouble codes related to idle control

Which vehicles will this IAC fit and how do I confirm compatibility?

This Walker 215-1003 is offered for a wide range of GM and selected Isuzu models produced mainly in the 1980s and 1990s. Compatibility depends on model year and engine configuration; always verify the part number against the vehicle’s OEM reference or your service manual. Use the provided vehicle fitment list to cross-check applications before purchasing or installing.

• Fits many Buick, Chevrolet, GMC, Pontiac, Oldsmobile and Cadillac models from 1982–1996
• Includes Camaro, Corvette, S10, Tahoe, and several full-size vans and trucks
• Also listed for Isuzu pickups, Rodeo and Trooper on specific years
• Confirm fitment by VIN or OEM part lookup where possible

How should I service or replace the IAC for best results?

Check the IAC operation during routine tune-ups and replace it if diagnostic codes or symptoms point to failure. Install the replacement using proper gasket or sealant where required, and ensure electrical connector and vacuum passages are clean. After installation, allow the ECU to relearn idle parameters by following the vehicle-specific idle relearn procedure or performing several key-on/key-off cycles and warm-up runs.

• Inspect wiring, connectors and throttle body passages before replacement
• Install using recommended torque and new seals if supplied
• Perform the vehicle’s idle relearn or basic idle setup after installation
• Test drive and monitor idle stability and any codes with a scanner

Who is this for: Technicians and DIY owners who maintain classic and late-20th-century GM/Isuzu vehicles and need a reliable, OEM-style idle air control valve replacement. Choose the Walker 215-1003 when diagnostics or symptoms point to an IAC fault and you want a part built to industry quality standards and factory-style specifications.
