WALSIO 32ft Trailer Wiring Harness 4-Pin 5-Wire Y-Split — 18 AWG Copper, Weatherproof

WALSIO's 32-foot 4-pin, 5-wire trailer wiring harness is a weatherproof, Y-shaped wiring kit built to replace or upgrade trailer lighting connections without splices or extensions.

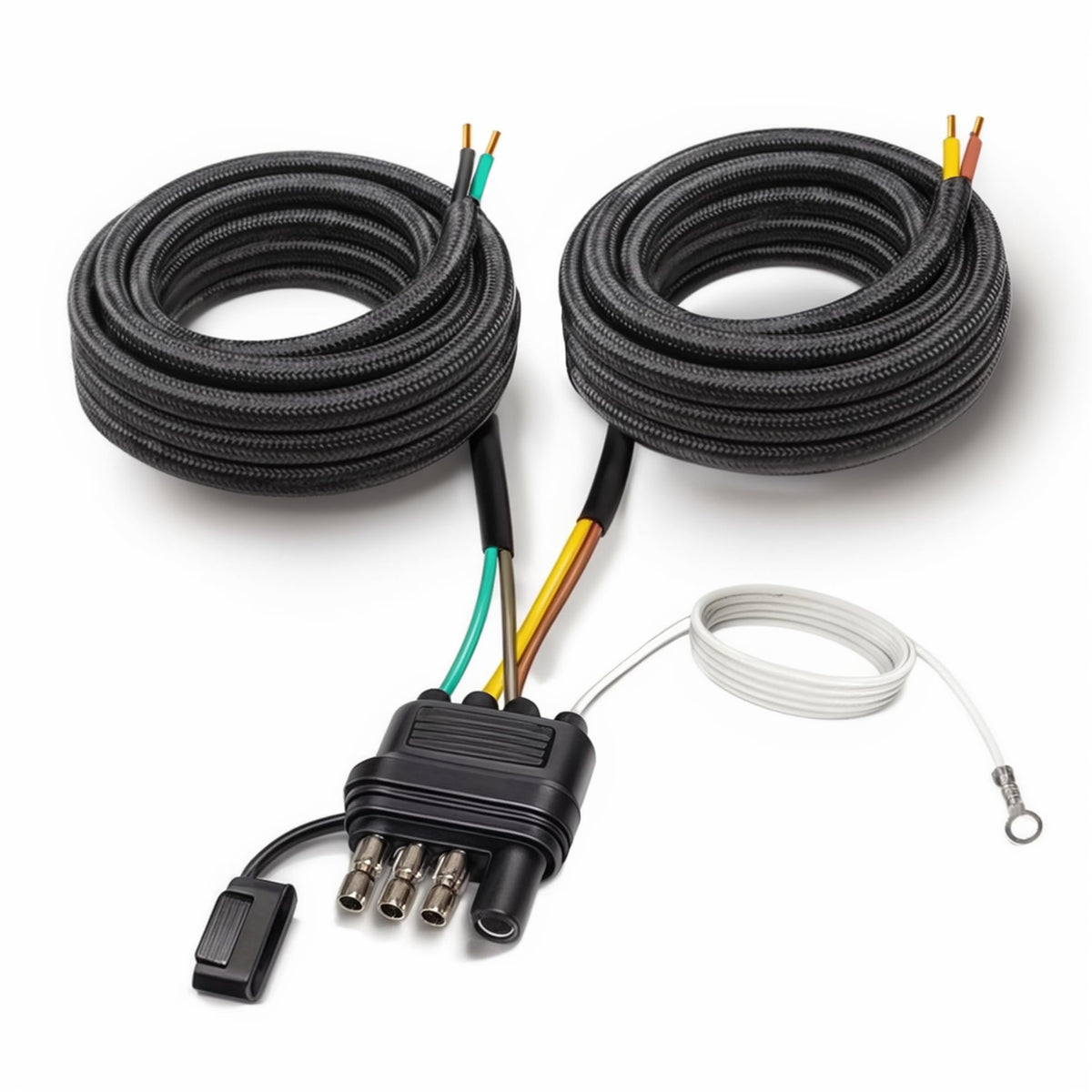

This complete harness supplies color-coded conductors, durable corrosion-resistant materials, and a long reach to simplify trailer electrical work. Crafted from 18 AWG pure copper, thick PVC insulation and an outer braided nylon sleeve, the kit is made to withstand road vibration, moisture and daily wear. It includes a male 4-way flat plug, a 2.5-foot ground lead, and an instruction manual so you can rewire typical trailers, boat or ATV carriers, and livestock or utility trailers quickly.

How does this harness simplify trailer lighting replacement?

The WALSIO harness reduces rewiring time by providing five pre-run wires and a Y-split layout so you rarely need to run extra conductors across the axle. Color-coded leads match standard 4-way flat wiring, making it straightforward to attach to existing sockets or lamps. The included male plug lets you swap a failing connector without rebuilding the entire trailer harness.

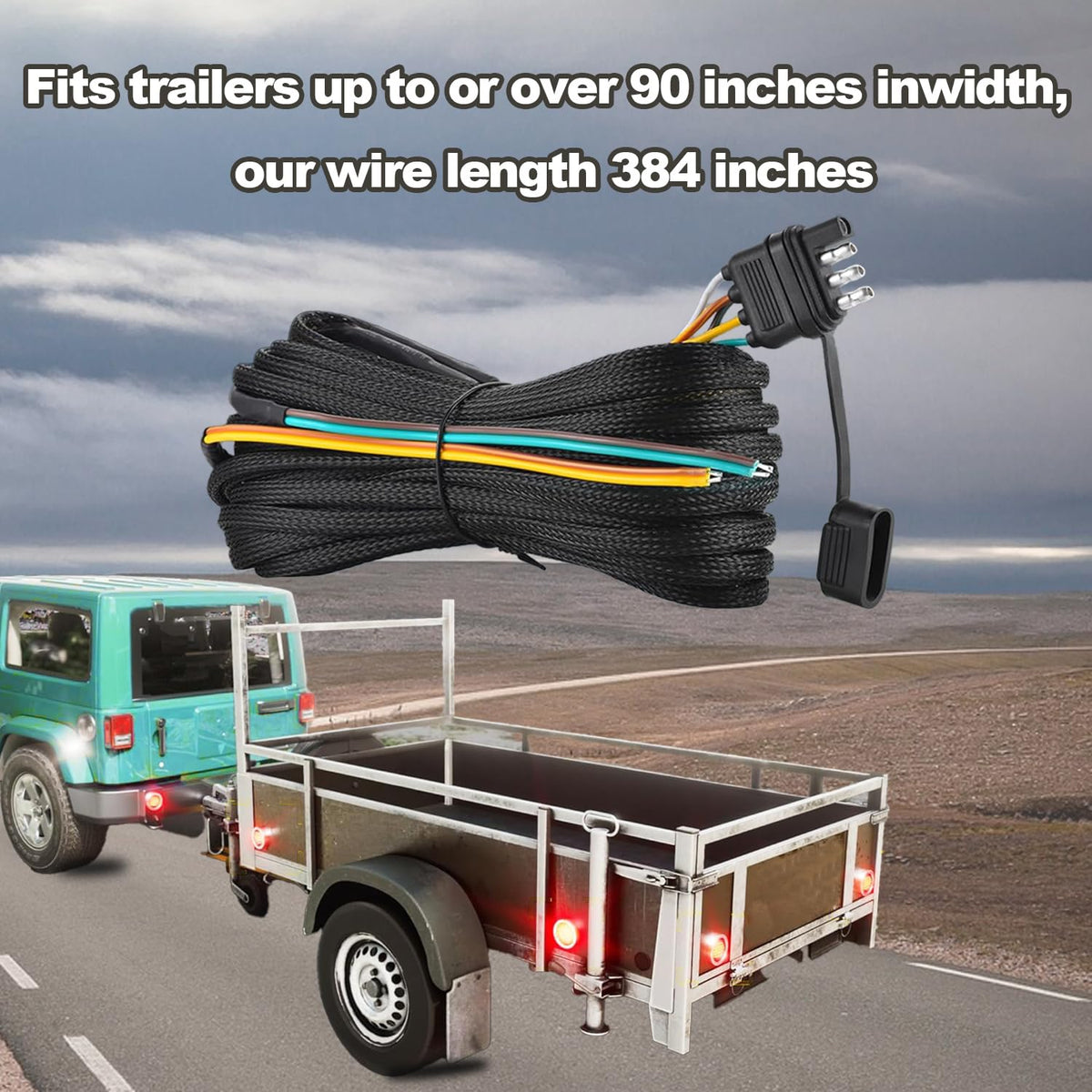

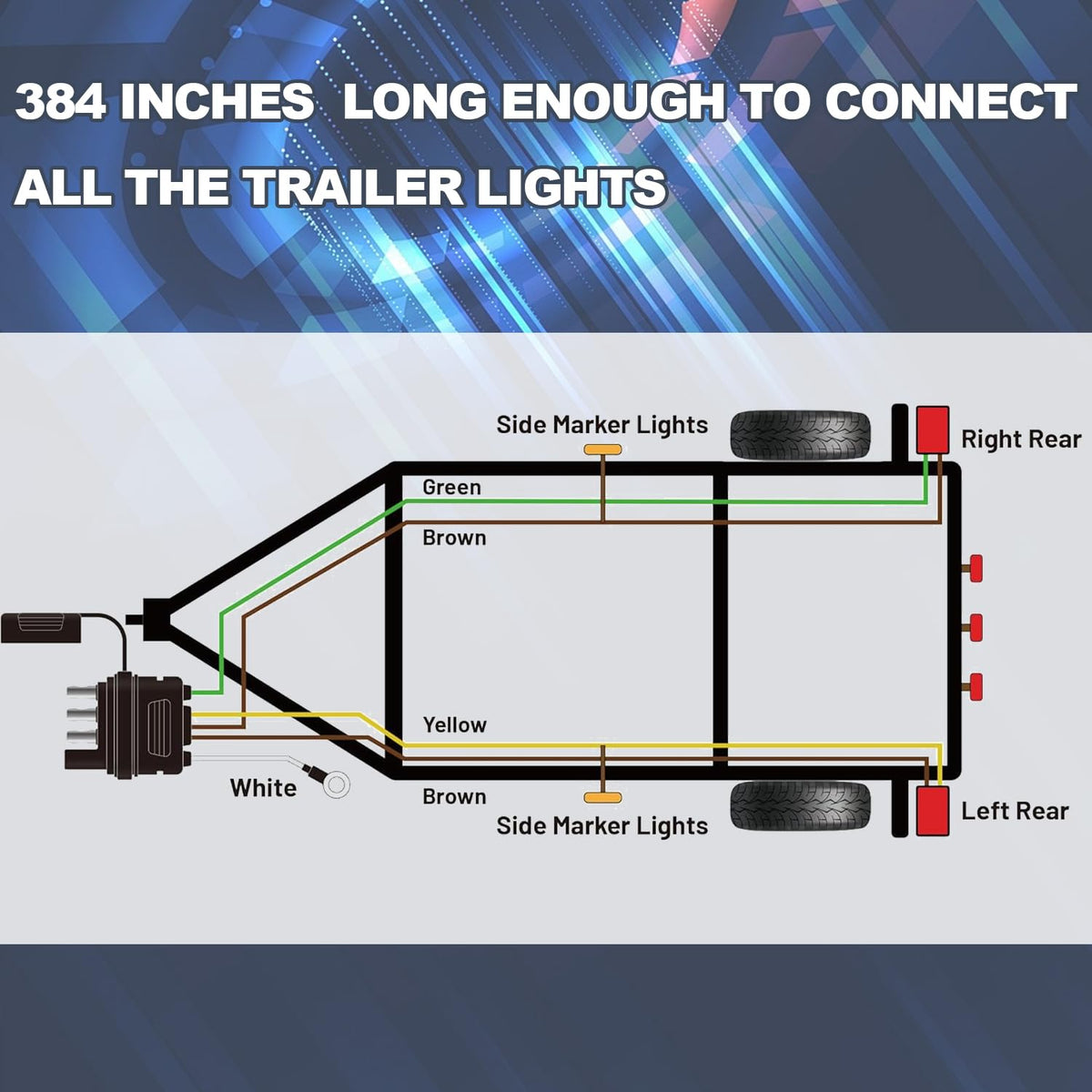

• Pre-cut 32 ft length covers most trailer spans without extensions

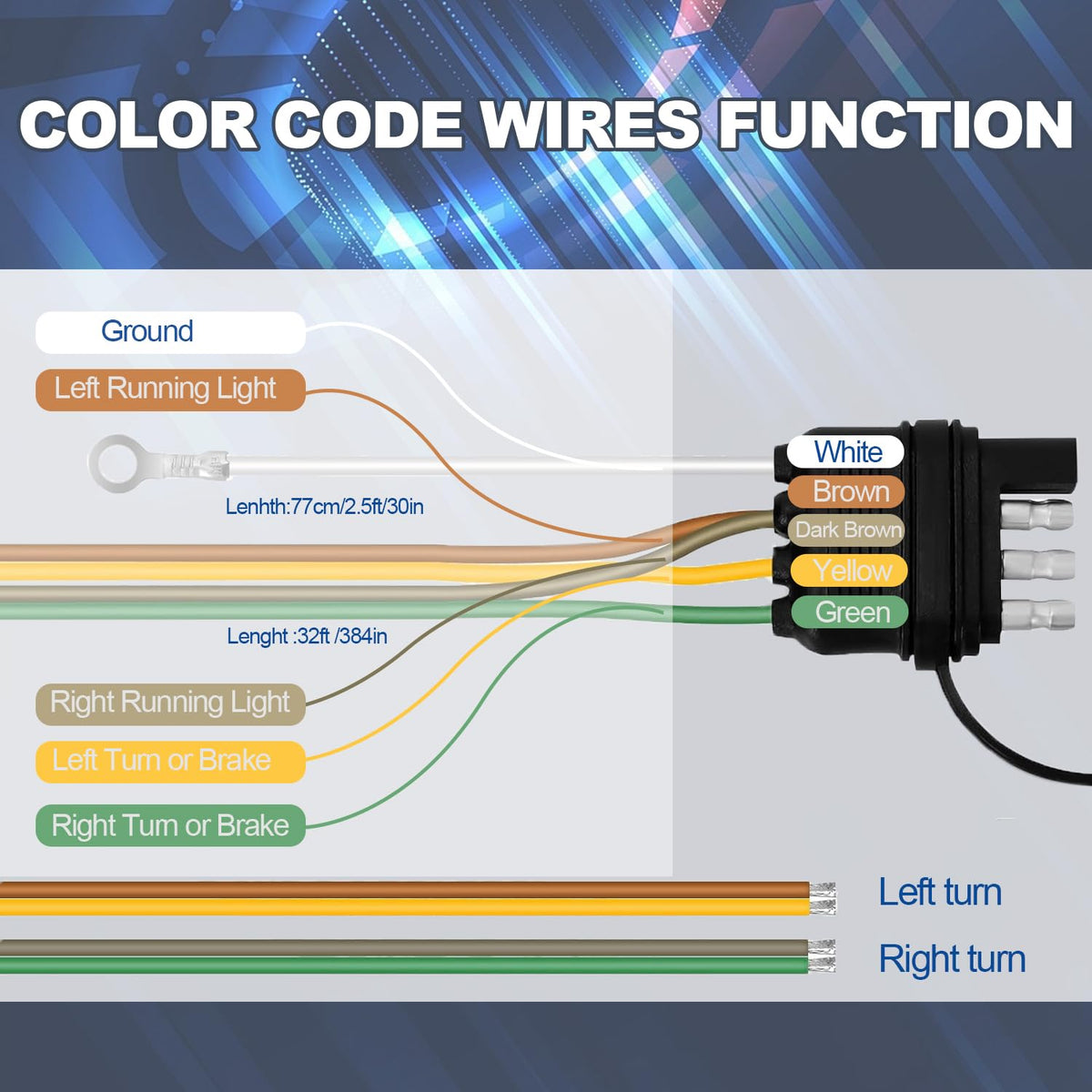

• Color-coded wires follow industry-standard wiring conventions

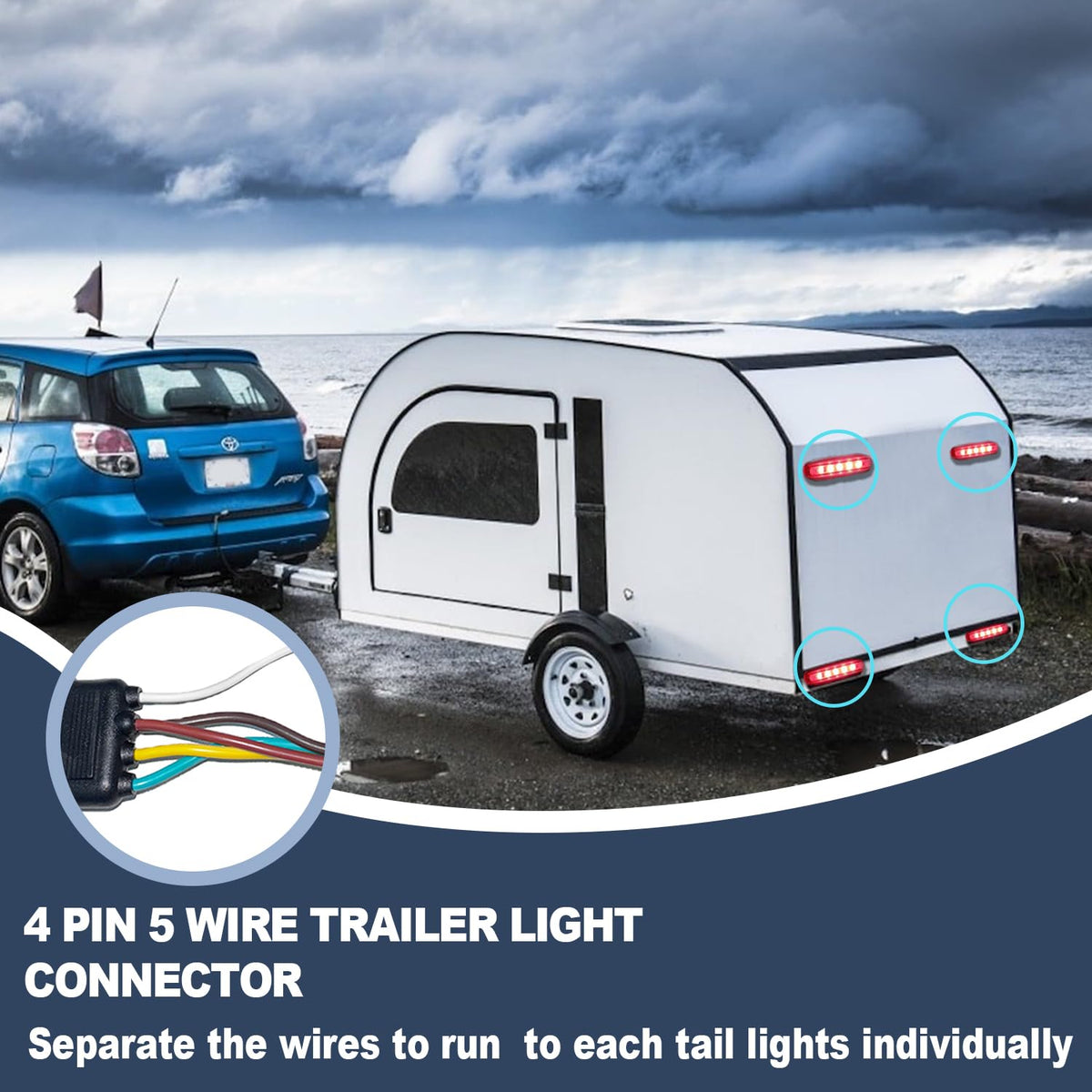

• Y-shaped split avoids long axle-crossing wire runs
• Male 4-way flat plug for direct connector replacement

Is this harness durable enough for marine or heavy-use conditions?

Yes — the wiring uses 18 AWG pure copper cores for reliable conductivity, enclosed in thick PVC insulation for electrical protection. A braided nylon outer sleeve adds abrasion resistance, and connector caps guard against dust and water intrusion. These elements combine to extend service life in wet or rough environments.

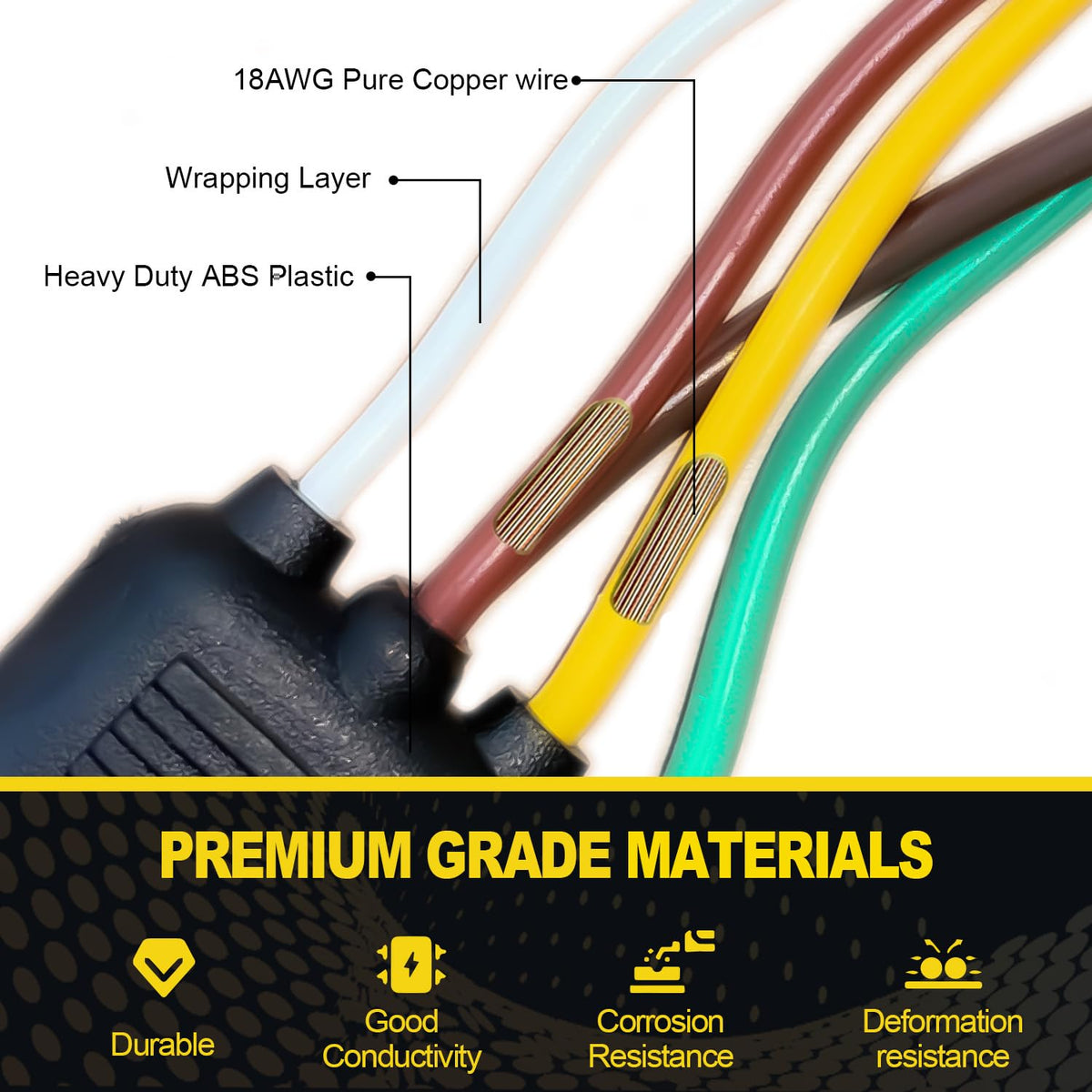

• 18 AWG copper conductors for consistent signal transfer
• Thick PVC jacket reduces short and abrasion risk
• Black braided nylon sleeve for extra mechanical protection

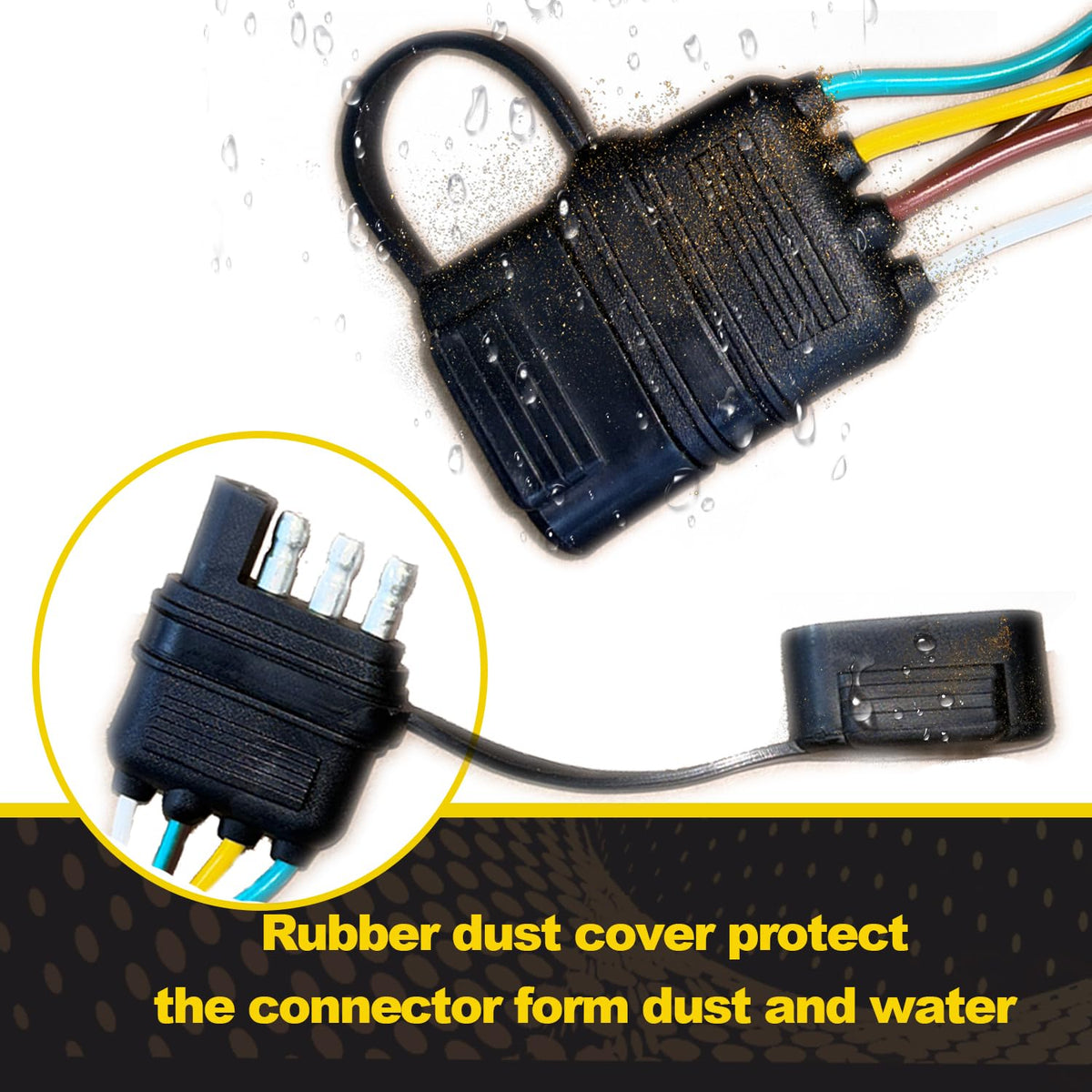

• Protective plug cover to help prevent corrosion and contaminants

What installation steps should I expect and what tools are needed?

Installation is typically straightforward: identify color-matched wires, attach to trailer lights and ground, secure routing, and plug into the tow vehicle. Basic tools like wire strippers, crimp connectors or butt splices, electrical tape, and zip-ties are all you'll need for most jobs. The kit's instruction manual helps clarify the wiring layout if this is your first wiring project.

• Strip, crimp or solder connections per the manual
• Use zip-ties or clamps to secure harness along the frame
• Attach 2.5 ft ground lead to a clean metal point
• Test lights with a vehicle connector tester before towing

Will this harness work with my trailer’s existing 4-way flat socket?

The 4-pin 5-wire harness is designed to match standard 4-way flat trailer systems and will replace most factory or aftermarket male connectors. The extra fifth wire provides additional flexibility for separate ground or auxiliary circuits if needed. Check that your trailer uses a 4-way flat system; if you have a 7-way or round connector, an adapter or different harness may be required.

• Directly compatible with industry-standard 4-way flat sockets
• Extra wire available for dedicated ground or auxiliary use
• Includes male plug for quick replacement of a worn connector
• May need an adapter for non-4-way systems

Who is this for: The WALSIO 32ft 4-pin 5-wire trailer wiring harness suits DIYers, fleet mechanics, boat owners, and anyone rewiring or upgrading trailers that use 4-way flat connectors. It’s especially helpful when you want a tidy installation without cross-axle splices, stronger weather protection than stock harnesses, and a plug-ready replacement for worn connectors.
