WINMAX TOOLS AUTOMOTIVE press and pull sleeve kit 28pc — 34–72mm IDs, 60mm depth for bearings & seals

WINMAX TOOLS AUTOMOTIVE 28-piece press and pull sleeve kit is a complete professional set for removing and installing bushings, bearings, and seals on cars and light commercial vehicles.

This kit brings 20 press sleeves, four long pulling spindles, and four stop plates together to give technicians and DIYers a wide range of diameters and solid leverage for controlled removal and installation. The sleeves cover internal diameters from 34–72mm and outside diameters from 44–82mm in 2mm increments, making the set suitable for many common control arm bushings, bearing sleeves, shaft seals and rubber mounts. All components are sized and grouped so you can match the tool precisely to the part, reducing damage risk and improving work speed.

Which parts are included and what sizes do they cover?

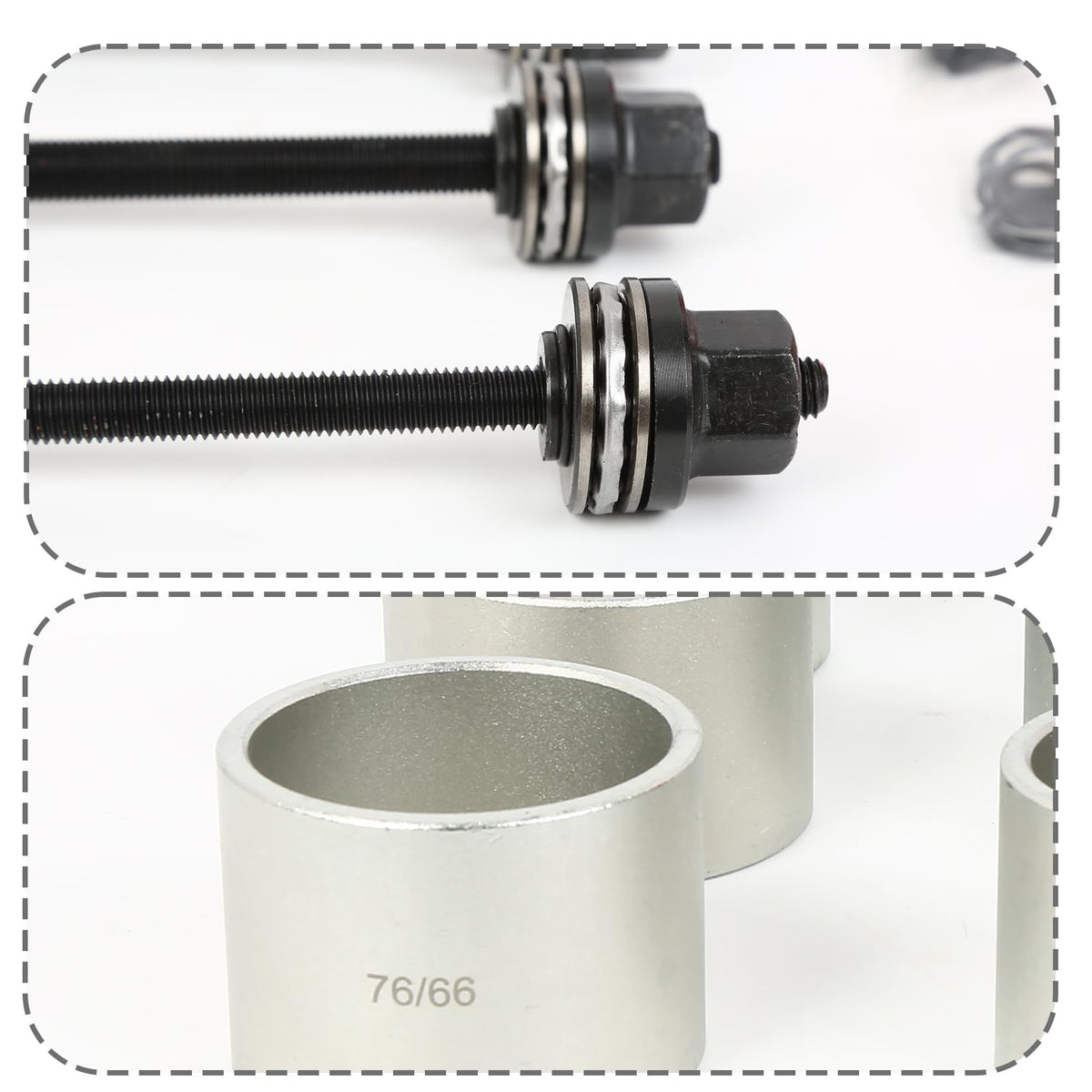

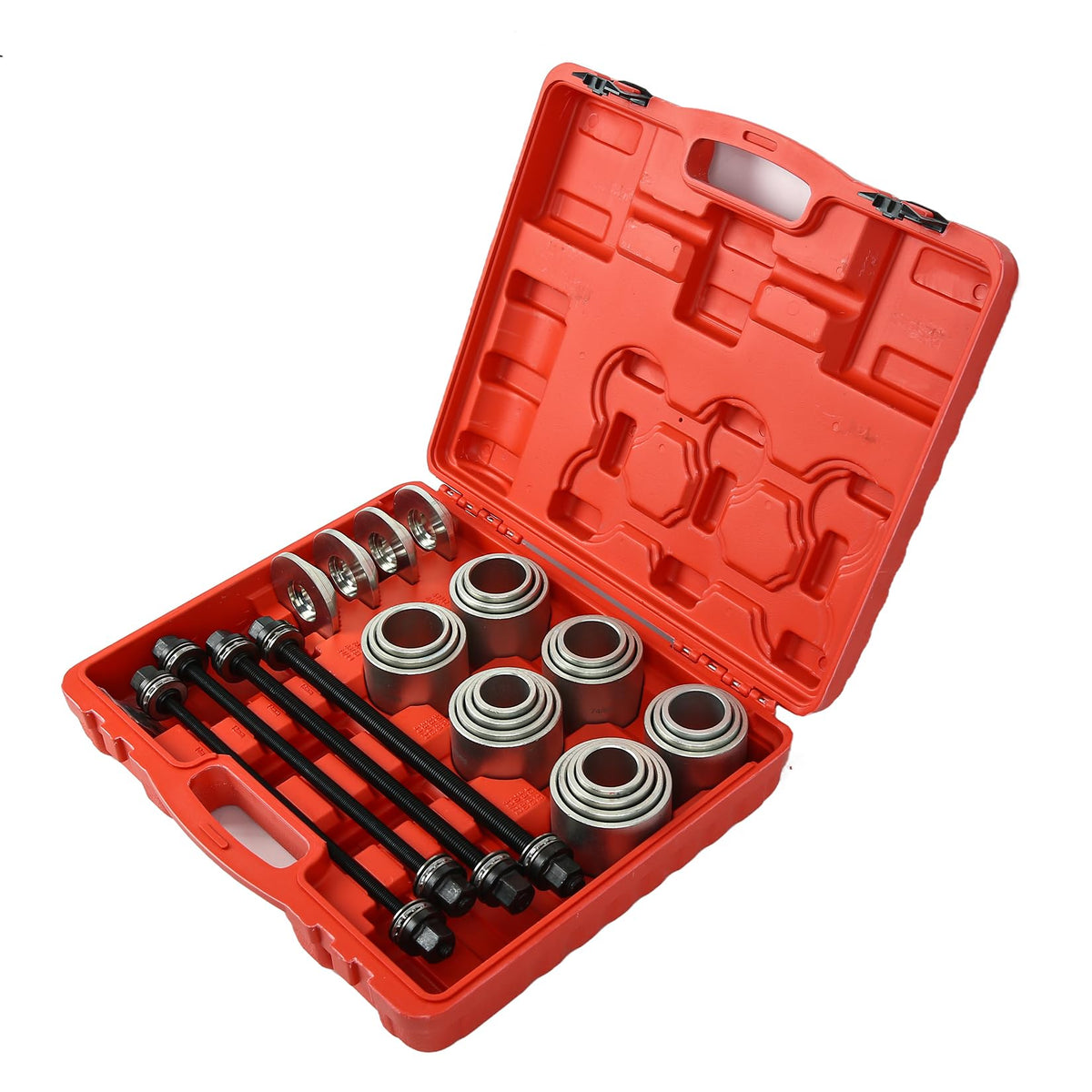

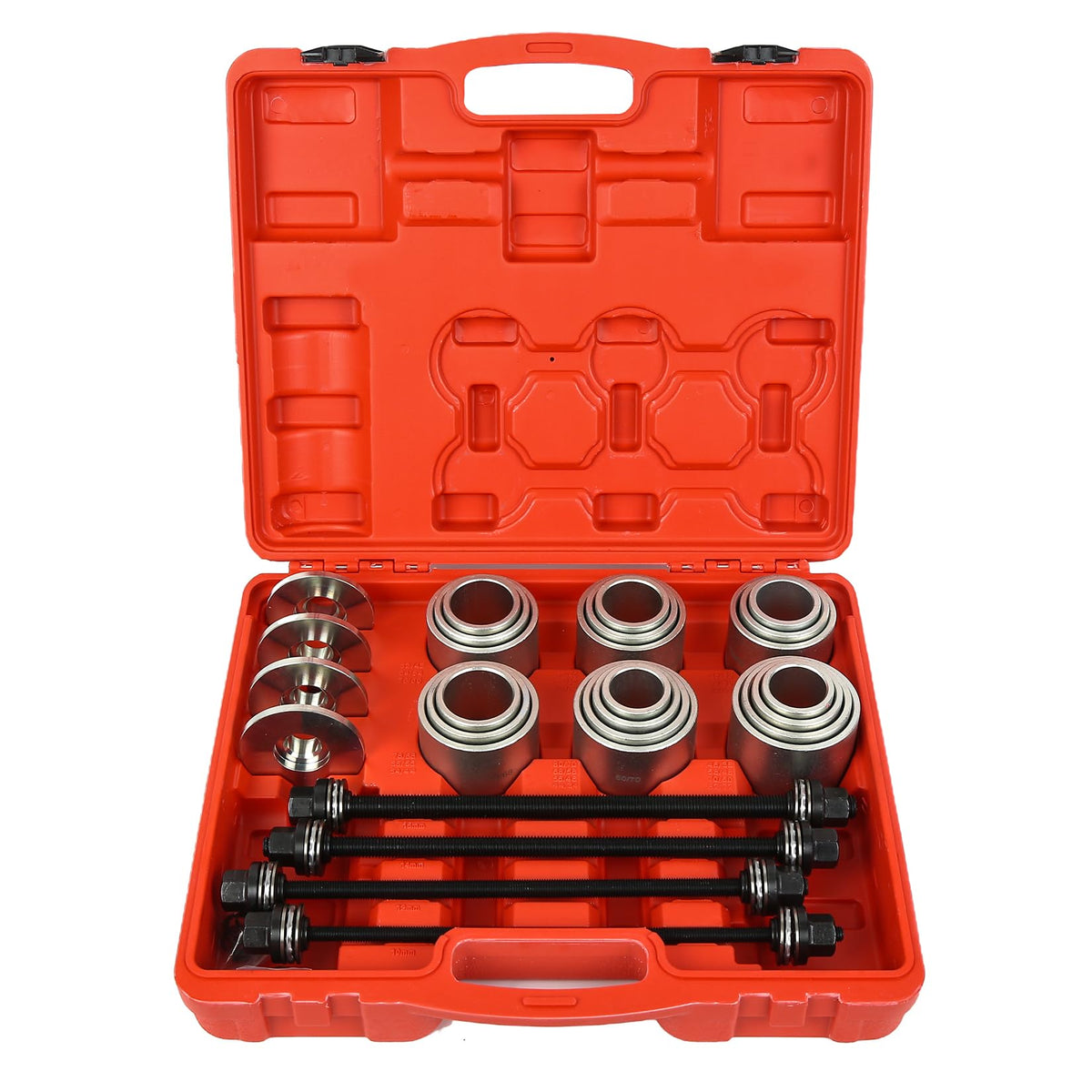

The kit contains 20 press sleeves, four pulling spindles, and four stop plate discs to match a broad size range. Sleeves measure 60mm deep and are offered in 2mm incremental diameters for accurate fits. Spindles are long 350mm pieces in four common thread sizes so they can be used with heavy-duty presses.

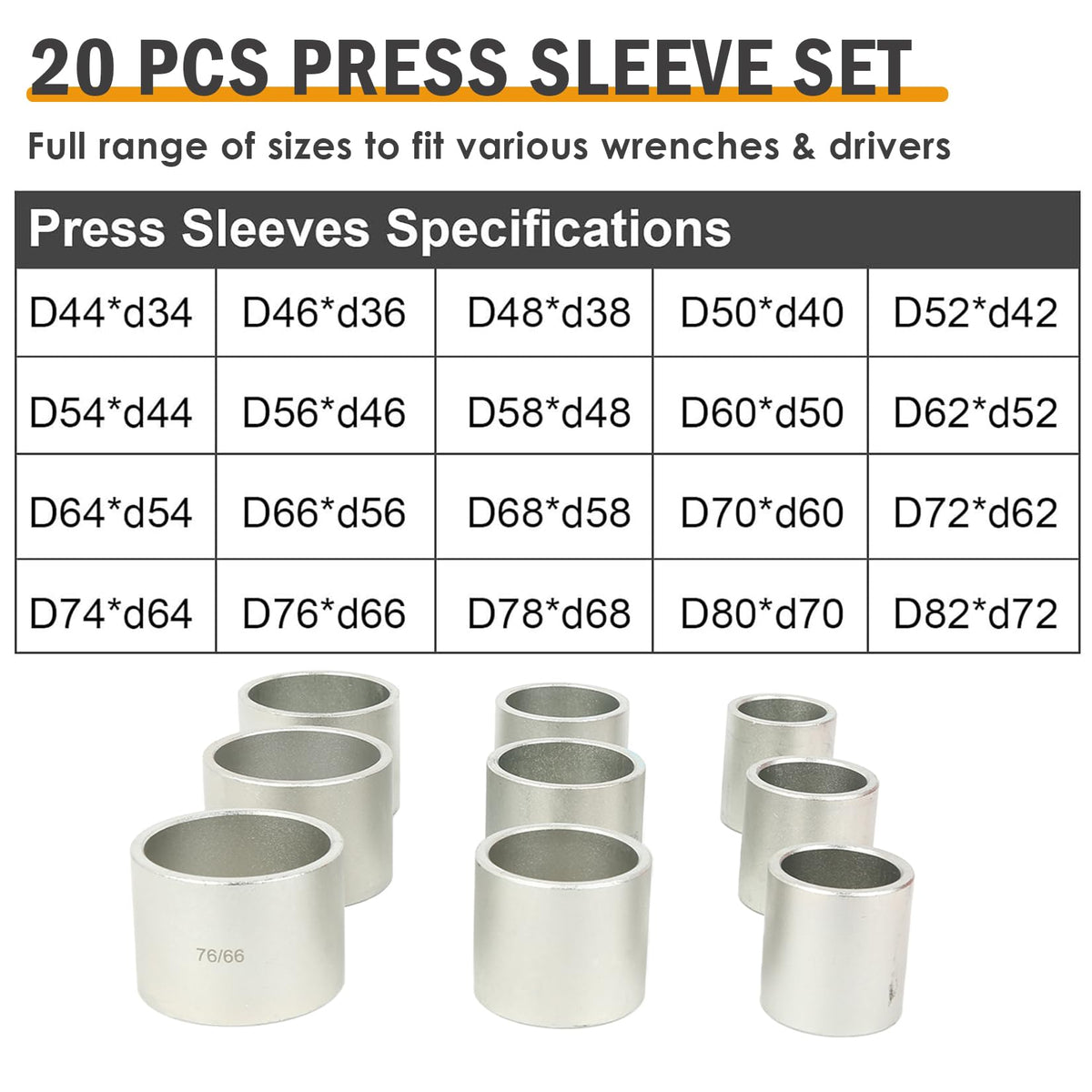

• Press sleeves I.D.: 34–72mm (2mm steps)
• Press sleeves O.D.: 44–82mm (2mm steps)
• Sleeve depth: 60mm for consistent stroke control

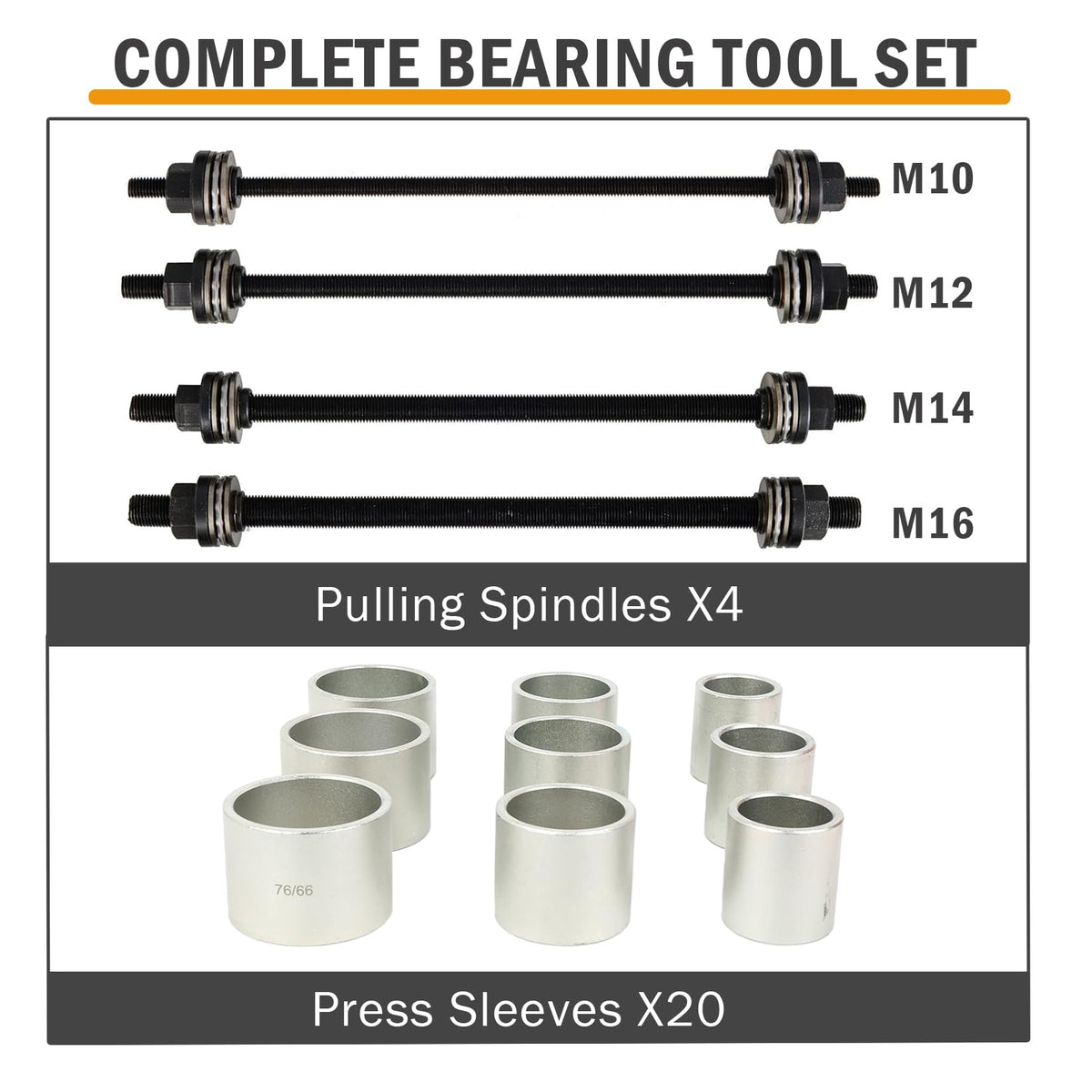

• Pulling spindles: M10, M12, M14, M16 — 350mm length

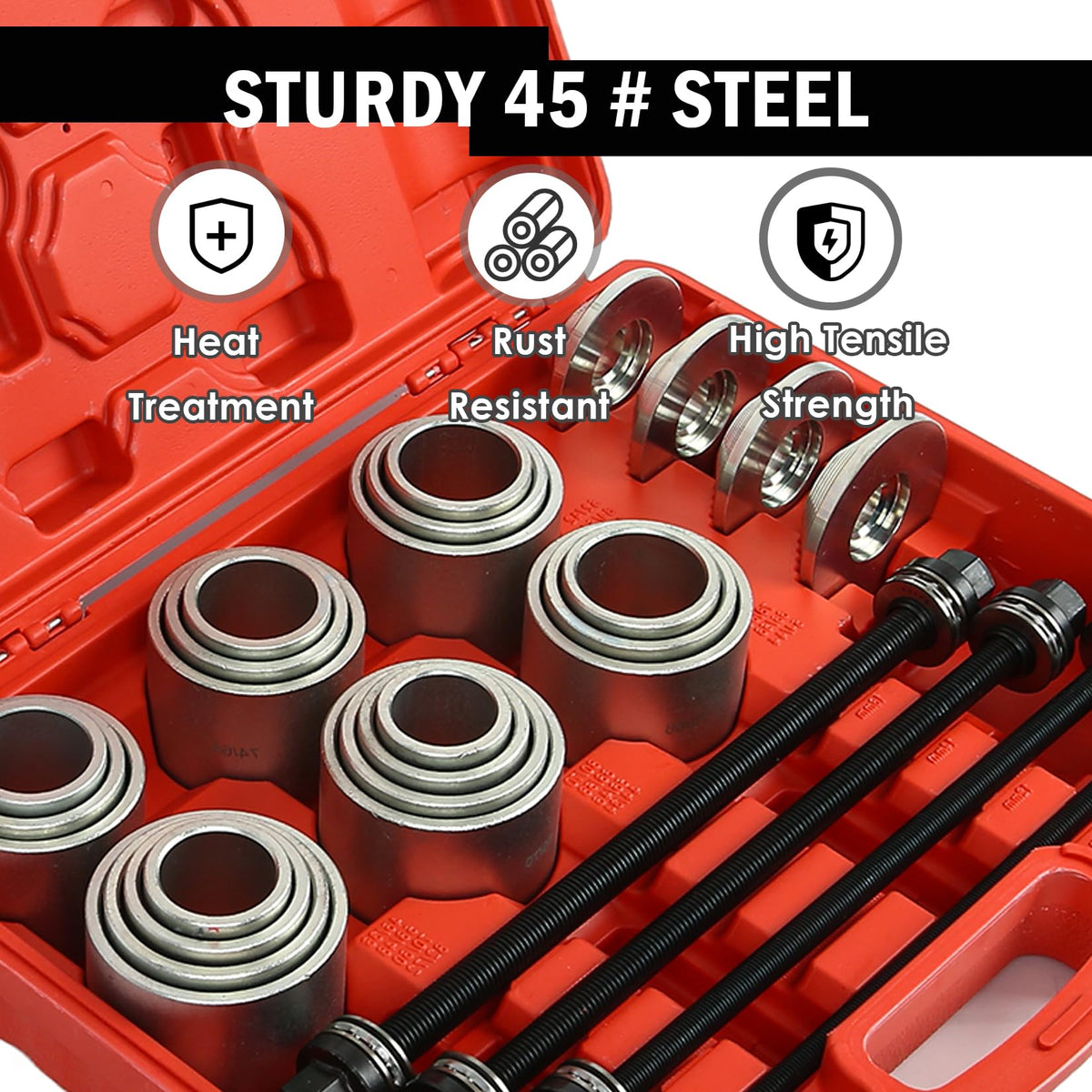

• Stop plates: four discs each matching grouped sleeve diameters for precise backing

How does this kit protect parts during removal and installation?

Using matched sleeves and stop plates distributes force concentrically around the component, which minimizes deformation and scoring. The sleeves act as bushings that guide pressure exactly where needed, while the stop plates support the housing to prevent overdrive. This combination keeps seals and bearings aligned and reduces the chance of repeat fitment issues.

• Concentric force distribution to avoid part damage
• Stop plates support housing edges during pressing
• 60mm sleeve depth for stable guidance and even stroke
• Multiple diameters to match OEM part sizes closely

Which vehicle jobs and components are suited to this tool?

The set is made for jobs that require precision pressing and pulling: control arm bushings, silent or hydraulic bearings, shaft seals, bearing bushes and many rubber mounts. It works on passenger cars and LCVs where sizes fall inside the specified diameter ranges. Because the set includes both inside and outside diameters, it adapts to press-in or press-out operations for a broad variety of components.

• Control arm bushing removal and installation
• Silent/hydraulic bearing servicing and replacement
• Shaft seals and rubber bearing changeouts
• General bearing bush and ball bearing applications within size range

What do professionals appreciate about this WINMAX kit?

Mechanics like the incremental sleeve sizes and the long spindles that give better leverage on stubborn parts. The set’s organized layout reduces time spent switching tools and helps maintain correct alignment during jobs. For garages that service multiple vehicle makes, the broad diameter coverage reduces the need for additional specialty sleeves.

• Precise 2mm increments for closer fits
• Long 350mm spindles for greater mechanical advantage
• Wide I.D./O.D. coverage to limit additional purchases
• Compact, organized kit suitable for mobile or shop use

Who this is for: This WINMAX 28PCS press & pull sleeve kit is ideal for professional mechanics, mobile technicians and serious DIY enthusiasts who regularly service suspension bushings, bearings or seals. If you need a reliable, repeatable method to press parts in and out without damaging housings or components, this kit supplies the range, strength and fine size increments to make those jobs cleaner and faster.
