WINMAX TOOLS AUTOMOTIVE Universal Press & Pull Sleeve Kit 26pc — Stepped Sleeves & Hardened Spindles

WINMAX TOOLS AUTOMOTIVE 26pc Universal Press and Pull Sleeve Kit is a complete set for pressing out and installing suspension bushings, wheel bearings and seals on cars and light commercial vehicles.

This professional-grade kit combines stepped press sleeves, heavy-duty pulling spindles and double-ended press plates so mechanics and DIYers can remove and fit cylindrical components without relying on vehicle-specific tooling. The sleeves cover a wide range of inner and outer diameters in precise 2 mm increments, while the hardened spindles and nuts provide reliable axial force for controlled extraction and installation.

What components are included and what sizes do they cover?

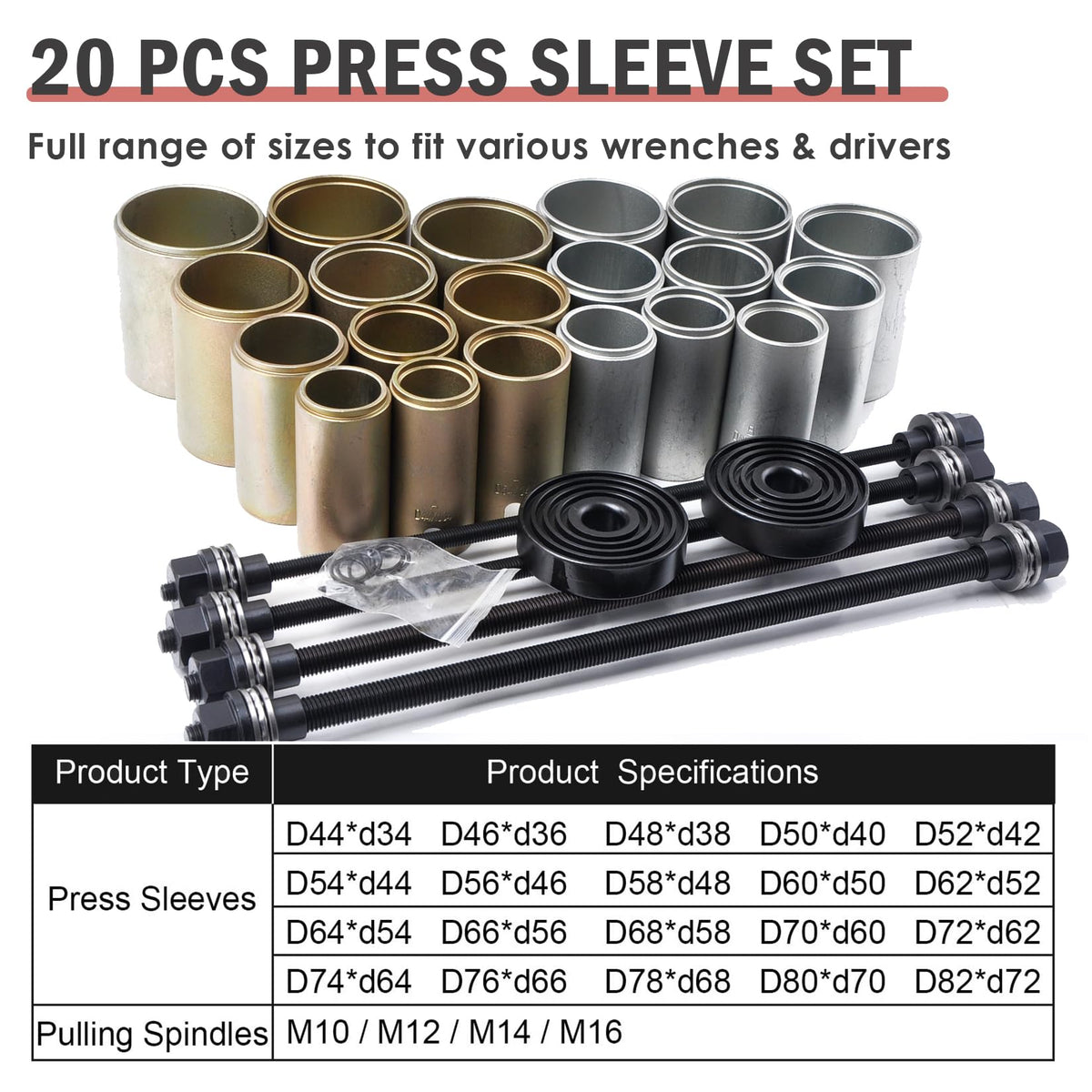

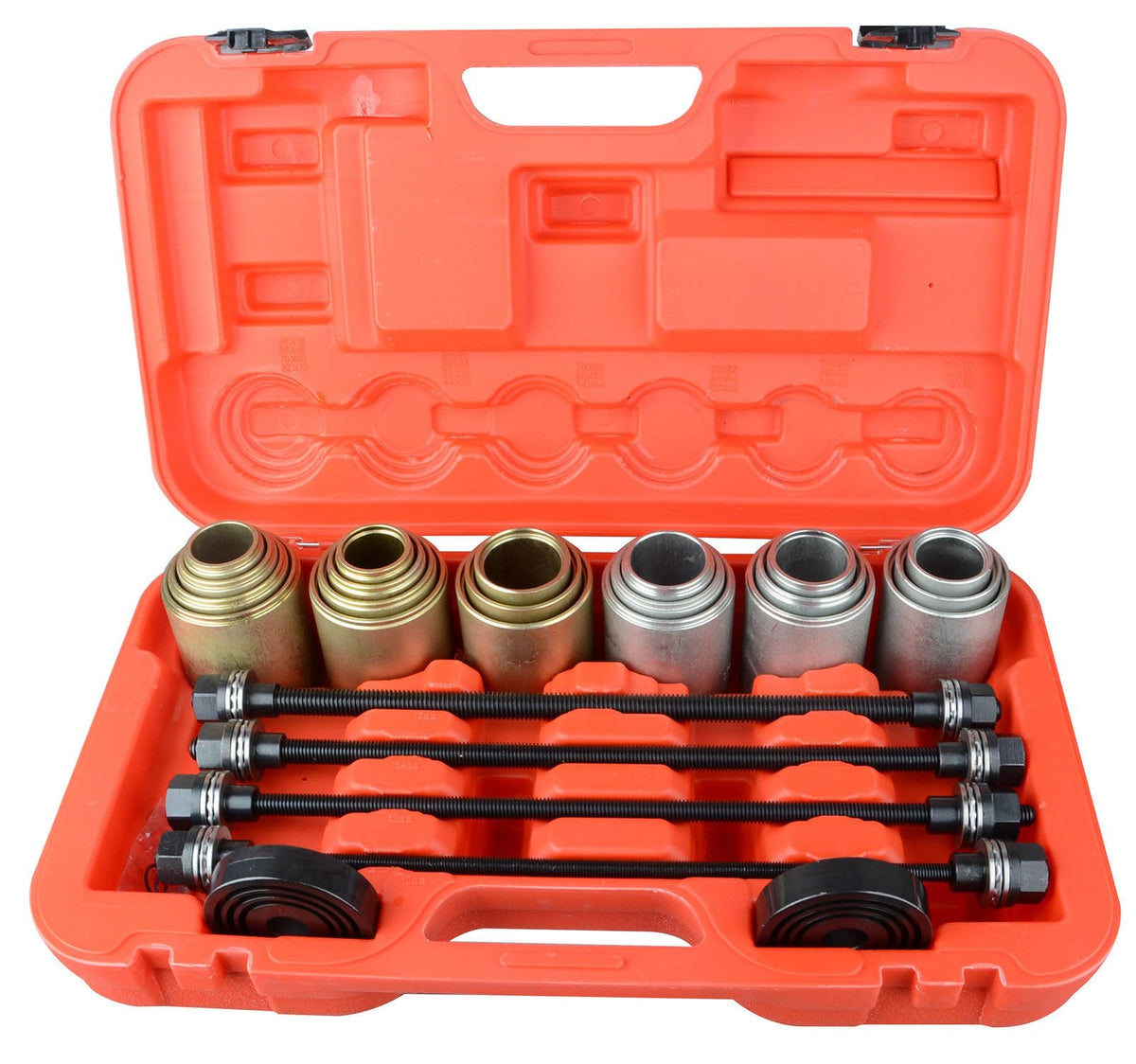

The kit contains 20 stepped press sleeves, four pulling spindles with matching nuts and two double-sided press plates. Sleeve inner diameters range from 34 mm to 72 mm and outer diameters from 44 mm to 82 mm, both in 2 mm steps, so most common bushings and bearings are supported.

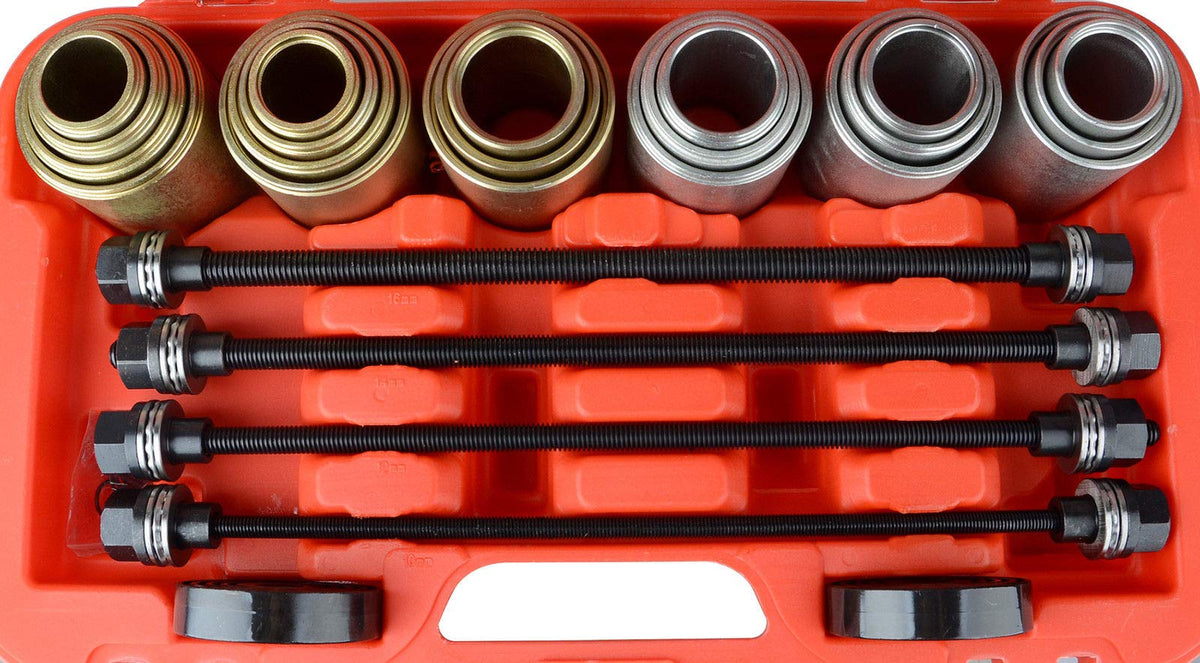

• 20 press sleeves, 90 mm depth, I.D. 34–72 mm (2 mm steps)
• O.D. coverage 44–82 mm across the stepped sleeves

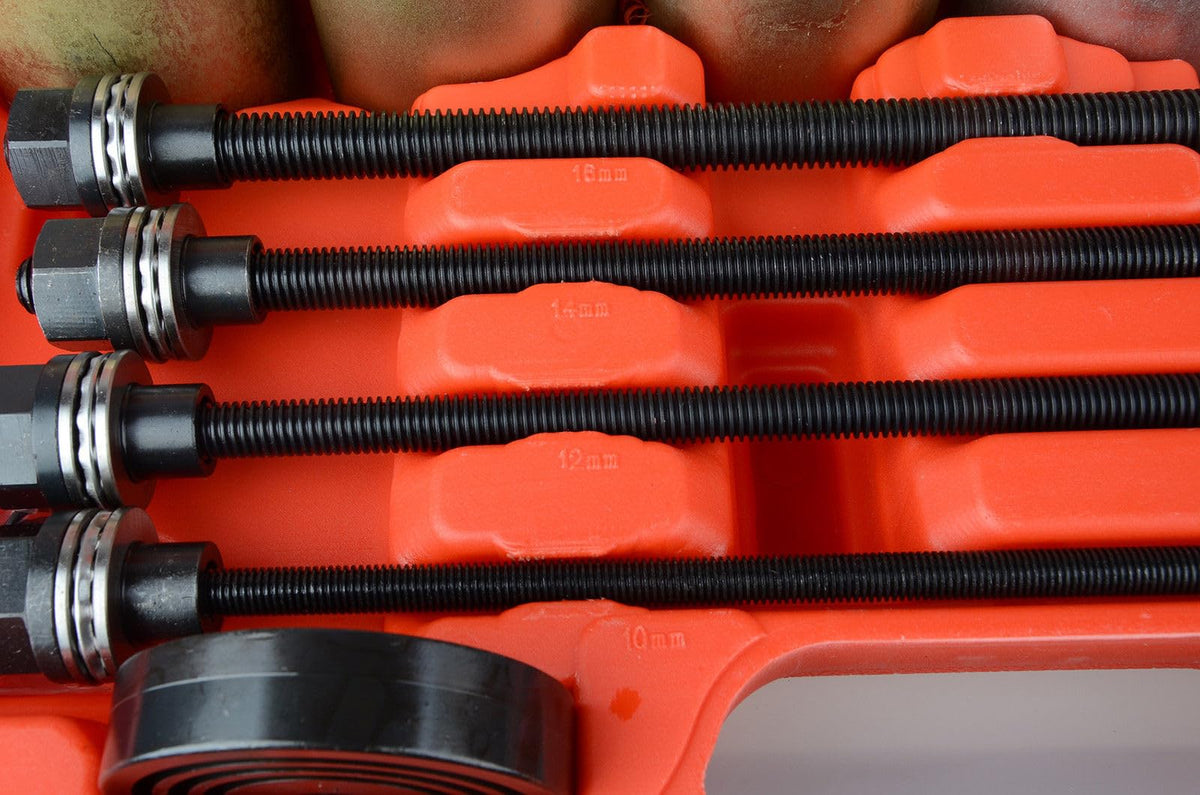

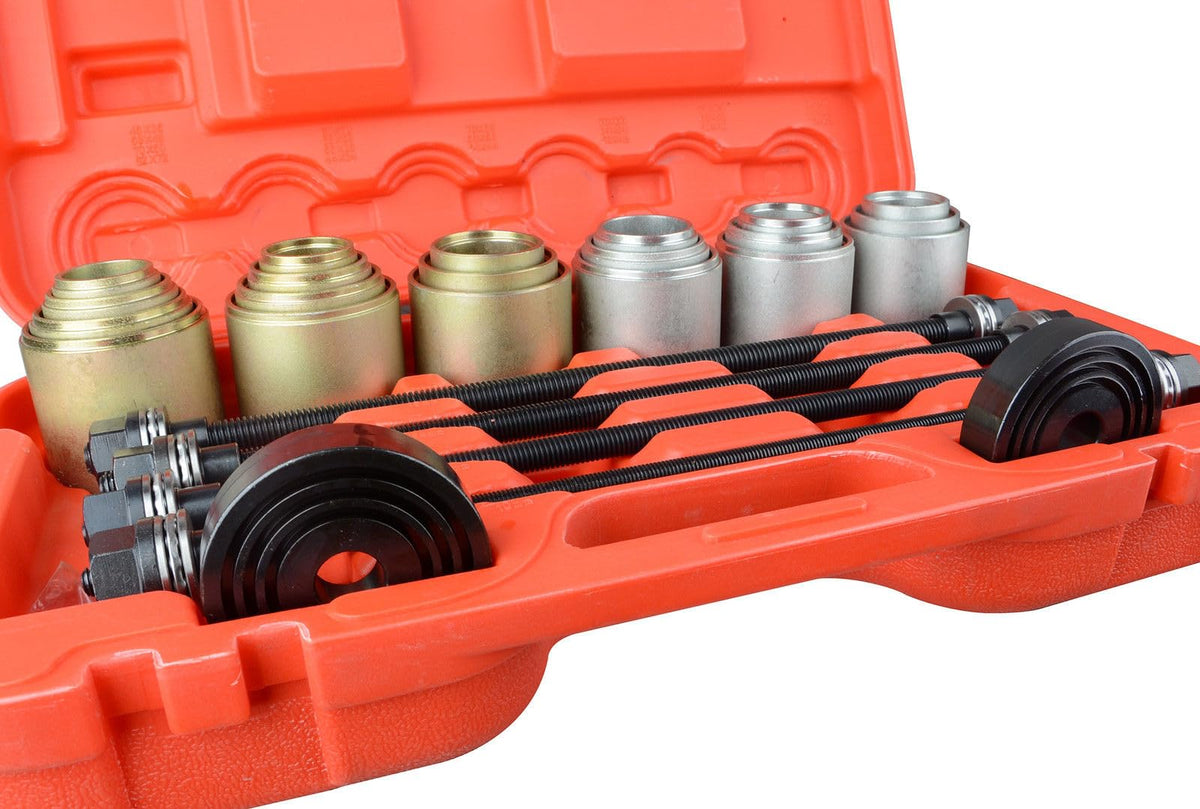

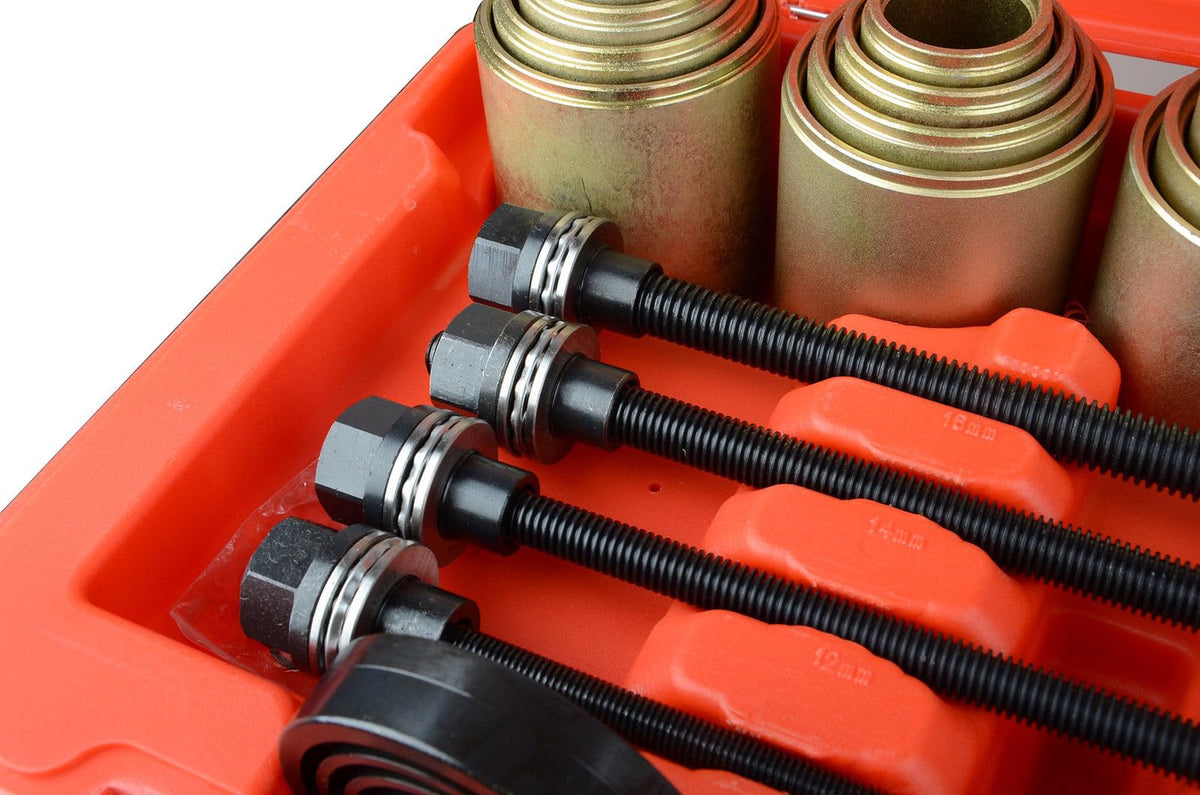

• Four spindles: M10, M12, M14, M16 — 450 mm length
• Two double-ended press plates for even load distribution

How does the kit prevent damage during removal and installation?

Using stepped sleeves and matching press plates spreads force evenly around the component, reducing the risk of distorting housings or crushing bearings. The pulling spindles are made from high-carbon steel and the threaded nuts allow controlled, incremental pressure so you can press parts straight and true.

• Stepped sleeves support the component outer or inner face for even load transfer
• Hardened spindles and nuts provide steady, controllable axial force
• Double-sided plates center the load and prevent uneven seating
• 90 mm sleeve depth works for deeper bushings and bearings

Which vehicle jobs and part types is this best suited for?

The set is designed for universal service on cars and light commercial vehicles for suspension and drivetrain work. It handles press-in and press-out tasks for control-arm bushes, silent blocks, wheel bearings, hydraulic bearings and various seals where a straight axial press is required.

• Control arm and suspension bush replacement
• Wheel bearing press in/out on hubs and carriers
• Hydraulic and rubber bearing removal and installation
• Seals that can be driven or extracted axially without special adapters

How do I use the press sleeves and spindles safely and effectively?

Assemble the matching sleeve and plate to surround the component, thread the correct spindle and tighten nuts evenly while keeping parts aligned. Work slowly, check alignment frequently, and use appropriate lubricants and supports to prevent slippage or marring of housings.

• Select sleeve I.D./O.D. pair for snug, concentric support
• Center the assembly and use both press plates to distribute load
• Tighten nuts incrementally and monitor progress visually
• Use safety glasses and support the vehicle/hub securely

Who this is for: The WINMAX 26pc Universal Press and Pull Sleeve Kit suits professional technicians, independent garages and experienced DIY mechanics who need a compact, versatile press set for common suspension and wheel-service tasks. It’s especially useful when you want to avoid expensive vehicle-specific tools and need a reliable system for straight, damage-minimizing press work.
