WINTOOLS Press & Pull Sleeve Kit — 27-Piece Bearing Removal & Insertion Set, Heat-Treated Alloy with Thrust Bearings

This heavy-duty kit brings a workshop-ready selection of sleeves, pulling spindles and end caps engineered to protect housings and components while speeding up bearing and bush service. Built from heat-treated alloy steel with thrust-bearing spindles and double-sided end caps, the set fits a wide range of diameters so you can extract or press in bearings, seals and bushings cleanly, whether at a home garage or in a professional shop.

What sizes and parts are included in this kit?

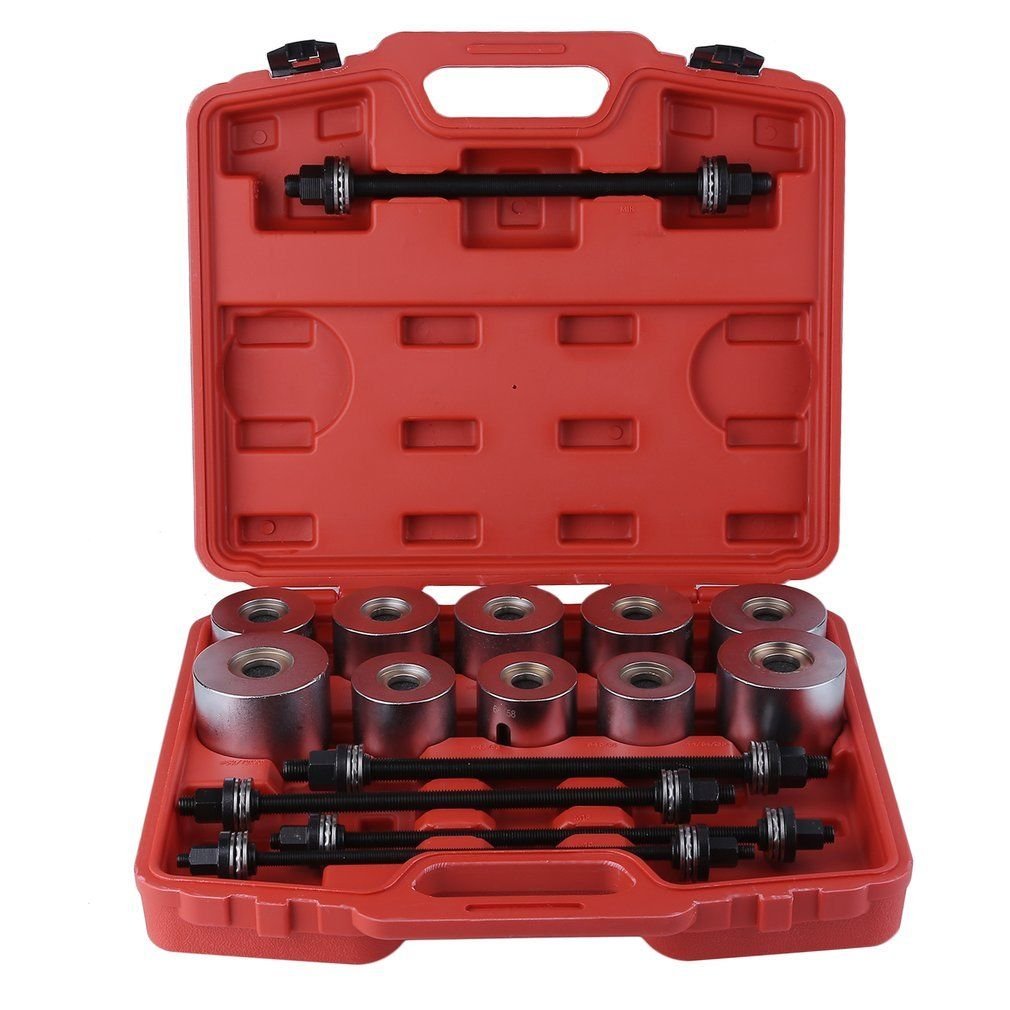

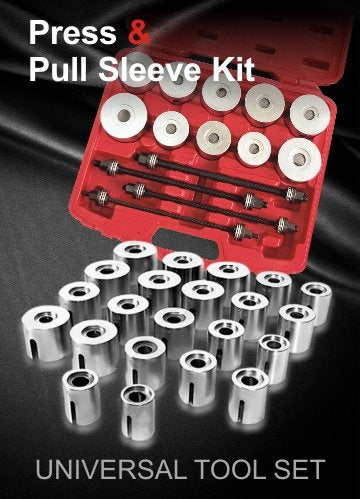

The set contains 22 press sleeves and five pulling spindles with nuts, covering an extensive range of inside and outside diameters so single and multiple applications are supported. All sleeves are marked and shaped for quick selection and visual alignment.

• Press sleeve side diameters: 34–80 mm (selected increments)
• Outside diameters: 44–90 mm (selected increments)
• Pulling spindle sizes: M10, M12, M14, M16, M18 with thrust bearings
• Sleeves material: 40Cr steel; spindles: 45# carbon steel with nuts

How does this kit prevent damage during removal or installation?

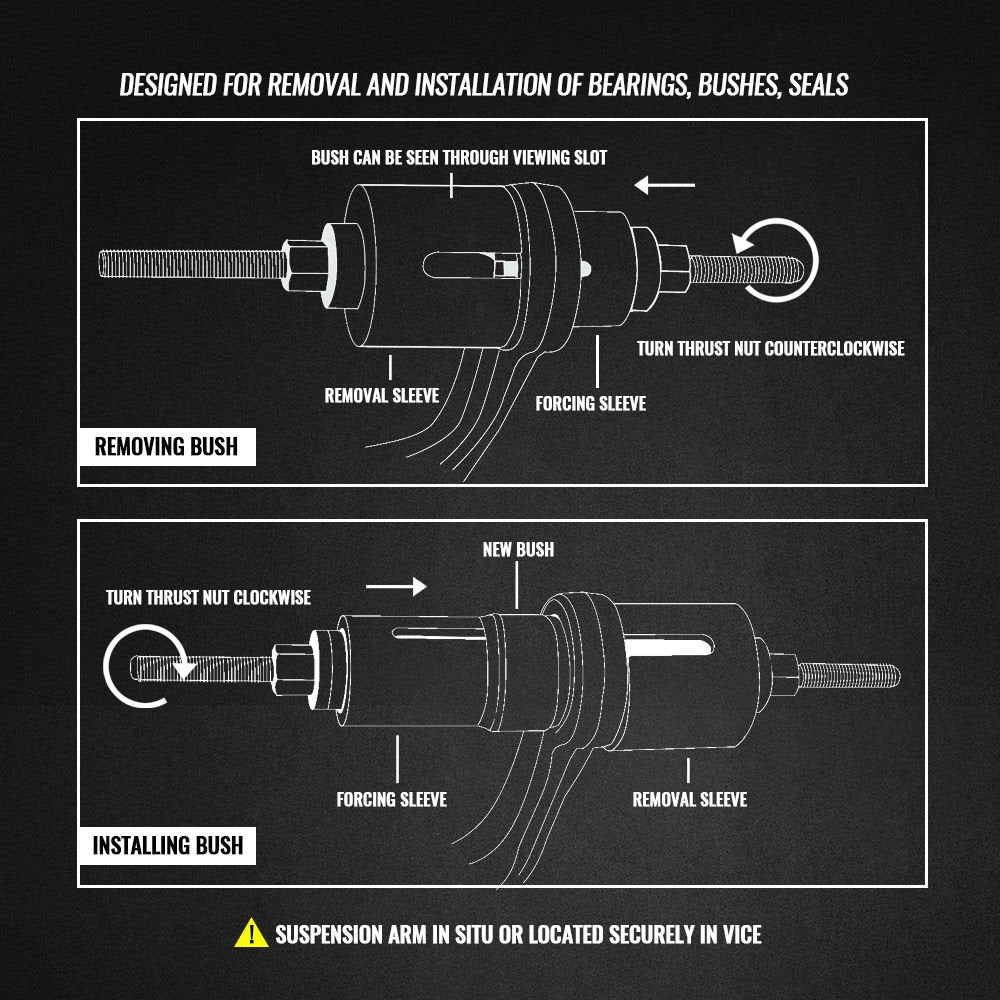

Each sleeve features a U-plot visual guide and smooth bearing surfaces to distribute load evenly during pressing or pulling, which reduces stress on housings and component edges. Thrust bearings on the spindles cut down friction and make the action more controlled, lowering the chance of slippage or sudden jumps.

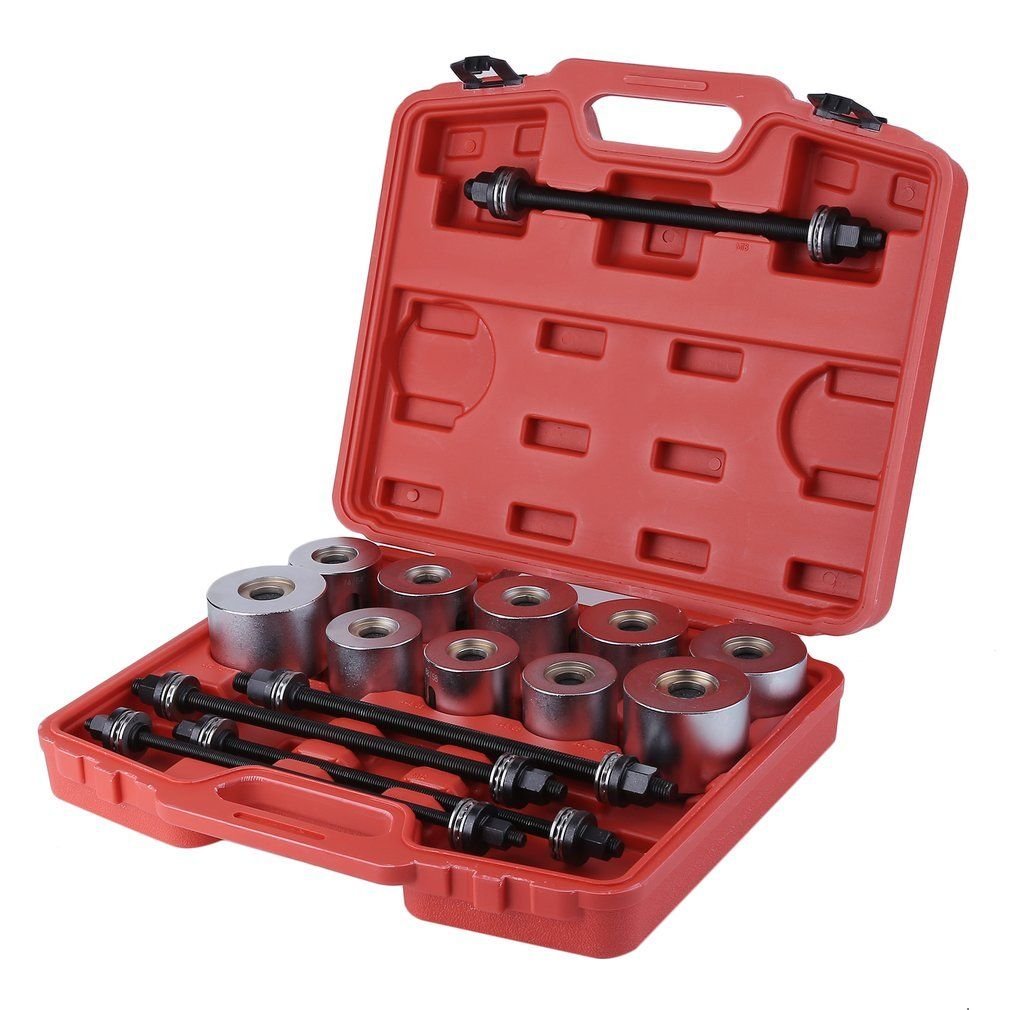

• U-plot on sleeves for alignment and visual inspection

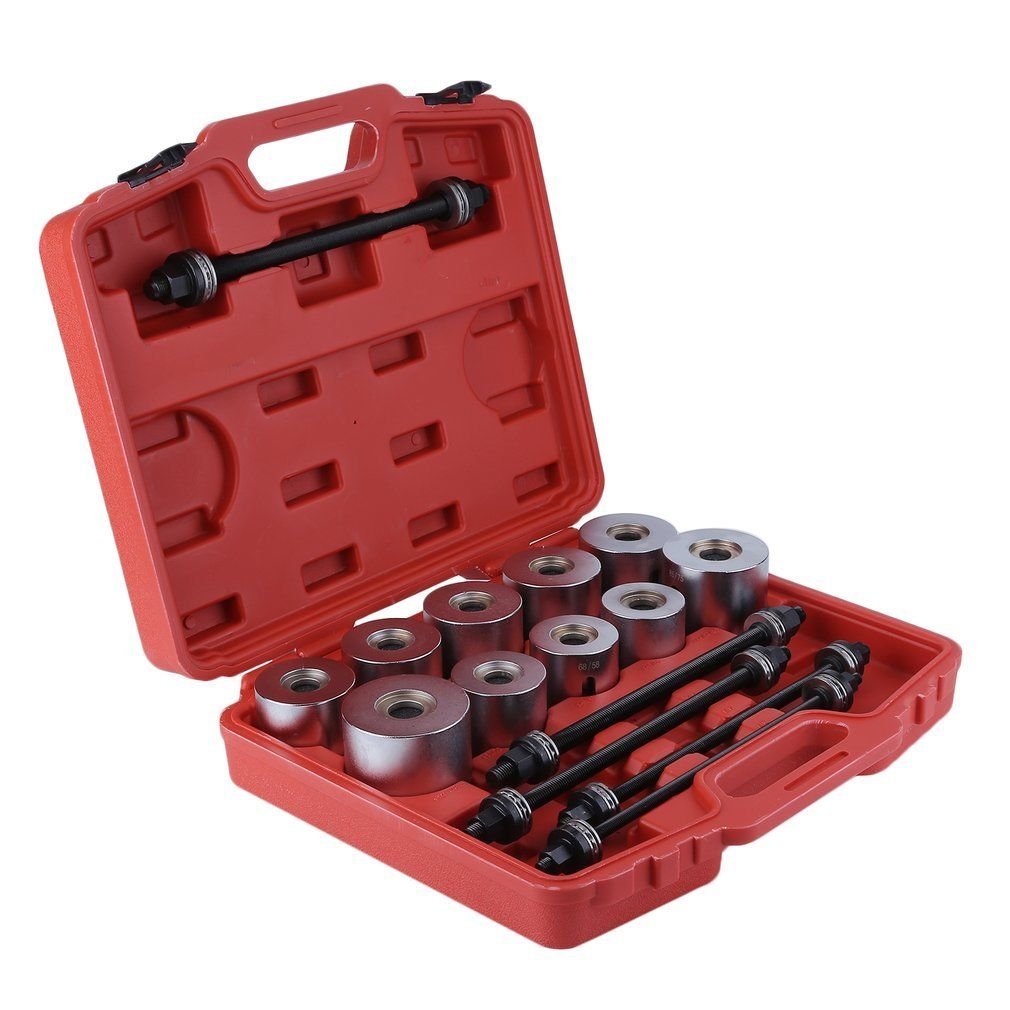

• Thrust bearings on both spindle ends for smoother extraction
• Double-sided end caps for universal sleeve fit and even contact
• Heat-treated alloy construction to resist deformation

Can I use the kit with a workshop press or handheld tools?

Yes — the WINTOOLS kit is designed to work both as a standalone pull/press set and as an adjunct to a workshop press. Sleeves and end caps sit safely under press heads, and the spindles are compatible with socket or wrench-driven installations for field or workshop use.

• Compatible with hydraulic or arbor presses for higher-force jobs
• Hand-operated using spindles, nuts and wrenches when no press is available
• Compact case dimensions fit most tool benches for storage

Who will this tool set benefit most?

This kit is built for mechanics, maintenance technicians and DIY enthusiasts who service bearings, seals and bushings on cars, light trucks, industrial equipment and machinery. It is especially useful for anyone who needs a broad-size, durable solution to remove or install parts without resorting to heat, welding or risking housing damage.

Contents, materials and dimensions: 22 sleeves (40Cr), 5 pulling spindles (45# carbon steel) with nuts M10–M18, overall case dimensions 46 x 10.5 x 36.5 cm, and unit weight approximately 17.44 kg. The WINTOOLS kit reduces repair time, improves alignment accuracy and extends the life of housings and replacement bearings when used properly.
