Wix Racing High Efficiency Endurance Oil Filter 51222R — 75 CFM High-Resin Media, Reinforced Canister

WIX 51222R is a heavy-duty racing oil filter engineered to protect high-performance engines on dirt, clay, and off-road tracks by combining high-flow filtration with reinforced construction.

Built for motorsports where conditions are punishing and tolerances are tight, the WIX High Efficiency Endurance (HEE) 51222R balances particle capture with unrestricted flow. Its high-resin media and spiral-wound center tube are designed to trap finer contaminants while preserving oil delivery under sustained high-RPM use. Reinforced metal components and high-temperature gaskets stand up to repeated heat cycles, impacts, and elevated pressures common in competitive off-road and short-course racing.

How does the 51222R protect a race engine under extreme conditions?

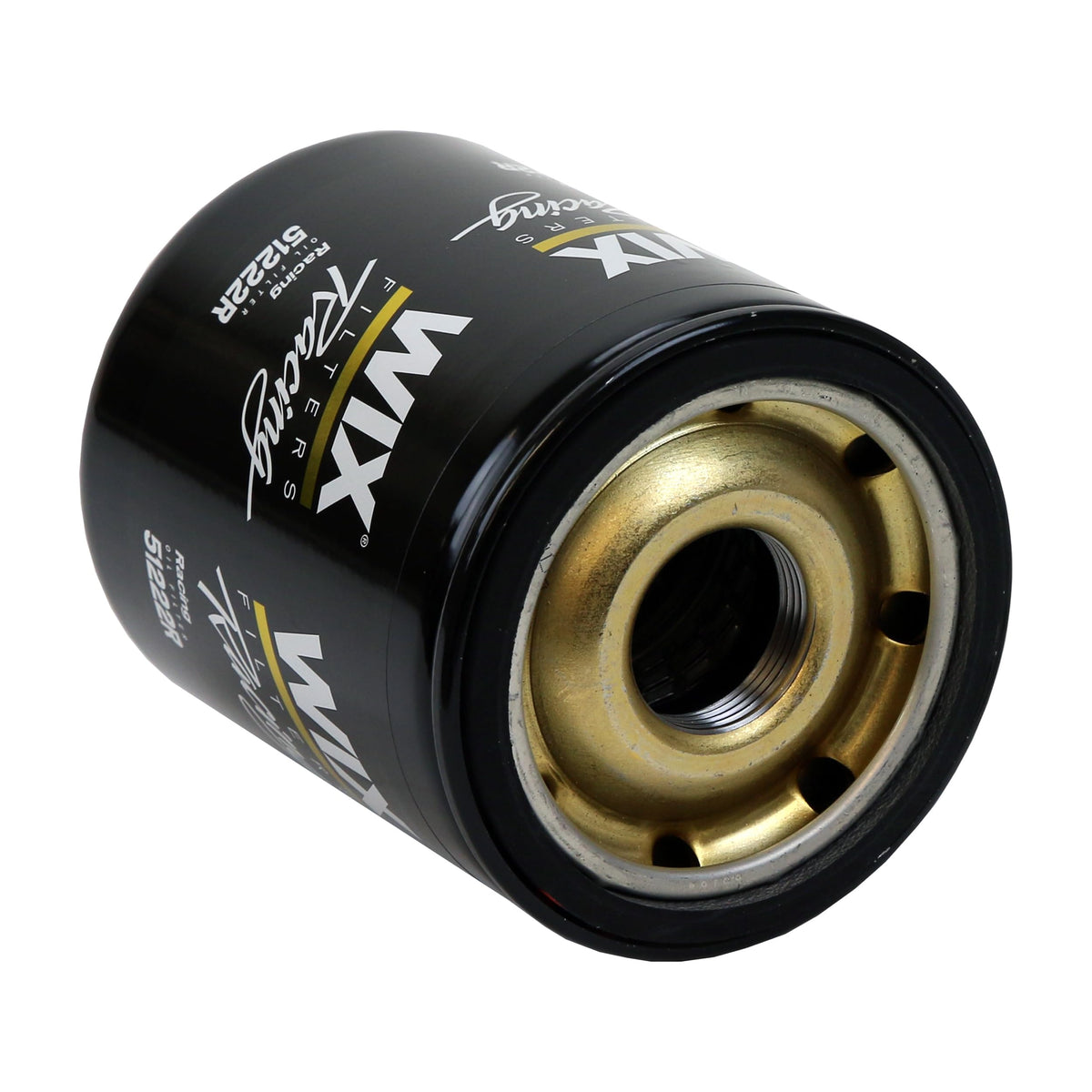

The 51222R uses dense, high-resin filter media rated at 75 CFM to block smaller particles without choking oil flow, reducing wear on precision engine components. Structural features like a spiral-wound inner tube, metal end caps and a thick canister prevent collapse or bypass when racing loads spike.

• 75 CFM high-resin media for fine-particle capture and airflow
• Spiral-wound center tube to resist collapse under high flow
• Metal end caps and heavy-walled can to prevent bypass
• Designed for repeated high-RPM and elevated-temperature cycles

Will this filter withstand high temperatures and pressure spikes?

Yes — the 51222R is built with materials chosen to tolerate racing stress. Nitrile gaskets resist heat up to 300°F, while a heavy-walled cover and canister handle burst pressures up to 500 PSI, offering a margin of safety during thermal and pressure transients.

• Nitrile baseplate gasket rated to 300°F
• Can and cover engineered for up to 500 PSI burst pressure
• Zinc chromate-plated baseplate reduces corrosion and friction
• Durable assembly for repeated race-season use

How does the 51222R balance filtration efficiency with oil flow?

This filter is engineered to deliver endurance-style filtration: a high-resin media traps finer contaminants while a 75 CFM flow rating sustains oil supply under heavy loads. The spiral-wound center tube and optimized internal geometry reduce flow restriction and preserve oil pressure to critical bearings and valvetrain parts.

• High-resin media for fine-particle retention
• 75 CFM rating to maintain oil circulation at high RPMs
• Internal structure minimizes resistance while preventing collapse
• Suitable for engines demanding continuous, high-volume flow

What features make the 51222R suitable for off-road and dirt-track racing?

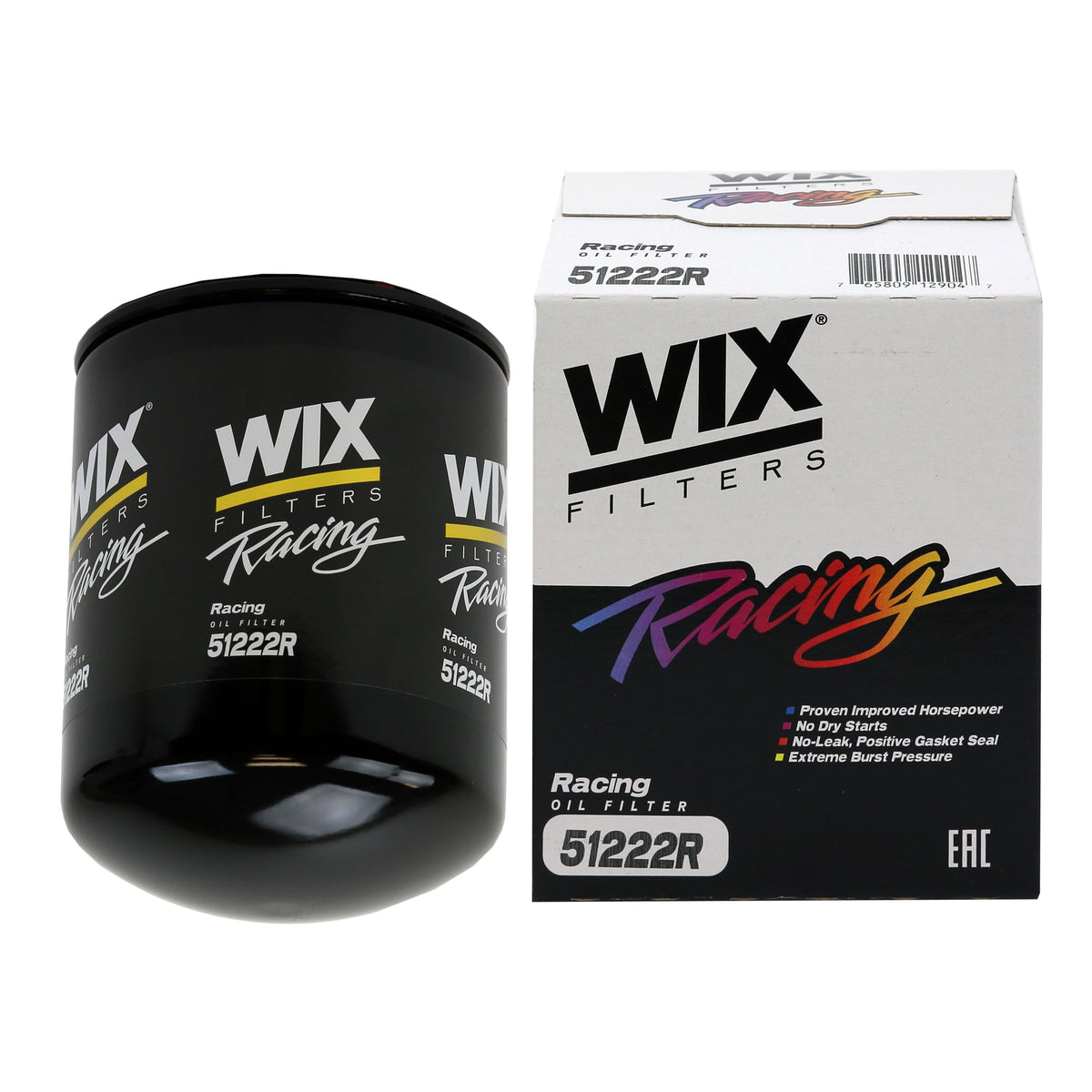

Off-road racing exposes filters to vibration, debris ingestion, and rapid temperature swings; the 51222R addresses these through robust mechanical design and corrosion-resistant finishes. The zinc chromate-plated baseplate lowers friction during installation and resists pitting in abrasive environments, while the heavy-walled can survives impacts and pressure surges.

• Reinforced can and cover for impact and pressure resilience
• Zinc chromate plating resists corrosion from mud and moisture
• Sealing gaskets engineered for heat and repeated service cycles
• Construction tolerates vibration common to off-road rigs

Who is this for: The WIX 51222R HEE racing oil filter is ideal for competitive drivers, teams, and builders who run high-revving engines in harsh terrains—dirt oval racers, short-course off-road competitors, and anyone needing a filter that prioritizes both contamination control and uninterrupted oil flow. It’s a practical choice when durability, high-temperature resistance, and filtration precision are required but space and fitment match the 51222R specification.
