WLJH T5 74 LED Instrument Bulb — Ice Blue PC74 Socket, 100 lm, 12V Polarity-Sensitive

The WLJH Ice Blue T5 74 LED bulb with a PC74 socket is a compact, high-output 12V replacement designed to restore bright, crisp blue illumination to automotive instrument clusters and indicator lights.

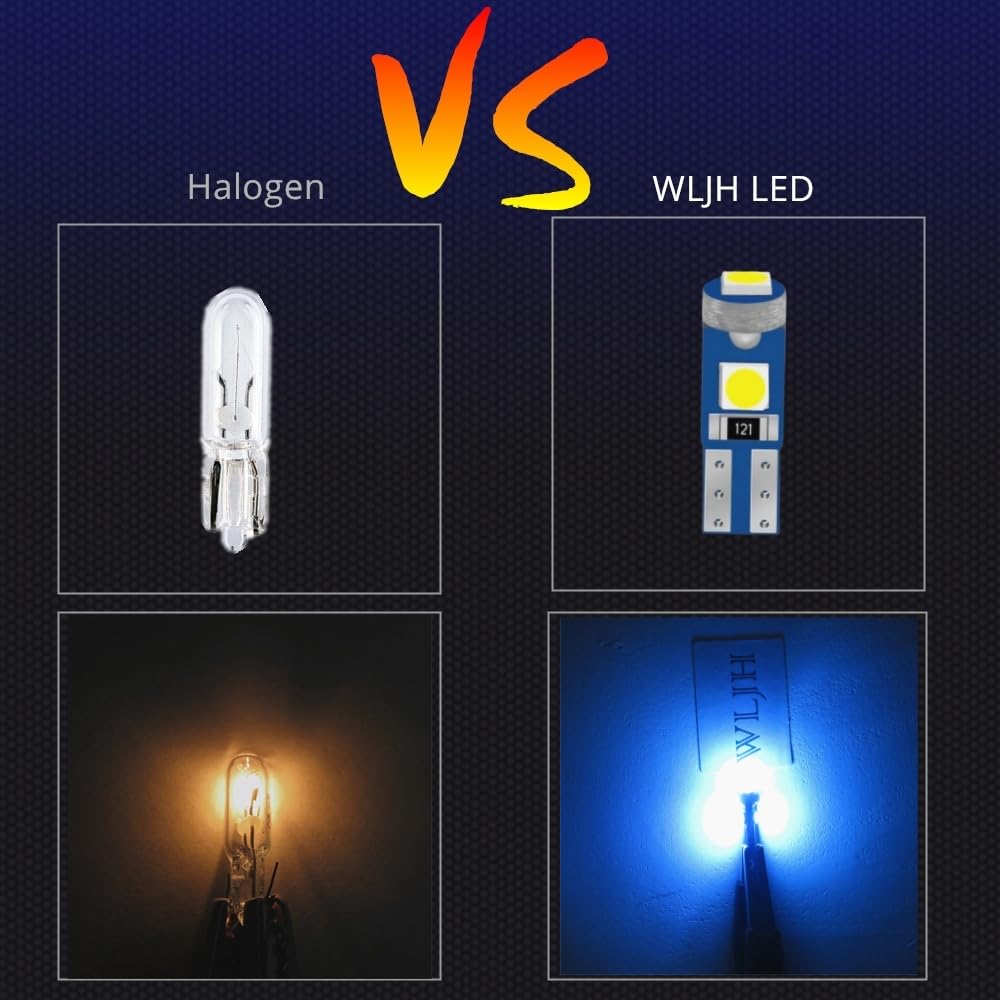

Made for dash gauges, indicator lamps and small interior fixtures, this WLJH T5 bulb swaps into PC74-type sockets and delivers a cooler ice-blue color using three 3030 SMD chips arranged for upward and side light distribution. It’s built to outperform common SMD chipsets like 5050 or 3528 by producing a focused, higher-lumen output in a compact footprint. The lamp is polarity-sensitive and intended for low-voltage vehicle systems—simple to install when you confirm socket fit and orientation.

How bright is this WLJH bulb for dashboards?

This T5 replacement uses three 3030 SMD emitters—one facing upward and two facing the sides—to spread light evenly across gauge faces without hot spots. Rated at around 100 lumens at 12V, it gives a noticeably brighter readout than many older SMD styles while keeping glare controlled for nighttime driving.

• Triplet 3030 SMD layout for both center and side illumination
• Approx. 100 lm output at standard 12V systems
• Ice-blue tint for crisp, high-contrast gauge visibility
• Designed to reduce uneven lighting and shadowing on dials

Will this fit my vehicle’s instrument cluster socket?

The WLJH bulb is built for PC74-type sockets and is compatible with many T5 variants commonly used in instrument clusters and indicator panels. Before installing, match the bulb length and base shape to your existing lamp and verify the socket designation to avoid fit issues.

• Compatible with a wide range of T5 sizes and PC74 sockets
• Fits common replacement numbers like 74 and equivalent T5 codes
• Measure existing bulb length and base shape when unsure
• Not universal—confirm socket code and polarity prior to purchase

How do I install and avoid polarity or fit problems?

Installation is straightforward but requires attention to polarity: T5 LED bulbs will light only when oriented to the vehicle’s positive and negative contacts. Avoid pulling the LED assembly out of the socket; instead insert the bulb into the socket and rotate the entire socket into the panel slot for a secure fit.

• Turn off power before removing old bulbs to prevent shorts
• If the bulb doesn’t light, flip its orientation to correct polarity
• Do not remove the LED from its socket—rotate the socket to seat it
• Double-check 12V system compatibility before installation

What applications suit this ice-blue T5 74 LED best?

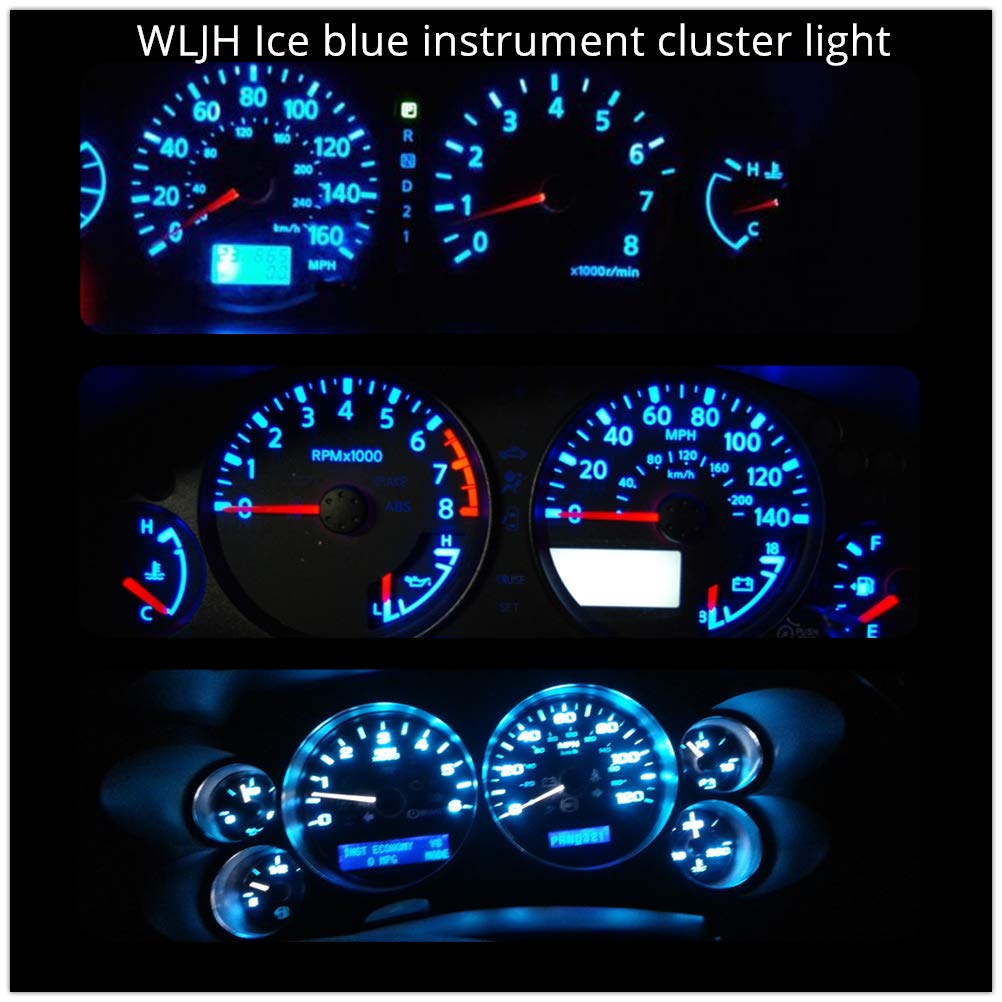

This bulb is ideal for instrument clusters, indicator lights and other small automotive or motorcycle fixtures where crisp blue illumination improves readability and aesthetics. It also works for clocks, radio dials, ashtray lights and many dash indicator lamps where a T5/PC74 replacement is required.

• Instrument cluster and gauge illumination
• Indicator lights: turn signals, hi-beam, check-engine indicators
• Small interior fixtures: clock, radio dial, ashtray lighting
• Motorcycle and automotive dash applications

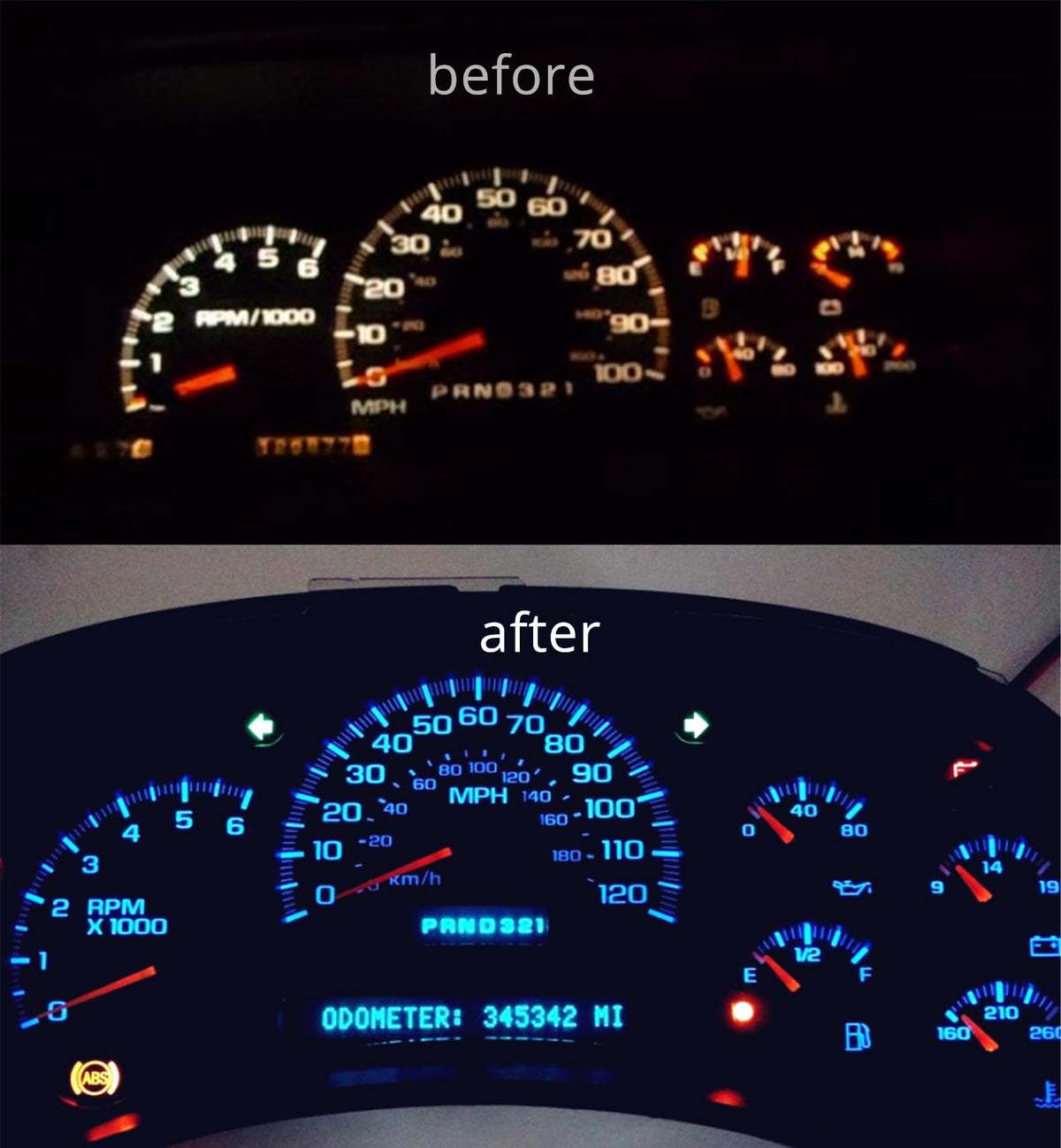

Who is this for: Drivers and technicians who want to upgrade dim or yellowing dash bulbs with a bright, ice-blue LED that improves gauge contrast and modernizes instrument panels. It’s also suited to hobbyists retrofitting classic cars or motorcycles, and anyone who needs a compact, higher-output T5 replacement—provided they confirm socket PC74 fit and 12V polarity before installation.
