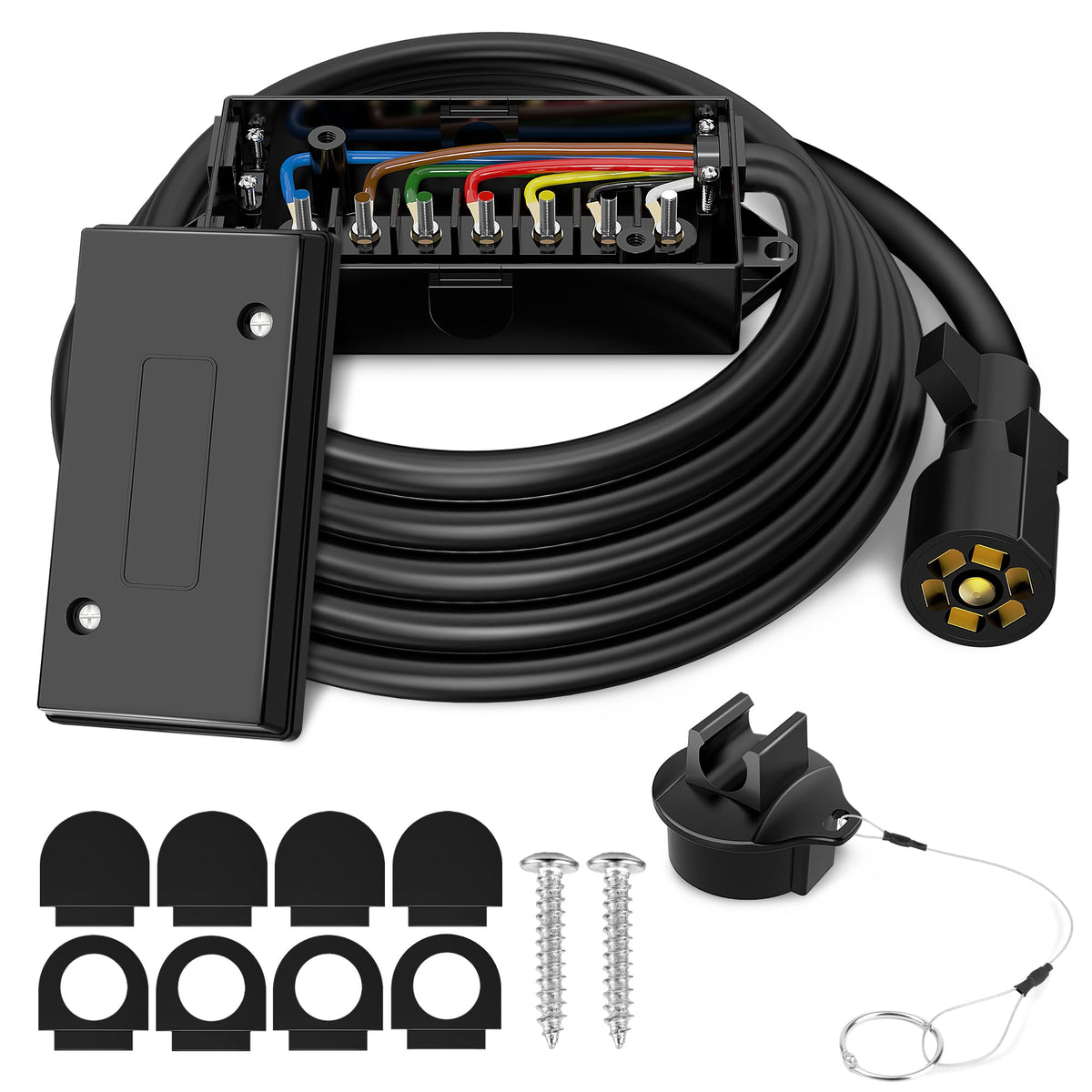

WOLFWILL 7-Way Trailer Plug Cord 8ft with 7-Gang Junction Box — Heavy-Duty, Color-Coded Wiring

The WOLFWILL 8ft Heavy Duty 7-Way Trailer Plug Cord with 7 Gang Junction Box is a rugged, color-coded 7-wire harness and junction box that simplifies trailer-to-tow vehicle wiring for lights and auxiliary power.

This heavy-duty 8-foot harness bundles all seven necessary trailer circuits—tail, brake, left and right turn, reverse, auxiliary 12V, and ground—into a single plug and a sealed junction box so you can make clean, reliable connections between your tow vehicle and trailer. The cord uses seven color-coded conductors and a molded 7-way copper blade plug for a secure electrical fit, while the ABS junction box protects splices from moisture, dust, and corrosion for long-term use.

How does this harness make trailer wiring faster and neater?

The kit organizes seven circuits into a single plug-and-junction arrangement so you avoid tangled wires and repeated testing. Color-coded wires let you identify each circuit quickly, reducing installation time and mistakes.

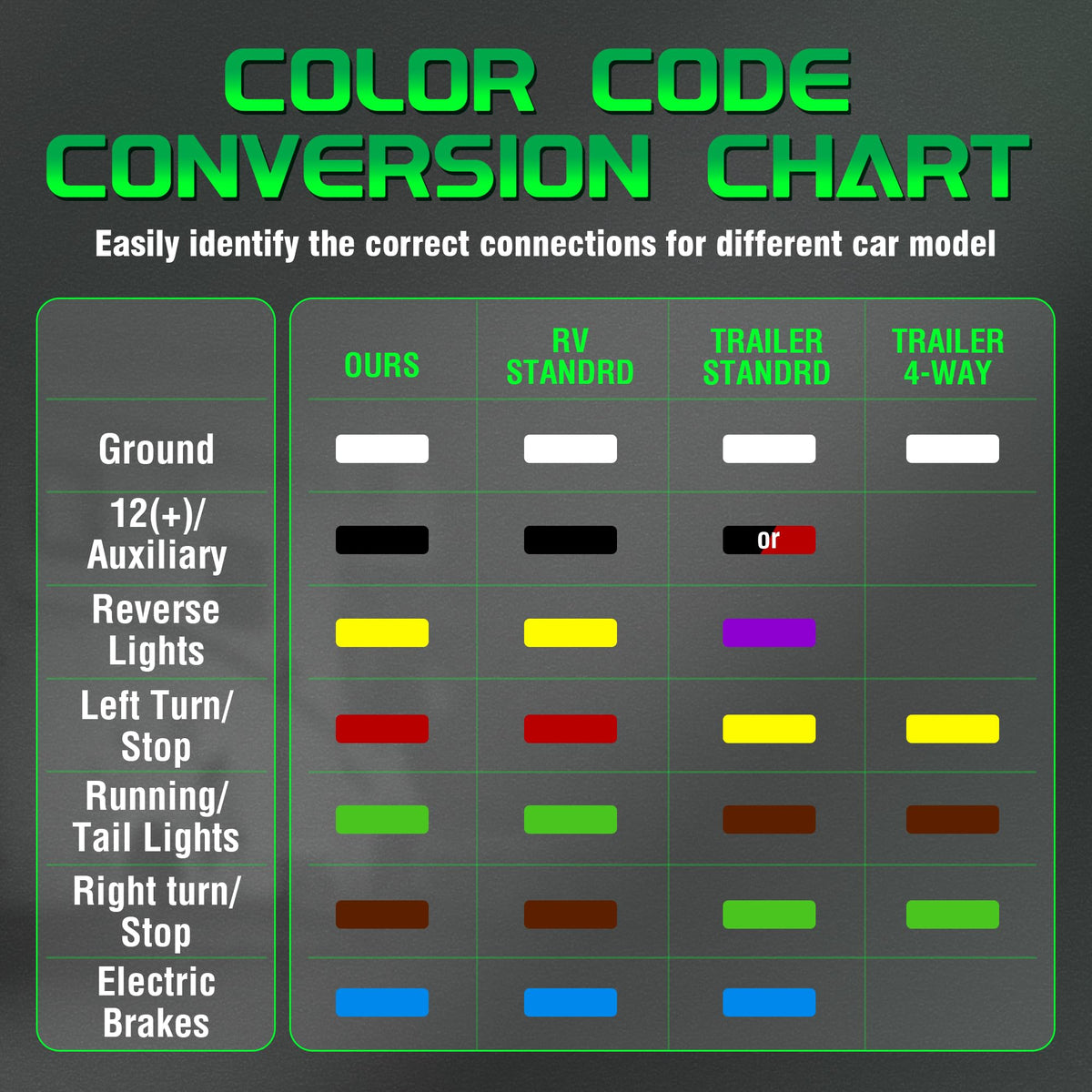

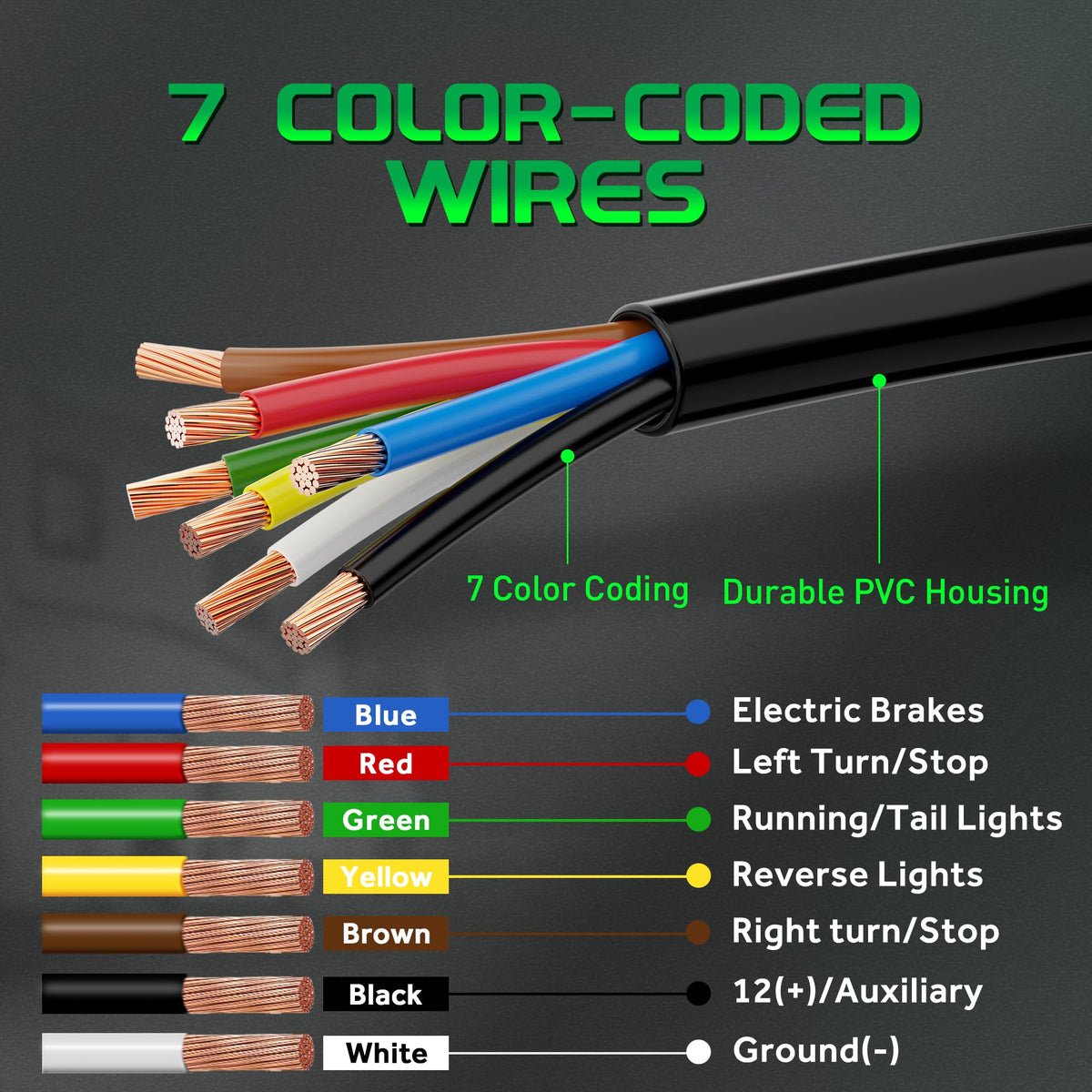

• Seven color-coded conductors for immediate identification

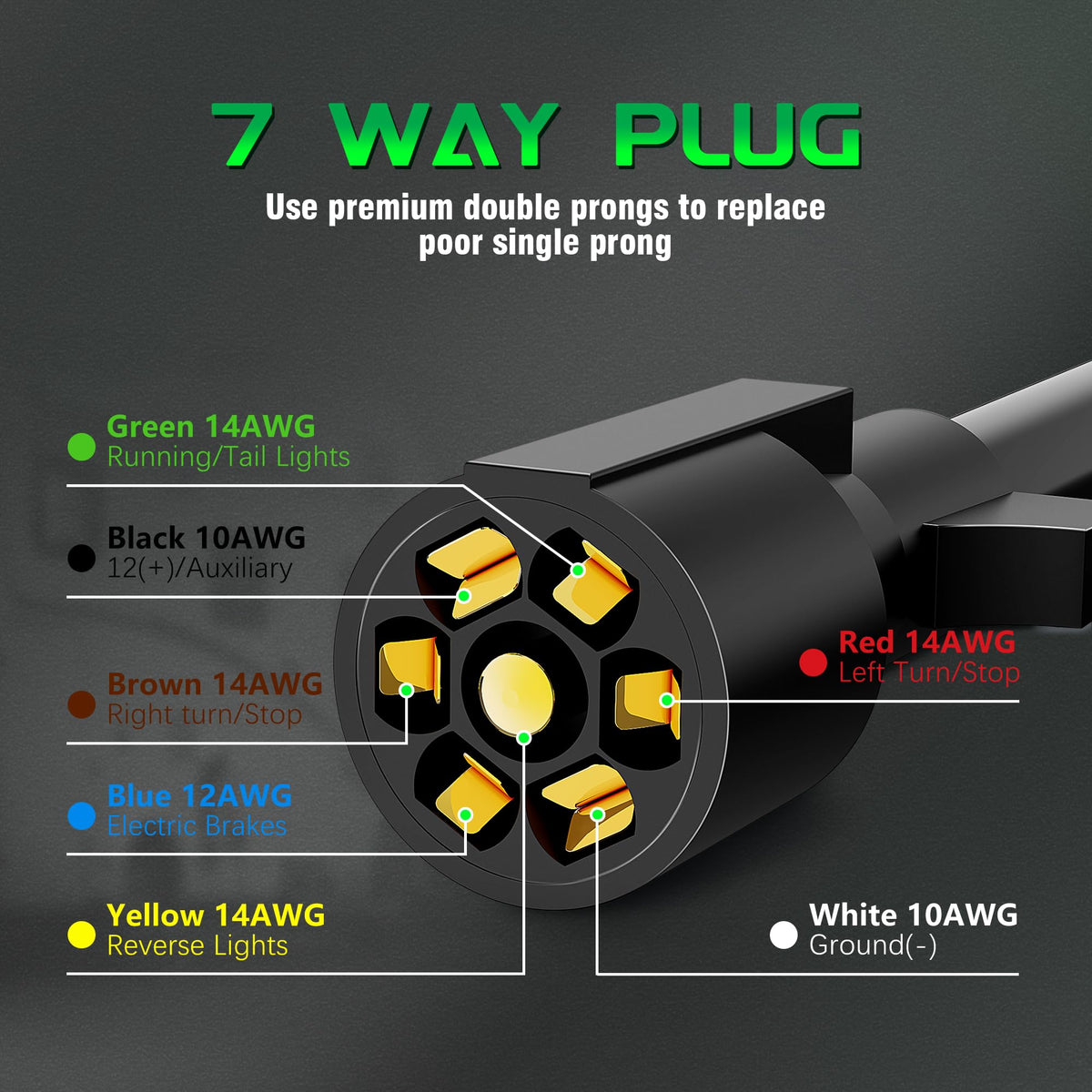

• Molded 7-way copper blade plug for one-piece connection

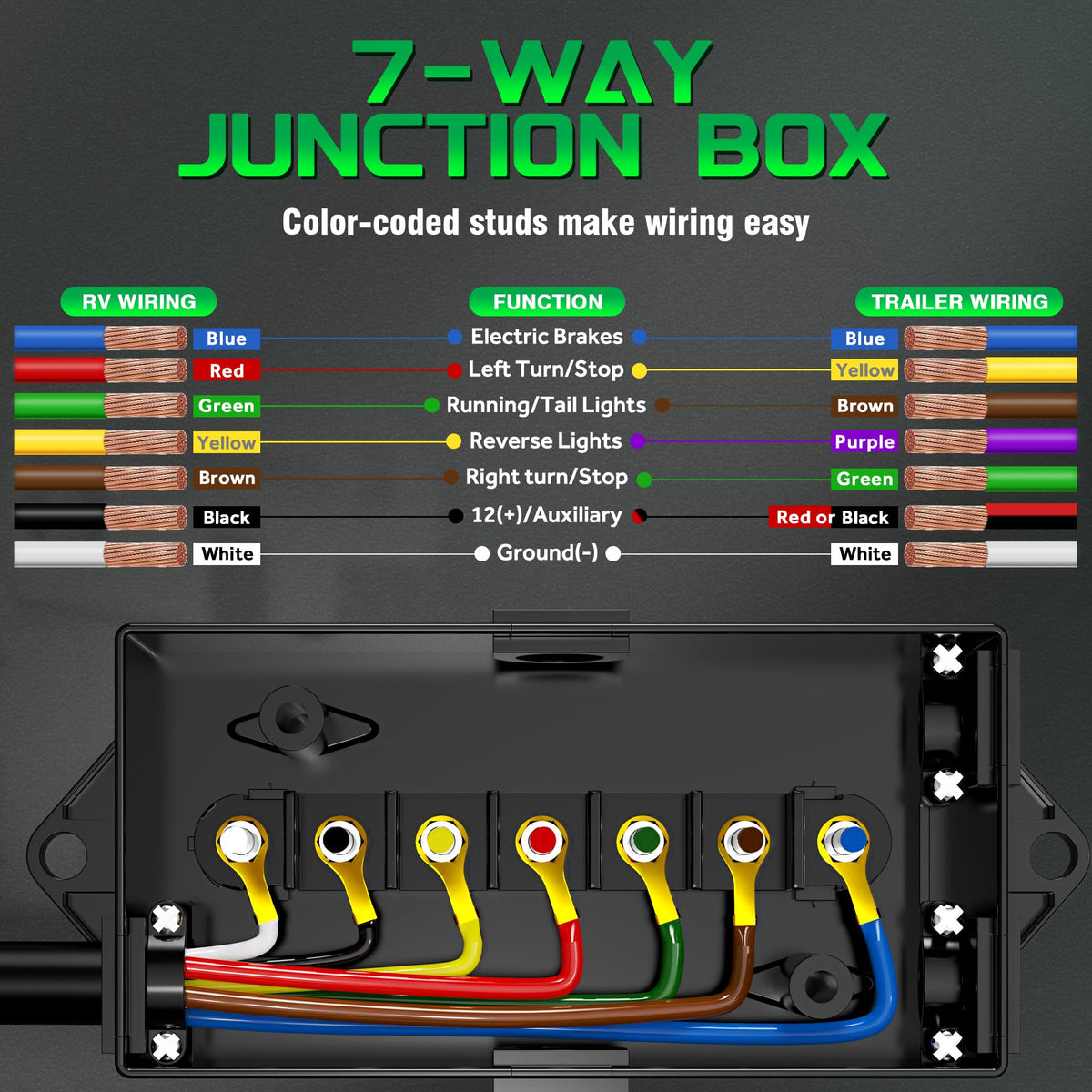

• 7-gang junction box to consolidate splices and terminals
• 8-foot cord length provides routing flexibility from front to rear

Is the cord and junction box durable enough for outdoor use?

Yes. The cord is encased in flexible yet rugged PVC to resist abrasion and retain flexibility in varying temperatures, while the junction box is made from high-quality ABS that resists water, dust, flame, and corrosion. Those materials help extend service life in trailers, RVs, and food vans that face road and weather exposure.

• Soft rugged PVC housing for weather and abrasion resistance

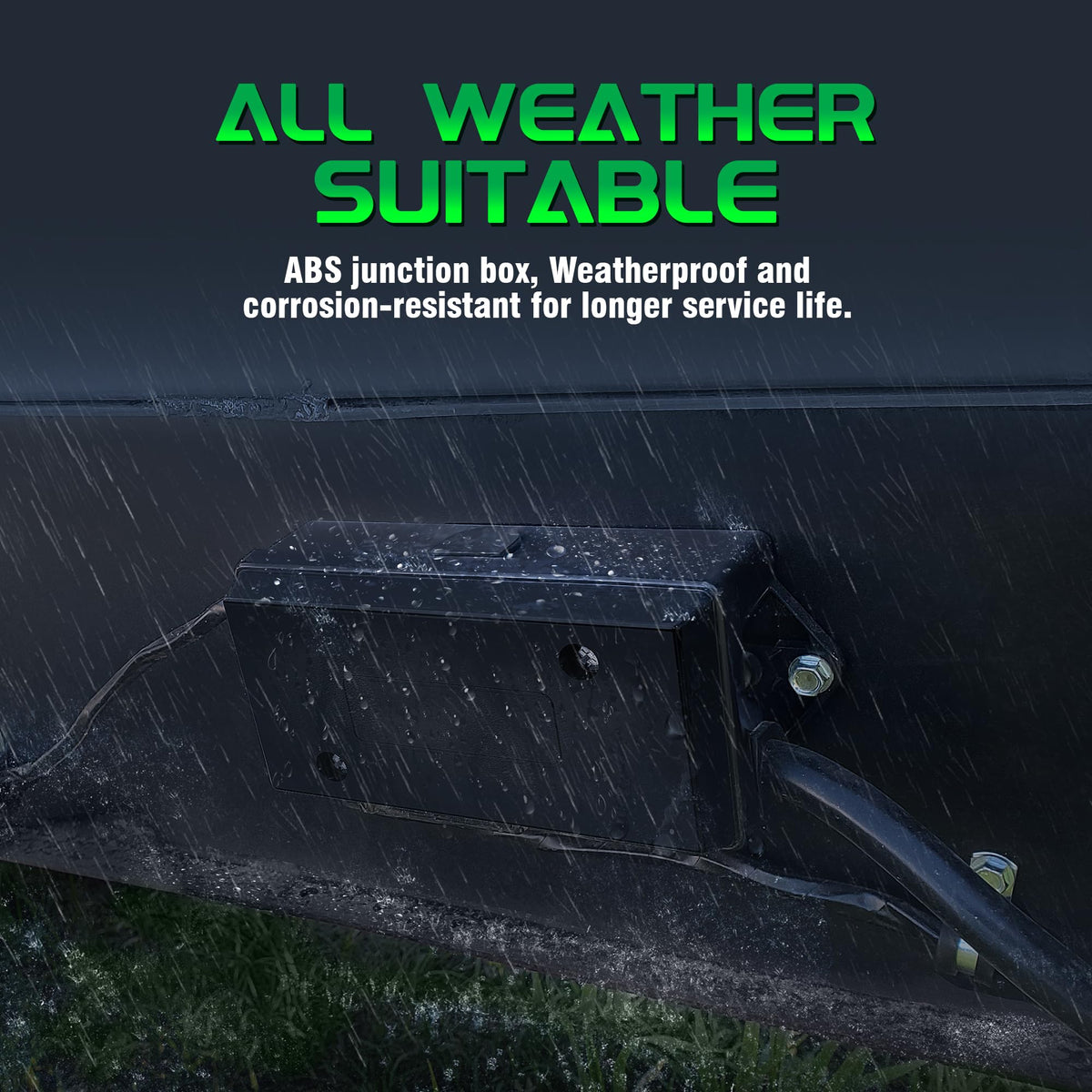

• Waterproof and dustproof ABS junction box seals splices
• Flame- and corrosion-resistant components for long-term reliability
• Molded plug with double-pin copper blades for secure contact

What vehicles and trailer setups is this 7-way harness compatible with?

The harness supports standard 7-way trailer electrical systems and suits a wide range of towed equipment including trailers, campers, RVs, caravans, and commercial tow setups like food vans. It handles lighting, brake signals, reverse lights, and auxiliary 12V feed for accessories.

• Trailers and utility trailers needing 7-way connections
• RVs, campers, and caravans for lights and auxiliary power
• Commercial towed units such as food vans or equipment trailers
• Works with standard vehicle 7-way sockets and trailer plugs

How easy is installation and what should I prepare?

Installation is straightforward for anyone familiar with basic trailer wiring: match the seven color-coded wires to the vehicle wiring following a wiring diagram, route the 8ft cord to avoid pinch points, and enclose splices inside the junction box. Properly crimped or soldered connections and dielectric grease on terminals improve longevity.

• Follow wiring diagram to match each color-coded wire
• Use quality crimps, solder, and dielectric grease on contacts
• Mount junction box where it stays protected from road spray and heat
• Leave slack in the cord to avoid tension while turning

Who is this for: The WOLFWILL 8ft 7-way trailer plug cord with a 7-gang junction box is aimed at DIY installers, fleet owners, and RV enthusiasts who want a durable, organized wiring solution for lighting and auxiliary power. It fits anyone who needs a weather-resistant, color-coded harness that reduces installation time and protects electrical joints for longer service life.
