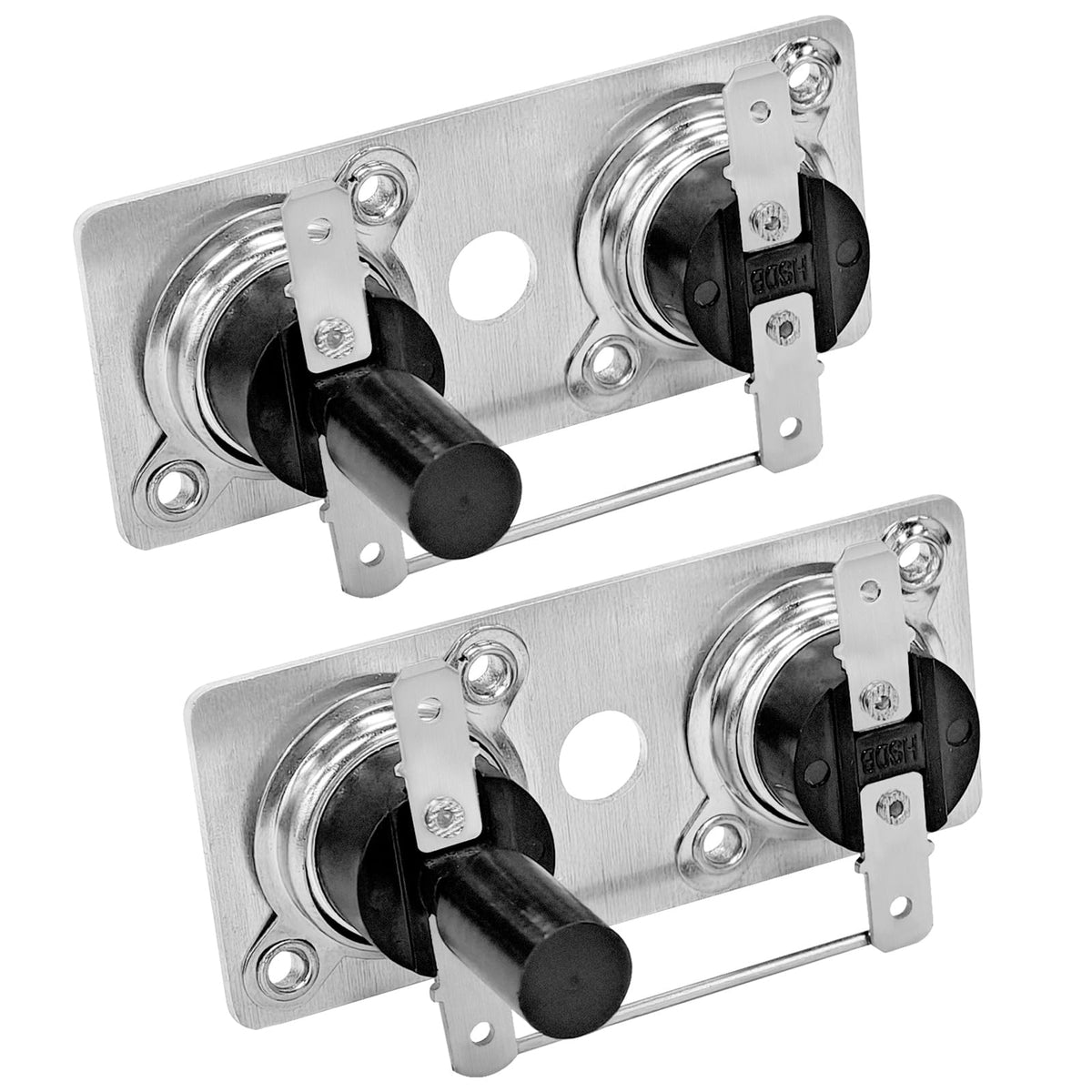

WPL RV water heater thermostat switch 232306 — 120V high-limit 130°F preset, direct-fit for Suburban SW-series

This WPL 232306 thermostat switch is designed as a drop-in replacement for many Suburban SW-series RV water heaters, offering reliable temperature sensing, a sturdy mounting bracket, and a preset temperature limit for consistent hot-water performance. It suits systems that require a 120V, 130°F control point and replaces several common part numbers, helping restore hot-water function without expensive service calls.

Which Suburban models and part numbers does this replace?

The 232306 is compatible with a wide range of Suburban SW-series models, including SW6, SW10, SW12 and SW16 variations with DE, DEL, DEM, PE and PER suffixes. It's also listed as an interchangeable option for several temperature-limit and high-limit T-stat switches, improving parts compatibility for older heaters.

• Compatible models: SW6DE, SW6DEL, SW6DEM, SW6PE, SW6PER, SW10DE, SW10DEL, SW10DEM, SW10PE, SW10PER, SW12DE, SW12DEL, SW12DEM, SW16DE, SW16DEL, SW16DEM
• Replaces common part numbers: 233534, 525002, 525007, 232282 and similar high-limit switches
• Works with Suburban units manufactured after serial number 940900091 (SW series)

How does it control temperature and protect my RV water heater?

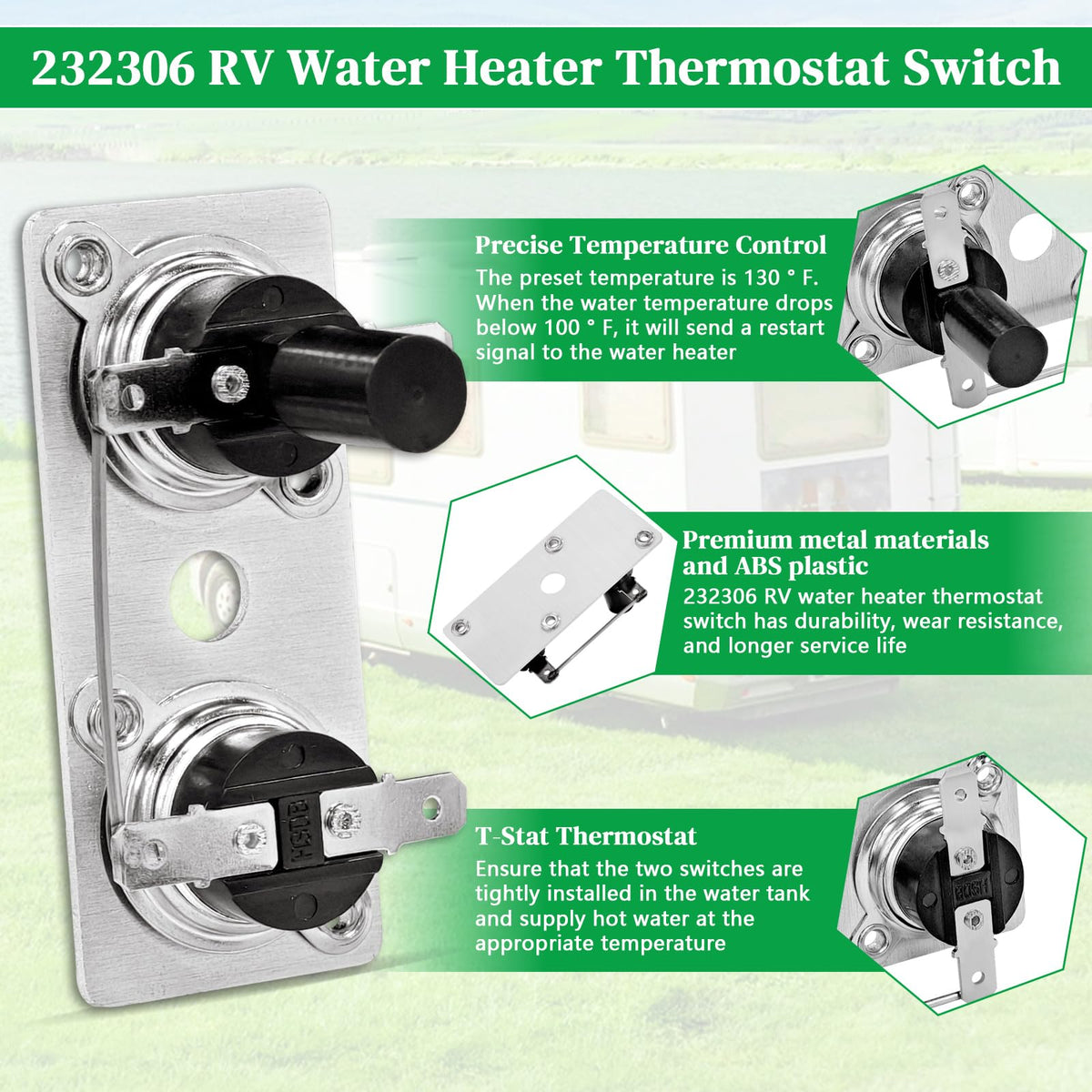

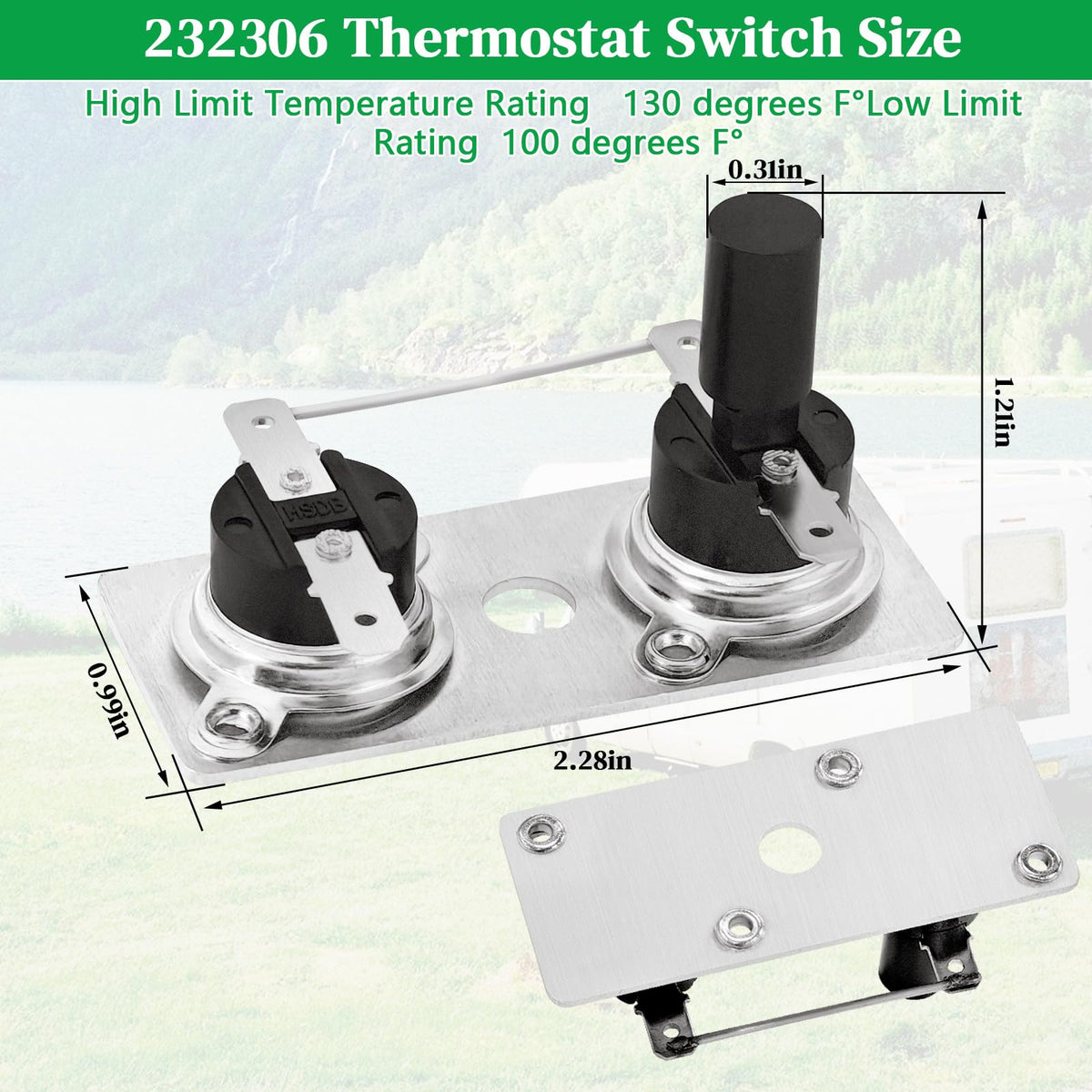

The WPL 232306 arrives factory-set to open at roughly 130°F and will reset when water temperature falls below about 100°F, giving consistent cycling to maintain usable hot water. The unit incorporates a high-limit function to interrupt power if temperatures exceed safe thresholds, helping prevent overheating events.

• Preset cut-out near 130°F for stable hot-water delivery
• Automatic restart signal when water cools below approximately 100°F
• Mounted bracket ensures firm contact with the tank for accurate sensing

Is installation difficult and what safety steps should I follow?

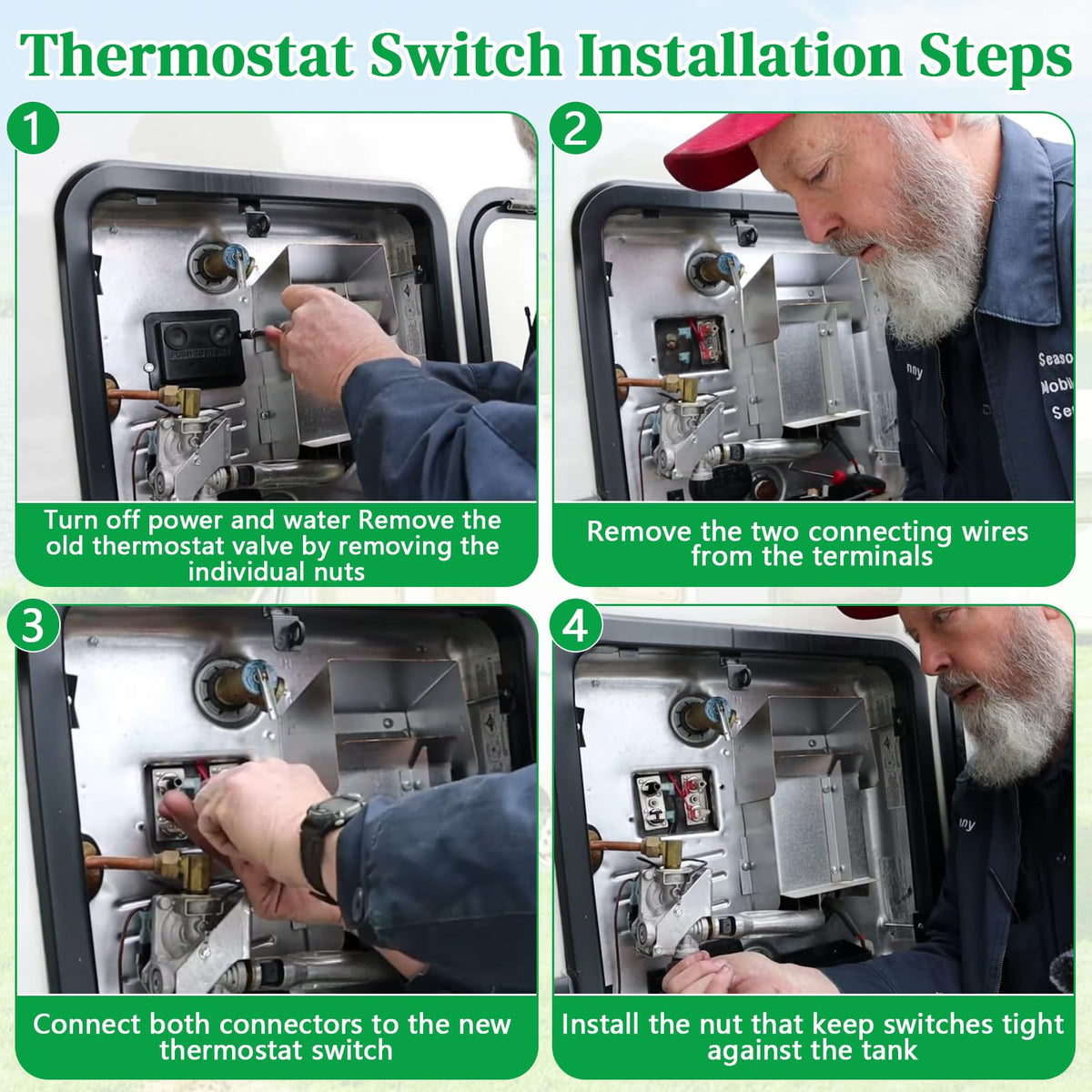

Installation is designed to be straightforward for someone comfortable with basic RV maintenance; the switch mounts to a bracket and connects to the existing wiring harness. Always disconnect the heater’s power before starting, follow the included instructions, and verify correct electrical connections to avoid damage.

• Turn off all power to the water heater before removal and installation
• Use the supplied bracket and match existing terminal connections to avoid wiring errors
• No special tools or professional service required for typical installations

What materials and durability features help it last in an RV environment?

WPL built this 232306 thermostat switch from heat-tolerant materials meant to withstand vibration and temperature cycles common in mobile applications. The construction aims to reduce corrosion and long-term failure so you get more reliable hot water between replacements.

• High-temperature-resistant components for stable performance
• Robust bracket mounting to minimize movement and ensure contact
• Designed to resist wear from RV vibration and changing climates

Who is this for: RV owners, fleet managers, and DIY technicians who need a reliable, cost-effective replacement thermostat for Suburban SW-series 120V water heaters. It’s especially useful when original part numbers like 233534 or 525002 are unavailable or when you want a direct-fit component that restores consistent temperature control without rewiring the heater system.
