Wryxia BAV010 Air Valve Push-Pull 4-Way 2-Position for Dump Truck Tailgate — Aluminum Body, Includes Faceplate & Fittings

This compact push-pull control valve is built for hydraulic and pneumatic tailgate systems where reliable actuation and fast response matter. Made by Wryxia, the BAV010 combines an aluminum-alloy body with a sliding-column valve core to deliver consistent sealing, wear resistance, and sensitivity across repetitive cycles. The unit ships complete with the main valve, a tailgate control faceplate, and five fittings so it’s ready for straightforward integration on commercial dump trucks and similar equipment.

How does the BAV010 fit into a dump truck tailgate system?

The BAV010 serves as the manual interface between the vehicle’s compressed air supply and the tailgate’s actuator. By switching between two positions, the valve directs airflow to raise or lower the tailgate and vents the line when neutral. Its 4-way layout gives a compact footprint while enabling both supply and exhaust paths in a single component.

• Connects to OD 6 mm air tubing for common pneumatic lines.
• Operates within 50–145 PSI suitable for typical truck systems.

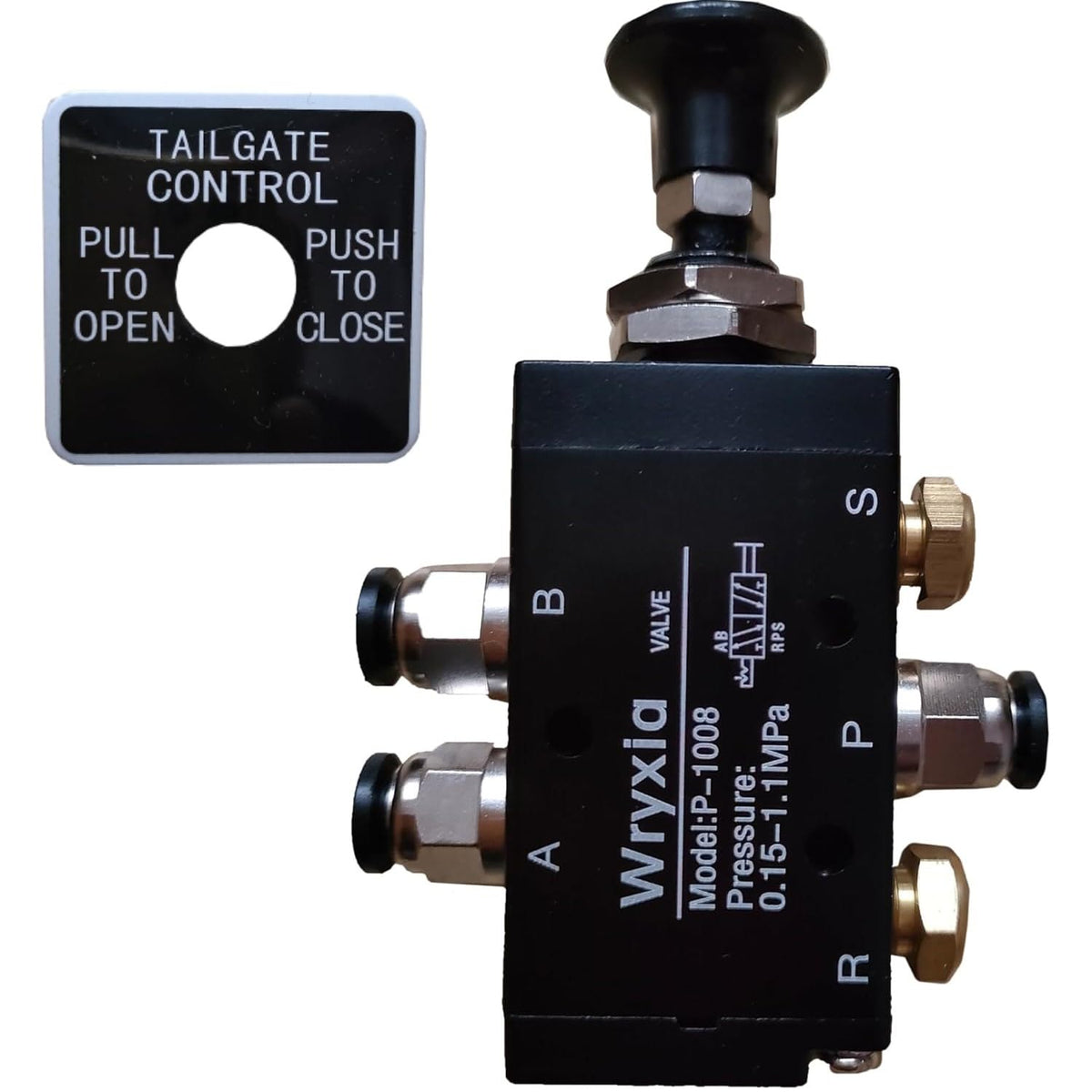

• 4-way, 2-position manual push-pull action for direct control.

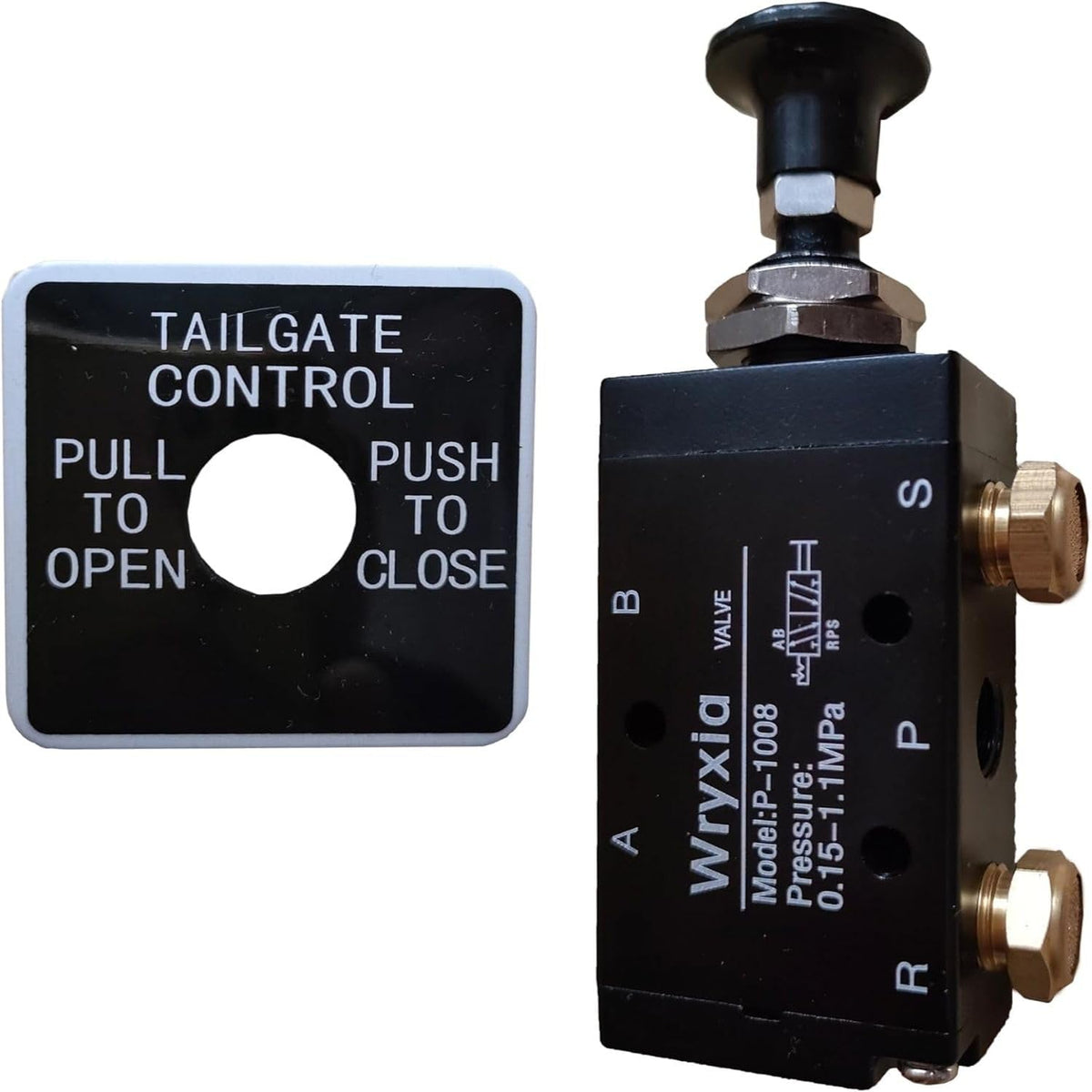

• Includes mounting faceplate and five fittings for installation.

What materials and design features affect longevity and reliability?

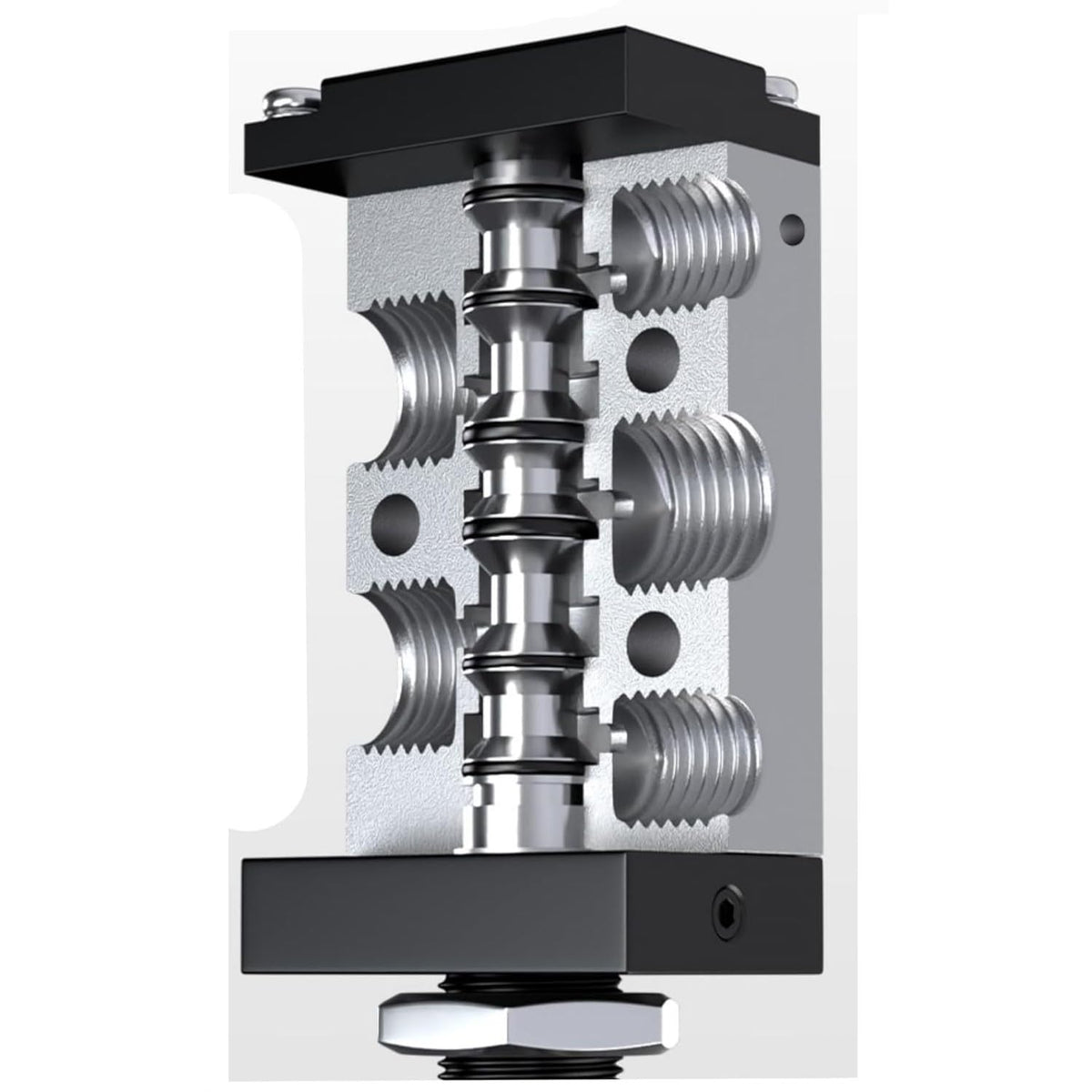

The valve body is machined from aluminum alloy to resist corrosion and reduce weight while keeping mechanical strength. Inside, a sliding-column valve core is engineered for tight sealing and quick actuation, lowering leak risk and improving responsiveness over many cycles. The combination supports consistent performance across units.

• Aluminum-alloy valve body for wear resistance and light weight.
• Sliding-column core for improved sealing and fast response.
• Quality-controlled manufacturing for consistent build uniformity.
• Designed for repeated industrial use in vehicle environments.

What are the operating limits and installation details I should know?

The valve is rated for working pressures from 50 to 145 PSI and is designed to operate in ambient temperatures from −25 to 80 °C. It connects to standard OD 6 mm air tubing and comes with the essential fittings and a control faceplate to simplify mounting and plumbing during retrofit or new assembly.

• Working pressure: 50–145 PSI.
• Temperature range: −25 to 80 °C for typical outdoor use.
• Piping: compatible with OD 6 mm air hose or tubing.

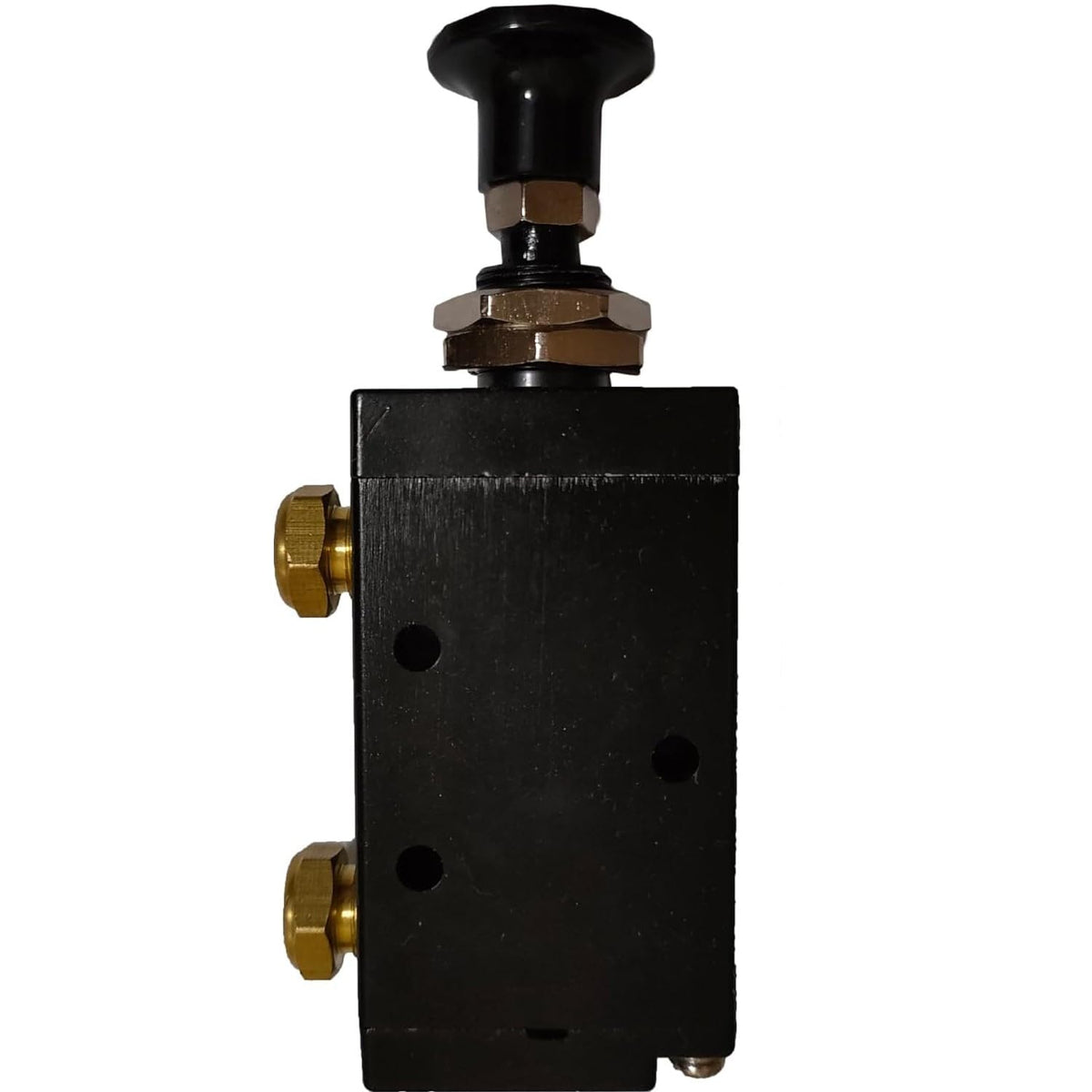

• Package contents: valve, tailgate control faceplate, five fittings.

How easy is the BAV010 to install and service in the field?

Wryxia designed the BAV010 for straightforward installation and low-maintenance operation. The included fittings and faceplate reduce the need for additional parts, and the manual push-pull action is intuitive for operators. When routine service is required, the accessible components make inspection and replacement efficient.

• Pre-supplied fittings and faceplate speed up installation.
• Simple manual operation requires no electrical interfaces.
• Aluminum construction and replaceable internals simplify maintenance.
• Manufacturer output capacity ensures consistent spare availability.

Who is this for: The Wryxia BAV010 is aimed at fleet managers, truck body builders, and technicians who need a dependable manual tailgate valve for dump trucks and similar equipment. It suits retrofit projects and OEM assemblies where a compact, serviceable 4-way 2-position air valve with proven materials and predictable performance is required. If you prioritize consistent manufacturing quality, easy installation, and robust operation in typical commercial vehicle environments, this valve is a practical choice.
