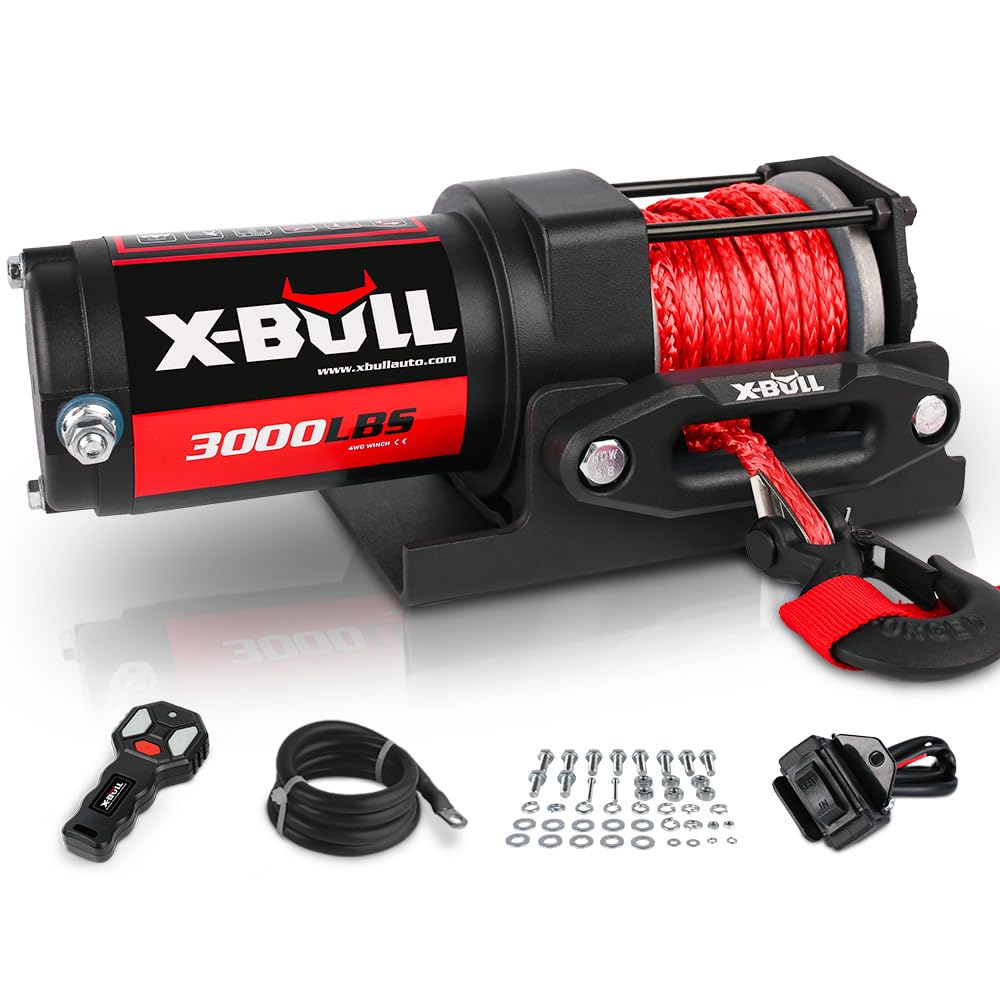

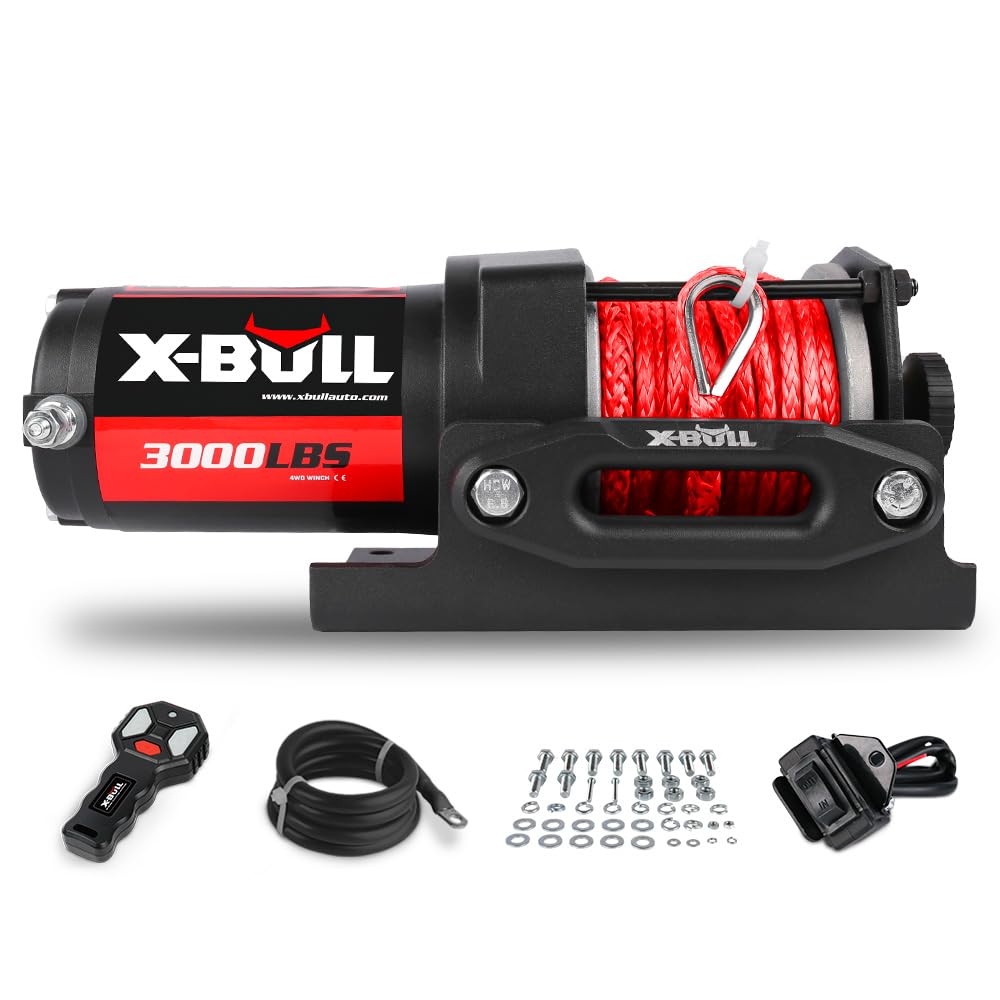

X-BULL 12V Electric Winch 3000 lbs - Synthetic Rope, Wireless Remote, Universal Mount for ATV/UTV

Compact 12V electric winch by X-BULL rated for 3000 lbs, equipped with a synthetic rope, wireless remote, and universal mounting plate for ATV/UTV and off-road recovery.

This X-BULL winch is built to help riders, off-roaders, and light-duty tow users recover vehicles and move loads without heavy manual effort. It pairs a 1.0 kW (1.3 HP) permanent magnet 12V motor and a 153:1 planetary gearset to deliver dependable pulling power in a corrosion-resistant package. The design balances compact size with practical features like a 32-foot synthetic rope, a wireless remote, and a universal mounting plate so it can be adapted to many small vehicles and utility tasks.

How much pulling power and speed does this winch provide?

The X-BULL winch is rated for a maximum static pull of 3000 lbs using its high-tensile synthetic rope. Powered by a 210 A motor and a 153:1 planetary gearbox, it offers controlled pulling with built-in automatic braking for holding loads when power is removed.

• Peak pull capacity: 3000 lbs (approx.).
• Motor: 1.0 kW / 1.3 HP, 12 V DC, 210 A.
• Line speeds: about 3.3 ft/min under full load; ~1.3 ft/min unloaded.

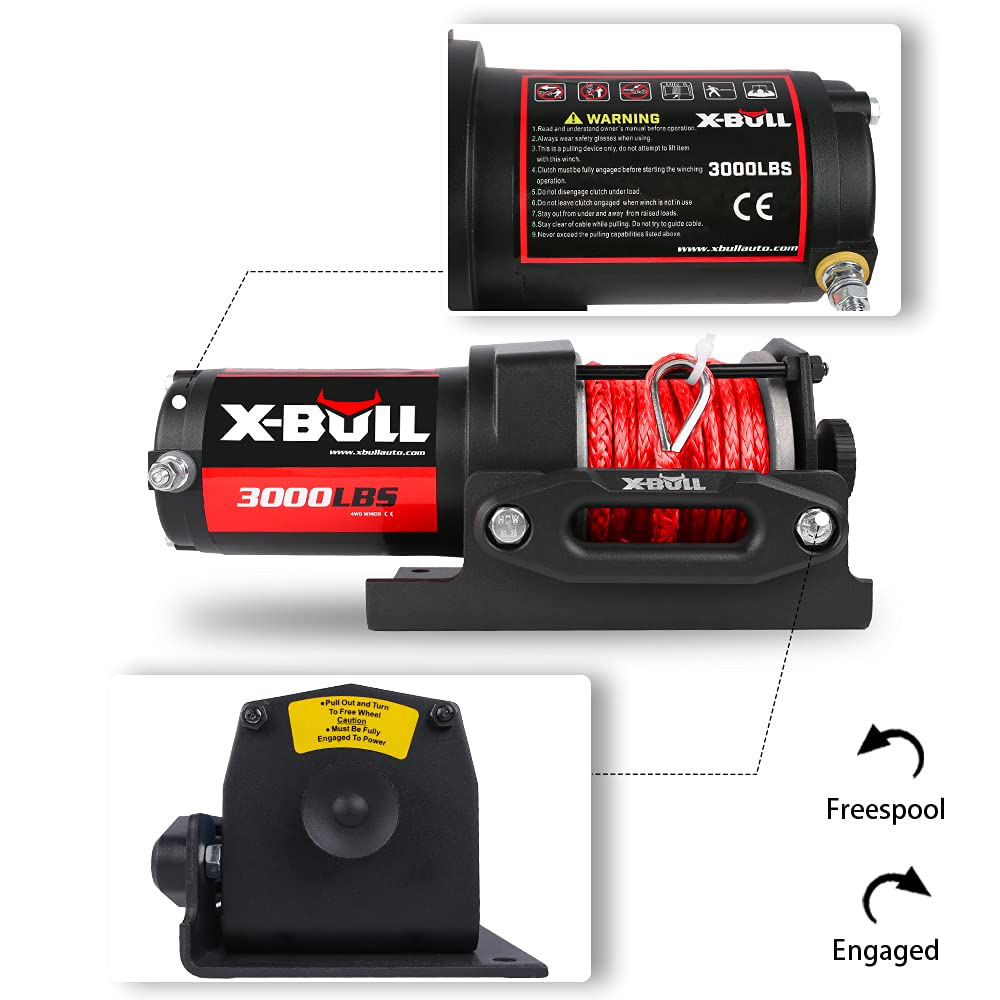

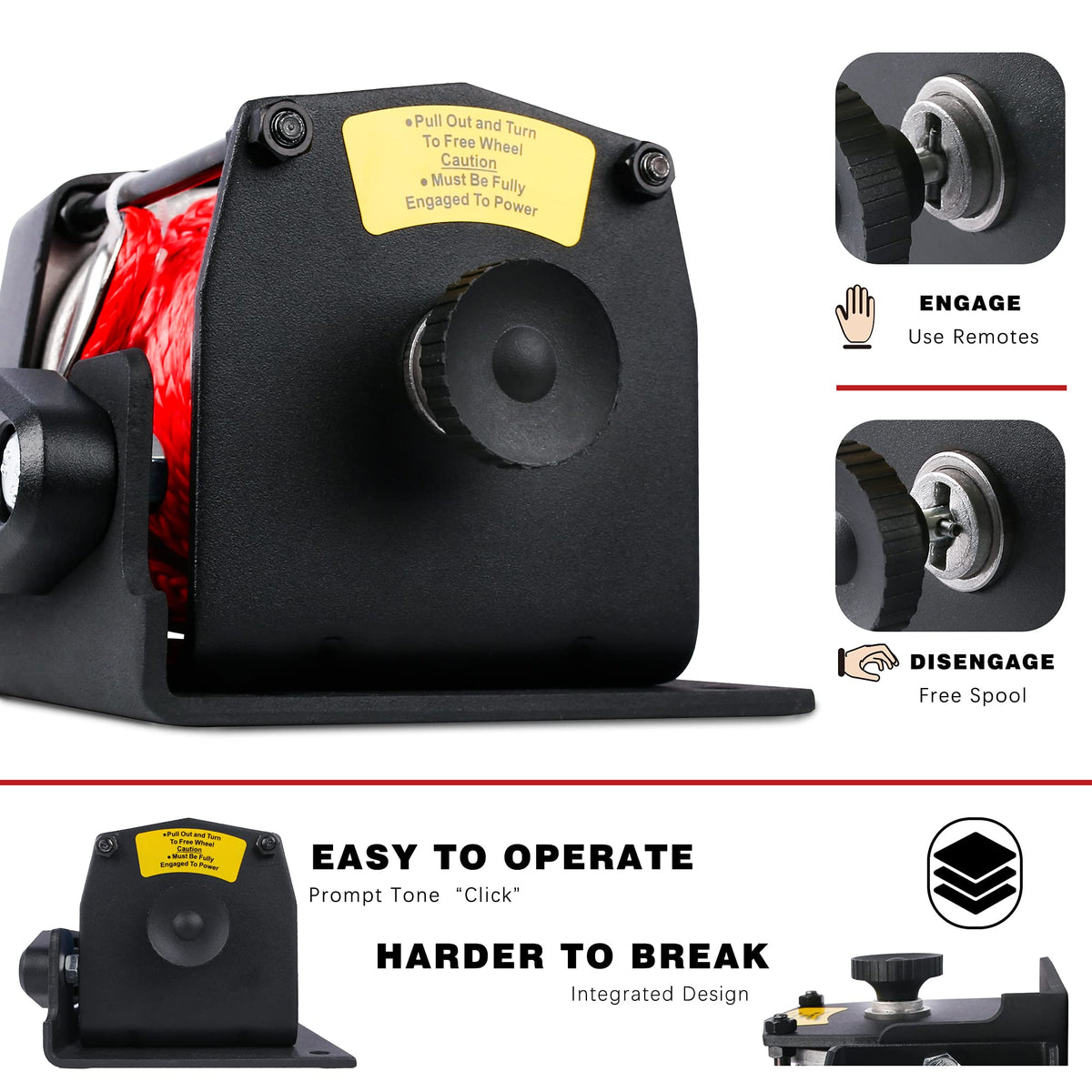

• Planetary gear set provides torque multiplication and automatic braking.

What rope, mounting, and connection options are included?

The winch ships with a durable 3/16" x 32' synthetic rope that resists abrasion and reduces weight compared with steel cable. A universal mounting plate and necessary wiring simplify installation, though small modifications may be required to match your vehicle’s configuration.

• Rope: 3/16" diameter, 32 feet long synthetic line.

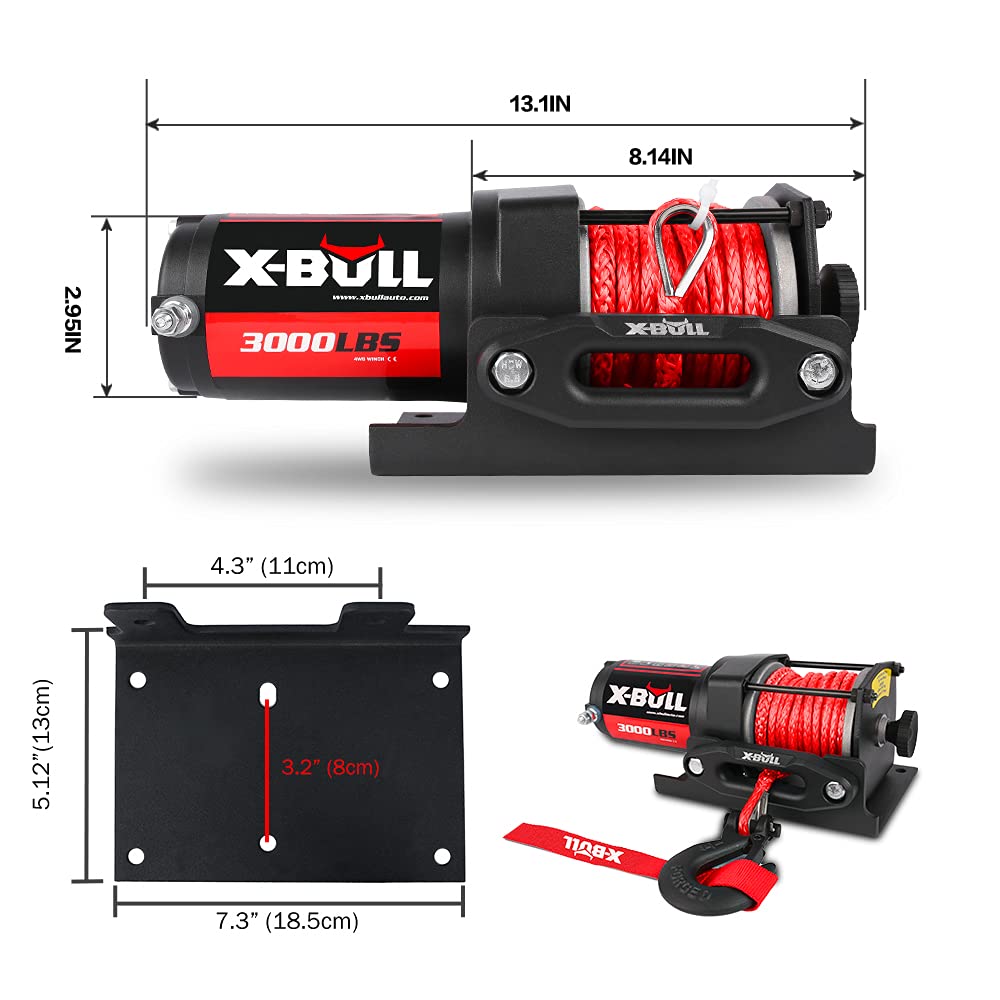

• Mounting plate: universal 18.5 x 13 cm plate (may need modification).

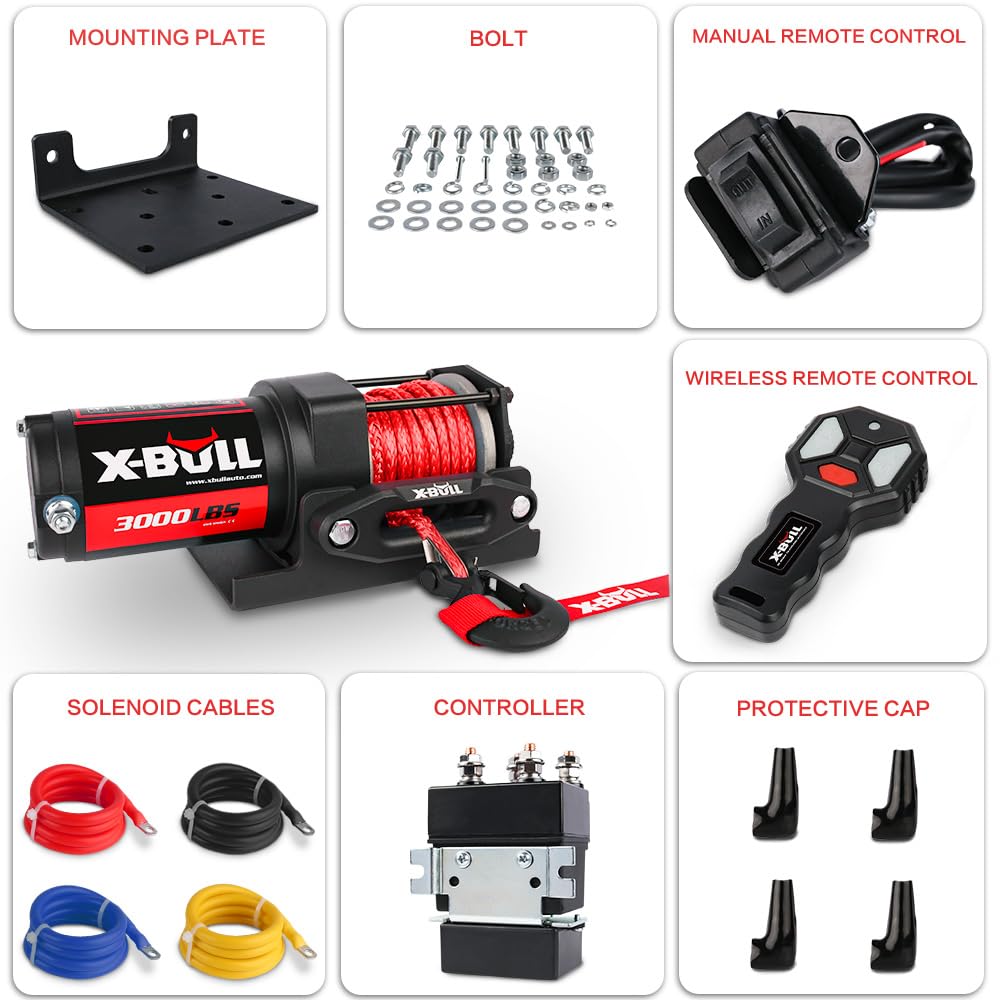

• Hardware: U hook, chain hook, and mounting bolt pattern included.

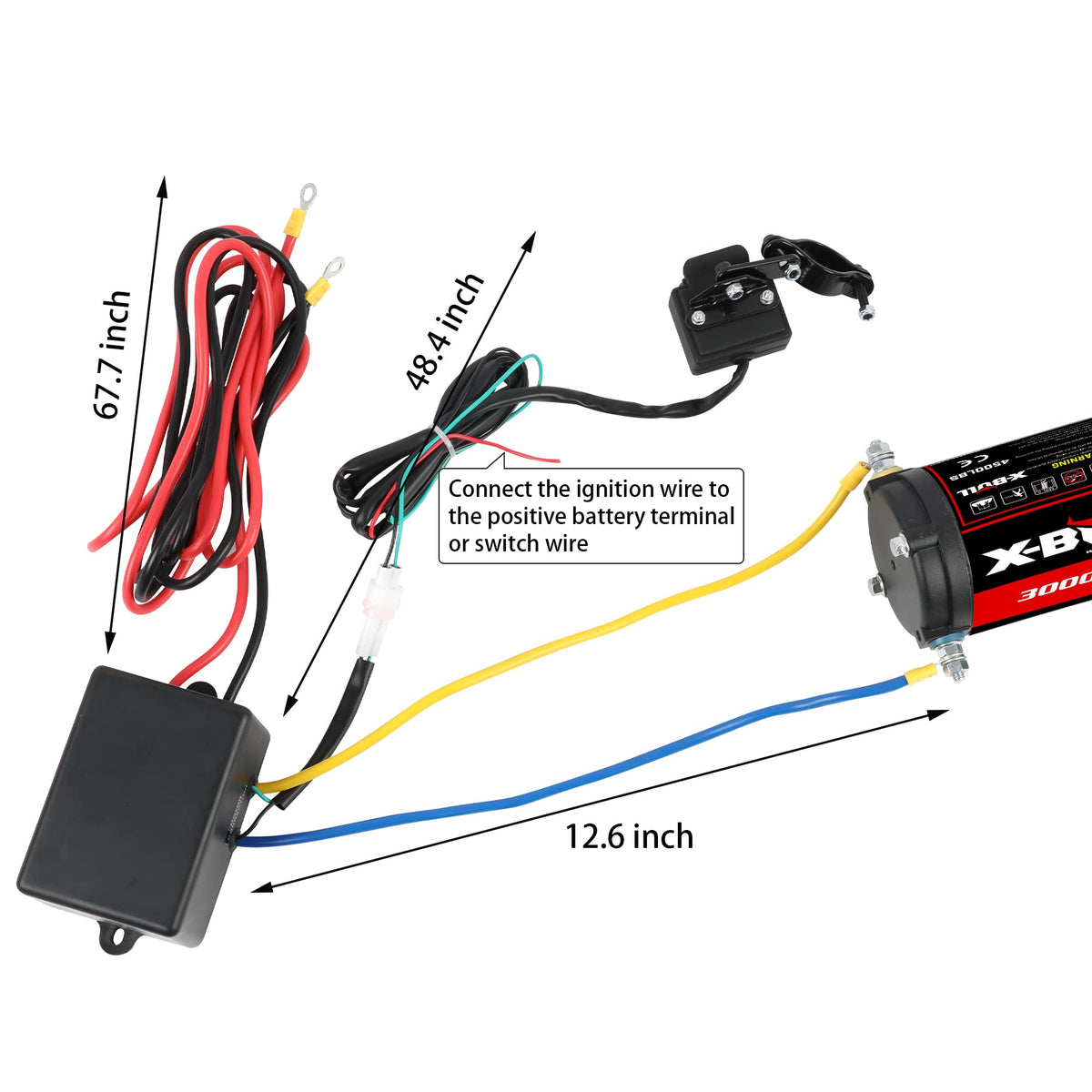

• Wiring: motor leads and battery leads pre-identified for faster hookup.

How do controls and waterproofing work for outdoor use?

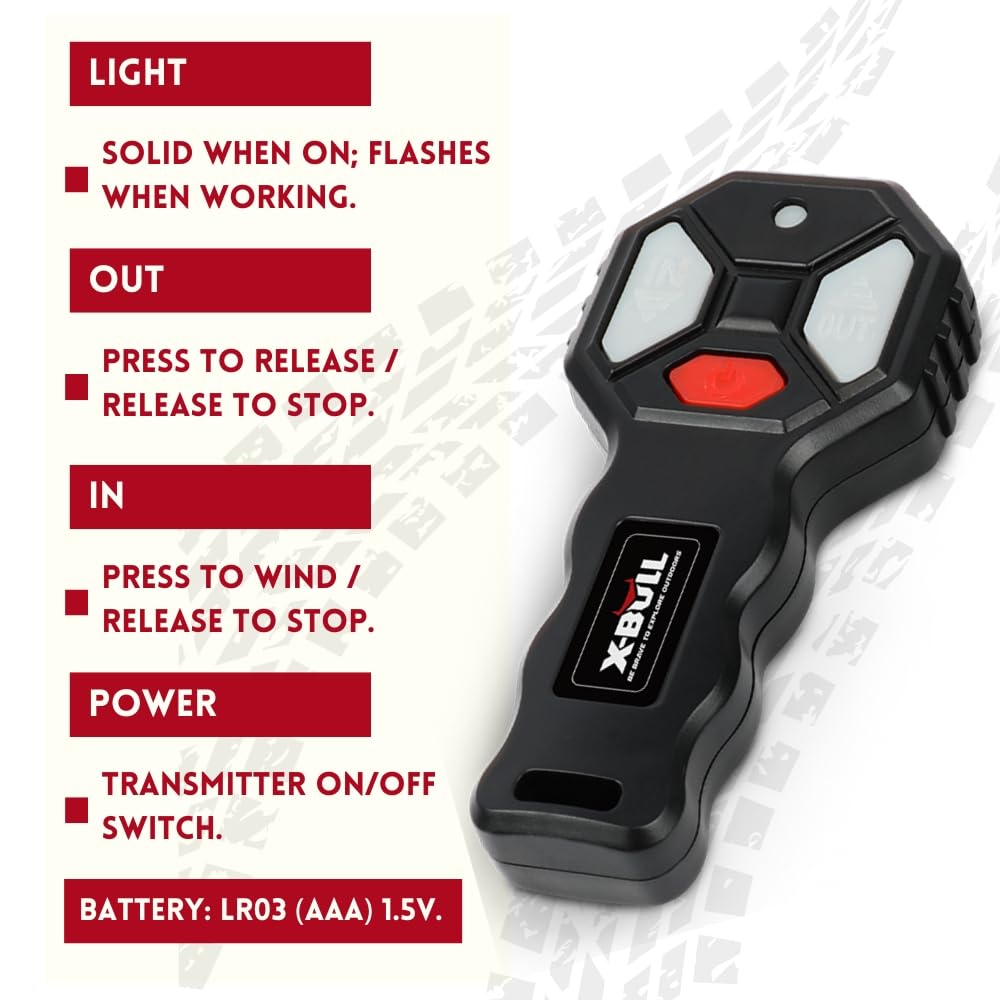

Controls include a wireless remote with roughly 9.8–11.6 m range and a handlebar rocker for on-board operation. The winch housing is powder-coated to resist corrosion and withstand typical wet or muddy conditions encountered off-road.

• Wireless remote: approx. 9.8–11.6 m operation range.
• Local control: 1.2 m handlebar rocker switch provided.
• Finish: waterproof powder-coated surface for corrosion resistance.
• Rated for outdoor use when mounted and wired correctly.

Who is this for? The X-BULL 12V 3000 lbs electric winch fits ATV and UTV riders, light-duty off-road enthusiasts, landscapers, and small-farm users who need a compact, reliable pulling tool. It’s well suited to recover stuck machines, pull trailers or logs, or assist with light towing tasks—especially where lower weight and a safer-to-handle synthetic rope are preferred over steel cable. Installers and owners who expect to customize the mounting plate to their vehicle will find the included hardware and clearly labeled wiring make setup straightforward.
