XinDeLeiHuan Programmable Ignition Module for Harley Big Twin & Sportster (Carb) — 53-644 Replacement, Single-Fire + LED Timing

This compact, sealed ignition unit gives you independent spark control for each cylinder, multiple advance curve choices, and built-in timing LED so you can tune ignition behavior without an external timing light. The anodized aluminum housing and epoxy potting protect electronics from vibration and moisture, while smart protection logic guards the module and connected coils. It is purpose-built for carbureted Harley Evolution-based engines and requires coils with 2.5–3.5 Ω resistance.

How does this module improve ignition compared with the stock unit?

The XinDeLeiHuan 53-644 uses programmable single-fire logic to trigger each plug separately rather than firing paired coils simultaneously. That produces steadier idling, cleaner starts, and more consistent spark under varying loads. Selectable advance curves let you tune timing to match cam, compression, or rider preference.

• Independent single-fire operation for each cylinder
• Multiple advance curves to suit different engine builds
• Active dwell control for consistent spark energy
• Built-in protections to prevent coil damage

What do I need to install it and how straightforward is setup?

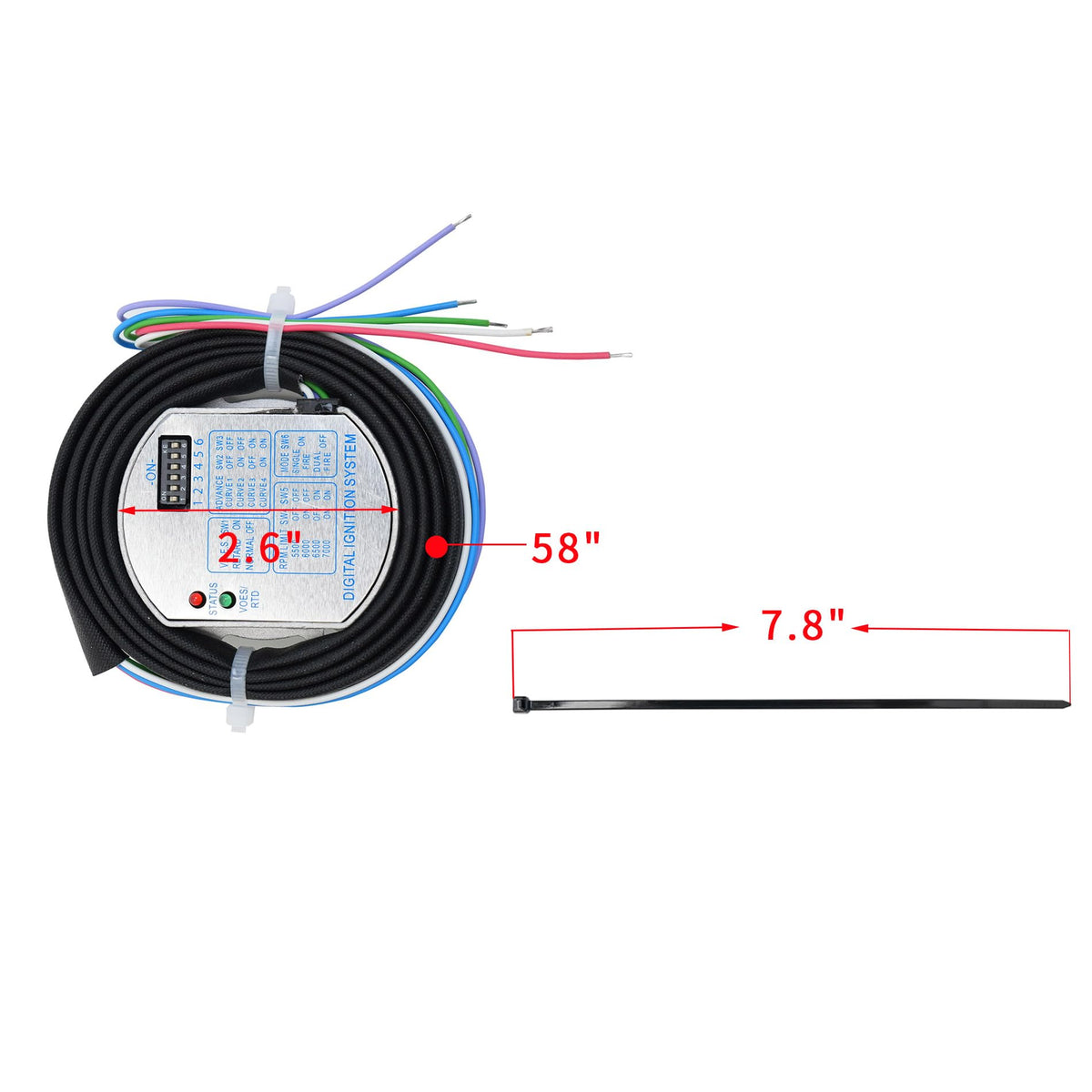

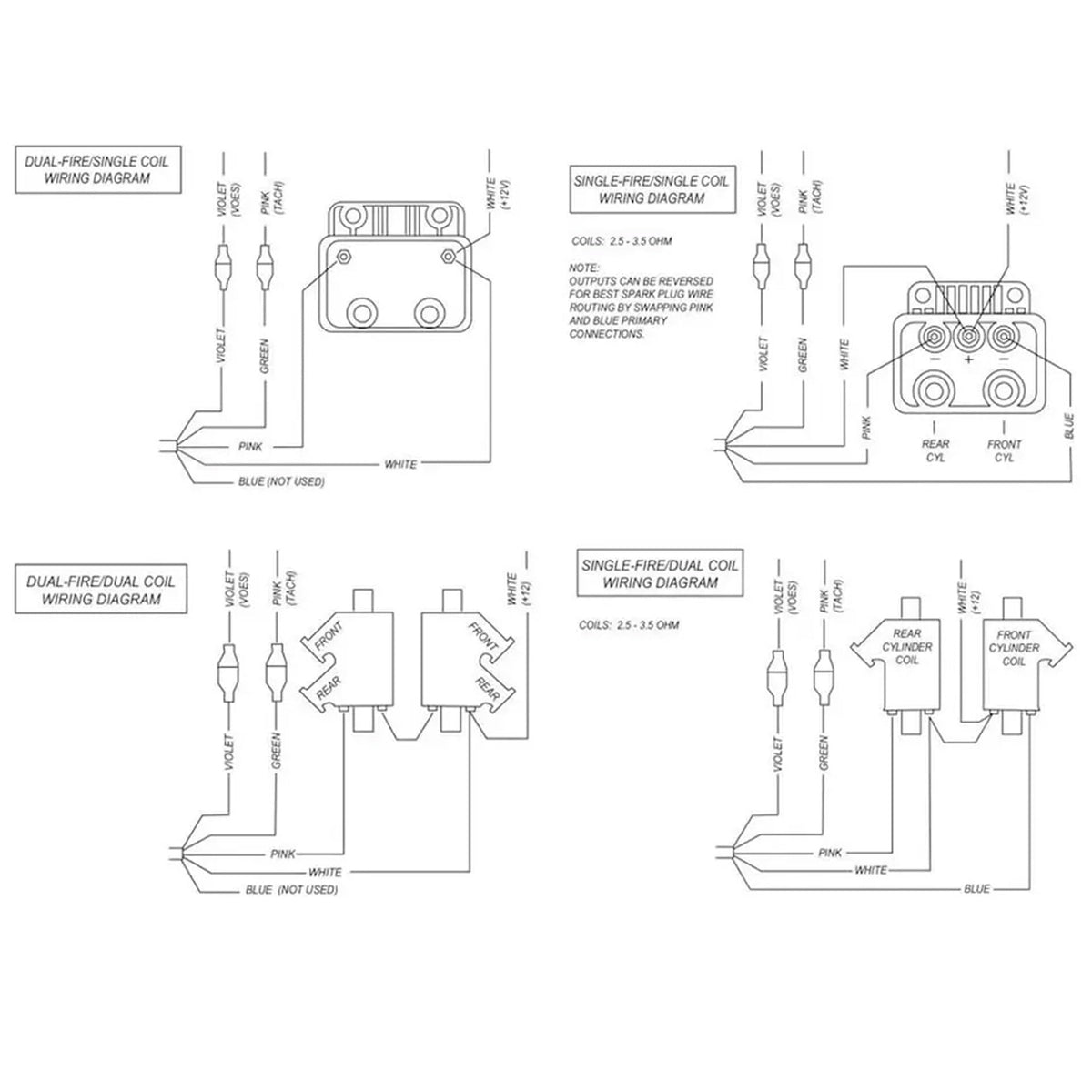

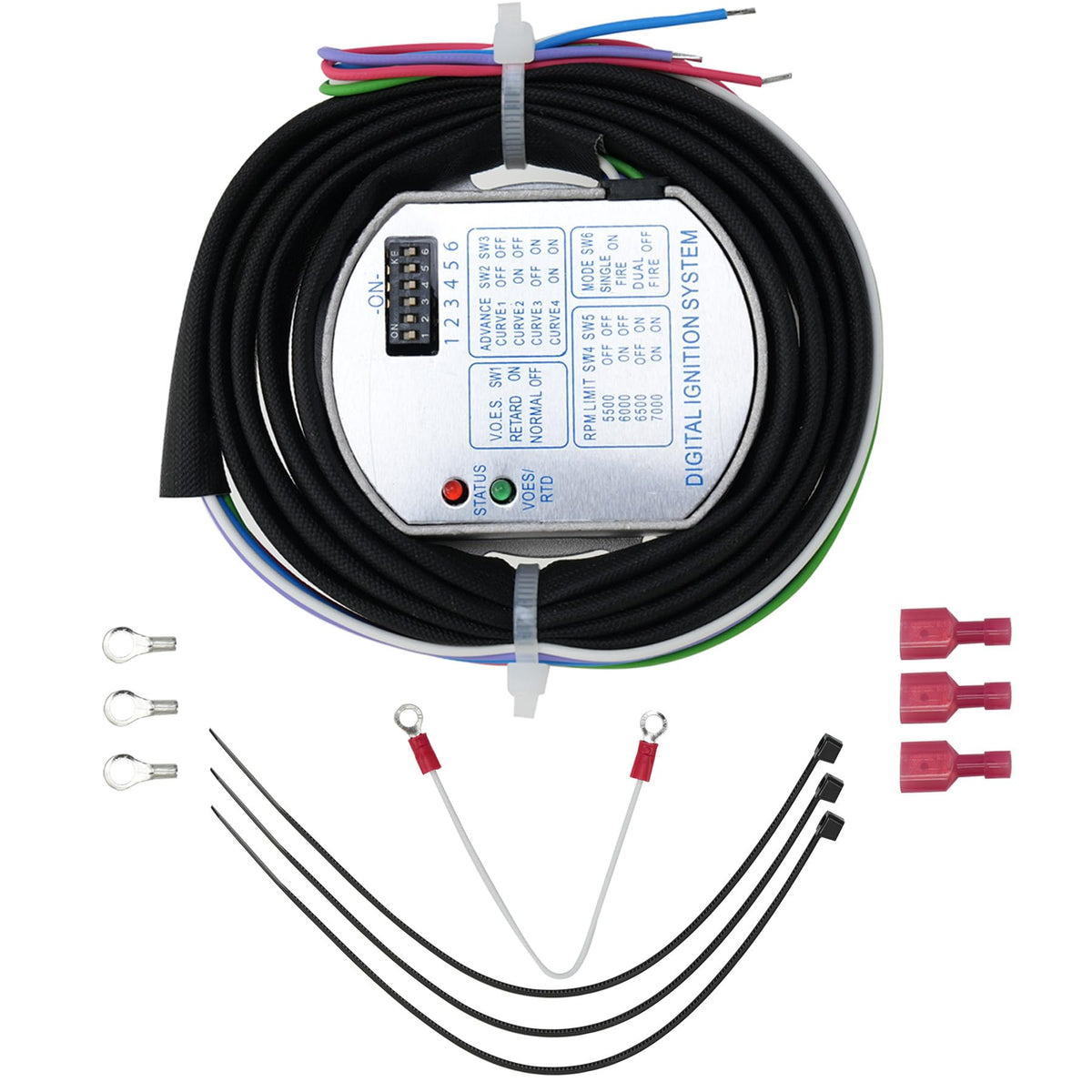

Installation is a direct-fit replacement for the OE 53-644 on compatible carbureted Harleys—remove the battery, unplug the old module, and hook up the new one following the color-coded wiring. The module’s LED simplifies static timing, eliminating the need for an external timing light during basic setup. Basic hand tools and a multimeter to verify coil resistance are recommended.

• Disconnect battery, remove old module, wire per color codes
• Use LED indicator for static timing alignment
• Verify coils are 2.5–3.5 Ω before fitting
• Optional tach and VOES wires available for advanced installs

Will this work with my motorcycle’s electrical system and coils?

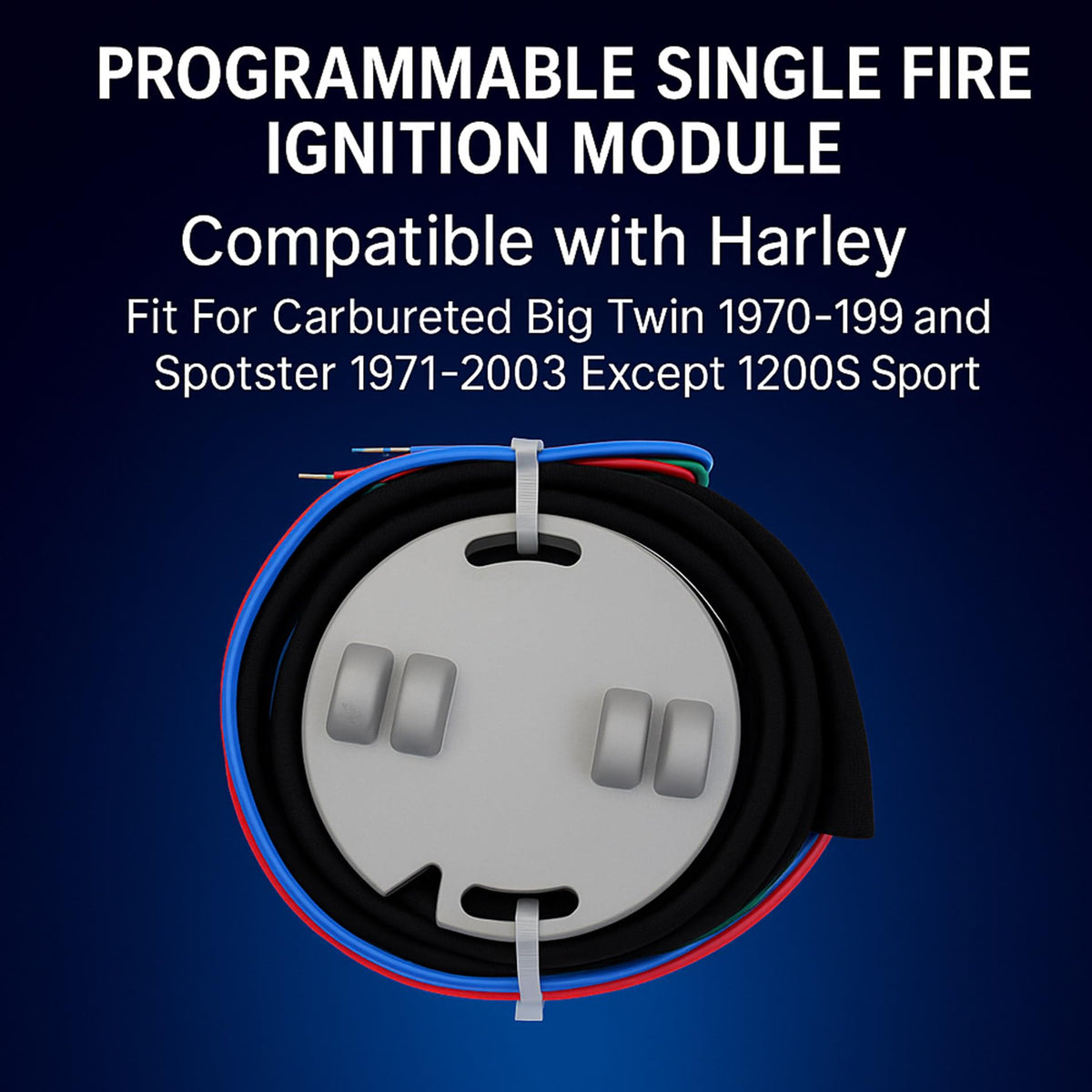

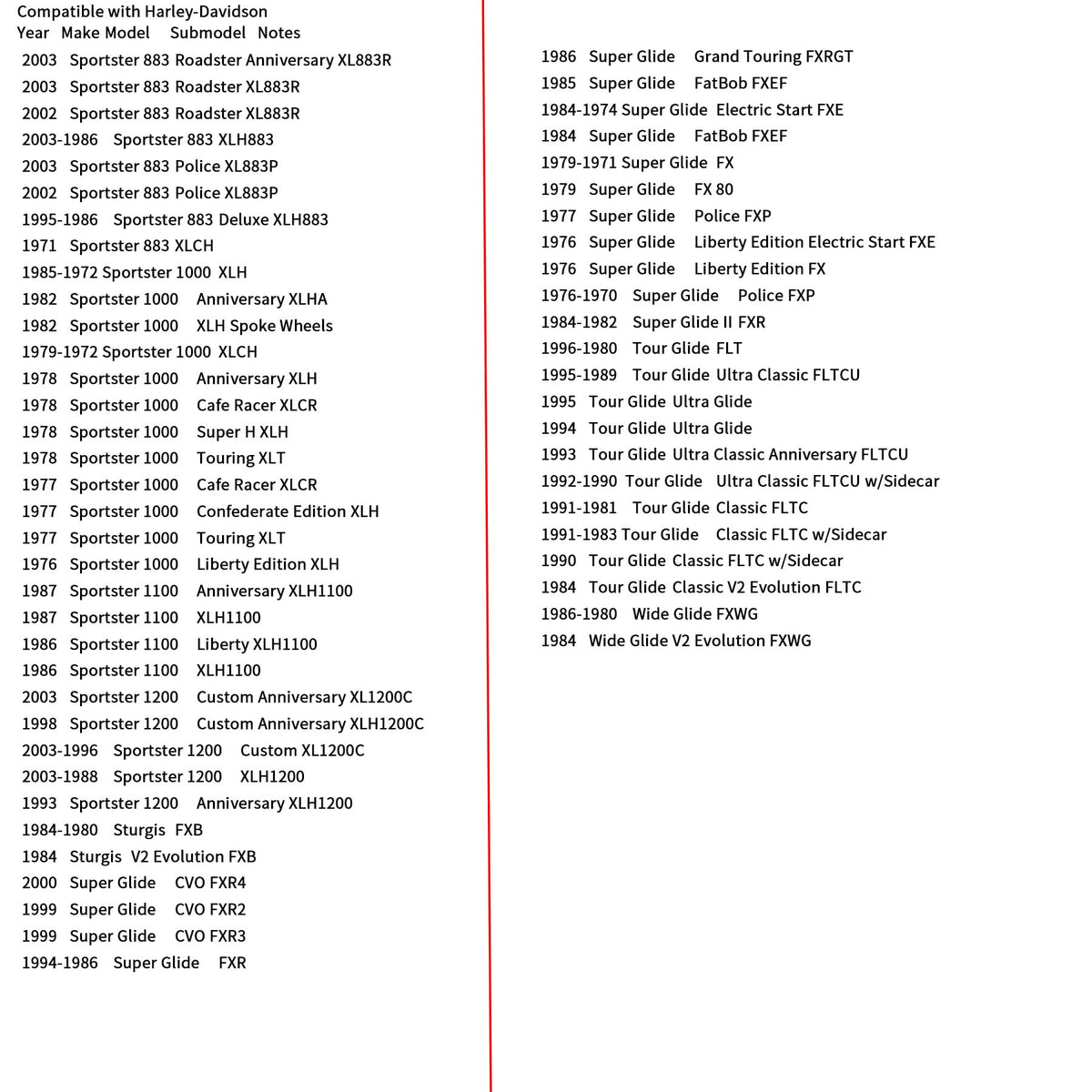

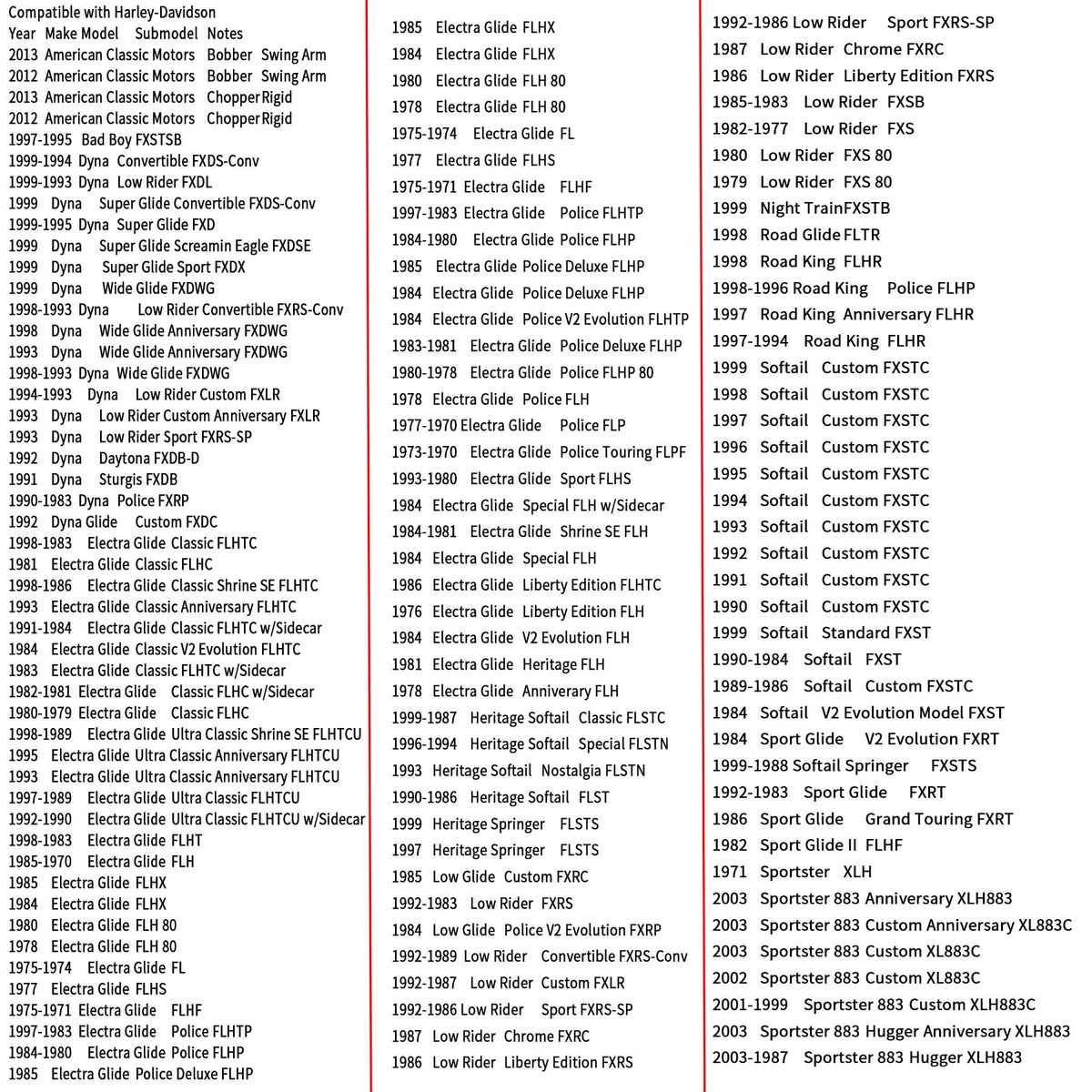

This module is designed strictly for carbureted Harley-Davidson Big Twin (1970–1999) and Sportster (1971–2003) models except the 1200S Sport; it is not compatible with EFI systems. For reliable operation, pair it with ignition coils rated between 2.5 and 3.5 ohms and use carbon or spiral-core plug wires. Fast LED flashing usually indicates incorrect coil resistance or a wiring issue.

• Compatible with carbureted Big Twin and Sportster Evolution engines
• Not suitable for EFI models or 1200S Sport bikes
• Requires coils with 2.5–3.5 Ω resistance
• Use quality plug wires and secure connectors for stability

What protections and durability features are built into the module?

The unit’s aluminum alloy case and thermally conductive epoxy are chosen to withstand heat, vibration, and moisture common on motorcycles. Internal circuitry includes overvoltage, overcurrent, and short-circuit protection plus smart dwell management to extend coil life and maintain consistent spark output. Sealing and robust mounting points reduce the risk of environmental damage during regular use.

• Heat-resistant aluminum housing with epoxy potting
• Overvoltage, overcurrent and short-circuit safeguards
• Active dwell control to protect coils and ensure spark energy
• LED for diagnostics and timing feedback

Who this is for: Riders, home mechanics, and performance tuners who own carbureted Harley-Davidson Big Twin or Sportster models (1970–1999 Big Twin, 1971–2003 Sportster except 1200S) and want a reliable, tunable ignition upgrade. It’s ideal for people replacing a worn OE 53-644, those seeking finer control over advance curves without a complex aftermarket ECU, and anyone wanting a rugged module that holds up to heat and vibration. Not recommended for EFI motorcycles or installations where coil resistance falls outside the 2.5–3.5 Ω range.
