XtraGlow 10in LED Trailer Brake Light Bar — Red 15-LED, Aluminum Base, IP67 Waterproof

XtraGlow 10" LED trailer brake light bar is a slim, weatherproof 15-LED tail/marker assembly designed to deliver clear running and full-brake visibility for trucks, trailers, and marine rigs.

This compact LED strip combines an anodized aluminum base, sealed polycarbonate lens and two-step brightness modes to give you durable, high-visibility lighting for towing, hauling and marine use. With IP67 waterproofing and a dustproof seal, the bar resists road spray, salt and grime while offering straightforward surface-mount installation and a three-wire hookup for running and brake functions.

How does the XtraGlow light improve visibility on the road?

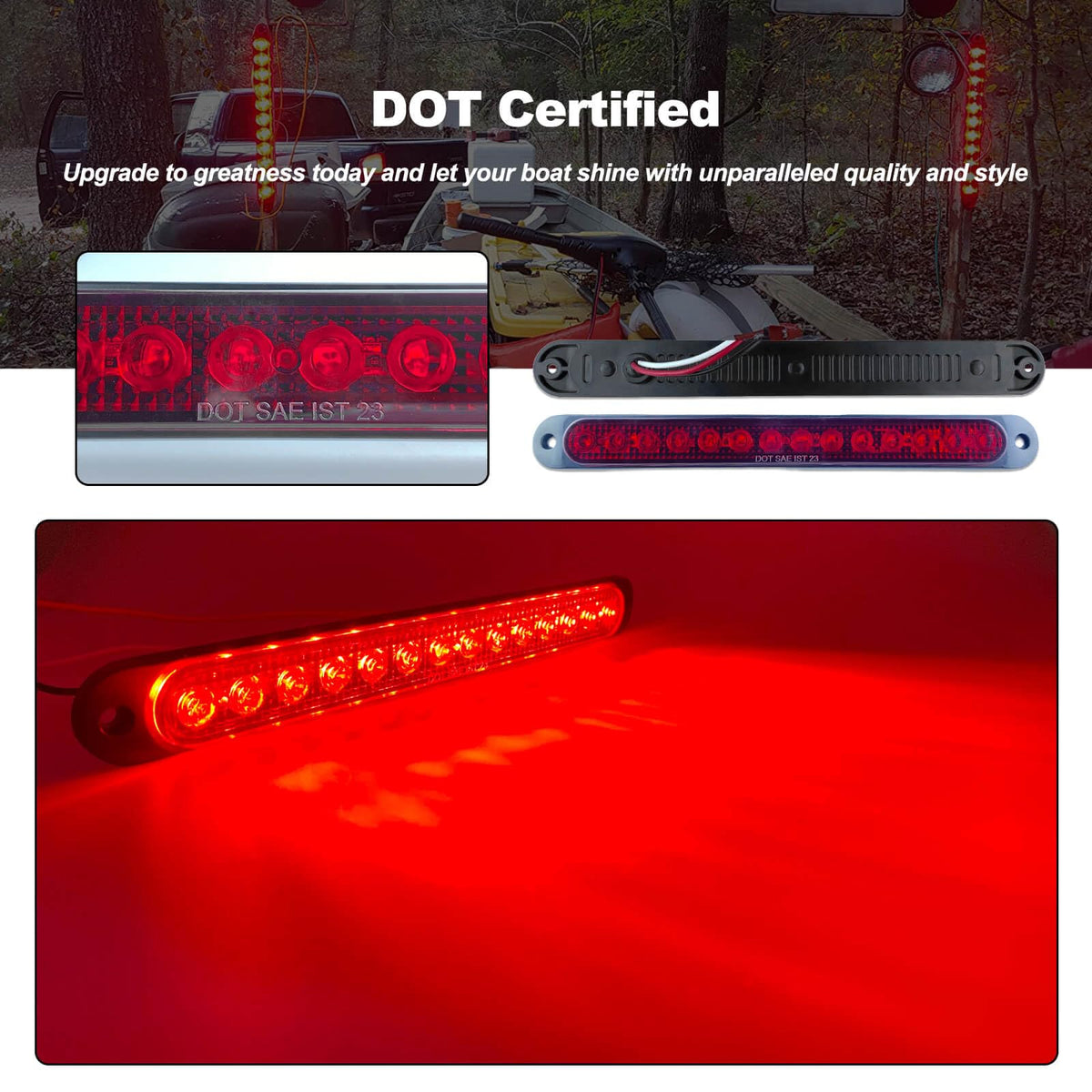

The bar uses 15 high-brightness red LEDs arranged to produce both a steady running glow and a distinct, full-intensity brake signal. The dual-mode output—60% for running lights and 100% for braking—helps following drivers distinguish normal tail illumination from an active braking event.

• 15 high-output red LEDs for uniform illumination
• Two brightness modes: reduced running and full brake intensity
• Sealed lens and aluminum base reduce glare and preserve light output

Is the assembly durable enough for marine and heavy-duty use?

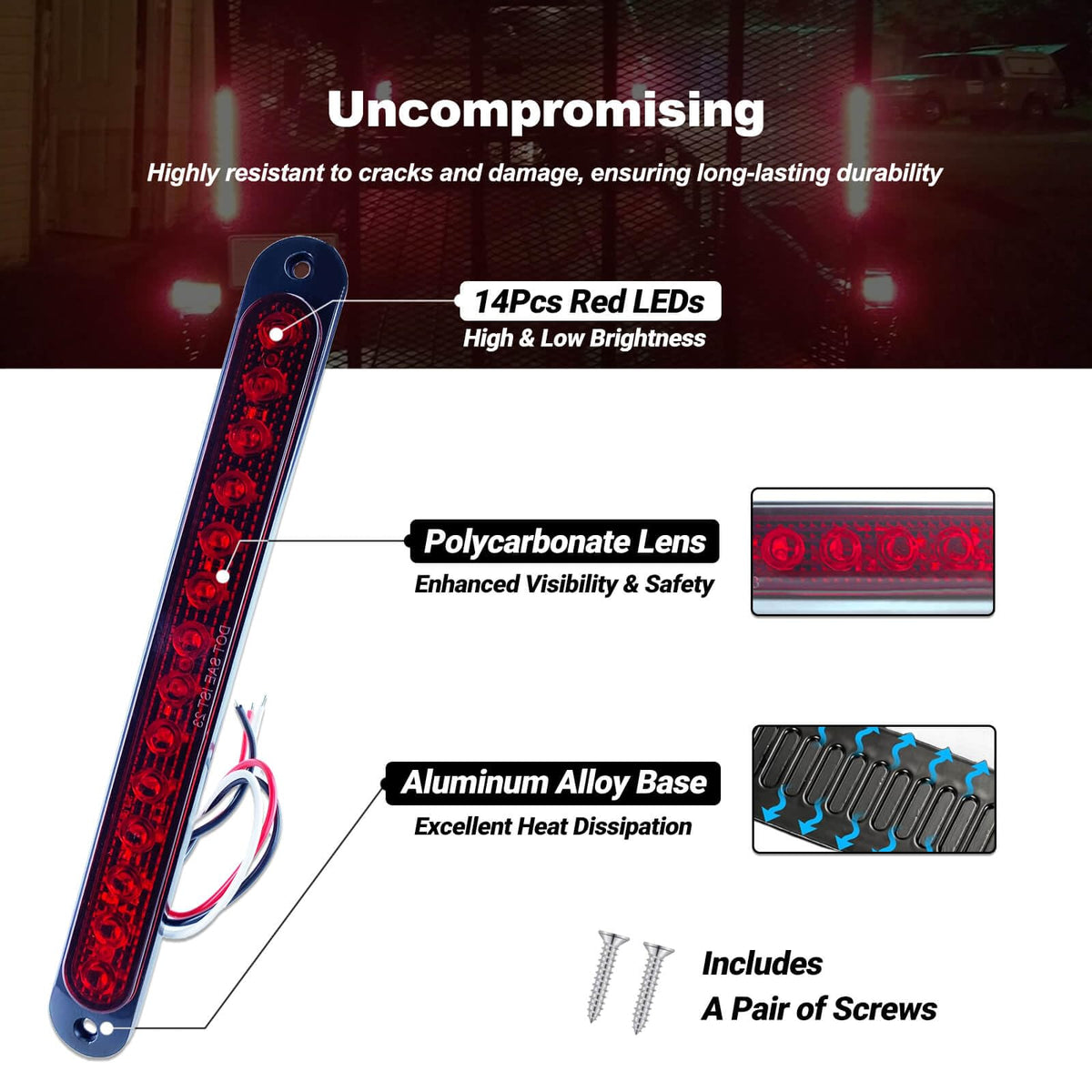

The housing is crafted from aluminum alloy for heat dissipation and structural strength, while a sealed polycarbonate lens and IP67 rating protect the electronics from water and dust. That combination makes the bar suitable for saltwater environments, road spray and heavy-duty applications where ruggedness matters.

• Aluminum alloy base for better heat management and rigidity

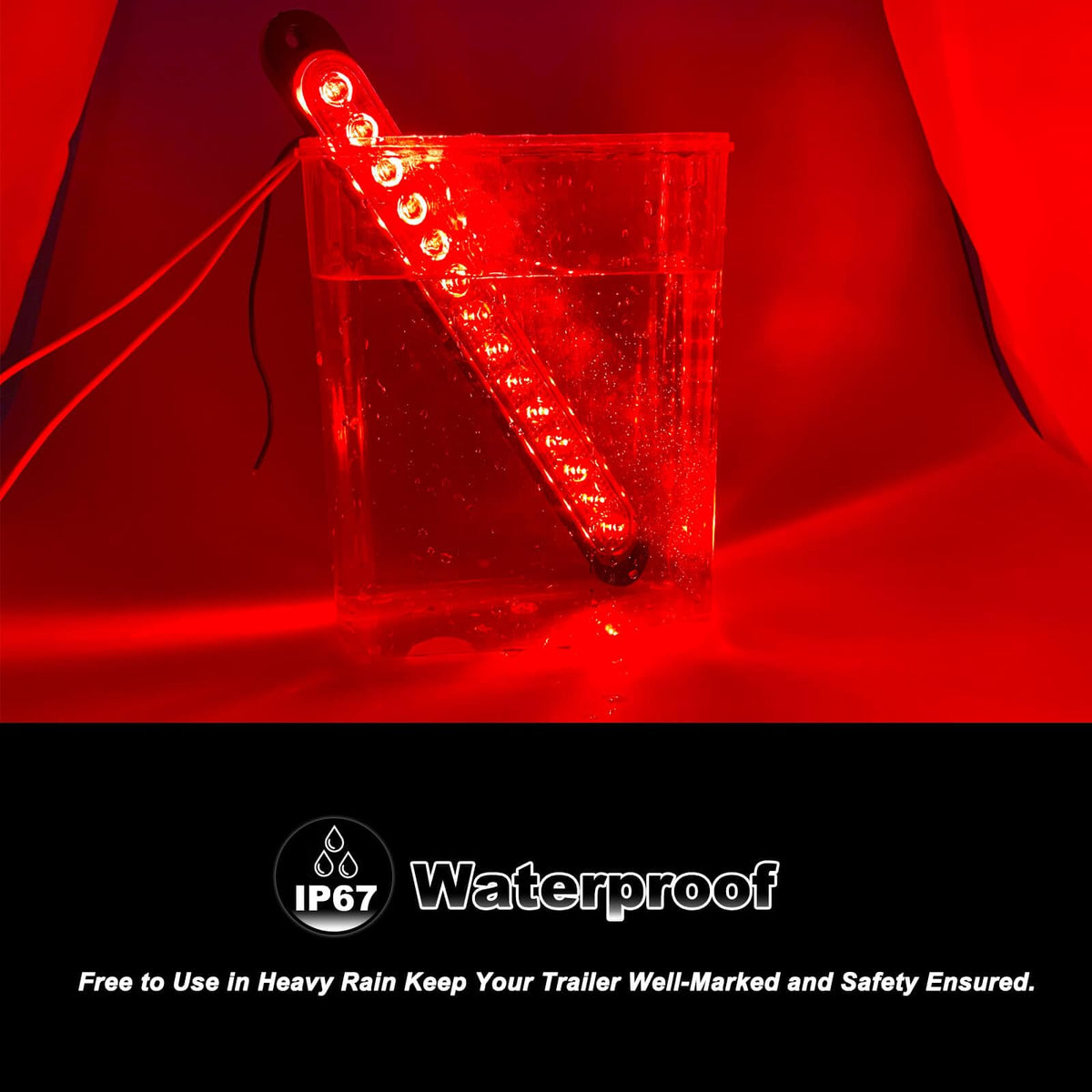

• IP67 waterproofing to withstand temporary immersion and heavy spray
• Polycarbonate lens resists impact and UV degradation

How simple is installation and wiring on trailers or trucks?

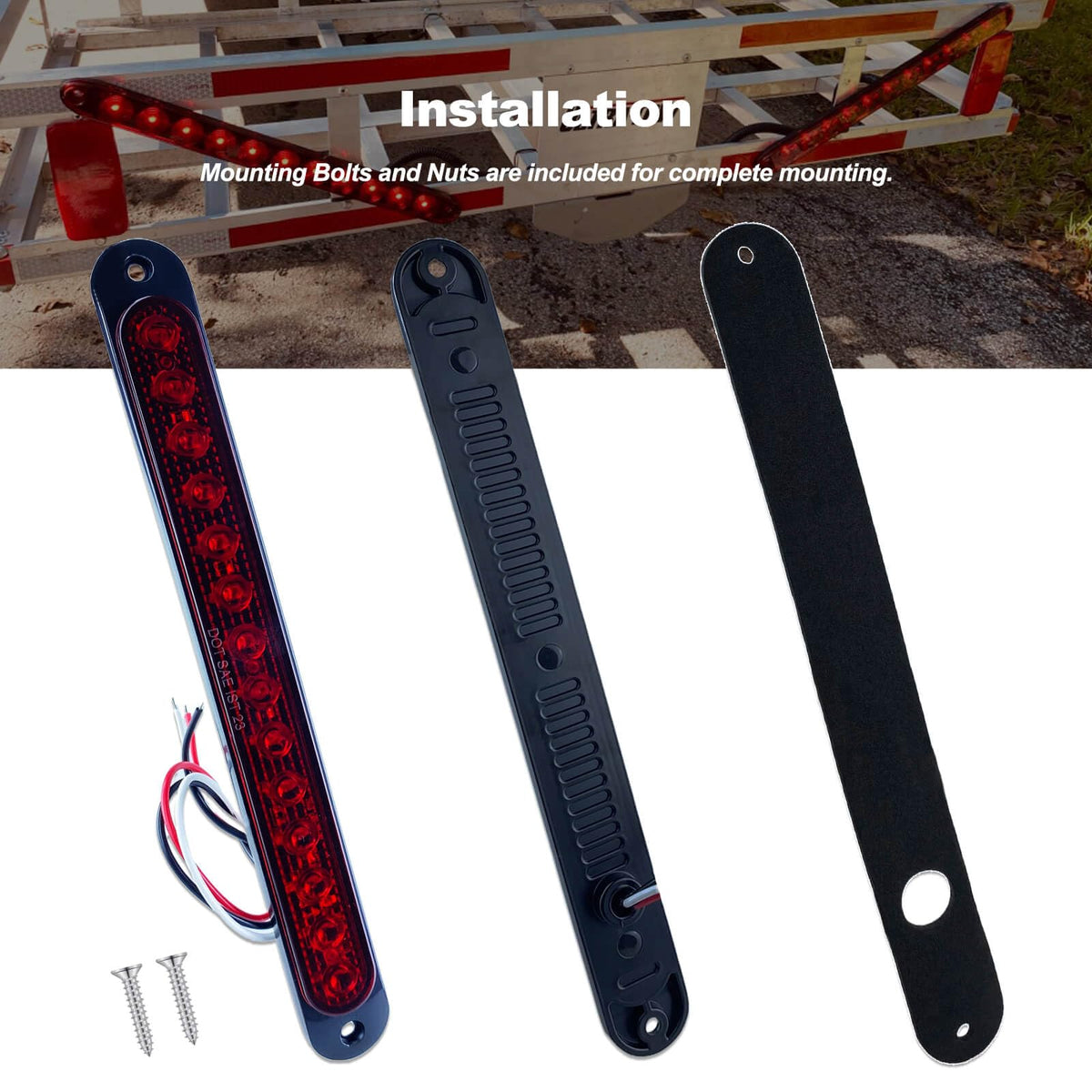

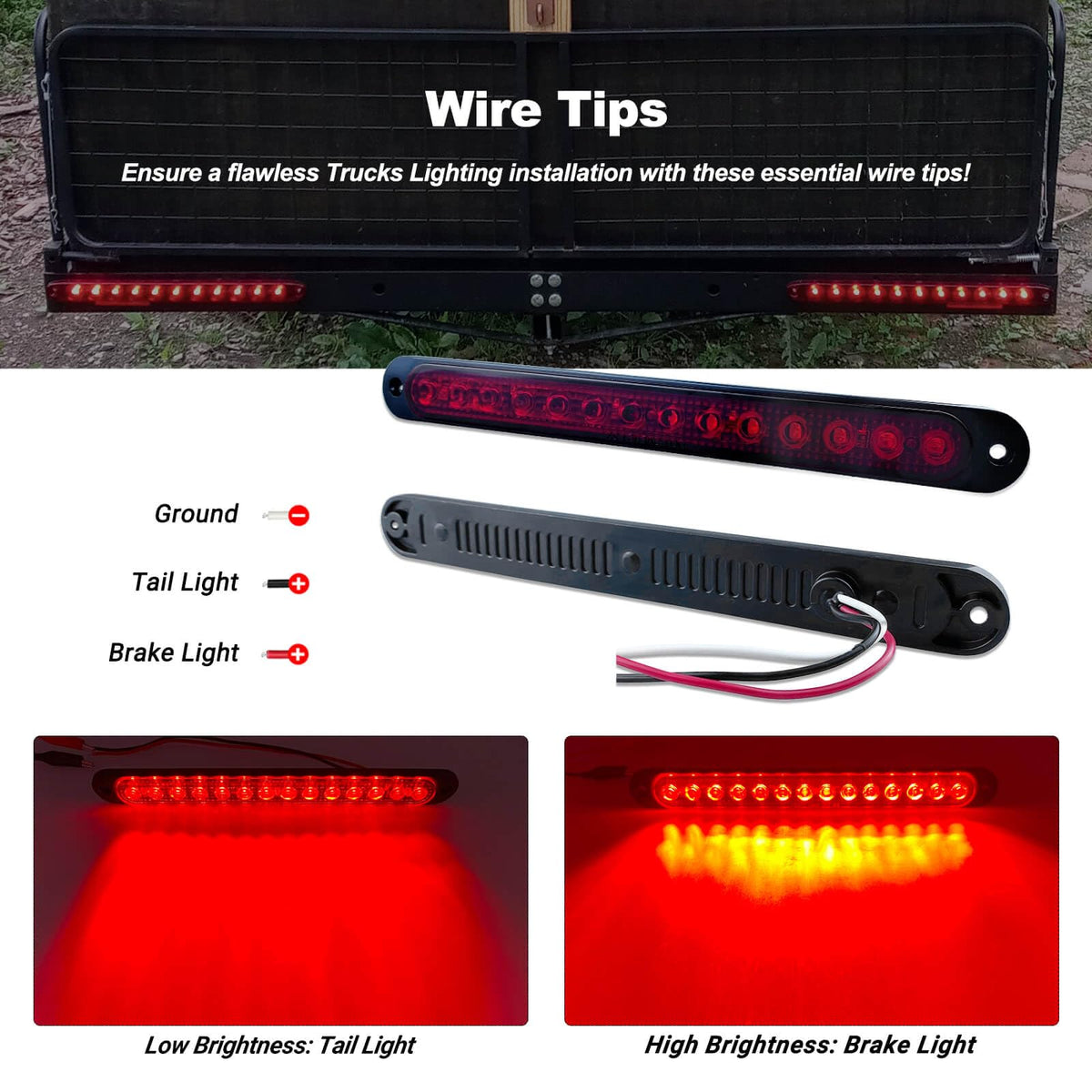

Installation is surface-mount friendly with outward lead wire notches to avoid extra drilling, and a sealed wire outlet that reduces the chance of short circuits. The unit uses a standard three-wire scheme—white negative, black running lights, red brake—so it integrates with most vehicle wiring systems.

• Surface-mount design with outward wire notches for ease
• Sealed outlet prevents moisture intrusion at the cable entry
• 3-wire connection: white (ground), black (running), red (brake)

What vehicles and applications work best with this light strip?

This LED bar fits a wide range of trailers and commercial vehicles, from small boat trailers to heavy-duty tractor-trailers, and is also suitable for marine, RV and van applications. Its slim profile makes it useful as a stop/turn/tail, side marker, clearance or running light depending on placement.

• Compatible with semi trailers, cargo and boat trailers, pickups, vans
• Works on heavy trucks including industry brands and overland rigs
• Versatile as brake, tail, running, marker or clearance light

Who is this for: The XtraGlow 10" 15-LED brake light bar is for vehicle owners and fleet managers who need a compact, weatherproof lighting solution that balances strong daytime visibility with reliable braking indication. It’s ideal for boaters, haulers, RV enthusiasts and professionals who want a low-profile, durable LED light they can mount on trailers, trucks or marine craft and expect to withstand wet, salty and dusty environments while integrating easily into standard wiring systems.
