XtremepowerUS HVAC Vacuum Pump Kit 3.5 CFM — 1-Stage Rotary Pump with 3-Valve Manifold & Hoses

XtremepowerUS 3.5 CFM 1-stage rotary vacuum pump and manifold kit is a compact, service-ready set that evacuates, gauges, and services R12, R22, R134a and R410a air conditioning systems.

This all-in-one HVAC service kit combines a lightweight die-cast vacuum pump, a three-valve manifold gauge, 36" color-coded hoses, a can tap for R134a cylinders, bottle for pump oil and a padded storage bag — everything technicians and knowledgeable DIYers need to evacuate and diagnose automotive and light commercial A/C systems with common refrigerants.

How powerful and durable is the vacuum pump?

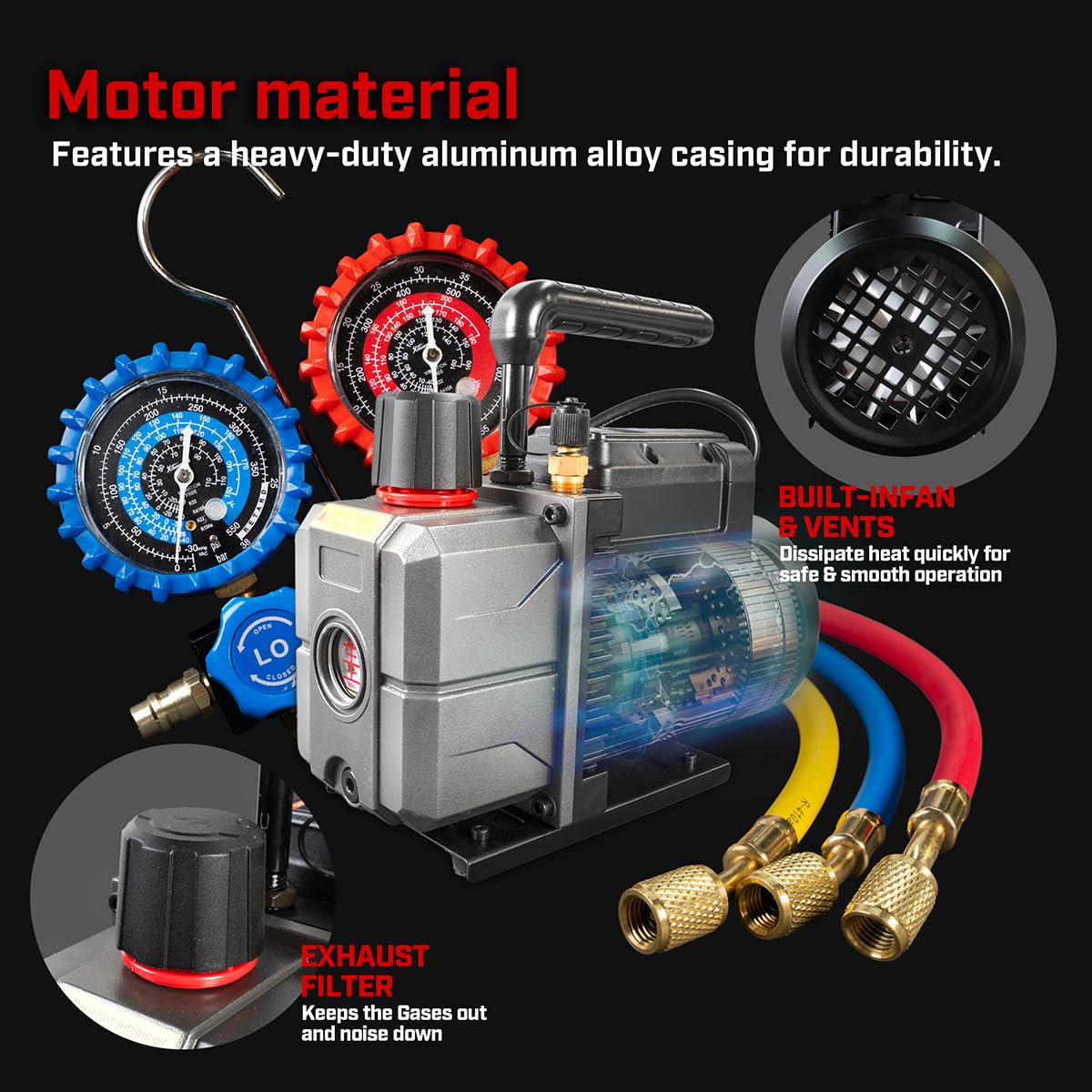

The pump is a 1/4 HP, single-stage rotary design rated around 3–3.5 CFM for fast evacuation of small to medium systems. Its die-cast aluminum housing keeps weight down while resisting corrosion and impact, and an internal cooling fan helps extend continuous run time.

• Approx. 3–3.5 CFM flow rate for efficient pull-down
• Die-cast aluminum alloy casing for strength and reduced weight
• Internal high-volume cooling fan for longer duty cycles
• Brass fittings with tethered safety caps to prevent oil leaks

What refrigerants and tasks can this manifold gauge handle?

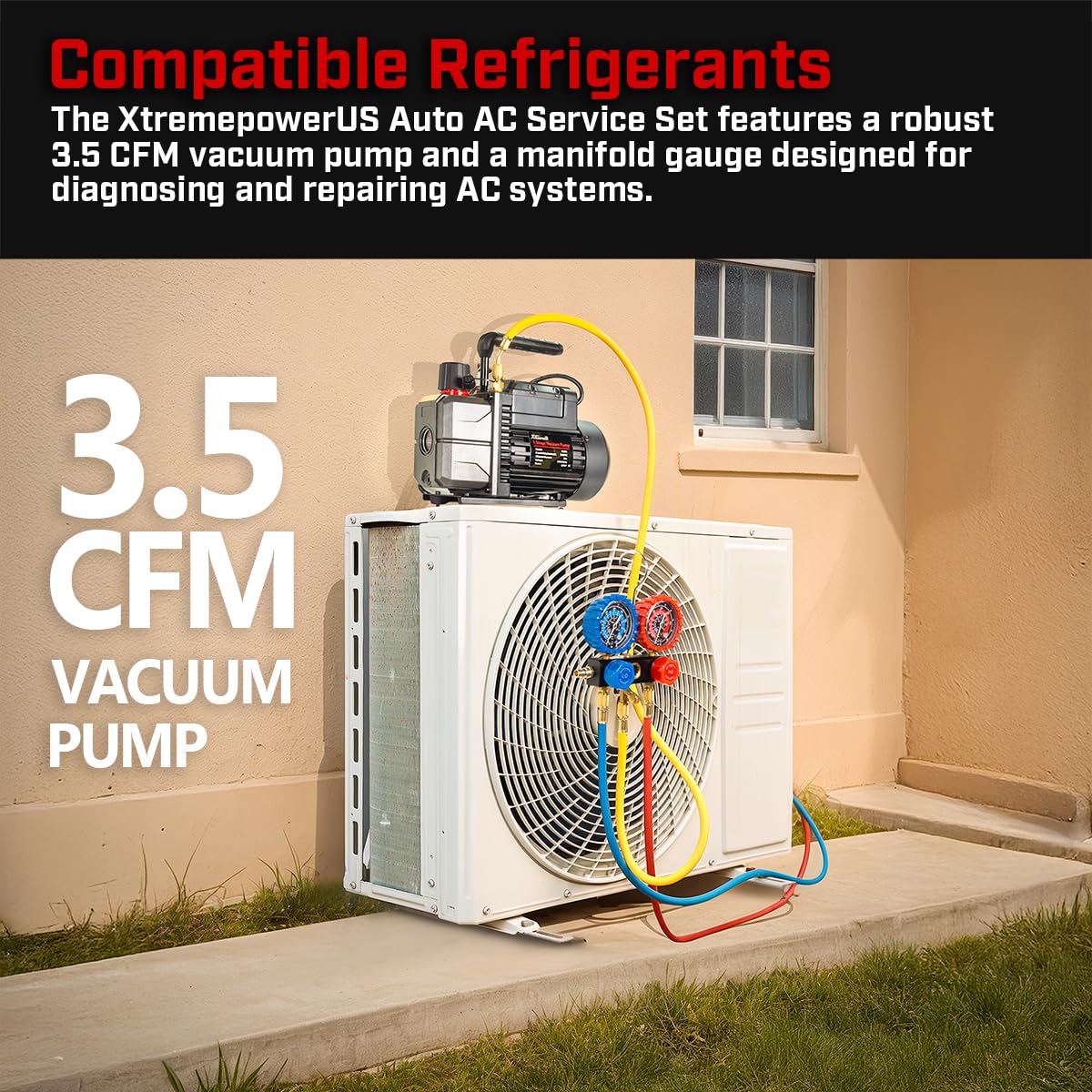

The included three-valve manifold is built for common automotive and light HVAC refrigerants — R12, R22, R134a and R410a — letting you read system pressures, perform evacuation and monitor recovery processes. It’s well suited for leak checks, pressure diagnostics and charge verification when used with proper procedures and PPE.

• Works with R12, R22, R134a and R410a refrigerants
• Three-valve manifold for high/low/center control and venting
• Easy-to-read gauges for service diagnostics

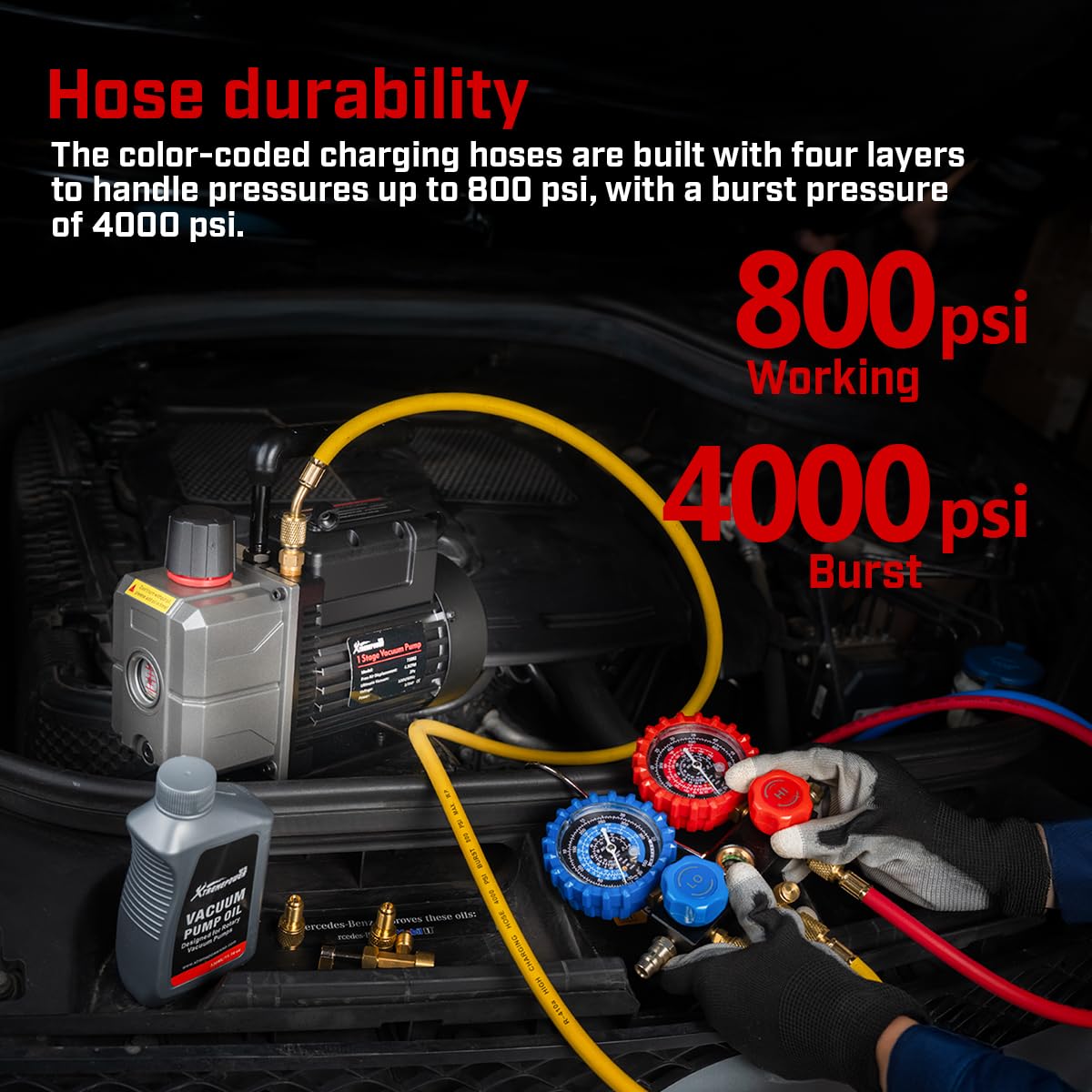

• Compatible with the included 36" color-coded hoses for safe connections

How user-friendly is maintenance and oil handling?

Routine service is straightforward: a dedicated oil fill port allows neat top-ups, and a drain plug under the reservoir speeds oil changes. The kit includes a small oil bottle for topping up and a sight indicator to help confirm correct oil level and reduce contamination risk.

• Accessible oil fill port for clean refills
• Bottom oil drain plug for quick fluid changes
• Included oil bottle for convenient topping up on the job
• Sight/spillage indicator for monitoring oil level

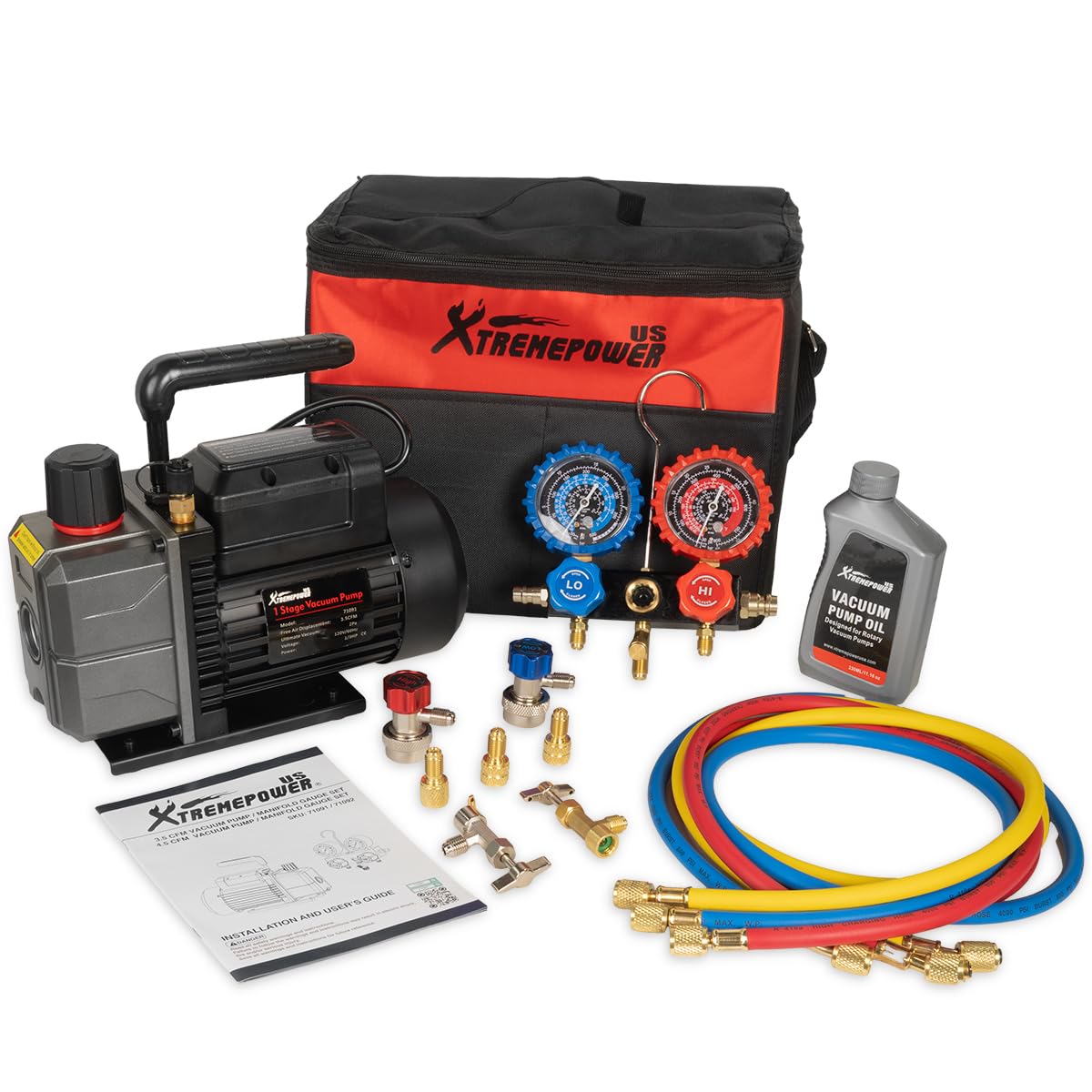

What comes in the package and how is it organized?

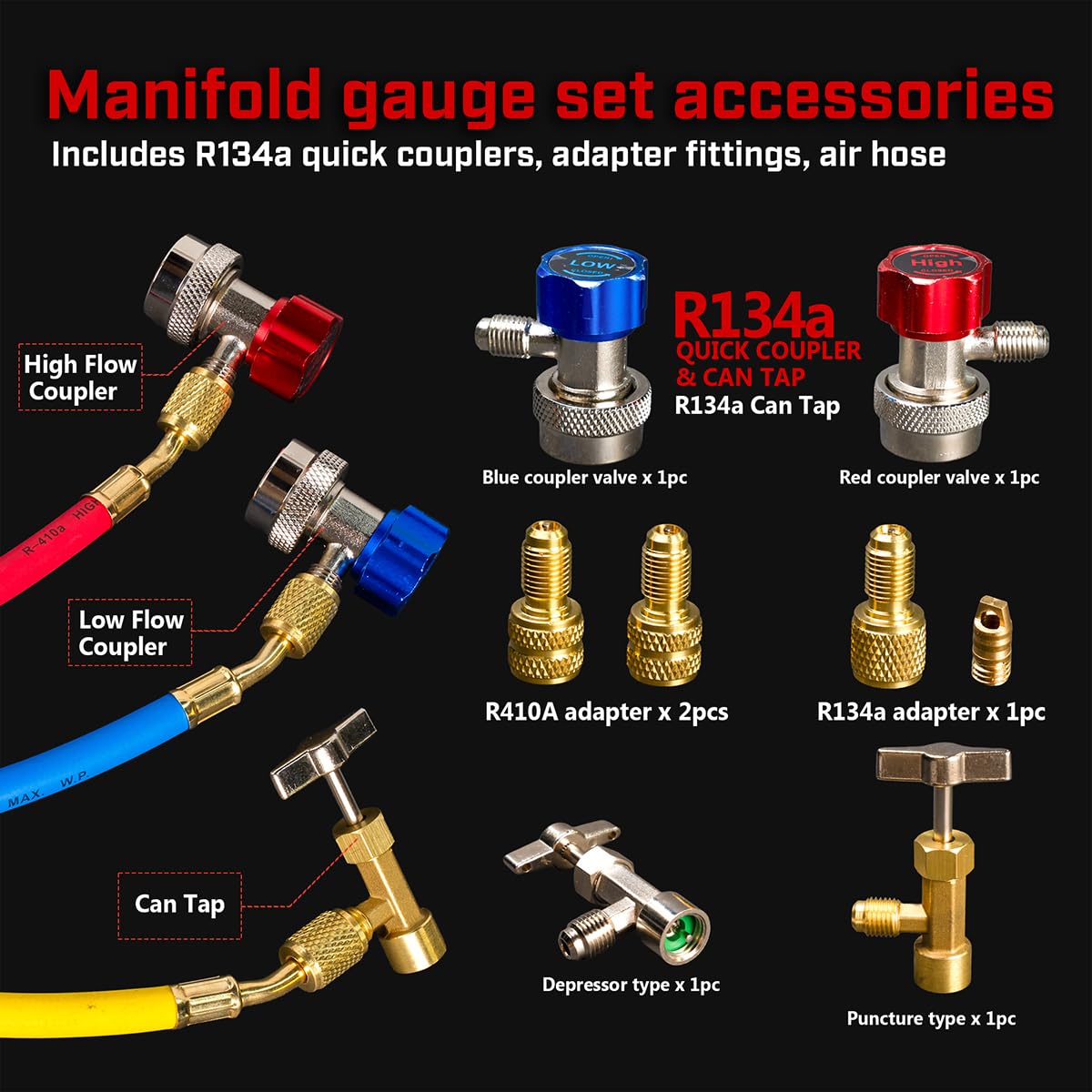

The kit ships with color-coded 36" hoses, the R134a can tap with user-friendly punch/valve control, vacuum pump oil bottle, manifold gauge and a soft carrying bag to keep everything together and protected during transport. Brass fittings and caps are provided to reduce leakage risk while handling.

• Three 36" color-coded hoses (high/low/center)
• Manifold gauge set for pressure measurement and control
• R134a can tap with hand-operated valve for cylinder dispensing
• Vacuum pump oil bottle, accessories and padded storage bag included

Who is this for: This XtremepowerUS kit is aimed at HVAC technicians, mobile service professionals and experienced DIYers who work on automotive or small commercial A/C systems. It suits users who need a portable, ready-to-use evacuation and diagnostic solution that supports the most common refrigerants and offers straightforward maintenance access without heavy industrial capacity.
